7 KeyEvent事件发送流程
7.1 ViewRootImpl.ViewPostImeInputStage.processKeyEvent
private int processKeyEvent(QueuedInputEvent q) {
final KeyEvent event = (KeyEvent)q.mEvent;
......
// Deliver the key to the view hierarchy.
if (mView.dispatchKeyEvent(event)) {
if (ViewDebugManager.DEBUG_ENG) {
Log.v(mTag, "App handle key event: event = " + event + ", mView = " + mView
+ ", this = " + this);
}
return FINISH_HANDLED;
}
......
}
专注于KeyEvent是如何发送给View层级结构的，其他的暂时不关注。
这里的mView是View层级结构的根VIew，对于Activity来说就是DecorView。
7.2 DecorView.dispatchKeyEvent
@Override
public boolean dispatchKeyEvent(KeyEvent event) {
final int keyCode = event.getKeyCode();
final int action = event.getAction();
final boolean isDown = action == KeyEvent.ACTION_DOWN;
......
if (!mWindow.isDestroyed()) {
final Window.Callback cb = mWindow.getCallback();
final boolean handled = cb != null && mFeatureId < 0 ? cb.dispatchKeyEvent(event)
: super.dispatchKeyEvent(event);
if (handled) {
return true;
}
}
return isDown ? mWindow.onKeyDown(mFeatureId, event.getKeyCode(), event)
: mWindow.onKeyUp(mFeatureId, event.getKeyCode(), event);
}
这里的mWIndow即PhoneWindow，PhoneWIndow的callback是Activity.attach的时候通过PhoneWindow.setCallback设置的，传入的是Activity自己。
那么这里的逻辑是，先调用Activity.dispatchKeyEvent去处理KeyEvent，如果Activity能够处理，那么当前输入事件被认为处理完成。否则，调用PhoneWindow.onKeyDown或者PhoneWindow.onKeyUp处理。
7.3 Activity.dispatchKeyEvent
/**
* Called to process key events. You can override this to intercept all
* key events before they are dispatched to the window. Be sure to call
* this implementation for key events that should be handled normally.
*
* @param event The key event.
*
* @return boolean Return true if this event was consumed.
*/
public boolean dispatchKeyEvent(KeyEvent event) {
onUserInteraction();
// Let action bars open menus in response to the menu key prioritized over
// the window handling it
final int keyCode = event.getKeyCode();
if (keyCode == KeyEvent.KEYCODE_MENU &&
mActionBar != null && mActionBar.onMenuKeyEvent(event)) {
return true;
}
Window win = getWindow();
if (win.superDispatchKeyEvent(event)) {
return true;
}
View decor = mDecor;
if (decor == null) decor = win.getDecorView();
return event.dispatch(this, decor != null
? decor.getKeyDispatcherState() : null, this);
}
这个方法用来处理KeyEvent事件，你可以重写这个方法，从而在所有KeyEvent发送给Window之前将其拦截。
这个方法的主要内容有：
1）、如果当前KeyEvent对应KeyEvent.KEYCODE_MENU，那么尝试让ActionBar调用onMenuKeyEvent去处理此事件。
2）、调用PhoneWindow.superDispatchKeyEvent继续往View层级结构发送KeyEvent。
3）、如果经过上面两步，当前KeyEvent还没有被处理，那么调用Activity的onKeyDown、onKeyLongPress和onKeyUp等方法去处理当前事件。
主要分析第二步。
7.4 PhoneWindow.superDispatchKeyEvent
@Override
public boolean superDispatchKeyEvent(KeyEvent event) {
return mDecor.superDispatchKeyEvent(event);
}
mDecor成员变量是一个DecorView对象，那么这里调用的就是DecorView.superDispatchKeyEvent。
7.5 DeocrView.superDispatchKeyEvent
public boolean superDispatchKeyEvent(KeyEvent event) {
......
if (super.dispatchKeyEvent(event)) {
return true;
}
......
}
这里调用的是父类的dispatchKeyEvent方法，由于直接父类FrameLayout没有重写这个方法，因此调用的就是ViewGroup的方法。
7.6 ViewGroup.dispatchKeyEvent
@Override
public boolean dispatchKeyEvent(KeyEvent event) {
......
if ((mPrivateFlags & (PFLAG_FOCUSED | PFLAG_HAS_BOUNDS))
== (PFLAG_FOCUSED | PFLAG_HAS_BOUNDS)) {
if (super.dispatchKeyEvent(event)) {
return true;
}
} else if (mFocused != null && (mFocused.mPrivateFlags & PFLAG_HAS_BOUNDS)
== PFLAG_HAS_BOUNDS) {
......
if (mFocused.dispatchKeyEvent(event)) {
return true;
}
}
......
return false;
}
这里的内容很简单：
1）、如果当前ViewGroup的mPrivateFlags有PFLAG_FOCUSED和PFLAG_HAS_BOUNDS这两个标记，那么说明当前ViewGroup拥有焦点，并且已经设置了自身的区域，那么调用基类VIew.dispatchKeyEvent，表示当前KeyEvent将由当前ViewGroup处理，不会再分发给子View。
2）、如果mFocused不为NULL，且mFocused的mPrivateFlags有PFLAG_HAS_BOUNDS，那么将事件发送给mFocused去处理。如果mFocused重写了VIew.dispatchKeyEvent方法，那么就调用mFocused自己的VIew.dispatchKeyEvent方法，否则调用基类的VIew.dispatchKeyEvent。
在进一步分析VIew.dispatchKeyEvent之前，这里有几个和焦点相关的概念需要先弄懂是什么意思。
7.6.1 PFLAG_HAS_BOUNDS
PFLAG_HAS_BOUNDS同样是mPrivateFlags的标志位之一：
/** {@hide} */
static final int PFLAG_HAS_BOUNDS = 0x00000010;
PFLAG_HAS_BOUNDS唯一被添加到mPrivateFlags的地方在View.setFrame中，那么可以尝试去理解为什么在View.dispatchKeyEvent中要去判断PFLAG_HAS_BOUNDS的意义：如果PFLAG_HAS_BOUNDS没有设置，说明此时当前View还没有layout完成，自身的frame还没有设置，那么这个View是无法作为焦点View的存在去处理当前的KeyEvent的。
7.6.2 PFLAG_FOCUSED
PFLAG_FOCUSED定义在View中，作为View的mPrivateFlags成员变量的标志位：
/** {@hide} */
static final int PFLAG_FOCUSED = 0x00000002;
首先看几个判断PFLAG_FOCUSED的地方：
/**
* Returns true if this view has focus itself, or is the ancestor of the
* view that has focus.
*
* @return True if this view has or contains focus, false otherwise.
*/
@ViewDebug.ExportedProperty(category = "focus")
public boolean hasFocus() {
return (mPrivateFlags & PFLAG_FOCUSED) != 0;
}
/**
* Returns true if this view has focus
*
* @return True if this view has focus, false otherwise.
*/
@ViewDebug.ExportedProperty(category = "focus")
@InspectableProperty(hasAttributeId = false)
public boolean isFocused() {
return (mPrivateFlags & PFLAG_FOCUSED) != 0;
}
hasFocus注释是说，如果某一个View的mPrivateFlags包含PFLAG_FOCUSED，说明当前View持有焦点，或者是持有焦点的View的祖先View。
isFocused注释是说，如果某一个View的mPrivateFlags包含PFLAG_FOCUSED，说明当前View持有焦点。
感觉这个两个方法的意义是有一点冲突。
7.6.3 View.handleFocusGainInternal
PFLAG_FOCUSED唯一添加到mPrivateFlags的地方在View.handleFocusGainInternal：
/**
* Give this view focus. This will cause
* {@link #onFocusChanged(boolean, int, android.graphics.Rect)} to be called.
*
* Note: this does not check whether this {@link View} should get focus, it just
* gives it focus no matter what. It should only be called internally by framework
* code that knows what it is doing, namely {@link #requestFocus(int, Rect)}.
*
* @param direction values are {@link View#FOCUS_UP}, {@link View#FOCUS_DOWN},
* {@link View#FOCUS_LEFT} or {@link View#FOCUS_RIGHT}. This is the direction which
* focus moved when requestFocus() is called. It may not always
* apply, in which case use the default View.FOCUS_DOWN.
* @param previouslyFocusedRect The rectangle of the view that had focus
* prior in this View's coordinate system.
*/
void handleFocusGainInternal(@FocusRealDirection int direction, Rect previouslyFocusedRect) {
if (DBG || ViewDebugManager.DEBUG_FOCUS) {
System.out.println(this + " requestFocus()");
Log.d(VIEW_LOG_TAG, "handleFocusGainInternal: this = " + this + ", callstack = " ,
new Throwable("ViewFocus"));
}
if ((mPrivateFlags & PFLAG_FOCUSED) == 0) {
mPrivateFlags |= PFLAG_FOCUSED;
View oldFocus = (mAttachInfo != null) ? getRootView().findFocus() : null;
if (mParent != null) {
mParent.requestChildFocus(this, this);
updateFocusedInCluster(oldFocus, direction);
}
if (mAttachInfo != null) {
mAttachInfo.mTreeObserver.dispatchOnGlobalFocusChange(oldFocus, this);
}
onFocusChanged(true, direction, previouslyFocusedRect);
refreshDrawableState();
}
}
给当前View焦点。这将会导致View.onFocusChanged方法被调用。
注意：这里不会检查当前View是否应该取得焦点，只是把焦点给到这个View，无论如何。这个方法应该只被framwork内部的，知道当前正在发生什么的代码调用，即View.requestFocus方法。
从这里再来看7.6.2，感觉只是持有焦点的View的mPrivateFlags才会被添加PFLAG_FOCUSED标记，持有焦点的View的祖先View并不会添加。
这里除了注释中所说的View.onFocusChanged方法之外，还有一个重要的点：
mParent.requestChildFocus(this, this);
调用了ViewParent.requestChildFocus方法，这个后面会一起分析。
7.6.4 ViewGroup.mFocused
// The view contained within this ViewGroup that has or contains focus.
@UnsupportedAppUsage(maxTargetSdk = Build.VERSION_CODES.P, trackingBug = 115609023)
private View mFocused;
当前VIewGroup中的持有或者包含焦点的View。
唯一赋值的地方在ViewGroup.requestChildFocus方法：
@Override
public void requestChildFocus(View child, View focused) {
if (DBG || ViewDebugManager.DBG) {
System.out.println(this + " requestChildFocus()");
}
if (getDescendantFocusability() == FOCUS_BLOCK_DESCENDANTS) {
return;
}
// Unfocus us, if necessary
super.unFocus(focused);
// We had a previous notion of who had focus. Clear it.
if (mFocused != child) {
if (mFocused != null) {
mFocused.unFocus(focused);
}
mFocused = child;
}
if (mParent != null) {
mParent.requestChildFocus(this, focused);
}
}
该方法重写自ViewParent.requestChildFocus：
/**
* Called when a child of this parent wants focus
*
* @param child The child of this ViewParent that wants focus. This view
* will contain the focused view. It is not necessarily the view that
* actually has focus.
* @param focused The view that is a descendant of child that actually has
* focus
*/
public void requestChildFocus(View child, View focused);
在当前ViewParent的一个子View想要获取焦点的时候调用。
参数child代表当前ViewParent中的一个想要焦点的子View。这个子View将会包含焦点View，但是它不一定是实际持有焦点的那个View。
参数focused这里我理解的是，就是实际上那个持有焦点的View，是第一个参数child的后代View。
这里看到ViewGroup.requestChildFocus有两个重要作用，一个是将mFocused指向包含焦点的子View，另一个是递归调用父View的requestChildFocus方法。
7.6.5 焦点请求实际验证
这里写了一个demo App，层级结构是：
View Hierarchy:
DecorView@fce7e75[MainActivity]
android.widget.LinearLayout{730e35f V.E...... ........ 0,0-1200,1824}
android.view.ViewStub{6df4c47 G.E...... ......I. 0,0-0,0 #10201c4 android:id/action_mode_bar_stub}
android.widget.FrameLayout{8f1ae0a V.E...... ........ 0,48-1200,1824 #1020002 android:id/content}
com.test.inputinviewhierarchy.MyLayout{7aa567b V.E...... ........ 0,0-1200,1776}
android.widget.EditText{6349195 VFED..CL. ........ 0,0-1200,200}
android.view.View{5eeca44 V.ED..... ........ 0,1824-1200,1920 #1020030 android:id/navigationBarBackground}
android.view.View{ce5072d V.ED..... ........ 0,0-1200,48 #102002f android:id/statusBarBackground}
简化掉不必要的部分：
View Hierarchy:
DecorView@fce7e75[MainActivity]
android.widget.LinearLayout{730e35f V.E...... ........ 0,0-1200,1824}
android.widget.FrameLayout{8f1ae0a V.E...... ........ 0,48-1200,1824 #1020002 android:id/content}
com.test.inputinviewhierarchy.MyLayout{7aa567b V.E...... ........ 0,0-1200,1776}
android.widget.EditText{6349195 VFED..CL. ........ 0,0-1200,200}
其中MyLayout是我自己写的Activity加载的布局结构，继承RelativeLayout，只包含了一个普通的EditText。

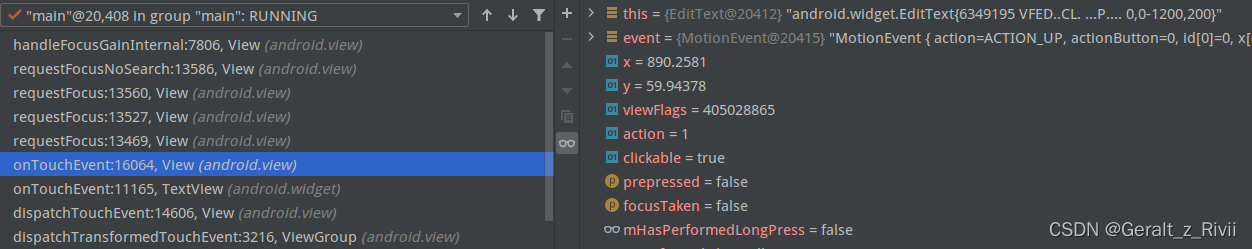

首先Activity启动后，EditText并不会请求焦点，但是如果我们用手指点击了EditText的相关区域，EditText就会去请求焦点：
这里看到EditText是在View.onTouchEvent中调用View.requestFocus去请求了焦点，最终会调用到View.handleFocusGainInternal中。并且整个过程中，只有EditText调用了handleFocusGainInternal方法，其他View并没有调用，这也印证了7.6.3的说法，只有持有焦点的View的mPrivateFlags才会被添加PFLAG_FOCUSED标记，持有焦点的View的祖先View并不会添加。
根据7.7.3，当EditText的mPrivateFlags被添加PFLAG_FOCUSED标志之后，会调用ViewGroup.requestChildFocus方法：
mParent.requestChildFocus(this, this);
根据7.7.4，ViewGroup.requestChildFocus中会让当前ViewGroup的mFocused指向该View，并且递归调用ViewGroup.requestChildFocus：
if (mParent != null) {
mParent.requestChildFocus(this, focused);
}
递归调用的debug情况是：

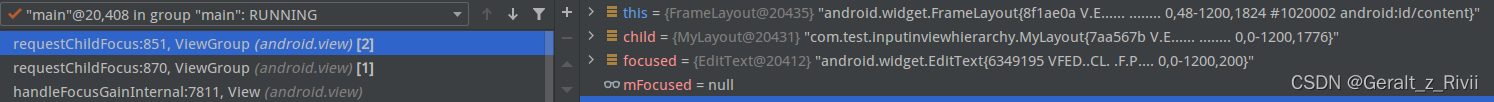

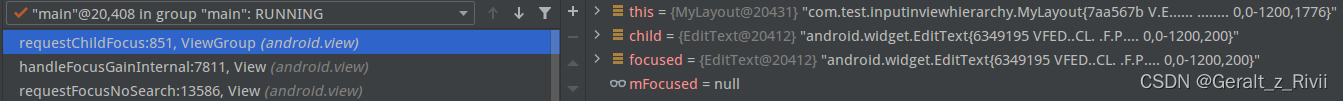

1）、MyLayout.requestChildFocus
MyLayout的mFocused指向EditText。
2）、FrameLayout.requestChildFocus
FrameLayout的mFocused指向MyLayout。
3）、LinearLayout.requestChildFocus
LinearLayout的mFocused指向FrameLayout。

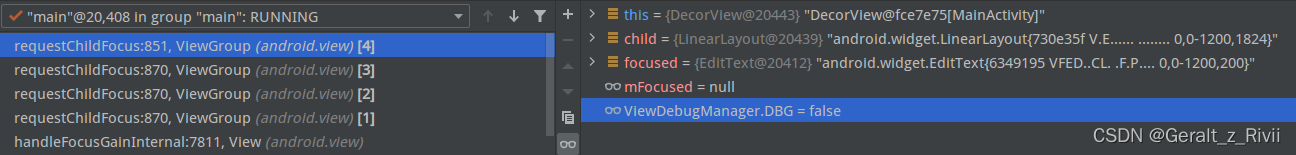

4）、DecorView.requestChildFocus
DecorView的mFocused指向LinearLayout。

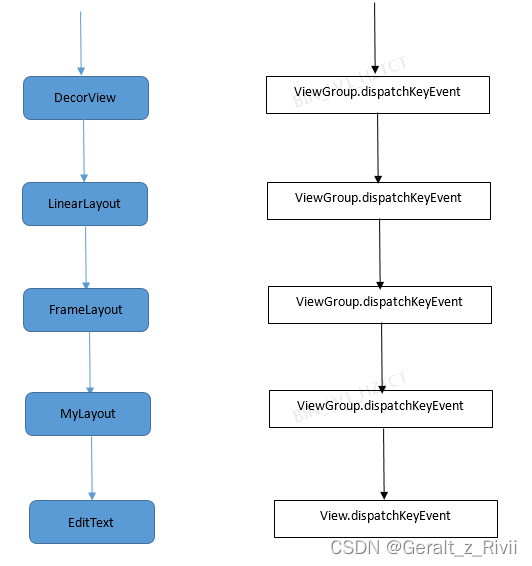

最终View层级结构中会形成一个自根View，DecorView，到调用View.requestFocus的那个View，EditText，的一条子树：
该子树上所有的View都是直接或者间接包含焦点的View，KeyEvent事件按照这个子树从上往下进行分发即可。
7.7 View.dispatchKeyEvent
接7.6继续分析最后的View.dispatchKeyEvent。
/**
* Dispatch a key event to the next view on the focus path. This path runs
* from the top of the view tree down to the currently focused view. If this
* view has focus, it will dispatch to itself. Otherwise it will dispatch
* the next node down the focus path. This method also fires any key
* listeners.
*
* @param event The key event to be dispatched.
* @return True if the event was handled, false otherwise.
*/
public boolean dispatchKeyEvent(KeyEvent event) {
......
// Give any attached key listener a first crack at the event.
//noinspection SimplifiableIfStatement
ListenerInfo li = mListenerInfo;
if (li != null && li.mOnKeyListener != null && (mViewFlags & ENABLED_MASK) == ENABLED
&& li.mOnKeyListener.onKey(this, event.getKeyCode(), event)) {
return true;
}
if (event.dispatch(this, mAttachInfo != null
? mAttachInfo.mKeyDispatchState : null, this)) {
return true;
}
......
return false;
}
7.8.1 OnKeyListener.onKey
// Give any attached key listener a first crack at the event.
//noinspection SimplifiableIfStatement
ListenerInfo li = mListenerInfo;
if (li != null && li.mOnKeyListener != null && (mViewFlags & ENABLED_MASK) == ENABLED
&& li.mOnKeyListener.onKey(this, event.getKeyCode(), event)) {
return true;
}
如果ListenerInfo类型的成员变量mListenerInfo中的OnKeyListener类型的成员变量mOnKeyListener不为NULL，说明当前View通过View.setOnKeyListener：
/**
* Register a callback to be invoked when a hardware key is pressed in this view.
* Key presses in software input methods will generally not trigger the methods of
* this listener.
* @param l the key listener to attach to this view
*/
public void setOnKeyListener(OnKeyListener l) {
getListenerInfo().mOnKeyListener = l;
}
注册了一个OnKeyListener：
/**
* Interface definition for a callback to be invoked when a hardware key event is
* dispatched to this view. The callback will be invoked before the key event is
* given to the view. This is only useful for hardware keyboards; a software input
* method has no obligation to trigger this listener.
*/
public interface OnKeyListener {
/**
* Called when a hardware key is dispatched to a view. This allows listeners to
* get a chance to respond before the target view.
* <p>Key presses in software keyboards will generally NOT trigger this method,
* although some may elect to do so in some situations. Do not assume a
* software input method has to be key-based; even if it is, it may use key presses
* in a different way than you expect, so there is no way to reliably catch soft
* input key presses.
*
* @param v The view the key has been dispatched to.
* @param keyCode The code for the physical key that was pressed
* @param event The KeyEvent object containing full information about
* the event.
* @return True if the listener has consumed the event, false otherwise.
*/
boolean onKey(View v, int keyCode, KeyEvent event);
}
这允许KeyEvent在分发给焦点View之前，给OnKeyListener一个处理KeyEvent的机会。这里处理的都是硬件键盘产生的KeyEvent，软键盘生成的KeyEvent通常不会触发这个方法。
7.8.2 由当前View来处理KeyEvent
if (event.dispatch(this, mAttachInfo != null
? mAttachInfo.mKeyDispatchState : null, this)) {
return true;
}
如果OnKeyListener不处理本次事件，那么由当前View来处理本次事件。
这里调用了KeyEvent.dispatch方法：
/**
* Deliver this key event to a {@link Callback} interface. If this is
* an ACTION_MULTIPLE event and it is not handled, then an attempt will
* be made to deliver a single normal event.
*
* @param receiver The Callback that will be given the event.
* @param state State information retained across events.
* @param target The target of the dispatch, for use in tracking.
*
* @return The return value from the Callback method that was called.
*/
public final boolean dispatch(Callback receiver, DispatcherState state,
Object target) {
switch (mAction) {
case ACTION_DOWN: {
......
boolean res = receiver.onKeyDown(mKeyCode, this);
if (state != null) {
if (res && mRepeatCount == 0 && (mFlags&FLAG_START_TRACKING) != 0) {
......
} else if (isLongPress() && state.isTracking(this)) {
try {
if (receiver.onKeyLongPress(mKeyCode, this)) {
......
}
} catch (AbstractMethodError e) {
}
}
}
return res;
}
case ACTION_UP:
......
return receiver.onKeyUp(mKeyCode, this);
......
}
return false;
}
这里传入的Callback类型的receiver参数是VIew自身，View实现了KeyEvent.Callback接口，那么最终会调用VIew的onKeyDown、onKeyLongPress、onKeyUp和onKeyMultiple来处理当前事件。
7.8 小结
1）、KeyEvent的处理顺序优先级是，View Hierarchy > Activity > PhoneWindow，首先由View的onKeyDown和onKeyUp等方法去处理KeyEvent。如果View Hierarchy中找不到View可以处理KeyEvent，那么再调用Activity的onKeyDown和onKeyUp等方法去处理KeyEvent。如果Activity也处理不了，那么最后由PhoneWindow的onKeyDown和onKeyUp等方法去处理KeyEvent。
2）、在分发KeyEvent之前，View Hierarchy中需要先构建一个自根View至下的一个焦点VIew子树，KeyEvent只会在这个子树中进行分发，不会像MotionEvent一样遍历当前ViewGroup的所有子VIew去寻找满足接收条件的子View。这个思路和InputDispatcher向窗口分发事件是一样的，对于key类型的事件，由于这类事件不像Touch事件一样有坐标，因此我们只能事先设置一个焦点窗口/View，然后由这个焦点窗口/View来接受这个事件，否则那么多窗口/View，我们根本不知道应该把事件发送给谁。对于Touch类型的事件，由于这类事件是有坐标的，因此我们可以根据坐标还有其他一些规则，通过对窗口/View进行遍历来找到可以接收当前事件的窗口/VIew，这就不再依赖对焦点窗口/View的设置。
7771
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
