今天给大家带来的的SSM整合，在系统的学习完Spring +SpringMVC+Mybatis框架后，我们就可以开始整合SSM框架了，这里给大家介绍的是SSM_CRUD的demo项目整合，CRUD(create 创建、retrieve 查询、update 更新、delete 删除)也是SSM框架中最为常用的工程功能。
项目开源 https://github.com/AixsCode/SSM_CRUD（对ssm入门整合还是挺有帮助的、希望大家点点小手可以多给几个star哦，谢谢啦）下面是项目截图

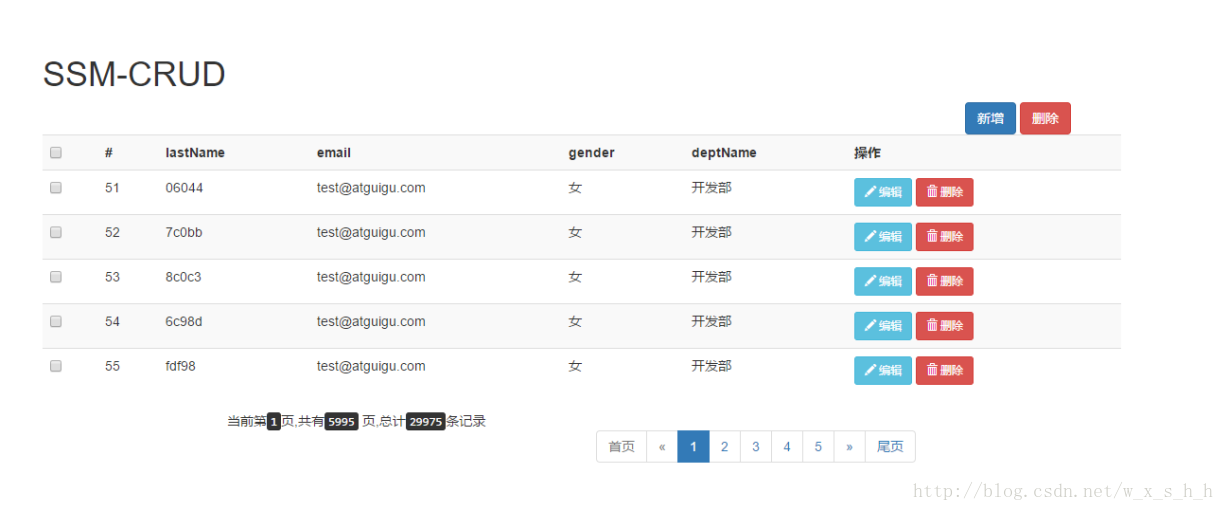

这里写图片描述
ssm_crud 项目的功能点：
1、分页
2、数据校验（Jquery前端校验+JSR303后端校验）
3、ajax
4、Rest风格的URI：使用HTTP协议请求方式的动词，来表示对资源的操作（GET(查询)、POST(新赠)、PUT(修改)、DELETE(删除)）

技术点：
1、基础框架-ssm(SpringMVC+Spring+Mybatis)
2、数据库-MySQL
3、前端框架-bootstrap快速搭建简洁美观的界面
4、项目的依赖管理-Maven
5、分页-pagehelper
6、mybatis Generator-逆向工程
接下来带领大家来进行工程的搭建：

一、基础环境搭建

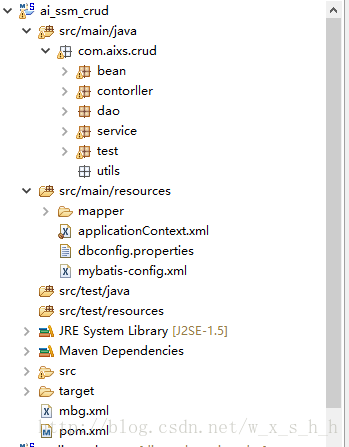

1. 1、创建一个maven工程、在pom.xml 中引入项目依赖的jar包，下面是最终目录结构：

这里写图片描述

pom.xml 代码如下：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.atguigu</groupId>
    <artifactId>ssm-crud</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>war</packaging>


    <!--引入项目依赖的jar包 -->
    <!-- SpringMVC、Spring -->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
    <dependencies>

        <!--引入pageHelper分页插件 -->
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>5.0.0</version>
        </dependency>

        <!-- MBG -->
        <!-- https://mvnrepository.com/artifact/org.mybatis.generator/mybatis-generator-core -->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.3.5</version>
        </dependency>


        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>4.3.7.RELEASE</version>
        </dependency>

        <!-- 返回json字符串的支持 -->
        <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.8.8</version>
        </dependency>

        <!--JSR303数据校验支持；tomcat7及以上的服务器，
        tomcat7以下的服务器：el表达式。额外给服务器的lib包中替换新的标准的el
        -->
        <!-- https://mvnrepository.com/artifact/org.hibernate/hibernate-validator -->
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-validator</artifactId>
            <version>5.4.1.Final</version>
        </dependency>


        <!-- Spring-Jdbc -->
        <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>4.3.7.RELEASE</version>
        </dependency>

        <!--Spring-test -->
        <!-- https://mvnrepository.com/artifact/org.springframework/spring-test -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>4.3.7.RELEASE</version>
        </dependency>


        <!-- Spring面向切面编程 -->
        <!-- https://mvnrepository.com/artifact/org.springframework/spring-aspects -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>4.3.7.RELEASE</version>
        </dependency>

        <!--MyBatis -->
        <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.2</version>
        </dependency>
        <!-- MyBatis整合Spring的适配包 -->
        <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.1</version>
        </dependency>

        <!-- 数据库连接池、驱动 -->
        <!-- https://mvnrepository.com/artifact/c3p0/c3p0 -->
        <dependency>
            <groupId>c3p0</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.1</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.41</version>
        </dependency>
        <!-- （jstl，servlet-api，junit） -->
        <!-- https://mvnrepository.com/artifact/jstl/jstl -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.0.1</version>
            <scope>provided</scope>
        </dependency>


        <!-- junit -->
        <!-- https://mvnrepository.com/artifact/junit/junit -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
    </dependencies>




</project>

到这一步我们就完全引入了项目依赖的jar包。

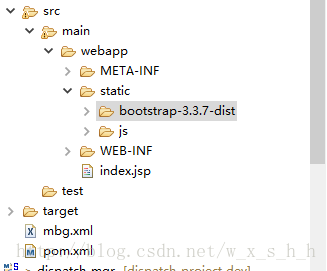

**1.2、引入bootstrap前端框架

bootstrap-3.3.7-dist可以在（http://v3.bootcss.com）进行下载，后者直接在我的github进行Download**

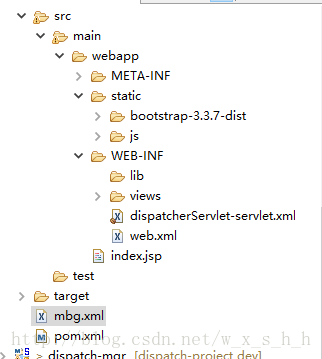

这里写图片描述

1.3、编写SSM框架的关键配置文件。

web.xml 文件 : web项目工程的必备文件，主要用来启动Spring 容器以及关联applicationContext.xml 和拦截所有请求、以及字符编码过滤器
applicationContext.xml: Spring的配置文件、和mybatis的整合配置
dispatcherServlet-servlet.xml: SpringMVC配置文件
mybatis-config.xml: mybatis配置文件

各个配置文件内容：

web.xml:

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://java.sun.com/xml/ns/javaee"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
    id="WebApp_ID" version="2.5">

    <!--1、启动Spring的容器  -->
    <!-- needed for ContextLoaderListener -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>

    <!-- Bootstraps the root web application context before servlet initialization -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!--2、springmvc的前端控制器，拦截所有请求  -->
    <!-- The front controller of this Spring Web application, responsible for handling all application requests -->
    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <!-- Map all requests to the DispatcherServlet for handling -->
    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!-- 3、字符编码过滤器，一定要放在所有过滤器之前 -->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceRequestEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
        <init-param>
            <param-name>forceResponseEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- 4、使用Rest风格的URI，将页面普通的post请求转为指定的delete或者put请求 -->
    <filter>
        <filter-name>HiddenHttpMethodFilter</filter-name>
        <filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>HiddenHttpMethodFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <filter>
        <filter-name>HttpPutFormContentFilter</filter-name>
        <filter-class>org.springframework.web.filter.HttpPutFormContentFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>HttpPutFormContentFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
    <context:component-scan base-package="com.aixs">
        <context:exclude-filter type="annotation"
            expression="org.springframework.stereotype.Controller" />
    </context:component-scan>

    <!-- Spring的配置文件，这里主要配置和业务逻辑有关的 -->
    <!--=================== 数据源，事务控制，xxx ================-->
    <context:property-placeholder location="classpath:dbconfig.properties" />

    <bean id="pooledDataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="jdbcUrl" value="${jdbc.jdbcUrl}"></property>
        <property name="driverClass" value="${jdbc.driverClass}"></property>
        <property name="user" value="${jdbc.user}"></property>
        <property name="password" value="${jdbc.password}"></property>
    </bean>

    <!--================== 配置和MyBatis的整合=============== -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 指定mybatis全局配置文件的位置 -->
        <property name="configLocation" value="classpath:mybatis-config.xml"></property>
        <property name="dataSource" ref="pooledDataSource"></property>
        <!-- 指定mybatis，mapper文件的位置 -->
        <property name="mapperLocations" value="classpath:mapper/*.xml"></property>
    </bean>

    <!-- 配置扫描器，将mybatis接口的实现加入到ioc容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--扫描所有dao接口的实现，加入到ioc容器中 -->
        <property name="basePackage" value="com.aixs.crud.dao"></property>
    </bean>
    <!-- 配置一个可以执行批量的sqlSession -->
    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
        <constructor-arg name="sqlSessionFactory" ref="sqlSessionFactory"></constructor-arg>
        <constructor-arg name="executorType" value="BATCH"></constructor-arg>
    </bean>
    <!--============================================= -->

    <!-- ===============事务控制的配置 ================-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!--控制住数据源  -->
        <property name="dataSource" ref="pooledDataSource"></property>
    </bean>
    <!--开启基于注解的事务，使用xml配置形式的事务（必要主要的都是使用配置式）  -->
    <aop:config>
        <!-- 切入点表达式 -->
        <aop:pointcut expression="execution(* com.aixs.crud.service..*(..))" id="txPoint"/>
        <!-- 配置事务增强 -->
        <aop:advisor advice-ref="txAdvice" pointcut-ref="txPoint"/>
    </aop:config>

    <!--配置事务增强，事务如何切入  -->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
            <!-- 所有方法都是事务方法 -->
            <tx:method name="*"/>
            <!--以get开始的所有方法  -->
            <tx:method name="get*" read-only="true"/>
        </tx:attributes>
    </tx:advice>
    <!-- Spring配置文件的核心点（数据源、与mybatis的整合，事务控制） -->
</beans>

dispatcherServlet-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">

    <!-- spring mvc 配置文件，包含网站跳转 -->

    <context:component-scan base-package="com.aixs" use-default-filters="false">
          <!-- 只扫描控制器 -->
          <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!-- 配置视图解析器，方便页面返回 -->

    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
         <property name="prefix" value="/WEB-INF/views/"></property>
         <property name="suffix" value=".jsp"></property>
    </bean>

    <!-- 两个标准配置 -->
    <!-- 将springmvc不能处理的请求交给tomcat -->
    <mvc:default-servlet-handler/>
    <!-- 能支持springmvc更高级的功能，JSR03验证，快捷的ajax....映射动态请求-->
    <mvc:annotation-driven/>

</beans>

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
 <configuration>

      <settings>

       <setting name="mapUnderscoreToCamelCase" value="true"></setting>
      </settings>
      <typeAliases>
         <package name="com.aixs.crud.bean"></package>
      </typeAliases>
      <plugins>
          <plugin interceptor="com.github.pagehelper.PageInterceptor">
          <!--分页参数合理化  -->
          <property name="reasonable" value="true"/>
          </plugin>
      </plugins>
</configuration>

配置完成后即可用mybatis逆向工程生成对应的bean以及mapper文件

1.4 建立mbg.xml文件进行逆向工程配置

这里写图片描述

mbg.xml内容：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
  PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
  "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>

    <context id="DB2Tables" targetRuntime="MyBatis3">
        <commentGenerator>
            <property name="suppressAllComments" value="true" />
        </commentGenerator>
        <!-- 配置数据库连接 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver"
            connectionURL="jdbc:mysql://localhost:3306/ssm_crud" userId="root"
            password="5035811wang">
        </jdbcConnection>

        <javaTypeResolver>
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>

        <!-- 指定javaBean生成的位置 -->
        <javaModelGenerator targetPackage="com.aixs.crud.bean"
            targetProject=".\src\main\java">
            <property name="enableSubPackages" value="true" />
            <property name="trimStrings" value="true" />
        </javaModelGenerator>

        <!--指定sql映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="mapper" targetProject=".\src\main\resources">
            <property name="enableSubPackages" value="true" />
        </sqlMapGenerator>

        <!-- 指定dao接口生成的位置，mapper接口 -->
        <javaClientGenerator type="XMLMAPPER"
            targetPackage="com.aixs.crud.dao" targetProject=".\src\main\java">
            <property name="enableSubPackages" value="true" />
        </javaClientGenerator>

        <!-- table指定每个表的生成策略 -->
        <table tableName="tbl_emp" domainObjectName="Employee"></table>
        <table tableName="tbl_dept" domainObjectName="Department"></table>
    </context>
</generatorConfiguration>

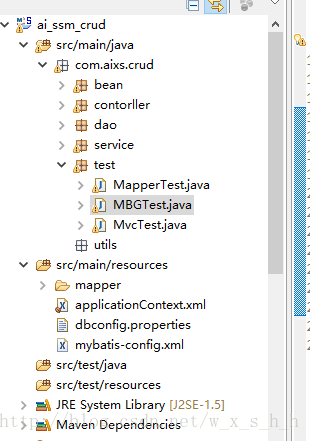

然后在test包下面创建MBGTest 进行mapper、bean文件的生成
这里写图片描述
具体内容如下：

package com.aixs.crud.test;

import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.exception.XMLParserException;
import org.mybatis.generator.internal.DefaultShellCallback;

public class MBGTest {

    public static void main(String[] args) throws Exception
    {
        List<String> warnings=new ArrayList<String>();
        boolean overwrite=true;
        File configFile=new File("mbg.xml");
        ConfigurationParser cp=new ConfigurationParser(warnings);
        Configuration config=cp.parseConfiguration(configFile);
        DefaultShellCallback callback=new DefaultShellCallback(overwrite);
        MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
        myBatisGenerator.generate(null);
    }
}

经过上述步骤，我们便完成了Spring、Spring MVC与Mybatis的整合。

二、代码结构

这里写图片描述

xiaoshengMr

关注

6
点赞
踩
24

收藏

觉得还不错? 一键收藏
0
评论
手把手带你实现Spring、SpringMVC与Mybatis整合工程的搭建

今天给大家带来的的SSM整合，在系统的学习完Spring +SpringMVC+Mybatis框架后，我们就可以开始整合SSM框架了，这里给大家介绍的是SSM_CRUD的demo项目整合，CRUD(create 创建、retrieve 查询、update 更新、delete 删除)也是SSM框架中最为常用的工程功能。项目开源 https://github.com/AixsCode/SSM_
复制链接

扫一扫

专栏目录
