高通开发板SNPE配置DSP/AIP环境

1. 下载SDK

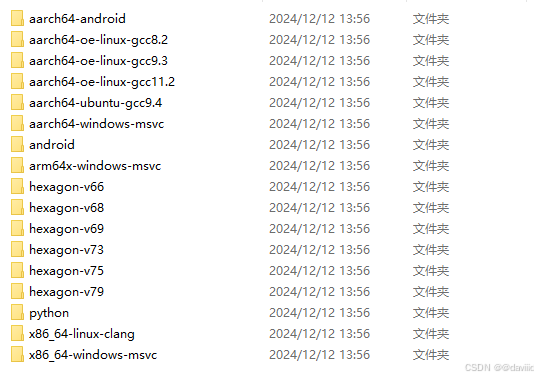

   点击SNPE下载SDK，解压后目录TOPO：

2. 确定target arch和DSP Hexagon Arch

• 安卓就选aarch64-android
• linux-arm的，选aarch64开头的，然后根据linux版本，编译器版本确定，如aarch64-ubuntu-gcc9.4代表aarch64架构，ubuntu系统，gcc9.4编译器。这个要严格对应，否则会Failed

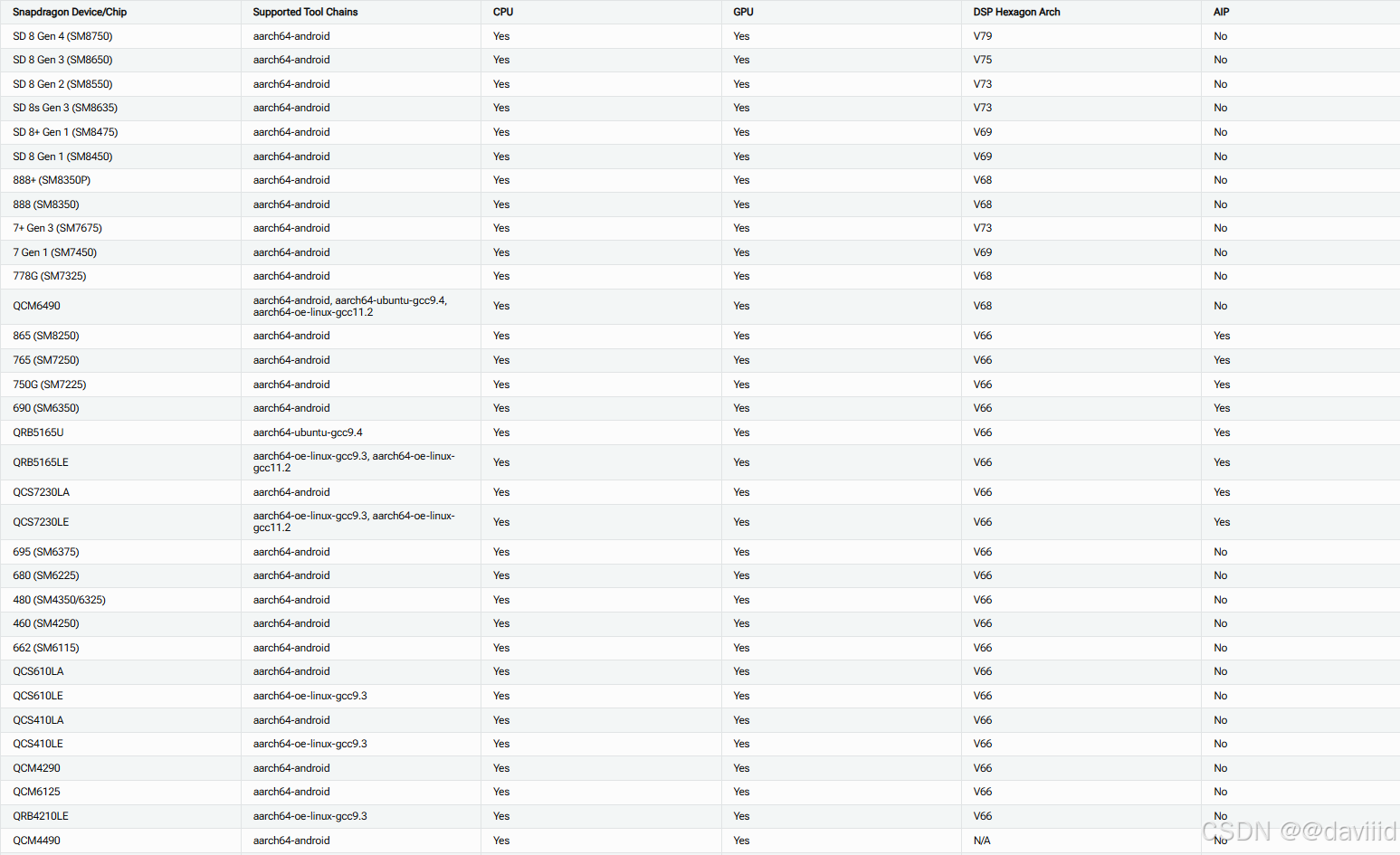

• DSP Hexagon Arch，对应SOC版本如下图，更多点击DSP & SOC：


3. 配置环境

• 推送snpe和dsp的 runtime library 到开发板

adb push aarch64-ubuntu-gcc9.4  /data
adb push hexagon-v66 /data

然后登录开发板

adb shell
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:"/data/aarch64-ubuntu-gcc9.4"
export ADSP_LIBRARY_PATH="/data/hexagon-v66/unsigned;/usr/lib/rfsa/adsp;/dsp"

PS:

• Unlike LD_LIBRARY_PATH, the path must be contained within quotations. Additionally, unlike LD_LIBRARY_PATH, the directory separator is a semi-colon, not a colon. 目录要用封号隔开而非冒号
• The DSP loader requires the environment variable ADSP_LIBRARY_PATH to be set to the directory where the shared libraries are stored. This environment variable is used for both ADSP and CDSP. CDSP和ADSP的环境变量统一使用ADSP_LIBRARY_PATH。
  /usr/lib/rfsa/adsp;/dsp dsp的驱动，一般开发板应该都配好了，否则需要自己搭。

4. 测试
   两种方法：

• snpe-platform-validator

./aarch64-ubuntu-gcc7.5/snpe-platform-validator --runtime dsp
PF_VALIDATOR: DEBUG: Calling PlatformValidator->setRuntime
PF_VALIDATOR: DEBUG: Calling PlatformValidator->IsRuntimeAvailable
PF_VALIDATOR: DEBUG: CPU side validation passed.

PF_VALIDATOR: DEBUG: Checking if backend is available
/prj/qct/webtech_scratch20/mlg_user_admin/qaisw_repo_rel/2.29.0/release/snpe_src/avante-tools/prebuilt/dsp/hexagon-sdk-4.1.0/ipc/fastrpc/rpcmem/src/rpcmem_android.c:38:dummy call to rpcmem_init, rpcmem APIs will be used from libxdsprpcPF_VALIDATOR: DEBUG: Snpe-QNN HEXNNV2 backend initialization successful
Runtime DSP Prerequisites: Present.
PF_VALIDATOR: DEBUG: Calling PlatformValidator->RuntimeCheck
PF_VALIDATOR: DEBUG: CPU side validation passed.

PF_VALIDATOR: DEBUG: Checking if backend is available
PF_VALIDATOR: DEBUG: Snpe-QNN HEXNNV2 backend initialization successful
PF_VALIDATOR: DEBUG: starting calculator test
PF_VALIDATOR: DEBUG: Loading DSP stub: libcalculator.so
PF_VALIDATOR: DEBUG: Successfully loaded DSP library - 'libcalculator.so'.  Setting up pointers.
PF_VALIDATOR: DEBUG: Success in executing the sum function
Unit Test on the runtime DSP: Passed.
SNPE is supported for runtime DSP on the device.

• c++API

zdl::SNPE::SNPEFactory::isRuntimeAvailable(zdl::DlSystem::Runtime_t::DSP）
