(即插即用模块-Attention部分) 五十八、(2024 ICME) PPA 并行化补丁感知注意力

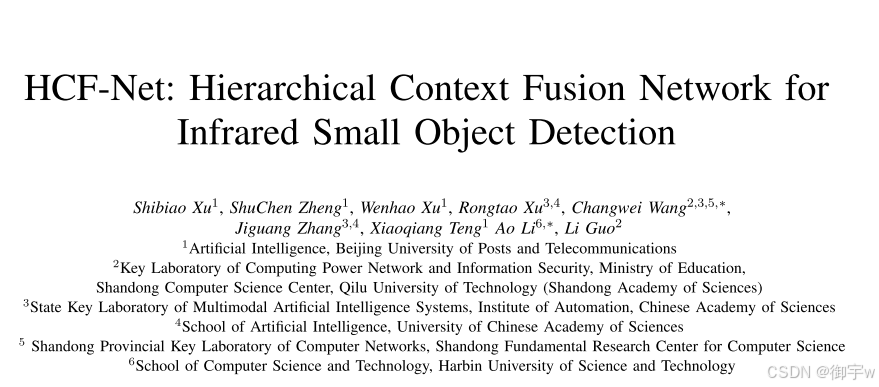

paper：HCF-Net: Hierarchical Context Fusion Network for Infrared Small Object Detection

Code：https://github.com/zhengshuchen/HCFNet

---

1、Parallelized Patch-Aware Attention

红外小目标检测是一项重要的计算机视觉任务，涉及到对红外图像中微小目标的识别和定位，而红外图像通常只包含几个像素。由于红外图像中目标的尺寸小，背景复杂等原因，使得红外图像处理技术遇到了困难。论文提出了一种 并行化补丁感知注意力（Parallelized Patch-Aware Attention）。在红外小目标检测任务中，小目标在多次下采样过程中容易丢失重要信息。而 PPA 的提出则替代了编码器和解码器基本组件中的传统卷积。

PPA 的主要优势是多分支特征提取策略。PPA 通过采用多分支特征提取策略，使得每个分支都是在多尺度的层面上去提取特征。因而这种多分支策略有利于目标多尺度特征的捕获，从而提高了小目标检测的准确性。

具体来说，PPA 涉及三个部分：Patch-Aware、Feature fusion 和 Attention。对于一个给定的输入特征张量F：

1、首先，通过 PWConv 进行调整，得到F’。然后，通过两条 Patch-Aware 分支，一条卷积分支，可以分别计算F_local、F_global 和 F_conv。最后将三个结果相加，得到输出 F。在这其中，Patch-Aware 是将特征划分为多个补丁，然后通过多尺度卷积来捕获特征，让模型能够更好的关注多个范围的区域。

2、在 Patch-Aware 尾部，包含一个 feature fusion 部分，在这里通过选择特征分为 token 和 Channel，以确保模型使用最合适的上下文信息进行检测。

3、在模块最后，使用一个注意力机制来进行自适应特征增强。注意力模块包括 通道注意力 和 空间注意力。

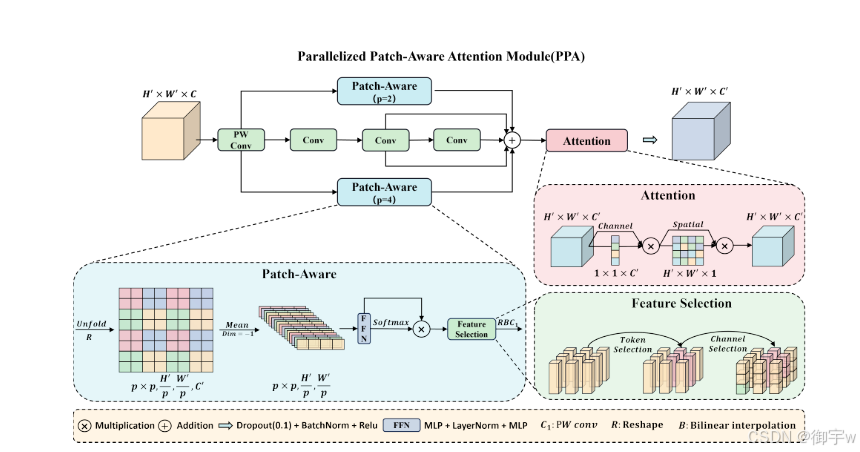

PPA 结构图：

2、代码实现

import math
import torch
import torch.nn as nn
import torch.nn.functional as F


class SpatialAttentionModule(nn.Module):
    def __init__(self):
        super(SpatialAttentionModule, self).__init__()
        self.conv2d = nn.Conv2d(in_channels=2, out_channels=1, kernel_size=7, stride=1, padding=3)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avgout = torch.mean(x, dim=1, keepdim=True)
        maxout, _ = torch.max(x, dim=1, keepdim=True)
        out = torch.cat([avgout, maxout], dim=1)
        out = self.sigmoid(self.conv2d(out))
        return out * x


class LocalGlobalAttention(nn.Module):
    def __init__(self, output_dim, patch_size):
        super().__init__()
        self.output_dim = output_dim
        self.patch_size = patch_size
        self.mlp1 = nn.Linear(patch_size * patch_size, output_dim // 2)
        self.norm = nn.LayerNorm(output_dim // 2)
        self.mlp2 = nn.Linear(output_dim // 2, output_dim)
        self.conv = nn.Conv2d(output_dim, output_dim, kernel_size=1)
        self.prompt = torch.nn.parameter.Parameter(torch.randn(output_dim, requires_grad=True))
        self.top_down_transform = torch.nn.parameter.Parameter(torch.eye(output_dim), requires_grad=True)

    def forward(self, x):
        x = x.permute(0, 2, 3, 1)
        B, H, W, C = x.shape
        P = self.patch_size

        # Local branch
        local_patches = x.unfold(1, P, P).unfold(2, P, P)  # (B, H/P, W/P, P, P, C)
        local_patches = local_patches.reshape(B, -1, P * P, C)  # (B, H/P*W/P, P*P, C)
        local_patches = local_patches.mean(dim=-1)  # (B, H/P*W/P, P*P)

        local_patches = self.mlp1(local_patches)  # (B, H/P*W/P, input_dim // 2)
        local_patches = self.norm(local_patches)  # (B, H/P*W/P, input_dim // 2)
        local_patches = self.mlp2(local_patches)  # (B, H/P*W/P, output_dim)

        local_attention = F.softmax(local_patches, dim=-1)  # (B, H/P*W/P, output_dim)
        local_out = local_patches * local_attention  # (B, H/P*W/P, output_dim)

        cos_sim = F.normalize(local_out, dim=-1) @ F.normalize(self.prompt[None, ..., None], dim=1)  # B, N, 1
        mask = cos_sim.clamp(0, 1)
        local_out = local_out * mask
        local_out = local_out @ self.top_down_transform

        # Restore shapes
        local_out = local_out.reshape(B, H // P, W // P, self.output_dim)  # (B, H/P, W/P, output_dim)
        local_out = local_out.permute(0, 3, 1, 2)
        local_out = F.interpolate(local_out, size=(H, W), mode='bilinear', align_corners=False)
        output = self.conv(local_out)

        return output


class ECA(nn.Module):
    def __init__(self, in_channel, gamma=2, b=1):
        super(ECA, self).__init__()
        k = int(abs((math.log(in_channel, 2) + b) / gamma))
        kernel_size = k if k % 2 else k + 1
        padding = kernel_size // 2
        self.pool = nn.AdaptiveAvgPool2d(output_size=1)
        self.conv = nn.Sequential(
            nn.Conv1d(in_channels=1, out_channels=1, kernel_size=kernel_size, padding=padding, bias=False),
            nn.Sigmoid()
        )

    def forward(self, x):
        out = self.pool(x)
        out = out.view(x.size(0), 1, x.size(1))
        out = self.conv(out)
        out = out.view(x.size(0), x.size(1), 1, 1)
        return out * x


class conv_block(nn.Module):
    def __init__(self,
                 in_features,
                 out_features,
                 kernel_size=(3, 3),
                 stride=(1, 1),
                 padding=(1, 1),
                 dilation=(1, 1),
                 norm_type='bn',
                 activation=True,
                 use_bias=True,
                 groups=1
                 ):
        super().__init__()
        self.conv = nn.Conv2d(in_channels=in_features,
                              out_channels=out_features,
                              kernel_size=kernel_size,
                              stride=stride,
                              padding=padding,
                              dilation=dilation,
                              bias=use_bias,
                              groups=groups)

        self.norm_type = norm_type
        self.act = activation

        if self.norm_type == 'gn':
            self.norm = nn.GroupNorm(32 if out_features >= 32 else out_features, out_features)
        if self.norm_type == 'bn':
            self.norm = nn.BatchNorm2d(out_features)
        if self.act:
            # self.relu = nn.GELU()
            self.relu = nn.ReLU(inplace=False)

    def forward(self, x):
        x = self.conv(x)
        if self.norm_type is not None:
            x = self.norm(x)
        if self.act:
            x = self.relu(x)
        return x


class PPA(nn.Module):
    def __init__(self, in_features, filters) -> None:
        super().__init__()

        self.skip = conv_block(in_features=in_features,
                               out_features=filters,
                               kernel_size=(1, 1),
                               padding=(0, 0),
                               norm_type='bn',
                               activation=False)
        self.c1 = conv_block(in_features=in_features,
                             out_features=filters,
                             kernel_size=(3, 3),
                             padding=(1, 1),
                             norm_type='bn',
                             activation=True)
        self.c2 = conv_block(in_features=filters,
                             out_features=filters,
                             kernel_size=(3, 3),
                             padding=(1, 1),
                             norm_type='bn',
                             activation=True)
        self.c3 = conv_block(in_features=filters,
                             out_features=filters,
                             kernel_size=(3, 3),
                             padding=(1, 1),
                             norm_type='bn',
                             activation=True)
        self.sa = SpatialAttentionModule()
        self.cn = ECA(filters)
        self.lga2 = LocalGlobalAttention(filters, 2)
        self.lga4 = LocalGlobalAttention(filters, 4)

        self.bn1 = nn.BatchNorm2d(filters)
        self.drop = nn.Dropout2d(0.1)
        self.relu = nn.ReLU()

        self.gelu = nn.GELU()

    def forward(self, x):
        x_skip = self.skip(x)
        x_lga2 = self.lga2(x_skip)
        x_lga4 = self.lga4(x_skip)
        x1 = self.c1(x)
        x2 = self.c2(x1)
        x3 = self.c3(x2)
        x = x1 + x2 + x3 + x_skip + x_lga2 + x_lga4
        x = self.cn(x)
        x = self.sa(x)
        x = self.drop(x)
        x = self.bn1(x)
        x = self.relu(x)
        return x


if __name__ == '__main__':
    x = torch.randn(4, 64, 128, 128).cuda()
    model = PPA(64, 64).cuda()
    out = model(x)
    print(out.shape)

  x = self.bn1(x)
    x = self.relu(x)
    return x

if name == ‘main’:
x = torch.randn(4, 64, 128, 128).cuda()
model = PPA(64, 64).cuda()
out = model(x)
print(out.shape)
