1、RFAConv
2、代码实现

paper：RFAConv: Innovating Spatial Attention and Standard Convolutional Operation

Code：https://github.com/Liuchen1997/RFAConv

1、RFAConv

在传统卷积操作中，每个感受野都使用相同的卷积核参数，无法区分不同位置的信息差异，这都限制了网络性能。此外，由于空间注意力以及现有空间注意力机制的局限性，虽然能够突出关键特征，但由于只关注空间特征，所以无法有效解决大尺寸卷积核的参数共享问题。由此，这篇论文提出一种感受野注意力卷积 RFAConv（Receptive-Field Attention Convolution）。旨在解决传统卷积操作中参数共享导致的局限性，并通过关注感受野的空间特征来进一步提升网络性能。

RFAConv的核心思想是通过关注感受野的空间特征，并为每个感受野生成独立的注意力权重，从而实现参数不共享的卷积操作。

对于输入 X，RFAConv的实现过程：

Receptive-Field Spatial Feature：对于输入特征，首先通过Group Conv将输入特征图转换为感受野空间特征图，每个感受野对应一个独立的滑动窗口。然后调整形状，将感受野空间特征图的尺寸调整为原始特征图尺寸的 k 倍，为后续卷积操作做准备。
Receptive-Field Attention Map：同时将输入特征进行另一种处理，即对每个感受野的特征信息进行全局平均池化，将每个感受野的特征信息压缩为一个数值。然后，使用1x1分组卷积对平均池化后的特征信息进行信息交互，增强不同感受野之间的特征联系。最后，对1x1分组卷积后的特征信息进行softmax操作，生成每个感受野的注意力权重，突出关键特征。
特征提取：最后将注意力图与感受野空间特征相乘，并根据每个特征的重要性对其进行加权。再经过一个卷积层得到最后输出。

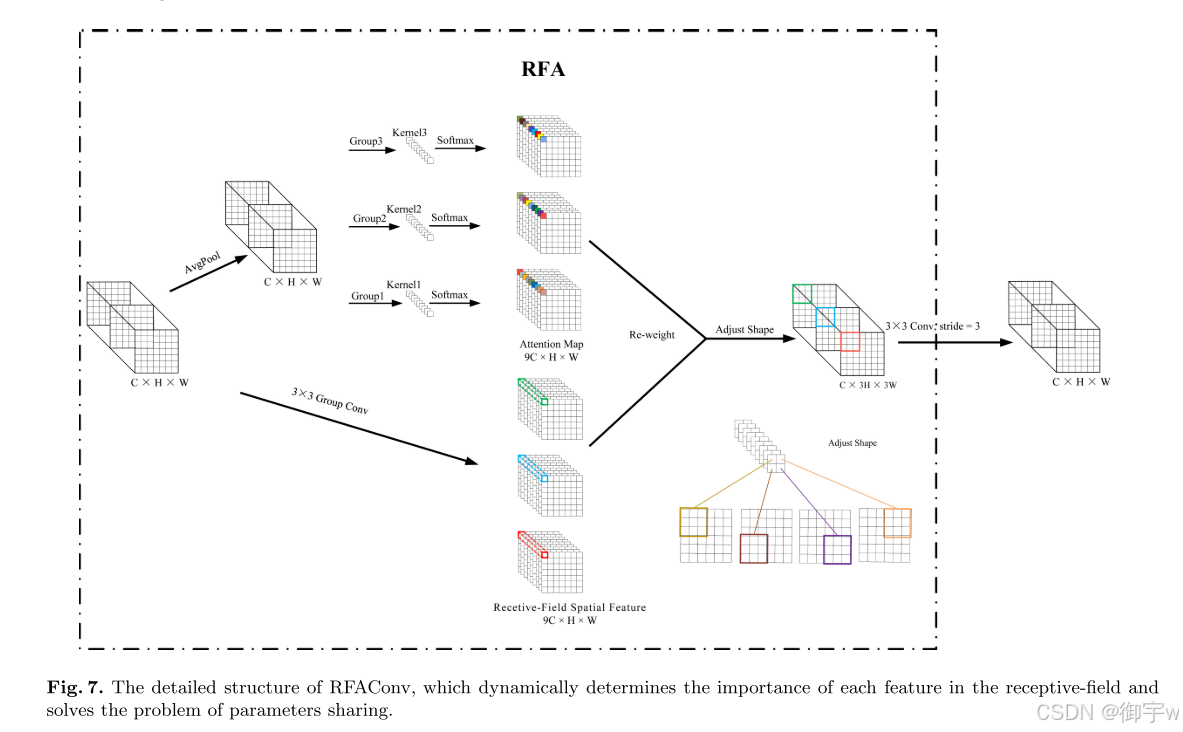

RFAConv 结构图：
在这里插入图片描述

在 RFAConv 的基础上，论文还提出了一种 RFCAConv 和 RFCBAMConv，原理上就是对 CBAM 和 SE Attention 进行改进后的卷积操作。两者都聚焦于感受野空间特征，并取得了比 RFAConv 更好的性能。具体而言：

RFCAConv：使用 SE Attention 模块，与 RFAConv 相比，增加了全局平均池化操作，以便更好地捕捉长距离信息。
RFCBAMConv：使用 CBAM 注意力模块，并用 SE 注意力模块替换了 CAM，以降低计算成本。

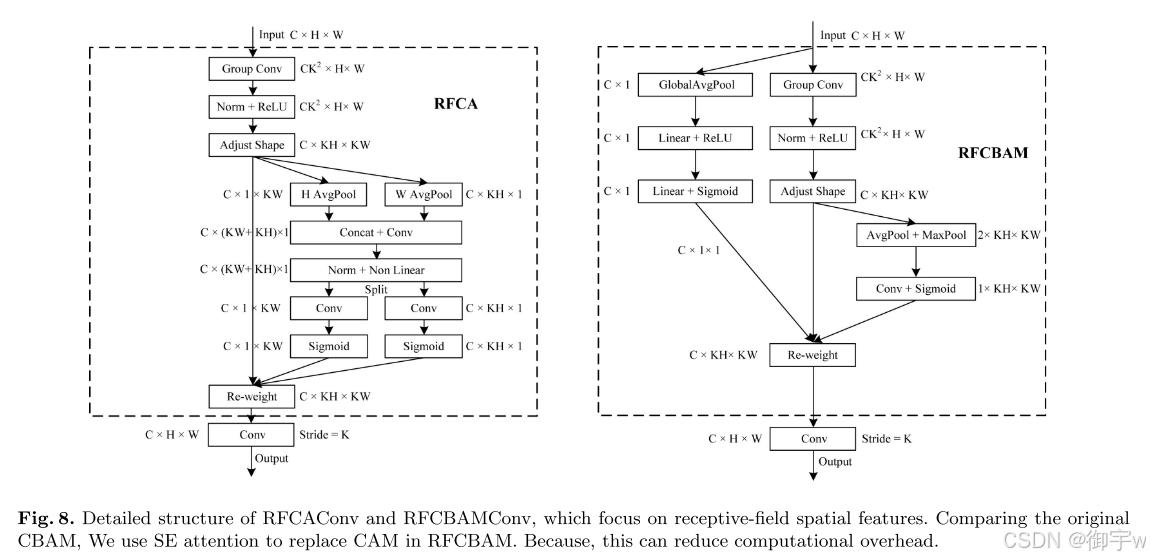

RFCAConv & RFCBAMConv 结构图：
在这里插入图片描述

2、代码实现

import torch
from torch import nn
from einops import rearrange


"""
论文作者写给读者的一些启发：
实验表明，基于Group Conv的RFAConv性能更好，因为Unfold提取感受野空间特征时，一定程度上消耗时间比较严重。因此全文选择了Group Conv的方法进行实验，并通过这种方式对CBAM和CA进行改进。
（1）基于局部窗口的自注意力，最后通过softmax进行加权，然后进行sum融合特征。以这种角度理解RFAConv，同样通过Softmax进行加权，然后通过卷积核参数进行sum融合局部窗口的信息。
    那么是否可以将局部窗口的自注意力最后的sum也通过高效的卷积参数或者全连接参数进行融合。
（2）除去论文外的其他的空间注意力是否可以把关注度放到感受野空间特征中呢，我觉得这是可行的。
"""


class RFAConv_Group(nn.Module):
    """ 基于Group Conv实现的RFAConv """
    def __init__(self, in_channel, out_channel, kernel_size=3, stride=1):
        super().__init__()
        self.kernel_size = kernel_size

        self.get_weight = nn.Sequential(nn.AvgPool2d(kernel_size=kernel_size, padding=kernel_size // 2, stride=stride),
                                        nn.Conv2d(in_channel, in_channel * (kernel_size ** 2), kernel_size=1,
                                                  groups=in_channel, bias=False))
        self.generate_feature = nn.Sequential(
            nn.Conv2d(in_channel, in_channel * (kernel_size ** 2), kernel_size=kernel_size, padding=kernel_size // 2,
                      stride=stride, groups=in_channel, bias=False),
            nn.BatchNorm2d(in_channel * (kernel_size ** 2)),
            nn.ReLU())

        self.conv = nn.Sequential(nn.Conv2d(in_channel, out_channel, kernel_size=kernel_size, stride=kernel_size),
                                  nn.BatchNorm2d(out_channel),
                                  nn.ReLU())

    def forward(self, x):
        b, c = x.shape[0:2]
        weight = self.get_weight(x)
        h, w = weight.shape[2:]
        weighted = weight.view(b, c, self.kernel_size ** 2, h, w).softmax(2)  # b c*kernel**2,h,w ->  b c k**2 h w
        feature = self.generate_feature(x).view(b, c, self.kernel_size ** 2, h,
                                                w)  # b c*kernel**2,h,w ->  b c k**2 h w   获得感受野空间特征
        weighted_data = feature * weighted
        conv_data = rearrange(weighted_data, 'b c (n1 n2) h w -> b c (h n1) (w n2)', n1=self.kernel_size,
                              # b c k**2 h w ->  b c h*k w*k
                              n2=self.kernel_size)
        return self.conv(conv_data)


class RFAConv_Unfold(nn.Module):
    """ 基于 Unfold 实现的RFAConv """
    def __init__(self, in_channel, out_channel, kernel_size=3):
        super().__init__()
        self.kernel_size = kernel_size
        self.unfold = nn.Unfold(kernel_size=(kernel_size, kernel_size), padding=kernel_size // 2)
        self.get_weights = nn.Sequential(
            nn.Conv2d(in_channel * (kernel_size ** 2), in_channel * (kernel_size ** 2), kernel_size=1,
                      groups=in_channel),
            nn.BatchNorm2d(in_channel * (kernel_size ** 2)))

        self.conv = nn.Conv2d(in_channel, out_channel, kernel_size=kernel_size, padding=0, stride=kernel_size)
        self.bn = nn.BatchNorm2d(out_channel)
        self.act = nn.ReLU()

    def forward(self, x):
        b, c, h, w = x.shape
        unfold_feature = self.unfold(x)  # 获得感受野空间特征  b c*kernel**2,h*w
        x = unfold_feature
        data = unfold_feature.unsqueeze(-1)
        weight = self.get_weights(data).view(b, c, self.kernel_size ** 2, h, w).permute(0, 1, 3, 4, 2).softmax(-1)
        weight_out = rearrange(weight, 'b c h w (n1 n2) -> b c (h n1) (w n2)', n1=self.kernel_size,
                               n2=self.kernel_size)  # b c h w k**2 -> b c h*k w*k
        receptive_field_data = rearrange(x, 'b (c n1) l -> b c n1 l', n1=self.kernel_size ** 2).permute(0, 1, 3,
                                                                                                        2).reshape(b, c,
                                                                                                                   h, w,
                                                                                                                   self.kernel_size ** 2)  # b c*kernel**2,h*w ->  b c h w k**2
        data_out = rearrange(receptive_field_data, 'b c h w (n1 n2) -> b c (h n1) (w n2)', n1=self.kernel_size,
                             n2=self.kernel_size)  # b c h w k**2 -> b c h*k w*k
        conv_data = data_out * weight_out
        conv_out = self.conv(conv_data)
        return self.act(self.bn(conv_out))


class SE(nn.Module):
    def __init__(self, in_channel, ratio=16):
        super(SE, self).__init__()
        self.gap = nn.AdaptiveAvgPool2d((1, 1))
        self.fc = nn.Sequential(
            nn.Linear(in_channel, ratio, bias=False),  # 从 c -> c/r
            nn.ReLU(),
            nn.Linear(ratio, in_channel, bias=False),  # 从 c/r -> c
            nn.Sigmoid()
        )

    def forward(self, x):
        b, c = x.shape[0:2]
        y = self.gap(x).view(b, c)
        y = self.fc(y).view(b, c, 1, 1)
        return y


class RFCBAMConv(nn.Module):
    """ RFAConv + CBAM """
    def __init__(self, in_channel, out_channel, kernel_size=3, stride=1, dilation=1):
        super().__init__()
        if kernel_size % 2 == 0:
            assert ("the kernel_size must be  odd.")
        self.kernel_size = kernel_size
        self.generate = nn.Sequential(
            nn.Conv2d(in_channel, in_channel * (kernel_size ** 2), kernel_size, padding=kernel_size // 2,
                      stride=stride, groups=in_channel, bias=False),
            nn.BatchNorm2d(in_channel * (kernel_size ** 2)),
            nn.ReLU()
            )
        self.get_weight = nn.Sequential(nn.Conv2d(2, 1, kernel_size=3, padding=1, bias=False), nn.Sigmoid())
        self.se = SE(in_channel)

        self.conv = nn.Sequential(nn.Conv2d(in_channel, out_channel, kernel_size, stride=kernel_size),
                                  nn.BatchNorm2d(out_channel), nn.ReLU())

    def forward(self, x):
        b, c = x.shape[0:2]
        channel_attention = self.se(x)
        generate_feature = self.generate(x)

        h, w = generate_feature.shape[2:]
        generate_feature = generate_feature.view(b, c, self.kernel_size ** 2, h, w)

        generate_feature = rearrange(generate_feature, 'b c (n1 n2) h w -> b c (h n1) (w n2)', n1=self.kernel_size,
                                     n2=self.kernel_size)

        unfold_feature = generate_feature * channel_attention
        max_feature, _ = torch.max(generate_feature, dim=1, keepdim=True)
        mean_feature = torch.mean(generate_feature, dim=1, keepdim=True)
        receptive_field_attention = self.get_weight(torch.cat((max_feature, mean_feature), dim=1))
        conv_data = unfold_feature * receptive_field_attention
        return self.conv(conv_data)


class h_sigmoid(nn.Module):
    def __init__(self, inplace=True):
        super(h_sigmoid, self).__init__()
        self.relu = nn.ReLU6(inplace=inplace)

    def forward(self, x):
        return self.relu(x + 3) / 6


class h_swish(nn.Module):
    def __init__(self, inplace=True):
        super(h_swish, self).__init__()
        self.sigmoid = h_sigmoid(inplace=inplace)

    def forward(self, x):
        return x * self.sigmoid(x)


class RFCAConv(nn.Module):
    """ RFAConv + SE """
    def __init__(self, inp, oup, kernel_size=3, stride=1, reduction=32):
        super(RFCAConv, self).__init__()
        self.kernel_size = kernel_size
        self.generate = nn.Sequential(nn.Conv2d(inp, inp * (kernel_size ** 2), kernel_size, padding=kernel_size // 2,
                                                stride=stride, groups=inp,
                                                bias=False),
                                      nn.BatchNorm2d(inp * (kernel_size ** 2)),
                                      nn.ReLU()
                                      )
        self.pool_h = nn.AdaptiveAvgPool2d((None, 1))
        self.pool_w = nn.AdaptiveAvgPool2d((1, None))

        mip = max(8, inp // reduction)

        self.conv1 = nn.Conv2d(inp, mip, kernel_size=1, stride=1, padding=0)
        self.bn1 = nn.BatchNorm2d(mip)
        self.act = h_swish()

        self.conv_h = nn.Conv2d(mip, inp, kernel_size=1, stride=1, padding=0)
        self.conv_w = nn.Conv2d(mip, inp, kernel_size=1, stride=1, padding=0)
        self.conv = nn.Sequential(nn.Conv2d(inp, oup, kernel_size, stride=kernel_size))

    def forward(self, x):
        b, c = x.shape[0:2]
        generate_feature = self.generate(x)
        h, w = generate_feature.shape[2:]
        generate_feature = generate_feature.view(b, c, self.kernel_size ** 2, h, w)

        generate_feature = rearrange(generate_feature, 'b c (n1 n2) h w -> b c (h n1) (w n2)', n1=self.kernel_size,
                                     n2=self.kernel_size)

        x_h = self.pool_h(generate_feature)
        x_w = self.pool_w(generate_feature).permute(0, 1, 3, 2)

        y = torch.cat([x_h, x_w], dim=2)
        y = self.conv1(y)
        y = self.bn1(y)
        y = self.act(y)

        h, w = generate_feature.shape[2:]
        x_h, x_w = torch.split(y, [h, w], dim=2)
        x_w = x_w.permute(0, 1, 3, 2)

        a_h = self.conv_h(x_h).sigmoid()
        a_w = self.conv_w(x_w).sigmoid()
        return self.conv(generate_feature * a_w * a_h)


if __name__ == '__main__':
    x = torch.randn(4, 512, 7, 7).cuda()
    # model = RFAConv_Group(512, 512).cuda()
    # model = RFAConv_Unfold(512, 512).cuda()
    # model = RFCAConv(512, 512).cuda()
    model = RFCBAMConv(512, 512).cuda()
    out = model(x)
    print(out.shape)
