Cesium -- Entity方式

1、viewer.entities属性实际上是一个EntityCollecton对象，是entity的一个集合，提供了add、remove、removeAll等等接口来管理场景中的entity。

Cesium.EntityCollection.collectionChangedEventCallback(collection, added, removed, changed)
add(entity) → Entity
computeAvailability() → TimeInterval
contains(entity) → Boolean
getById(id) → Entity
getOrCreateEntity(id) → Entity
remove(entity) → Boolean
removeAll()
removeById(id) → Boolean
resumeEvents()
suspendEvents()

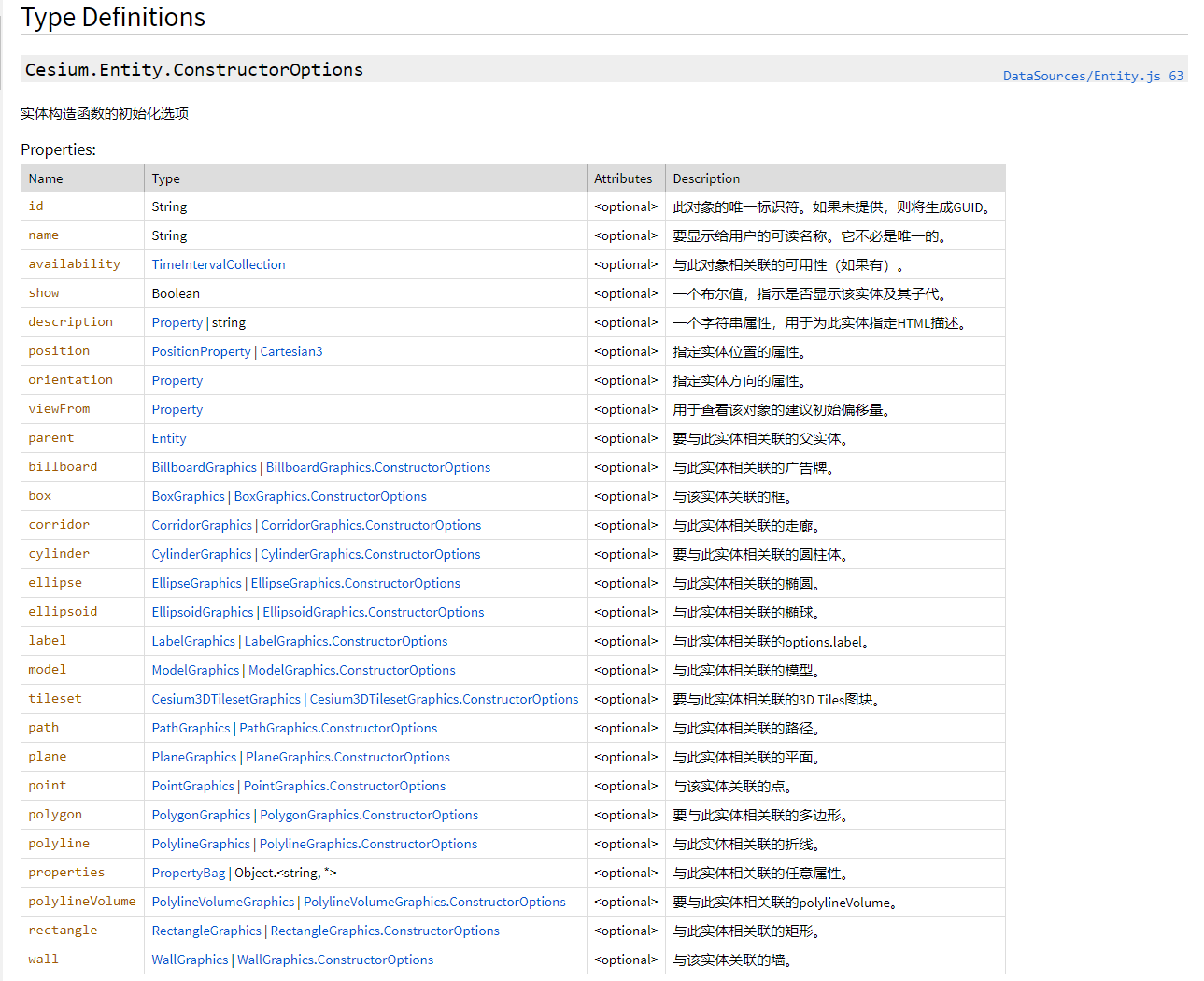

2、在帮助文档中查看entity，可以看到entity的属性：id、name、availability、show、description、position、orientation、viewFrom、parent等其他表示entity类型。



// 单点
viewer.entities.add({
    position : Cesium.Cartesian3.fromDegrees(-75.59777, 40.03883),
    point : {
        pixelSize : 10,
        color : Cesium.Color.YELLOW
    }
});

// polyline - 线
viewer.entities.add({
    name: 'Red line on the surface',
    polyline: {
        positions: Cesium.Cartesian3.fromDegreesArray([
            75, 35,
            125, 35
        ]),
        width: 5,
        material: Cesium.Color.RED
    }
});

// polylineVolume - 折线
function computeCircle(radius) {
    var positions = [];
    for (var i = 0; i < 360; i++) {
        var radians = Cesium.Math.toRadians(i);
        positions.push(new Cesium.Cartesian2(radius * Math.cos(radians), radius * Math.sin(radians)));
    }
    return positions;
}
viewer.entities.add({
    name: 'Red tube with rounded corners',
    polylineVolume: {
        positions: Cesium.Cartesian3.fromDegreesArray([
            85.0, 32.0,
            85.0, 36.0,
            89.0, 36.0
        ]),
        shape: computeCircle(60000.0),
        material: Cesium.Color.RED
    }
});

// Polygon - 面
viewer.entities.add({
    name: 'Red polygon on surface',
    polygon: {
        hierarchy: Cesium.Cartesian3.fromDegreesArray([
            115.0, 37.0,
            115.0, 32.0,
            107.0, 33.0,
            102.0, 31.0,
            102.0, 35.0
        ]),
        material: Cesium.Color.RED
    }
});

// Circle - 圆
viewer.entities.add({
    position: Cesium.Cartesian3.fromDegrees(111.0, 40.0, 150000.0),
    name: 'Green circle at height',
    ellipse: {
        semiMinorAxis: 300000.0,
        semiMajorAxis: 300000.0,
        height: 200000.0,
        material: Cesium.Color.GREEN, // 单色
        // material: Cesium.Color.RED.withAlpha(0.5), // 透明色
        // material: "./sampledata/images/globe.jpg", // 图片
        fill: true,
        outline: true, // 必须设置height，否则ouline无法显示
        outlineColor: Cesium.Color.BLUE.withAlpha(0.5),
        outlineWidth: 10.0 // 不能设置，固定为1
    }
});

// box - 盒子
viewer.entities.add({
    name: 'Blue box',
    position: Cesium.Cartesian3.fromDegrees(homePOsition[0], homePOsition[1], 0),
    box: {
        dimensions: new Cesium.Cartesian3(400000.0, 300000.0, 500000.0),
        material: Cesium.Color.BLUE
    }
});

// Ellipse - 椭圆
viewer.entities.add({
    position: Cesium.Cartesian3.fromDegrees(103.0, 40.0),
    name: 'Red ellipse on surface with outline',
    ellipse: {
        semiMinorAxis: 250000.0,
        semiMajorAxis: 400000.0,
        material: Cesium.Color.RED.withAlpha(0.5),
        outline: true,
        outlineColor: Cesium.Color.RED
    }
});

// Corridor - 走廊
viewer.entities.add({
    name: 'Red corridor on surface with rounded corners and outline',
    corridor: {
        positions: Cesium.Cartesian3.fromDegreesArray([
            100.0, 40.0,
            105.0, 40.0,
            105.0, 35.0
        ]),
        width: 200000.0,
        material: Cesium.Color.RED.withAlpha(0.5),
        outline: true,
        outlineColor: Cesium.Color.RED
    }
});

// Cylinder - 圆柱
viewer.entities.add({
    name: 'Green cylinder with black outline',
    position: Cesium.Cartesian3.fromDegrees(100.0, 40.0, 200000.0),
    cylinder: {
        length: 400000.0,
        topRadius: 200000.0,
        bottomRadius: 200000.0,
        material: Cesium.Color.GREEN.withAlpha(0.5),
        outline: true,
        outlineColor: Cesium.Color.DARK_GREEN
    }
});

// Cone - 圆锥
viewer.entities.add({
    name: 'Red cone',
    position: Cesium.Cartesian3.fromDegrees(105.0, 40.0, 200000.0),
    cylinder: {
        length: 400000.0,
        topRadius: 0.0,
        bottomRadius: 200000.0,
        material: Cesium.Color.RED
    }
});

// rectangle - 矩形
viewer.entities.add({
    name: 'Red translucent rectangle with outline',
    rectangle: {
        coordinates: Cesium.Rectangle.fromDegrees(80.0, 20.0, 110.0, 25.0),
        material: Cesium.Color.RED.withAlpha(0.5),
        outline: true,
        outlineColor: Cesium.Color.RED
    }
});

// Sphere - 球体
viewer.entities.add({
    name: 'Red sphere with black outline',
    position: Cesium.Cartesian3.fromDegrees(107.0, 40.0, 300000.0),
    ellipsoid: {
        radii: new Cesium.Cartesian3(300000.0, 300000.0, 300000.0),
        material: Cesium.Color.RED.withAlpha(0.5),
        outline: true,
        outlineColor: Cesium.Color.BLACK
    }
});

// ellipsoid - 椭球体
viewer.entities.add({
    name: 'Blue ellipsoid',
    position: Cesium.Cartesian3.fromDegrees(114.0, 40.0, 300000.0),
    ellipsoid: {
        radii: new Cesium.Cartesian3(200000.0, 200000.0, 300000.0),
        material: Cesium.Color.BLUE
    }
});

// wall - 墙
viewer.entities.add({
    name: 'Green wall from surface with outline',
    wall: {
        positions: Cesium.Cartesian3.fromDegreesArrayHeights([
            107.0, 43.0, 100000.0,
            97.0, 43.0, 100000.0,
            97.0, 40.0, 100000.0,
            107.0, 40.0, 100000.0,
            107.0, 43.0, 100000.0
        ]),
        material: Cesium.Color.GREEN
    }
});
