箱体图

多组维度不一样长的箱体图的画法

clear;clc;
load('speed_1_1.mat')
load('speed_1_2.mat')
load('speed_2_1.mat')
load('speed_2_2.mat')
load('speed_3_1.mat')
load('speed_3_2.mat')
x1=speed_1_1;y1=speed_1_2;
x2=speed_2_1;y2=speed_2_2;
x3=speed_3_1;y3=speed_3_2;
x1_0=x1(isfinite(x1));y1_0=y1(isfinite(y1));
x2_0=x2(isfinite(x2));y2_0=y2(isfinite(y2));
x3_0=x3(isfinite(x3));y3_0=y3(isfinite(y3));

combineData = [x1_0,y1_0,x2_0,y2_0,x3_0,y3_0];        % 组合

group = [zeros(1,length(x1_0)),ones(1,length(y1_0)),2*ones(1,length(x2_0)),3*ones(1,length(y2_0)),4*ones(1,length(x3_0)),5*ones(1,length(y3_0))];
% 给每一个对应的值，设定标签，这里前20个为0，后20个为1

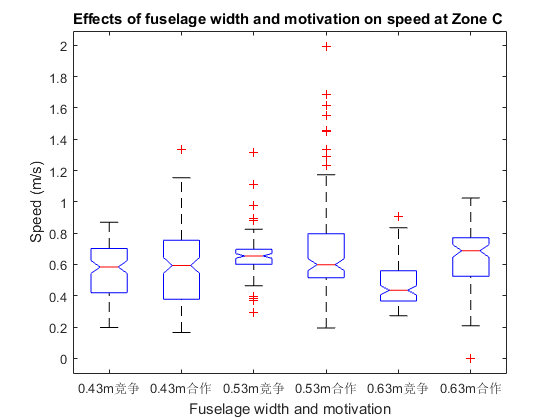

boxplot(combineData,group,'Labels',{'0.43m竞争','0.43m合作','0.53m竞争','0.53m合作','0.63m竞争','0.63m合作'},'Notch','on')

　　
