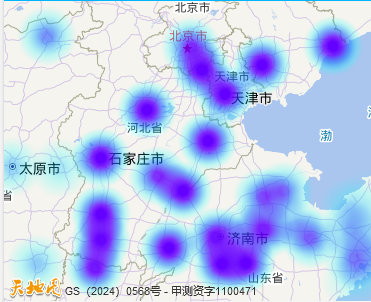

展示：

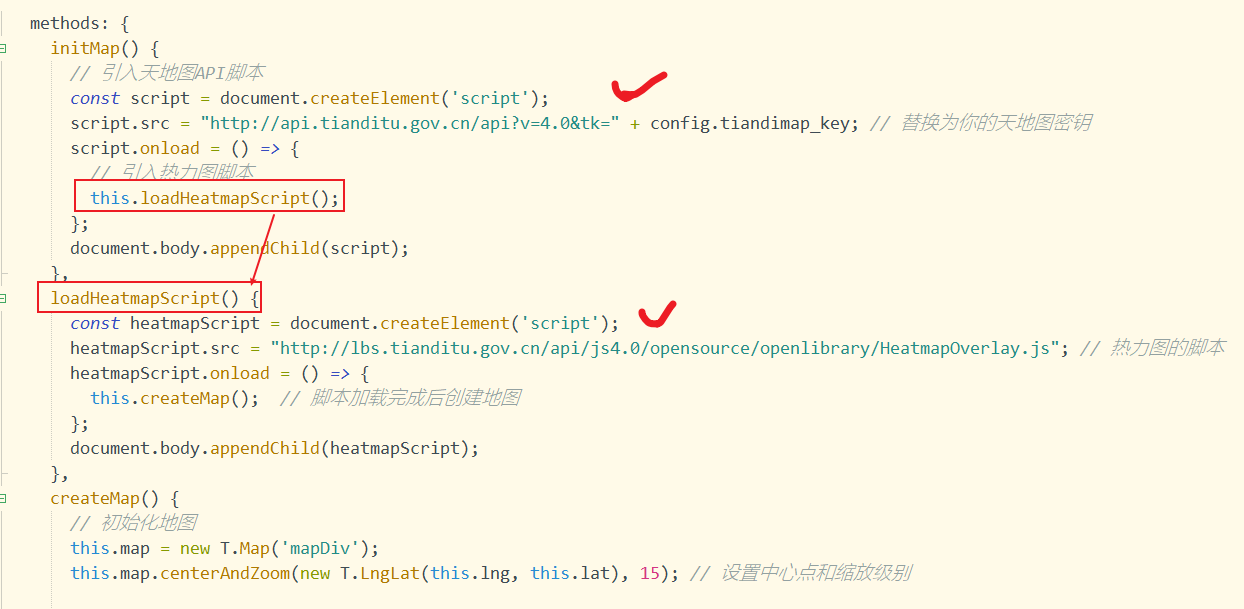

引入两个js文件：
代码：
<template>
<view class="container">
<view id="mapDiv" style="width: 100%; height: 300px;"></view>
</view>
</template>
<script>
import config from '@/config.js'
export default {
data() {
return {
lng: config.longitude, // 从配置文件获取经度
lat: config.latitude, // 从配置文件获取纬度
heatmapOverlay: null, // 用于存储热力图覆盖层
map: null // 用于存储地图实例
};
},
onReady() {
// 页面加载完成后初始化地图
this.initMap();
},
onLoad(options) {
// 获取从上一个页面传递过来的参数
if (options.title) {
this.title = options.title;
}
// 修改导航栏标题
uni.setNavigationBarTitle({
title: this.title // 设置为传递过来的 title
});
},
methods: {
initMap() {
// 引入天地图API脚本
const script = document.createElement('script');
script.src = "http://api.tianditu.gov.cn/api?v=4.0&tk=" + config.tiandimap_key; // 替换为你的天地图密钥
script.onload = () => {
// 引入热力图脚本
this.loadHeatmapScript();
};
document.body.appendChild(script);
},
loadHeatmapScript() {
const heatmapScript = document.createElement('script');
heatmapScript.src = "http://lbs.tianditu.gov.cn/api/js4.0/opensource/openlibrary/HeatmapOverlay.js"; // 热力图的脚本
heatmapScript.onload = () => {
this.createMap(); // 脚本加载完成后创建地图
};
document.body.appendChild(heatmapScript);
},
createMap() {
// 初始化地图
this.map = new T.Map('mapDiv');
this.map.centerAndZoom(new T.LngLat(this.lng, this.lat), 15); // 设置中心点和缩放级别
// 初始化热力图覆盖层
this.heatmapOverlay = new T.HeatmapOverlay({
radius: 30, // 设置热力图的点半径
gradient: {
0.2: 'rgb(0, 255, 255)',
0.5: 'rgb(0, 110, 255)',
0.8: 'rgb(100, 0, 255)'
} // 设置热力图的渐变
});
// 将热力图覆盖层添加到地图中
this.map.addOverLay(this.heatmapOverlay);
// 设置热力图的数据
this.setHeatmapData();
// 添加点击事件监听
this.map.addEventListener('click', (event) => {
const lngLat = event.lnglat; // 获取点击位置的经纬度
console.log('经度:', lngLat.getLng(), '纬度:', lngLat.getLat());
console.log(lngLat.getLng(), ',', lngLat.getLat());
});
},
setHeatmapData() {
// 模拟一些热力图数据，你可以根据实际情况进行替换
const data = [
{name: '海门', value: 9},
{name: '鄂尔多斯', value: 12},
{name: '招远', value: 12},
{name: '舟山', value: 12},
{name: '齐齐哈尔', value: 14},
{name: '盐城', value: 15},
{name: '赤峰', value: 16},
{name: '青岛', value: 18},
{name: '乳山', value: 18},
{name: '金昌', value: 19},
{name: '泉州', value: 21},
{name: '莱西', value: 21},
{name: '日照', value: 21},
{name: '胶南', value: 22},
{name: '南通', value: 23},
{name: '拉萨', value: 24},
{name: '云浮', value: 24},
{name: '梅州', value: 25},
{name: '文登', value: 25},
{name: '上海', value: 25},
{name: '攀枝花', value: 25},
{name: '威海', value: 25},
{name: '承德', value: 25},
{name: '厦门', value: 26},
{name: '汕尾', value: 26},
{name: '潮州', value: 26},
{name: '丹东', value: 27},
{name: '太仓', value: 27},
{name: '曲靖', value: 27},
{name: '烟台', value: 28},
{name: '福州', value: 29},
{name: '瓦房店', value: 30},
{name: '即墨', value: 30},
{name: '抚顺', value: 31},
{name: '玉溪', value: 31},
{name: '张家口', value: 31},
{name: '阳泉', value: 31},
{name: '莱州', value: 32},
{name: '湖州', value: 32},
{name: '汕头', value: 32},
{name: '昆山', value: 33},
{name: '宁波', value: 33},
{name: '湛江', value: 33},
{name: '揭阳', value: 34},
{name: '荣成', value: 34},
{name: '连云港', value: 35},
{name: '葫芦岛', value: 35},
{name: '常熟', value: 36},
{name: '东莞', value: 36},
{name: '河源', value: 36},
{name: '淮安', value: 36},
{name: '泰州', value: 36},
{name: '南宁', value: 37},
{name: '营口', value: 37},
{name: '惠州', value: 37},
{name: '江阴', value: 37},
{name: '蓬莱', value: 37},
{name: '韶关', value: 38},
{name: '嘉峪关', value: 38},
{name: '广州', value: 38},
{name: '延安', value: 38},
{name: '太原', value: 39},
{name: '清远', value: 39},
{name: '中山', value: 39},
{name: '昆明', value: 39},
{name: '寿光', value: 40},
{name: '盘锦', value: 40},
{name: '长治', value: 41},
{name: '深圳', value: 41},
{name: '珠海', value: 42},
{name: '宿迁', value: 43},
{name: '咸阳', value: 43},
{name: '铜川', value: 44},
{name: '平度', value: 44},
{name: '佛山', value: 44},
{name: '海口', value: 44},
{name: '江门', value: 45},
{name: '章丘', value: 45},
{name: '肇庆', value: 46},
{name: '大连', value: 47},
{name: '临汾', value: 47},
{name: '吴江', value: 47},
{name: '石嘴山', value: 49},
{name: '沈阳', value: 50},
{name: '苏州', value: 50},
{name: '茂名', value: 50},
{name: '嘉兴', value: 51},
{name: '长春', value: 51},
{name: '胶州', value: 52},
{name: '银川', value: 52},
{name: '张家港', value: 52},
{name: '三门峡', value: 53},
{name: '锦州', value: 54},
{name: '南昌', value: 54},
{name: '柳州', value: 54},
{name: '三亚', value: 54},
{name: '自贡', value: 56},
{name: '吉林', value: 56},
{name: '阳江', value: 57},
{name: '泸州', value: 57},
{name: '西宁', value: 57},
{name: '宜宾', value: 58},
{name: '呼和浩特', value: 58},
{name: '成都', value: 58},
{name: '大同', value: 58},
{name: '镇江', value: 59},
{name: '桂林', value: 59},
{name: '张家界', value: 59},
{name: '宜兴', value: 59},
{name: '北海', value: 60},
{name: '西安', value: 61},
{name: '金坛', value: 62},
{name: '东营', value: 62},
{name: '牡丹江', value: 63},
{name: '遵义', value: 63},
{name: '绍兴', value: 63},
{name: '扬州', value: 64},
{name: '常州', value: 64},
{name: '潍坊', value: 65},
{name: '重庆', value: 66},
{name: '台州', value: 67},
{name: '南京', value: 67},
{name: '滨州', value: 70},
{name: '贵阳', value: 71},
{name: '无锡', value: 71},
{name: '本溪', value: 71},
{name: '克拉玛依', value: 72},
{name: '渭南', value: 72},
{name: '马鞍山', value: 72},
{name: '宝鸡', value: 72},
{name: '焦作', value: 75},
{name: '句容', value: 75},
{name: '北京', value: 79},
{name: '徐州', value: 79},
{name: '衡水', value: 80},
{name: '包头', value: 80},
{name: '绵阳', value: 80},
{name: '枣庄', value: 84},
{name: '杭州', value: 84},
{name: '淄博', value: 85},
{name: '鞍山', value: 86},
{name: '溧阳', value: 86},
{name: '库尔勒', value: 86},
{name: '安阳', value: 90},
{name: '开封', value: 90},
{name: '济南', value: 92},
{name: '德阳', value: 93},
{name: '温州', value: 95},
{name: '九江', value: 96},
{name: '邯郸', value: 98},
{name: '临安', value: 99},
{name: '兰州', value: 99},
{name: '沧州', value: 100},
{name: '临沂', value: 103},
{name: '南充', value: 104},
{name: '天津', value: 105},
{name: '富阳', value: 106},
{name: '泰安', value: 112},
{name: '诸暨', value: 112},
{name: '郑州', value: 113},
{name: '哈尔滨', value: 114},
{name: '聊城', value: 116},
{name: '芜湖', value: 117},
{name: '唐山', value: 119},
{name: '平顶山', value: 119},
{name: '邢台', value: 119},
{name: '德州', value: 120},
{name: '济宁', value: 120},
{name: '荆州', value: 127},
{name: '宜昌', value: 130},
{name: '义乌', value: 132},
{name: '丽水', value: 133},
{name: '洛阳', value: 134},
{name: '秦皇岛', value: 136},
{name: '株洲', value: 143},
{name: '石家庄', value: 147},
{name: '莱芜', value: 148},
{name: '常德', value: 152},
{name: '保定', value: 153},
{name: '湘潭', value: 154},
{name: '金华', value: 157},
{name: '岳阳', value: 169},
{name: '长沙', value: 175},
{name: '衢州', value: 177},
{name: '廊坊', value: 193},
{name: '菏泽', value: 194},
{name: '合肥', value: 229},
{name: '武汉', value: 273},
{name: '大庆', value: 279}
];
const geoCoordMap = {
'海门': [121.15, 31.89],
'招远': [120.38, 37.35],
'舟山': [122.207216, 29.985295],
'盐城': [120.13, 33.38],
'赤峰': [118.87, 42.28],
'青岛': [120.33, 36.07],
'乳山': [121.52, 36.89],
'金昌': [102.188043, 38.520089],
'泉州': [118.58, 24.93],
'莱西': [120.53, 36.86],
'日照': [119.46, 35.42],
'胶南': [119.97, 35.88],
'南通': [121.05, 32.08],
'拉萨': [91.11, 29.97],
'云浮': [112.02, 22.93],
'梅州': [116.1, 24.55],
'文登': [122.05, 37.2],
'上海': [121.48, 31.22],
'攀枝花': [101.718637, 26.582347],
'威海': [122.1, 37.5],
'承德': [117.93, 40.97],
'厦门': [118.1, 24.46],
'汕尾': [115.375279, 22.786211],
'潮州': [116.63, 23.68],
'丹东': [124.37, 40.13],
'太仓': [121.1, 31.45],
'曲靖': [103.79, 25.51],
'烟台': [121.39, 37.52],
'福州': [119.3, 26.08],
'瓦房店': [121.979603, 39.627114],
'即墨': [120.45, 36.38],
'抚顺': [123.97, 41.97],
'玉溪': [102.52, 24.35],
'张家口': [114.87, 40.82],
'阳泉': [113.57, 37.85],
'莱州': [119.942327, 37.177017],
'湖州': [120.1, 30.86],
'汕头': [116.69, 23.39],
'昆山': [120.95, 31.39],
'宁波': [121.56, 29.86],
'湛江': [110.359377, 21.270708],
'揭阳': [116.35, 23.55],
'荣成': [122.41, 37.16],
'连云港': [119.16, 34.59],
'葫芦岛': [120.836932, 40.711052],
'常熟': [120.74, 31.64],
'东莞': [113.75, 23.04],
'河源': [114.68, 23.73],
'淮安': [119.15, 33.5],
'泰州': [119.9, 32.49],
'南宁': [108.33, 22.84],
'营口': [122.18, 40.65],
'惠州': [114.4, 23.09],
'江阴': [120.26, 31.91],
'蓬莱': [120.75, 37.8],
'韶关': [113.62, 24.84],
'嘉峪关': [98.289152, 39.77313],
'广州': [113.23, 23.16],
'延安': [109.47, 36.6],
'太原': [112.53, 37.87],
'清远': [113.01, 23.7],
'中山': [113.38, 22.52],
'昆明': [102.73, 25.04],
'寿光': [118.73, 36.86],
'盘锦': [122.070714, 41.119997],
'长治': [113.08, 36.18],
'深圳': [114.07, 22.62],
'珠海': [113.52, 22.3],
'宿迁': [118.3, 33.96],
'咸阳': [108.72, 34.36],
'铜川': [109.11, 35.09],
'平度': [119.97, 36.77],
'佛山': [113.11, 23.05],
'海口': [110.35, 20.02],
'江门': [113.06, 22.61],
'章丘': [117.53, 36.72],
'肇庆': [112.44, 23.05],
'大连': [121.62, 38.92],
'临汾': [111.5, 36.08],
'吴江': [120.63, 31.16],
'石嘴山': [106.39, 39.04],
'沈阳': [123.38, 41.8],
'苏州': [120.62, 31.32],
'茂名': [110.88, 21.68],
'嘉兴': [120.76, 30.77],
'长春': [125.35, 43.88],
'胶州': [120.03336, 36.264622],
'银川': [106.27, 38.47],
'张家港': [120.555821, 31.875428],
'三门峡': [111.19, 34.76],
'锦州': [121.15, 41.13],
'南昌': [115.89, 28.68],
'柳州': [109.4, 24.33],
'三亚': [109.511909, 18.252847],
'自贡': [104.778442, 29.33903],
'吉林': [126.57, 43.87],
'阳江': [111.95, 21.85],
'泸州': [105.39, 28.91],
'西宁': [101.74, 36.56],
'宜宾': [104.56, 29.77],
'成都': [104.06, 30.67],
'大同': [113.3, 40.12],
'镇江': [119.44, 32.2],
'桂林': [110.28, 25.29],
'张家界': [110.479191, 29.117096],
'宜兴': [119.82, 31.36],
'北海': [109.12, 21.49],
'西安': [108.95, 34.27],
'金坛': [119.56, 31.74],
'东营': [118.49, 37.46],
'牡丹江': [129.58, 44.6],
'遵义': [106.9, 27.7],
'绍兴': [120.58, 30.01],
'扬州': [119.42, 32.39],
'常州': [119.95, 31.79],
'潍坊': [119.1, 36.62],
'重庆': [106.54, 29.59],
'台州': [121.420757, 28.656386],
'南京': [118.78, 32.04],
'滨州': [118.03, 37.36],
'贵阳': [106.71, 26.57],
'无锡': [120.29, 31.59],
'本溪': [123.73, 41.3],
'渭南': [109.5, 34.52],
'马鞍山': [118.48, 31.56],
'宝鸡': [107.15, 34.38],
'焦作': [113.21, 35.24],
'句容': [119.16, 31.95],
'北京': [116.46, 39.92],
'徐州': [117.2, 34.26],
'衡水': [115.72, 37.72],
'包头': [110, 40.58],
'绵阳': [104.73, 31.48],
'枣庄': [117.57, 34.86],
'杭州': [120.19, 30.26],
'淄博': [118.05, 36.78],
'鞍山': [122.85, 41.12],
'溧阳': [119.48, 31.43],
'库尔勒': [86.06, 41.68],
'安阳': [114.35, 36.1],
'开封': [114.35, 34.79],
'济南': [117, 36.65],
'德阳': [104.37, 31.13],
'温州': [120.65, 28.01],
'九江': [115.97, 29.71],
'邯郸': [114.47, 36.6],
'临安': [119.72, 30.23],
'兰州': [103.73, 36.03],
'沧州': [116.83, 38.33],
'临沂': [118.35, 35.05],
'南充': [106.110698, 30.837793],
'天津': [117.2, 39.13],
'富阳': [119.95, 30.07],
'泰安': [117.13, 36.18],
'诸暨': [120.23, 29.71],
'郑州': [113.65, 34.76],
'哈尔滨': [126.63, 45.75],
'聊城': [115.97, 36.45],
'芜湖': [118.38, 31.33],
'唐山': [118.02, 39.63],
'平顶山': [113.29, 33.75],
'邢台': [114.48, 37.05],
'德州': [116.29, 37.45],
'济宁': [116.59, 35.38],
'荆州': [112.239741, 30.335165],
'宜昌': [111.3, 30.7],
'义乌': [120.06, 29.32],
'丽水': [119.92, 28.45],
'洛阳': [112.44, 34.7],
'秦皇岛': [119.57, 39.95],
'株洲': [113.16, 27.83],
'石家庄': [114.48, 38.03],
'莱芜': [117.67, 36.19],
'常德': [111.69, 29.05],
'保定': [115.48, 38.85],
'湘潭': [112.91, 27.87],
'金华': [119.64, 29.12],
'岳阳': [113.09, 29.37],
'长沙': [113, 28.21],
'衢州': [118.88, 28.97],
'廊坊': [116.7, 39.53],
'菏泽': [115.480656, 35.23375],
'合肥': [117.27, 31.86],
'武汉': [114.31, 30.52]
};
// 将数据转为热力图需要的格式
const points = this.convertData(data, geoCoordMap);
// 设置热力图的数据集
this.heatmapOverlay.setDataSet({data: points, max: 100});
},
convertData(data, geoCoordMap) {
const res = [];
for (let i = 0; i < data.length; i++) {
const geoCoord = geoCoordMap[data[i].name];
if (geoCoord) {
res.push({
name: data[i].name,
lat: geoCoord[1],
lng: geoCoord[0],
count: data[i].value
});
}
}
return res;
}
}
};
</script>
<style scoped>
.container {
width: 100%;
height: 100%;
display: flex;
justify-content: center;
}
#mapDiv {
width: 100%;
height: 300px;
}
</style>
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
