齿轮参数化设计

1、齿轮参数（单位°，theta1=阿发）

"m" = 1'模数
"z" = 20'齿数
"a" = 20'压力角
"ha"= 1'齿顶高系数
"c" = 0.25'顶隙系数
"d"= "m" * "z"'分度圆直径
"da"= "d" + 2 * "ha" * "m"'齿顶圆直径
"df"= "d" - 2 * "m" * ( "ha" + "c" )'齿根圆直径
"db"= "d" * cos ( "a" )'基圆直径
"rb"= "db" / 2'基圆半径
"s"= 0.5 * "m" * pi'齿厚
"i" = 90度 / "z"'半个齿角度
"theta1"= tan ( "a" ) *180/pi- "a"  'theta夹角 度
"theta2"= 180 / "z" - 2 * "theta1"'theta夹角 度
"theta"= "theta2" * pi / 180'theta夹角 弧度

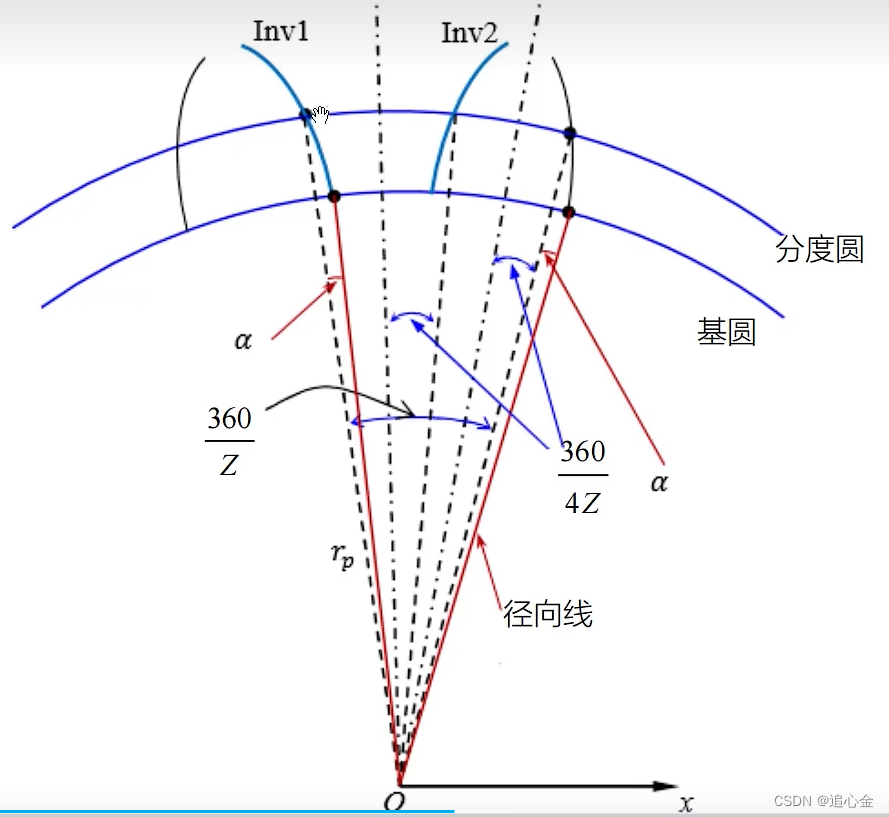

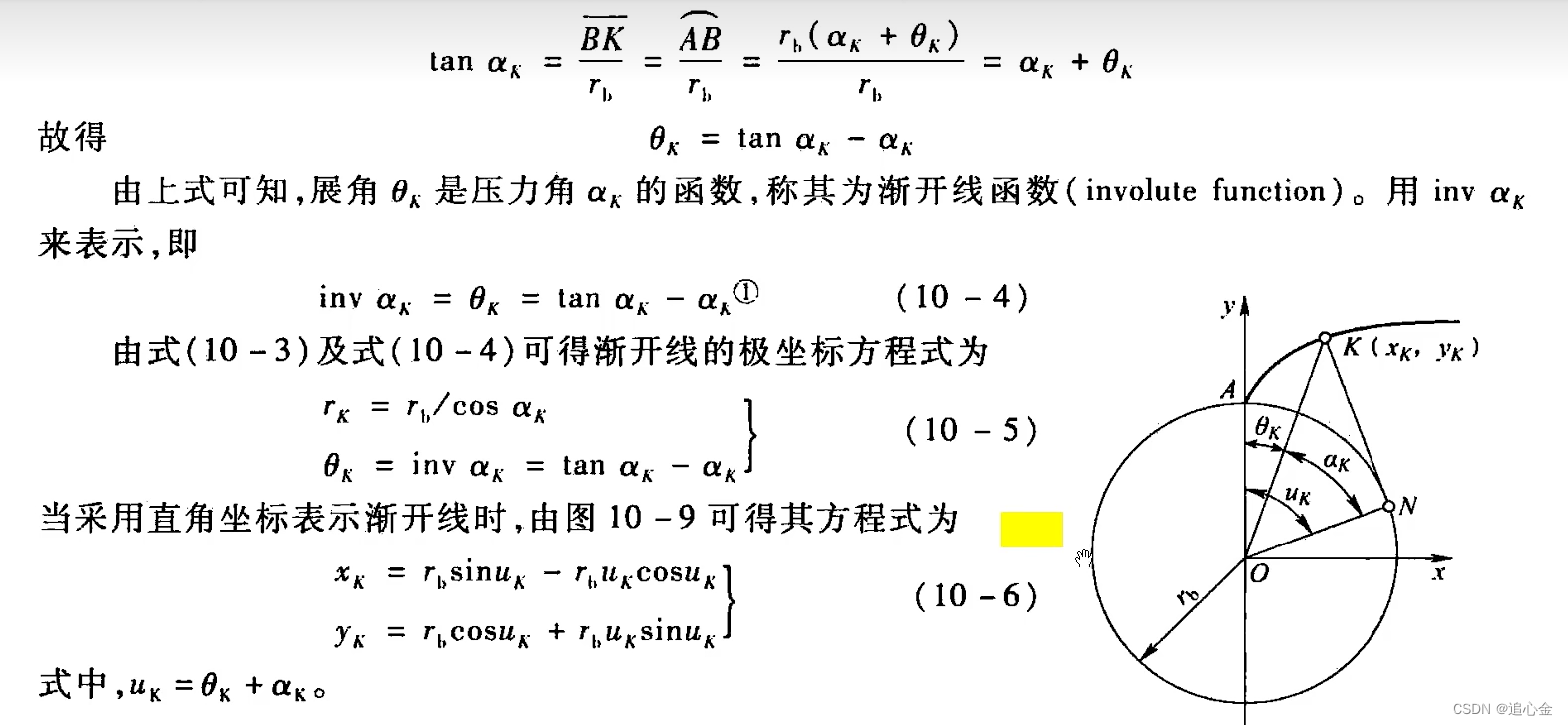

2、渐开线（这里角度为弧度，t为0 到1）

渐开线1

Xt="rb"*cos(t)+"rb"*t*sin(t)
Yt="rb"*sin(t)-"rb"*t*cos(t)

渐开线2

Xt="rb"*cos(-t-"theta")+"rb"*sin(-t-"theta")*-t
Yt="rb"*sin(-t-"theta")-"rb"*cos(-t-"theta")*-t

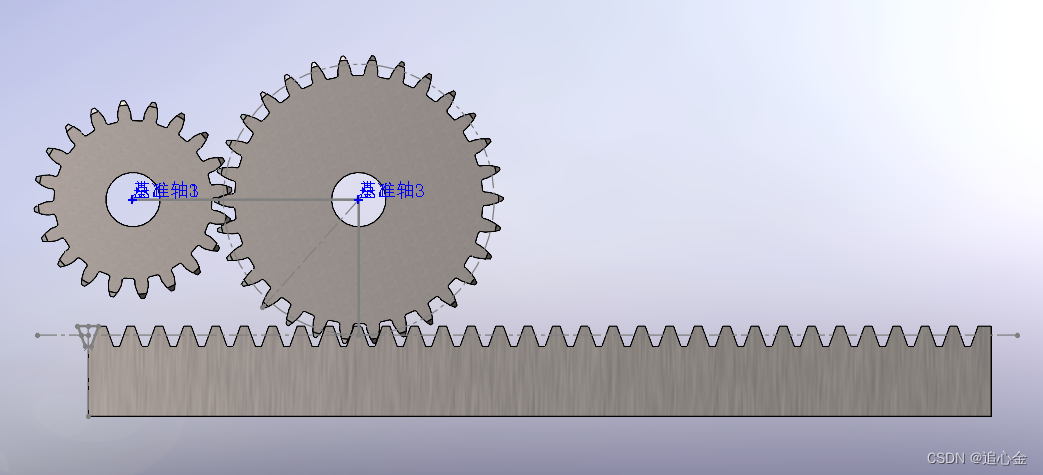

3、齿条参数

"m" = 1'模数
"l" = 100'齿条长度
"ha"= "m" * 1'齿顶高
"hf"= "m" * 1.25'齿根高
"p"= pi * "m"'齿距
"e"= "p" / 2'齿槽宽
"z"= int ( "l" / "p" ) + 1'齿数
"h"= "m" * 10'齿条高度
"w"= "m" * 10'齿条宽度
