Android进阶知识(十):View的事件分发机制
这一篇章中,笔者将介绍View的事件分发机制,需要提及的是,View的事件分发机制是View事件体系中极其重要的一点。以下对View的事件分发机制的解析,都是基于源代码的基础上进行的总结与分析,若有兴趣的读者可以通过《Android开发艺术探索》一书阅读任玉刚老师是如何通过源码来解释以下内容的,笔者就不完全照搬了。
一、点击事件的传递规则
此处以点击事件的传递规则作为View事件分发机制的介绍,点击事件的传递规则分析的对象是MotionEvent,即点击事件。所谓的点击事件的事件分发,其实就是对MotionEvent事件的分发过程,即当一个MotionEvent产生后,系统需要把这个事件传递给具体View,这个传递过程就是事件分发过程。
点击事件的分发过程由三个很重要的方法来共同完成:dispatchTouchEvent、onInterceptTouchEvent和onTouchEvent。
- dispatchTouchEvent(MotionEvent ev)
用来进行事件的分发。如果事件能够传递给当前View,那么此方法一定会被调用,返回结果受当前View的onTouchEvent和下级View的dispatchTouchEvent方法的影响,表示是否消耗当前事件。
- onInterceptTouchEvent(MotionEvent event)
在上述方法内部调用,用来判断是否拦截某个事件,如果当前View拦截了某个事件,那么在同一个事件序列当中,此方法不会被再次调用,返回结果表示是否拦截当前事件。
- onTouchEvent(Motion event)
在dispatchTouchEvent方法中调用,用来处理点击事件,返回结果表示是否消耗当前事件,如果不消耗,则在同一事件序列中,当前View无法再次接收到事件。
这三个方法的关系可以用如下的伪代码来表示。
public boolean dispatchTouchEvent(MotionEvent ev) {
boolean consume = false; // 事件是否被消费
if (onInterceptTouchEvent(ev)) {
consume = onTouchEvent(ev); // 拦截,调用自身的onTouchEvent方法
} else {
consume = child.dispatchTouchEvent(ev); // 不拦截,调用子View的dispatchTouchEvent方法
}
return consume;
}
点击事件的传递规则:如果顶级ViewGroup拦截事件即onInterceptTouchEvent返回true,则事件由ViewGroup处理,这时如果ViewGroup的mOnTouchListener被设置,则onTouch会被调用,onTouch返回true则onTouchEvent不会被调用,反之则会被调用,在onTouchEvent方法中,如果设置了OnClickListener,则可以通过performClick()调用onClick;如果ViewGroup不拦截事件,则当前事件传递给其子元素,直到事件被处理。

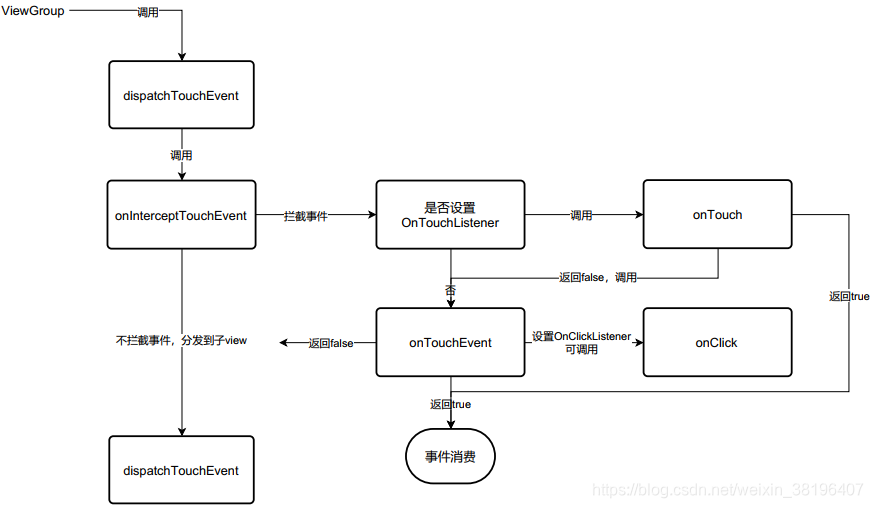

从上述中可以看到,onTouch、onTouchEvent以及onClick的优先级关系为:onTouch>onTouchEvent>onClick。以上点击事件的传递规则用流程图可以表示为如下所示。
对于上图,需要提出的一点是,当onTouchEvent或者返回false,即事件不消费时,后续的流程需要根据所处理的事件进行分类,具体情况可以参照后面的结论4和结论5。
当一个点击事件产生之后,其传递过程遵循如下顺序:Activity->Window->View,即事件总是先传递给Activity,Activity再传递给Window,最后Window再传递给顶级View。顶级View接收到事件后,就会按照事件分发机制去分发事件。
二、事件传递机制结论

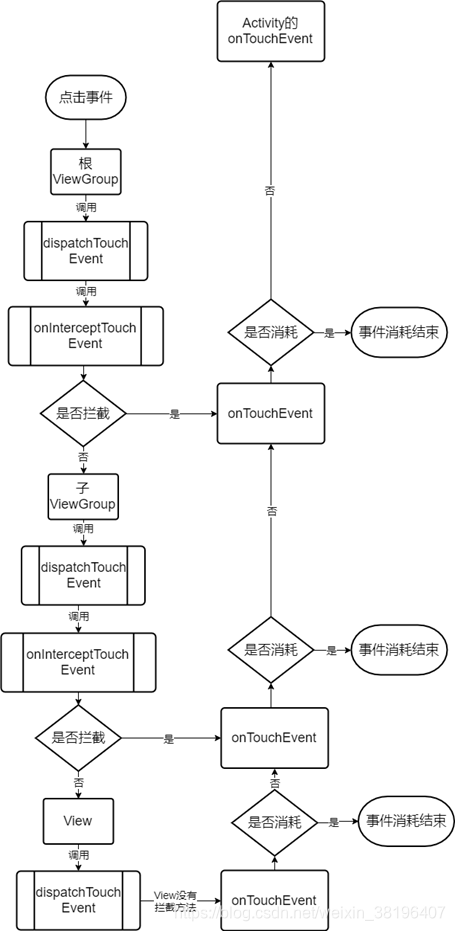

为了更好的理解整个事件分发传递机制,根据源码可以得出对于down事件,View事件分发流程如下图所示(这里不设置onTouchListener和onClickListener,仅仅以onTouchEvent来讨论)。
值得一提的是,Activity的dispatchTouchEvent源码如下所示。事件一开始交给了Activity所附属的Window进行分发,返回true则事件结束,否则交给Activity的onToucEvent处理。
public boolean dispatchTouchEvent(MotionEvent ev) {
if (ev.getAction() == MotionEvent.ACTION_DOWN) {
onUserInteraction();
}
if (getWindow().superDispatchTouchEvent(ev)) {
return true;
}
return onTouchEvent(ev);
}
从以上对down事件的View事件分发流程图可以得到如下结论。
- 同一个事件序列是指从手指接触屏幕的那一刻起,到手指离开屏幕的那一刻结束
在手指接触到离开屏幕的这一过程中,其所产生的一系列事件序列以down事件开始,中间含有数量不定的move事件,最终以up事件结束。
- 正常情况下,一个事件序列只能被一个View拦截且消耗
一旦一个元素拦截了某此事件,那么同一个事件序列内的所有事件都会直接交给它处理,因此同一事件序列中的事件不能分别由两个View同时处理。从源码上去理解的话就是,某View拦截了Down事件,那么该View的上级ViewGroup会持有指向该View的TouchTarget。
- 某个View一旦决定拦截,那么这一个事件序列都只能由它来处理(如果事件序列能够传递给它的话),并且它的onInterceptTouchEvent不会再被调用
值得一提的是,这里提到的View指的是ViewGroup,因为最底层的View是没有onInterceptTouchEvent方法的。这个结论可以从源码上去理解,如图为ViewGroup的dispatchTouchEvent的部分源码。其中,mFirstTouchTarget指向拦截事件的子元素,如果该值为null,即ViewGroup拦截事件,从中可以看出当Down事件时ViewGroup选择了拦截事件,则后续事件则不会在调用方法判断。
// Check for interception.
final boolean intercepted;
if (actionMasked == MotionEvent.ACTION_DOWN
|| mFirstTouchTarget != null) {
final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
if (!disallowIntercept) {
intercepted = onInterceptTouchEvent(ev);
ev.setAction(action); // restore action in case it was changed
} else {
intercepted = false;
}
} else {
// There are no touch targets and this action is not an initial down
// so this view group continues to intercept touches.
intercepted = true;
}

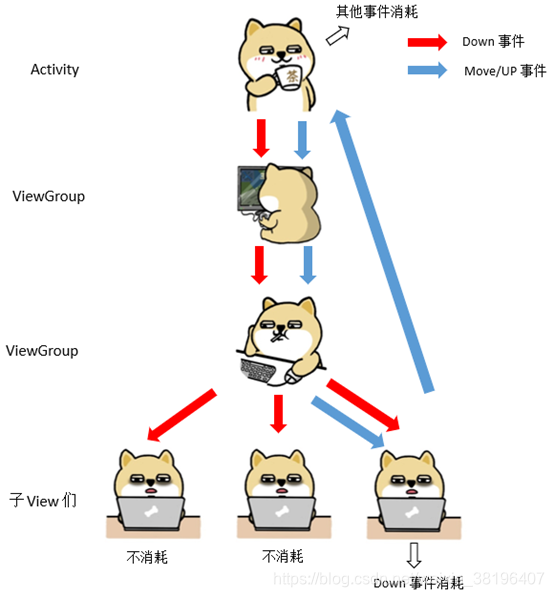

- 某个View一旦开始处理事件,如果它不消耗ACTION_DOWN事件,那么同一事件序列中的其他事件都不会再交给它来处理,并且事件将重新交由它的父元素去处理,即父元素的onTouchEvent会被调用

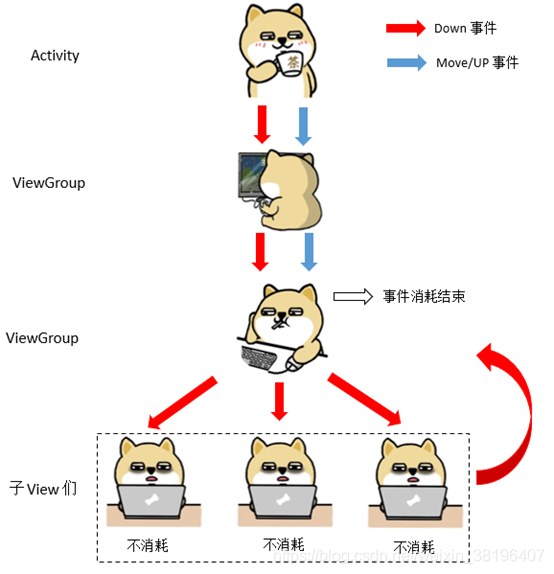

这一结论可以参照上面提到的流程图。其原因在于由于View不消耗Down事件,因此顶层ViewGroup并不会持有指向View的TouchTarget对象。用动画表示如下。

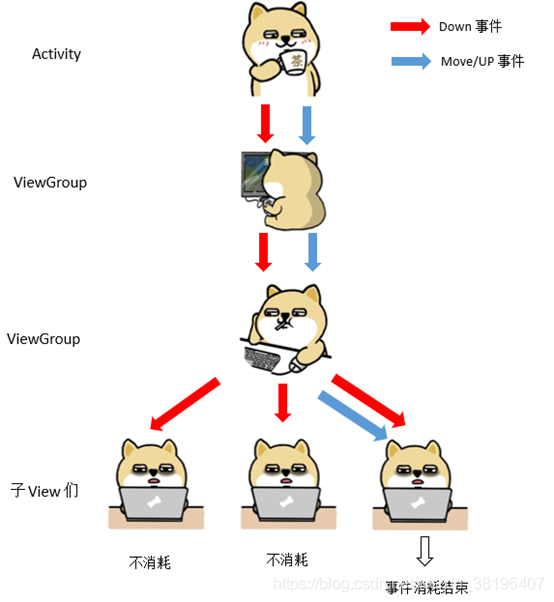

- 如果View不消耗除ACTION_DOWN以外的其他事件,那么这个点击事件就会消失,此时父元素的onTouchEvent并不会被调用,并且当前View可以持续收到后续的事件,最终这些消失的点击事件会传递给Activity处理
这一结论的原因在于,该View消耗了Down事件,那么该View的上级ViewGroup会持有指向该View的TouchTarget对象,因此后续事件都会直接交付给该View。但是由于后续事件不消耗,在Activity的dispatchTouchEvent则会调用Activity的onTouchEvent方法(见上方源码)。
需要注意的是,这一结论的前提是,在ViewGroup中事件默认不拦截。
- ViewGroup默认不拦截任何事件
Android源码中ViewGroup的onInterceptTouchEvent方法默认返回false。
- View没有onInterceptTouchEvent方法,一旦有点击事件传递给它,那么它的onTouchEvent方法就会被调用
- View的onTouchEvent默认都会消耗事件(返回true),除非它是不可点击的(clickable和longClickable同时为false)
View的longClickable属性默认都为false,clickable属性视情况而定。
- View的enable属性不影响onTouchEvent的默认返回值
一个View哪怕是disable状态,只要其clickable或者longClickable有一个为true,那么它的onTouchEvent就会返回true。
- onClick会发生的前提是当前View是可点击的,并且它收到了down和up的事件
- 事件传递过程是由外向内,即事件总是先传递给父元素,然后再由父元素分发给子View
这里值得一提的是,通过requestDisallowInterceptTouchEvent方法可以在子元素中干预父元素的事件分发过程,但是ACTION_DOWN事件除外。这也是解决滑动冲突的一种方式(具体使用方式见:Android进阶知识(十一):View的滑动冲突
)。
之所以ACTION_DOWN事件除外,原因在于对于一个事件序列,ViewGroup在分发事件时,如果是事件的开始即ACTION_DOWN事件,那么将进行初始化,这导致了标志为FLAG_DISALLOW_INTERCEPT的重置。而requestDisallowInterceptTouchEvent方法恰恰就是对该标志位的设置。
以上就是对View事件分发机制的结论,如果不是很多的读者,建议还是看看源码,毕竟源码才是王道,其他都是胡扯。
ViewGroup中dispatchTouchEvent部分源码如下。
@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
if (mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onTouchEvent(ev, 1);
}
// If the event targets the accessibility focused view and this is it, start
// normal event dispatch. Maybe a descendant is what will handle the click.
if (ev.isTargetAccessibilityFocus() && isAccessibilityFocusedViewOrHost()) {
ev.setTargetAccessibilityFocus(false);
}
boolean handled = false;
if (onFilterTouchEventForSecurity(ev)) {
final int action = ev.getAction();
final int actionMasked = action & MotionEvent.ACTION_MASK;
// Handle an initial down.
if (actionMasked == MotionEvent.ACTION_DOWN) {
// Throw away all previous state when starting a new touch gesture.
// The framework may have dropped the up or cancel event for the previous gesture
// due to an app switch, ANR, or some other state change.
cancelAndClearTouchTargets(ev);
resetTouchState();
}
// Check for interception.
final boolean intercepted;
if (actionMasked == MotionEvent.ACTION_DOWN
|| mFirstTouchTarget != null) {
final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
if (!disallowIntercept) {
intercepted = onInterceptTouchEvent(ev);
ev.setAction(action); // restore action in case it was changed
} else {
intercepted = false;
}
} else {
// There are no touch targets and this action is not an initial down
// so this view group continues to intercept touches.
intercepted = true;
}
// If intercepted, start normal event dispatch. Also if there is already
// a view that is handling the gesture, do normal event dispatch.
if (intercepted || mFirstTouchTarget != null) {
ev.setTargetAccessibilityFocus(false);
}
// Check for cancelation.
final boolean canceled = resetCancelNextUpFlag(this)
|| actionMasked == MotionEvent.ACTION_CANCEL;
// Update list of touch targets for pointer down, if needed.
final boolean isMouseEvent = ev.getSource() == InputDevice.SOURCE_MOUSE;
final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0
&& !isMouseEvent;
TouchTarget newTouchTarget = null;
boolean alreadyDispatchedToNewTouchTarget = false;
if (!canceled && !intercepted) {
// If the event is targeting accessibility focus we give it to the
// view that has accessibility focus and if it does not handle it
// we clear the flag and dispatch the event to all children as usual.
// We are looking up the accessibility focused host to avoid keeping
// state since these events are very rare.
View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus()
? findChildWithAccessibilityFocus() : null;
if (actionMasked == MotionEvent.ACTION_DOWN
|| (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
|| actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
final int actionIndex = ev.getActionIndex(); // always 0 for down
final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
: TouchTarget.ALL_POINTER_IDS;
// Clean up earlier touch targets for this pointer id in case they
// have become out of sync.
removePointersFromTouchTargets(idBitsToAssign);
final int childrenCount = mChildrenCount;
if (newTouchTarget == null && childrenCount != 0) {
final float x = ev.getXDispatchLocation(actionIndex);
final float y = ev.getYDispatchLocation(actionIndex);
// Find a child that can receive the event.
// Scan children from front to back.
final ArrayList<View> preorderedList = buildTouchDispatchChildList();
final boolean customOrder = preorderedList == null
&& isChildrenDrawingOrderEnabled();
final View[] children = mChildren;
for (int i = childrenCount - 1; i >= 0; i--) {
final int childIndex = getAndVerifyPreorderedIndex(
childrenCount, i, customOrder);
final View child = getAndVerifyPreorderedView(
preorderedList, children, childIndex);
// If there is a view that has accessibility focus we want it
// to get the event first and if not handled we will perform a
// normal dispatch. We may do a double iteration but this is
// safer given the timeframe.
if (childWithAccessibilityFocus != null) {
if (childWithAccessibilityFocus != child) {
continue;
}
childWithAccessibilityFocus = null;
i = childrenCount;
}
if (!child.canReceivePointerEvents()
|| !isTransformedTouchPointInView(x, y, child, null)) {
ev.setTargetAccessibilityFocus(false);
continue;
}
newTouchTarget = getTouchTarget(child);
if (newTouchTarget != null) {
// Child is already receiving touch within its bounds.
// Give it the new pointer in addition to the ones it is handling.
newTouchTarget.pointerIdBits |= idBitsToAssign;
break;
}
resetCancelNextUpFlag(child);
if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
// Child wants to receive touch within its bounds.
mLastTouchDownTime = ev.getDownTime();
if (preorderedList != null) {
// childIndex points into presorted list, find original index
for (int j = 0; j < childrenCount; j++) {
if (children[childIndex] == mChildren[j]) {
mLastTouchDownIndex = j;
break;
}
}
} else {
mLastTouchDownIndex = childIndex;
}
mLastTouchDownX = x;
mLastTouchDownY = y;
newTouchTarget = addTouchTarget(child, idBitsToAssign);
alreadyDispatchedToNewTouchTarget = true;
break;
}
// The accessibility focus didn't handle the event, so clear
// the flag and do a normal dispatch to all children.
ev.setTargetAccessibilityFocus(false);
}
if (preorderedList != null) preorderedList.clear();
}
if (newTouchTarget == null && mFirstTouchTarget != null) {
// Did not find a child to receive the event.
// Assign the pointer to the least recently added target.
newTouchTarget = mFirstTouchTarget;
while (newTouchTarget.next != null) {
newTouchTarget = newTouchTarget.next;
}
newTouchTarget.pointerIdBits |= idBitsToAssign;
}
}
}
// Dispatch to touch targets.
if (mFirstTouchTarget == null) {
// No touch targets so treat this as an ordinary view.
handled = dispatchTransformedTouchEvent(ev, canceled, null,
TouchTarget.ALL_POINTER_IDS);
} else {
// Dispatch to touch targets, excluding the new touch target if we already
// dispatched to it. Cancel touch targets if necessary.
TouchTarget predecessor = null;
TouchTarget target = mFirstTouchTarget;
while (target != null) {
final TouchTarget next = target.next;
if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
handled = true;
} else {
final boolean cancelChild = resetCancelNextUpFlag(target.child)
|| intercepted;
if (dispatchTransformedTouchEvent(ev, cancelChild,
target.child, target.pointerIdBits)) {
handled = true;
}
if (cancelChild) {
if (predecessor == null) {
mFirstTouchTarget = next;
} else {
predecessor.next = next;
}
target.recycle();
target = next;
continue;
}
}
predecessor = target;
target = next;
}
}
// Update list of touch targets for pointer up or cancel, if needed.
if (canceled
|| actionMasked == MotionEvent.ACTION_UP
|| actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
resetTouchState();
} else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
final int actionIndex = ev.getActionIndex();
final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
removePointersFromTouchTargets(idBitsToRemove);
}
}
if (!handled && mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
}
return handled;
}
private boolean dispatchTransformedTouchEvent(MotionEvent event, boolean cancel,
View child, int desiredPointerIdBits) {
final boolean handled;
// Canceling motions is a special case. We don't need to perform any transformations
// or filtering. The important part is the action, not the contents.
final int oldAction = event.getAction();
if (cancel || oldAction == MotionEvent.ACTION_CANCEL) {
event.setAction(MotionEvent.ACTION_CANCEL);
if (child == null) {
handled = super.dispatchTouchEvent(event);
} else {
handled = child.dispatchTouchEvent(event);
}
event.setAction(oldAction);
return handled;
}
// Calculate the number of pointers to deliver.
final int oldPointerIdBits = event.getPointerIdBits();
final int newPointerIdBits = oldPointerIdBits & desiredPointerIdBits;
// If for some reason we ended up in an inconsistent state where it looks like we
// might produce a motion event with no pointers in it, then drop the event.
if (newPointerIdBits == 0) {
return false;
}
// If the number of pointers is the same and we don't need to perform any fancy
// irreversible transformations, then we can reuse the motion event for this
// dispatch as long as we are careful to revert any changes we make.
// Otherwise we need to make a copy.
final MotionEvent transformedEvent;
if (newPointerIdBits == oldPointerIdBits) {
if (child == null || child.hasIdentityMatrix()) {
if (child == null) {
handled = super.dispatchTouchEvent(event);
} else {
final float offsetX = mScrollX - child.mLeft;
final float offsetY = mScrollY - child.mTop;
event.offsetLocation(offsetX, offsetY);
handled = child.dispatchTouchEvent(event);
event.offsetLocation(-offsetX, -offsetY);
}
return handled;
}
transformedEvent = MotionEvent.obtain(event);
} else {
transformedEvent = event.split(newPointerIdBits);
}
// Perform any necessary transformations and dispatch.
if (child == null) {
handled = super.dispatchTouchEvent(transformedEvent);
} else {
final float offsetX = mScrollX - child.mLeft;
final float offsetY = mScrollY - child.mTop;
transformedEvent.offsetLocation(offsetX, offsetY);
if (! child.hasIdentityMatrix()) {
transformedEvent.transform(child.getInverseMatrix());
}
handled = child.dispatchTouchEvent(transformedEvent);
}
// Done.
transformedEvent.recycle();
return handled;
}
参考资料:《Android开发艺术探索》
