flink开发maven idea配置

PONY LEE

已于 2022-06-12 19:34:30 修改

阅读量4.3k

点赞数

分类专栏：开发工具 Flink 文章标签： intellij idea flink

于 2022-04-19 10:37:36 首次发布

本文链接：https://blog.csdn.net/weixin_38251332/article/details/124267375

版权

Flink 同时被 2 个专栏收录

26 篇文章 0 订阅

订阅专栏

开发工具

2 篇文章 0 订阅

订阅专栏

我们在flink开发的过程中，在idea开发调试的过程中flink的一些依赖需要声明maven依赖范围为compile;而在flink程序开发完成打包发布的时候需要声明maven的依赖范围为provided，从而避免依赖冲突或者冗余的打包。这需要在idea开发调试环境和代码打包环境来回切换，以下配置可以很轻松的完成此功能。

pom.xml文件配置示例：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.pony</groupId>
    <artifactId>flink-demo01</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <java.version>1.8</java.version>
        <maven.compiler.source>${java.version}</maven.compiler.source>
        <maven.compiler.target>${java.version}</maven.compiler.target>
        <flink.version>1.12.2</flink.version>
        <hadoop.version>2.7.3</hadoop.version>
        <scala.version>2.11</scala.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_2.11</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_2.11</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-statebackend-rocksdb_2.11</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka_2.11</artifactId>
            <version>${flink.version}</version>
            <scope>compile</scope>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.25</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.25</version>
            <scope>provided</scope>
        </dependency>

        <!--<dependency>
    <groupId>org.apache.logging.log4j</groupId>
    <artifactId>log4j-core</artifactId>
    <version>2.15.0</version>
</dependency>
<dependency>
    <groupId>org.apache.logging.log4j</groupId>
    <artifactId>log4j-api</artifactId>
    <version>2.15.0</version>
</dependency>
&lt;!&ndash;用于与slf4j保持桥接&ndash;&gt;
<dependency>
    <groupId>org.apache.logging.log4j</groupId>
    <artifactId>log4j-slf4j-impl</artifactId>
    <version>2.15.0</version>
</dependency>-->

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-shaded-hadoop-2-uber</artifactId>
            <version>2.7.5-9.0</version>
            <scope>provided</scope>
        </dependency>

        <!--为了能在本地IDE启动看到flinkwebUI-->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-runtime-web_2.11</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <!-- 编译插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.6.0</version>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                    <encoding>${project.build.sourceEncoding}</encoding>
                </configuration>
            </plugin>
            <!-- scala编译插 打包时注释掉-->
            <!--<plugin>
                <groupId>net.alchim31.maven</groupId>
                <artifactId>scala-maven-plugin</artifactId>
                <version>3.1.6</version>
                <configuration>
                    <scalaCompatVersion>2.11</scalaCompatVersion>
                    <scalaVersion>2.11.12</scalaVersion>
                    <encoding>UTF-8</encoding>
                </configuration>
                <executions>
                    <execution>
                        <id>compile-scala</id>
                        <phase>compile</phase>
                        <goals>
                            <goal>add-source</goal>
                            <goal>compile</goal>
                        </goals>
                    </execution>
                    <execution>
                        <id>test-compile-scala</id>
                        <phase>test-compile</phase>
                        <goals>
                            <goal>add-source</goal>
                            <goal>testCompile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>-->
            <!-- 使用 maven-shade打包依賴（推荐）-->
            <!-- We use the maven-shade plugin to create a fat jar that contains all necessary dependencies. -->
            <!-- Change the value of <mainClass>...</mainClass> if your program entry point changes. -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>3.0.0</version>
                <executions>
                    <!-- Run shade goal on package phase -->
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <artifactSet>
                                <excludes>
                                    <exclude>org.apache.flink:force-shading</exclude>
                                    <exclude>com.google.code.findbugs:jsr305</exclude>
                                    <exclude>org.slf4j:*</exclude>
                                    <exclude>log4j:*</exclude>
                                </excludes>
                            </artifactSet>
                            <filters>
                                <filter>
                                    <!-- Do not copy the signatures in the META-INF folder.
                                    Otherwise, this might cause SecurityExceptions when using the JAR. -->
                                    <artifact>*:*</artifact>
                                    <excludes>
                                        <exclude>META-INF/*.SF</exclude>
                                        <exclude>META-INF/*.DSA</exclude>
                                        <exclude>META-INF/*.RSA</exclude>
                                    </excludes>
                                </filter>
                            </filters>
                            <transformers>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                    <mainClass>com.pony.watermark.StreamingWindowWatermarkKafkaNewApi</mainClass>
                                </transformer>
                            </transformers>
                            <!--  将“com.pony.kafka”重命名为“com.shade.kafka"-->
                            <relocations>
                                <relocation>
                                    <pattern>com.pony.kafka</pattern>
                                    <shadedPattern>com.shade.kafka</shadedPattern>
                                    <excludes>
                                        <exclude>com.pony.kafka.KeyedStateFunction</exclude>
                                        <exclude>com.pony.kafka.StreamingWithKafka*</exclude>
                                    </excludes>
                                </relocation>
                            </relocations>
                            <!-- 修改包的后缀名-->
                            <shadedArtifactAttached>true</shadedArtifactAttached>
                            <shadedClassifierName>pony-shade</shadedClassifierName>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
            <!-- 使用assembly打包依賴，打jar包插件(会包含所有依赖) -->
            <!--<plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>2.6</version>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                    <archive>
                        <manifest>
                            &lt;!&ndash; 可以设置jar包的入口类(可选) &ndash;&gt;
                            <mainClass>xuwei.tech.streaming.SocketWindowWordCountJava</mainClass>
                        </manifest>
                    </archive>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>-->

        </plugins>
    </build>

    <profiles>
        <profile>
            <id>add-dependencies-for-IDEA</id>

            <activation>
                <property>
                    <name>idea.version</name>
                </property>
                <activeByDefault>true</activeByDefault>
            </activation>

            <dependencies>
                <dependency>
                    <groupId>org.apache.flink</groupId>
                    <artifactId>flink-streaming-java_2.11</artifactId>
                    <version>${flink.version}</version>
                </dependency>

                <dependency>
                    <groupId>org.apache.flink</groupId>
                    <artifactId>flink-clients_2.11</artifactId>
                    <version>${flink.version}</version>
                </dependency>

                <dependency>
                    <groupId>org.apache.flink</groupId>
                    <artifactId>flink-statebackend-rocksdb_2.11</artifactId>
                    <version>${flink.version}</version>
                </dependency>

                <!--https://ci.apache.org/projects/flink/flink-docs-release-1.4/dev/connectors/kafka.html-->
                <dependency>
                    <groupId>org.apache.flink</groupId>
                    <artifactId>flink-connector-kafka_2.11</artifactId>
                    <version>${flink.version}</version>
                </dependency>

                <dependency>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                    <version>1.7.25</version>
                </dependency>
                <dependency>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                    <version>1.7.25</version>
                </dependency>
                <dependency>
                    <groupId>org.apache.flink</groupId>
                    <artifactId>flink-shaded-hadoop-2-uber</artifactId>
                    <version>2.7.5-9.0</version>
                </dependency>

                <!--为了能在本地IDE启动看到flinkwebUI-->
                <dependency>
                    <groupId>org.apache.flink</groupId>
                    <artifactId>flink-runtime-web_2.11</artifactId>
                    <version>${flink.version}</version>
                </dependency>
            </dependencies>
        </profile>
    </profiles>

</project>

打包使用说明：

在idea开发调试的过程中，把Profiles的【add-dependencies-for-IDEA】勾选去掉，不使用【add-dependencies-for-IDEA】这个环境，如下图：

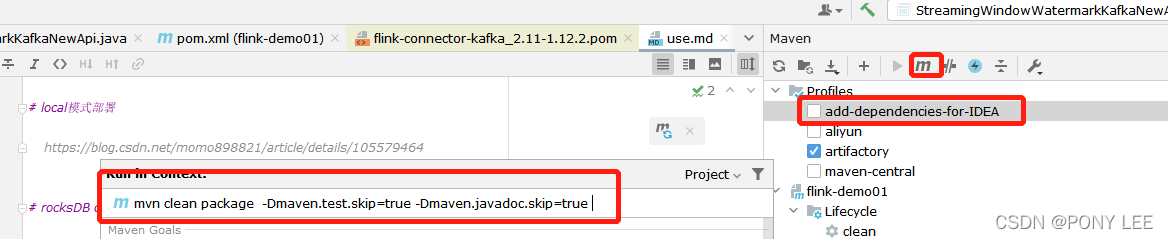

在这里插入图片描述打包：

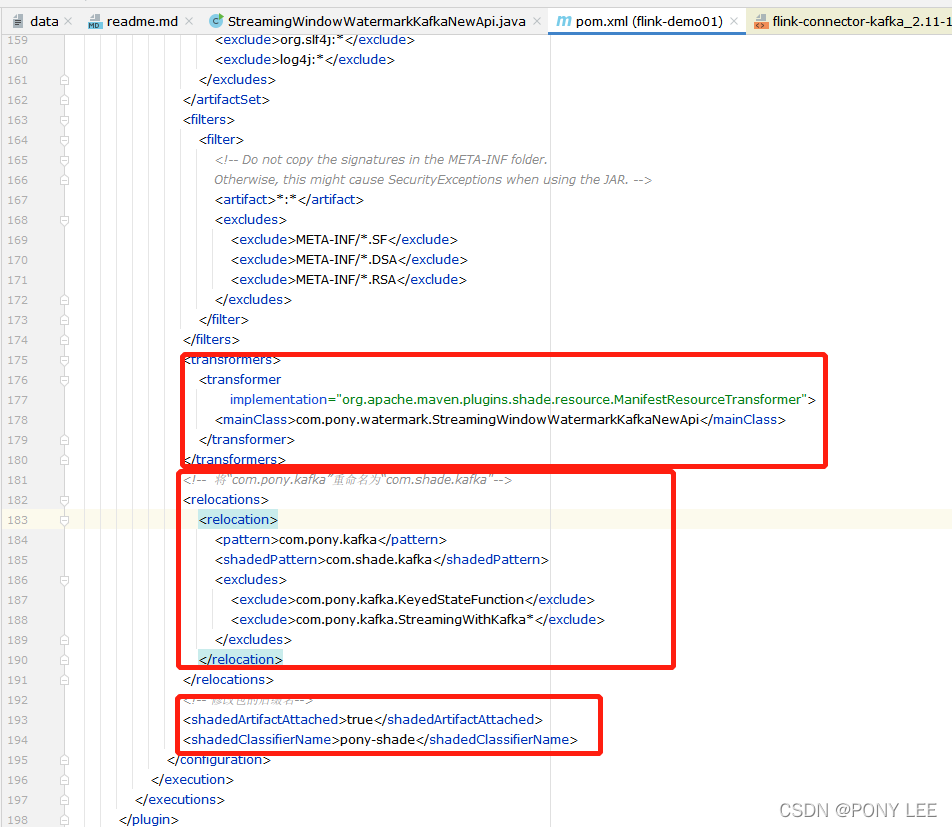

shade打包的使用

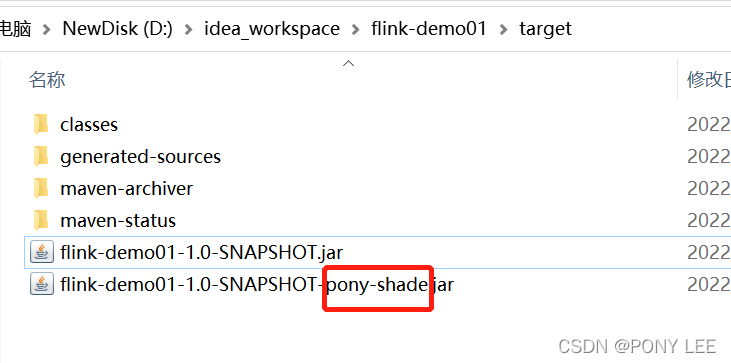

打包结果：

在这里插入图片描述
idea开发使用说明：

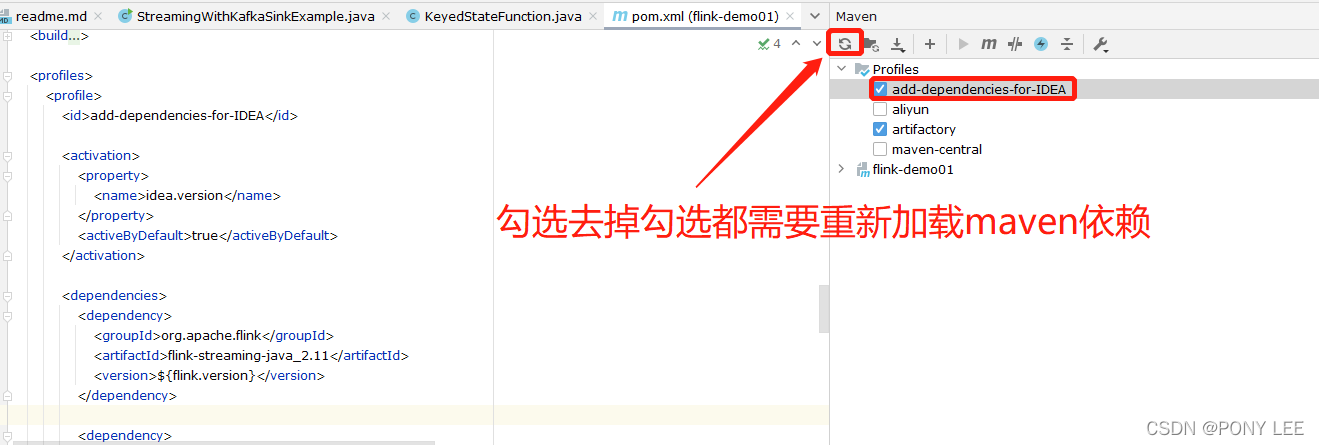

需要勾选Profiles的【add-dependencies-for-IDEA】选项
注意： 需要重新加载maven依赖

否则会报错：

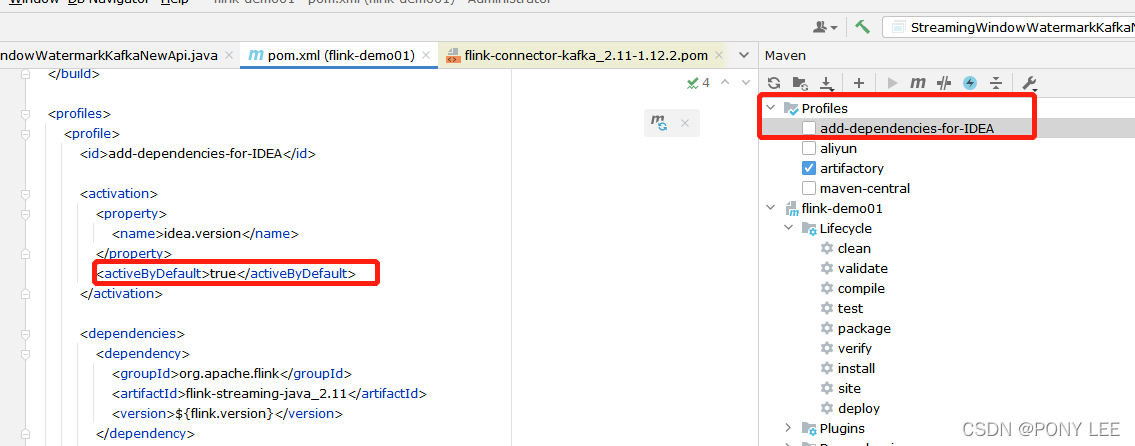

在这里插入图片描述

另外

编写flink jar包程序的依赖问题
在编写flink jar包程序时，一定要特别注意运行时存在的jar包，设置其依赖scope为provided，否则可能会有冲突。特别是在应用引用低版本flink库，而
镜像使用高版本时，应用可能不能平滑迁移。
同时，在idea中调试，又需要将其scope设置为compile，否则本地调试可能会有问题。
为了解决这个问题，可以在pom中使用profile区分，示例如下：

<properties>
...
<!-- components exist online scope define -->
<libs.online.scope>provided</libs.online.scope>
...
</properties>
<profiles>
<profile>
<id>add-dependencies-for-IDEA</id>
<activation>
<property>
<name>idea.maven.embedder.version</name>
</property>
</activation>
<properties>
<libs.online.scope>compile</libs.online.scope>
</properties>
</profile>
</profiles>

之后，将在运行时存在的jar包的依赖按照如下方式设置即可，比如

<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-java</artifactId>
<version>${flink.version}</version>
<scope>${libs.online.scope}</scope>
</dependency>
