springboot 源码解析之MVC

研究mvc 要搞清楚的几个问题

1 springmvc 整体架构

2 springmvc 初始化过程

3 springmvc 是如何封装controller 的

4 springmvc 是解析封装参数的

5 springmvc 是如何封装结果的

6 springmvc 拦截器是如何工作的

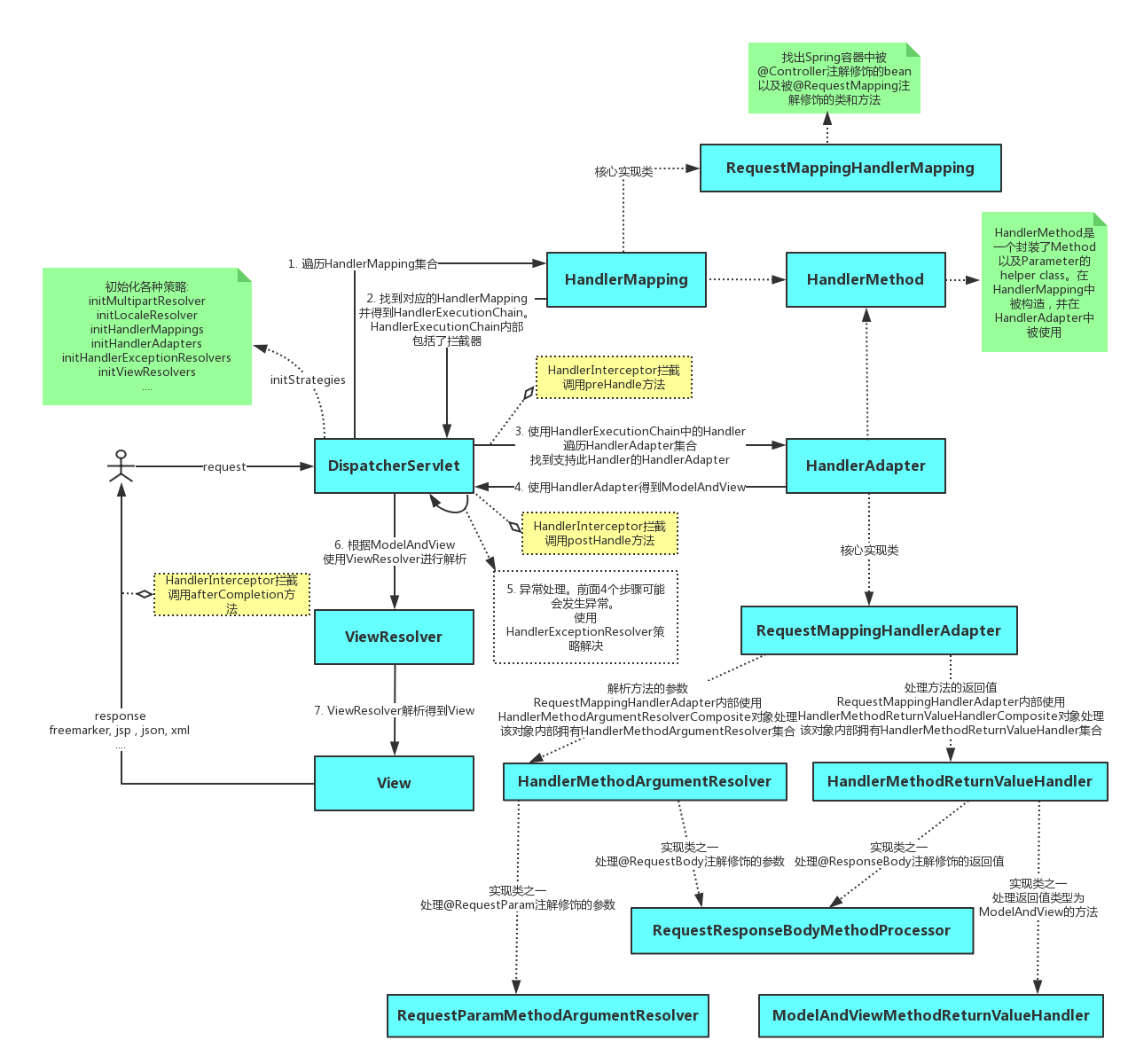

问题1:



 架构一目了然。

问题2：

FrameworkServlet 是dispatcherServlet 的父类, 也是dispatcherServlet 初始化的入口;

@Override
protected final void initServletBean() throws ServletException {
   getServletContext().log("Initializing Spring " + getClass().getSimpleName() + " '" + getServletName() + "'");
   if (logger.isInfoEnabled()) {
      logger.info("Initializing Servlet '" + getServletName() + "'");
   }
   long startTime = System.currentTimeMillis();

   try {
      this.webApplicationContext = initWebApplicationContext();
      initFrameworkServlet(); //  这里调用dispatcherServlet 的初始化接口
   }
   catch (ServletException | RuntimeException ex) {
      logger.error("Context initialization failed", ex);
      throw ex;
   }

   if (logger.isDebugEnabled()) {
      String value = this.enableLoggingRequestDetails ?
            "shown which may lead to unsafe logging of potentially sensitive data" :
            "masked to prevent unsafe logging of potentially sensitive data";
      logger.debug("enableLoggingRequestDetails='" + this.enableLoggingRequestDetails +
            "': request parameters and headers will be " + value);
   }

   if (logger.isInfoEnabled()) {
      logger.info("Completed initialization in " + (System.currentTimeMillis() - startTime) + " ms");
   }
}

 看下dispatcherServlet的代码

protected void initStrategies(ApplicationContext context) {
   initMultipartResolver(context);// 文件上传处理器
   initLocaleResolver(context);
   initThemeResolver(context);
   initHandlerMappings(context);// 处理器映射器
   initHandlerAdapters(context);// 处理器适配器
   initHandlerExceptionResolvers(context);
   initRequestToViewNameTranslator(context);
   initViewResolvers(context);
   initFlashMapManager(context);
}

 初始化过程

重点关照initMultipartResolver, initHandlerMappings, initHandlerAdapters;

initMultipartResolver:

// 直接从容器中获取MultipartResolver
private void initMultipartResolver(ApplicationContext context) {
   try {
      this.multipartResolver = context.getBean(MULTIPART_RESOLVER_BEAN_NAME, MultipartResolver.class);
      if (logger.isTraceEnabled()) {
         logger.trace("Detected " + this.multipartResolver);
      }
      else if (logger.isDebugEnabled()) {
         logger.debug("Detected " + this.multipartResolver.getClass().getSimpleName());
      }
   }
   catch (NoSuchBeanDefinitionException ex) {
      // Default is no multipart resolver.
      this.multipartResolver = null;
      if (logger.isTraceEnabled()) {
         logger.trace("No MultipartResolver '" + MULTIPART_RESOLVER_BEAN_NAME + "' declared");
      }
   }
}

initHandlerMappings

// 从容器中获取HandlerMapping类型的bean , 封装进 handlerMappings
private void initHandlerMappings(ApplicationContext context) {
   this.handlerMappings = null;

   if (this.detectAllHandlerMappings) {
      // Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
      Map<String, HandlerMapping> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
      if (!matchingBeans.isEmpty()) {
         this.handlerMappings = new ArrayList<>(matchingBeans.values());
         // We keep HandlerMappings in sorted order.
         AnnotationAwareOrderComparator.sort(this.handlerMappings);
      }
   }
   else {
      try {
         HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
         this.handlerMappings = Collections.singletonList(hm);
      }
      catch (NoSuchBeanDefinitionException ex) {
         // Ignore, we'll add a default HandlerMapping later.
      }
   }

   // Ensure we have at least one HandlerMapping, by registering
   // a default HandlerMapping if no other mappings are found.
   if (this.handlerMappings == null) {
      this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
      if (logger.isTraceEnabled()) {
         logger.trace("No HandlerMappings declared for servlet '" + getServletName() +
               "': using default strategies from DispatcherServlet.properties");
      }
   }
}

initHandlerAdapters 和 initHandlerMappings很像, 从容器中获取 HandlerAdapter 然后封装进 handlerAdapters

private void initHandlerAdapters(ApplicationContext context) {
   this.handlerAdapters = null;

   if (this.detectAllHandlerAdapters) {
      // Find all HandlerAdapters in the ApplicationContext, including ancestor contexts.
      Map<String, HandlerAdapter> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerAdapter.class, true, false);
      if (!matchingBeans.isEmpty()) {
         this.handlerAdapters = new ArrayList<>(matchingBeans.values());
         // We keep HandlerAdapters in sorted order.
         AnnotationAwareOrderComparator.sort(this.handlerAdapters);
      }
   }
   else {
      try {
         HandlerAdapter ha = context.getBean(HANDLER_ADAPTER_BEAN_NAME, HandlerAdapter.class);
         this.handlerAdapters = Collections.singletonList(ha);
      }
      catch (NoSuchBeanDefinitionException ex) {
         // Ignore, we'll add a default HandlerAdapter later.
      }
   }

   // Ensure we have at least some HandlerAdapters, by registering
   // default HandlerAdapters if no other adapters are found.
   if (this.handlerAdapters == null) {
      this.handlerAdapters = getDefaultStrategies(context, HandlerAdapter.class);
      if (logger.isTraceEnabled()) {
         logger.trace("No HandlerAdapters declared for servlet '" + getServletName() +
               "': using default strategies from DispatcherServlet.properties");
      }
   }
}

问题3

controller 是什么时候封装的呢?

看一下RequestMappingHandlerMapping 这个类; 他间接实现了InitializingBean 接口, 所以初始化完成时会调用 afterPropertiesSet 方法,

@Override
public void afterPropertiesSet() {
   this.config = new RequestMappingInfo.BuilderConfiguration();
   this.config.setUrlPathHelper(getUrlPathHelper());
   this.config.setPathMatcher(getPathMatcher());
   this.config.setSuffixPatternMatch(this.useSuffixPatternMatch);
   this.config.setTrailingSlashMatch(this.useTrailingSlashMatch);
   this.config.setRegisteredSuffixPatternMatch(this.useRegisteredSuffixPatternMatch);
   this.config.setContentNegotiationManager(getContentNegotiationManager());

   super.afterPropertiesSet();
}

然后调用了父类的 afterPropertiesSet

AbstractHandlerMethodMapping
@Override
public void afterPropertiesSet() {
   initHandlerMethods();
}
protected void initHandlerMethods() {
   for (String beanName : getCandidateBeanNames()) {
      if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
         processCandidateBean(beanName);
      }
   }
   handlerMethodsInitialized(getHandlerMethods());
}

 循环中调用了 AbstractHandlerMethodMapping.processCandidateBean方法, 逻辑的大概意思是根据类的名字获取容器中的类, 然后判断类中是否被@Controller或者@RestController 类标注,如果标注了,则注册进 HandlerMapping

protected void processCandidateBean(String beanName) {
   Class<?> beanType = null;
   try {
      beanType = obtainApplicationContext().getType(beanName);
   }
   catch (Throwable ex) {
      // An unresolvable bean type, probably from a lazy bean - let's ignore it.
      if (logger.isTraceEnabled()) {
         logger.trace("Could not resolve type for bean '" + beanName + "'", ex);
      }
   }
   if (beanType != null && isHandler(beanType)) {
      detectHandlerMethods(beanName);
   }
}

RequestMappingHandlerMapping 这里是对类进行判断的地方

@Override
protected boolean isHandler(Class<?> beanType) {
   return (AnnotatedElementUtils.hasAnnotation(beanType, Controller.class) ||
         AnnotatedElementUtils.hasAnnotation(beanType, RequestMapping.class));
}

AbstractHandlerMethodMapping 这里是注册controller 的地方 ,

protected void detectHandlerMethods(Object handler) {
   Class<?> handlerType = (handler instanceof String ?
         obtainApplicationContext().getType((String) handler) : handler.getClass());

   if (handlerType != null) {
      Class<?> userType = ClassUtils.getUserClass(handlerType);
      Map<Method, T> methods = MethodIntrospector.selectMethods(userType,
            (MethodIntrospector.MetadataLookup<T>) method -> {
               try {
                  return getMappingForMethod(method, userType);
               }
               catch (Throwable ex) {
                  throw new IllegalStateException("Invalid mapping on handler class [" +
                        userType.getName() + "]: " + method, ex);
               }
            });
      if (logger.isTraceEnabled()) {
         logger.trace(formatMappings(userType, methods));
      }
      methods.forEach((method, mapping) -> {
         Method invocableMethod = AopUtils.selectInvocableMethod(method, userType);
         registerHandlerMethod(handler, invocableMethod, mapping);
      });
   }
}

路由相关的信息封装进RequestMappingInfo , 方法相关的信息封装进 MappingRegistration , 最后他们分别以key 和 value 的形式封装进 MappingRegistry ; 这个类是专门为封装这些参数准备的;

这里有一个可重入读写锁的应用, 在注册MappingRegistry 时 , 只能有一个线程进行操作;

protected void registerHandlerMethod(Object handler, Method method, T mapping) {
   this.mappingRegistry.register(mapping, handler, method);
}
public void register(T mapping, Object handler, Method method) {
   this.readWriteLock.writeLock().lock();
   try {
      HandlerMethod handlerMethod = createHandler
