539/CA_SI4136/SI4133/SI5351手册解读

沪上菜鸟

已于 2022-06-18 13:14:40 修改

阅读量1.2k

点赞数 1

分类专栏：工作总结文章标签：单片机

于 2022-06-18 11:37:49 首次发布

本文链接：https://blog.csdn.net/weixin_38628101/article/details/125344746

版权

本文介绍了Si4136、SI4133和SI5351三款单片机射频和中频合成器的特性，包括它们的工作频率范围和配置方法。通过串行接口进行编程，详细阐述了地址字段的作用，并提出应用案例——设计上位机界面控制频率生成。同时提到了SI4133的双频段功能及独立设置的R和N分频器，以及SI5351的频率范围和I2C可配置特性。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

SI4136
Dual-band RF synthesizers
RF1: 2300 MHz to 2500 MHz
RF2: 2025 MHz to 2300 MHz
IF synthesizer
62.5 MHz to 1000 MHz
3V供电

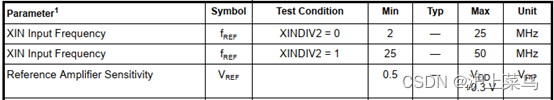

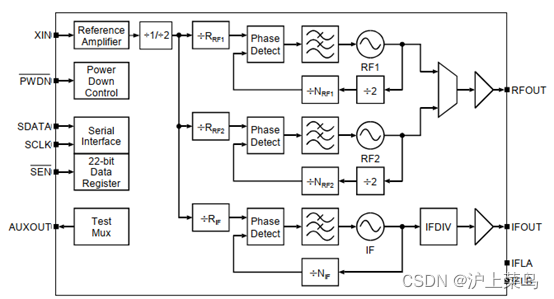

在这里插入图片描述

The Si4136 is programmed serially with 22-bit words comprised of 18-bit data fields and 4-bit address fields. When the serial interface is enabled (i.e., when SEN is low) data and address bits on the SDATA pin are clocked into an internal shift register on the rising edge of SCLK. Data in the shift register is then transferred on the rising edge of SEN into the internal data register addressed in the address field. The serial interface is disabled when SEN is high.
