Concurrent Mark and Sweep

翻译文档地址：https://plumbr.io/handbook/garbage-collection-algorithms-implementations#concurrent-mark-and-sweep

The official name for this collection of garbage collectors is “Mostly Concurrent Mark and Sweep Garbage Collector”. It uses the parallel stop-the-world mark-copy algorithm in the Young Generation and the mostly concurrent mark-sweep algorithm in the Old Generation.

官方名称是大部分并发标记清除回收器。年轻代使用多线程方式的复制算法，老年代使用标记清除算法。

This collector was designed to avoid long pauses while collecting in the Old Generation. It achieves this by two means. Firstly, it does not compact the Old Generation but uses free-lists to manage reclaimed space. Secondly, it does most of the job in the mark-and-sweep phases concurrently with the application. This means that garbage collection is not explicitly stopping the application threads to perform these phases. It should be noted, however, that it still competes for CPU time with the application threads. By default, the number of threads used by this GC algorithm equals to ¼ of the number of physical cores of your machine.

CMS是一种避免老年代长时间停顿的收集器。为了达到这个目的，有两种方式。首先，使用标记清除算法，使用空闲列表管理回收内存。其次，大部分标记清除工作是和应用线程并发进行的，并没有停止应用线程。但是值得注意的是，gc线程会和应用线程争抢cpu时间片。默认的，gc线程会占用四分之一的机器物理处理器。

This garbage collector can be chosen by specifying the following option on your command line:

可以通过下面这种方式指定使用CMS收集器。

java -XX:+UseConcMarkSweepGC com.mypackages.MyExecutableClass

This combination is a good choice on multi-core machines if your primary target is latency. Decreasing the duration of an individual GC pause directly affects the way your application is perceived by end-users, giving them a feel of a more responsive application. As most of the time at least some CPU resources are consumed by the GC and not executing your application’s code, CMS generally often worse throughput than Parallel GC in CPU-bound applications.

如果首要目标是低延迟，那么这种组合在多核心的机器中是一个很好的选择。减少停顿，让终端用户感觉不到停顿，让他们感觉应用响应很快。因为会占用本来执行应用线程的线程数，所以在吞吐量方面，CMS表现不如Paralle GC。

As with previous GC algorithms, let us now see how this algorithm is applied in practice by taking a look at the GC logs that once again expose one minor and one major GC pause:



2015-05-26T16:23:07.219-0200: 64.322: [GC (Allocation Failure) 64.322: [ParNew: 613404K->68068K(613440K), 0.1020465 secs] 10885349K->10880154K(12514816K), 0.1021309 secs] [Times: user=0.78 sys=0.01, real=0.11 secs]

2015-05-26T16:23:07.321-0200: 64.425: [GC (CMS Initial Mark) [1 CMS-initial-mark: 10812086K(11901376K)] 10887844K(12514816K), 0.0001997 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]

2015-05-26T16:23:07.321-0200: 64.425: [CMS-concurrent-mark-start]

2015-05-26T16:23:07.357-0200: 64.460: [CMS-concurrent-mark: 0.035/0.035 secs] [Times: user=0.07 sys=0.00, real=0.03 secs]

2015-05-26T16:23:07.357-0200: 64.460: [CMS-concurrent-preclean-start]

2015-05-26T16:23:07.373-0200: 64.476: [CMS-concurrent-preclean: 0.016/0.016 secs] [Times: user=0.02 sys=0.00, real=0.02 secs]

2015-05-26T16:23:07.373-0200: 64.476: [CMS-concurrent-abortable-preclean-start]

2015-05-26T16:23:08.446-0200: 65.550: [CMS-concurrent-abortable-preclean: 0.167/1.074 secs] [Times: user=0.20 sys=0.00, real=1.07 secs]

2015-05-26T16:23:08.447-0200: 65.550: [GC (CMS Final Remark) [YG occupancy: 387920 K (613440 K)]65.550: [Rescan (parallel) , 0.0085125 secs]65.559: [weak refs processing, 0.0000243 secs]65.559: [class unloading, 0.0013120 secs]65.560: [scrub symbol table, 0.0008345 secs]65.561: [scrub string table, 0.0001759 secs][1 CMS-remark: 10812086K(11901376K)] 11200006K(12514816K), 0.0110730 secs] [Times: user=0.06 sys=0.00, real=0.01 secs]

2015-05-26T16:23:08.458-0200: 65.561: [CMS-concurrent-sweep-start]

2015-05-26T16:23:08.485-0200: 65.588: [CMS-concurrent-sweep: 0.027/0.027 secs] [Times: user=0.03 sys=0.00, real=0.03 secs]

2015-05-26T16:23:08.485-0200: 65.589: [CMS-concurrent-reset-start]

2015-05-26T16:23:08.497-0200: 65.601: [CMS-concurrent-reset: 0.012/0.012 secs] [Times: user=0.01 sys=0.00, real=0.01 secs]

Minor GC

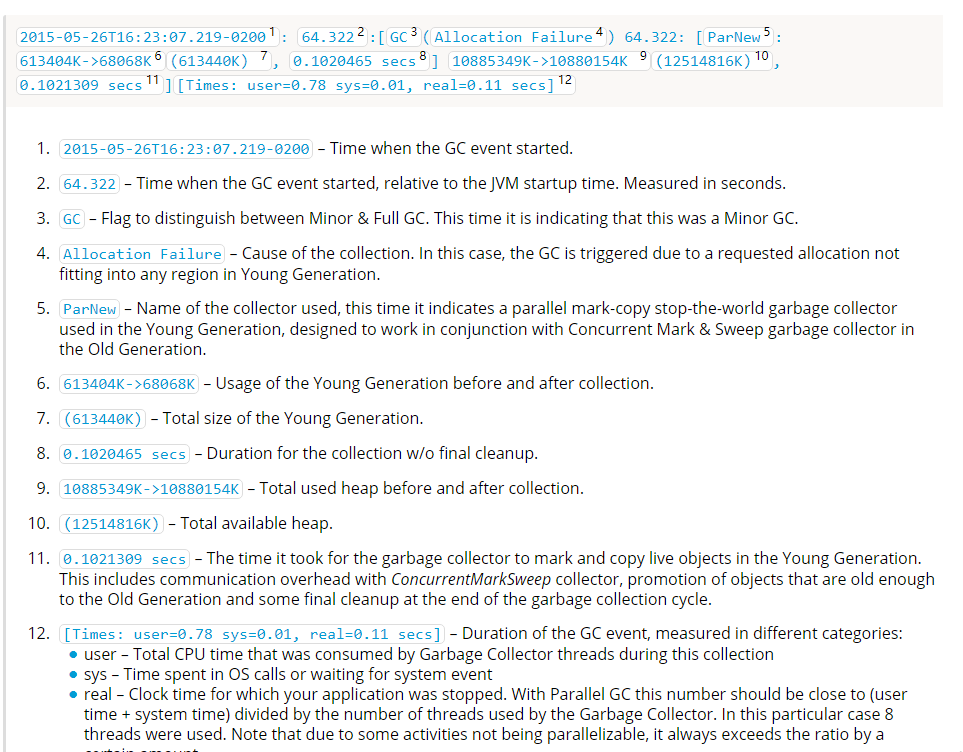

First of the GC events in log denotes a minor GC cleaning the Young space. Let’s analyze how this collector combination behaves in this regard:

From the above we can thus see that before the collection the total used heap was 10,885,349K and the used Young Generation share was 613,404K. This means that the Old Generation share was 10,271,945K. After the collection, Young Generation usage decreased by 545,336K but total heap usage decreased only by 5,195K. This means that 540,141K was promoted from the Young Generation to Old.

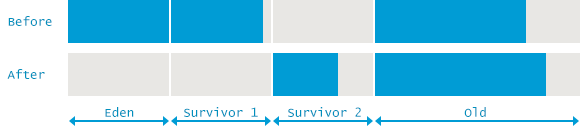

从上面可以看出：gc后Eden和s1的存活对象复制到了s2，同时，年轻代一部分对象晋升到了老年代。



Full GC

Now, just as you are becoming accustomed to reading GC logs already, this chapter will introduce a completely different format for the next garbage collection event in the logs. The lengthy output that follows consists of all the different phases of the mostly concurrent garbage collection in the Old Generation. We will review them one by one but in this case we will cover the log content in phases instead of the entire event log at once for more concise representation. But to recap, the whole event for the CMS collector looks like the following:

2015-05-26T16:23:07.321-0200: 64.425: [GC (CMS Initial Mark) [1 CMS-initial-mark: 10812086K(11901376K)] 10887844K(12514816K), 0.0001997 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]

2015-05-26T16:23:07.321-0200: 64.425: [CMS-concurrent-mark-start]

2015-05-26T16:23:07.357-0200: 64.460: [CMS-concurrent-mark: 0.035/0.035 secs] [Times: user=0.07 sys=0.00, real=0.03 secs]

2015-05-26T16:23:07.357-0200: 64.460: [CMS-concurrent-preclean-start]

2015-05-26T16:23:07.373-0200: 64.476: [CMS-concurrent-preclean: 0.016/0.016 secs] [Times: user=0.02 sys=0.00, real=0.02 secs]

2015-05-26T16:23:07.373-0200: 64.476: [CMS-concurrent-abortable-preclean-start]

2015-05-26T16:23:08.446-0200: 65.550: [CMS-concurrent-abortable-preclean: 0.167/1.074 secs] [Times: user=0.20 sys=0.00, real=1.07 secs]

2015-05-26T16:23:08.447-0200: 65.550: [GC (CMS Final Remark) [YG occupancy: 387920 K (613440 K)]65.550: [Rescan (parallel) , 0.0085125 secs]65.559: [weak refs processing, 0.0000243 secs]65.559: [class unloading, 0.0013120 secs]65.560: [scrub symbol table, 0.0008345 secs]65.561: [scrub string table, 0.0001759 secs][1 CMS-remark: 10812086K(11901376K)] 11200006K(12514816K), 0.0110730 secs] [Times: user=0.06 sys=0.00, real=0.01 secs]

2015-05-26T16:23:08.458-0200: 65.561: [CMS-concurrent-sweep-start]

2015-05-26T16:23:08.485-0200: 65.588: [CMS-concurrent-sweep: 0.027/0.027 secs] [Times: user=0.03 sys=0.00, real=0.03 secs]

2015-05-26T16:23:08.485-0200: 65.589: [CMS-concurrent-reset-start]

2015-05-26T16:23:08.497-0200: 65.601: [CMS-concurrent-reset: 0.012/0.012 secs] [Times: user=0.01 sys=0.00, real=0.01 secs]

Just to bear in mind – in real world situation Minor Garbage Collections of the Young Generation can occur anytime during concurrent collecting the Old Generation. In such case the major collection records seen below will be interleaved with the Minor GC events covered in previous chapter.

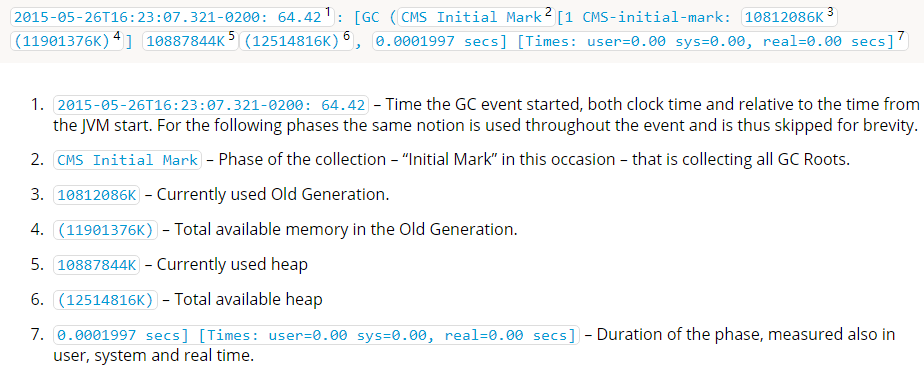

Phase 1: Initial Mark. This is one of the two stop-the-world events during CMS. The goal of this phase is to mark all the objects in the Old Generation that are either direct GC roots or are referenced from some live object in the Young Generation. The latter is important since the Old Generation is collected separately.

阶段一：初始标记。这个阶段会STW。这个阶段会标记老年代所有GC roots或者被年轻代对象引用的对象。

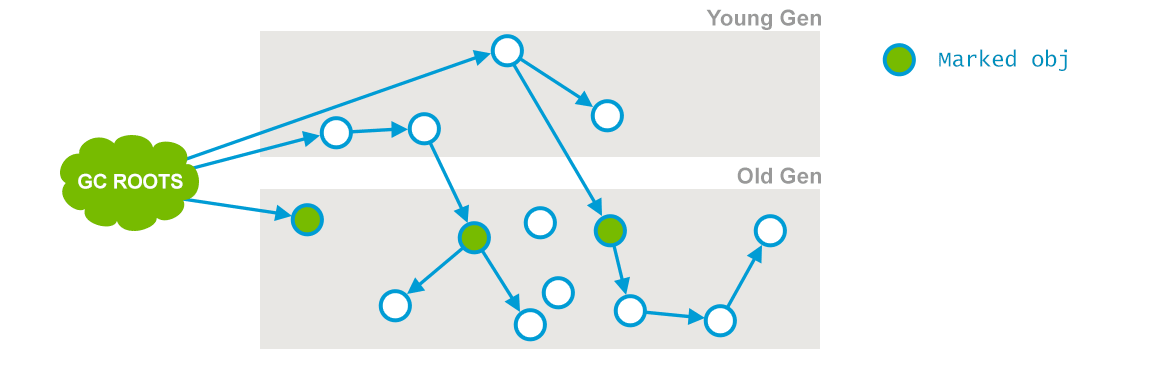

Phase 2: Concurrent Mark. During this phase the Garbage Collector traverses the Old Generation and marks all live objects, starting from the roots found in the previous phase of “Initial Mark”. The “Concurrent Mark” phase, as its name suggests, runs concurrently with your application and does not stop the application threads. Note that not all the live objects in the Old Generation may be marked, since the application is mutating references during the marking.

阶段二：并发标记。从阶段一标记的GC roots遍历老年代标记所有存活对象。并发标记阶段和应用线程并发执行。注意的是：不是老年代所有存活的对象都会被标记，因为应用线程没有停止，标记阶段会产生变化引用。

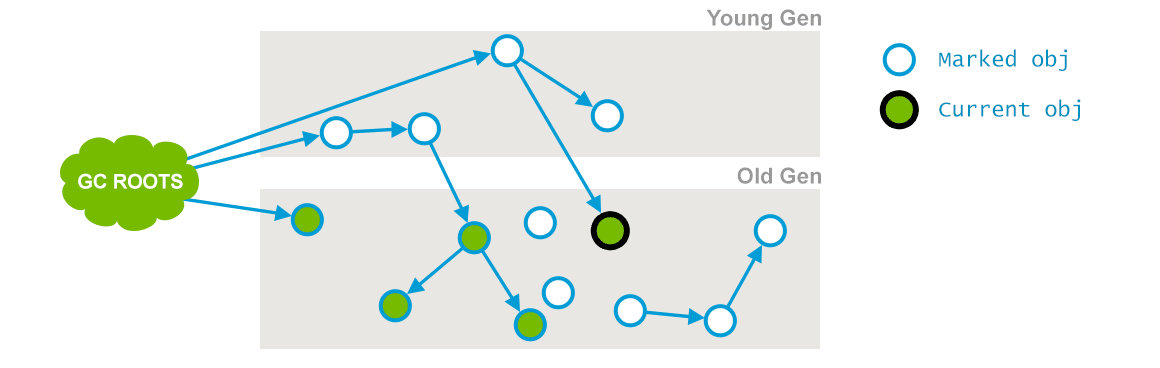

In the illustration, a reference pointing away from the “Current object” was removed concurrently with the marking thread.

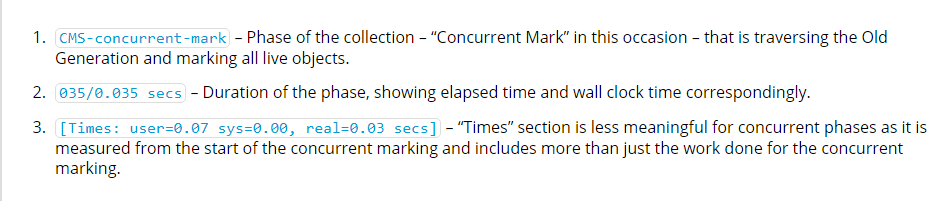

2015-05-26T16:23:07.321-0200: 64.425: [CMS-concurrent-mark-start]

2015-05-26T16:23:07.357-0200: 64.460: [CMS-concurrent-mark1: 035/0.035 secs2] [Times: user=0.07 sys=0.00, real=0.03 secs]3

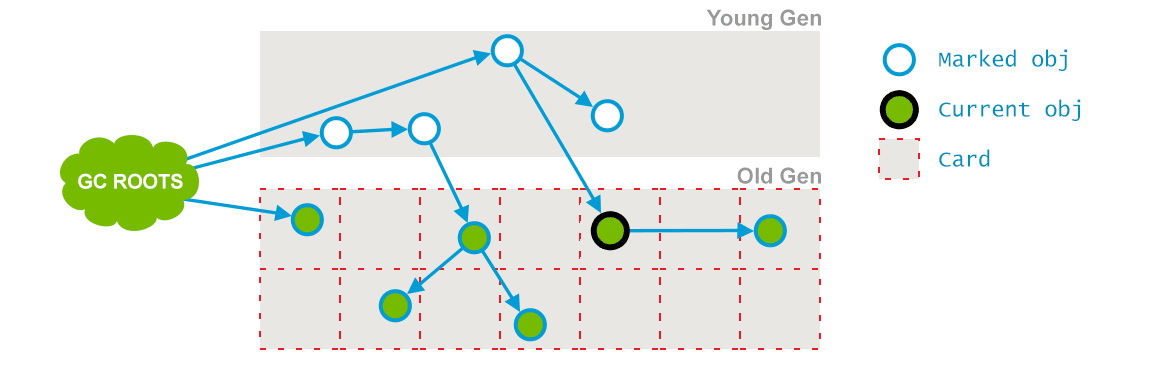

Phase 3: Concurrent Preclean. This is again a concurrent phase, running in parallel with the application threads, not stopping them. While the previous phase was running concurrently with the application, some references were changed. Whenever that happens, the JVM marks the area of the heap (called “Card”) that contains the mutated object as “dirty” (this is known as Card Marking).

阶段三：并发预清理。这也是一个并发阶段，和应用线程并发执行。因为上一阶段引用会发生改变。jvm会标记这个位置为card，这个位置包含变化的对象作为脏数据。

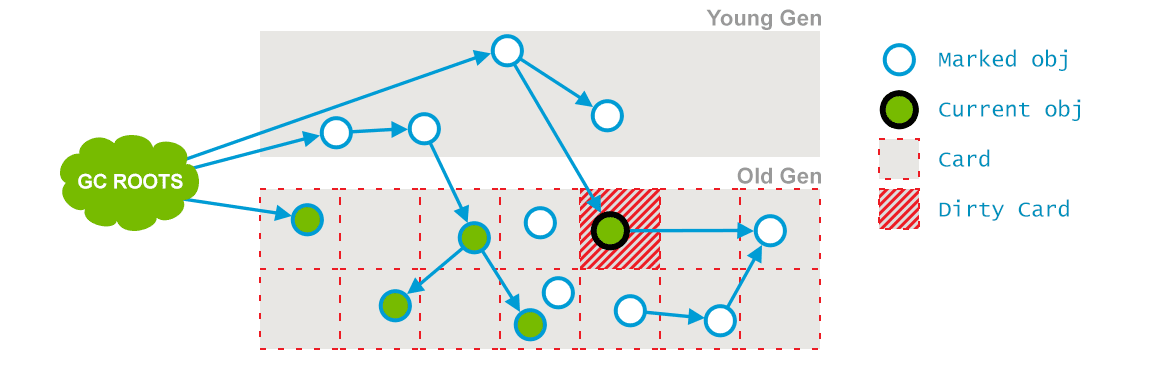

In the pre-cleaning phase, these dirty objects are accounted for, and the objects reachable from them are also marked. The cards are cleaned when this is done.

Additionally, some necessary housekeeping and preparations for the Final Remark phase are performed.

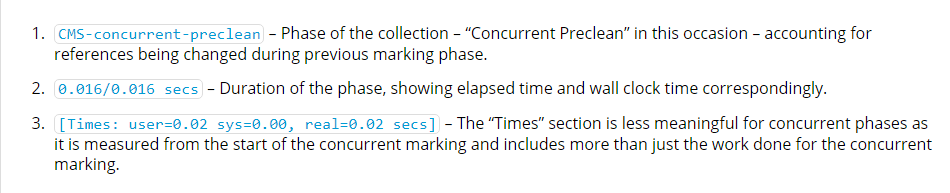

2015-05-26T16:23:07.357-0200: 64.460: [CMS-concurrent-preclean-start]

2015-05-26T16:23:07.373-0200: 64.476: [CMS-concurrent-preclean1: 0.016/0.016 secs2] [Times: user=0.02 sys=0.00, real=0.02 secs]3

Phase 4: Concurrent Abortable Preclean. Again, a concurrent phase that is not stopping the application’s threads. This one attempts to take as much work off the shoulders of the stop-the-world Final Remark as possible. The exact duration of this phase depends on a number of factors, since it iterates doing the same thing until one of the abortion conditions (such as the number of iterations, amount of useful work done, elapsed wall clock time, etc) is met.

阶段四：并发Abortable预清理。这个阶段也不会停止应用线程。这个阶段尽力帮最终标记阶段减轻负担。该阶段精确的持续时间取决于一些因素，因为它会重复做着相同是事知道下面其中之一的条件才会停止。

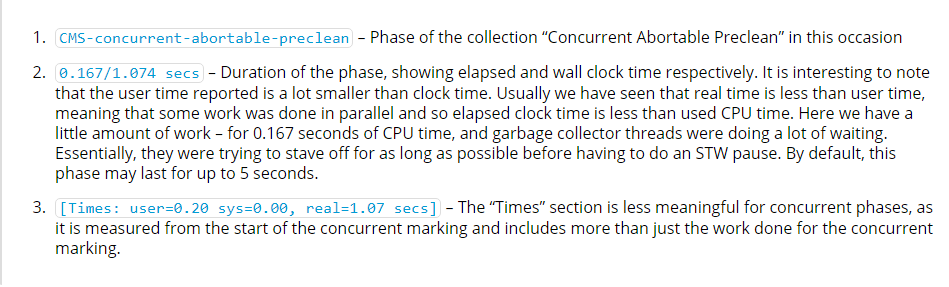

2015-05-26T16:23:07.373-0200: 64.476: [CMS-concurrent-abortable-preclean-start]

2015-05-26T16:23:08.446-0200: 65.550: [CMS-concurrent-abortable-preclean1: 0.167/1.074 secs2] [Times: user=0.20 sys=0.00, real=1.07 secs]3

This phase may significantly impact the duration of the upcoming stop-the-world pause, and has quite a lot of non-trivial configuration options and fail modes.

该阶段很大程度影响着即将stw的停顿时间。

Phase 5: Final Remark. This is the second and last stop-the-world phase during the event. The goal of this stop-the-world phase is to finalize marking all live objects in the Old Generation. Since the previous preclean phases were concurrent, they may have been unable to keep up with the application’s mutating speeds. A stop-the-world pause is required to finish the ordeal.

阶段五：最终标记。这个阶段是第二次stw。目的是最终标记老年代的存活对象。因为前面的预清理阶段是并发的，他们可能没法保持和应用变化的速度。所以要完成这个考验，必须进行一次stw停顿。

Usually CMS tries to run final remark phase when Young Generation is as empty as possible in order to eliminate the possibility of several stop-the-world phases happening back-to-back.

通常，CMS尽力运行最终标记阶段，当年轻代尽可能的空着。目的是消除几个紧挨着的stw阶段的可能性。

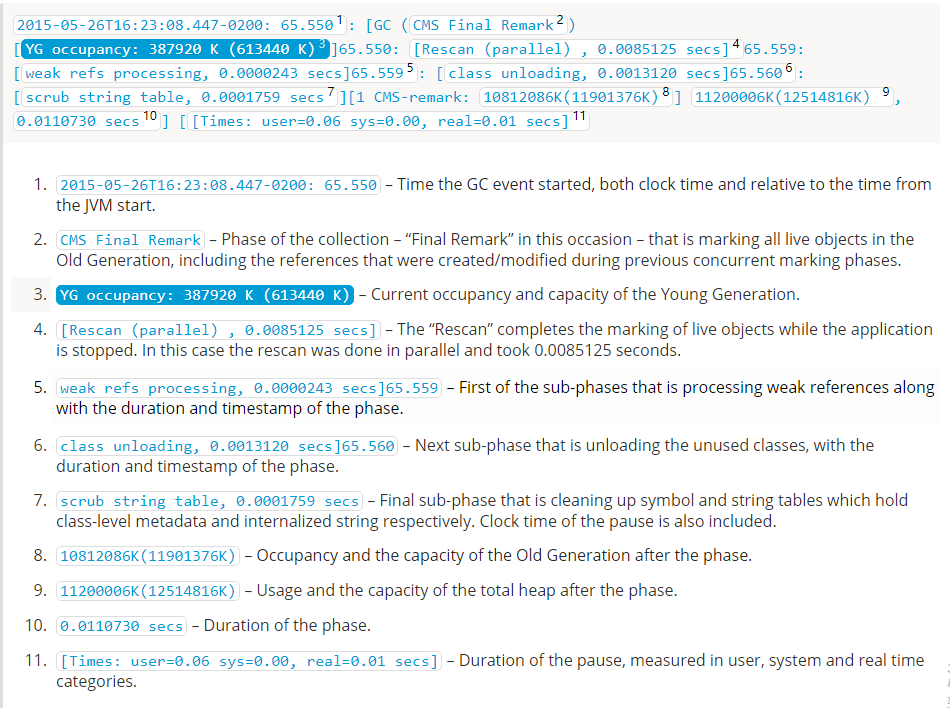

This event looks a bit more complex than previous phases:

After the five marking phases, all live objects in the Old Generation are marked and now garbage collector is going to reclaim all unused objects by sweeping the Old Generation:

在五个标记阶段之后，所有老年代存活对象都被标记，此刻，回收器将要回收老年代所有无用的对象。

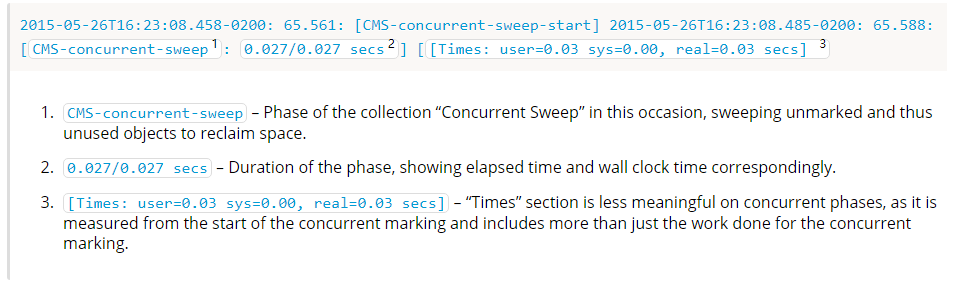

Phase 6: Concurrent Sweep. Performed concurrently with the application, without the need for the stop-the-world pauses. The purpose of the phase is to remove unused objects and to reclaim the space occupied by them for future use.

阶段六：并发清除。和应用线程并发执行，不会stw。

Phase 7: Concurrent Reset. Concurrently executed phase, resetting inner data structures of the CMS algorithm and preparing them for the next cycle.

阶段七：并发重置。重置CMS内部数据，为下一个循环做准备。

All in all, the CMS garbage collector does a great job at reducing the pause durations by offloading a great deal of the work to concurrent threads that do not require the application to stop. However, it, too, has some drawbacks, the most notable of them being the Old Generation fragmentation and the lack of predictability in pause durations in some cases, especially on large heaps.

总之，CMS做了很多工作来通过并发线程减少停顿时间。但是，也有一些缺点，最大的就是产生内存碎片和在某些情况下，比如大堆内存，缺乏暂停时间可预测性。
