XFOIL联合Matlab的翼型优化设计

1.软件介绍
XFOIL是亚音速隔离单段翼型的设计和分析的交互式程序。由麻省理工学院教授马克·德雷拉（Mark Drela）撰写。

2.Matlab运行XFOIL

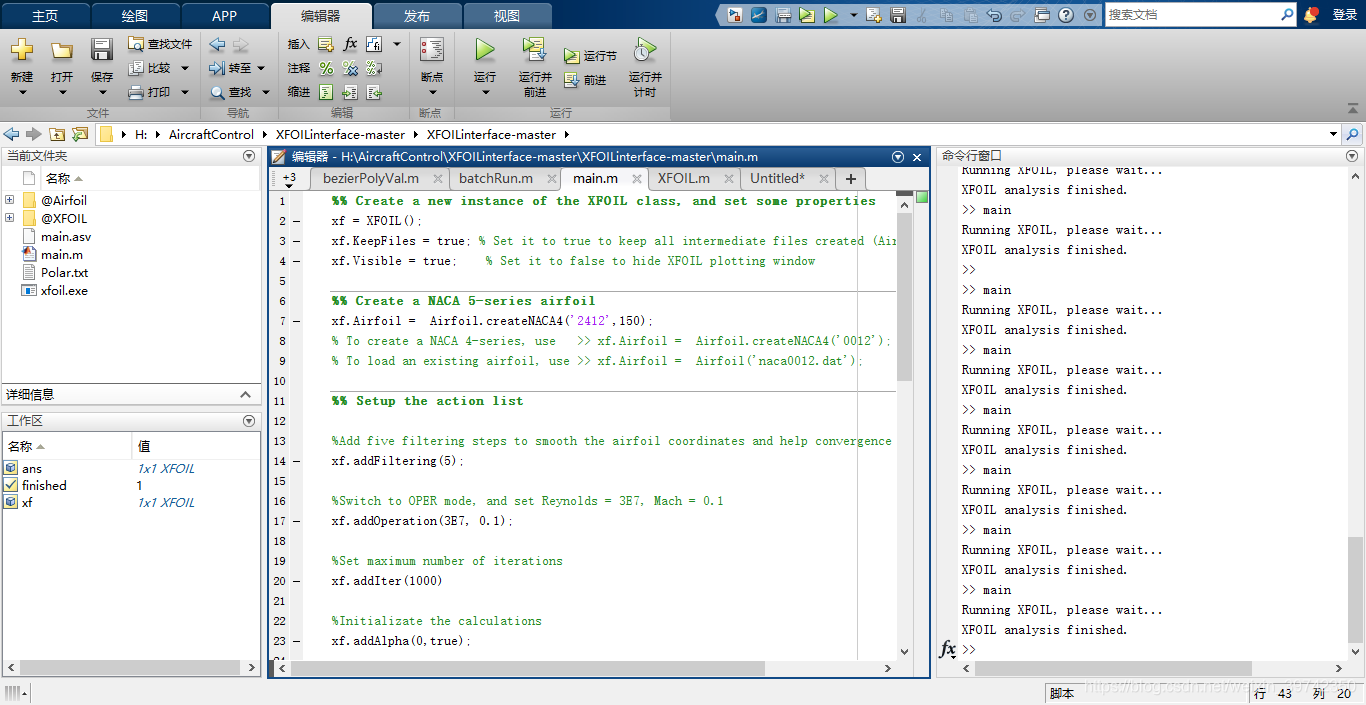

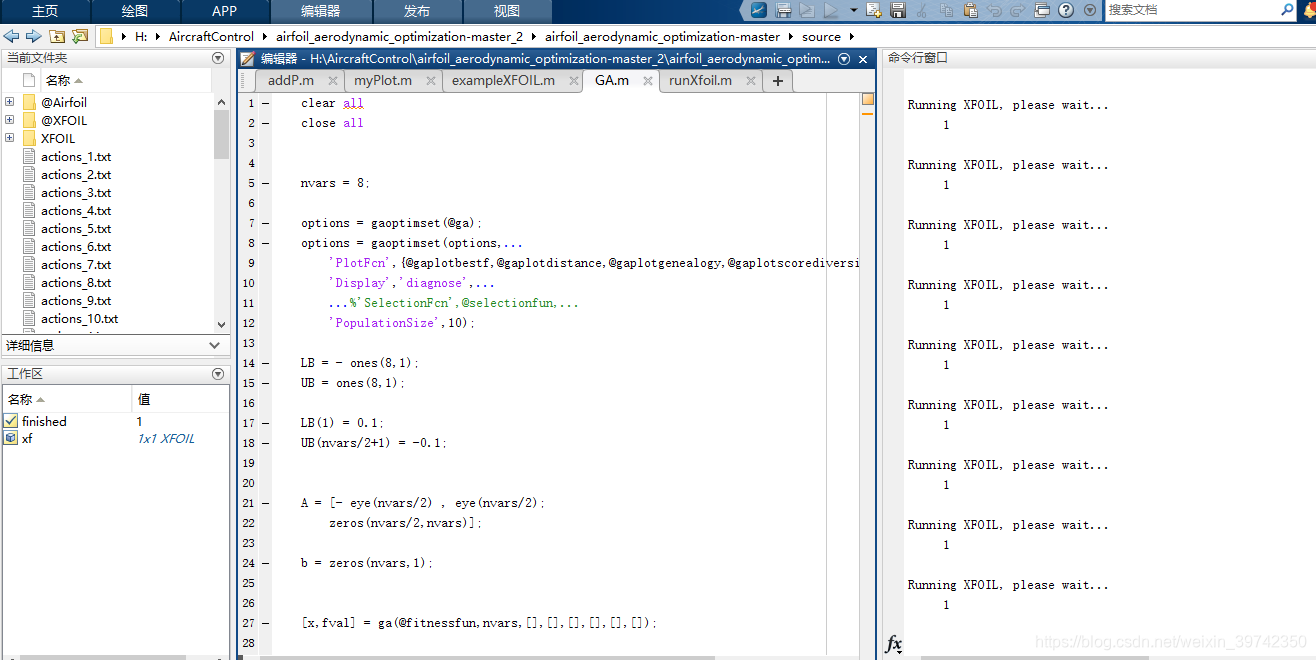

下图为采用Matlab软件与XFOIL接口进行连接运行XFOIL软件3.采用遗传算法进行翼型气动优化

%% Create a new instance of the XFOIL class, and set some properties
xf = XFOIL;
xf.KeepFiles = true; % Set it to true to keep all intermediate files created (Airfoil, Polars, ...)
xf.Visible = true;    % Set it to false to hide XFOIL plotting window

%% Create a NACA 5-series airfoil
% xf.Airfoil =  Airfoil.createNACA4('0012',150);
% xf.Airfoil =  Airfoil('oa212.dat');
xf.Airfoil =  Airfoil('oa209.dat');
% xf.Airfoil =  Airfoil('na0012.dat');
% To create a NACA 4-series, use   >> xf.Airfoil =  Airfoil.createNACA4('0012');
% To load an existing airfoil, use >> xf.Airfoil =  Airfoil('naca0012.dat');

%% Setup the action list

%Add five filtering steps to smooth the airfoil coordinates and help convergence
xf.addFiltering(5);

%Switch to OPER mode, and set Reynolds = 3E7, Mach = 0.1
xf.addOperation(3E7, 0.1);

%Set maximum number of iterations
xf.addIter(100)

%Initializate the calculations
xf.addAlpha(0,true);

%Create a new polar
xf.addPolarFile('Polar.txt');

% %Calculate a sequence of angle of attack, from 0 to 25 degrees, step size of 0.1 degrees
xf.addAlpha(0:0.1:25);

%Another option is to keep all the CP curves, replace the previous line with this:
%for alpha = 0:0.1:25
%    xf.addAlpha(alpha);
%    xf.addActions(sprintf('CPWR alpha_%f.txt',alpha));
%end

%Close the polar file
xf.addClosePolarFile;

%And finally add the action to quit XFOIL
xf.addQuit;

%% Now we're ready to run XFOIL
xf.run
disp('Running XFOIL, please wait...')

%% Wait up to 100 seconds for it to finish...
%It is possible to run more than one XFOIL instance at the same time
finished = xf.wait(100);

%% If successfull, read and plot the polar
if finished
    disp('XFOIL analysis finished.')
    xf.readPolars;
    figure
    xf.plotPolar(1);
else
    xf.kill;
end

创建dat文件：

clc
clear all
a = [0.0000000 0.0000000
 0.0002924 0.0028551
 0.0007810 0.0047471
 0.0017586 0.0072243
 0.0048866 0.0121590
 0.0070371 0.0145844
 0.0097746 0.0171549
 0.0156407 0.0216181
 0.0224839 0.0258454
 0.0293282 0.0294448
 0.0351946 0.0321729
 0.0391053 0.0338387
 0.0449719 0.0361378
 0.0537712 0.0391946
 0.0635487 0.0421315
 0.0733262 0.0446694
 0.0831038 0.0468743
 0.0928814 0.0487973
 0.1222146 0.0532210
 0.1466590 0.0557137
 0.1711047 0.0573865
 0.1955495 0.0584144
 0.2199944 0.0589332
 0.2444394 0.0590590
 0.2688844 0.0588899
 0.2933294 0.0585127
 0.3177745 0.0580034
 0.3422197 0.0574183
 0.3666649 0.0567851
 0.3911100 0.0560989
 0.4155561 0.0553337
 0.4400013 0.0544535
 0.4644465 0.0534314
 0.4888917 0.0522542
 0.5133371 0.0509200
 0.5377824 0.0494348
 0.5622277 0.0478067
 0.5866730 0.0460385
 0.6111183 0.0441303
 0.6355637 0.0420791
 0.6600091 0.0398820
 0.6844547 0.0375358
 0.7089013 0.0350436
 0.7333468 0.0324094
 0.7577922 0.0296382
 0.7822378 0.0267311
 0.8066834 0.0236749
 0.8311290 0.0204437
 0.8506855 0.0177115
 0.8702421 0.0148404
 0.8800204 0.0133593
 0.8995770 0.0103632
 0.9191335 0.0074690
 0.9386901 0.0049059
 0.9511083 0.0035814
 0.9778036 0.0019806
 1.0000000 0.0025150
 0.0000000 0.0000000
 0.0002934 -.0025969
 0.0007827 -.0040758
 0.0017611 -.0057866
 0.0048906 -.0086200
 0.0070419 -.0097936
 0.0097801 -.0109121
 0.0156475 -.0126099
 0.0224917 -.0140076
 0.0293369 -.0150912
 0.0352041 -.0158681
 0.0391152 -.0163313
 0.0449823 -.0169601
 0.0537825 -.0177994
 0.0635607 -.0186385
 0.0733388 -.0194185
 0.0831169 -.0201646
 0.0928951 -.0208907
 0.1222295 -.0229909
 0.1466749 -.0246691
 0.1711212 -.0262593
 0.1955665 -.0277175
 0.2200117 -.0289996
 0.2444569 -.0300718
 0.2689021 -.0309240
 0.2933472 -.0315792
 0.3177923 -.0320834
 0.3422375 -.0324905
 0.3666825 -.0328357
 0.3911275 -.0331239
 0.4155736 -.0333301
 0.4400187 -.0334213
 0.4644636 -.0333685
 0.4889086 -.0331596
 0.5133536 -.0327928
 0.5377985 -.0322740
 0.5622433 -.0316132
 0.5866882 -.0308134
 0.6111330 -.0298756
 0.6355777 -.0287947
 0.6600226 -.0275679
 0.6844673 -.0261931
 0.7089130 -.0246733
 0.7333577 -.0230135
 0.7578022 -.0212177
 0.7822468 -.0192799
 0.8066914 -.0171821
 0.8311360 -.0148962
 0.8506916 -.0129154
 0.8702472 -.0108045
 0.8800250 -.0097146
 0.8995805 -.0075468
 0.9191361 -.0055509
 0.9386918 -.0039291
 0.9511096 -.0031806
 0.9778045 -.0024304
 1.0000000 -.0025080];
for n = 1:57
 b(58-n,:) = a(n,:);
end
c = [b;a(58:end,:)]

function [F,elapsedTime] = fitnessfun(x)

    tic;
    airfoil = coordinates2file(cst2coordinates(x));
    polars = runXfoil(airfoil);

    if ~isempty(polars) && ~isempty(polars.CD)
        F = min(polars.CD);
        elapsedTime = toc;
    else
        F = 1;
    end

    %F=mean(x);
end

function filename = coordinates2file( data )
%COORDINATES2FILE Summary of this function goes here
%   Detailed explanation goes here

filename = 'oa209.txt';

fileID = fopen(filename,'wt');
name = 'Test-Profile \n';
fprintf(fileID,name);
for n=1:length(data)
    fprintf(fileID,'%1.5f %12.5f \n',data(n,1),data(n,2));
end

fclose(fileID);
end

function coord = cst2coordinates(x)
%CST2COORDINATES Summary of this function goes here
%   Detailed explanation goes here

    size = numel(x);
    coord = CST_airfoil(x(1:size/2),x(size/2+1:size),0,30);

end

function [coord] = CST_airfoil(wl,wu,dz,N)

% Description : Create a set of airfoil coordinates using CST parametrization method
% Input  : wl = CST weight of lower surface
%          wu = CST weight of upper surface
%          dz = trailing edge thickness
% Output : coord = set of x-y coordinates of airfoil generated by CST


% Create x coordinate
x=ones(N+1,1);
y=zeros(N+1,1);
zeta=zeros(N+1,1);

for i=1:N+1
    zeta(i)=2*pi/N*(i-1);
    x(i)=0.5*(cos(zeta(i))+1);
end

% N1 and N2 parameters (N1 = 0.5 and N2 = 1 for airfoil shape)
N1 = 0.5;
N2 = 1;

[~,zerind] = min(x(:,1)); % Used to separate upper and lower surfaces

xl = x(1:zerind-1); % Lower surface x-coordinates
xu = x(zerind:end); % Upper surface x-coordinates

[yl] = ClassShape(wl,xl,N1,N2,-dz); % Call ClassShape function to determine lower surface y-coordinates
[yu] = ClassShape(wu,xu,N1,N2,dz);  % Call ClassShape function to determine upper surface y-coordinates

y = [yl;yu]; % Combine upper and lower y coordinates

coord = [x y]; % Combine x and y into single output

end

%% Function to calculate class and shape function
function [y] = ClassShape(w,x,N1,N2,dz)


% Class function; taking input of N1 and N2
C(:,1) = x(:).^N1.*((1-x(:)).^N2);


% Shape function; using Bernstein Polynomials
n = length(w)-1; % Order of Bernstein polynomials

K(n+1) = 0;
for i = 1:n+1
     K(i) = factorial(n)/(factorial(i-1)*(factorial((n)-(i-1))));
end

S(length(x),1) = 0;
for j = 1:n+1
        S(:,1) = S(:,1) + w(j)*K(j)*x(:).^(j-1).*((1-x(:)).^(n-(j-1)));
end

% Calculate y output
y(:,1) = C(:,1).*S(:,1) + x(:)*dz;


end

4.参考资料
XFOILinterface
airfoil_aerodynamic_optimization-master
