测试用例格式包括十大特点
1)用例编号
2)测试项
3)测试标题
4)用例属性
5)重要级别:高中低
6)预置条件
7)测试输入
8)操作步骤
9)预期结果
10)实际结果
等价类

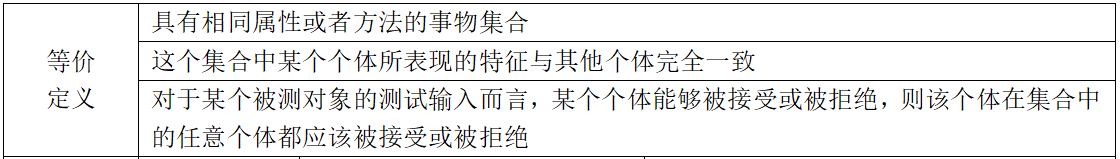

1,等价类定义
![9e58cf365878f3ac030f8a0ddd21cf48.png](https://img-blog.csdnimg.cn/img_convert/9e58cf365878f3ac030f8a0ddd21cf48.png)
2,等价类划分
![06da573be24df05a879a0c469cae8ec2.png](https://img-blog.csdnimg.cn/img_convert/06da573be24df05a879a0c469cae8ec2.png)
3,等价类划分规则
![d7ad7f171b637fed1cb6565c3d9d41b4.png](https://img-blog.csdnimg.cn/img_convert/d7ad7f171b637fed1cb6565c3d9d41b4.png)
4,进行等价类用例设计
![13968240ab3d6383e82b890c56f5bee8.png](https://img-blog.csdnimg.cn/img_convert/13968240ab3d6383e82b890c56f5bee8.png)

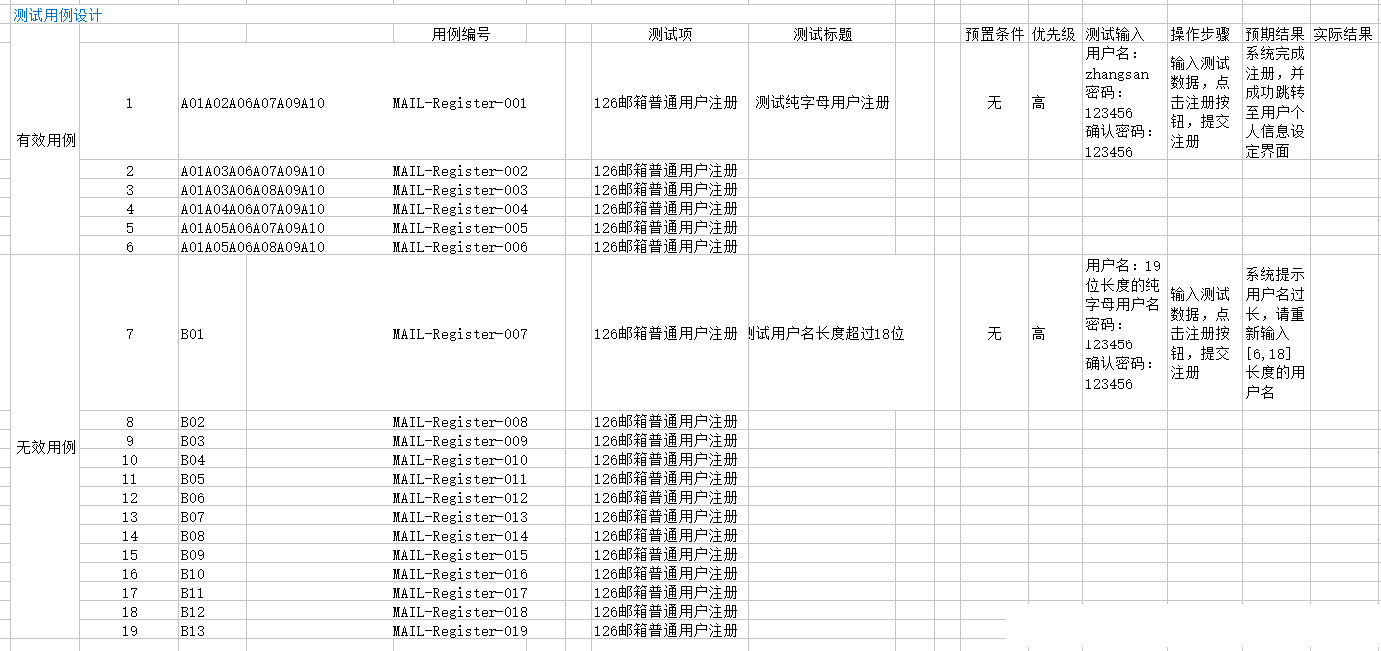

5,案例
![ca942230fcd4659b64957cde647aba07.png](https://img-blog.csdnimg.cn/img_convert/ca942230fcd4659b64957cde647aba07.png)
![0e42797f0eec212ab03e0aabc51294de.png](https://img-blog.csdnimg.cn/img_convert/0e42797f0eec212ab03e0aabc51294de.png)
边界值
1,边界值的三点
![45b607babf5e323d4f57287d2221b5c5.png](https://img-blog.csdnimg.cn/img_convert/45b607babf5e323d4f57287d2221b5c5.png)

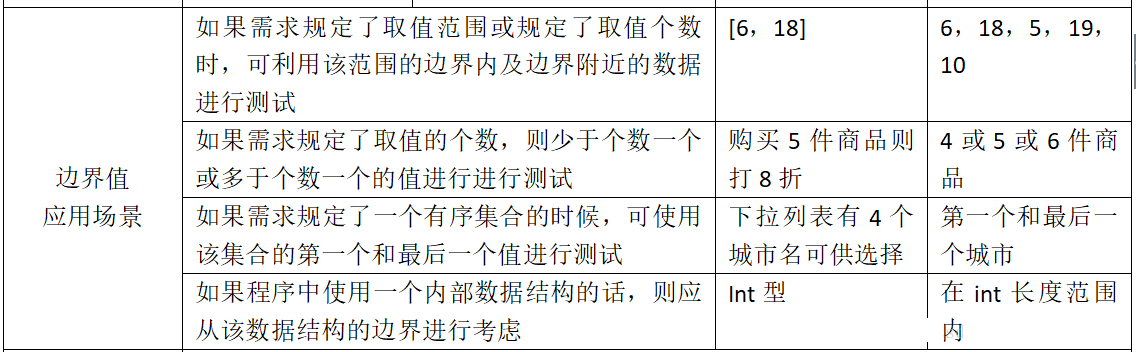

2,边界值应用场景
![77f2088cc6471a1bcc0a0714af79a0eb.png](https://img-blog.csdnimg.cn/img_convert/77f2088cc6471a1bcc0a0714af79a0eb.png)
3,边界值方法应用步骤
![906da1d582ae6fe454bb35a7d11da38f.png](https://img-blog.csdnimg.cn/img_convert/906da1d582ae6fe454bb35a7d11da38f.png)
判定表
1,定义
![d8cbeff98e80e0b885f6b026510eb16d.png](https://img-blog.csdnimg.cn/img_convert/d8cbeff98e80e0b885f6b026510eb16d.png)
2,重要概念
![e2f2c5d7e7e52b3cec0e2ba6be0c09d0.png](https://img-blog.csdnimg.cn/img_convert/e2f2c5d7e7e52b3cec0e2ba6be0c09d0.png)

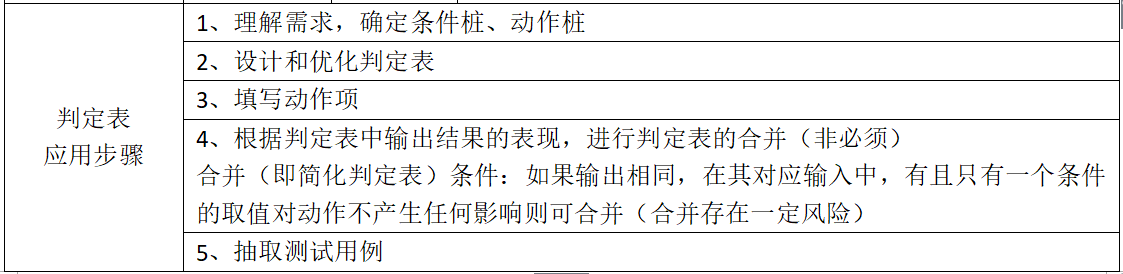

3,判定表应用步骤
![400adc984b9727217056e7872c90bc87.png](https://img-blog.csdnimg.cn/img_convert/400adc984b9727217056e7872c90bc87.png)
4,案例
![930cad247ef9d8561d046a3ddb715ec3.png](https://img-blog.csdnimg.cn/img_convert/930cad247ef9d8561d046a3ddb715ec3.png)
![6e269e158e722633a525374cb6bbb1e4.png](https://img-blog.csdnimg.cn/img_convert/6e269e158e722633a525374cb6bbb1e4.png)
因果图
1,输入与输入的关系
![6cfd198a87af1ecaaf3e3aa6f0492e61.png](https://img-blog.csdnimg.cn/img_convert/6cfd198a87af1ecaaf3e3aa6f0492e61.png)
2,输入与输出的关系
![d060a88b8c865b2ec3ee421a11f2bce9.png](https://img-blog.csdnimg.cn/img_convert/d060a88b8c865b2ec3ee421a11f2bce9.png)
3,案例
![4a85adf373db29b10e5783d62e692e91.png](https://img-blog.csdnimg.cn/img_convert/4a85adf373db29b10e5783d62e692e91.png)
正交试验
1,因子和水平的定义
![646406eec9c15e3dad9a0069b9f6ce63.png](https://img-blog.csdnimg.cn/img_convert/646406eec9c15e3dad9a0069b9f6ce63.png)
2,特点
![f514398df265ace97a4c2f47bb218199.png](https://img-blog.csdnimg.cn/img_convert/f514398df265ace97a4c2f47bb218199.png)
3,设计流程
![590a100681fc5a9e19d914152840f2f7.png](https://img-blog.csdnimg.cn/img_convert/590a100681fc5a9e19d914152840f2f7.png)
4,注意点
![dfacef6009dc8b81b1ea5add1a855777.png](https://img-blog.csdnimg.cn/img_convert/dfacef6009dc8b81b1ea5add1a855777.png)
5,案例
![cb8d560b3e36db3531fc5e4746ecba18.png](https://img-blog.csdnimg.cn/img_convert/cb8d560b3e36db3531fc5e4746ecba18.png)
![9e5930ce1b62b7f558565218fb48022f.png](https://img-blog.csdnimg.cn/img_convert/9e5930ce1b62b7f558565218fb48022f.png)
状态迁移
1,定义
![b3334568cd1847e472da0bba3dea87b3.png](https://img-blog.csdnimg.cn/img_convert/b3334568cd1847e472da0bba3dea87b3.png)
2,状态
![07d1fe0fbbe277c58702c954387a5939.png](https://img-blog.csdnimg.cn/img_convert/07d1fe0fbbe277c58702c954387a5939.png)

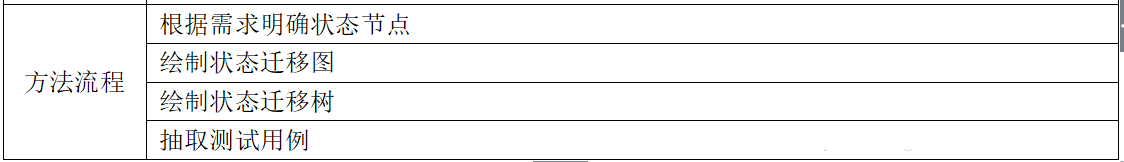

3,方法流程
![0499bea27a3ebc5d4e2b91274155bfa2.png](https://img-blog.csdnimg.cn/img_convert/0499bea27a3ebc5d4e2b91274155bfa2.png)
4,案例
![4fc09c2beb9596530b2c89282dea3b58.png](https://img-blog.csdnimg.cn/img_convert/4fc09c2beb9596530b2c89282dea3b58.png)
![522716c91133d9c06b75d6ba9dda86d8.png](https://img-blog.csdnimg.cn/img_convert/522716c91133d9c06b75d6ba9dda86d8.png)
流程分析法(场景设计法)
1,设计三个场景
![353c8062bc315333e1196d5580c452b8.png](https://img-blog.csdnimg.cn/img_convert/353c8062bc315333e1196d5580c452b8.png)
2,使用方法
![327cee4716d9bdd81acc6c1796befa5f.png](https://img-blog.csdnimg.cn/img_convert/327cee4716d9bdd81acc6c1796befa5f.png)
3,注意点
![374306154f6ecf9c9ee711f8bc19d3e3.png](https://img-blog.csdnimg.cn/img_convert/374306154f6ecf9c9ee711f8bc19d3e3.png)
4,案例
![1dad4986c51864dc594483884b09b086.png](https://img-blog.csdnimg.cn/img_convert/1dad4986c51864dc594483884b09b086.png)
![b891ba1e57d6fadf8dd00e14b45a63c0.png](https://img-blog.csdnimg.cn/img_convert/b891ba1e57d6fadf8dd00e14b45a63c0.png)
