列表

背景
列表和列表项简介
- 列表
- 列表项
列表和列表项初始化
列表项插入
列表项尾插入
列表项删除

背景

列表和列表项是FreeRTOS的一个数据结构， FreeRTOS 大量使用到了列表和列表项，它是FreeRTOS 的基石。要想深入学习并理解 FreeRTOS，那么列表和列表项就必须首先掌握。

列表和列表项简介

列表是 FreeRTOS 中的一个数据结构，概念上和链表有点类似，列表被用来跟踪 FreeRTOS中的任务。与列表相关的内容都在文件 list.c 和 list.h 中。

列表

typedef struct xLIST
{
	listFIRST_LIST_INTEGRITY_CHECK_VALUE				/*< Set to a known value if configUSE_LIST_DATA_INTEGRITY_CHECK_BYTES is set to 1. */
	configLIST_VOLATILE UBaseType_t uxNumberOfItems;
	ListItem_t * configLIST_VOLATILE pxIndex;			/*< Used to walk through the list.  Points to the last item returned by a call to listGET_OWNER_OF_NEXT_ENTRY (). */
	MiniListItem_t xListEnd;							/*< List item that contains the maximum possible item value meaning it is always at the end of the list and is therefore used as a marker. */
	listSECOND_LIST_INTEGRITY_CHECK_VALUE				/*< Set to a known value if configUSE_LIST_DATA_INTEGRITY_CHECK_BYTES is set to 1. */
} List_t;

listFIRST_LIST_INTEGRITY_CHECK_VALUE和listSECOND_LIST_INTEGRITY_CHECK_VALUE用来检查列表完整性，默认不开启这个功能。
uxNumberOfItems 用来记录列表中列表项的数量，
pxIndex 用来记录当前列表项索引号，用于遍历列表，
xListEnd用来表示列表结束，此变量类型为 MiniListItem_t，这是一个迷你列表项。

列表项

FreeRTOS 提供了两种列表项：列表项和迷你列表项。

struct xLIST_ITEM
{
	listFIRST_LIST_ITEM_INTEGRITY_CHECK_VALUE			/*< Set to a known value if configUSE_LIST_DATA_INTEGRITY_CHECK_BYTES is set to 1. */
	configLIST_VOLATILE TickType_t xItemValue;			/*< The value being listed.  In most cases this is used to sort the list in descending order. */
	struct xLIST_ITEM * configLIST_VOLATILE pxNext;		/*< Pointer to the next ListItem_t in the list. */
	struct xLIST_ITEM * configLIST_VOLATILE pxPrevious;	/*< Pointer to the previous ListItem_t in the list. */
	void * pvOwner;										/*< Pointer to the object (normally a TCB) that contains the list item.  There is therefore a two way link between the object containing the list item and the list item itself. */
	void * configLIST_VOLATILE pvContainer;				/*< Pointer to the list in which this list item is placed (if any). */
	listSECOND_LIST_ITEM_INTEGRITY_CHECK_VALUE			/*< Set to a known value if configUSE_LIST_DATA_INTEGRITY_CHECK_BYTES is set to 1. */
};
typedef struct xLIST_ITEM ListItem_t;					/* For some reason lint wants this as two separate definitions. */

struct xMINI_LIST_ITEM
{
	listFIRST_LIST_ITEM_INTEGRITY_CHECK_VALUE			/*< Set to a known value if configUSE_LIST_DATA_INTEGRITY_CHECK_BYTES is set to 1. */
	configLIST_VOLATILE TickType_t xItemValue;
	struct xLIST_ITEM * configLIST_VOLATILE pxNext;
	struct xLIST_ITEM * configLIST_VOLATILE pxPrevious;
};
typedef struct xMINI_LIST_ITEM MiniListItem_t;

ListItem_t中：
xItemValue 为列表项值；
pxNext 指向下一个列表项；
pxPrevious 指向前一个列表项，和 pxNext 配合起来实现类似双向链表的功能；
pvOwner 记录此链表项归谁拥有，通常是任务控制块；
pvContainer 用来记录此列表项归哪个列表。

MiniListItem_t中都和上面一致，只是少了pvOwner 、pvContainer 。为何单独整一个迷你列表项呢？主要是避免内存浪费，因为有些情况下不需要结构体的所有成员变量。

列表和列表项初始化

void vListInitialise( List_t * const pxList )
{
	/* The list structure contains a list item which is used to mark the
	end of the list.  To initialise the list the list end is inserted
	as the only list entry. */
	pxList->pxIndex = ( ListItem_t * ) &( pxList->xListEnd );			/*lint !e826 !e740 The mini list structure is used as the list end to save RAM.  This is checked and valid. */

	/* The list end value is the highest possible value in the list to
	ensure it remains at the end of the list. */
	pxList->xListEnd.xItemValue = portMAX_DELAY;

	/* The list end next and previous pointers point to itself so we know
	when the list is empty. */
	pxList->xListEnd.pxNext = ( ListItem_t * ) &( pxList->xListEnd );	/*lint !e826 !e740 The mini list structure is used as the list end to save RAM.  This is checked and valid. */
	pxList->xListEnd.pxPrevious = ( ListItem_t * ) &( pxList->xListEnd );/*lint !e826 !e740 The mini list structure is used as the list end to save RAM.  This is checked and valid. */

	pxList->uxNumberOfItems = ( UBaseType_t ) 0U;

	/* Write known values into the list if
	configUSE_LIST_DATA_INTEGRITY_CHECK_BYTES is set to 1. */
	listSET_LIST_INTEGRITY_CHECK_1_VALUE( pxList );
	listSET_LIST_INTEGRITY_CHECK_2_VALUE( pxList );
}

xListEnd 用来表示列表的末尾，而 pxIndex 表示列表项的索引号，此时列表只有一个列表项，那就是 xListEnd，所以 pxIndex 指向 xListEnd；
xListEnd 的列表项值初始化为 portMAX_DELAY， portMAX_DELAY 是个宏，在文件portmacro.h 中有定义；
初始化列表项 xListEnd 的 pxNext 变量，因为列表只有一个列表项xListEnd，因此 pxNext 只能指向自身；
初始化 xListEnd 的 pxPrevious 变量，指向 xListEnd 自身；
由于此时没有其他的列表项，因此 uxNumberOfItems 为 0；

void vListInitialiseItem( ListItem_t * const pxItem )
{
	/* Make sure the list item is not recorded as being on a list. */
	pxItem->pvContainer = NULL;

	/* Write known values into the list item if
	configUSE_LIST_DATA_INTEGRITY_CHECK_BYTES is set to 1. */
	listSET_FIRST_LIST_ITEM_INTEGRITY_CHECK_VALUE( pxItem );
	listSET_SECOND_LIST_ITEM_INTEGRITY_CHECK_VALUE( pxItem );
}

同列表一样，列表项在使用的时候也需要初始化，将列表项成员变量 pvContainer 初始化为 NULL，并且给用于完整性检查的变量赋值。

列表项插入

void vListInsert( List_t * const pxList, ListItem_t * const pxNewListItem )
{
ListItem_t *pxIterator;
const TickType_t xValueOfInsertion = pxNewListItem->xItemValue;

	/* Only effective when configASSERT() is also defined, these tests may catch
	the list data structures being overwritten in memory.  They will not catch
	data errors caused by incorrect configuration or use of FreeRTOS. */
	listTEST_LIST_INTEGRITY( pxList );
	listTEST_LIST_ITEM_INTEGRITY( pxNewListItem );
	if( xValueOfInsertion == portMAX_DELAY )
	{
		pxIterator = pxList->xListEnd.pxPrevious;
	}
	else
	{
		for( pxIterator = ( ListItem_t * ) &( pxList->xListEnd ); pxIterator->pxNext->xItemValue <= xValueOfInsertion; pxIterator = pxIterator->pxNext ) /*lint !e826 !e740 The mini list structure is used as the list end to save RAM.  This is checked and valid. */
		{
			/* There is nothing to do here, just iterating to the wanted
			insertion position. */
		}
	}
	pxNewListItem->pxNext = pxIterator->pxNext;
	pxNewListItem->pxNext->pxPrevious = pxNewListItem;
	pxNewListItem->pxPrevious = pxIterator;
	pxIterator->pxNext = pxNewListItem;
	/* Remember which list the item is in.  This allows fast removal of the
	item later. */
	pxNewListItem->pvContainer = ( void * ) pxList;

	( pxList->uxNumberOfItems )++;
}

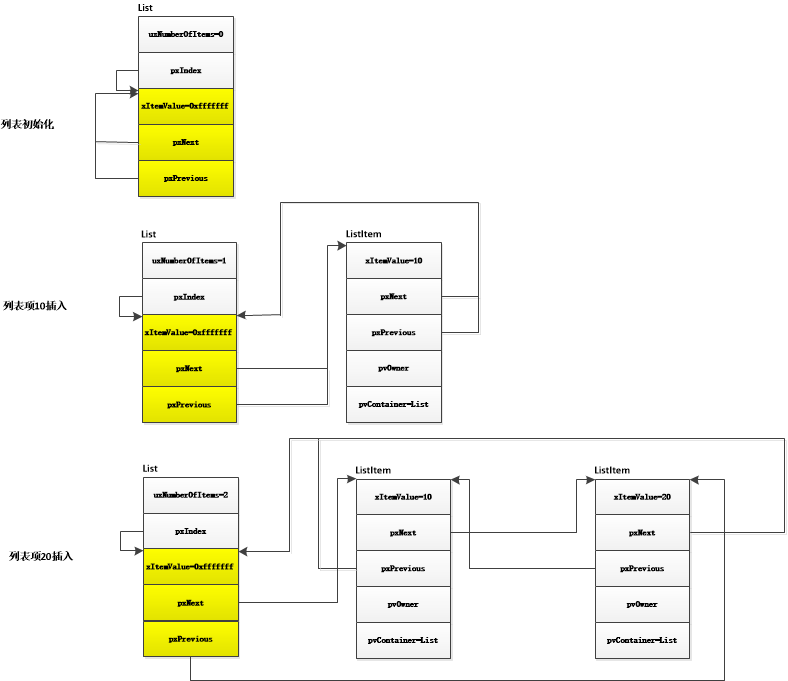

下面我通过演示列表值10、列表20插入过程，来阐述上面列表项插入过程逻辑。
在这里插入图片描述

列表项尾插入

OS_CODE_IN_RAM void vListInsertEnd( List_t * const pxList, ListItem_t * const pxNewListItem )
{
ListItem_t * const pxIndex = pxList->pxIndex;

	/* Only effective when configASSERT() is also defined, these tests may catch
	the list data structures being overwritten in memory.  They will not catch
	data errors caused by incorrect configuration or use of FreeRTOS. */
	listTEST_LIST_INTEGRITY( pxList );
	listTEST_LIST_ITEM_INTEGRITY( pxNewListItem );

	/* Insert a new list item into pxList, but rather than sort the list,
	makes the new list item the last item to be removed by a call to
	listGET_OWNER_OF_NEXT_ENTRY(). */
	pxNewListItem->pxNext = pxIndex;
	pxNewListItem->pxPrevious = pxIndex->pxPrevious;

	/* Only used during decision coverage testing. */
	mtCOVERAGE_TEST_DELAY();

	pxIndex->pxPrevious->pxNext = pxNewListItem;
	pxIndex->pxPrevious = pxNewListItem;

	/* Remember which list the item is in. */
	pxNewListItem->pvContainer = ( void * ) pxList;

	( pxList->uxNumberOfItems )++;
}

尾插入的源码逻辑很简单，关键点是理解尾是哪里？
对比上面vListInsert()向列表中插入一个列表项的时候这个列表项的位置是通过列表项的值，也就是列表项成员变量 xItemValue 来确定。
这里规定的末尾要根据列表的成员变量pxIndex 来确定的！前面说了列表中的 pxIndex 成员变量是用来遍历列表的， pxIndex 所指向的列表项就是要遍历的开始列表项，也就是说 pxIndex 所指向的列表项就代表列表头！由于是个环形列表，所以新的列表项就应该插入到 pxIndex 所指向的列表项的前面。

列表项删除

OS_CODE_IN_RAM UBaseType_t uxListRemove( ListItem_t * const pxItemToRemove )
{
/* The list item knows which list it is in.  Obtain the list from the list
item. */
List_t * const pxList = ( List_t * ) pxItemToRemove->pvContainer;

	pxItemToRemove->pxNext->pxPrevious = pxItemToRemove->pxPrevious;
	pxItemToRemove->pxPrevious->pxNext = pxItemToRemove->pxNext;

	/* Only used during decision coverage testing. */
	mtCOVERAGE_TEST_DELAY();

	/* Make sure the index is left pointing to a valid item. */
	if( pxList->pxIndex == pxItemToRemove )
	{
		pxList->pxIndex = pxItemToRemove->pxPrevious;
	}
	else
	{
		mtCOVERAGE_TEST_MARKER();
	}

	pxItemToRemove->pvContainer = NULL;
	( pxList->uxNumberOfItems )--;

	return pxList->uxNumberOfItems;
}
