本文主要是对.dts .dtsi pinctrl.c文件的简单分析记录。

vs680-a0-evk.dts

// SPDX-License-Identifier: (GPL-2.0 OR MIT)
/*
 * Copyright (C) 2020 Synaptics Incorporated
 *
 * Author: Jisheng Zhang <jszhang@kernel.org>
 */

/dts-v1/;

/memreserve/ 0x7f000000 0x01000000;

#include <dt-bindings/gpio/gpio.h>

#include "vs680-a0.dtsi"

/ {
	model = "Synaptics VS680 EVK";
	compatible = "syna,vs680-evk", "syna,vs680";

	aliases {
		i2c3 = &i2cdemux3_i2c;
	};

	cpus {
		cpu@0 {
			cpu0-supply = <&vcpu>;
		};
	};

	chosen {
		stdout-path = "serial0:115200n8";
	};

	memory {
		device_type = "memory";
		reg = <0 0x01000000 0 0x7f000000>;
	};

	reserved-memory {
		#address-cells = <2>;
		#size-cells = <2>;
		ranges;

		ramoops@f901c000{
			compatible = "ramoops";
			reg = <0x0 0xf901c000 0x0 0x4000>;
			record-size = <0x4000>;
		};
	};

	panel0-backlight {
		compatible = "pwm-backlight";
		pinctrl-names = "default";
		pinctrl-0 = <&pwm1_pmux>;
		pwms = <&pwm0 1 1000000 0>;
		brightness-levels = <0 36 72 108 144 180 212 255>;
		default-brightness-level = <6>;
		enable-gpio = <&expander3 2 GPIO_ACTIVE_HIGH>;
		status = "okay";
	};

	ion {
		compatible = "syna,ion-berlin-heaps";
		pool-num = <2>;
		reg-names = "NonSecure", "Secure";
		reg = <0 0x7f000000 0 0x00800000>,
		      <0 0x7f800000 0 0x00800000>;
		attributes-num-per-pool = <2>;
		pool-attributes = <0x00000105 0x00000F3A 0x00000102 0x00000F3D>;
	};

	regulators {
		compatible = "simple-bus";
		#address-cells = <1>;
		#size-cells = <0>;

		vmmc_sdhci1: vmmc_sdhci1 {
			compatible = "regulator-fixed";
			regulator-min-microvolt = <3300000>;
			regulator-max-microvolt = <3300000>;
			regulator-name = "vmmc_sdio";
			enable-active-high;
			gpio = <&expander3 1 GPIO_ACTIVE_HIGH>;
		};

		reg_usb0_vbus: usb0_vbus {
			compatible = "regulator-fixed";
			regulator-name = "usb0_vbus";
			regulator-min-microvolt = <5000000>;
			regulator-max-microvolt = <5000000>;
			gpio = <&expander1 3 GPIO_ACTIVE_LOW>;
			enable-active-high;
		};

		reg_xhci0_vbus: xhci0_vbus {
			compatible = "regulator-fixed";
			regulator-name = "xhci0_vbus";
			regulator-min-microvolt = <5000000>;
			regulator-max-microvolt = <5000000>;
			gpio = <&expander1 5 GPIO_ACTIVE_LOW>;
			enable-active-high;
		};
	};

	dummy_label {
		dummy1 = <&vcpu1>;
		dummy2 = <&vcore1>;
	};

	bt_reg_on: bt_reg_on {
		compatible = "syna,rfkill";
		bt-power-gpio = <&expander1 6 GPIO_ACTIVE_HIGH>;
	};

	bluesleep: bluesleep {
		compatible = "syna,bluesleep";
		bt-dev-wake-gpio = <&portd 17 GPIO_ACTIVE_HIGH>;
	};

	gpioi2c3: gpioi2c3 {
		#address-cells = <1>;
		#size-cells = <0>;
		compatible = "i2c-gpio";
		gpios = <&portd 10 GPIO_ACTIVE_HIGH /* sda */
			 &portd 9 GPIO_ACTIVE_HIGH /* scl */
			>;
		i2c-gpio,delay-us = <5>;
	};

	i2cdemux3 {
		compatible = "i2c-dyndmx-pinctrl";
		#address-cells = <1>;
		#size-cells = <0>;

		i2c-parent = <&i2c3>, <&gpioi2c3>;

		pinctrl-names = "i2c3", "gpioi2c3";
		pinctrl-0 = <&i2c3_pmux>;
		pinctrl-1 = <&gpioi2c3_pmux>;

		i2cdemux3_i2c: i2c@0 {
			reg = <0>;
			#address-cells = <1>;
			#size-cells = <0>;

			expander0: gpio@43 {
				compatible = "fcs,fxl6408";
				reg = <0x43>;
				gpio-controller;
				#gpio-cells = <2>;
			};

			expander1: gpio@44 {
				compatible = "fcs,fxl6408";
				reg = <0x44>;
				gpio-controller;
				#gpio-cells = <2>;
			};

			rtc0: rtc@68 {
				compatible = "dallas,ds1339";
				wakeup-source;
				reg = <0x68>;
			};
		};

		i2c@1 {
			reg = <1>;
			#address-cells = <1>;
			#size-cells = <0>;
		};
	};
};

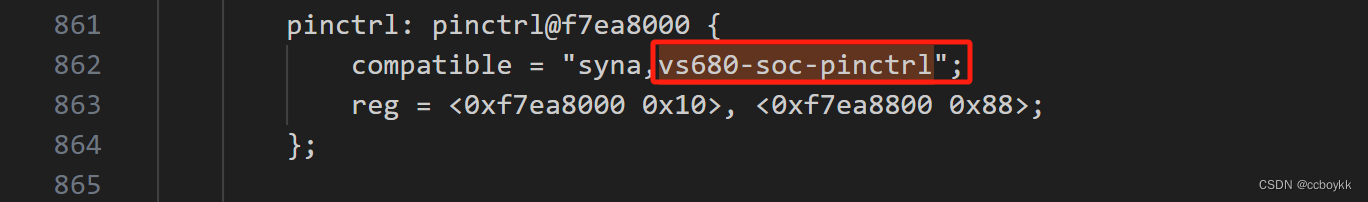

&pinctrl {
	gmac0_pmux: gmac0-pmux {
		groups = "RGMII_MDC", "RGMII_MDIO", "RGMII_TXC", "RGMII_TXD0", "RGMII_TXD1", "RGMII_TXD2", "RGMII_TXD3", "RGMII_TXCTL", "RGMII_RXC", "RGMII_RXD0", "RGMII_RXD1", "RGMII_RXD2", "RGMII_RXD3", "RGMII_RXCTL";
		function = "rgmii";
		drive-strength = <3>;
	};

	i2c0_pmux: i2c0-pmux {
		groups = "TW0_SCL", "TW0_SDA";
		function = "tw0";
		drive-strength = <7>;
	};

	i2c1_pmux: i2c1-pmux {
		groups = "SPI1_SS2n", "SPI1_SS3n";
		function = "tw1b";
		drive-strength = <3>;
	};

	sdhci1_pmux: sdhci1-pmux {
		groups = "SDIO_CDn";
		function = "sdio";
		drive-strength = <7>;
	};

	expander3_pmux: expander3-pmux {
		groups = "USB2_DRV_VBUS";
		function = "gpio";
	};

	pwm1_pmux: pwm1-pmux {
		groups = "SPI1_SS1n";
		function = "pwm";
	};

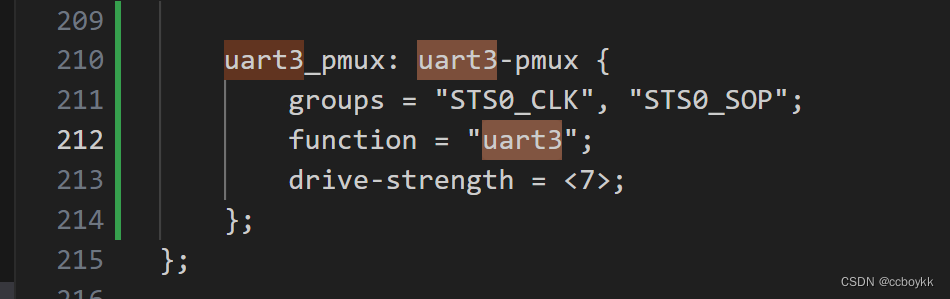

	uart3_pmux: uart3-pmux {

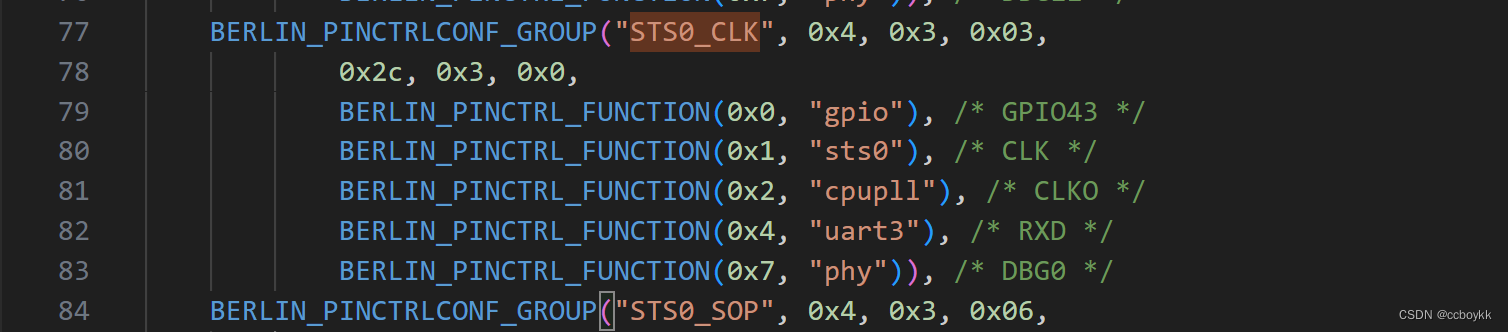

		groups = "STS0_CLK", "STS0_SOP";
		function = "uart3";
		drive-strength = <7>;
	};
};

&sm_pinctrl {
	i2c2_pmux: i2c2-pmux {
		groups = "SM_URT1_TXD", "SM_URT1_RXD";
		function = "tw2b";
		drive-strength = <7>;
	};

	i2c3_pmux: i2c3-pmux {
		groups = "SM_TW3_SCL", "SM_TW3_SDA";
		function = "tw3";
		drive-strength = <7>;
	};

	uart2_pmux: uart2-pmux {
		groups = "SM_SPI2_SS2n", "SM_SPI2_SS3n", "SM_SPI2_SDI", "SM_SPI2_SDO";
		function = "uart2";
		drive-strength = <3>;
	};

	gpioi2c3_pmux: gpioi2c3-pmux {
		groups = "SM_TW3_SCL", "SM_TW3_SDA";
		function = "gpio";
		drive-strength = <7>;
	};

	hrx5v_pmux: hrx5v-pmux {
		groups = "SM_HDMIRX_PWR5V";
		function = "gpio";
		drive-strength = <7>;
	};
};

&avio_pinctrl {
	i2s1_pmux: i2s1-pmux {
		groups = "I2S1_BCLKIO", "I2S1_LRCKIO", "I2S1_DO0", "I2S1_MCLK";
		function = "i2s1";
	};

	i2s2_pmux: i2s2-pmux {
		groups = "I2S2_BCLKIO", "I2S2_LRCKIO", "I2S2_DI0";
		function = "i2s2";
	};

	falcon_gpio_pmux: falcon_gpio-pmux {
		groups = "I2S1_DO1";
		function = "gpio";
	};

	i2s3_pmux: i2s3-pmux {
		groups = "I2S3_LRCKIO", "I2S3_BCLKIO", "I2S3_DI";
		function = "i2s3";
	};

	pdm_pmux: pdm-pmux {
		groups = "I2S2_MCLK", "I2S2_DI3", "I2S2_DI2";
		function = "pdm";
	};

	spdifo_pmux: spdifo-pmux {
		groups = "SPDIFO";
		function = "spdifo";
	};

	spdifi_pmux: spdifi-pmux {
		groups = "SPDIFI";
		function = "spdifi";
	};

};

&sdhci0 {
	status = "okay";
	sdclkdl-dc = /bits/ 8 <26>;
	mmc-ddr-1_8v;
	mmc-hs200-1_8v;
	mmc-hs400-1_8v;
	dll-calibration;
	pad-sp = /bits/ 8 <14>;
	pad-sn = /bits/ 8 <14>;
};

&sdhci1 {
	status = "okay";
	pinctrl-0 = <&sdhci1_pmux>;
	pinctrl-names = "default";
	no-sdio;
	no-mmc;
	disable-wp;
	sdclkdl-dc = /bits/ 8 <75>;
	pad-sp = /bits/ 8 <12>;
	pad-sn = /bits/ 8 <12>;
	vmmc-supply = <&vmmc_sdhci1>;
};

&pcie_phy0 {
	status = "okay";
};

&pcie0 {
	status = "okay";
	reset-gpios = <&expander1 1 GPIO_ACTIVE_LOW>;
};

&i2c0 {
	status = "okay";
	pinctrl-names = "default";
	pinctrl-0 = <&i2c0_pmux>;
	no-irq-suspend;

	falcon: cx9000@33 {
		compatible = "cnxt,cx9000";
		pinctrl-names = "default";
		pinctrl-0 = <&falcon_gpio_pmux>;

		#sound-dai-cells = <0>;
		reg = <0x33>;
		enable-gpios=<&porta 17 GPIO_ACTIVE_HIGH>;
		status = "okay";
	};

	expander2: gpio@43 {
		compatible = "fcs,fxl6408";
		reg = <0x43>;
		gpio-controller;
		#gpio-cells = <2>;
		shutdown-mask = /bits/ 8 <0x1>;
		shutdown-val = /bits/ 8 <0x0>;

		soc_global_rstn {
			gpio-hog;
			gpios = <0 GPIO_ACTIVE_HIGH>;
			output-high;
		};
	};

	expander3: gpio@44 {
		compatible = "fcs,fxl6408";
		pinctrl-names = "default";
		pinctrl-0 = <&expander3_pmux>;
		reg = <0x44>;
		gpio-controller;
		#gpio-cells = <2>;
		interrupt-parent = <&portb>;
		interrupts = <23 IRQ_TYPE_NONE>;
		interrupt-controller;
		#interrupt-cells = <2>;
		#address-cells = <0>;
	};

	fts_ts@38 {
		compatible = "focaltech,fts";
		status = "okay";
		reg = <0x38>;
		interrupt-parent = <&expander3>;
		interrupts = <4 0>;
		focaltech,irq-gpio = <&expander3 4 0>;
		focaltech,reset-gpio = <&expander3 5 GPIO_ACTIVE_LOW>;
		focaltech,display-coords = <0 0 799 1279>;
		focaltech,max-touch-number = <5>;
	};

	backlight@2c {
		compatible = "ti,lp8556";
		reg = <0x2c>;
		bl-name = "lcd-bl";
		dev-ctrl = /bits/ 8 <0x05>;
		init-brt = /bits/ 8 <0xFF>;
		pwm-period = /bits/ 8 <0x00>;

		/* CFG2 */
		rom_A2h {
			rom-addr = /bits/ 8 <0xA2>;
			rom-val = /bits/ 8 <0x28>;
		};
	};
};

&i2c1 {
	status = "okay";
	pinctrl-names = "default";
	pinctrl-0 = <&i2c1_pmux>;

	vcpu: regulator@62 {
		compatible = "mps,mp8867";
		regulator-name = "vcpu";
		regulator-min-microvolt = <700000>;
		regulator-max-microvolt = <980000>;
		regulator-always-on;
		regulator-boot-on;
		enable-gpios = <&expander0 1 GPIO_ACTIVE_LOW>;
		mps,fb-voltage-divider = <80 240>;
		regulator-active-discharge = <0>;
		mps,switch-frequency-hz = <1500000>;
		mps,vsel-step = <1>;
		reg = <0x62>;
	};

	vcpu1: regulator1@60 {
		status = "disabled";
		compatible = "silergy,sy8827n";
		regulator-name = "vcpu";
		regulator-min-microvolt = <700000>;
		regulator-max-microvolt = <987500>;
		regulator-always-on;
		regulator-boot-on;
		regulator-active-discharge = <0>;
		enable-gpios = <&expander0 1 GPIO_ACTIVE_LOW>;
		silergy,vsel-step = <1>;
		reg = <0x60>;
	};
};

&i2c2 {
	status = "okay";
	pinctrl-names = "default";
	pinctrl-0 = <&i2c2_pmux>;

	vcore: regulator@60 {
		compatible = "mps,mp8869";
		regulator-name = "vcore";
		regulator-min-microvolt = <700000>;
		regulator-max-microvolt = <900000>;
		regulator-always-on;
		regulator-boot-on;
		enable-gpios = <&expander0 0 GPIO_ACTIVE_LOW>;
		mps,fb-voltage-divider = <80 240>;
		regulator-active-discharge = <0>;
		mps,switch-frequency-hz = <1250000>;
		mps,vsel-step = <1>;
		regulator-ramp-delay = <40000>;
		reg = <0x60>;
	};

	vcore1: regulator1@60 {
		status = "disabled";
		compatible = "silergy,sy8827n";
		regulator-name = "vcore";
		regulator-min-microvolt = <700000>;
		regulator-max-microvolt = <937500>;
		regulator-always-on;
		regulator-boot-on;
		regulator-active-discharge = <0>;
		enable-gpios = <&expander0 0 GPIO_ACTIVE_LOW>;
		silergy,vsel-step = <1>;
		reg = <0x60>;
	};
};

&i2c3 {
	status = "okay";
	no-irq-suspend;
};

&uart0 {
	status = "okay";
};

&uart3 {
	status = "okay";
};

&uart2 {
	status = "okay";
	pinctrl-0 = <&uart2_pmux>;
	pinctrl-names = "default";
};

&npu {
	status = "okay";
};

&usb0 {
	vbus-supply = <&reg_usb0_vbus>;
	status = "okay";
};

&usb_phy0  {
	status = "okay";
};

&xhci0 {
	vbus-supply = <&reg_xhci0_vbus>;
	status = "okay";
};

&usb_phy1  {
	status = "okay";
};

&mdio0 {
	phy0: ethernet-phy@0 {
		reg = <0>;
	};
};

&gmac0 {
	status = "okay";
	pinctrl-0 = <&gmac0_pmux>;
	pinctrl-names = "default";
	phy-handle = <&phy0>;
	phy-mode = "rgmii-id";
	snps,reset-gpio = <&expander1 0 GPIO_ACTIVE_LOW>;
	snps,reset-delays-us = <0 10000 50000>;
};

&sm {
	status = "okay";
};

&ir {
	status = "okay";
};

&isp {
	status = "okay";
	enable-gpios = <&porta 15 GPIO_ACTIVE_HIGH>;
	i2c-bus = <&i2c3>;
	dev-addr = <112>;
};

&vpp {
	status = "okay";
};

&fb {
	status = "okay";
};

&tsp {
	status = "okay";
};

&h1 {
	status = "okay";
};

&vxg {
	status = "okay";
};

&shm {
	status = "okay";
};

&bm {
	status = "okay";
};

&msg {
	status = "okay";
};

&drm {
	status = "okay";
};

&avio {
	status = "okay";
	vpp {
		hdtx5v-gpio = <&portd 16 GPIO_ACTIVE_HIGH>;
		mipirst-gpio = <&expander3 5 GPIO_ACTIVE_LOW>;
	};
};

&cec {
	status = "okay";
};

&axi_mc0 {
	status = "okay";
};

&gpu {
	status = "okay";
};

&aout {
	status = "okay";
};

&hrx {
	status = "okay";
	pinctrl-0 = <&hrx5v_pmux>;
	pinctrl-names = "default";
	hrxhpd-gpio = <&expander1 4 GPIO_ACTIVE_HIGH>;
	hrx5v-gpio = <&portd 21 GPIO_ACTIVE_HIGH>;
};

&i2s_pri {
	status = "okay";
	pinctrl-0 = <&i2s1_pmux>;
	pinctrl-names = "default";
};

&spdif_out {
	status = "okay";
	pinctrl-0 = <&spdifo_pmux>;
	pinctrl-names = "default";
};

&i2s_mic1 {
	status = "okay";
	pinctrl-0 = <&i2s2_pmux>;
	pinctrl-names = "default";
	intlmode;
};

&dmic {
	status = "okay";
	pinctrl-0 = <&pdm_pmux>;
	pinctrl-names = "default";
	pdm-data-sel-gpio = <&expander2 4 GPIO_ACTIVE_HIGH>;
	pdm-type = <1>;
	pdm-clk-sel = <2>;
};

&i2s_mic2 {
	status = "okay";
	pinctrl-0 = <&i2s3_pmux>;
	pinctrl-names = "default";
	slave;
	invertbclk;
};

&i2s_mic6 {
	status = "okay";
};

&i2s_pri_lpbk {
	status = "okay";
};

&i2s_hdmi_lpbk {
	status = "okay";
};

&hdmi_out {
	status = "okay";
};

&vs680_spdifi {
	status = "okay";
	pinctrl-0 = <&spdifi_pmux>;
	pinctrl-names = "default";
	gate-gpio = <&expander2 4 GPIO_ACTIVE_HIGH>;
	enable-gpio = <&expander3 7 GPIO_ACTIVE_LOW>;
	dynamic-src-ctrl;
};

&vs680_pcm {
	status = "okay";
};

&vs680_asoc {
	status = "okay";

	soc_i2so1: soc-i2so1 {
		status = "okay";
		stream-name = "soc-i2so1";
		link-name = "soc-i2so1";
		format = "i2s";
		continuous-clock;
		bitclock-inversion;
		frame-inversion;
		bitclock-master;
		frame-master;
		cpu-node = <&i2s_pri>;
		codec-name = "cx9000.0-0033";
		codec-dai-name = "cx9000-amplifier";
		platform-node = <&vs680_pcm>;
	};

	soc_spdifo: soc-spdifo {
		status = "okay";
		stream-name = "soc-spdifo";
		link-name = "soc-spdifo";
		cpu-node = <&spdif_out>;
		codec-name = "snd-soc-dummy";
		codec-dai-name = "snd-soc-dummy-dai";
		platform-node = <&vs680_pcm>;
	};

	soc_dmic: soc-dmic {
		status = "okay";
		stream-name = "soc-dmic";
		link-name = "soc-dmic";
		cpu-node = <&dmic>;
		codec-name = "snd-soc-dummy";
		codec-dai-name = "snd-soc-dummy-dai";
		platform-node = <&vs680_pcm>;
	};

	soc_i2si: soc-i2si2 {
		status = "okay";
		stream-name = "soc-i2si2";
		link-name = "soc-i2si2";
		format = "i2s";
		cpu-node = <&i2s_mic1>;
		codec-name = "snd-soc-dummy";
		codec-dai-name = "snd-soc-dummy-dai";
		platform-node = <&vs680_pcm>;
	};

	soc_i2si3: soc-i2si3 {
		status = "okay";
		stream-name = "soc-i2si3";
		link-name = "soc-i2si3";
		format = "i2s";
		cpu-node = <&i2s_mic2>;
		codec-name = "snd-soc-dummy";
		codec-dai-name = "snd-soc-dummy-dai";
		platform-node = <&vs680_pcm>;
	};

	soc_i2s_pri_lpbk: soc-i2s-pri-lpbk {
		status = "okay";
		stream-name = "soc-i2s-pri-lpbk";
		link-name = "soc-i2s-pri-lpbk";
		format = "i2s";
		cpu-node = <&i2s_pri_lpbk>;
		codec-name = "snd-soc-dummy";
		codec-dai-name = "snd-soc-dummy-dai";
		platform-node = <&vs680_pcm>;
	};

	soc_i2s_hdmi_lpbk: soc-i2s-hdmi-lpbk {
		status = "okay";
		stream-name = "soc-i2s-hdmi-lpbk";
		link-name = "soc-i2s-hdmi-lpbk";
		format = "i2s";
		cpu-node = <&i2s_hdmi_lpbk>;
		codec-name = "snd-soc-dummy";
		codec-dai-name = "snd-soc-dummy-dai";
		platform-node = <&vs680_pcm>;
	};

	soc_spdifi: soc-spdifi {
		status = "okay";
		stream-name = "soc-spdifi";
		link-name = "soc-spdifi";
		cpu-node = <&vs680_spdifi>;
		codec-name = "snd-soc-dummy";
		codec-dai-name = "snd-soc-dummy-dai";
		platform-node = <&vs680_pcm>;
	};

	soc_i2s_earc: soc-i2s-earc {
		status = "okay";
		stream-name = "soc-i2s-earc";
		link-name = "soc-i2s-earc";
		format = "i2s";
		bitclock-master;
		frame-master;
		cpu-node = <&i2s_mic6>;
		codec-name = "snd-soc-dummy";
		codec-dai-name = "snd-soc-dummy-dai";
		platform-node = <&vs680_pcm>;
	};

        soc_hdmio: soc-hdmio {
                status = "okay";
                stream-name = "soc-hdmio";
                link-name = "soc-hdmio";
                format = "i2s";
                cpu-node = <&hdmi_out>;
                codec-name = "snd-soc-dummy";
                codec-dai-name = "snd-soc-dummy-dai";
                platform-node = <&vs680_pcm>;
        };
};

&ovp {
	status = "okay";
};

&pwm0 {
	status = "okay";
};

&mc_dfc {
	status = "okay";
};

vs680-a0.dtsi

// SPDX-License-Identifier: (GPL-2.0 OR MIT)
/*
 * Copyright (C) 2019 Synaptics Incorporated
 *
 * Author: Jisheng Zhang <jszhang@kernel.org>
 */

#include <dt-bindings/clock/vs680.h>
#include <dt-bindings/interrupt-controller/arm-gic.h>

/ {
	compatible = "syna,vs680";
	interrupt-parent = <&gic>;
	#address-cells = <2>;
	#size-cells = <2>;

	aliases {
		serial0 = &uart0;
		serial1 = &uart1;
		serial2 = &uart2;
		serial3 = &uart3;
		i2c0 = &i2c0;
		i2c1 = &i2c1;
		i2c2 = &i2c2;
		i2c3 = &i2c3;
	};

	psci {
		compatible = "arm,psci-0.2";
		method = "smc";
	};

	cpus {
		#address-cells = <1>;
		#size-cells = <0>;

		cpu0: cpu@0 {
			compatible = "arm,cortex-a73";
			device_type = "cpu";
			reg = <0x0>;
			enable-method = "psci";
			next-level-cache = <&l2>;
			cpu-idle-states = <&CPU_SLEEP_0>;
			operating-points-v2 = <&cpu_opp_table>;
			clocks = <&cpupll 0>;
		};

		cpu1: cpu@1 {
			compatible = "arm,cortex-a73";
			device_type = "cpu";
			reg = <0x1>;
			enable-method = "psci";
			next-level-cache = <&l2>;
			cpu-idle-states = <&CPU_SLEEP_0>;
			operating-points-v2 = <&cpu_opp_table>;
			clocks = <&cpupll 0>;
		};

		cpu2: cpu@2 {
			compatible = "arm,cortex-a73";
			device_type = "cpu";
			reg = <0x2>;
			enable-method = "psci";
			next-level-cache = <&l2>;
			cpu-idle-states = <&CPU_SLEEP_0>;
			operating-points-v2 = <&cpu_opp_table>;
			clocks = <&cpupll 0>;
		};

		cpu3: cpu@3 {
			compatible = "arm,cortex-a73";
			device_type = "cpu";
			reg = <0x3>;
			enable-method = "psci";
			next-level-cache = <&l2>;
			cpu-idle-states = <&CPU_SLEEP_0>;
			operating-points-v2 = <&cpu_opp_table>;
			clocks = <&cpupll 0>;
		};

		l2: l2-cache0 {
			compatible = "cache";
		};

		idle-states {
			entry-method = "psci";
			CPU_SLEEP_0: cpu-sleep-0 {
				compatible = "arm,idle-state";
				local-timer-stop;
				arm,psci-suspend-param = <0x0010000>;
				entry-latency-us = <75>;
				exit-latency-us = <155>;
				min-residency-us = <50000>;
			};
		};

		cpu_opp_table: opp_table0 {
			compatible = "operating-points-v2";
			opp-shared;

			opp@800000000 {
				opp-hz = /bits/ 64 <800000000>;
				opp-microvolt = <800000 800000 900000>;
				clock-latency-ns = <12600000>;
			};

			opp@1400000000 {
				opp-hz = /bits/ 64 <1400000000>;
				opp-microvolt = <800000 800000 900000>;
				clock-latency-ns = <12600000>;
			};

			opp@1800000000 {
				opp-hz = /bits/ 64 <1800000000>;
				opp-microvolt = <800000 800000 900000>;
				clock-latency-ns = <12600000>;
				opp-suspend;
			};

			opp@2100000000 {
				opp-hz = /bits/ 64 <2100000000>;
				opp-microvolt = <900000 900000 900000>;
				clock-latency-ns = <12600000>;
			};
		};
	};

	osc: osc {
		compatible = "fixed-clock";
		#clock-cells = <0>;
		clock-frequency = <25000000>;
	};

	pmu {
		compatible = "arm,cortex-a73-pmu";
		interrupts = <GIC_SPI 23 IRQ_TYPE_LEVEL_HIGH>,
			     <GIC_SPI 24 IRQ_TYPE_LEVEL_HIGH>,
			     <GIC_SPI 25 IRQ_TYPE_LEVEL_HIGH>,
			     <GIC_SPI 26 IRQ_TYPE_LEVEL_HIGH>;
		interrupt-affinity = <&cpu0>,
				     <&cpu1>,
				     <&cpu2>,
				     <&cpu3>;
	};

	timer {
		compatible = "arm,armv8-timer";
		interrupts = <GIC_PPI 13 (GIC_CPU_MASK_SIMPLE(4) | IRQ_TYPE_LEVEL_LOW)>,
			     <GIC_PPI 14 (GIC_CPU_MASK_SIMPLE(4) | IRQ_TYPE_LEVEL_LOW)>,
			     <GIC_PPI 11 (GIC_CPU_MASK_SIMPLE(4) | IRQ_TYPE_LEVEL_LOW)>,
			     <GIC_PPI 10 (GIC_CPU_MASK_SIMPLE(4) | IRQ_TYPE_LEVEL_LOW)>;
	};

	soc {
		compatible = "simple-bus";
		#address-cells = <1>;
		#size-cells = <1>;
		ranges = <0 0 0 0xffffffff>;

		h1: h1@f7000000 {
			compatible = "syna,berlin-h1";
			reg = <0xf7000000 0x400000>;
			interrupts = <GIC_SPI 29 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&clk CLK_ENCODER>;
			status = "disabled";
		};

		avio: avio@f7400000 {
			#address-cells = <1>;
			#size-cells = <1>;
			compatible = "syna,berlin-avio";
			reg = <0xf7400000 0x200000>;
			ranges = <0 0xf7400000 0x200000>;
			status = "disabled";

			dhub {
				compatible = "syna,berlin-dhub";
				frame-rate = <60>;
				interrupts = <GIC_SPI 33 IRQ_TYPE_LEVEL_HIGH>;
				interrupt-names = "vpp_dhub";
			};

			aio {
				compatible = "syna,berlin-aio";
				reg = <0xAC000 0x400>, <0x98000 0x8000>;
				reg-names = "aio_base", "gbl_base";
				clocks = <&clk CLK_AIOSYS>, <&apll0 0>, <&apll1 0>;
				clock-names = "aio_sysclk", "audio0_clk", "audio1_clk";
			};

			vpp {
				compatible = "syna,berlin-vpp";
				clocks = <&vpll0 0>, <&vpll1 0>,
					<&clk CLK_AIOSYS>, <&clk CLK_TXESC>;
				clock-names = "avio_vclk0", "avio_dpiclk",
					"aio_sysclk", "avio_txescclk";
			};
		};

		vpll0: vpll0 {
			compatible = "syna,vs680-pll";
			reg = <0xf749c004 0x20>, <0xf749c138 0x4>;
			#clock-cells = <1>;
			clocks = <&osc>;
			bypass-shift = /bits/ 8 <0>;
			pd-bypass;
		};

		apll0: apll0 {
			compatible = "syna,vs680-pll";
			reg = <0xf749c028 0x20>, <0xf749c138 0x4>;
			#clock-cells = <1>;
			clocks = <&osc>;
			bypass-shift = /bits/ 8 <2>;
			pd-bypass;
		};

		apll1: apll1 {
			compatible = "syna,vs680-pll";
			reg = <0xf749c04c 0x20>, <0xf749c138 0x4>;
			#clock-cells = <1>;
			clocks = <&osc>;
			bypass-shift = /bits/ 8 <3>;
			pd-bypass;
		};

		vpll1: vpll1 {
			compatible = "syna,vs680-pll";
			reg = <0xf749c070 0x20>, <0xf749c138 0x4>;
			#clock-cells = <1>;
			clocks = <&osc>;
			bypass-shift = /bits/ 8 <1>;
			pd-bypass;
		};

		dhubctr_a: interrupt-controller@f74b8000 {
			compatible = "syna,vs680-dhub-irq";
			interrupts = <GIC_SPI 34 IRQ_TYPE_LEVEL_HIGH>;
			reg = <0xf74b8000 0x418>;
			interrupt-controller;
			#interrupt-cells = <1>;
			#address-cells = <0>;
		};

		aout: aout@f74ac000 {
			compatible = "syna,berlin-aout";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <0>, <2>, <7>, <14>;
			interrupt-names = "ma0", "loro", "hdmi", "spdif";
			status = "disabled";
		};

		i2s_pri: i2s-pri {
			compatible = "syna,vs680-i2s-pri";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <0>;
			interrupt-names = "pri";
		};

		i2s_sec: i2s-sec {
			compatible = "syna,vs680-i2s-sec";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <2>;
		};

		spdif_out: spdif-out {
			compatible = "syna,vs680-spdifo";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <14>;
			interrupt-names = "spdifo";
		};

		hdmi_out: hdmi-out {
			compatible = "syna,vs680-hdmi";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <7>;
			interrupt-names = "hdmi";
		};

		i2s_mic1: i2s-mic1 {
			compatible = "syna,vs680-i2s-mic1";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <5>;
		};

		i2s_mic2: i2s-mic2 {
			compatible = "syna,vs680-i2s-mic2";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <6>;
		};

		i2s_mic6: i2s-mic6 {
			compatible = "syna,vs680-i2s-mic6";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <15>;
		};

		i2s_pri_lpbk: i2s_pri_lpbk {
			compatible = "syna,vs680-i2s-pri-lpbk";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <10>;
		};

		i2s_hdmi_lpbk: i2s_hdmi_lpbk {
			compatible = "syna,vs680-i2s-hdmi-lpbk";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <11>;
		};

		pdm_pdmi: pdm-pdmi {
			compatible = "syna,vs680-pdm-pdmi";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <4>;
		};

		dmic: dmic-pdm {
			compatible = "syna,vs680-dmic-pdm";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <4>;
			interleaved-mode;
			interleaved-dummy-data;
		};

		vs680_spdifi: vs680-spdifi {
			compatible = "syna,vs680-spdifi";
			status = "disabled";
			interrupt-parent = <&dhubctr_a>;
			/*Set spdif input margin value
			 *for different sample rate.
			 */
			sample-rate-32000-margin = <0x1F171717>;
			sample-rate-44100-margin = <0x1F171717>;
			sample-rate-48000-margin = <0x1F171717>;
			sample-rate-88000-margin = <0x1A101010>;
			sample-rate-96000-margin = <0x1A101010>;
			sample-rate-17600-margin = <0x0F080808>;
			sample-rate-192000-margin = <0x0F070707>;
			interrupts = <15>;
		};

		vs680_pcm: vs680-pcm {
			compatible = "syna,vs680-pcm";
			status = "disabled";
		};

		vs680_asoc: vs680-asoc {
			compatible = "syna,vs680-asoc";
			status = "disabled";
		};

		hrx: hrx@f74a0000 {
			compatible = "syna,berlin-hrx";
			interrupt-parent = <&dhubctr_a>;
			interrupts = <9>, <23>, <24>, <25>, <26>, <27>;
			interrupt-names = "mic3", "otg", "hdmirx", "ytg", "uvtg", "itg";
			reg = <0xf74a0000 0x8000>, <0xf7fe2400 0x404>;
			reg-names = "hrx_base", "edid_base";
			status = "disabled";
		};

		vxg: vxg@f7600000 {
			compatible = "syna,berlin-vxg";
			reg = <0xf7600000 0x200000>;
			interrupts = <GIC_SPI 1 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&clk CLK_DECODER>;
			status = "disabled";
		};

		ovp: ovp@f78c0000 {
			compatible = "syna,berlin-ovp";
			reg = <0xf78c0000 0x10000>;
			clocks = <&clk CLK_OVPCORE>;
			clock-names = "ovp_coreclk";
			interrupts = <GIC_SPI 57 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "ovp_intr";
			status = "disabled";
		};

		gic: interrupt-controller@f7901000 {
			compatible = "arm,gic-400";
			#interrupt-cells = <3>;
			#address-cells = <0>;
			interrupt-controller;
			reg = <0xf7901000 0x1000>,
			      <0xf7902000 0x2000>,
			      <0xf7904000 0x2000>,
			      <0xf7906000 0x2000>;
			interrupts = <GIC_PPI 9 (GIC_CPU_MASK_SIMPLE(4) | IRQ_TYPE_LEVEL_HIGH)>;
		};

		hwmon@f7920100 {
			compatible = "syna,vs680-hwmon";
			reg = <0xf7920100 0x14>;
			interrupts = <GIC_SPI 72 IRQ_TYPE_LEVEL_HIGH>;
		};

		cpupll: cpupll@f7922000 {
			compatible = "syna,vs680-pll";
			reg = <0xf7922000 0x20>, <0xf7ea0710 0x4>;
			#clock-cells = <1>;
			clocks = <&osc>, <&clk CLK_CPUFASTREF>;
			bypass-shift = /bits/ 8 <4>;
			suspend-resume;
		};

		axi_mc0: axi_meter@f7940000 {
			compatible = "syna,vs680-axi-meter";
			reg = <0xF7940000 0x1000>;
			status = "disabled";
		};

		gpu: gpu@0xf7980000 {
			compatible = "img,powervr";
			reg = <0xf7980000 0x80000>;
			clocks = <&clk CLK_GFX3DCORE>, <&clk CLK_GFX3DSYS>;
			clock-names = "gfx3dcore", "gfx3dsys";
			interrupts = <GIC_SPI 20 IRQ_TYPE_LEVEL_HIGH>;
			operating-points-v2 = <&gpu_opp_table>;
			status = "disabled";
		};

		gpu_opp_table: opp_table1 {
			compatible = "operating-points-v2";
			opp-shared;

			opp@700000000 {
				opp-hz = /bits/ 64 <700000000>;
				clock-latency-ns = <500000>;
			};
		};

		tsp: tsp@f7a40000 {
			compatible = "syna,berlin-tsp";
			clocks = <&clk CLK_TSP>, <&clk CLK_TSPREF>;
			clock-names = "core", "ref";
			interrupts = <GIC_SPI 2 IRQ_TYPE_LEVEL_HIGH>;
			reg = <0xf7a40000 0x40000>;
			status = "disabled";
		};

		shm: shm {
			compatible = "syna,berlin-shm";
			status = "disabled";
		};

		bm: bm {
			compatible = "syna,berlin-bm";
			status = "disabled";
		};

		msg: msg {
			compatible = "syna,berlin-msg";
			status = "disabled";
		};

		drm: drm {
			compatible = "syna,berlin-drm";
			status = "disabled";
		};

		sdhci0: sdhci@f7aa0000 {
			compatible = "snps,dwcmshc-sdhci";
			reg = <0xf7aa0000 0x1000>;
			interrupts = <GIC_SPI 13 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&clk CLK_EMMC>, <&gateclk CLK_EMMCSYS>;
			clock-names = "core", "bus";
			resets = <&chip 0x680 12 0 0>, <&chip 0x688 6 1 0>;
			reset-names = "host", "phy";
			phy-offset = <0x300>;
			bus-width = <8>;
			non-removable;
			no-sd;
			no-sdio;
			status = "disabled";
		};

		sdhci1: sdhci@f7ab0000 {
			compatible = "snps,dwcmshc-sdhci";
			reg = <0xf7ab0000 0x1000>;
			interrupts = <GIC_SPI 15 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&clk CLK_SD0>, <&gateclk CLK_SDIOSYS>;
			clock-names = "core", "bus";
			resets = <&chip 0x680 2 0 0 >, <&chip 0x688 5 1 0>;
			reset-names = "host", "phy";
			phy-offset = <0x300>;
			bus-width = <4>;
			status = "disabled";
		};

		gmac0: ethernet@f7b60000 {
			compatible = "snps,dwmac";
			reg = <0xf7b60000 0x2000>;
			interrupts = <GIC_SPI 43 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "macirq";
			clocks = <&clk CLK_GETHRGMII>, <&gateclk CLK_GETHRGMIISYS>;
			clock-names = "stmmaceth", "pclk";
			clk_csr = <1>;
			snps,multicast-filter-bins = <128>;
			snps,perfect-filter-entries = <16>;
			status = "disabled";
			mdio0: mdio0 {
				compatible = "snps,dwmac-mdio";
				#address-cells = <1>;
				#size-cells = <0>;
			};
		};

		npu: npu@f7bc0000 {
			compatible = "syna,synap", "vivante,galcore";
			reg = <0xf7bc0000 0x40000>;
			resets = <&chip 0x668 0 1 0>;
			interrupts = <GIC_SPI 105 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&gateclk CLK_NPUAXI>, <&clk CLK_NPU>;
			clock-names = "sys", "core";
			status = "disabled";
		};

		usb0: usb@f7c00000 {
			compatible = "syna,berlin-usb";
			reg = <0xf7c00000 0x40000>;
			interrupts = <GIC_SPI 11 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&gateclk 0>;
			clock-names = "otg";
			phys = <&usb_phy0>;
			phy-names = "usb2-phy";
			resets = <&chip 0x688 3 1 0>, <&chip 0x688 4 1 0>, <&chip 0x680 9 0 0>;
			reset-names = "dwc2", "dwc2-ecc", "dwc2-sync";
			dr_mode = "otg";
			g-rx-fifo-size = <512>;
			g-np-tx-fifo-size = <64>;
			g-tx-fifo-size = <256 256 256 256 256 128  64 64
			                   64  64  64  64  64  64  64>;
			status = "disabled";
		};

		usb_phy0: phy@f7c40000 {
			compatible = "syna,vs680-usb2-phy";
			reg = <0xf7c40000 0x100>;
			#phy-cells = <0>;
			resets = <&chip 0x688 2 1 0>;
			reset-names = "phy";
			status = "disabled";
		};

		mc_dfc: mc_dfc@f7cb0000 {
			compatible = "syna,vs680-mc-dfc";
			reg = <0xf7cb0000 0x400>, <0xf7940000 0x400>;
			interrupts = <GIC_SPI 68 IRQ_TYPE_LEVEL_HIGH>;
			status = "disabled";
		};

		xhci0: xhci@f7d00000 {
			compatible = "syna,vs680-dwusb3";
			clocks = <&clk CLK_USB3CORE>;
			clock-names = "core_clk";
			resets = <&chip 0x680 10 0 0>;
			reset-names = "rst-sync";
			phys = <&usb_phy1>;
			phy-names = "usb-phy";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges;
			status = "disabled";
			usb_dwc3: dwc3@f7d00000 {
				compatible = "snps,dwc3";
				reg = <0xf7d00000 0x20000>;
				interrupts = <GIC_SPI 42 IRQ_TYPE_LEVEL_HIGH>;
				dr_mode = "host";
			};
		};

		usb_phy1: phy@f7d20100 {
			compatible = "syna,vs680-usb3-phy";
			reg = <0xf7d20100 0x20>;
			#phy-cells = <0>;
			resets = <&chip 0x688 0 1 0>;
			reset-names = "phy";
			status = "disabled";
		};

		pcie0: pcie@f7e40000 {
			compatible = "syna,vs680-pcie";
			reg = <0xf7e40000 0x8000>, <0xf7e4a000 0x28>, <0xe0000000 0x00800000>;
			reg-names = "dbi", "ctrl", "config";
			interrupts = <GIC_SPI 63 IRQ_TYPE_LEVEL_HIGH>, <GIC_SPI 50 IRQ_TYPE_LEVEL_HIGH>;
			clocks = <&gateclk CLK_PCIE0SYS>;
			resets = <&chip 0x688 1 1 0>;
			#address-cells = <3>;
			#size-cells = <2>;
			#interrupt-cells = <1>;
			interrupt-map-mask = <0 0 0 0>;
			interrupt-map = <0 0 0 0 &gic GIC_SPI 63 IRQ_TYPE_LEVEL_HIGH>;
			num-lanes = <2>;
			num-viewport = <4>;
			device_type = "pci";
			ranges = <0x81000000 0 0          0xe0800000 0 0x00800000
				  0x82000000 0 0xe1000000 0xe1000000 0 0x07000000>;
			phys = <&pcie_phy0>;
			phy-names = "pcie-phy";
			status = "disabled";
		};

		pcie_phy0: phy@f7e4a02c {
			compatible = "syna,vs680-pcie-phy";
			reg = <0xf7e4a02c 0x1c>;
			resets = <&chip 0x688 7 1 0>;
			#phy-cells = <0>;
			status = "disabled";
		};

		apb@f7e80000 {
			compatible = "simple-bus";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges = <0 0xf7e80000 0x10000>;

			timer0: timer@0400 {
				compatible = "snps,dw-apb-timer";
				reg = <0x0400 0x14>;
				clocks = <&clk CLK_APBCORE>;
				clock-names = "timer";
				clock-freq = <200000000>;
				interrupts = <GIC_SPI 83 IRQ_TYPE_LEVEL_HIGH>;
			};

			timer1: timer@0414 {
				compatible = "snps,dw-apb-timer";
				reg = <0x0414 0x14>;
				clocks = <&clk CLK_APBCORE>;
				clock-names = "timer";
				clock-freq = <200000000>;
				status = "disabled";
			};

			timer2: timer@0428 {
				compatible = "snps,dw-apb-timer";
				reg = <0x0428 0x14>;
				clocks = <&clk CLK_APBCORE>;
				clock-names = "timer";
				clock-freq = <200000000>;
				status = "disabled";
			};

			timer3: timer@043c {
				compatible = "snps,dw-apb-timer";
				reg = <0x043c 0x14>;
				clocks = <&clk CLK_APBCORE>;
				clock-names = "timer";
				clock-freq = <200000000>;
				status = "disabled";
			};

			timer4: timer@0450 {
				compatible = "snps,dw-apb-timer";
				reg = <0x0450 0x14>;
				clocks = <&clk CLK_APBCORE>;
				clock-names = "timer";
				clock-freq = <200000000>;
				status = "disabled";
			};

			timer5: timer@0464 {
				compatible = "snps,dw-apb-timer";
				reg = <0x0464 0x14>;
				clocks = <&clk CLK_APBCORE>;
				clock-names = "timer";
				clock-freq = <200000000>;
				status = "disabled";
			};

			timer6: timer@0478 {
				compatible = "snps,dw-apb-timer";
				reg = <0x0478 0x14>;
				clocks = <&clk CLK_APBCORE>;
				clock-names = "timer";
				clock-freq = <200000000>;
				status = "disabled";
			};

			timer7: timer@048c {
				compatible = "snps,dw-apb-timer";
				reg = <0x048c 0x14>;
				clocks = <&clk CLK_APBCORE>;
				clock-names = "timer";
				clock-freq = <200000000>;
				status = "disabled";
			};

			gpio1: gpio@0800 {
				compatible = "snps,dw-apb-gpio";
				dev_name = "gpio_soc_1";
				reg = <0x0800 0x400>;
				#address-cells = <1>;
				#size-cells = <0>;

				portb: gpio-port@1 {
					gpio-controller;
					#gpio-cells = <2>;
					ngpios = <32>;
					reg = <0>;
					interrupt-controller;
					#interrupt-cells = <2>;
					#address-cells = <0>;
					interrupts = <GIC_SPI 78 IRQ_TYPE_LEVEL_HIGH>;
				};
			};

			gpio2: gpio@0c00 {
				compatible = "snps,dw-apb-gpio";
				dev_name = "gpio_soc_2";
				reg = <0x0c00 0x400>;
				#address-cells = <1>;
				#size-cells = <0>;

				portc: gpio-port@1 {
					gpio-controller;
					#gpio-cells = <2>;
					ngpios = <32>;
					reg = <0>;
					interrupt-controller;
					#interrupt-cells = <2>;
					#address-cells = <0>;
					interrupts = <GIC_SPI 79 IRQ_TYPE_LEVEL_HIGH>;
				};
			};

			uart2: uart@1000 {
				compatible = "snps,dw-apb-uart";
				reg = <0x1000 0x100>;
				interrupts = <GIC_SPI 95 IRQ_TYPE_LEVEL_HIGH>;
				clocks = <&clk CLK_APBCORE>;
				reg-shift = <2>;
				status = "disabled";
			};

			uart3: uart@1400 {
				compatible = "snps,dw-apb-uart";
				reg = <0x1400 0x100>;
				interrupts = <GIC_SPI 96 IRQ_TYPE_LEVEL_HIGH>;
				clocks = <&clk CLK_APBCORE>;
				reg-shift = <2>;
				status = "disabled";
			};

			i2c0: i2c@1800 {
				compatible = "snps,designware-i2c";
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <0x1800 0x100>;
				clocks = <&clk CLK_APBCORE>;
				i2c-sda-hold-time-ns = <449>;
				i2c-sda-falling-time-ns = <425>;
				i2c-scl-falling-time-ns = <205>;
				interrupts = <GIC_SPI 80 IRQ_TYPE_LEVEL_HIGH>;
				status = "disabled";
			};

			spi1: spi@1c00 {
				compatible = "snps,dw-apb-ssi";
				reg = <0x1c00 0x100>;
				#address-cells = <1>;
				#size-cells = <0>;
				num-cs = <4>;
				clocks = <&clk CLK_APBCORE>;
				interrupts = <GIC_SPI 82 IRQ_TYPE_LEVEL_HIGH>;
				status = "disabled";
			};

			i2c1: i2c@2000 {
				compatible = "snps,designware-i2c";
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <0x2000 0x100>;
				clocks = <&clk CLK_APBCORE>;
				i2c-sda-hold-time-ns = <449>;
				i2c-sda-falling-time-ns = <425>;
				i2c-scl-falling-time-ns = <205>;
				interrupts = <GIC_SPI 81 IRQ_TYPE_LEVEL_HIGH>;
				status = "disabled";
			};

			gpio0: gpio@2400 {
				compatible = "snps,dw-apb-gpio";
				dev_name = "gpio_soc_0";
				reg = <0x2400 0x400>;
				#address-cells = <1>;
				#size-cells = <0>;

				porta: gpio-port@0 {
					gpio-controller;
					#gpio-cells = <2>;
					ngpios = <32>;
					reg = <0>;
					interrupt-controller;
					#interrupt-cells = <2>;
					#address-cells = <0>;
					interrupts = <GIC_SPI 77 IRQ_TYPE_LEVEL_HIGH>;
				};
			};
		};

		chipid@f7ea0000 {
			compatible = "marvell,berlin-chipid";
			reg = <0xf7ea0000 12>;
		};

		chip: chip-control@f7ea0000 {
			compatible = "marvell,berlin4ct-chip-ctrl";
			reg = <0xf7ea0000 0x10000>;
			#reset-cells = <4>;
		};

		syspll0: syspll0 {
			compatible = "syna,vs680-pll";
			reg = <0xf7ea0200 0x20>, <0xf7ea0710 0x4>;
			#clock-cells = <1>;
			clocks = <&osc>;
			bypass-shift = /bits/ 8 <0>;
		};

		syspll1: syspll1 {
			compatible = "syna,vs680-pll";
			reg = <0xf7ea0220 0x20>, <0xf7ea0710 0x4>;
			#clock-cells = <1>;
			clocks = <&osc>;
			bypass-shift = /bits/ 8 <1>;
		};

		syspll2: syspll2 {
			compatible = "syna,vs680-pll";
			reg = <0xf7ea0240 0x20>, <0xf7ea0710 0x4>;
			#clock-cells = <1>;
			clocks = <&osc>;
			bypass-shift = /bits/ 8 <2>;
		};

		gateclk: gateclk {
			compatible = "syna,vs680-gateclk";
			reg = <0xf7ea0700 0x4>;
			#clock-cells = <1>;
		};

		clk: clk {
			compatible = "syna,vs680-clk";
			reg = <0xf7ea0720 0xf8>;
			#clock-cells = <1>;
			clocks = <&syspll0 0>, <&syspll2 0>, <&syspll0 1>, <&syspll1 1>, <&syspll2 1>, <&syspll1 0>;
		};

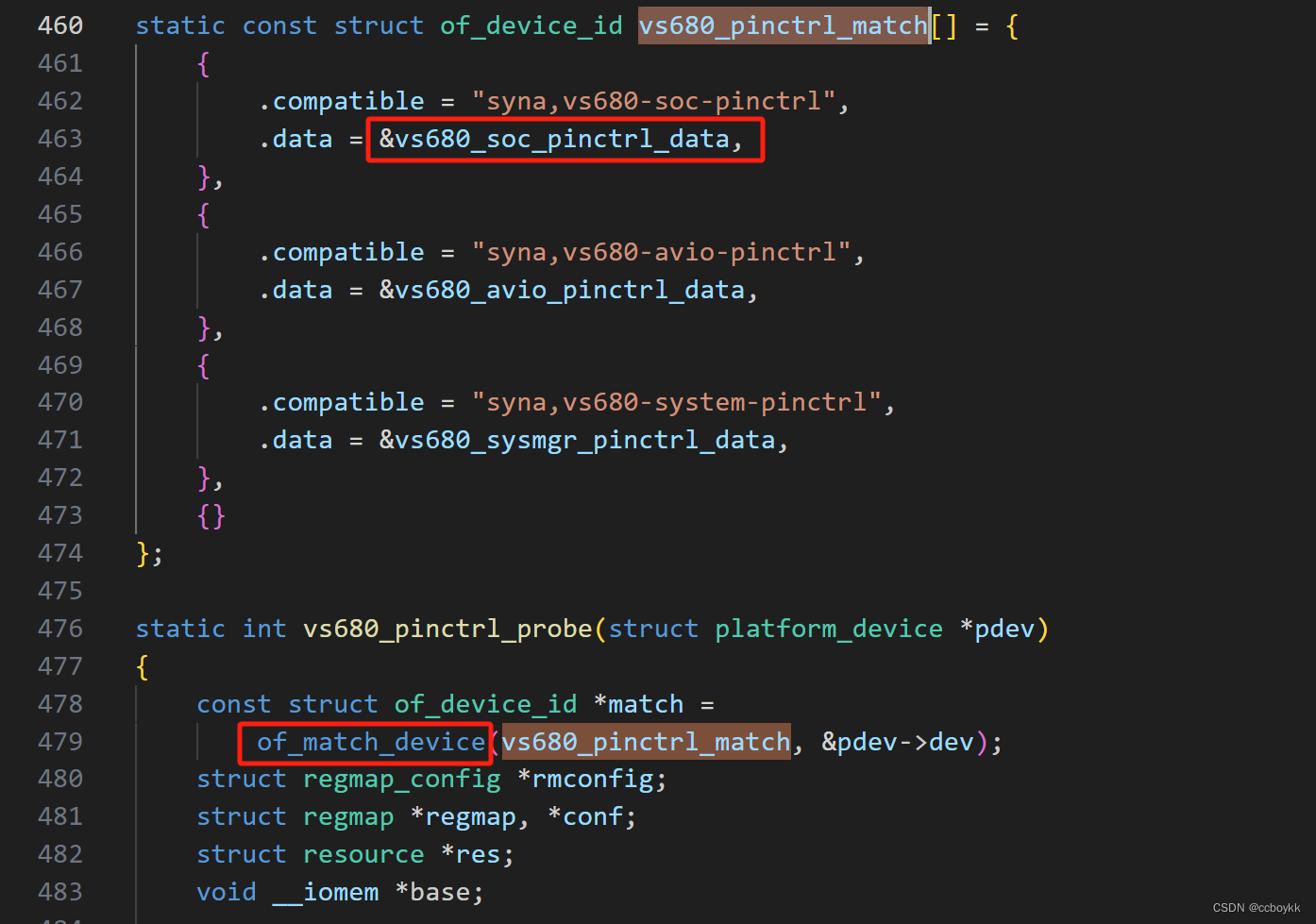

		pinctrl: pinctrl@f7ea8000 {
			compatible = "syna,vs680-soc-pinctrl";
			reg = <0xf7ea8000 0x10>, <0xf7ea8800 0x88>;
		};

		avio_pinctrl: pinctrl@f7ea8400 {
			compatible = "syna,vs680-avio-pinctrl";
			reg = <0xf7ea8400 0xc>, <0xf7ea8c00 0x58>;
		};

		pwm0: pwm@f7f20000 {
			compatible = "marvell,berlin-pwm";
			reg = <0xf7f20000 0x40>;
			clocks = <&clk CLK_CFG>;
			#pwm-cells = <3>;
			status = "disabled";
		};

		sm: sm@f7f80000 {
			compatible = "marvell,berlin-sm";
			reg = <0xf7f80000 0x20000>, <0xf7fe2014 4>;
			interrupts = <GIC_SPI 19 IRQ_TYPE_LEVEL_HIGH>;
			mode-bootloader = <0x29012002>;
			mode-recovery = <0x11092017>;
			mode-fastboot = <0x12510399>;
			mode-recovery,quiescent = <0x06012021>;
			mode-quiescent = <0x01112021>;
			status = "disabled";
		};

		ir: ir {
			compatible = "marvell,berlin-ir";
			status = "disabled";
		};

		apb@f7fc0000 {
			compatible = "simple-bus";
			#address-cells = <1>;
			#size-cells = <1>;
			ranges = <0 0xf7fc0000 0x10000>;
			interrupt-parent = <&sic>;

			sic: interrupt-controller@1000 {
				compatible = "snps,dw-apb-ictl";
				reg = <0x1000 0x30>;
				interrupt-controller;
				#interrupt-cells = <1>;
				#address-cells = <0>;
				interrupt-parent = <&gic>;
				interrupts = <GIC_SPI 17 IRQ_TYPE_LEVEL_HIGH>;
			};

			watchdog0: watchdog@3000 {
				compatible = "snps,dw-wdt";
				reg = <0x3000 0x100>;
				clocks = <&osc>;
				status = "disabled";
			};

			watchdog1: watchdog@4000 {
				compatible = "snps,dw-wdt";
				reg = <0x4000 0x100>;
				clocks = <&osc>;
				status = "disabled";
			};

			watchdog2: watchdog@5000 {
				compatible = "snps,dw-wdt";
				reg = <0x5000 0x100>;
				clocks = <&osc>;
				status = "disabled";
			};

			sm_gpio0: gpio@8000 {
				compatible = "snps,dw-apb-gpio";
				dev_name = "gpio_sm_0";
				reg = <0x8000 0x400>;
				#address-cells = <1>;
				#size-cells = <0>;
				no-suspend-resume;

				portd: gpio-port@4 {
					gpio-controller;
					#gpio-cells = <2>;
					ngpios = <32>;
					reg = <0>;
				};
			};

			spi0: spi@a000 {
				compatible = "snps,dw-apb-ssi";
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <0xa000 0x100>;
				num-cs = <4>;
				clocks = <&osc>;
				interrupts = <5>;
				status = "disabled";
			};

			i2c2: i2c@b000 {
				compatible = "snps,designware-i2c";
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <0xb000 0x100>;
				clocks = <&osc>;
				i2c-sda-hold-time-ns = <420>;
				i2c-sda-falling-time-ns = <500>;
				i2c-scl-falling-time-ns = <220>;
				interrupts = <6>;
				status = "disabled";
			};

			i2c3: i2c@c000 {
				compatible = "snps,designware-i2c";
				#address-cells = <1>;
				#size-cells = <0>;
				reg = <0xc000 0x100>;
				clocks = <&osc>;
				i2c-sda-hold-time-ns = <420>;
				i2c-sda-falling-time-ns = <500>;
				i2c-scl-falling-time-ns = <220>;
				interrupts = <7>;
				status = "disabled";
			};

			uart0: uart@d000 {
				compatible = "snps,dw-apb-uart";
				reg = <0xd000 0x100>;
				interrupts = <8>;
				clocks = <&osc>;
				reg-shift = <2>;
				status = "disabled";
			};

			uart1: uart@e000 {
				compatible = "snps,dw-apb-uart";
				reg = <0xe000 0x100>;
				interrupts = <9>;
				clocks = <&osc>;
				reg-shift = <2>;
				status = "disabled";
			};
		};

		sm_pinctrl: pinctrl@f7fe2c10 {
			compatible = "syna,vs680-system-pinctrl";
			reg = <0xf7fe2c10 0xc>, <0xf7fe2c1c 0x5c>;
		};

		isp: isp@f9100000 {
			status = "disabled";
			compatible = "syna,vs680-isp";
			reg = <0xf9100000 0x100000>;
			clocks = <&clk CLK_TXESC>, <&clk CLK_ISP>, <&clk CLK_ISSSYS>, <&clk CLK_ISPBE>,
				 <&clk CLK_ISPDSC>, <&clk CLK_ISPCSI0>, <&clk CLK_ISPCSI1>;
			clock-names = "txescclk", "ispclk", "isssysclk", "ispbeclk",
				      "ispdscclk", "ispcsi0clk", "ispcsi1clk";
			resets = <&chip 0x688 8 1 0>;
			reset-names = "isprst";
			interrupts = <GIC_SPI 112 IRQ_TYPE_LEVEL_HIGH>,
				     <GIC_SPI 116 IRQ_TYPE_LEVEL_HIGH>;
			interrupt-names = "isp_core",
					  "isp_tsb_dhub";
		};

		cec: cec@f7fe1000 {
			compatible = "syna,berlin-cec";
			interrupt-parent = <&sic>;
			interrupts = <16>;
			reg = <0xf7fe1000 0x1000>;
			status = "disabled";
		};

		vpp: vpp {
			status = "disabled";
			compatible = "syna,vpp-drv";
			clocks = <&vpll0 0>, <&vpll1 0>;
			clock-names = "avio_vclk0", "avio_dpiclk";
		};

		fb: fb {
			compatible = "marvell,berlin-fb";
			frame-size-ndx = <1>;
			status = "disabled";
		};
	};
};

pinctrl-vs680.c

// SPDX-License-Identifier: GPL-2.0
/*
 * Synaptics VS680 pinctrl driver
 *
 * Copyright (C) 2019 Synaptics Incorporated
 *
 * Author: Jisheng Zhang <jszhang@kernel.org>
 */

#include <linux/init.h>
#include <linux/of_device.h>
#include <linux/platform_device.h>
#include <linux/regmap.h>

#include "berlin.h"

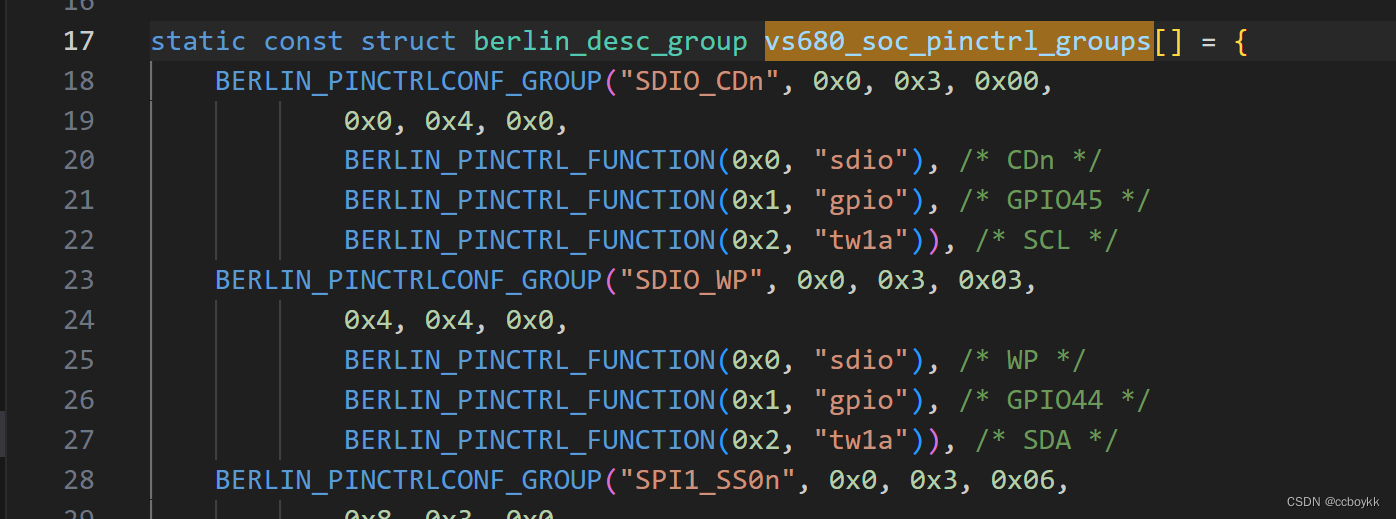

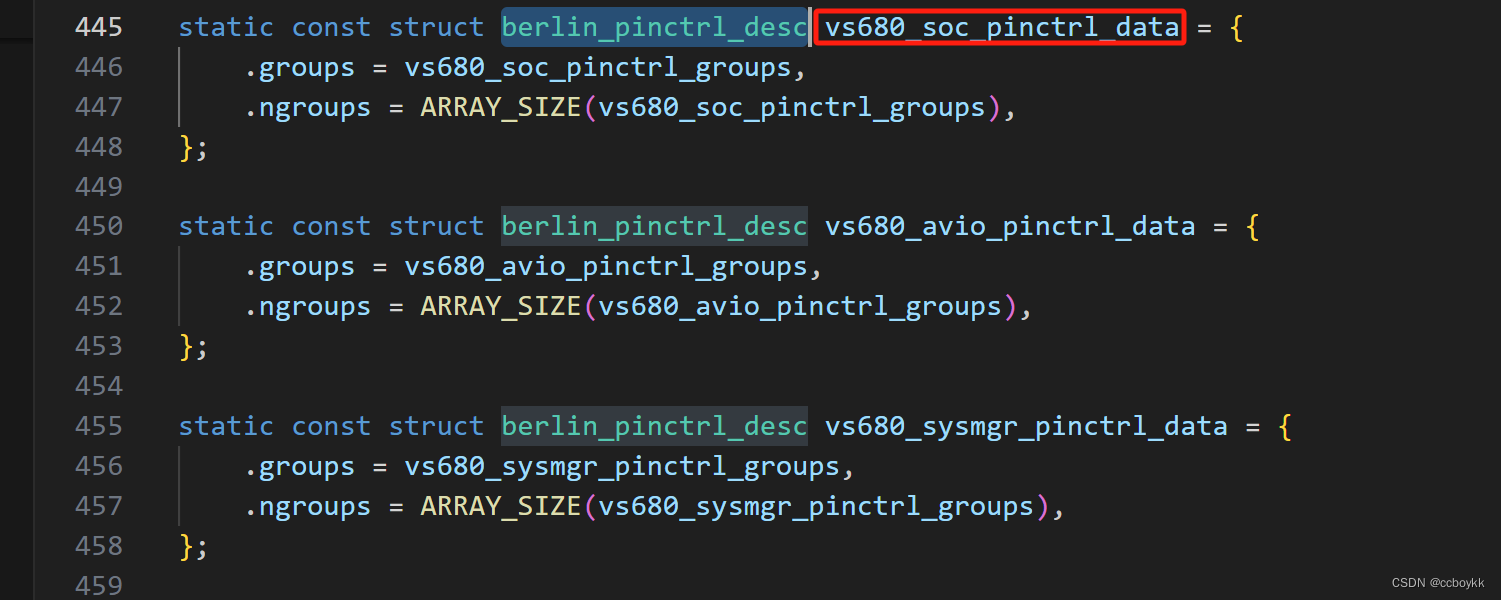

static const struct berlin_desc_group vs680_soc_pinctrl_groups[] = {
	BERLIN_PINCTRLCONF_GROUP("SDIO_CDn", 0x0, 0x3, 0x00,
			0x0, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "sdio"), /* CDn */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* GPIO45 */
			BERLIN_PINCTRL_FUNCTION(0x2, "tw1a")), /* SCL */
	BERLIN_PINCTRLCONF_GROUP("SDIO_WP", 0x0, 0x3, 0x03,
			0x4, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "sdio"), /* WP */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* GPIO44 */
			BERLIN_PINCTRL_FUNCTION(0x2, "tw1a")), /* SDA */
	BERLIN_PINCTRLCONF_GROUP("SPI1_SS0n", 0x0, 0x3, 0x06,
			0x8, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "spi1"), /* SS0n */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO54 */
	BERLIN_PINCTRLCONF_GROUP("SPI1_SS1n", 0x0, 0x3, 0x09,
			0xc, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO53 */
			BERLIN_PINCTRL_FUNCTION(0x1, "spi1"), /* SS1n */
			BERLIN_PINCTRL_FUNCTION(0x2, "sts7"), /* VALD */
			BERLIN_PINCTRL_FUNCTION(0x4, "pwm"), /* PWM1 */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG14 */
	BERLIN_PINCTRLCONF_GROUP("SPI1_SS2n", 0x0, 0x3, 0x0c,
			0x10, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO52 */
			BERLIN_PINCTRL_FUNCTION(0x1, "spi1"), /* SS2n */
			BERLIN_PINCTRL_FUNCTION(0x2, "sts7"), /* CLK */
			BERLIN_PINCTRL_FUNCTION(0x3, "tw1b"), /* SCL */
			BERLIN_PINCTRL_FUNCTION(0x4, "pwm"), /* PWM0 */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG12 */
	BERLIN_PINCTRLCONF_GROUP("SPI1_SS3n", 0x0, 0x3, 0x0f,
			0x14, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO51 */
			BERLIN_PINCTRL_FUNCTION(0x1, "spi1"), /* SS3n */
			BERLIN_PINCTRL_FUNCTION(0x2, "sts7"), /* SD */
			BERLIN_PINCTRL_FUNCTION(0x3, "tw1b"), /* SDA */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG13 */
	BERLIN_PINCTRLCONF_GROUP("SPI1_SDO", 0x0, 0x3, 0x12,
			0x18, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "spi1"), /* SDO */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO50 */
	BERLIN_PINCTRLCONF_GROUP("SPI1_SCLK", 0x0, 0x3, 0x15,
			0x1c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "spi1"), /* SCLK */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* GPIO49 */
			BERLIN_PINCTRL_FUNCTION(0x7, "dbg")), /* CLK */
	BERLIN_PINCTRLCONF_GROUP("SPI1_SDI", 0x0, 0x3, 0x18,
			0x20, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "spi1"), /* SDI */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO48 */
	BERLIN_PINCTRLCONF_GROUP("TW0_SCL", 0x0, 0x3, 0x1b,
			0x24, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO47 */
			BERLIN_PINCTRL_FUNCTION(0x1, "tw0"), /* SCL */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG10 */
	BERLIN_PINCTRLCONF_GROUP("TW0_SDA", 0x4, 0x3, 0x00,
			0x28, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO46 */
			BERLIN_PINCTRL_FUNCTION(0x1, "tw0"), /* SDA */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG11 */
	BERLIN_PINCTRLCONF_GROUP("STS0_CLK", 0x4, 0x3, 0x03,
			0x2c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO43 */
			BERLIN_PINCTRL_FUNCTION(0x1, "sts0"), /* CLK */
			BERLIN_PINCTRL_FUNCTION(0x2, "cpupll"), /* CLKO */
			BERLIN_PINCTRL_FUNCTION(0x4, "uart3"), /* RXD */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG0 */
	BERLIN_PINCTRLCONF_GROUP("STS0_SOP", 0x4, 0x3, 0x06,
			0x30, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO42 */
			BERLIN_PINCTRL_FUNCTION(0x1, "sts0"), /* SOP */
			BERLIN_PINCTRL_FUNCTION(0x2, "syspll"), /* CLKO */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts5"), /* CLK */
			BERLIN_PINCTRL_FUNCTION(0x4, "uart3"), /* TXD */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG1 */
	BERLIN_PINCTRLCONF_GROUP("STS0_SD", 0x4, 0x3, 0x09,
			0x34, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO41 */
			BERLIN_PINCTRL_FUNCTION(0x1, "sts0"), /* SD */
			BERLIN_PINCTRL_FUNCTION(0x2, "mempll"), /* CLKO */
			BERLIN_PINCTRL_FUNCTION(0x4, "uart3"), /* CTSn */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG2 */
	BERLIN_PINCTRLCONF_GROUP("STS0_VALD", 0x4, 0x3, 0x0c,
			0x38, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO40 */
			BERLIN_PINCTRL_FUNCTION(0x1, "sts0"), /* VALD */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts5"), /* SD */
			BERLIN_PINCTRL_FUNCTION(0x4, "uart3"), /* RTSn */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG3 */
	BERLIN_PINCTRLCONF_GROUP("STS1_CLK", 0x4, 0x3, 0x0f,
			0x3c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO39 */
			BERLIN_PINCTRL_FUNCTION(0x1, "sts1"), /* CLK */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm"), /* pwm0 */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG4 */
	BERLIN_PINCTRLCONF_GROUP("STS1_SOP", 0x4, 0x3, 0x12,
			0x40, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO38 */
			BERLIN_PINCTRL_FUNCTION(0x1, "sts1"), /* SOP */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm"), /* PWM1 */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts6"), /* CLK */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG5 */
	BERLIN_PINCTRLCONF_GROUP("STS1_SD", 0x4, 0x3, 0x15,
			0x44, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO37 */
			BERLIN_PINCTRL_FUNCTION(0x1, "sts1"), /* SD */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm"), /* PWM2 */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG6 */
	BERLIN_PINCTRLCONF_GROUP("STS1_VALD", 0x4, 0x3, 0x18,
			0x48, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO36 */
			BERLIN_PINCTRL_FUNCTION(0x1, "sts1"), /* VALD */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm"), /* PWM3 */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts6"), /* SD */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG7 */
	BERLIN_PINCTRLCONF_GROUP("USB2_DRV_VBUS", 0x4, 0x3, 0x1b,
			0x4c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "usb2"), /* VBUS */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO55 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_MDC", 0x8, 0x3, 0x00,
			0x50, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* MDC */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* GPIO29 */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG8 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_MDIO", 0x8, 0x3, 0x03,
			0x54, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* MDIO */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* GPIO28 */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG9 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_TXC", 0x8, 0x3, 0x06,
			0x58, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* TXC */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO23 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_TXD0", 0x8, 0x3, 0x09,
			0x5c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* TXD0 */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO27 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_TXD1", 0x8, 0x3, 0x0c,
			0x60, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* TXD1 */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* GPIO26 */
			BERLIN_PINCTRL_FUNCTION(0x7, "phy")), /* DBG15 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_TXD2", 0x8, 0x3, 0x0f,
			0x64, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* TXD2 */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO25 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_TXD3", 0x8, 0x3, 0x12,
			0x68, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* TXD3 */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO24 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_TXCTL", 0x8, 0x3, 0x15,
			0x6c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* TXCTL */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO22 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_RXC", 0x8, 0x3, 0x18,
			0x70, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* RXC */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO31 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_RXD0", 0x8, 0x3, 0x1b,
			0x74, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* RXD0 */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO35 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_RXD1", 0xc, 0x3, 0x00,
			0x78, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* RXD1 */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO34 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_RXD2", 0xc, 0x3, 0x03,
			0x7c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* RXD2 */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO33 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_RXD3", 0xc, 0x3, 0x06,
			0x80, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* RXD3 */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO32 */
	BERLIN_PINCTRLCONF_GROUP("RGMII_RXCTL", 0xc, 0x3, 0x09,
			0x84, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rgmii"), /* RXCTL */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* GPIO30 */
};

static const struct berlin_desc_group vs680_avio_pinctrl_groups[] = {
	BERLIN_PINCTRLCONF_GROUP("I2S1_DO0", 0x0, 0x3, 0x00,
			0x0, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO19 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s1"), /* DO0 */
			BERLIN_PINCTRL_FUNCTION(0x7, "avio")), /* DBG4 */
	BERLIN_PINCTRLCONF_GROUP("I2S1_DO1", 0x0, 0x3, 0x03,
			0x4, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO17 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s1"), /* DO1 */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts2"), /* CLK */
			BERLIN_PINCTRL_FUNCTION(0x7, "avio")), /* DBG5 */
	BERLIN_PINCTRLCONF_GROUP("I2S1_DO2", 0x0, 0x3, 0x06,
			0x8, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO16 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s1"), /* DO2 */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm"), /* PWM2 */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts2"), /* SD */
			BERLIN_PINCTRL_FUNCTION(0x4, "pdm"), /* DI2 */
			BERLIN_PINCTRL_FUNCTION(0x7, "avio")), /* DBG6 */
	BERLIN_PINCTRLCONF_GROUP("I2S1_DO3", 0x0, 0x3, 0x09,
			0xc, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO15 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s1"), /* DO3 */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm"), /* PWM3 */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts3"), /* CLK */
			BERLIN_PINCTRL_FUNCTION(0x4, "pdm"), /* DI3 */
			BERLIN_PINCTRL_FUNCTION(0x7, "avio")), /* DBG7 */
	BERLIN_PINCTRLCONF_GROUP("I2S1_LRCKIO", 0x0, 0x3, 0x0c,
			0x10, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO21 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s1"), /* LRCKIO */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm"), /* PWM0 */
			BERLIN_PINCTRL_FUNCTION(0x3, "arc_test"), /* OUT */
			BERLIN_PINCTRL_FUNCTION(0x7, "avio")), /* DBG0 */
	BERLIN_PINCTRLCONF_GROUP("I2S1_BCLKIO", 0x0, 0x3, 0x0f,
			0x14, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO20 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s1"), /* BCLKIO */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm"), /* PWM1 */
			BERLIN_PINCTRL_FUNCTION(0x7, "avio")), /* DBG1 */
	BERLIN_PINCTRLCONF_GROUP("SPDIFO", 0x0, 0x3, 0x12,
			0x18, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO14 */
			BERLIN_PINCTRL_FUNCTION(0x1, "spdifo"),
			BERLIN_PINCTRL_FUNCTION(0x4, "avpll")), /* CLKO */
	BERLIN_PINCTRLCONF_GROUP("SPDIFI", 0x0, 0x3, 0x15,
			0x1c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO4 */
			BERLIN_PINCTRL_FUNCTION(0x1, "spdifi"),
			BERLIN_PINCTRL_FUNCTION(0x2, "pdm")), /* DI */
	BERLIN_PINCTRLCONF_GROUP("I2S2_LRCKIO", 0x0, 0x3, 0x18,
			0x20, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO13 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s2")), /* LRCKIO */
	BERLIN_PINCTRLCONF_GROUP("I2S2_BCLKIO", 0x0, 0x3, 0x1b,
			0x24, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO12 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s2"), /* BCLKIO */
			BERLIN_PINCTRL_FUNCTION(0x2, "pdm")), /* CLKIO */
	BERLIN_PINCTRLCONF_GROUP("I2S2_DI0", 0x4, 0x3, 0x00,
			0x28, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO11 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s2"), /* DI0 */
			BERLIN_PINCTRL_FUNCTION(0x2, "pdm")), /* DI3 */
	BERLIN_PINCTRLCONF_GROUP("I2S2_DI1", 0x4, 0x3, 0x03,
			0x2c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO10 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s2"), /* DI1 */
			BERLIN_PINCTRL_FUNCTION(0x2, "pdm"), /* DI2 */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts3")), /* SD */
	BERLIN_PINCTRLCONF_GROUP("I2S2_DI2", 0x4, 0x3, 0x06,
			0x30, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO9 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s2"), /* DI2 */
			BERLIN_PINCTRL_FUNCTION(0x2, "pdm"), /* DI1 */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts4")), /* CLK */
	BERLIN_PINCTRLCONF_GROUP("I2S2_DI3", 0x4, 0x3, 0x09,
			0x34, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO8 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s2"), /* DI3 */
			BERLIN_PINCTRL_FUNCTION(0x2, "pdm"), /* DI0 */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts4")), /* SD */
	BERLIN_PINCTRLCONF_GROUP("I2S1_MCLK", 0x4, 0x3, 0x0c,
			0x38, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO18 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s1"), /* MCLK */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts2"), /* SOP */
			BERLIN_PINCTRL_FUNCTION(0x7, "avio")), /* DBG3 */
	BERLIN_PINCTRLCONF_GROUP("I2S2_MCLK", 0x4, 0x3, 0x0f,
			0x3c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO7 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s2"), /* MCLK */
			BERLIN_PINCTRL_FUNCTION(0x2, "pdm"), /* CLKIO */
			BERLIN_PINCTRL_FUNCTION(0x4, "hdmi")), /* FBCLK */
	BERLIN_PINCTRLCONF_GROUP("TX_EDDC_SCL", 0x4, 0x3, 0x12,
			0x40, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO6 */
			BERLIN_PINCTRL_FUNCTION(0x1, "tx_eddc")), /* SCL */
	BERLIN_PINCTRLCONF_GROUP("TX_EDDC_SDA", 0x4, 0x3, 0x15,
			0x44, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO5 */
			BERLIN_PINCTRL_FUNCTION(0x1, "tx_eddc")), /* SDA */
	BERLIN_PINCTRLCONF_GROUP("I2S3_DO", 0x4, 0x3, 0x18,
			0x48, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO1 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s3"), /* DO */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts3"), /* SOP */
			BERLIN_PINCTRL_FUNCTION(0x7, "avio")), /* DBG2 */
	BERLIN_PINCTRLCONF_GROUP("I2S3_LRCKIO", 0x4, 0x3, 0x1b,
			0x4c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO3 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s3"), /* LRCKIO */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts3")), /* CLK */
	BERLIN_PINCTRLCONF_GROUP("I2S3_BCLKIO", 0x8, 0x3, 0x00,
			0x50, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO2 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s3"), /* BCLKIO */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts3")), /* SD */
	BERLIN_PINCTRLCONF_GROUP("I2S3_DI", 0x8, 0x3, 0x03,
			0x54, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* GPIO0 */
			BERLIN_PINCTRL_FUNCTION(0x1, "i2s3"), /* DI */
			BERLIN_PINCTRL_FUNCTION(0x3, "sts3")), /* VALD */
};

static const struct berlin_desc_group vs680_sysmgr_pinctrl_groups[] = {
	BERLIN_PINCTRLCONF_GROUP("SM_TW2_SCL", 0x0, 0x3, 0x00,
			0x0, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rx_edid"), /* SCL */
			BERLIN_PINCTRL_FUNCTION(0x1, "tw2a"), /* SCL */
			BERLIN_PINCTRL_FUNCTION(0x2, "gpio")), /* SM GPIO0 */
	BERLIN_PINCTRLCONF_GROUP("SM_TW2_SDA", 0x0, 0x3, 0x03,
			0x4, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "rx_edid"), /* SDA */
			BERLIN_PINCTRL_FUNCTION(0x1, "tw2a"), /* SDA */
			BERLIN_PINCTRL_FUNCTION(0x2, "gpio")), /* SM GPIO1 */
	BERLIN_PINCTRLCONF_GROUP("SM_URT1_TXD", 0x0, 0x3, 0x06,
			0x8, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "porb"), /* VOUT 1p05 */
			BERLIN_PINCTRL_FUNCTION(0x1, "uart1"), /* TXD */
			BERLIN_PINCTRL_FUNCTION(0x2, "gpio"), /* SM GPIO4 */
			BERLIN_PINCTRL_FUNCTION(0x3, "pwm"), /* PWM2 */
			BERLIN_PINCTRL_FUNCTION(0x4, "timer"), /* TIMER0 */
			BERLIN_PINCTRL_FUNCTION(0x5, "porb"), /* AVDD LV */
			BERLIN_PINCTRL_FUNCTION(0x6, "tw2b")), /* SCL */
	BERLIN_PINCTRLCONF_GROUP("SM_URT1_RXD", 0x0, 0x3, 0x09,
			0xc, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* SM GPIO5 */
			BERLIN_PINCTRL_FUNCTION(0x1, "uart1"), /* RXD */
			BERLIN_PINCTRL_FUNCTION(0x2, "clk_25m"),
			BERLIN_PINCTRL_FUNCTION(0x3, "pwm"), /* PWM3 */
			BERLIN_PINCTRL_FUNCTION(0x4, "timer"), /* TIMER1 */
			BERLIN_PINCTRL_FUNCTION(0x5, "por"), /* VDDSOC_RSTB */
			BERLIN_PINCTRL_FUNCTION(0x6, "tw2b")), /* SDA */
	BERLIN_PINCTRLCONF_GROUP("SM_HDMI_HPD", 0x0, 0x3, 0x0c,
			0x10, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* SM GPIO2 */
			BERLIN_PINCTRL_FUNCTION(0x1, "hdmi")), /* HPD */
	BERLIN_PINCTRLCONF_GROUP("SM_HDMI_CEC", 0x0, 0x3, 0x0f,
			0x14, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* SM GPIO3 */
			BERLIN_PINCTRL_FUNCTION(0x1, "hdmi")), /* CEC */
	BERLIN_PINCTRLCONF_GROUP("SM_TMS", 0x0, 0x3, 0x12,
			0x18, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "jtag"), /* TMS */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* SM GPIO6 */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm")), /* PWM0 */
	BERLIN_PINCTRLCONF_GROUP("SM_TDI", 0x0, 0x3, 0x15,
			0x1c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "jtag"), /* TDI */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* SM GPIO7 */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm")), /* PWM1 */
	BERLIN_PINCTRLCONF_GROUP("SM_TDO", 0x0, 0x3, 0x18,
			0x20, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "jtag"), /* TDO */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* SM GPIO8 */
	BERLIN_PINCTRLCONF_GROUP("SM_TW3_SCL", 0x0, 0x3, 0x1b,
			0x24, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* SM GPIO9 */
			BERLIN_PINCTRL_FUNCTION(0x1, "tw3"), /* SCL */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm")), /* PWM2 */
	BERLIN_PINCTRLCONF_GROUP("SM_TW3_SDA", 0x4, 0x3, 0x00,
			0x28, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* SM GPIO10 */
			BERLIN_PINCTRL_FUNCTION(0x1, "tw3"), /* SDA */
			BERLIN_PINCTRL_FUNCTION(0x2, "pwm")), /* PWM3 */
	BERLIN_PINCTRLCONF_GROUP("SM_SPI2_SS0n", 0x4, 0x3, 0x03,
			0x2c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "spi2"), /* SS0 n*/
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* SM GPIO17 */
			BERLIN_PINCTRL_FUNCTION(0x7, "porb")), /* AVDD33_LV */
	BERLIN_PINCTRLCONF_GROUP("SM_SPI2_SS1n", 0x4, 0x3, 0x06,
			0x30, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "gpio"), /* SM GPIO16 */
			BERLIN_PINCTRL_FUNCTION(0x1, "spi2"), /* SS1n */
			BERLIN_PINCTRL_FUNCTION(0x6, "uart1"), /* RTSn */
			BERLIN_PINCTRL_FUNCTION(0x7, "vdd")), /* CPU PORTB */
	BERLIN_PINCTRLCONF_GROUP("SM_SPI2_SS2n", 0x4, 0x3, 0x09,
			0x34, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "mon"), /* VDD 1P8 */
			BERLIN_PINCTRL_FUNCTION(0x1, "spi2"), /* SS2n */
			BERLIN_PINCTRL_FUNCTION(0x2, "gpio"), /* SM GPIO15 */
			BERLIN_PINCTRL_FUNCTION(0x3, "pwm"), /* PWM0 */
			BERLIN_PINCTRL_FUNCTION(0x4, "timer"), /* TIMER0 */
			BERLIN_PINCTRL_FUNCTION(0x5, "uart2"), /* TXD */
			BERLIN_PINCTRL_FUNCTION(0x7, "clk_25m")),
	BERLIN_PINCTRLCONF_GROUP("SM_SPI2_SS3n", 0x4, 0x3, 0x0c,
			0x38, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "pwr_ok"),
			BERLIN_PINCTRL_FUNCTION(0x1, "spi2"), /* SS3n */
			BERLIN_PINCTRL_FUNCTION(0x2, "gpio"), /* SM GPIO14 */
			BERLIN_PINCTRL_FUNCTION(0x3, "pwm"), /* PWM1 */
			BERLIN_PINCTRL_FUNCTION(0x4, "timer"), /* TIMER1 */
			BERLIN_PINCTRL_FUNCTION(0x5, "uart2"), /* RXD */
			BERLIN_PINCTRL_FUNCTION(0x7, "uart1")), /* CTSn */
	BERLIN_PINCTRLCONF_GROUP("SM_SPI2_SDO", 0x4, 0x3, 0x0f,
			0x3c, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "spi2"), /* SDO */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* SM GPIO13 */
			BERLIN_PINCTRL_FUNCTION(0x2, "uart2")), /* RTSn */
	BERLIN_PINCTRLCONF_GROUP("SM_SPI2_SDI", 0x4, 0x3, 0x12,
			0x40, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "spi2"), /* SDI */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio"), /* SM GPIO12 */
			BERLIN_PINCTRL_FUNCTION(0x2, "uart2")), /* CTSn */
	BERLIN_PINCTRLCONF_GROUP("SM_SPI2_SCLK", 0x4, 0x3, 0x15,
			0x44, 0x3, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "spi2"), /* SCLK */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* SM GPIO11 */
	BERLIN_PINCTRLCONF_GROUP("SM_URT0_TXD", 0x4, 0x3, 0x18,
			0x48, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "uart0"), /* TXD */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* SM GPIO19 */
	BERLIN_PINCTRLCONF_GROUP("SM_URT0_RXD", 0x4, 0x3, 0x1b,
			0x4c, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "uart0"), /* RXD */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* SM GPIO18 */
	BERLIN_PINCTRLCONF_GROUP("SM_HDMIRX_HPD", 0x8, 0x3, 0x00,
			0x50, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "hdmirx"), /* HPD */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* SM GPIO20 */
	BERLIN_PINCTRLCONF_GROUP("SM_HDMIRX_PWR5V", 0x8, 0x3, 0x03,
			0x54, 0x4, 0x0,
			BERLIN_PINCTRL_FUNCTION(0x0, "hdmirx"), /* PWR5V */
			BERLIN_PINCTRL_FUNCTION(0x1, "gpio")), /* SM GPIO21 */
};

static const struct berlin_pinctrl_desc vs680_soc_pinctrl_data = {
	.groups = vs680_soc_pinctrl_groups,
	.ngroups = ARRAY_SIZE(vs680_soc_pinctrl_groups),
};

static const struct berlin_pinctrl_desc vs680_avio_pinctrl_data = {
	.groups = vs680_avio_pinctrl_groups,
	.ngroups = ARRAY_SIZE(vs680_avio_pinctrl_groups),
};

static const struct berlin_pinctrl_desc vs680_sysmgr_pinctrl_data = {
	.groups = vs680_sysmgr_pinctrl_groups,
	.ngroups = ARRAY_SIZE(vs680_sysmgr_pinctrl_groups),
};

static const struct of_device_id vs680_pinctrl_match[] = {
	{
		.compatible = "syna,vs680-soc-pinctrl",
		.data = &vs680_soc_pinctrl_data,
	},
	{
		.compatible = "syna,vs680-avio-pinctrl",
		.data = &vs680_avio_pinctrl_data,
	},
	{
		.compatible = "syna,vs680-system-pinctrl",
		.data = &vs680_sysmgr_pinctrl_data,
	},
	{}
};

static int vs680_pinctrl_probe(struct platform_device *pdev)
{
	const struct of_device_id *match =
		of_match_device(vs680_pinctrl_match, &pdev->dev);
	struct regmap_config *rmconfig;
	struct regmap *regmap, *conf;
	struct resource *res;
	void __iomem *base;

	rmconfig = devm_kzalloc(&pdev->dev, sizeof(*rmconfig), GFP_KERNEL);
	if (!rmconfig)
		return -ENOMEM;

	res = platform_get_resource(pdev, IORESOURCE_MEM, 0);
	base = devm_ioremap_resource(&pdev->dev, res);
	if (IS_ERR(base))
		return PTR_ERR(base);

	rmconfig->reg_bits = 32,
	rmconfig->val_bits = 32,
	rmconfig->reg_stride = 4,
	rmconfig->max_register = resource_size(res);

	regmap = devm_regmap_init_mmio(&pdev->dev, base, rmconfig);
	if (IS_ERR(regmap))
		return PTR_ERR(regmap);

	res = platform_get_resource(pdev, IORESOURCE_MEM, 1);
	base = devm_ioremap_resource(&pdev->dev, res);
	if (IS_ERR(base))
		return PTR_ERR(base);

	rmconfig->name = "conf";
	rmconfig->max_register = resource_size(res);

	conf = devm_regmap_init_mmio(&pdev->dev, base, rmconfig);
	if (IS_ERR(conf))
		return PTR_ERR(conf);

	return berlin_pinctrl_probe_regmap(pdev, match->data, regmap, conf);
}

static const struct dev_pm_ops vs680_pinctrl_pm_ops = {
	SET_NOIRQ_SYSTEM_SLEEP_PM_OPS(berlin_pinctrl_suspend, berlin_pinctrl_resume)
};

static struct platform_driver vs680_pinctrl_driver = {
	.probe	= vs680_pinctrl_probe,
	.driver	= {
		.name = "vs680-pinctrl",
		.pm = &vs680_pinctrl_pm_ops,
		.of_match_table = vs680_pinctrl_match,
	},
};

static int __init vs680_pinctrl_init(void)
{
	return platform_driver_register(&vs680_pinctrl_driver);
}
arch_initcall(vs680_pinctrl_init);

内核对设备树的处理

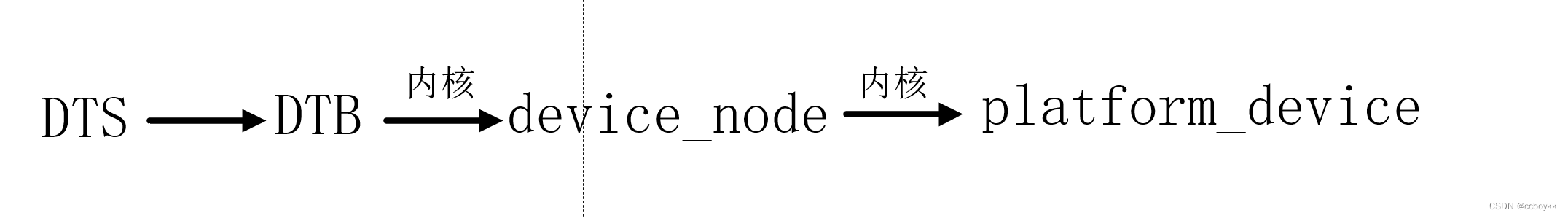

在这里插入图片描述
1.dts被编译为dtb文件
2.u-boot把dtb文件传给内核
3.内核解析dtb文件，把每一个节点都转换为device_node结构体
4.对于某些device_node结构体，会被转换为platform_device结构体

Q：哪些设备树节点会被转换为platform_device
1.根节点下含有compatible属性的子节点
2.总线I2C,SPI节点下的子节点：不转换为platform_device

匹配过程

linux内核中，设备驱动程序与设备节点的匹配是通过以下步骤来完成的：

1.设备树解析

在启动过程中，bootloader负责将设备树（通常是一个编译后的.dtb文件）传递给内核。内核会为每个设备树节点创建对应的设备对象，这些对象通常是device结构体及其子类（如platform_device）的实例。
device 结构体：
通用设备结构体，包含设备的基本属性和状态信息。

struct device {
    struct device *parent;
    struct device_private *p;
    struct kobject kobj;
    const char *init_name; /* initial name of the device */
    const struct device_type *type;
    struct mutex mutex;    /* mutex to synchronize calls to its driver. */
    struct bus_type *bus;  /* type of bus device is on */
    struct device_driver *driver; /* which driver has allocated this */
    void *platform_data;   /* Platform specific data, device core doesn't touch it */
    struct dev_pm_info power;
    ...
};

platform_device 结构体：
代表具体的设备，包含设备资源和设备节点信息。

struct platform_device {
    const char *name;
    int id;
    struct device dev;
    u32 num_resources;
    struct resource *resource;
    ...
};

以及device_node 结构体和resource 结构体等等。

2.平台驱动定义和注册

2.1平台驱动程序的定义

首先，定义了一个 platform_driver 结构体，创建一个vs680_pinctrl_driver对象，描述了这个驱动程序的基本信息和操作函数：

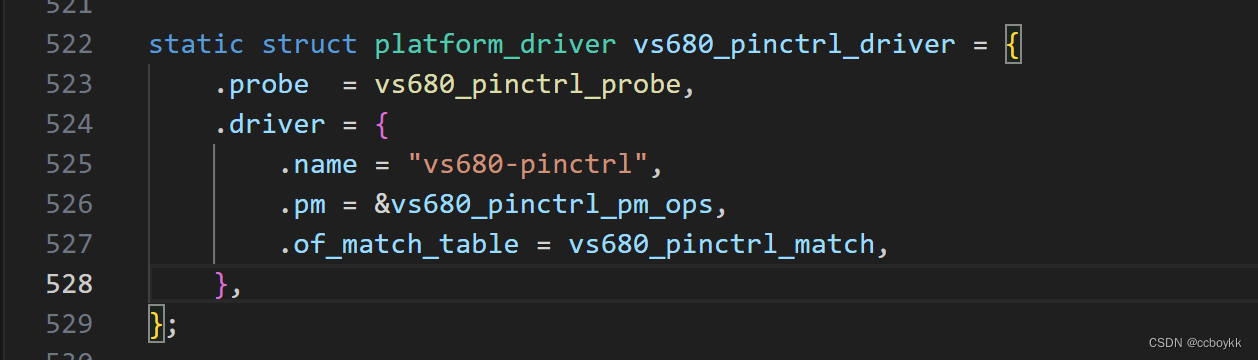

在这里插入图片描述

2.2 驱动的注册

在内核初始化时，会调用 vs680_pinctrl_init 函数注册这个驱动（vs680_pinctrl_driver）

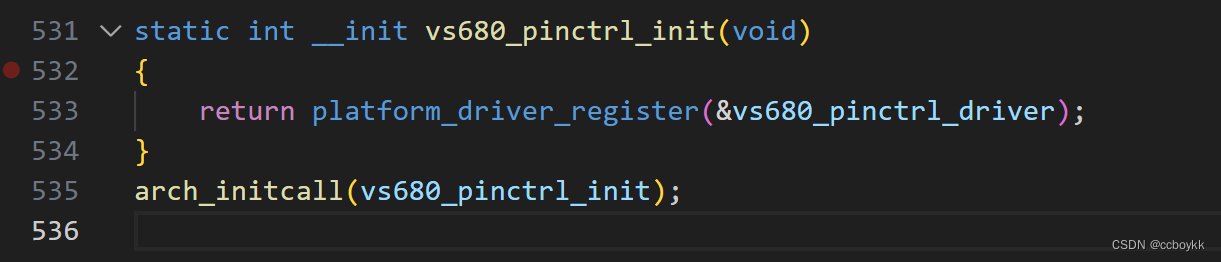

在这里插入图片描述
vs680_pinctrl_init 函数调用 platform_driver_register 将 vs680_pinctrl_driver 注册到内核中。

arch_initcall 宏确保 vs680_pinctrl_init 函数在内核架构初始化阶段被调用。

3.设备与驱动匹配

  • 设备树中的每个设备节点都有一个或多个 compatible 属性，用于描述设备的类型和兼容性信息。
  • 驱动程序中会定义一个 of_device_id 结构体数组，数组的每个条目描述了一个可能的设备匹配规则，包括设备的 compatible 属性值。
  • 当内核在设备树中找到一个设备节点时，它会遍历驱动程序的 of_device_id 数组，尝试将设备节点的 compatible 属性与数组条目中的值进行匹配。
    static const struct of_device_id vs680_pinctrl_match叫做驱动程序的匹配表。

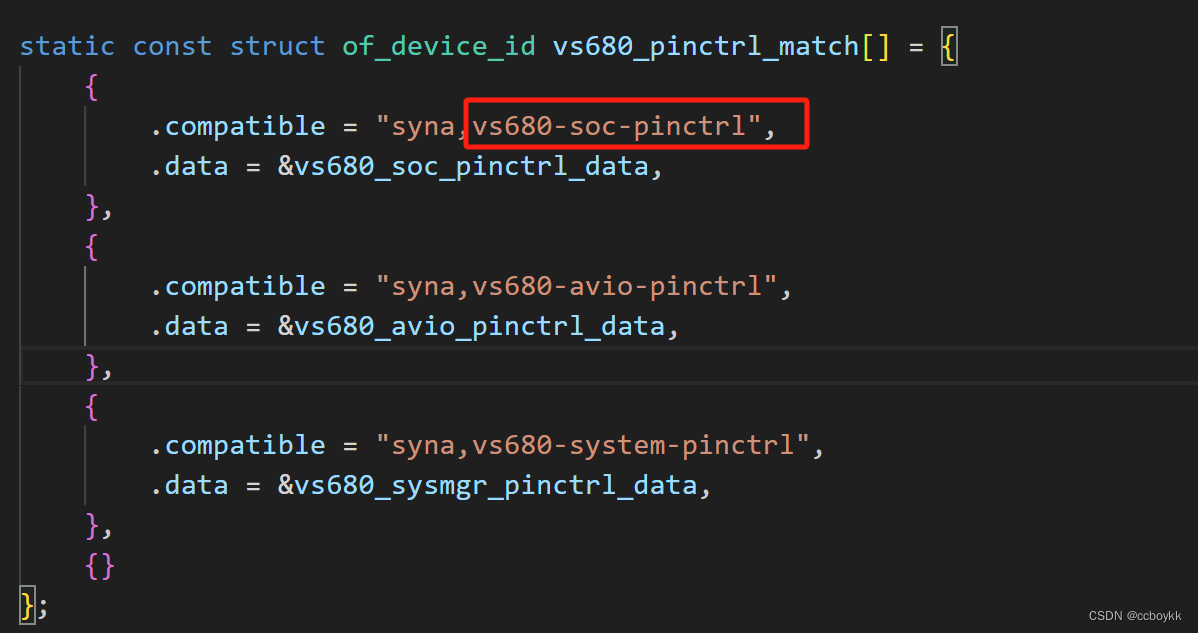

    在这里插入图片描述
    在vs680-a0.dtsi中会有
    在这里插入图片描述

在这里插入图片描述

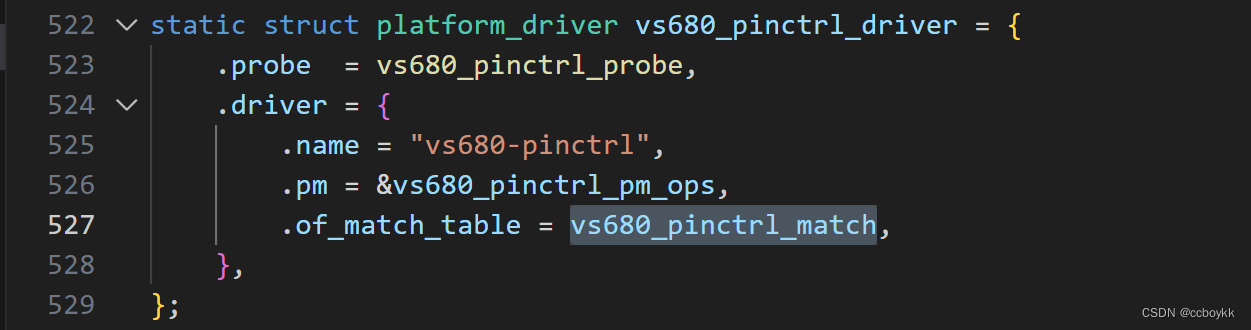

vs680_pinctrl_match作为参数传递到平台驱动的of_match_table在这里插入图片描述

4.驱动程序探测函数probe

当找到匹配的compatible属性时，内核会调用驱动程序相关的初始化函数probe。
在 vs680_pinctrl_probe 函数中，使用 of_match_device 函数查找与当前设备节点（pdev->dev）匹配的项。如果找到匹配项，match->data 就会指向 vs680_soc_pinctrl_data。

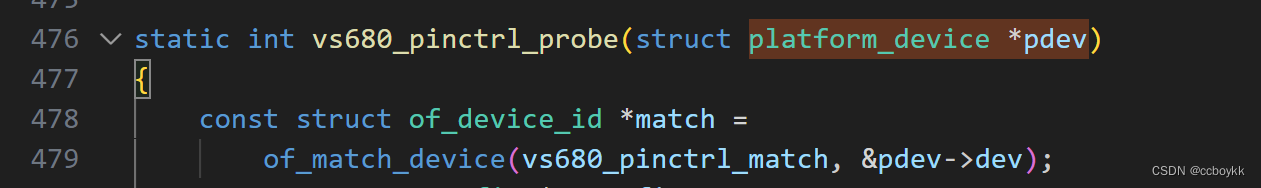

在这里插入图片描述

在这里插入图片描述

在这里插入图片描述
首先，我们定义了 berlin_pinctrl_desc 结构体对象，用于描述特定 SoC 的引脚控制器配置信息：
berlin_pinctrl_desc 是一个包含引脚组描述的结构体，用于定义特定 SoC 引脚控制器的配置信息。它在匹配设备树节点后，在探测函数 (vs680_pinctrl_probe) 中被使用，通过 match->data 传递给引脚控制子系统的初始化函数berlin_pinctrl_probe_regmap。

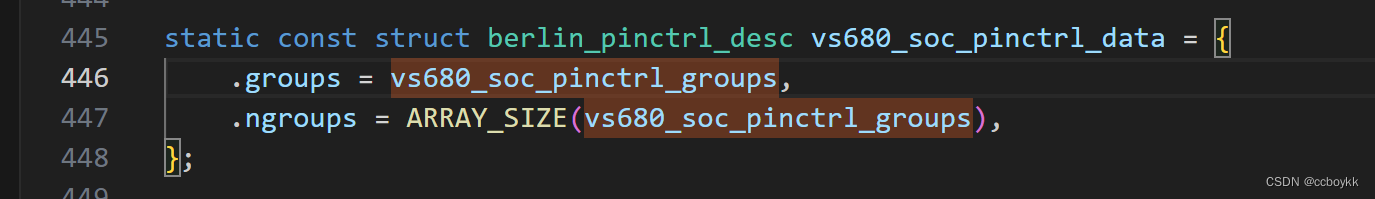

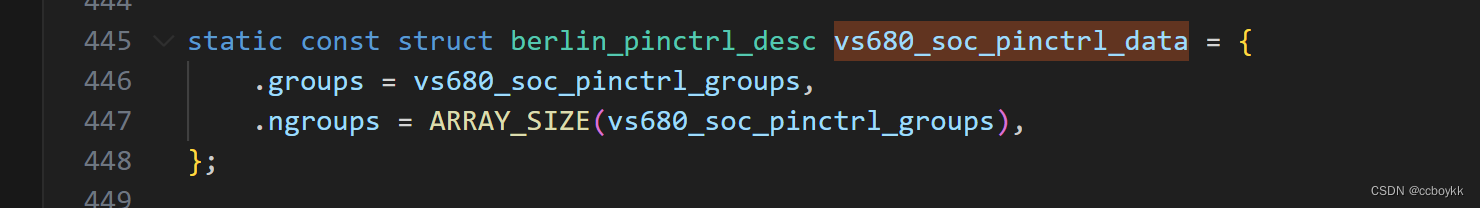

在这里插入图片描述

然后，在设备树匹配表 vs680_pinctrl_match 中，将这个 berlin_pinctrl_desc 结构体对象与特定的设备树节点进行关联，并在 vs680_pinctrl_probe 函数中，通过 of_match_device 函数查找匹配项，并获取 berlin_pinctrl_desc 结构体对象vs680_soc_pinctrl_data

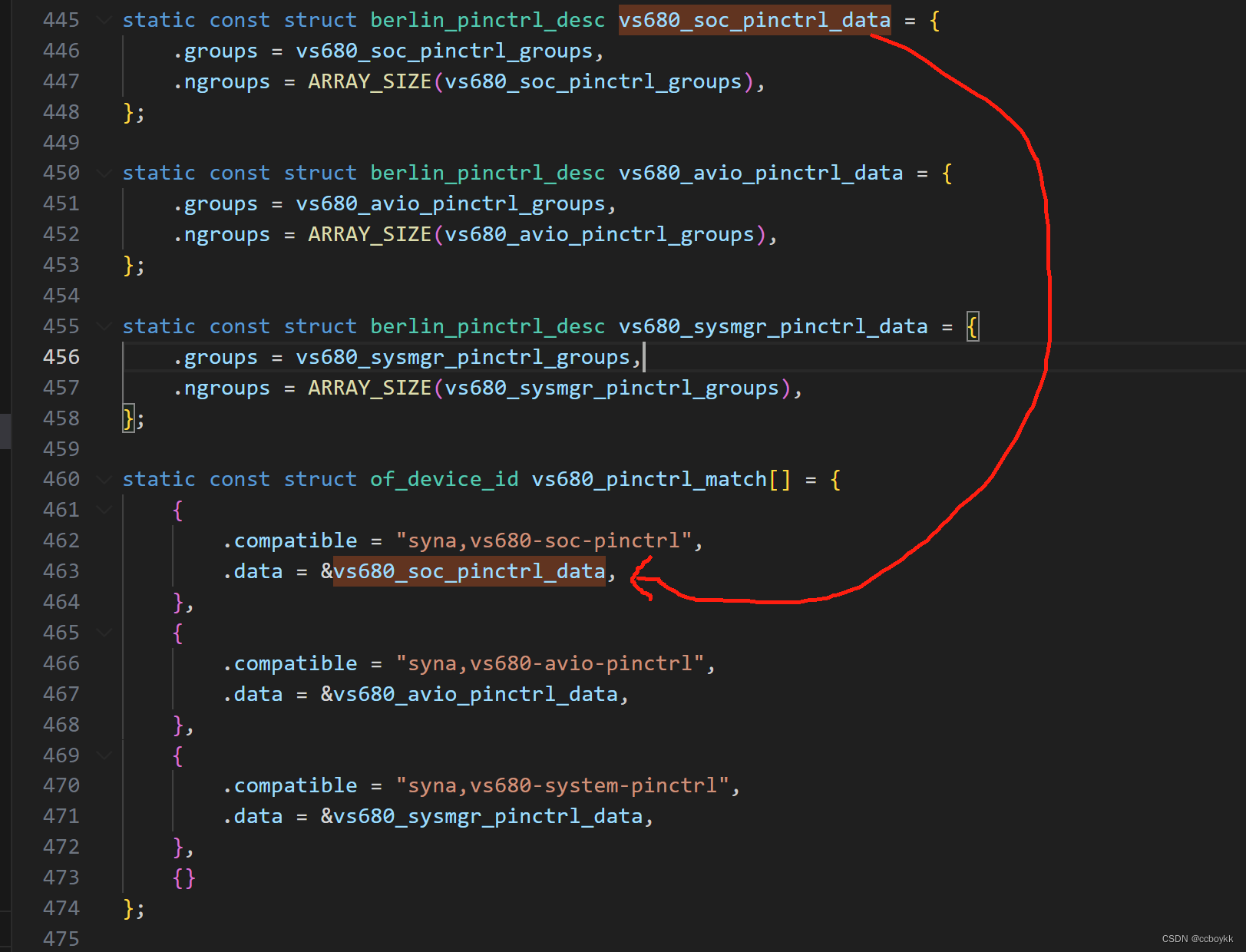

在这里插入图片描述
此时match->data 包含了针脚控制描述符的数据（如 vs680_soc_pinctrl_data），用于后续的初始化。

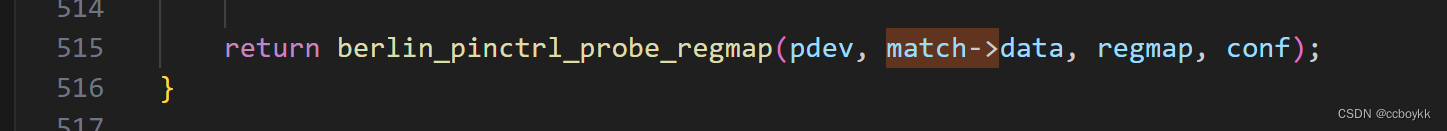

在这里插入图片描述

在这里插入图片描述
vs680_soc_pinctrl_groups描述了各个引脚的功能选择
以uart3为例，
.dts或.dtsi会有
在这里插入图片描述

uart3的一个group是STS0_CLK
那么在pinctrl.c中会有对应的描述
在这里插入图片描述
如果想换成普通gpio，那么改成function = "gpio";
一般在芯片公司提供的引脚描述表pin_mux中也能找到相应的描述（搜索group关键词STS0_CLK）
在这里插入图片描述

probe中设备资源初始化

在 Linux 内核开发中，特别是在处理设备驱动程序时，使用了一些函数来获取设备资源并进行必要的初始化。
流程：在 vs680_pinctrl_probe 函数中，先通过 platform_get_resource 获取设备的内存资源，然后通过 devm_ioremap_resource 将资源映射到内核地址空间，最后使用 devm_regmap_init_mmio 初始化寄存器映射配置，准备后续的寄存器访问操作。
1. platform_get_resource
platform_get_resource 函数用于获取设备的资源，例如内存区域、IO 端口等。它的原型定义如下：

struct resource *platform_get_resource(struct platform_device *pdev,
                                       unsigned int type, unsigned int num);
  • pdev: 指向 platform_device 结构体的指针，代表当前的平台设备。
  • type: 资源类型，可以是 IORESOURCE_MEM（内存区域）或者 IORESOURCE_IRQ（中断资源）等。
  • num: 资源编号，对于同一类型的资源可能会有多个，通过 num 来指定具体的资源。

匹配关系：
platform_get_resource 通过传入的 pdev 参数来获取与当前平台设备相关联的资源信息。
在 vs680_pinctrl_probe 函数中，首先通过调用 platform_get_resource(pdev, IORESOURCE_MEM, 0) 和 platform_get_resource(pdev, IORESOURCE_MEM, 1) 分别获取两个内存资源区域。
2. devm_ioremap_resource
devm_ioremap_resource 函数用于将获取到的设备资源进行内存映射，返回一个指向映射后地址空间的指针。其原型定义如下：

void __iomem *devm_ioremap_resource(struct device *dev, struct resource *res);
  • dev: 设备的 struct device 结构体指针，通常使用 &pdev->dev。
  • res: platform_get_resource 返回的资源结构体指针。

匹配关系：
devm_ioremap_resource 通过 pdev->dev 和由 platform_get_resource 返回的资源结构体指针 res，来映射设备的物理地址空间到内核的虚拟地址空间。
3. devm_regmap_init_mmio
devm_regmap_init_mmio 函数用于初始化寄存器映射配置，它是在成功映射设备资源后对寄存器进行访问的重要步骤。其原型定义如下：

struct regmap *devm_regmap_init_mmio(struct device *dev,
                                     void __iomem *base,
                                     const struct regmap_config *config);
  • dev: 设备的 struct device 结构体指针，通常使用 &pdev->dev。
  • base: 映射后的寄存器基地址，通常是 devm_ioremap_resource 返回的值。
  • config: struct regmap_config 结构体指针，用于配置寄存器映射的属性，例如寄存器位宽、寄存器间距等。

匹配关系：
devm_regmap_init_mmio 在 vs680_pinctrl_probe 函数中被调用，传入了 pdev->dev、通过 devm_ioremap_resource 映射后的基地址 base，以及之前配置好的 rmconfig 结构体指针。
这个函数返回一个 struct regmap 结构体指针，表示成功初始化的寄存器映射对象，可以用于后续的寄存器访问操作。

在这里插入图片描述

ccboykk
关注
  • 26
    点赞
  • 踩
  • 9
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
RK3399 平台内核开发入门 13.Platform 设备与驱动的匹配规则详解
一直在水些技术小文
09-19 74
本文深入探讨了在 RK3399 平台上的设备与驱动的匹配规则。了解这些规则对于嵌入式系统开发者非常重要，因为它决定了内核如何将设备与相应的驱动程序关联起来。
Linux内核与设备驱动程序学习资料笔记+源码.zip
01-30
Linux内核与设备驱动程序学习资料笔记+源码.zipLinux内核与设备驱动程序学习资料笔记+源码.zipLinux内核与设备驱动程序学习资料笔记+源码.zipLinux内核与设备驱动程序学习资料笔记+源码.zipLinux内核与设备驱动程序...
Linux内核与设备驱动程序学习笔记及源码.zip
01-05
Linux内核与设备驱动程序学习笔记及源码.zip Linux内核与设备驱动程序学习笔记及源码.zip Linux内核与设备驱动程序学习笔记及源码.zip Linux内核与设备驱动程序学习笔记及源码.zip Linux内核与设备驱动程序学习笔记...
<深入理解Linux内核><Linux设备驱动程序>
08-07
《深入理解Linux内核》和《Linux设备驱动程序》是两本非常经典的IT技术书籍，它们为读者提供了深入了解Linux操作系统核心机制以及编写设备驱动程序的详尽知识。 首先，我们来探讨《深入理解Linux内核》。这本书是...
基于嵌入式Linux内核的系统设备驱动程序开发设计
01-19
Linux设备驱动程序在Linux内核源代码中占有很大比例，从2.0、2.2到 2.4版本的内核，源代码的长度日益增加，其实主要是设备驱动程序在增加。　基于嵌入式Linux内核的系统设备驱动程序开发设计　设备驱动程序的编写　...
Linux内核设备驱动之内核中链表的使用笔记整理
09-15
在Linux内核中，链表是一种非常重要的数据结构，广泛用于设备驱动和各种功能模块的数据组织。本文主要探讨了如何在Linux内核设备驱动中使用链表，包括其基本结构、初始化、操作和遍历。 首先，链表的基本结构由`...
Linux：基础命令学习
qq_55038440的博客
07-20 1082
实例：-F根据文件类型在列出的文件名称后加一符号。实例： -R 递归显示目录中的所有文件和子目录。. 开头的隐藏文件也会列出。可执行文件则加 "*"，用于显示目录文件信息。
GNU/Linux - Bazaar版本管理工具
guoqx的专栏
07-24 284
根据 Jelmer Vernooij 的说法，Canonical 的 Bazaar 团队的成员在 2012 年初被分配到不同的任务，他本人在7年来为该项目做出贡献后，于2012年底停止了对 Bazaar 的贡献。同样，Bugzilla项目在2014 3月从 Bazaar 改为使用 git，其中一个原因是 Bazaar 几乎已被放弃的印象：“每个月可能有 2-3 次向主干提交。并用来进行Ubuntu项目的版本控制。Bazaar 可以由一个开发本地内容的多个分支的开发人员使用，也可以由跨网络协作的团队使用。
【Linux服务器Java环境搭建】010在linux中安装Redis，以及对Redis的配置与远程连接
liuzhenhe1988的专栏
07-19 1059
好久没有更新博客了，今天下了班回到家，看到电脑桌上尘封已久的《Spring Boot应用开发实战》，翻开目录想起来之前写的系列【Linux服务器Java环境搭建】还未完结，那就继续吧，今天主要是按linux服务器中安装和配置redis。本系列其他文章，请查看系列【Linux服务器Java环境搭建】
linux学习笔记整理: 关于linux:Shell脚本 2024/7/20；
gzx233的博客
07-20 909
Shell脚本的使用
Linux 注意事项
m0_74012211的博客
07-19 607
Linux 与 Windows 是两个相互独立的操作系统，两者有较大差距
【Linux】-----权限详解
m0_73470633的博客
07-21 700
Linux权限详解,看这一篇就够了！！！！！！
【嵌入式开发 Linux 常用命令系列 7.7 -- find 和 sed 配合使用介绍】
最新发布
CodingCos的博客
07-24 276
命令将文件中所有"demo" 字符串替换为 “hello”
linux中使用docker安装mongodb
qq_56661788的博客
07-20 721
v /data/mongo/config/mongod.conf:/etc/mongod.conf：将主机上的/data/mongo/config/mongod.conf文件挂载到容器的/etc/mongod.conf位置，作为 MongoDB 的配置文件。-v /data/mongo/logs:/var/log/mongodb：将主机上的/data/mongo/logs目录挂载到容器的/var/log/mongodb位置，作为 MongoDB 的日志存储目录。登录阿里云，开通容器镜像服务，进入控制台。
Linux 之 awk命令详解
Aaadsda414114的博客
07-19 463
我们可以在awk脚本中定义自己的函数。之后我们掌握其各种功能可以大大提高我们处理结构化文本数据的效率。
linux 安装c语言编辑器
weixin_45631123的博客
07-20 223
在 Linux 系统中运行 C 语言程序有以下几个步骤:
linux字符设备驱动+fops应用测试程序
qq_39797956的博客
07-21 217
【代码】linux字符设备驱动+fops应用测试程序。
Linux 之 grep命令详解
Aaadsda414114的博客
07-19 471
grep命令是一个功能强大的文本搜索工具，掌握其各种选项和用法可以大大提高我们处理文本文件的效率。希望这篇文章能帮助你更好地理解和使用grep命令。
深入剖析linux内核与设备驱动pdf
06-15
“深入剖析Linux内核与设备驱动”是一本非常经典的Linux内核与设备驱动方面的参考书籍，其作者为针对Linux内核有深入理解的人或者希望在Linux设备驱动方面深入挖掘的人提供了重要的参考。 该书分为两个部分，第一部分是关于Linux内核的知识介绍和基础内容，包括内核源代码结构、进程管理、内存管理、文件系统、进程调度等等方面讲解，由浅入深地向读者展示了Linux内核的核心部分；第二部分是关于Linux设备驱动的内容，包括字符设备驱动、块设备驱动、网络设备驱动、USB 设备驱动、PCI设备驱动、I2C设备驱动等等，每一篇章节讲解都非常详细，给读者带来很多的启示和思考。 《深入剖析Linux内核与设备驱动》这本书的最大亮点是，作者提供了大量的代码和示例，并且通过这些示例告诉读者如何实现Linux内核和设备驱动的核心功能，比如，如何编写驱动程序、如何掌握设备文件系统等等。对于需要进行Linux设备驱动开发的工程师或者学习Linux内核知识的学者来说，这本书可谓是不可或缺的宝典。 总之，《深入剖析Linux内核与设备驱动》这本书为广大Linux开发者提供了一种非常优秀的学习路径和思考方式，如果你希望开发驱动，或者在 Linux 内核方面有更深入的理解与研究，这本书值得一读。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
