CUB-200-2011鸟类数据集的下载与使用pytorch加载

景唯acr

已于 2022-06-30 21:50:17 修改

阅读量3.3w

点赞数 51

分类专栏：细粒度分类文章标签： pytorch python 人工智能

于 2020-06-24 10:20:37 首次发布

本文链接：https://blog.csdn.net/weixin_41735859/article/details/106937174

版权

细粒度分类专栏收录该内容

8 篇文章

订阅专栏

2021/2/5 更新

极力推荐的方式 https://github.com/wvinzh/WS_DAN_PyTorch

2020/7/19 更新

CUB-200-2011的下载：

https://www.vision.caltech.edu/datasets/cub_200_2011/
网站有时进不去，可以通过百度云下载。
百度云链接：链接: https://pan.baidu.com/s/1o60hA0qrupDjtMGPVCke3A 密码: u0sr
如果只跑分类，下载第一个就行了。里面除了类别标签也有标注框。如果还想用到分割的话，可以下载Segmentations。

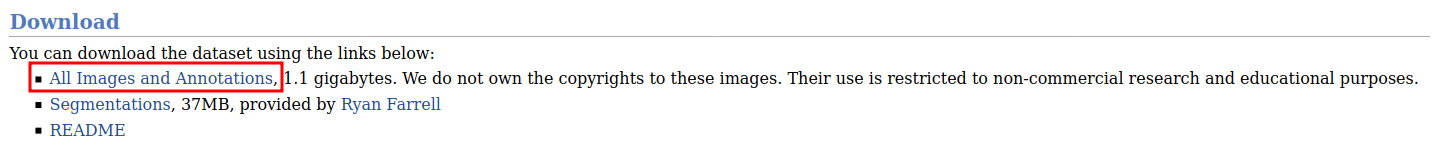

我只下了红框内的压缩包

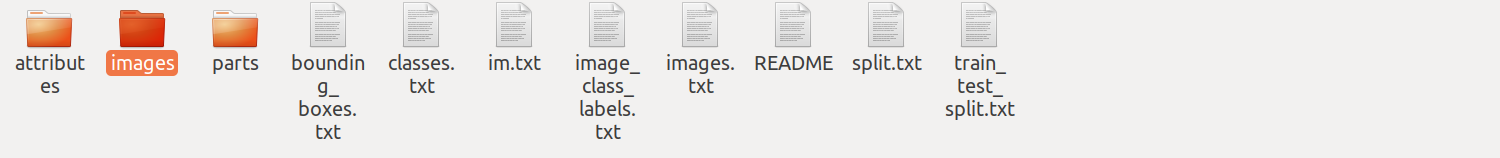

在这里插入图片描述下载完，解压后：

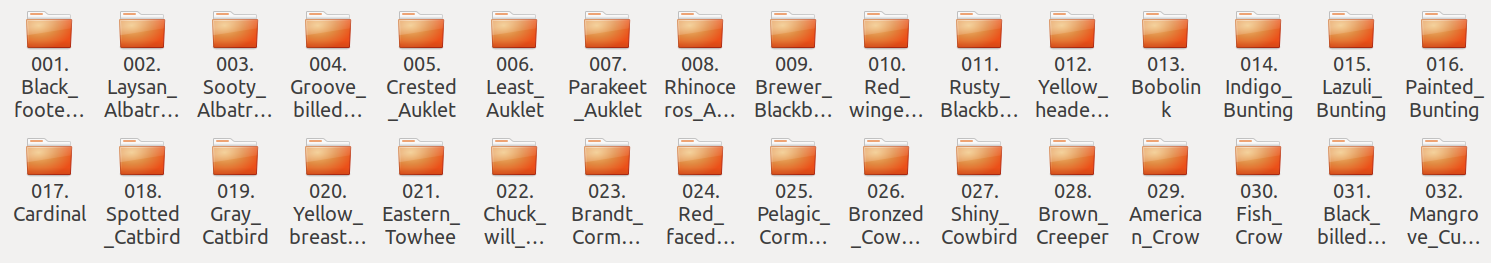

images文件夹：

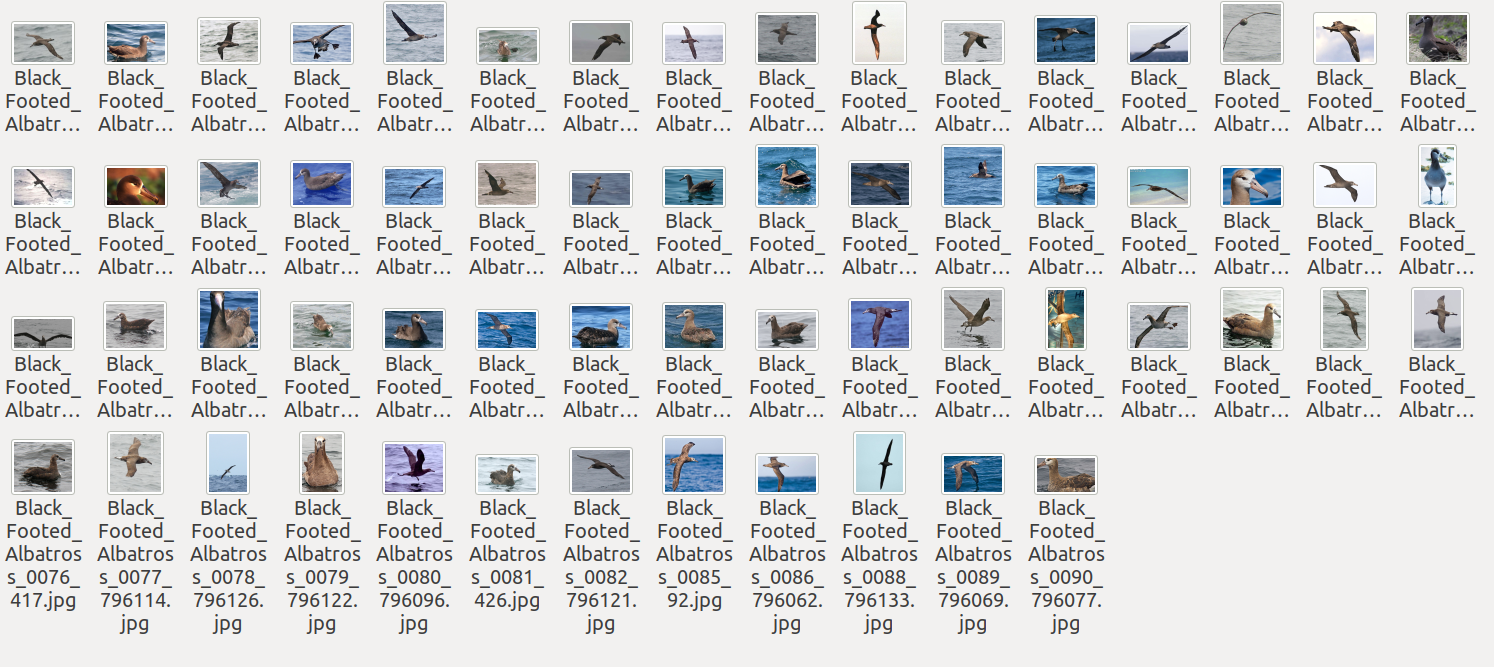

一共200类，每类60张左右的图片：

读取图片与类别标签：

方法一：使用scipy.misc、PIL和numpy结合处理
方法一代码是参考NTS-Net的，哈哈哈哈！！！原作者写的非常瓦利鼓的！！！

import numpy as np
# 读取数据
import scipy.misc
import os
from PIL import Image
from torchvision import transforms
import torch

class CUB():
    def __init__(self, root, is_train=True, data_len=None,transform=None, target_transform=None):
        self.root = root
        self.is_train = is_train
        self.transform = transform
        self.target_transform = target_transform
        img_txt_file = open(os.path.join(self.root, 'images.txt'))
        label_txt_file = open(os.path.join(self.root, 'image_class_labels.txt'))
        train_val_file = open(os.path.join(self.root, 'train_test_split.txt'))
        # 图片索引
        img_name_list = []
        for line in img_txt_file:
            # 最后一个字符为换行符
            img_name_list.append(line[:-1].split(' ')[-1])

        # 标签索引，每个对应的标签减１，标签值从0开始
        label_list = []
        for line in label_txt_file:
            label_list.append(int(line[:-1].split(' ')[-1]) - 1)

        # 设置训练集和测试集
        train_test_list = []
        for line in train_val_file:
            train_test_list.append(int(line[:-1].split(' ')[-1]))

        # zip压缩合并，将数据与标签(训练集还是测试集)对应压缩
        # zip() 函数用于将可迭代的对象作为参数，将对象中对应的元素打包成一个个元组，
        # 然后返回由这些元组组成的对象，这样做的好处是节约了不少的内存。
        # 我们可以使用 list() 转换来输出列表

        # 如果 i 为 1，那么设为训练集
        # １为训练集，０为测试集
        # zip压缩合并，将数据与标签(训练集还是测试集)对应压缩
        # 如果 i 为 1，那么设为训练集
        train_file_list = [x for i, x in zip(train_test_list, img_name_list) if i]
        test_file_list = [x for i, x in zip(train_test_list, img_name_list) if not i]

        train_label_list = [x for i, x in zip(train_test_list, label_list) if i][:data_len]
        test_label_list = [x for i, x in zip(train_test_list, label_list) if not i][:data_len]
        if self.is_train:
            # scipy.misc.imread 图片读取出来为array类型，即numpy类型
            self.train_img = [scipy.misc.imread(os.path.join(self.root, 'images', train_file)) for train_file in
                              train_file_list[:data_len]]
            # 读取训练集标签
            self.train_label = train_label_list
        if not self.is_train:
            self.test_img = [scipy.misc.imread(os.path.join(self.root, 'images', test_file)) for test_file in
                             test_file_list[:data_len]]
            self.test_label = test_label_list

    # 数据增强
    def __getitem__(self,index):
        # 训练集
        if self.is_train:
            img, target = self.train_img[index], self.train_label[index]
        # 测试集
        else:
            img, target = self.test_img[index], self.test_label[index]

        if len(img.shape) == 2:
            # 灰度图像转为三通道
            img = np.stack([img]*3,2)
        # 转为 RGB 类型
        img = Image.fromarray(img,mode='RGB')
        if self.transform is not None:
            img = self.transform(img)

        if self.target_transform is not None:
            target = self.target_transform(target)

        return img, target

    def __len__(self):
        if self.is_train:
            return len(self.train_label)
        else:
            return len(self.test_label)

if __name__ == '__main__':
    '''
    dataset = CUB(root='./CUB_200_2011')

    for data in dataset:
        print(data[0].size(),data[1])

    '''
    # 以pytorch中DataLoader的方式读取数据集
    transform_train = transforms.Compose([
        transforms.Resize((224, 224)),
        transforms.RandomCrop(224, padding=4),
        transforms.RandomHorizontalFlip(),
        transforms.ToTensor(),
        transforms.Normalize([0.485,0.456,0.406], [0.229,0.224,0.225]),
    ])

    dataset = CUB(root='./CUB_200_2011', is_train=False, transform=transform_train,)
    print(len(dataset))
    trainloader = torch.utils.data.DataLoader(dataset, batch_size=2, shuffle=True, num_workers=0,
                                              drop_last=True)
    print(len(trainloader))

'''
trainset: 5994
trainloader 374
testset: 5794
testloader 363
'''

但是有一个致命缺陷：耗时太长：145.11554789543152 s
读数据耗时两分半，这谁顶的住？
在这里插入图片描述
方法二：使用cv2和numpy结合处理
方法二代码参考github上大佬weiaicunzai的调参仓库

建立dataset.py文件

import os
import cv2
import numpy as np
from torch.utils.data import Dataset

class CUB(Dataset):

    def __init__(self, path, train=True, transform=None, target_transform=None):

        self.root = path
        self.is_train = train
        self.transform = transform
        self.target_transform = target_transform
        self.images_path = {}
        with open(os.path.join(self.root, 'images.txt')) as f:
            for line in f:
                image_id, path = line.split()
                self.images_path[image_id] = path

        self.class_ids = {}
        with open(os.path.join(self.root, 'image_class_labels.txt')) as f:
            for line in f:
                image_id, class_id = line.split()
                self.class_ids[image_id] = class_id

        self.data_id = []
        if self.is_train:
            with open(os.path.join(self.root, 'train_test_split.txt')) as f:
                for line in f:
                    image_id, is_train = line.split()
                    if int(is_train):
                        self.data_id.append(image_id)
        if not self.is_train:
            with open(os.path.join(self.root, 'train_test_split.txt')) as f:
                for line in f:
                    image_id, is_train = line.split()
                    if not int(is_train):
                        self.data_id.append(image_id)

    def __len__(self):
        return len(self.data_id)

    def __getitem__(self, index):
        """
        Args:
            index: index of training dataset
        Returns:
            image and its corresponding label
        """
        image_id = self.data_id[index]
        class_id = int(self._get_class_by_id(image_id)) - 1
        path = self._get_path_by_id(image_id)
        image = cv2.imread(os.path.join(self.root, 'images', path))

        if self.transform:
            image = self.transform(image)

        if self.target_transform:
            class_id = self.target_transform(class_id)
        return image, class_id

    def _get_path_by_id(self, image_id):

        return self.images_path[image_id]

    def _get_class_by_id(self, image_id):

        return self.class_ids[image_id]

建立transforms.py文件

import random
import math
import numbers

import cv2
import numpy as np

import torch

class Compose:
    """Composes several transforms together.

    Args:
        transforms(list of 'Transform' object): list of transforms to compose

    """

    def __init__(self, transforms):
        self.transforms = transforms

    def __call__(self, img):

        for trans in self.transforms:
            img = trans(img)

        return img

    def __repr__(self):
        format_string = self.__class__.__name__ + '('
        for t in self.transforms:
            format_string += '\n'
            format_string += '    {0}'.format(t)
        format_string += '\n)'
        return format_string


class ToCVImage:
    """Convert an Opencv image to a 3 channel uint8 image
    """

    def __call__(self, image):
        """
        Args:
            image (numpy array): Image to be converted to 32-bit floating point

        Returns:
            image (numpy array): Converted Image
        """
        if len(image.shape) == 2:
            image = cv2.cvtColor(image, cv2.COLOR_GRAY2BGR)

        image = image.astype('uint8')

        return image


class RandomResizedCrop:
    """Randomly crop a rectangle region whose aspect ratio is randomly sampled
    in [3/4, 4/3] and area randomly sampled in [8%, 100%], then resize the cropped
    region into a 224-by-224 square image.

    Args:
        size: expected output size of each edge
        scale: range of size of the origin size cropped
        ratio: range of aspect ratio of the origin aspect ratio cropped (w / h)
        interpolation: Default: cv2.INTER_LINEAR:
    """

    def __init__(self, size, scale=(0.08, 1.0), ratio=(3.0 / 4.0, 4.0 / 3.0), interpolation='linear'):

        self.methods={
            "area":cv2.INTER_AREA,
            "nearest":cv2.INTER_NEAREST,
            "linear" : cv2.INTER_LINEAR,
            "cubic" : cv2.INTER_CUBIC,
            "lanczos4" : cv2.INTER_LANCZOS4
        }

        self.size = (size, size)
        self.interpolation = self.methods[interpolation]
        self.scale = scale
        self.ratio = ratio

    def __call__(self, img):
        h, w, _ = img.shape

        area = w * h

        for attempt in range(10):
            target_area = random.uniform(*self.scale) * area
            target_ratio = random.uniform(*self.ratio)

            output_h = int(round(math.sqrt(target_area * target_ratio)))
            output_w = int(round(math.sqrt(target_area / target_ratio)))

            if random.random() < 0.5:
                output_w, output_h = output_h, output_w

            if output_w <= w and output_h <= h:
                topleft_x = random.randint(0, w - output_w)
                topleft_y = random.randint(0, h - output_h)
                break

        if output_w > w or output_h > h:
            output_w = min(w, h)
            output_h = output_w
            topleft_x = random.randint(0, w - output_w)
            topleft_y = random.randint(0, h - output_w)

        cropped = img[topleft_y : topleft_y + output_h, topleft_x : topleft_x + output_w]

        resized = cv2.resize(cropped, self.size, interpolation=self.interpolation)

        return resized

    def __repr__(self):
        for name, inter in self.methods.items():
            if inter == self.interpolation:
                inter_name = name

        interpolate_str = inter_name
        format_str = self.__class__.__name__ + '(size={0}'.format(self.size)
        format_str += ', scale={0}'.format(tuple(round(s, 4) for s in self.scale))
        format_str += ', ratio={0}'.format(tuple(round(r, 4) for r in self.ratio))
        format_str += ', interpolation={0})'.format(interpolate_str)

        return format_str


class RandomHorizontalFlip:
    """Horizontally flip the given opencv image with given probability p.

    Args:
        p: probability of the image being flipped
    """
    def __init__(self, p=0.5):
        self.p = p

    def __call__(self, img):
        """
        Args:
            the image to be flipped
        Returns:
            flipped image
        """
        if random.random() < self.p:
            img = cv2.flip(img, 1)

        return img

class ToTensor:
    """convert an opencv image (h, w, c) ndarray range from 0 to 255 to a pytorch
    float tensor (c, h, w) ranged from 0 to 1
    """

    def __call__(self, img):
        """
        Args:
            a numpy array (h, w, c) range from [0, 255]

        Returns:
            a pytorch tensor
        """
        #convert format H W C to C H W
        img = img.transpose(2, 0, 1)
        img = torch.from_numpy(img)
        img = img.float() / 255.0

        return img

class Normalize:
    """Normalize a torch tensor (H, W, BGR order) with mean and standard deviation

    for each channel in torch tensor:
        ``input[channel] = (input[channel] - mean[channel]) / std[channel]``

    Args:
        mean: sequence of means for each channel
        std: sequence of stds for each channel
    """

    def __init__(self, mean, std, inplace=False):
        self.mean = mean
        self.std = std
        self.inplace = inplace

    def __call__(self, img):
        """
        Args:
            (H W C) format numpy array range from [0, 255]
        Returns:
            (H W C) format numpy array in float32 range from [0, 1]
        """
        assert torch.is_tensor(img) and img.ndimension() == 3, 'not an image tensor'

        if not self.inplace:
            img = img.clone()

        mean = torch.tensor(self.mean, dtype=torch.float32)
        std = torch.tensor(self.std, dtype=torch.float32)
        img.sub_(mean[:, None, None]).div_(std[:, None, None])

        return img

class Resize:

    def __init__(self, resized=256, interpolation='linear'):

        methods = {
            "area":cv2.INTER_AREA,
            "nearest":cv2.INTER_NEAREST,
            "linear" : cv2.INTER_LINEAR,
            "cubic" : cv2.INTER_CUBIC,
            "lanczos4" : cv2.INTER_LANCZOS4
        }
        self.interpolation = methods[interpolation]

        if isinstance(resized, numbers.Number):
            resized = (resized, resized)

        self.resized = resized

    def __call__(self, img):


        img = cv2.resize(img, self.resized, interpolation=self.interpolation)

        return img

以上两个文件创建完毕后可以在网络中加载数据了

from dataset import CUB
import transforms
from torch.utils.data import DataLoader
import time

time1 = time.time()
IMAGE_SIZE = 448
TRAIN_MEAN = [0.48560741861744905, 0.49941626449353244, 0.43237713785804116]
TRAIN_STD = [0.2321024260764962, 0.22770540015765814, 0.2665100547329813]
TEST_MEAN = [0.4862169586881995, 0.4998156522834164, 0.4311430419332438]
TEST_STD = [0.23264268069040475, 0.22781080253662814, 0.26667253517177186]

path = '/home/jim/project/Fine-Grained/Mutual-Channel-Loss-master/CUB_200_2011'

train_transforms = transforms.Compose([
        transforms.ToCVImage(),
        transforms.RandomResizedCrop(IMAGE_SIZE),
        transforms.RandomHorizontalFlip(),
        transforms.ToTensor(),
        transforms.Normalize(TRAIN_MEAN, TRAIN_STD)
    ])

test_transforms = transforms.Compose([
    transforms.ToCVImage(),
    transforms.Resize(IMAGE_SIZE),
    transforms.ToTensor(),
    transforms.Normalize(TEST_MEAN,TEST_STD)
    ])

train_dataset = CUB(
        path,
        train=True,
        transform=train_transforms,
        target_transform=None
    )
    # print(len(train_dataset))
train_dataloader = DataLoader(
    train_dataset,
    batch_size=16,
    num_workers=0,
    shuffle=True
)

test_dataset = CUB(
        path,
        train=False,
        transform=test_transforms,
        target_transform=None
    )

test_dataloader = DataLoader(
    test_dataset,
    batch_size=16,
    num_workers=0,
    shuffle=True
)

time2 = time.time()

print(time2-time1)
print(len(train_dataloader))
print(len(test_dataloader))
