【Spring+Mybatis+SpringMVC整合项目五】天猫商城（后台-订单管理开发）

这里再记录订单管理的开发步骤。看看订单的POJO

里面包含了四个非数据库字段

private List<OrderItem> orderItems;

private User user;

private float total;

private int totalNumber;

1.orderItems是指订单项，每个订单项都有一个oid字段，表示对应某个订单，可以根据oid来查出这个订单下有哪些订单项

2.user订单归属的用户

3.total是总价格，所有产品的价格

4.totalNumber是订单总共有几件

5.getStatusDesc方法，用于把英文表达的Status信息转换为中文

Order.java

package com.how2java.tmall.pojo;

import com.how2java.tmall.service.OrderService;

import java.util.Date;
import java.util.List;

public class Order {
    private Integer id;

    private String orderCode;

    private String address;

    private String post;

    private String receiver;

    private String mobile;

    private String userMessage;

    private Date createDate;

    private Date payDate;

    private Date deliveryDate;

    private Date confirmDate;

    private Integer uid;

    private String status;

    /*如下是非数据库字段*/
    private List<OrderItem> orderItems;

    private User user;

    private float total;

    private int totalNumber;


    public String getStatusDesc(){
        String desc ="未知";
        switch(status){
            case OrderService.waitPay:
                desc="待付款";
                break;
            case OrderService.waitDelivery:
                desc="待发货";
                break;
            case OrderService.waitConfirm:
                desc="待收货";
                break;
            case OrderService.waitReview:
                desc="等评价";
                break;
            case OrderService.finish:
                desc="完成";
                break;
            case OrderService.delete:
                desc="刪除";
                break;
            default:
                desc="未知";
        }
        return desc;
    }

    /*****/
    setter and getter
    /****/
}

再看看orderItem这个类

这个类下面有个Product类，我们可以根据OrderItem类下的pid查出这个product，就查出这条订单项的产品信息了

package com.how2java.tmall.pojo;

public class OrderItem {
    private Integer id;

    private Integer pid;

    private Integer oid;

    private Integer uid;

    private Integer number;

    /*非数据库字段*/
    private Product product;

    /***/
    setter and getter
    /***/
}

因为Order类里面有List orderItems这个属性，所以我们就得在orderItemService中加入方法，提供一个可以根据oid查询出orderitem的接口

OrderItemService

package com.how2java.tmall.service;

import java.util.List;

import com.how2java.tmall.pojo.Order;
import com.how2java.tmall.pojo.OrderItem;

public interface OrderItemService {

    void add(OrderItem c);

    void delete(int id);
    void update(OrderItem c);
    OrderItem get(int id);
    List list();

    void fill(List<Order> os);

    void fill(Order o);

}

OrderItemServiceImpl

OrderItemServiceImpl实现OrderItemService，提供CRUD一套方法的实现。
同时还提供fill(Order order)和fill(List<Order> orders), 先说fill(Order order) :
为什么要提供这个方法呢？ 因为在订单管理界面，首先是遍历多个订单，然后遍历这个订单下的多个订单项。 而由MybatisGenerator逆向工程所创建的一套自动生成代码，是不具备一对多关系的，需要自己去二次开发。 这里就是做订单与订单项的一对多关系。
在fill(Order order)中：
1. 根据订单id查询出其对应的所有订单项
2. 通过setProduct为所有的订单项设置Product属性
3. 遍历所有的订单项，然后计算出该订单的总金额和总数量
4. 最后再把订单项设置在订单的orderItems属性上。

在fill(List<Order> orders) 中，就是遍历每个订单，然后挨个调用fill(Order order)。

package com.how2java.tmall.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.how2java.tmall.mapper.OrderItemMapper;
import com.how2java.tmall.pojo.Order;
import com.how2java.tmall.pojo.OrderItem;
import com.how2java.tmall.pojo.OrderItemExample;
import com.how2java.tmall.pojo.Product;
import com.how2java.tmall.service.OrderItemService;
import com.how2java.tmall.service.ProductService;

@Service
public class OrderItemServiceImpl implements OrderItemService {
    @Autowired
    OrderItemMapper orderItemMapper;
    @Autowired
    ProductService productService;

    @Override
    public void add(OrderItem c) {
        orderItemMapper.insert(c);
    }

    @Override
    public void delete(int id) {
        orderItemMapper.deleteByPrimaryKey(id);
    }

    @Override
    public void update(OrderItem c) {
        orderItemMapper.updateByPrimaryKeySelective(c);
    }

    @Override
    public OrderItem get(int id) {
        OrderItem result = orderItemMapper.selectByPrimaryKey(id);
        setProduct(result);
        return result;
    }

    public List<OrderItem> list(){
        OrderItemExample example =new OrderItemExample();
        example.setOrderByClause("id desc");
        return orderItemMapper.selectByExample(example);

    }

    @Override
    public void fill(List<Order> os) {
        for (Order o : os) {
            fill(o);
        }
    }

    public void fill(Order o) {
        OrderItemExample example =new OrderItemExample();
        example.createCriteria().andOidEqualTo(o.getId());
        example.setOrderByClause("id desc");
        List<OrderItem> ois =orderItemMapper.selectByExample(example);
        setProduct(ois);

        float total = 0;
        int totalNumber = 0;
        for (OrderItem oi : ois) {
            total+=oi.getNumber()*oi.getProduct().getPromotePrice();
            totalNumber+=oi.getNumber();
        }
        o.setTotal(total);
        o.setTotalNumber(totalNumber);
        o.setOrderItems(ois);

    }

    public void setProduct(List<OrderItem> ois){
        for (OrderItem oi: ois) {
            setProduct(oi);
        }
    }

    private void setProduct(OrderItem oi) {
        Product p = productService.get(oi.getPid());
        oi.setProduct(p);
    }

    ;

}

OrderService

package com.how2java.tmall.service;

import java.util.List;

import com.how2java.tmall.pojo.Order;

public interface OrderService {

    String waitPay = "waitPay";
    String waitDelivery = "waitDelivery";
    String waitConfirm = "waitConfirm";
    String waitReview = "waitReview";
    String finish = "finish";
    String delete = "delete";

    void add(Order c);

    void delete(int id);
    void update(Order c);
    Order get(int id);
    List list();
}

OrderServiceImpl

package com.how2java.tmall.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.how2java.tmall.mapper.OrderMapper;
import com.how2java.tmall.pojo.Order;
import com.how2java.tmall.pojo.OrderExample;
import com.how2java.tmall.pojo.User;
import com.how2java.tmall.service.OrderService;
import com.how2java.tmall.service.UserService;

@Service
public class OrderServiceImpl implements OrderService {
    @Autowired
    OrderMapper orderMapper;

    @Autowired
    UserService userService;

    @Override
    public void add(Order c) {
        orderMapper.insert(c);
    }

    @Override
    public void delete(int id) {
        orderMapper.deleteByPrimaryKey(id);
    }

    @Override
    public void update(Order c) {
        orderMapper.updateByPrimaryKeySelective(c);
    }

    @Override
    public Order get(int id) {
        return orderMapper.selectByPrimaryKey(id);
    }

    public List<Order> list(){
        OrderExample example =new OrderExample();
        example.setOrderByClause("id desc");
        List<Order> result =orderMapper.selectByExample(example);
        setUser(result);
        return result;
    }
    public void setUser(List<Order> os){
        for (Order o : os)
            setUser(o);
    }
    public void setUser(Order o){
        int uid = o.getUid();
        User u = userService.get(uid);
        o.setUser(u);
    }

}

查询功能

当我们访问http://127.0.0.1:8080/tmall_ssm/admin_order_list时，就会导致OrderController.list()方法被调用



1. 获取分页对象
2. 查询订单集合
3. 获取订单总数并设置在分页对象上
4. 借助orderItemService.fill()方法为这些订单填充上orderItems信息
5. 把订单集合和分页对象设置在model上
6. 服务端跳转到admin/listOrder.jsp页面
7. 在listOrder.jsp借助c:forEach把订单集合遍历出来
8. 遍历订单的时候，再把当前订单的orderItem订单项集合遍历出来

@RequestMapping("admin_order_list")
public String list(Model model, Page page){
    PageHelper.offsetPage(page.getStart(),page.getCount());

    List<Order> os= orderService.list();

    int total = (int) new PageInfo<>(os).getTotal();
    page.setTotal(total);

    orderItemService.fill(os);

    model.addAttribute("os", os);
    model.addAttribute("page", page);

    return "admin/listOrder";
}

发货功能

当订单状态是waitDelivery的时候，就会出现发货按钮
1. 发货按钮链接跳转到admin_order_delivery
2. OrderController.delivery()方法被调用
2.1 注入订单对象
2.2 修改发货时间，设置发货状态
2.3 更新到数据库
2.4 客户端跳转到admin_order_list页面

@RequestMapping("admin_order_delivery")
public String delivery(Order o) throws IOException {
    o.setDeliveryDate(new Date());
    o.setStatus(OrderService.waitConfirm);
    orderService.update(o);
    return "redirect:admin_order_list";
}

OrderController.java完整代码

package com.how2java.tmall.controller;

import java.io.IOException;
import java.util.Date;
import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.how2java.tmall.pojo.Order;
import com.how2java.tmall.service.OrderItemService;
import com.how2java.tmall.service.OrderService;
import com.how2java.tmall.util.Page;

@Controller
@RequestMapping("")
public class OrderController {
    @Autowired
    OrderService orderService;
    @Autowired
    OrderItemService orderItemService;

    @RequestMapping("admin_order_list")
    public String list(Model model, Page page){
        PageHelper.offsetPage(page.getStart(),page.getCount());

        List<Order> os= orderService.list();

        int total = (int) new PageInfo<>(os).getTotal();
        page.setTotal(total);

        orderItemService.fill(os);

        model.addAttribute("os", os);
        model.addAttribute("page", page);

        return "admin/listOrder";
    }

    @RequestMapping("admin_order_delivery")
    public String delivery(Order o) throws IOException {
        o.setDeliveryDate(new Date());
        o.setStatus(OrderService.waitConfirm);
        orderService.update(o);
        return "redirect:admin_order_list";
    }
}

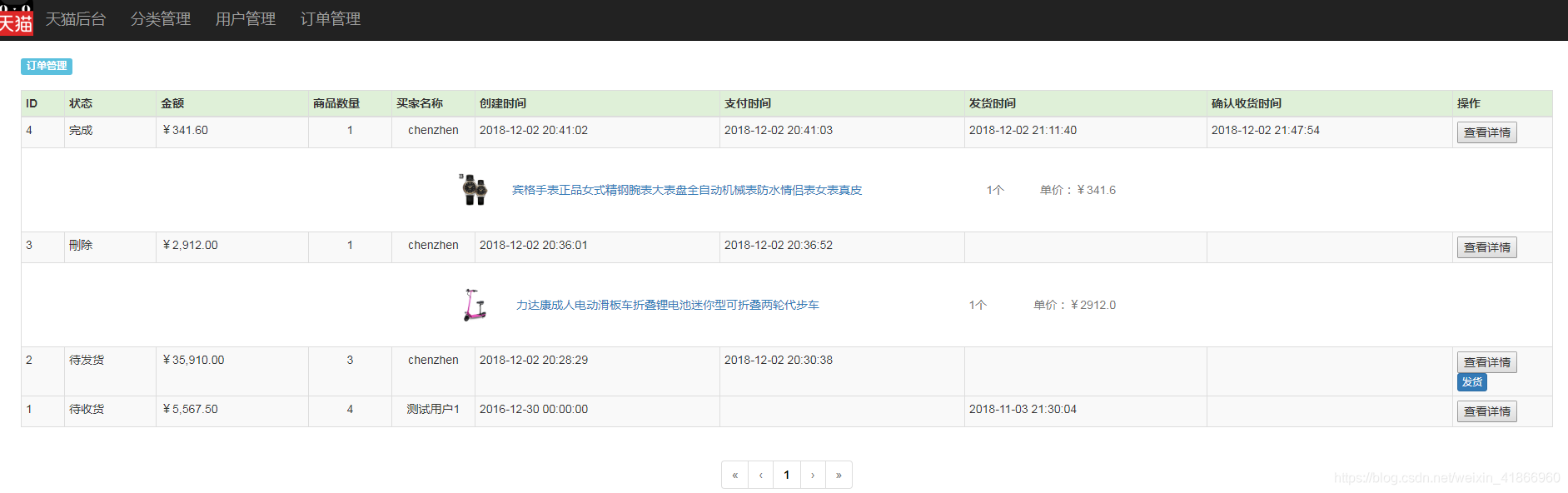

最后，在JSP上显示出来，就完成了订单管理的开发

listOrder.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
         pageEncoding="UTF-8" import="java.util.*"%>

<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@include file="../include/admin/adminHeader.jsp"%>
<%@include file="../include/admin/adminNavigator.jsp"%>

<script>
    $(function(){
        $("button.orderPageCheckOrderItems").click(function(){
            var oid = $(this).attr("oid");
            $("tr.orderPageOrderItemTR[oid="+oid+"]").toggle();
        });
    });

</script>

<title>订单管理</title>

<div class="workingArea">
    <h1 class="label label-info" >订单管理</h1>
    <br>
    <br>

    <div class="listDataTableDiv">
        <table class="table table-striped table-bordered table-hover1  table-condensed">
            <thead>
            <tr class="success">
                <th>ID</th>
                <th>状态</th>
                <th>金额</th>
                <th width="100px">商品数量</th>
                <th width="100px">买家名称</th>
                <th>创建时间</th>
                <th>支付时间</th>
                <th>发货时间</th>
                <th>确认收货时间</th>
                <th width="120px">操作</th>
            </tr>
            </thead>
            <tbody>
            <c:forEach items="${os}" var="o">
                <tr>
                    <td>${o.id}</td>
                    <td>${o.statusDesc}</td>
                    <td>￥<fmt:formatNumber type="number" value="${o.total}" minFractionDigits="2"/></td>
                    <td align="center">${o.totalNumber}</td>
                    <td align="center">${o.user.name}</td>

                    <td><fmt:formatDate value="${o.createDate}" pattern="yyyy-MM-dd HH:mm:ss"/></td>
                    <td><fmt:formatDate value="${o.payDate}" pattern="yyyy-MM-dd HH:mm:ss"/></td>
                    <td><fmt:formatDate value="${o.deliveryDate}" pattern="yyyy-MM-dd HH:mm:ss"/></td>
                    <td><fmt:formatDate value="${o.confirmDate}" pattern="yyyy-MM-dd HH:mm:ss"/></td>

                    <td>
                        <button oid=${o.id} class="orderPageCheckOrderItems btn btn-primary btn-xs">查看详情</button>

                        <c:if test="${o.status=='waitDelivery'}">
                            <a href="admin_order_delivery?id=${o.id}">
                                <button class="btn btn-primary btn-xs">发货</button>
                            </a>
                        </c:if>
                    </td>
                </tr>
                <tr class="orderPageOrderItemTR"  oid=${o.id}>
                    <td colspan="10" align="center">

                        <div  class="orderPageOrderItem">
                            <table width="800px" align="center" class="orderPageOrderItemTable">
                                <c:forEach items="${o.orderItems}" var="oi">
                                    <tr>
                                        <td align="left">
                                            <img width="40px" height="40px" src="img/productSingle/${oi.product.firstProductImage.id}.jpg">
                                        </td>

                                        <td>
                                            <a href="foreproduct?pid=${oi.product.id}">
                                                <span>${oi.product.name}</span>
                                            </a>
                                        </td>
                                        <td align="right">

                                            <span class="text-muted">${oi.number}个</span>
                                        </td>
                                        <td align="right">

                                            <span class="text-muted">单价：￥${oi.product.promotePrice}</span>
                                        </td>

                                    </tr>
                                </c:forEach>

                            </table>
                        </div>

                    </td>
                </tr>
            </c:forEach>
            </tbody>
        </table>
    </div>

    <div class="pageDiv">
        <%@include file="../include/admin/adminPage.jsp" %>
    </div>

</div>

<%@include file="../include/admin/adminFooter.jsp"%>
