sinogram OSEM重建

import parallelproj
from copy import copy
import SimpleITK as sitk
import matplotlib.pyplot as plt
import array_api_compat.numpy as np
import array_api_compat.torch as xp
from array_api_strict._array_object import Array
def em_update(
        x_cur: Array,
        data: Array,
        op: parallelproj.LinearOperator,
        adjoint_ones: Array,
) -> Array:
    """EM update

    Parameters
    ----------
    x_cur : Array
        current solution
    data : Array
        data
    op : parallelproj.LinearOperator
        linear forward operator
    s : Array
        contamination
    adjoint_ones : Array
        adjoint of ones

    Returns
    -------
    Array
    """
    epsilon = 1e-10
    ybar = op(x_cur) + epsilon
    return x_cur * op.adjoint(data / ybar) / adjoint_ones
dev = "cuda"

num_rings = 36
scanner = parallelproj.RegularPolygonPETScannerGeometry(
    xp,
    dev,
    radius=120.0,
    num_sides=16,  # rsector
    num_lor_endpoints_per_side=12,  # trans crystal per sector
    lor_spacing=3.25,  # crystal spacing
    ring_positions=xp.linspace(-50, 50, num_rings),
    symmetry_axis=1,
)

lor_desc = parallelproj.RegularPolygonPETLORDescriptor(
    scanner,
    radial_trim=10,
    max_ring_difference=None,
    sinogram_order=parallelproj.SinogramSpatialAxisOrder.RVP,
)

vox = (1, 1, 1)
shape = (149, 95, 149)
proj = parallelproj.RegularPolygonPETProjector(
    lor_desc, img_shape=shape, voxel_size=vox
)

hoffman = np.array(sitk.GetArrayFromImage(
    sitk.ReadImage('/share/home/hannah/workStation/pytomography/parallelproj/hoffman.nii'))).astype(np.float32)
x = hoffman.transpose([1, 0, 2])
x = xp.asarray(x, device=dev)  # 转到cuda中
x_fwd = proj(x)  # 得到前向投影

# setup an attenuation image
x_att = 0.01 * xp.astype(x > 0, xp.float32)
# calculate the attenuation sinogram
att_sino = xp.exp(-proj(x_att))
att_op = parallelproj.ElementwiseMultiplicationOperator(att_sino)
res_model = parallelproj.GaussianFilterOperator(
     proj.in_shape, sigma=4.5 / (2.35 * proj.voxel_size)
 )
pet_lin_op = parallelproj.CompositeLinearOperator((att_op, proj, res_model))


num_subsets = 10
subset_views, subset_slices = proj.lor_descriptor.get_distributed_views_and_slices(
    num_subsets, len(proj.out_shape)
)
_, subset_slices_non_tof = proj.lor_descriptor.get_distributed_views_and_slices(
    num_subsets, 3
)
proj.clear_cached_lor_endpoints()
pet_subset_linop_seq = []

for i in range(num_subsets):
    print(f"subset {i:02} containing views {subset_views[i]}")

    # make a copy of the full projector and reset the views to project
    subset_proj = copy(proj)
    subset_proj.views = subset_views[i]
    subset_att_op = parallelproj.ElementwiseMultiplicationOperator(
        att_sino[subset_slices_non_tof[i]]
    )
    # add the resolution model and multiplication with a subset of the attenuation sinogram
    pet_subset_linop_seq.append(
        parallelproj.CompositeLinearOperator(
            [
                subset_att_op,
                subset_proj,
                res_model,
            ]
        )
    )

pet_subset_linop_seq = parallelproj.LinearOperatorSequence(pet_subset_linop_seq)
print("# ============================= OSEM =====================================")
# number of OSEM iterations
num_iter = 20 // len(pet_subset_linop_seq)
x = xp.ones(pet_lin_op.in_shape, dtype=xp.float64, device=dev)
y = x_fwd

# calculate A_k^H 1 for all subsets k
subset_adjoint_ones = [
    x.adjoint(xp.ones(x.out_shape, dtype=xp.float64, device=dev))
    for x in pet_subset_linop_seq
]

# OSEM iterations
for i in range(num_iter):
    for k, sl in enumerate(subset_slices):
        print(f"OSEM iteration {(k + 1):03} / {(i + 1):03} / {num_iter:03}", end="\r")
        x = em_update(
            x, y[sl], pet_subset_linop_seq[k], subset_adjoint_ones[k]
        )

slice = 30

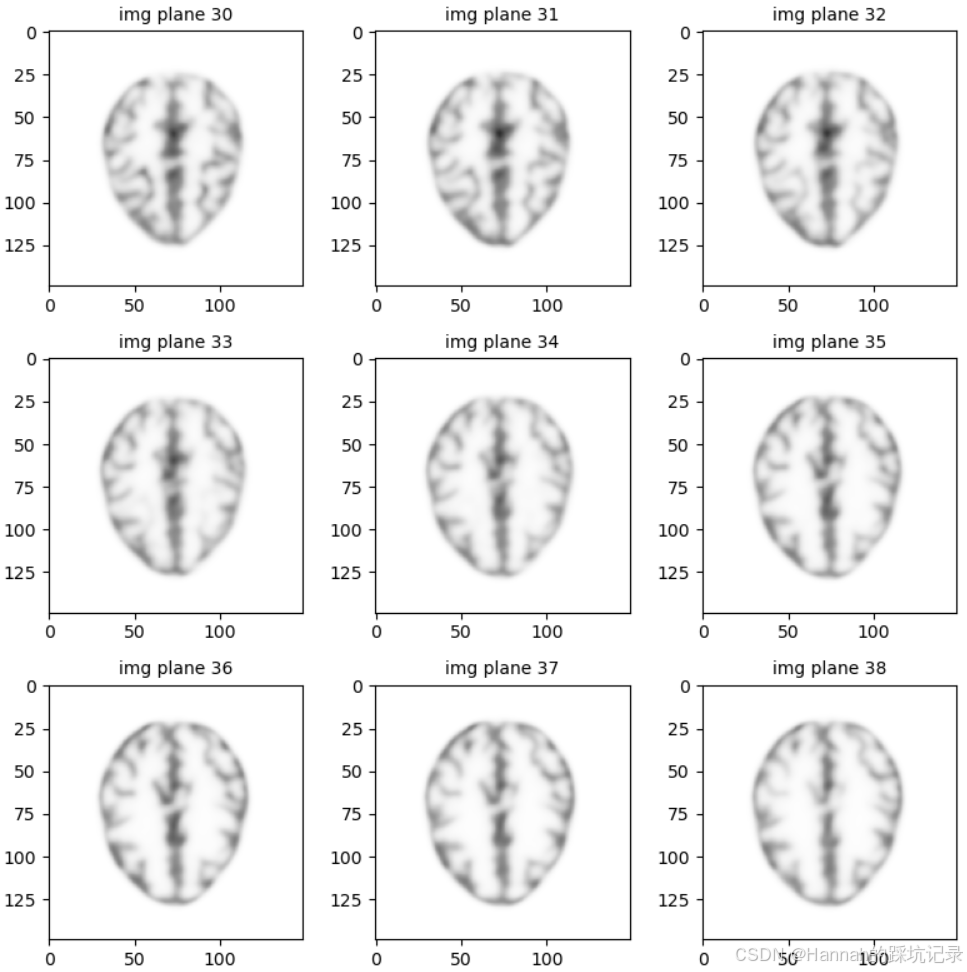

fig5, ax5 = plt.subplots(3, 3, figsize=(8, 8))
vmax = float(xp.max(x))
for i in range(9):
    axx = ax5.ravel()[i]
    axx.imshow(
        parallelproj.to_numpy_array(x[:, i+slice, :]), cmap="Greys", vmin=0, vmax=vmax
    )
    axx.set_title(f"img plane {i+slice}", fontsize="medium")
# ax5.ravel()[-1].set_axis_off()
fig5.tight_layout()
fig5.show()
