一、Thymeleaf简介
1.1 Thymeleaf的同行
JSP、Freemarker、Velocity等等,它们有一个共同的名字:服务器端模板技术。
1.2 Thymeleaf优势
- SpringBoot官方推荐使用的视图模板技术,和SpringBoot完美整合。
- 不经过服务器运算仍然可以直接查看原始值,对前端工程师更友好
1.3 thymeleaf和vue的关系
Thymeleaf和vue不是一类事务。
- 模板引擎:Thymeleaf、freemarker、JSP。
- 前端框架:vue、angularjs、react。
Thymeleaf是一个替代JSP的模板引擎。使用Thymeleaf或其他模板的时候也可以使用前端框架。现在github上很多工程就是springboot+Thymeleaf+vue三者结合的
1.4 物理视图和逻辑视图
-
物理视图
在Servlet中,将请求转发到一个HTML页面文件时,使用的完整的转发路径就是物理视图。
如:/pages/user/login_success.html
如果我们把所有的HTML页面都放在某个统一的目录下,那么转发地址就会呈现出明显的规律:
/pages/user/login.html /pages/user/login_success.html /pages/user/regist.html /pages/user/regist_success.html
路径的开头都是:/pages/user/
路径的结尾都是:.html
所以,路径开头的部分我们称之为视图前缀,路径结尾的部分我们称之为视图后缀。
-
逻辑视图

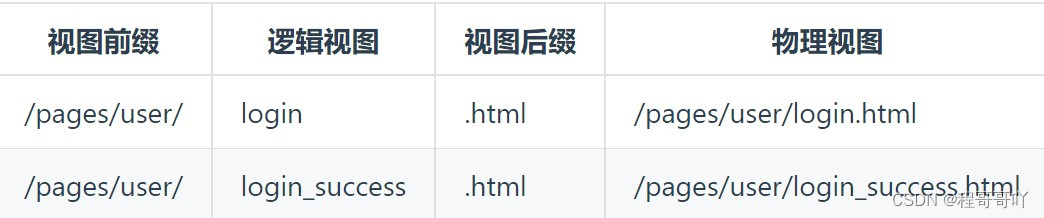

物理视图=视图前缀+逻辑视图+视图后缀,上面的例子中:
二、在服务器端引入Thymeleaf环境
2.1 加入jar包
2.2 配置上下文参数
物理视图=视图前缀+逻辑视图+视图后缀
<!-- 在上下文参数中配置视图前缀和视图后缀 -->
<context-param>
<param-name>view-prefix</param-name>
<param-value>/WEB-INF/view/</param-value>
</context-param>
<context-param>
<param-name>view-suffix</param-name>
<param-value>.html</param-value>
</context-param>
说明:param-value中设置的前缀、后缀的值不是必须叫这个名字,可以根据实际情况和需求进行修改
为什么要放在WEB-INF目录下?
原因:WEB-INF目录不允许浏览器直接访问,所以我们的视图模板文件放在这个目录下,是一种保护。以免外界可以随意访问视图模板文件。
访问WEB-INF目录下的页面,都必须通过Servlet转发过来,简单说就是:不经过Servlet访问不了。
这样就方便我们在Servlet中检查当前用户是否有权限访问。
那放在WEB-INF目录下之后,重定向进不去怎么办?
重定向到Servlet,再通过Servlet转发到WEB-INF下。
2.3 创建Servlet基类
import org.thymeleaf.TemplateEngine;
import org.thymeleaf.context.WebContext;
import org.thymeleaf.templatemode.TemplateMode;
import org.thymeleaf.templateresolver.ServletContextTemplateResolver;
import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
public class ViewBaseServlet extends HttpServlet {
private TemplateEngine templateEngine;
@Override
public void init() throws ServletException {
// 1.获取ServletContext对象
ServletContext servletContext = this.getServletContext();
// 2.创建Thymeleaf解析器对象
ServletContextTemplateResolver templateResolver = new ServletContextTemplateResolver(servletContext);
// 3.给解析器对象设置参数
// ①HTML是默认模式,明确设置是为了代码更容易理解
templateResolver.setTemplateMode(TemplateMode.HTML);
// ②设置前缀
String viewPrefix = servletContext.getInitParameter("view-prefix");
templateResolver.setPrefix(viewPrefix);
// ③设置后缀
String viewSuffix = servletContext.getInitParameter("view-suffix");
templateResolver.setSuffix(viewSuffix);
// ④设置缓存过期时间(毫秒)
templateResolver.setCacheTTLMs(60000L);
// ⑤设置是否缓存
templateResolver.setCacheable(true);
// ⑥设置服务器端编码方式
templateResolver.setCharacterEncoding("utf-8");
// 4.创建模板引擎对象
templateEngine = new TemplateEngine();
// 5.给模板引擎对象设置模板解析器
templateEngine.setTemplateResolver(templateResolver);
}
protected void processTemplate(String templateName, HttpServletRequest req, HttpServletResponse resp) throws IOException {
// 1.设置响应体内容类型和字符集
resp.setContentType("text/html;charset=UTF-8");
// 2.创建WebContext对象
WebContext webContext = new WebContext(req, resp, getServletContext());
// 3.处理模板数据
templateEngine.process(templateName, webContext, resp.getWriter());
}
}
2.4 HelloWorld
<servlet>
<servlet-name>TestThymeleafServlet</servlet-name>
<servlet-class>com.atguigu.thymeleaf.servlet.TestThymeleafServlet</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>TestThymeleafServlet</servlet-name>
<url-pattern>/TestThymeleafServlet</url-pattern>
</servlet-mapping>

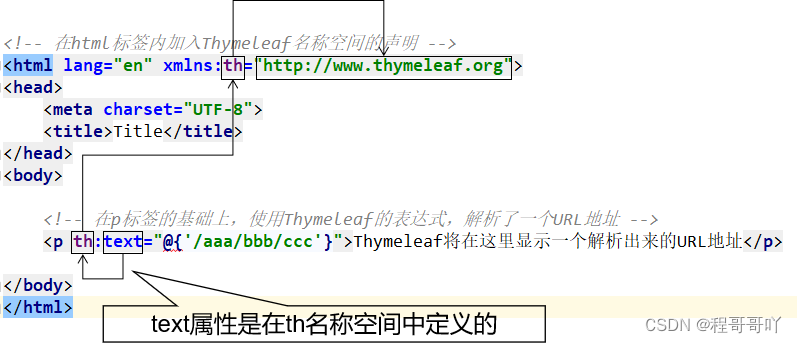

三、基本语法:th名称空间
四、基本语法:表达式语法
4.1 修改标签文本值
<p th:text="标签体新值">标签体原始值</p>
-
th:text作用
- 不经过服务器解析,直接用浏览器打开HTML文件,看到的是『标签体原始值』
- 经过服务器解析,Thymeleaf引擎根据th:text属性指定的『标签体新值』去替换『标签体原始值』
-
字面量
『字面量』是一个经常会遇到的概念,我们可以对照『变量』来理解它的含义。
- 变量:变量名字符串本身不是它的值,它指向的才是它的值
- 字面量:它就是字面上的含义,我们从『字面』上看到的直接就是它的值
现在我们在th:text属性中使用的就是『字面量』,它不指代任何其他值。
4.2 修改指定属性值
<input type="text" name="username" th:value="文本框新值" value="文本框旧值" />
语法:任何HTML标签原有的属性,前面加上『th:』就都可以通过Thymeleaf来设定新值。
4.3 解析URL地址
-
基本语法
<p th:text="@{/aaa/bbb/ccc}">标签体原始值</p>
经过解析后得到:
/view/aaa/bbb/ccc
所以@{}的作用是在字符串前附加『上下文路径』
这个语法的好处是:实际开发过程中,项目在不同环境部署时,Web应用的名字有可能发生变化。所以上下文路径不能写死。而通过@{}动态获取上下文路径后,不管怎么变都不怕啦
-

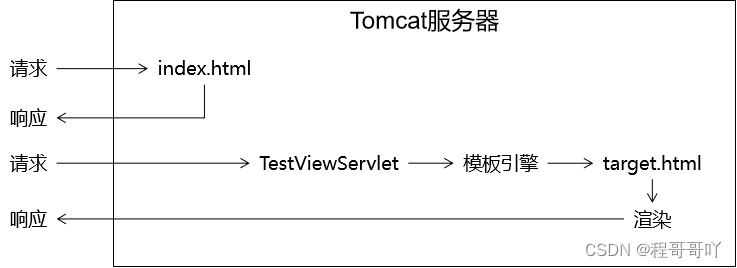

首页使用URL地址解析
如果我们直接访问index.html本身,那么index.html是不需要通过Servlet,当然也不经过模板引擎,所以index.html上的Thymeleaf的任何表达式都不会被解析。
解决办法:通过Servlet访问index.html,这样就可以让模板引擎渲染页面了:
进一步的好处:
通过上面的例子我们看到,所有和业务功能相关的请求都能够确保它们通过Servlet来处理,这样就方便我们统一对这些请求进行特定规则的限定。
4.4 直接执行表达式
Servlet代码:
request.setAttribute("reqAttrName", "<span>hello-value</span>");
1页面代码:
<p>有转义效果:[[${reqAttrName}]]</p>
<p>无转义效果:[(${reqAttrName})]</p>
执行效果:
<p>有转义效果:<span>hello-value</span></p>
<p>无转义效果:<span>hello-value</span></p>
五、 基本语法:访问域对象
5.1 域对象
-
请求域
在请求转发的场景下,我们可以借助HttpServletRequest对象内部给我们提供的存储空间,帮助我们携带数据,把数据发送给转发的目标资源。
请求域:HttpServletRequest对象内部给我们提供的存储空间
-
会话域、应用域
PS:在我们使用的视图是JSP的时候,域对象有4个
- pageContext
- request:请求域
- session:会话域
- application:应用域
所以在JSP的使用背景下,我们可以说域对象有4个,现在使用Thymeleaf了,没有pageContext
5.2 在Servlet中将数据存入属性域
-
操作请求域
Servlet中代码:
String requestAttrName = "helloRequestAttr"; String requestAttrValue = "helloRequestAttr-VALUE"; request.setAttribute(requestAttrName, requestAttrValue);
Thymeleaf表达式:
<p th:text="${helloRequestAttr}">request field value</p>
-
操作绘画域
Servlet中代码:
// ①通过request对象获取session对象 HttpSession session = request.getSession(); // ②存入数据 session.setAttribute("helloSessionAttr", "helloSessionAttr-VALUE");
Thymeleaf表达式:
<p th:text="${session.helloSessionAttr}">这里显示会话域数据</p>
-
操作应用域
Servlet中代码:
// ①通过调用父类的方法获取ServletContext对象 ServletContext servletContext = getServletContext(); // ②存入数据 servletContext.setAttribute("helloAppAttr", "helloAppAttr-VALUE");
Thymeleaf表达式:
<p th:text="${application.helloAppAttr}">这里显示应用域数据</p>
六、基本语法:获取请求参数

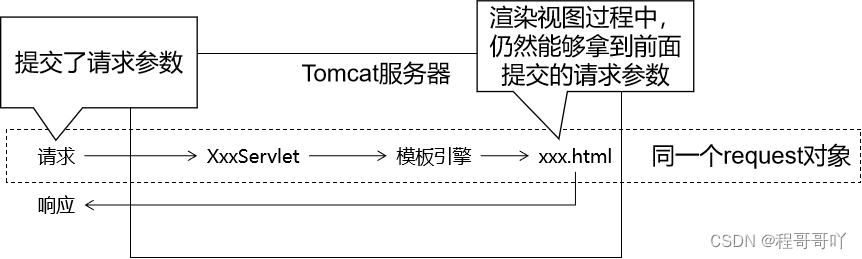

具体来说,我们这里探讨的是在页面上(模板页面)获取请求参数。底层机制是:
6.1 一个名字一个值
<p th:text="${param.username}">这里替换为请求参数的值</p>
6.2 一个名字多个值
<p th:text="${param.team}">这里替换为请求参数的值</p>
如果想要精确获取某一个值,可以使用数组下标。页面代码:
<p th:text="${param.team[0]}">这里替换为请求参数的值</p>
<p th:text="${param.team[1]}">这里替换为请求参数的值</p>
七、基本语法:内置对象
所谓内置对象其实就是在表达式中可以直接使用的对象
用法举例:
<h3>表达式的基本内置对象</h3>
<p th:text="${#request.getClass().getName()}">这里显示#request对象的全类名</p>
<p th:text="${#request.getContextPath()}">调用#request对象的getContextPath()方法</p>
<p th:text="${#request.getAttribute('helloRequestAttr')}">调用#request对象的getAttribute()方法,读取属性域</p>
基本思路:
- 如果不清楚这个对象有哪些方法可以使用,那么就通过getClass().getName()获取全类名,再回到Java环境查看这个对象有哪些方法
- 内置对象的方法可以直接调用
- 调用方法时需要传参的也可以直接传入参
7.1 公共内置对象
Servlet中将List集合数据存入请求域:
request.setAttribute("aNotEmptyList", Arrays.asList("aaa","bbb","ccc"));
request.setAttribute("anEmptyList", new ArrayList<>());
页面代码:
<p>#list对象isEmpty方法判断集合整体是否为空aNotEmptyList:<span th:text="${#lists.isEmpty(aNotEmptyList)}">测试#lists</span></p>
<p>#list对象isEmpty方法判断集合整体是否为空anEmptyList:<span th:text="${#lists.isEmpty(anEmptyList)}">测试#lists</span></p>
八、基本语法:${}中的表达式本质是OGNL
8.1 OGNL
OGNL:Object-Graph Navigation Language对象-图 导航语言

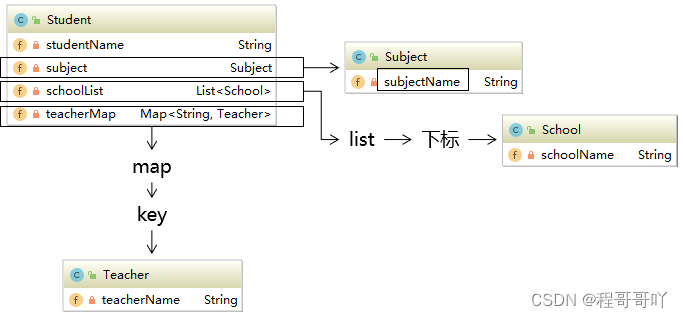

8.2 对象图
从根对象触发,通过特定的语法,逐层访问对象的各种属性。
8.3 OGNL语法
- 起点
在Thymeleaf环境下,${}中的表达式可以从下列元素开始:
- 访问属性域的起点
- 请求域属性名
- session
- application
- param
- 内置对象
- request
- session
- lists
- strings
- 属性访问语法
- 访问对象属性:使用getXxx()、setXxx()方法定义的属性
- 对象.属性名
- 访问List集合或数组
- 集合或数组[下标]
- 访问Map集合
- Map集合.key
- Map集合[‘key’]
九、基本语法:分支与迭代
9.1 分支
让标记了th:if、th:unless的标签根据条件决定是否显示。
示例的实体类:
public class Employee {
private Integer empId;
private String empName;
private Double empSalary;
示例的Servlet代码:
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
// 1.创建ArrayList对象并填充
List<Employee> employeeList = new ArrayList<>();
employeeList.add(new Employee(1, "tom", 500.00));
employeeList.add(new Employee(2, "jerry", 600.00));
employeeList.add(new Employee(3, "harry", 700.00));
// 2.将集合数据存入请求域
request.setAttribute("employeeList", employeeList);
// 3.调用父类方法渲染视图
super.processTemplate("list", request, response);
}
示例的HTML代码:
<table>
<tr>
<th>员工编号</th>
<th>员工姓名</th>
<th>员工工资</th>
</tr>
<tr th:if="${#lists.isEmpty(employeeList)}">
<td colspan="3">抱歉!没有查询到你搜索的数据!</td>
</tr>
<tr th:if="${not #lists.isEmpty(employeeList)}">
<td colspan="3">有数据!</td>
</tr>
<tr th:unless="${#lists.isEmpty(employeeList)}">
<td colspan="3">有数据!</td>
</tr>
</table>
if配合not关键词和unless配合原表达式效果是一样的,看自己的喜好。
- switch
<h3>测试switch</h3>
<div th:switch="${user.memberLevel}">
<p th:case="level-1">银牌会员</p>
<p th:case="level-2">金牌会员</p>
<p th:case="level-3">白金会员</p>
<p th:case="level-4">钻石会员</p>
</div>
9.2 迭代
<h3>测试each</h3>
<table>
<thead>
<tr>
<th>员工编号</th>
<th>员工姓名</th>
<th>员工工资</th>
</tr>
</thead>
<tbody th:if="${#lists.isEmpty(employeeList)}">
<tr>
<td colspan="3">抱歉!没有查询到你搜索的数据!</td>
</tr>
</tbody>
<tbody th:if="${not #lists.isEmpty(employeeList)}">
<!-- 遍历出来的每一个元素的名字 : ${要遍历的集合} -->
<tr th:each="employee : ${employeeList}">
<td th:text="${employee.empId}">empId</td>
<td th:text="${employee.empName}">empName</td>
<td th:text="${employee.empSalary}">empSalary</td>
</tr>
</tbody>
</table>
在迭代过程中,可以参考下面的说明使用迭代状态:
<h3>测试each</h3>
<table>
<thead>
<tr>
<th>员工编号</th>
<th>员工姓名</th>
<th>员工工资</th>
<th>迭代状态</th>
</tr>
</thead>
<tbody th:if="${#lists.isEmpty(employeeList)}">
<tr>
<td colspan="3">抱歉!没有查询到你搜索的数据!</td>
</tr>
</tbody>
<tbody th:if="${not #lists.isEmpty(employeeList)}">
<!-- 遍历出来的每一个元素的名字 : ${要遍历的集合} -->
<tr th:each="employee,empStatus : ${employeeList}">
<td th:text="${employee.empId}">empId</td>
<td th:text="${employee.empName}">empName</td>
<td th:text="${employee.empSalary}">empSalary</td>
<td th:text="${empStatus.count}">count</td>
</tr>
</tbody>
</table>
十、基本语法:包含其他模板文件

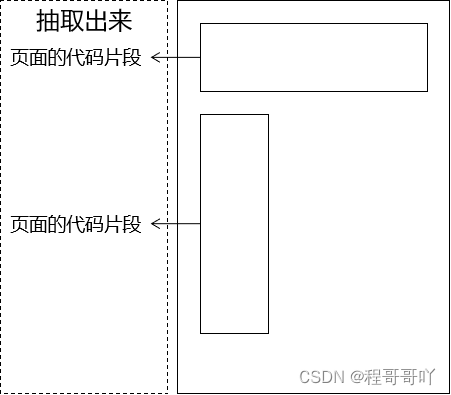

10.1 应用场景
抽取各个页面的公共部分
10.2 创建页面的代码片段
使用th:fragment来给这个片段命名:
<div th:fragment="header">
<p>被抽取出来的头部内容</p>
</div>
10.3 包含到有需要的页面
语法 | 效果 |
---|---|
th:insert | 把目标的代码片段整个插入到当前标签内部 |
th:replace | 用目标的代码替换当前标签 |
th:include | 把目标的代码片段去除最外层标签,然后再插入到当前标签内部 |
页面代码举例:
<!-- 代码片段所在页面的逻辑视图 :: 代码片段的名称 -->
<div id="badBoy" th:insert="segment :: header">
div标签的原始内容
</div>
<div id="worseBoy" th:replace="segment :: header">
div标签的原始内容
</div>
<div id="worstBoy" th:include="segment :: header">
div标签的原始内容
</div>
