SystemUI的启动与定制化

SystemUI的启动与定制化
SystemUI包含基本的StatusBar、VolumeBar、NavigationBar等部分，在手机开机时就已经为我们加载好，但是有时候会出现对StatusBar，DropList等进行定制化的任务，那么就需要了解SystemUI的启动流程，了解StatusBar，DropList等view是如何加载在系统界面上，下文是从SystemUI启动入口、SystemUI的加载机制以及以StatusBar为例来分析整个流程

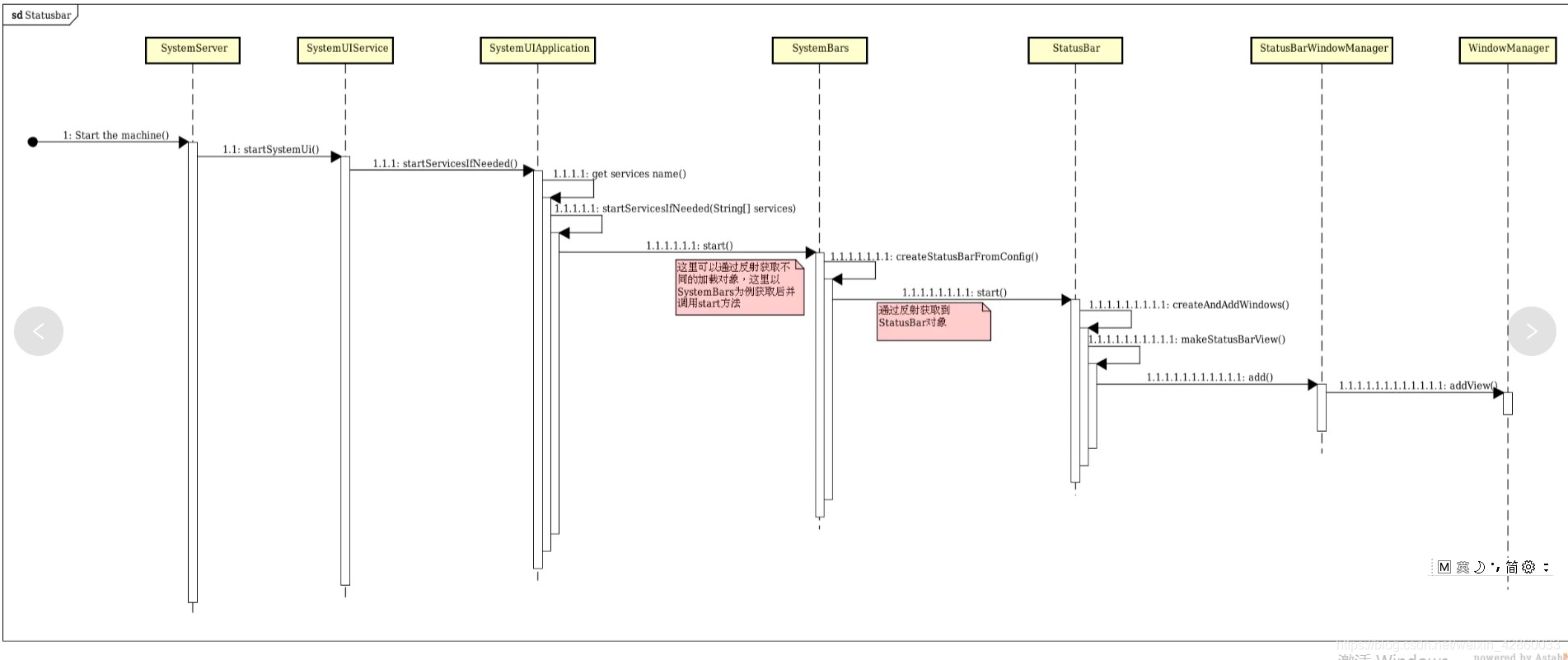

一、SystemUI的启动入口
SystemUI的加载是在Android系统启动的时候，那么我们可以知道SystemUI的入口可能是在系统启动的流程中。发现在SyetemServer进程中开始启动系统服务，如AMS，PMS，蓝牙，窗口管理服务等，其中就包括SystemUI

/frameworks/base/services/java/com/android/server/SystemServer.java

在SystemServer中可以发现启动SystemServer的是zygote进程

public final class SystemServer {
…

/**
 * The main entry point from zygote.
 */
public static void main(String[] args) {
    new SystemServer().run();//函数入口
}
    ...

private void run() {
         ...
    // Initialize native services.初始化了native services
    System.loadLibrary("android_servers");

    // Check whether we failed to shut down last time we tried.
    // This call may not return.
    performPendingShutdown();

    // Initialize the system context.初始化了system context
    createSystemContext();

    // Create the system service manager.接着创建一个SystemServiceManager对象用于后续系统服务的启动和管理
    mSystemServiceManager = new SystemServiceManager(mSystemContext);
    mSystemServiceManager.setStartInfo(mRuntimeRestart,
            mRuntimeStartElapsedTime, mRuntimeStartUptime);
    LocalServices.addService(SystemServiceManager.class, mSystemServiceManager);
    // Prepare the thread pool for init tasks that can be parallelized
    SystemServerInitThreadPool.get();

    // Start services.
    try {
        traceBeginAndSlog("StartServices");开始系统服务的启动
        startBootstrapServices();启动引导service
        startCoreServices();启动核心service
        startOtherServices();启动其他的services
        SystemServerInitThreadPool.shutdown();
    } catch (Throwable ex) {
        Slog.e("System", "******************************************");
        Slog.e("System", "************ Failure starting system services", ex);
        throw ex;
    } finally {
        traceEnd();
    }

    ...
}

~startBootstrapServices()
private void startBootstrapServices() {
…

    Installer installer = mSystemServiceManager.startService(Installer.class);

    mSystemServiceManager.startService(DeviceIdentifiersPolicyService.class);

    mActivityManagerService = mSystemServiceManager.startService(
            ActivityManagerService.Lifecycle.class).getService();
    mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
    mActivityManagerService.setInstaller(installer);

    mPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class);

    mSystemServiceManager.startService(LightsService.class);

    mSystemServiceManager.startService(new OverlayManagerService(mSystemContext, installer));
    ...

}

在startBootstrapServices()方法中，可以发现mSystemServiceManager.startServic()为核心所在，方法中传入不同的service作为参数，以实现不同services的开启，包括AMS，PMS，LightsService等系统所需的一些小的关键服务

~startCoreServices()
/**
* Starts some essential services that are not tangled up in the bootstrap process.
*/
private void startCoreServices() {
traceBeginAndSlog(“StartBatteryService”);
// Tracks the battery level. Requires LightService.
mSystemServiceManager.startService(BatteryService.class);
traceEnd();

    // Tracks application usage stats.
    traceBeginAndSlog("StartUsageService");
    mSystemServiceManager.startService(UsageStatsService.class);
    mActivityManagerService.setUsageStatsManager(
            LocalServices.getService(UsageStatsManagerInternal.class));
    traceEnd();

    // Tracks whether the updatable WebView is in a ready state and watches for update installs.
    if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_WEBVIEW)) {
        traceBeginAndSlog("StartWebViewUpdateService");
        mWebViewUpdateService = mSystemServiceManager.startService(WebViewUpdateService.class);
        traceEnd();
    }

    ...
}

同样的，代码中以mSystemServiceManager.startService()来开启服务，只不过里面的参数不同

~startOtherServices()：在这个方法中启动SystemUI
private void startOtherServices() {
…
traceBeginAndSlog(“StartSystemUI”);
try {
startSystemUi(context, windowManagerF);
} catch (Throwable e) {
reportWtf(“starting System UI”, e);
}

}

~startSystemUi()
static final void startSystemUi(Context context, WindowManagerService windowManager) {
Intent intent = new Intent();
intent.setComponent(new ComponentName(“com.android.systemui”,
“com.android.systemui.SystemUIService”));
intent.addFlags(Intent.FLAG_DEBUG_TRIAGED_MISSING);
//Slog.d(TAG, "Starting service: " + intent);
context.startServiceAsUser(intent, UserHandle.SYSTEM);
windowManager.onSystemUiStarted();
}

在上面代码中可以看见创建了一个Intent，然后通过设置组件名称来开启SystemUIService，至此，SystemUI才只是找到启动的入口，对于系统启动完全完成，需要进入到SystemUIService中查看详细的启动流程。

二、SystemUI开始加载
/frameworks/base/packages/SystemUI/src/com/android/systemui/SystemUIService.java
public class SystemUIService extends Service {

@Override
public void onCreate() {
    super.onCreate();
    ((SystemUIApplication) getApplication()).startServicesIfNeeded();
...
}

}

/frameworks/base/packages/SystemUI/src/com/android/systemui/SystemUIApplication.java
public class SystemUIApplication extends Application implements SysUiServiceProvider {
/**
* The classes of the stuff to start.
*/
private final Class<?>[] SERVICES = new Class[] {
Dependency.class,//启动的第一个SystemUI服务应始终为Dependency。Dependency是用来封装SystemUI应用中的一些依赖对象。
//Dependency提供了一种静态方法，用于获取具有跨越sysui的生命周期的依赖项。
//Dependency具有如何创建手动添加的所有依赖项的代码。 SystemUIFactory还能够添加/替换这些依赖项。
NotificationChannels.class,
CommandQueue.CommandQueueStart.class,
KeyguardViewMediator.class, // 锁屏界面
Recents.class,//最近使用的Activity
VolumeUI.class,//音量相关的UI
Divider.class,// 多窗口分屏
SystemBars.class, //系统状态栏，包括 StatusBar 、 NavigationBar、下拉消息、快捷菜单等等
StorageNotification.class, //存储相关的通知
PowerUI.class, //电池电量弹窗
RingtonePlayer.class, // 铃声控制
KeyboardUI.class,
PipUI.class,
ShortcutKeyDispatcher.class,
VendorServices.class,
GarbageMonitor.Service.class,
LatencyTester.class,
GlobalActionsComponent.class,
RoundedCorners.class,
};
…
public void startServicesIfNeeded() {
startServicesIfNeeded(SERVICES);
}
}

在startServicesIfNeeded()方法中先将这些小部件集合在一起，然后调用startServicesIfNeeded(String[] services)

private void startServicesIfNeeded(String[] services) {
private SystemUI[] mServices;
…
mServices = new SystemUI[services.length];

    ...
    final int N = services.length;
    for (int i = 0; i < N; i++) {
        String clsName = services[i];

        Class cls;
        try {
            cls = Class.forName(clsName);
            mServices[i] = (SystemUI) cls.newInstance();
        } catch(ClassNotFoundException ex){
            throw new RuntimeException(ex);
        } catch (IllegalAccessException ex) {
            throw new RuntimeException(ex);
        } catch (InstantiationException ex) {
            throw new RuntimeException(ex);
        }

        mServices[i].mContext = this;
        mServices[i].mComponents = mComponents;
        if (DEBUG) Log.d(TAG, "running: " + mServices[i]);
        mServices[i].start();
        ...
    }

}
首先创建了一个SystemUI数组，这个是用来装载systemUI上各个小部件，接着遍历了在startServicesIfNeeded()方法中获取的services数组，通过反射的方式，获取各个不同的systemUI的对象，最后分别调用他们的start()方法。例如循环第六次获取到的是VolumeUI的对象，最后便调用的是VolumeUI的start()方法。

SystemUI开始加载不同位置的UI，而每个UI内部是如何加载，如何将view放置在不同的位置上的，我们继续往下看。

三、StatusBar的加载与定制化
由于SystemUI所包含的部分很多，这里就以加载状态栏StatusBar为例。上述遍历获取到了SystemBar对象，并开始调用它的start()，那么我们就进入到SystemBar类中查看它的start()。

/frameworks/base/packages/SystemUI/src/com/android/systemui/SystemBars.java
public class SystemBars extends SystemUI {
…
@Override
public void start() {
if (DEBUG) Log.d(TAG, “start”);
createStatusBarFromConfig();
}
…
private void createStatusBarFromConfig() {
final String clsName = mContext.getString(R.string.config_statusBarComponent);

    Class<?> cls = null;
    try {
        cls = mContext.getClassLoader().loadClass(clsName);
    } catch (Throwable t) {
        throw andLog("Error loading status bar component: " + clsName, t);
    }
    try {
        mStatusBar = (SystemUI) cls.newInstance();
    } catch (Throwable t) {
        throw andLog("Error creating status bar component: " + clsName, t);
    }
    mStatusBar.mContext = mContext;
    mStatusBar.mComponents = mComponents;
    mStatusBar.start();
    if (DEBUG) Log.d(TAG, "started " + mStatusBar.getClass().getSimpleName());
}

}

start方法中调用了createStatusBarFromConfig()，接着进入到createStatusBarFromConfig中，在这里，第一眼感觉代码有点熟悉，回想一下和上面SystemUIApplication类中startServicesIfNeeded(String[] services)加载不同systemUI的方法很像，都是使用了反射的手法，同样的首先通过id 查找到config.xml文件里的name

/frameworks/base/packages/SystemUI/res/values/config.xml
com.android.systemui.statusbar.phone.StatusBar
从这个string name可以发现最后启动的是StatusBar，也就是调用StatusBar的start()方法。

frameworks/base/packages/SystemUI/src/com/android/systemui/statusbar/phone/StatusBar.java

public class StatusBar extends SystemUI{

@Override
public void start() {
...
//第一步
createAndAddWindows();
...
}

public void createAndAddWindows() {
//第二步
    addStatusBarWindow();
}
...
private void addStatusBarWindow() {
//第三步
    makeStatusBarView();
    mStatusBarWindowManager = Dependency.get(StatusBarWindowManager.class);
    ...
//第五步
    mStatusBarWindowManager.add(mStatusBarWindow, getStatusBarHeight());
}
...
protected void makeStatusBarView() {
    final Context context = mContext;
    ...
//第四步
    inflateStatusBarWindow(context);
}
    ...
//加载Layout，初始化StatusBarWindow
protected void inflateStatusBarWindow(Context context) {
    mStatusBarWindow = (StatusBarWindowView) View.inflate(context,
            R.layout.super_status_bar, null);
}

}

在StatusBar类中省略了大量代码，只保留了StatusBar加载的主要流程，从Start()方法中调用createAndAddWindows()接着再调用addStatusBarWindow()，紧接着在makeStatusBarView()方法中通过inflate加载layout的方式初始化StatusBarWindow，将super_status_bar.xml里所设计的样式加载到StatusBar界面上。
也就是说，当我们碰到需要定制化SystemUI的情况下，可以自己自定义一个layout.xml，然后在这里替换掉源文件。到了第5步是在初始化StatusBarWindow后，通过StatusBarWindowManager的add()方法，将statusBarView加载到系统界面上，并设置了statusBar的高度。那么我们就进入StatusBarWindowManager类的add()方法，如下所示：
public class StatusBarWindowManager{
…
/**
* Adds the status bar view to the window manager.
*
* @param statusBarView The view to add.
* @param barHeight The height of the status bar in collapsed state.
*/
public void add(View statusBarView, int barHeight) {

    // Now that the status bar window encompasses the sliding panel and its
    // translucent backdrop, the entire thing is made TRANSLUCENT and is
    // hardware-accelerated.
    mLp = new WindowManager.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            barHeight,
            WindowManager.LayoutParams.TYPE_STATUS_BAR,
            WindowManager.LayoutParams.FLAG_NOT_FOCUSABLE
                    | WindowManager.LayoutParams.FLAG_TOUCHABLE_WHEN_WAKING
                    | WindowManager.LayoutParams.FLAG_SPLIT_TOUCH
                    | WindowManager.LayoutParams.FLAG_WATCH_OUTSIDE_TOUCH
                    | WindowManager.LayoutParams.FLAG_DRAWS_SYSTEM_BAR_BACKGROUNDS,
            PixelFormat.TRANSLUCENT);
    mLp.token = new Binder();
    mLp.gravity = Gravity.TOP;
    mLp.softInputMode = WindowManager.LayoutParams.SOFT_INPUT_ADJUST_RESIZE;
    mLp.setTitle("StatusBar");
    mLp.packageName = mContext.getPackageName();
    mLp.layoutInDisplayCutoutMode = LAYOUT_IN_DISPLAY_CUTOUT_MODE_ALWAYS;
    mStatusBarView = statusBarView;
    mBarHeight = barHeight;
    mWindowManager.addView(mStatusBarView, mLp);
    mLpChanged = new WindowManager.LayoutParams();
    mLpChanged.copyFrom(mLp);
}

}

可以发现StatusBar的加载真正在于WindowManager的处理，先设置好WindowManager.LayoutParams的宽高，层级TYPE，Flag等参数，然后将设置好的LayoutParams和上面传进来的mStatusBarView作为参数，调用addView()方法使View加载到相应的位置上。那么我们反过来思考下，如果将mStatusBarView换成我们自定义的View，那么结果会是什么样？

至此，StatusBar在SystemUI上的加载也就结束了，同样的道理，VolumeBar，NavigationBar等SystemUI其他部分的加载也和StatusBar的加载基本一致，这里就不再做分析。理清了上述代码，再回到文章开头看那张时序图，就可以清楚的知道SystemUI的启动流程，在此基础上，对SystemUI的定制化任务也就变得明朗起来。
