接下来的分析和实践非常粗糙，因为跟之前一样的分析流程，不再多说了，如果前面真的掌握，这里不看也罢。
分析
先看beq指令。
ALU输入的是rs和rt，不输入imm，进行subu操作，判断是否为zero，输出zero信号。
控制器增加Branch信号，识别beq指令，当zero和Branch同时成立，就可以跳转，目标地址是PC + 4 + (sign-extend)offset。
bne指令同理。
实现
ALU
ALU增加zero输出，如果rs - rt == 0，zero = 0，即rs = rt，对应beq指令，若zero = 1，对应bne指令。
增加offset输出，是offset字段符号扩展并左移2位后的结果，用于和pc + 4在pc模块相加。
pc
增加offset数据信号，以及Branch和nBranch跳转信号，和zero信号。
control
增加Branch和nBranch信号。
Datapath
最后更改顶层数据通路。
注意一个大坑
我们设计的数据通路，取指需要2个周期，这个时候，跳转指令的pc，其实已经变成了pc + 8了，如果再执行 pc + 4 + offset，就会执行原本应该执行的下下条指令，这是错误的。
因此，我们应该将PC + 4的值，与当前执行的PC指令，一起传过去。这里偷懒起见，直接在原来基础上PC - 8以避开2个时钟周期的取指延迟。
关于取指延迟对需要pc值的指令的影响，可能有不少，后续再说

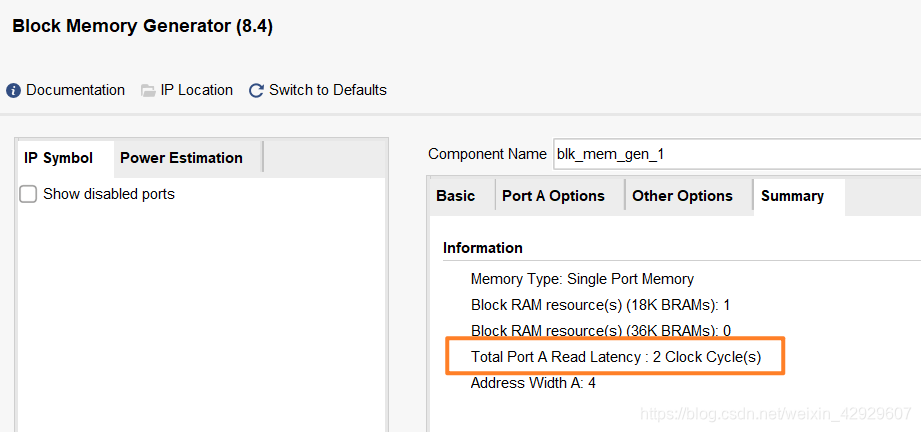

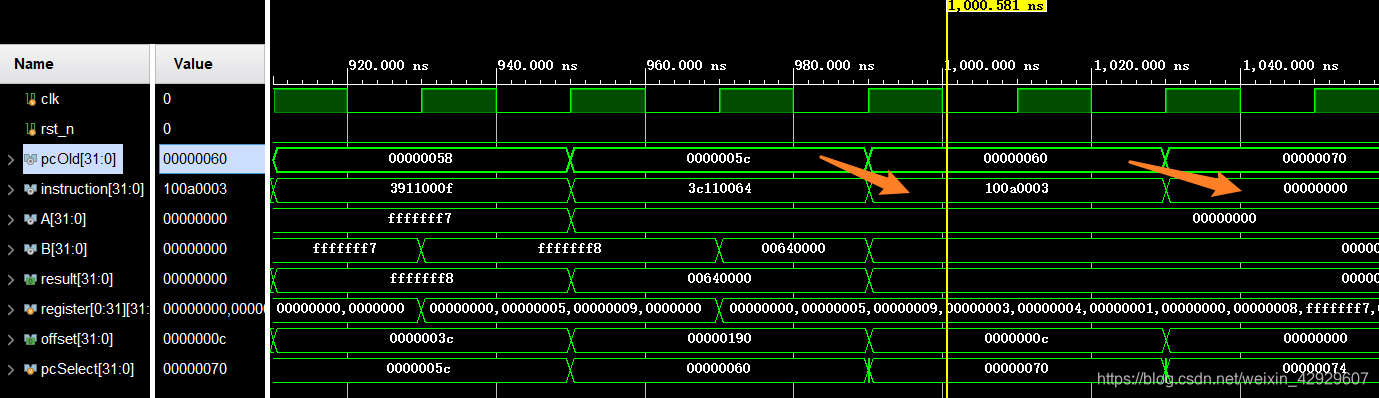

可以看见，ROM延迟两个时钟周期，因此说，刚才的解决方案，也不对……即便能够跳转到正确的指令，但是，在此之前，如果有指令不需要执行，但是也被执行了，每一个b跳转指令，最多被错误地执行2条指令。
……这可咋办呢？这是单周期，又不是流水线……如何改变局面?
后续再说。
类比：这个情况下，似乎是类流水线了，分为取指和执行2个阶段！……嗯，回头想想解决方案吧
尝试一
取指占2个时钟周期，执行占1个时钟周期，每条指令执行占3个时钟周期。
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2020/11/12 20:31:59
// Design Name:
// Module Name: pc_1
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module pc_1(
input clk,
input rst_n,
// pc data
input [31:0] pcOrigin, // The PC value is from pcOld.
input [31:0] JrPC, // jr instruction,from reg files.
// pc control
input Jrn, // jr instruction.
// beq bne
input [31:0] offset,
input zero,
input Branch,
input nBranch,
output [31:0] pcOld
);
reg [31:0] pc = 0;
assign pcOld = pc;
// judge validity of beq/bne instruction
reg isBranch;
always @(*)
begin
if((zero == 1) && (Branch == 1)) // beq valid
begin
isBranch <= 1;
end
else if((zero == 0) && (nBranch == 1)) // bne valid
begin
isBranch <= 1;
end
else
begin
isBranch <= 0;
end
end
// select new pc value
reg [31:0] pcSelect; // new pc data
always @(*)
begin
case({Jrn,Branch,nBranch})
3'b000: // pc + 4
pcSelect <= pcOrigin + 4;
3'b100: // jr
pcSelect <= JrPC;
3'b010: // beq
pcSelect <= pcOrigin + 4 + offset; /**** NOTE ****/
3'b001: // bne // fetch instruction waste 2 clock cycles,then execute 1 cycle
pcSelect <= pcOrigin + 4 + offset; /**** NOTE ****/
default:
pcSelect <= 0;
endcase
end
// counter: wait 2 clock cycles to fetch instruction
reg counter = 0;
always @(posedge clk)
begin
if(counter == 1)
counter <= 0;
else
counter <= counter + 1;
end
// Update PC register
always @(posedge clk)
begin
if(rst_n == 1) // Xilinx 官方推荐：reset 高电平有效
begin
pc <= 0;
end
else if(counter == 1)
begin
pc <= pcSelect;
end
else
begin
pc <= 0;
end
end
endmodule
加了计时器，但是，还是解决不了问题……
现在，能够满足当前执行的指令，pc值是下一条指令的地址，但是更新存在问题，依然避不开的是，取指需要2个时钟周期。
问题解决：让CPU与Memory的时钟频率不一样！
首先，我们需要知道，CPU和Memory内外有别，它们的clk频率完全可以不一样，这样，我们让Memory的频率快一点，使得CPU在一个时钟周期内，完成取指和执行，就满足了我们的设计要求。
这里需要强化一个概念，我们需要知道，单周期CPU，指的是CPU在一个时钟周期内能够完成一条指令的取指和执行操作，单周期指的是CPU，而不是Memory。
1 解决方案

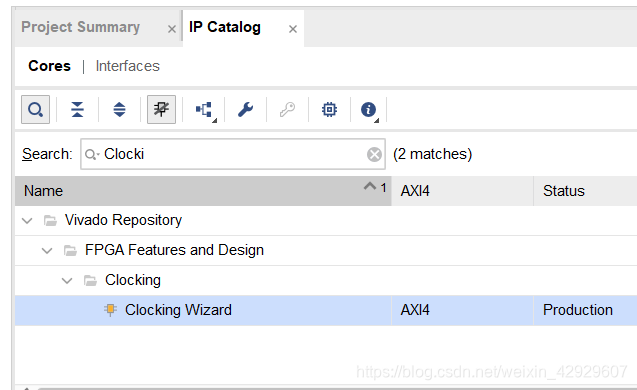

1.1 增加时钟分频器

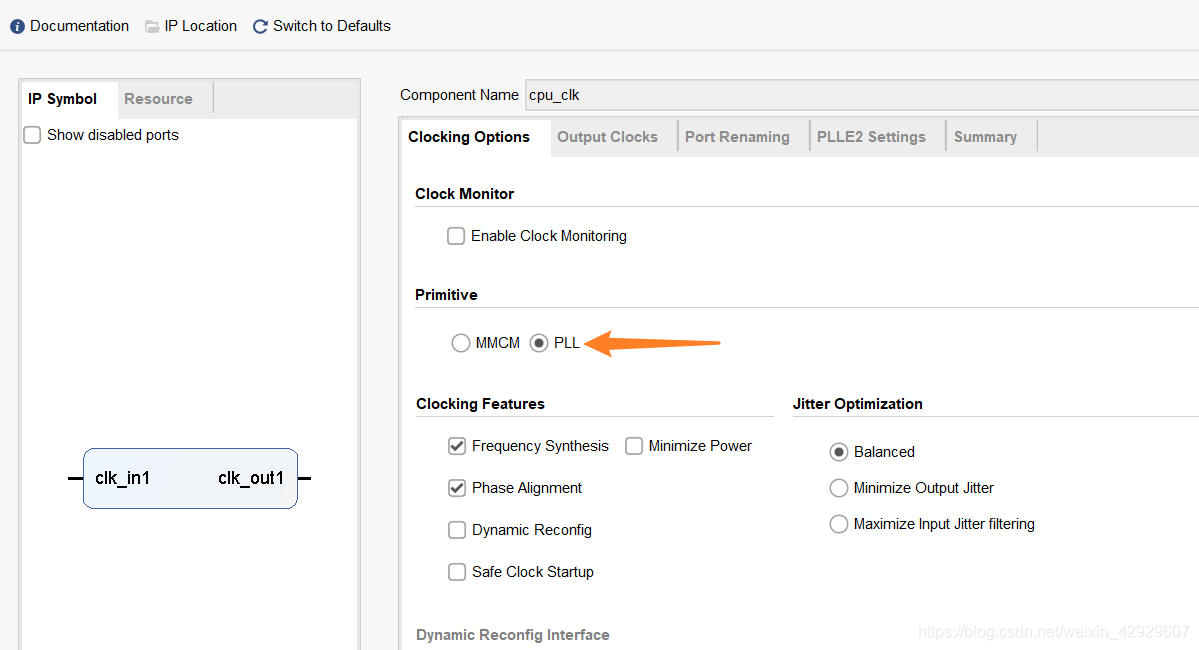

使用MMCM，不是PLL。

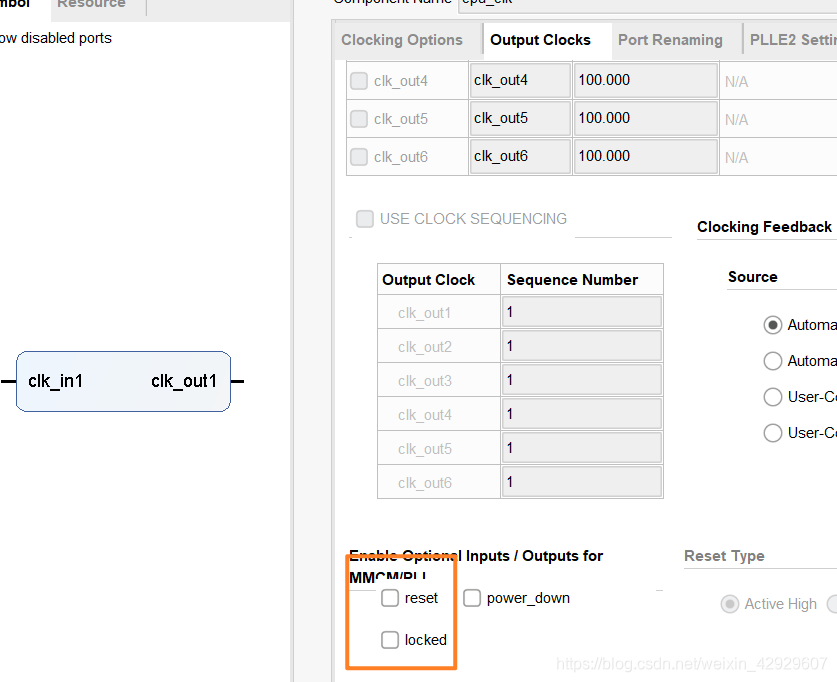

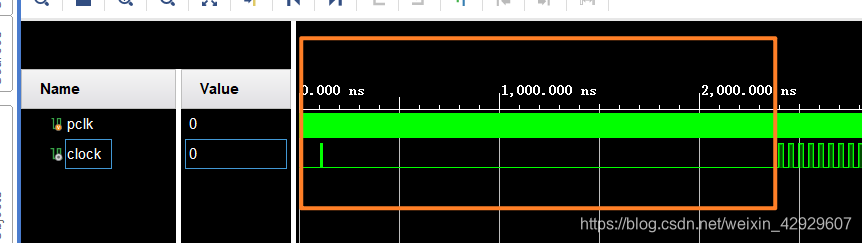

注意，此IP核有启动时间。

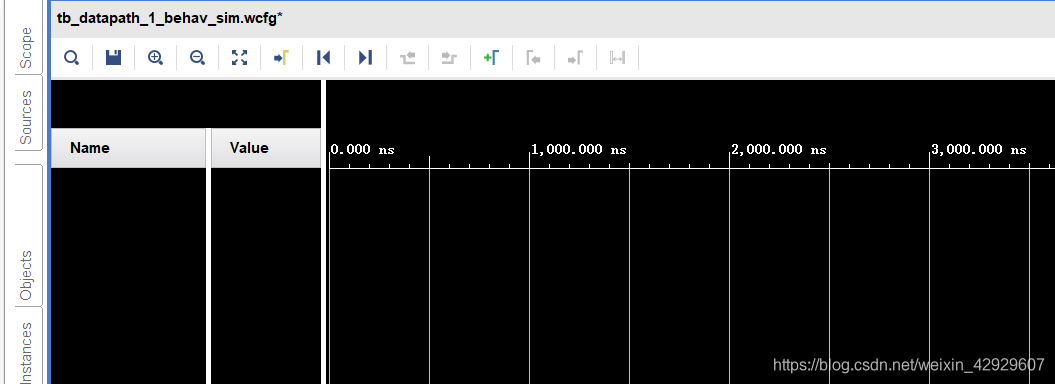

另外……当仿真没有信号的时候，看看是不是没有加信号……
1.2 分别对待CPU与Memory的时钟频率

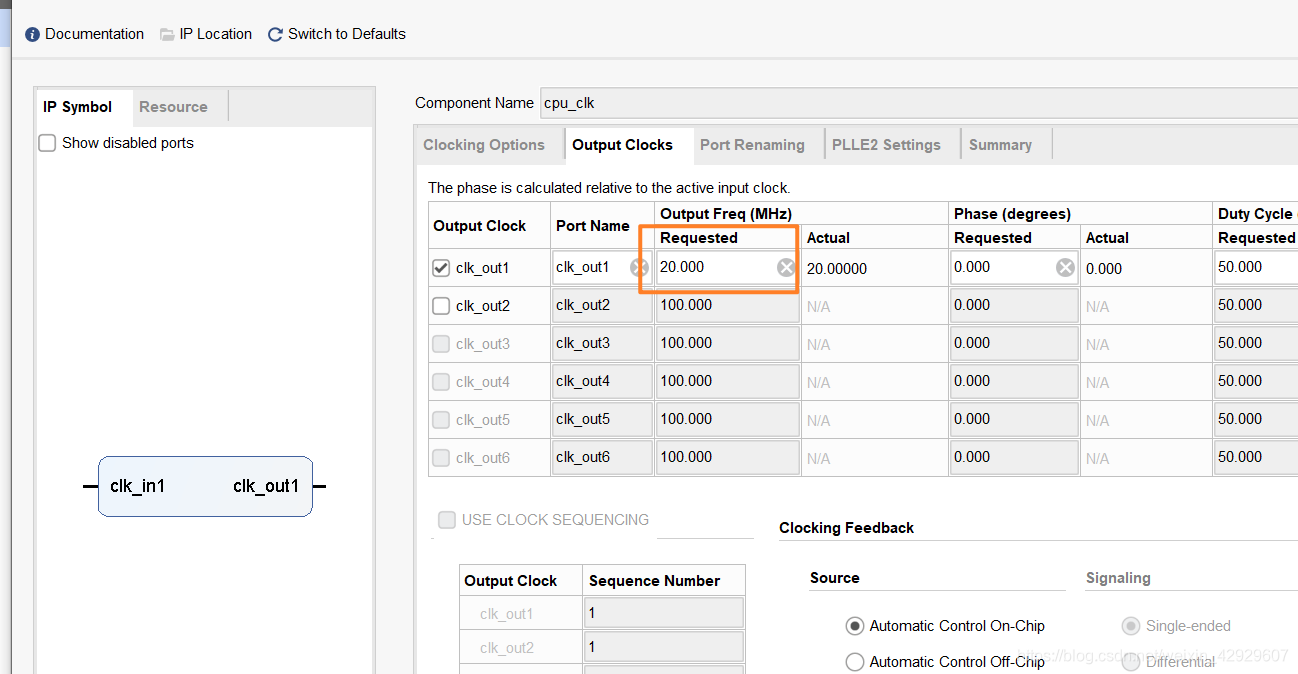

CPU时钟频率20MHz
内存时钟频率100MHz
1.3 其他部件的实现
PC
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2020/11/12 20:31:59
// Design Name:
// Module Name: pc_1
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module pc_1(
input clk,
input rst_n,
// pc data
input [31:0] pcOrigin, // The PC value is from pcOld.
input [31:0] JrPC, // jr instruction,from reg files.
// pc control
input Jrn, // jr instruction.
// beq bne
input [31:0] offset,
input zero,
input Branch,
input nBranch,
output [31:0] pcOld
);
reg [31:0] pc = 0;
assign pcOld = pc;
// judge validity of beq/bne instruction
reg isBranch;
always @(*)
begin
if((zero == 1) && (Branch == 1)) // beq valid
begin
isBranch <= 1;
end
else if((zero == 0) && (nBranch == 1)) // bne valid
begin
isBranch <= 1;
end
else
begin
isBranch <= 0;
end
end
// select new pc value
reg [31:0] pcSelect; // new pc data
always @(*)
begin
case({Jrn,isBranch})
2'b00: // pc + 4
pcSelect <= pcOrigin + 4;
2'b10: // jr
pcSelect <= JrPC;
// fetching 1 instruction wastes 2 clock cycles(memory), and
// executing the instruction needs 1 clock cycle(CPU).
// NOTE:the frequency of two clocks is different.
2'b01: // beq bne
pcSelect <= pcOrigin + 4 + offset;
default:
pcSelect <= 0;
endcase
end
// Update PC register
always @(posedge clk)
begin
if(rst_n == 1) // Xilinx suggest：reset high level effective
begin
pc <= 0;
end
else
begin
pc <= pcSelect;
end
end
endmodule
Control
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2020/11/14 22:30:48
// Design Name:
// Module Name: control_1
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module control_1(
input [5:0] op,
input [5:0] func,
output reg RegWrite,
output reg Sftmd, // indicate the instruction is sll/srl/sra
output reg [3:0] ALUop,
output reg Jrn, // jr instruction
output reg Lui, // lui instruction
output reg RegDst,
output reg ALUSrc,
output reg Zero_sign_ex,
output reg Branch, // beq
output reg nBranch // bne
);
always @(*)
begin
case(op)
6'b000000: R-type
begin
case (func)
6'b100000: // add
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b0000;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b100001: // addu
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b0001;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b100010: // sub
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b0010;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b100011: // subu
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b0011;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b100100: // and
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b0100;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b100101: // or
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b0101;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b100110: // xor
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b0110;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b100111: // nor
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b0111;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b101010: // slt
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b1000;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b101011: // sltu
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b1001;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b000100: // sllv
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b1010;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b000110: // srlv
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b1011;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b000111: // srav
begin
RegWrite <= 1;
Sftmd <= 0;
ALUop <= 4'b1100;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b000000: // sll
begin
RegWrite <= 1;
Sftmd <= 1;
ALUop <= 4'b1010;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b000010: // srl
begin
RegWrite <= 1;
Sftmd <= 1;
ALUop <= 4'b1011;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b000011: // sra
begin
RegWrite <= 1;
Sftmd <= 1;
ALUop <= 4'b1100;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b001000: // jr
begin
RegWrite <= 0;
Sftmd <= 0;
ALUop <= 4'b1111;
Jrn <= 1;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
default:
begin
RegWrite <= 0;
Sftmd <= 0;
ALUop <= 4'b1111;
Jrn <= 0;
Lui <= 0;
RegDst <= 1;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
endcase
end
/*************** I-type ***************/
6'b001000: // addi
begin
ALUop <= 4'b0000;
RegWrite <= 1;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 1;
Zero_sign_ex <= 1;
Branch <= 0;
nBranch <= 0;
end
6'b001001: // addiu
begin
ALUop <= 4'b0001;
RegWrite <= 1;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 1;
Zero_sign_ex <= 1;
Branch <= 0;
nBranch <= 0;
end
6'b001100: // andi
begin
ALUop <= 4'b0100;
RegWrite <= 1;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 1;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b001101: // ori
begin
ALUop <= 4'b0101;
RegWrite <= 1;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 1;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b001110: // xori
begin
ALUop <= 4'b0110;
RegWrite <= 1;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 1;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b001111: // lui note
begin
ALUop <= 4'b1101;
RegWrite <= 1;
Sftmd <= 0;
Jrn <= 0;
Lui <= 1;
RegDst <= 0;
ALUSrc <= 1;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b001010: // slti
begin
ALUop <= 4'b1000;
RegWrite <= 1;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 1;
Zero_sign_ex <= 1;
Branch <= 0;
nBranch <= 0;
end
6'b001011: // sltiu
begin
ALUop <= 4'b1001;
RegWrite <= 1;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 1;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
6'b000100: // beq
begin
ALUop <= 4'b0011;
RegWrite <= 0;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 0;
Zero_sign_ex <= 1;
Branch <= 1;
nBranch <= 0;
end
6'b000101: // bne
begin
ALUop <= 4'b0011;
RegWrite <= 0;
Sftmd <= 0;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 0;
Zero_sign_ex <= 1;
Branch <= 0;
nBranch <= 1;
end
default:
begin
RegWrite <= 0;
Sftmd <= 0;
ALUop <= 4'b1111;
Jrn <= 0;
Lui <= 0;
RegDst <= 0;
ALUSrc <= 0;
Zero_sign_ex <= 0;
Branch <= 0;
nBranch <= 0;
end
endcase
end
endmodule
ALU
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2020/11/14 22:30:23
// Design Name:
// Module Name: ALU_1
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module ALU_1(
// data
input [31:0] A,
input [31:0] B,
input [4:0] shamt,
// control
input [3:0] ALUop,
input Sftmd, // shift instruction control
/*** I-type ***/
input [15:0] imm, // data
// control
input Lui, // 1:lui instruction
input ALUSrc, // 1:imm calculate
input Zero_sign_ex, // 0:zero extension; 1:sign extension
output reg [31:0] ALUresult,
// beq bne
output [31:0] offset,
output zero // ALUresult == 0 => zero = 1;
);
// convert A and B to signed numbers
wire signed [31:0] A_signed = A;
wire signed [31:0] B_signed;
wire signed [31:0] B_signed_origin = B; // for sra instruction
// for shift instructions
// select data: if (Sftmd == 1) input shamt else input rs
wire [31:0] A_or_Shift = (Sftmd == 0) ? A : {27'b0,shamt};
/*** I-type: data select ***/
// immediate data extension and select
wire [31:0] zero_imm_ex = {16'b0,imm};
wire [31:0] sign_imm_ex = (imm[15] == 1)? {16'hffff,imm}: {16'b0,imm}; // NOTE: 16'b1 is incorrect
wire [31:0] imm_input = (Zero_sign_ex == 0)? zero_imm_ex: sign_imm_ex;
// R[rt] or imm extension
wire [31:0] B_select = (ALUSrc == 0)? B: imm_input;
assign B_signed = B_select;
// output: (sign extension)offset << 2
assign offset = imm_input << 2;
/* calculate */
always @(*)
begin
case (ALUop)
4'b0000: // add addi
begin
ALUresult <= A + B_select;
end
4'b0001: // addu addiu
begin
ALUresult <= A + B_select;
end
4'b0010: // sub
begin
ALUresult <= A - B;
end
4'b0011: // subu
begin
ALUresult <= A - B;
// zero <= ((A-B) == 0)? 1: 0; // beq
end
4'b0100: // and andi
begin
ALUresult <= A & B_select;
end
4'b0101: // or ori
begin
ALUresult <= A | B_select;
end
4'b0110: // xor xori
begin
ALUresult <= A ^ B_select;
end
4'b0111: // nor nori
begin
ALUresult <= ~(A | B_select);
end
4'b1000: // slt slti // note:********signed********//
begin
if(A_signed < B_signed)
ALUresult <= 1;
else
ALUresult <= 0;
end
4'b1001: // sltu sltiu
begin
if(A < B_select)
ALUresult <= 1;
else
ALUresult <= 0;
end
4'b1010: // sllv 10 /*** note: not B_select ***/
begin
ALUresult <= B << A_or_Shift; // NOTE: not A << B!
end
4'b1011: // srlv
begin
ALUresult <= B >> A_or_Shift; // NOTE: not A >> B!
end
4'b1100: // srav // note: ******signed*******//
begin
ALUresult <= B_signed_origin >>> A_or_Shift; // NOTE: not A_signed >> B!
end
4'b1101: // lui
begin
ALUresult <= (Lui == 1)? {imm,16'b0}: 0;
end
default:
begin
ALUresult <= 0;
end
endcase
end
assign zero = (ALUresult == 0)? 1: 0;
endmodule
注意ALU的zero信号，就是判断ALUresult是不是0，是的话就是1。
Datapath
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2020/11/27 11:41:34
// Design Name:
// Module Name: datapath_1
// Project Name:
// Target Devices:
// Tool Versions:
// Description: 仅仅实现了几个简单的R类指令的最简单的数据通路，不与外界交互
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module datapath_1(
input clk, // 100MHz
input rst_n,
output [31:0] result // 测试syntheses，没有输出的模块是恐怖的
);
/
/******* clk *******/
/
// cpu_clk Inputs
// reg clk;
// cpu_clk Outputs
wire clk_div; // 20Mhz
cpu_clk u_cpu_clk (
.clk_in1 ( clk ),
.clk_out1 ( clk_div )
);
//
/******** PC ********/
//
// pc_1 Inputs
wire Jrn;
wire [31:0] JrPC;
wire [31:0] offset_in;
wire zero_in;
wire Branch_in;
wire nBranch_in;
// pc_1 Outputs
wire [31:0] pcOld;
pc_1 u_pc_1 (
.clk ( clk_div ),
.rst_n ( rst_n ),
.pcOrigin ( pcOld ),
.JrPC ( JrPC ),
.Jrn ( Jrn ),
.offset ( offset_in ),
.zero ( zero_in ),
.Branch ( Branch_in ),
.nBranch ( nBranch_in ),
.pcOld ( pcOld )
);
///
/******** Instruction ROM ********/
///
// blk_mem_gen_0 Inputs
// wire [13:0] addra = pcOld[15:2];
// blk_mem_gen_0 Outputs // instructions
wire [31:0] instruction;
blk_mem_gen_0 u_blk_mem_gen_0 (
.clka ( clk ),
.addra ( pcOld[15:2] ),
.douta ( instruction )
);
/
/******** Reg Files ********/
/
// reg_files_1 Inputs
wire [31:0] ALUresult;
/// wire [4:0] rA = instruction[25:21];
/// wire [4:0] rB = instruction[20:16];
/// wire [4:0] rW = instruction[15:11];
/// wire [31:0] writeData = ALUresult;
wire RegWrite;
wire RegDst_in;
// reg_files_1 Outputs
wire [31:0] A; // rs
wire [31:0] B; // rt
assign JrPC = A;
reg_files_1 u_reg_files_1 (
.clk ( clk_div ),
.rst_n ( rst_n ),
.rA ( instruction[25:21] ),
.rB ( instruction[20:16] ),
.rW ( instruction[15:11] ),
.writeData ( ALUresult ),
.RegWrite ( RegWrite ),
.RegDst ( RegDst_in ),
.A ( A ),
.B ( B )
);
///
/******** ALU ********/
///
// ALU_1 Inputs
// wire [31:0] A;
// wire [31:0] B;
wire [3:0] ALUop;
wire Sftmd;
wire [15:0] imm = instruction[15:0];
wire Lui_in;
wire ALUSrc_in;
wire Zero_sign_ex_in;
// ALU_1 Outputs
// wire [31:0] ALUresult = writeData; // Note：Error！
wire [31:0] offset;
wire zero;
assign offset_in = offset;
assign zero_in = zero;
ALU_1 u_ALU_1 (
.A ( A ),
.B ( B ),
.shamt ( instruction[10:6]),
.ALUop ( ALUop ),
.Sftmd ( Sftmd ),
/** I-type **/
.imm ( imm ),
.Lui ( Lui_in ),
.ALUSrc ( ALUSrc_in ),
.Zero_sign_ex ( Zero_sign_ex_in ),
.ALUresult ( ALUresult ),
.offset ( offset ),
.zero ( zero )
);
/
/******** controler ********/
/
// control_1 Inputs
// wire [5:0] op = instruction[31:26];
// wire [5:0] func = instruction[5:0];
// control_1 Outputs
// wire RegWrite
// wire [3:0] ALUop;
wire Lui;
wire RegDst;
wire ALUSrc;
wire Zero_sign_ex;
wire Branch;
wire nBranch;
// send to Reg Files
assign RegDst_in = RegDst;
// send to ALU
assign Lui_in = Lui;
assign ALUSrc_in = ALUSrc;
assign Zero_sign_ex_in = Zero_sign_ex;
// send to pc
assign Branch_in = Branch;
assign nBranch_in = nBranch;
control_1 u_control_1 (
.op ( instruction[31:26] ),
.func ( instruction[5:0] ),
.RegWrite ( RegWrite ),
.Sftmd ( Sftmd ),
.ALUop ( ALUop ),
.Jrn ( Jrn ),
// I type
.Lui ( Lui ),
.RegDst ( RegDst ),
.ALUSrc ( ALUSrc ),
.Zero_sign_ex ( Zero_sign_ex ),
// beq bne
.Branch ( Branch ),
.nBranch ( nBranch )
);
assign result = ALUresult;
endmodule
仿真，综合，实现
成功！
还没有开发板下载验证。
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2020/11/27 11:41:34
// Design Name:
// Module Name: datapath_1
// Project Name:
// Target Devices:
// Tool Versions:
// Description: 仅仅实现了几个简单的R类指令的最简单的数据通路，不与外界交互
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module datapath_1(
input clk, // 100MHz
input rst_n,
output [31:0] result // 测试syntheses，没有输出的模块是恐怖的
);
/
/******* clk *******/
/
// cpu_clk Inputs
// reg clk;
// cpu_clk Outputs
wire clk_div; // 20Mhz
cpu_clk u_cpu_clk (
.clk_in1 ( clk ),
.clk_out1 ( clk_div )
);
//
/******** PC ********/
//
// pc_1 Inputs
wire Jrn;
wire [31:0] JrPC;
wire [31:0] offset_in;
wire zero_in;
wire Branch_in;
wire nBranch_in;
// pc_1 Outputs
wire [31:0] pcOld;
pc_1 u_pc_1 (
.clk ( clk_div ),
.rst_n ( rst_n ),
.pcOrigin ( pcOld ),
.JrPC ( JrPC ),
.Jrn ( Jrn ),
.offset ( offset_in ),
.zero ( zero_in ),
.Branch ( Branch_in ),
.nBranch ( nBranch_in ),
.pcOld ( pcOld )
);
///
/******** Instruction ROM ********/
///
// blk_mem_gen_0 Inputs
// wire [13:0] addra = pcOld[15:2];
// blk_mem_gen_0 Outputs // instructions
wire [31:0] instruction;
blk_mem_gen_0 u_blk_mem_gen_0 (
.clka ( clk ),
.addra ( pcOld[15:2] ),
.douta ( instruction )
);
/
/******** Reg Files ********/
/
// reg_files_1 Inputs
wire [31:0] ALUresult;
/// wire [4:0] rA = instruction[25:21];
/// wire [4:0] rB = instruction[20:16];
/// wire [4:0] rW = instruction[15:11];
/// wire [31:0] writeData = ALUresult;
wire RegWrite;
wire RegDst_in;
// reg_files_1 Outputs
wire [31:0] A; // rs
wire [31:0] B; // rt
assign JrPC = A;
reg_files_1 u_reg_files_1 (
.clk ( clk_div ),
.rst_n ( rst_n ),
.rA ( instruction[25:21] ),
.rB ( instruction[20:16] ),
.rW ( instruction[15:11] ),
.writeData ( ALUresult ),
.RegWrite ( RegWrite ),
.RegDst ( RegDst_in ),
.A ( A ),
.B ( B )
);
///
/******** ALU ********/
///
// ALU_1 Inputs
// wire [31:0] A;
// wire [31:0] B;
wire [3:0] ALUop;
wire Sftmd;
wire [15:0] imm = instruction[15:0];
wire Lui_in;
wire ALUSrc_in;
wire Zero_sign_ex_in;
// ALU_1 Outputs
// wire [31:0] ALUresult = writeData; // Note：Error！
wire [31:0] offset;
wire zero;
assign offset_in = offset;
assign zero_in = zero;
ALU_1 u_ALU_1 (
.A ( A ),
.B ( B ),
.shamt ( instruction[10:6]),
.ALUop ( ALUop ),
.Sftmd ( Sftmd ),
/** I-type **/
.imm ( imm ),
.Lui ( Lui_in ),
.ALUSrc ( ALUSrc_in ),
.Zero_sign_ex ( Zero_sign_ex_in ),
.ALUresult ( ALUresult ),
.offset ( offset ),
.zero ( zero )
);
/
/******** controler ********/
/
// control_1 Inputs
// wire [5:0] op = instruction[31:26];
// wire [5:0] func = instruction[5:0];
// control_1 Outputs
// wire RegWrite
// wire [3:0] ALUop;
wire Lui;
wire RegDst;
wire ALUSrc;
wire Zero_sign_ex;
wire Branch;
wire nBranch;
// send to Reg Files
assign RegDst_in = RegDst;
// send to ALU
assign Lui_in = Lui;
assign ALUSrc_in = ALUSrc;
assign Zero_sign_ex_in = Zero_sign_ex;
// send to pc
assign Branch_in = Branch;
assign nBranch_in = nBranch;
control_1 u_control_1 (
.op ( instruction[31:26] ),
.func ( instruction[5:0] ),
.RegWrite ( RegWrite ),
.Sftmd ( Sftmd ),
.ALUop ( ALUop ),
.Jrn ( Jrn ),
// I type
.Lui ( Lui ),
.RegDst ( RegDst ),
.ALUSrc ( ALUSrc ),
.Zero_sign_ex ( Zero_sign_ex ),
// beq bne
.Branch ( Branch ),
.nBranch ( nBranch )
);
assign result = ALUresult;
endmodule
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
