基于遥感影像的随机森林多分类应用示例（python）

1. 数据准备

• 遥感影像

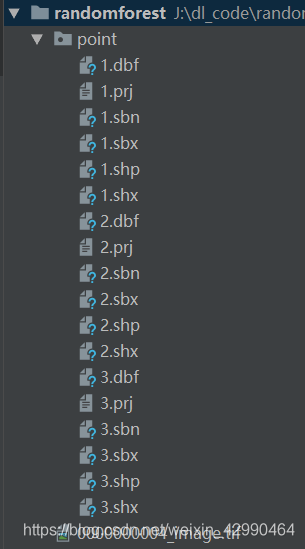

• n个shp文件（n为类别数，其中包括背景类）
  截图如下

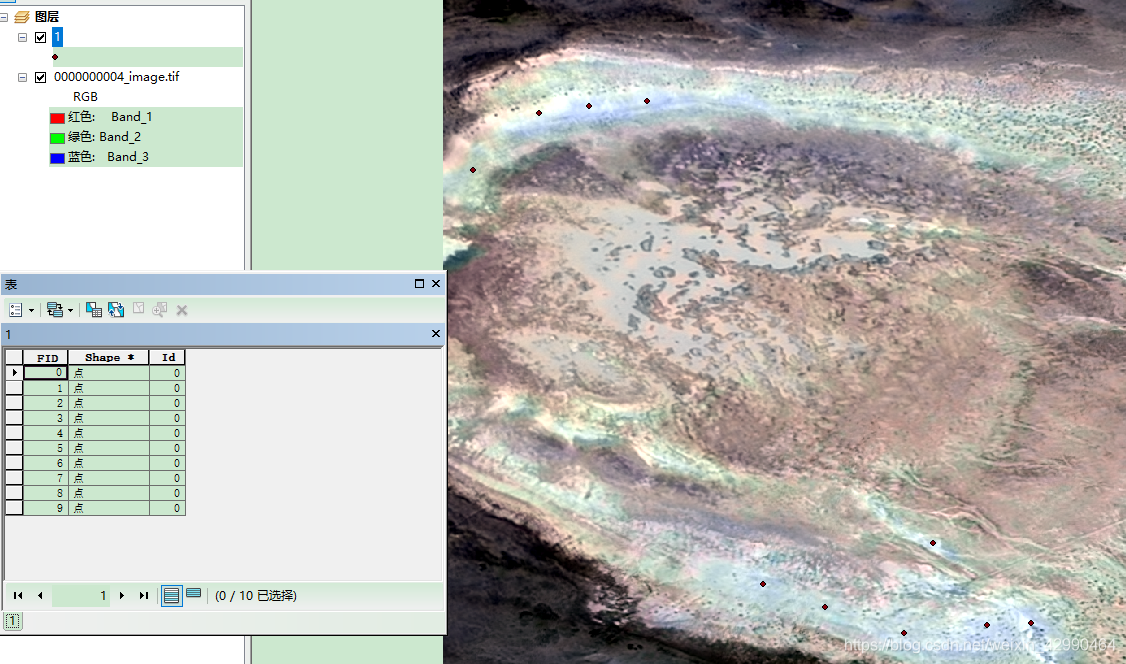

• 点矢量截图


2. 相关代码

# -*- coding: utf-8 -*-
import os, sys, time
import gdal
from osgeo import ogr
from osgeo import gdal
from osgeo import gdal_array as ga
from gdalconst import *
from skimage import morphology, filters
import numpy as np
from numba import jit, vectorize, int64
import warnings
from sklearn.tree import DecisionTreeClassifier
from sklearn.ensemble import RandomForestClassifier, GradientBoostingClassifier, AdaBoostClassifier
from sklearn.ensemble import ExtraTreesClassifier


def read_img(filename):
    dataset = gdal.Open(filename)

    im_width = dataset.RasterXSize
    im_height = dataset.RasterYSize

    im_geotrans = dataset.GetGeoTransform()
    im_proj = dataset.GetProjection()
    im_data = dataset.ReadAsArray(0, 0, im_width, im_height)

    del dataset
    return im_proj, im_geotrans, im_width, im_height, im_data


def write_img(filename, im_proj, im_geotrans, im_data):
    if 'int8' in im_data.dtype.name:
        datatype = gdal.GDT_Byte
    elif 'int16' in im_data.dtype.name:
        datatype = gdal.GDT_UInt16
    else:
        datatype = gdal.GDT_Float32

    if len(im_data.shape) == 3:
        im_bands, im_height, im_width = im_data.shape
    else:
        im_bands, (im_height, im_width) = 1, im_data.shape

    driver = gdal.GetDriverByName("GTiff")
    dataset = driver.Create(filename, im_width, im_height, im_bands, datatype)

    dataset.SetGeoTransform(im_geotrans)
    dataset.SetProjection(im_proj)

    if im_bands == 1:
        dataset.GetRasterBand(1).WriteArray(im_data)
    else:
        for i in range(im_bands):
            dataset.GetRasterBand(i + 1).WriteArray(im_data[i])

    del dataset


def getPixels(shp, img):
    driver = ogr.GetDriverByName('ESRI Shapefile')
    ds = driver.Open(shp, 0)
    if ds is None:
        print('Could not open ' + shp)
        sys.exit(1)

    layer = ds.GetLayer()

    xValues = []
    yValues = []
    feature = layer.GetNextFeature()
    while feature:
        geometry = feature.GetGeometryRef()
        x = geometry.GetX()
        y = geometry.GetY()
        xValues.append(x)
        yValues.append(y)
        feature = layer.GetNextFeature()

    gdal.AllRegister()

    ds = gdal.Open(img, GA_ReadOnly)
    if ds is None:
        print('Could not open image')
        sys.exit(1)

    rows = ds.RasterYSize
    cols = ds.RasterXSize
    bands = ds.RasterCount

    transform = ds.GetGeoTransform()
    xOrigin = transform[0]
    yOrigin = transform[3]
    pixelWidth = transform[1]
    pixelHeight = transform[5]

    values = []
    for i in range(len(xValues)):
        x = xValues[i]
        y = yValues[i]

        xOffset = int((x - xOrigin) / pixelWidth)
        yOffset = int((y - yOrigin) / pixelHeight)

        s = str(int(x)) + ' ' + str(int(y)) + ' ' + str(xOffset) + ' ' + str(yOffset) + ' '

        dt = ds.ReadAsArray(xOffset, yOffset, 1, 1)
        values.append(dt.flatten())
    return values


def array_change(inlist, outlist):
    for i in range(len(inlist[0])):
        outlist.append([j[i] for j in inlist])
    return outlist


def array_change2(inlist, outlist):
    for ele in inlist:
        for ele2 in ele:
            outlist.append(ele2)
    return outlist


def random_test(img_path, point_path, save_path):
    class_list = []
    label_list = []
    count = 0
    for shp in os.listdir(point_path):
        if shp[-4:] == '.shp':
            shp_full_path = os.path.join(point_path, shp)
            class_type = getPixels(shp_full_path, img_path)
            class_list += class_type
            label_list += [count] * len(class_type)
            count += 1

    arr = np.array(class_list)
    label = np.array(label_list)
    im_proj, im_geotrans, im_width, im_height, im_data = read_img(img_path)
    im_data = im_data.transpose((2, 1, 0))
    clf = RandomForestClassifier(n_estimators=100, max_depth=2, random_state=0)
    clf.fit(arr, label)
    img_arr_temp = im_data
    img_reshape = img_arr_temp.reshape([img_arr_temp.shape[0] * img_arr_temp.shape[1], img_arr_temp.shape[2]])
    seg = clf.predict(img_reshape)
    re = seg.reshape((img_arr_temp.shape[0], img_arr_temp.shape[1]))
    re = re.transpose((1, 0))
    write_img(save_path, im_proj, im_geotrans, re)


if __name__ == "__main__":
    img_path = "0000000004_image.tif"
    point_path = "./point/"
    save_path = "test_radom.tif"
    random_test(img_path, point_path, save_path)

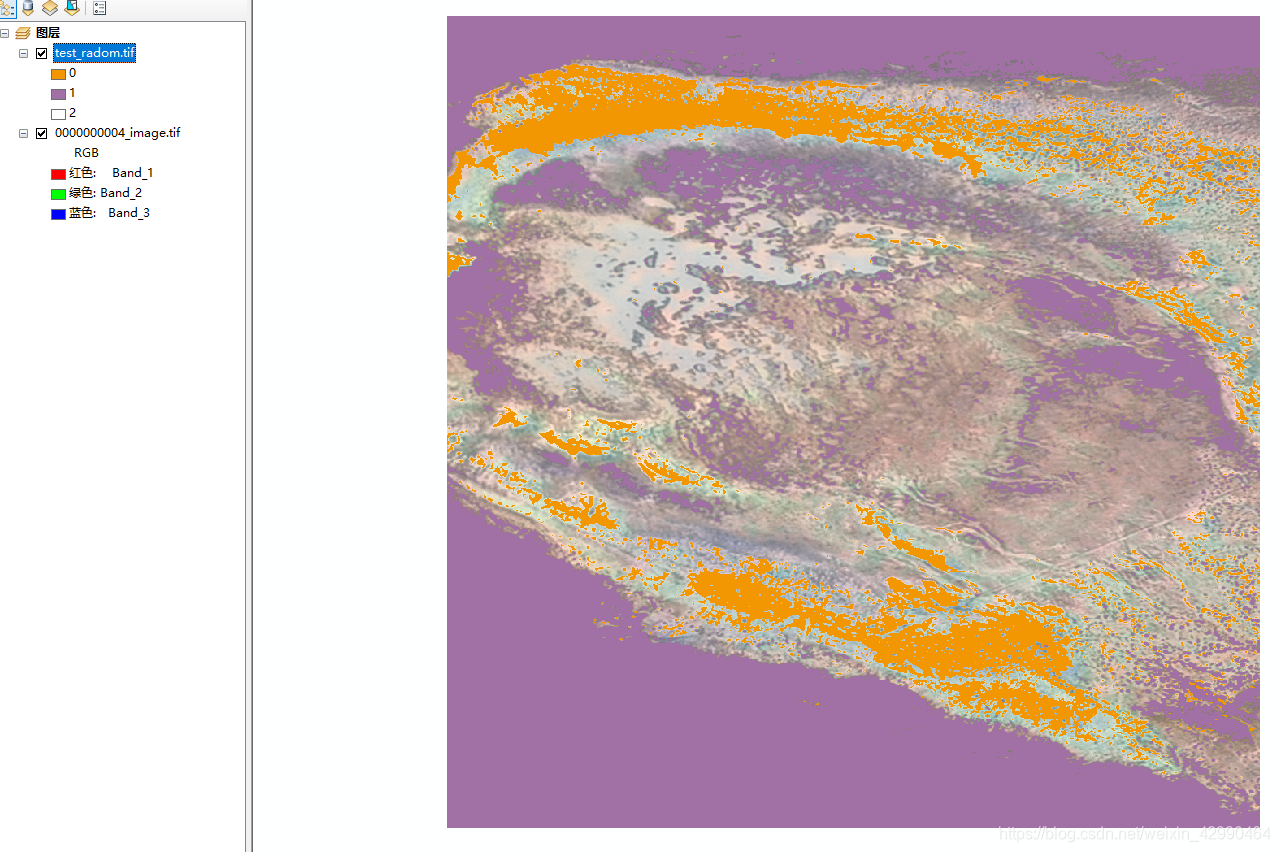

3. 结果展示
