【4】k8s_NameSpace&&Pod

本文介绍了Kubernetes中命名空间的作用,用于资源隔离,并展示了如何通过命令行直接操作Pod,包括创建、查看和描述Pod的详细信息。此外,还提到了通过yaml文件配置Pod以及在Pod中运行多个容器的方法。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

目录

一、NameSpace

二、Pod

【1】命令式对象管理: 直接使用命令去操作kubernetes资源

【2】命令式对象配置: 通过命令配置和配置文件去操作作kubernetes资源

1、写一个ymal文件

2、然后运行yaml文件(提前创建好了命名空间string)

3、用bashboard创建pod

4、一个pod里面运行多个容器


一、NameSpace

  • 命名空间,用来对集群资源进行隔离划分。默认只隔离资源,不隔离网络
[root@master ~]# kubectl create ns dev
namespace/dev created
[root@master ~]#  kubectl get ns
NAME                   STATUS   AGE
default                Active   23h
dev                    Active   6s
kube-node-lease        Active   23h
kube-public            Active   23h
kube-system            Active   23h
kubernetes-dashboard   Active   77m

二、Pod

  • 运行中的一组容器,Pod是kuberneres中应用的最小单位

【1】命令式对象管理: 直接使用命令去操作kubernetes资源

[root@master ~]# kubectl get pod -A
NAMESPACE              NAME                                         READY   STATUS    RESTARTS   AGE
kube-system            calico-kube-controllers-56c7cdffc6-trxkj     1/1     Running   1          23h
kube-system            calico-node-8zsdw                            1/1     Running   1          22h
kube-system            calico-node-khp6k                            1/1     Running   1          22h
kube-system            calico-node-vkqhc                            1/1     Running   1          23h
kube-system            coredns-7f89b7bc75-65jnr                     1/1     Running   1          23h
kube-system            coredns-7f89b7bc75-lrtqq                     1/1     Running   1          23h
kube-system            etcd-master                                  1/1     Running   1          23h
kube-system            kube-apiserver-master                        1/1     Running   1          23h
kube-system            kube-controller-manager-master               1/1     Running   1          23h
kube-system            kube-proxy-9k8ps                             1/1     Running   1          23h
kube-system            kube-proxy-nvzmj                             1/1     Running   1          22h
kube-system            kube-proxy-zph7s                             1/1     Running   1          22h
kube-system            kube-scheduler-master                        1/1     Running   1          23h
kubernetes-dashboard   dashboard-metrics-scraper-79c5968bdc-l4fjp   1/1     Running   0          70m
kubernetes-dashboard   kubernetes-dashboard-658485d5c7-dj8qn        1/1     Running   0          70m
[root@master ~]# kubectl run mynginx --image=nginx
pod/mynginx created
[root@master ~]# kubectl get pod
NAME      READY   STATUS              RESTARTS   AGE
mynginx   0/1     ContainerCreating   0          10s
[root@master ~]# kubectl describe pod mynginx
Name:         mynginx
Namespace:    default
Priority:     0
Node:         node02/172.31.0.2
Start Time:   Fri, 06 Jan 2023 23:27:42 +0800
Labels:       run=mynginx
Annotations:  cni.projectcalico.org/containerID: 2eec547318e2d978dfbbf589915cd684fbd2f8450609583cfe20e43c3d5e39df
              cni.projectcalico.org/podIP: 192.168.140.71/32
              cni.projectcalico.org/podIPs: 192.168.140.71/32
Status:       Running
IP:           192.168.140.71
IPs:
  IP:  192.168.140.71
Containers:
  mynginx:
    Container ID:   docker://8f0e73fc980847280fe363558dd6dbae3fd1f803a3823a982208e32d87827f8b
    Image:          nginx
    Image ID:       docker-pullable://nginx@sha256:0d17b565c37bcbd895e9d92315a05c1c3c9a29f762b011a10c54a66cd53c9b31
    Port:           <none>
    Host Port:      <none>
    State:          Running
      Started:      Fri, 06 Jan 2023 23:28:52 +0800
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from default-token-dcw8j (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  default-token-dcw8j:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  default-token-dcw8j
    Optional:    false
QoS Class:       BestEffort
Node-Selectors:  <none>
Tolerations:     node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                 node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  86s   default-scheduler  Successfully assigned default/mynginx to node02
  Normal  Pulling    85s   kubelet            Pulling image "nginx"
  Normal  Pulled     20s   kubelet            Successfully pulled image "nginx" in 1m5.956007089s
  Normal  Created    16s   kubelet            Created container mynginx
  Normal  Started    16s   kubelet            Started container mynginx

进入pod

[root@master ~]# kubectl exec -it mynginx -- /bin/bash
root@mynginx:/# ls
bin   dev           docker-entrypoint.sh  home  lib64  mnt  proc  run   srv  tmp  var
boot  docker-entrypoint.d  etc             lib   media  opt  root  sbin  sys  usr

查看log 加上f表示实时查看

[root@master ~]# kubectl logs mynginx
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: info: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: info: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Launching /docker-entrypoint.d/30-tune-worker-processes.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
2023/01/09 09:25:47 [notice] 1#1: using the "epoll" event method
2023/01/09 09:25:47 [notice] 1#1: nginx/1.21.5
2023/01/09 09:25:47 [notice] 1#1: built by gcc 10.2.1 20210110 (Debian 10.2.1-6)
2023/01/09 09:25:47 [notice] 1#1: OS: Linux 3.10.0-1127.el7.x86_64
2023/01/09 09:25:47 [notice] 1#1: getrlimit(RLIMIT_NOFILE): 1048576:1048576
2023/01/09 09:25:47 [notice] 1#1: start worker processes
2023/01/09 09:25:47 [notice] 1#1: start worker process 32
2023/01/09 09:25:47 [notice] 1#1: start worker process 33
192.168.219.64 - - [09/Jan/2023:09:33:45 +0000] "GET / HTTP/1.1" 200

【2】命令式对象配置: 通过命令配置和配置文件去操作作kubernetes资源

1、写一个ymal文件

apiVersion: v1          # API版本号,注意:具有多个,不同的对象可能会使用不同API
kind: Pod               # 对象类型,pod
metadata:               # 元数据
  name: mynginx         # POD名称

spec:                   # specification of the resource content(资源内容的规范)
  containers:           # 容器列表
    - name: mynginx     # 容器名称
      image: nginx      # 容器镜像


2、然后运行yaml文件(提前创建好了命名空间string)

[root@master ~]# vi pod.yaml
[root@master ~]# kubectl apply -f pod.yaml
pod/mynginx created
[root@master ~]# kubectl get pod -n string
NAME      READY   STATUS             RESTARTS   AGE
mynginx   1/1     Running            0          27s

[root@master ~]# kubectl describe pod mynginx -n string
Name:         mynginx
Namespace:    string
Priority:     0
Node:         node02/172.31.0.2
Start Time:   Mon, 09 Jan 2023 17:10:22 +0800
Labels:       <none>
Annotations:  cni.projectcalico.org/containerID: 5a1eefb7be0f61fc7cceca2c8bfe67e72fe104db89a13b9f58921804278a2904
              cni.projectcalico.org/podIP: 192.168.140.74/32
              cni.projectcalico.org/podIPs: 192.168.140.74/32
Status:       Running
IP:           192.168.140.74
IPs:
  IP:  192.168.140.74
Containers:
  mynginx:
    Container ID:   docker://613b31a4f4736788af136f9187bf78d64ac0f6e0b3960a34087ed481ebed7847
    Image:          nginx
    Image ID:       docker-pullable://nginx@sha256:0d17b565c37bcbd895e9d92315a05c1c3c9a29f762b011a10c54a66cd53c9b31
    Port:           <none>
    Host Port:      <none>
    State:          Running
      Started:      Mon, 09 Jan 2023 17:10:23 +0800
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from default-token-tv5f7 (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  default-token-tv5f7:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  default-token-tv5f7
    Optional:    false
QoS Class:       BestEffort
Node-Selectors:  <none>
Tolerations:     node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                 node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  52s   default-scheduler  Successfully assigned string/mynginx to node02
  Normal  Pulling    51s   kubelet            Pulling image "nginx"
  Normal  Pulled     51s   kubelet            Successfully pulled image "nginx" in 429.471972ms
  Normal  Created    51s   kubelet            Created container mynginx
  Normal  Started    51s   kubelet            Started container mynginx
[root@master ~]# kubectl delete -f pod2.yaml
pod "mynginx" deleted

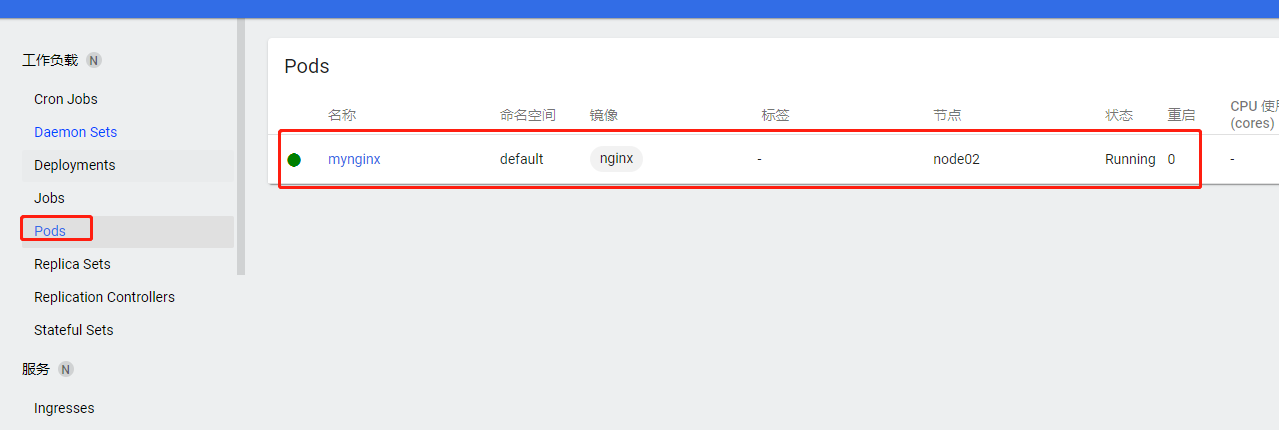

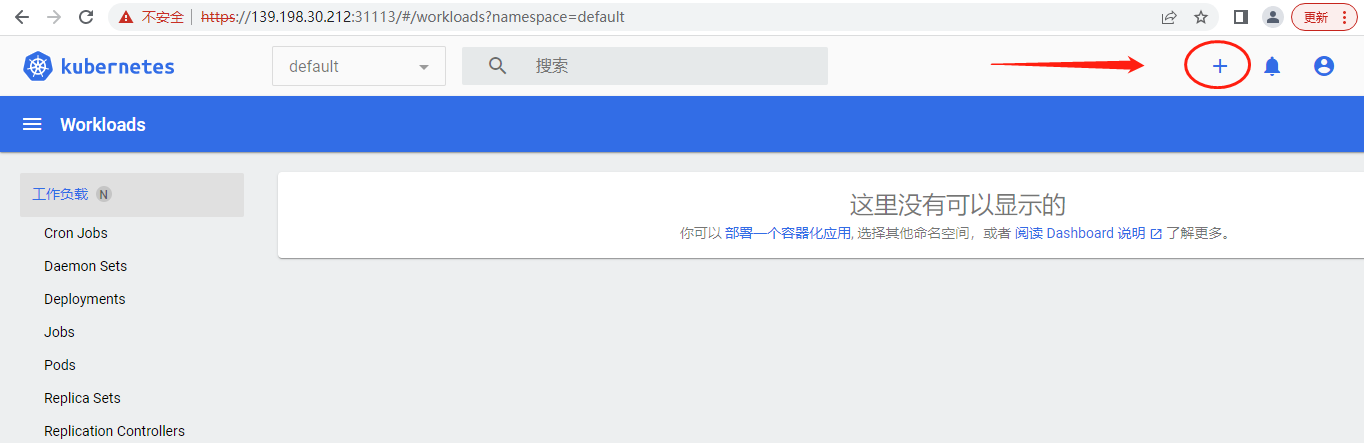

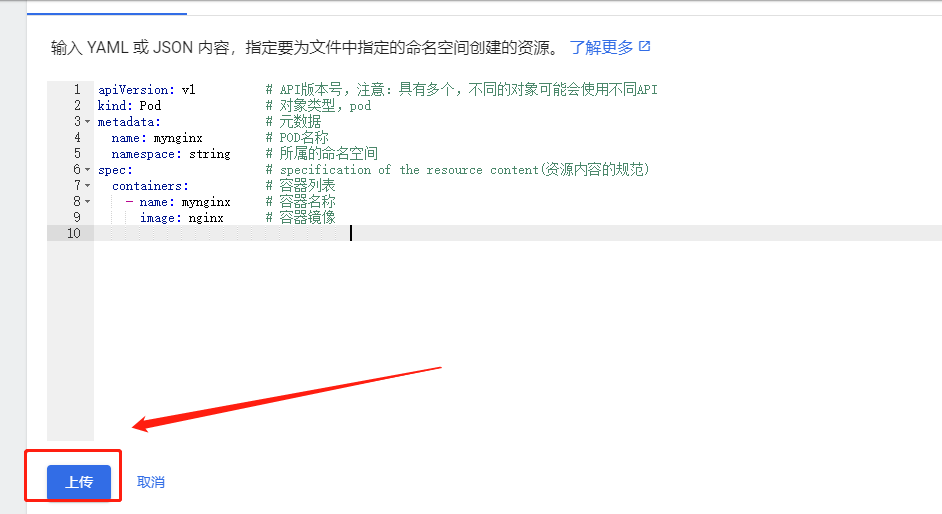

3、用bashboard创建pod

4、一个pod里面运行多个容器

先创建一个yaml

apiVersion: v1          # API版本号,注意:具有多个,不同的对象可能会使用不同API
kind: Pod               # 对象类型,pod
metadata:               # 元数据
  name: mynginx         # POD名称
  namespace: string     # 所属的命名空间
spec:                   # specification of the resource content(资源内容的规范)
  containers:           # 容器列表
    - name: mynginx     # 容器名称
      image: nginx      # 容器镜像

    - name: mytomcat
      image: tomcat

运行容器

[root@master ~]# kubectl apply -f pod.yaml
pod/mynginx created
[root@master ~]# kubectl get pod -n string
NAME      READY   STATUS              RESTARTS   AGE
mynginx   0/2     ContainerCreating   0          23s
[root@master ~]# kubectl get pod -n string -o wide
NAME      READY   STATUS              RESTARTS   AGE   IP       NODE     NOMINATED NODE   READINESS GATES
mynginx   0/2     ContainerCreating   0          33s   <none>   node01   <none>           <none>
[root@master ~]# kubectl get pod mynginx -n string -o wide
NAME      READY   STATUS    RESTARTS   AGE     IP                NODE     NOMINATED NODE   READINESS GATES
mynginx   2/2     Running   0          7m40s   192.168.196.139   node01   <none>           <none>

进入容器查看

[root@master ~]# kubectl exec -it mynginx -n string -- /bin/bash
Defaulting container name to mynginx.
Use 'kubectl describe pod/mynginx -n string' to see all of the containers in this pod.


root@mynginx:/# curl 127.0.0.1
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>
root@mynginx:/# curl 127.0.0.1:8080
<!doctype html><html lang="en"><head><title>HTTP Status 404 – Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 – Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat/10.0.14</h3></body></html>root@mynginx:/#

!!注意在一个pod里不能有多个应用都用同一个端口
