swagger python集成 flask篇

不同于fastapi flask等老框架没有集成swagger需要第三方辅助, 现在列出两个常用的辅助库
提醒自己
系统学习，少看别人博客直接入手官方文档可以少走弯路
系统学习，少看别人博客直接入手官方文档可以少走弯路
系统学习，少看别人博客直接入手官方文档可以少走弯路

flasgger

• 官方文档
• 完整示例

  from flask import Flask, jsonify
  from flasgger import Swagger

  app = Flask(__name__)

  template = {
      "swagger": "2.0",
      "info": {
          "title": "My API",
          "description": "API for my data",
          "contact": {
              "responsibleOrganization": "ME",
              "responsibleDeveloper": "Me",
              "email": "me@me.com",
              "url": "www.me.com",
          },
          "termsOfService": "http://me.com/terms",
          "version": "V2"
      },
      "host": "127.0.0.1:8686",  # overrides localhost:500
      "basePath": "/",  # base bash for blueprint registration
      "schemes": [
          "http",
          "https"
      ],
      "operationId": "getmyData",
      "paths": {
          "/colors/{palette}/": {
              "get": {
                  "tags": [
                      "colors"
                  ],
                  "summary": "Add a new pet to the store",
                  "description": "api test",
                  "operationId": "addPet",
                  "consumes": [
                      "application/json",
                      "application/xml"
                  ],

                  "parameters": [
                      {
                          "name": "palette",
                          "in": "path",
                          "type": "string",
                          "description": "palette all/cmyk/rgb",
                          "required": True,
                      },
                      {
                          "name": "tag",
                          "in": "query",
                          "type": "string",
                          "description": "palette all/cmyk/rgb",
                          "required": True,
                      }

                  ],
                  "responses": {
                      "405": {
                          "description": "Invalid input"
                      }
                  },
                  "security": [
                      {
                          "petstore_auth": [
                              "write:pets",
                              "read:pets"
                          ]
                      }
                  ]
              }}}
  }

  swagger = Swagger(app, template=template)


  @app.route('/colors/<string:palette>/')
  def colors(palette):
      all_colors = {
          'cmyk': ['cyan', 'magenta', 'yellow', 'black'],
          'rgb': ['red', 'green', 'blue']
      }
      print "palette:", palette
      if palette == 'all':
          result = all_colors
      else:
          result = {palette: all_colors.get(palette)}

      return jsonify(result)


  app.run(debug=True)



  1. 其中 template 部分可以提配成 json或者 yaml 通过 Swagger 函数的 template_file 参数进行传参;
  2. 详细的配置在 Swagger 官网中非常详细; Swagger官网
  3. 我建议这样配置还有其他方式的配置, 请移步 本节开头的官网

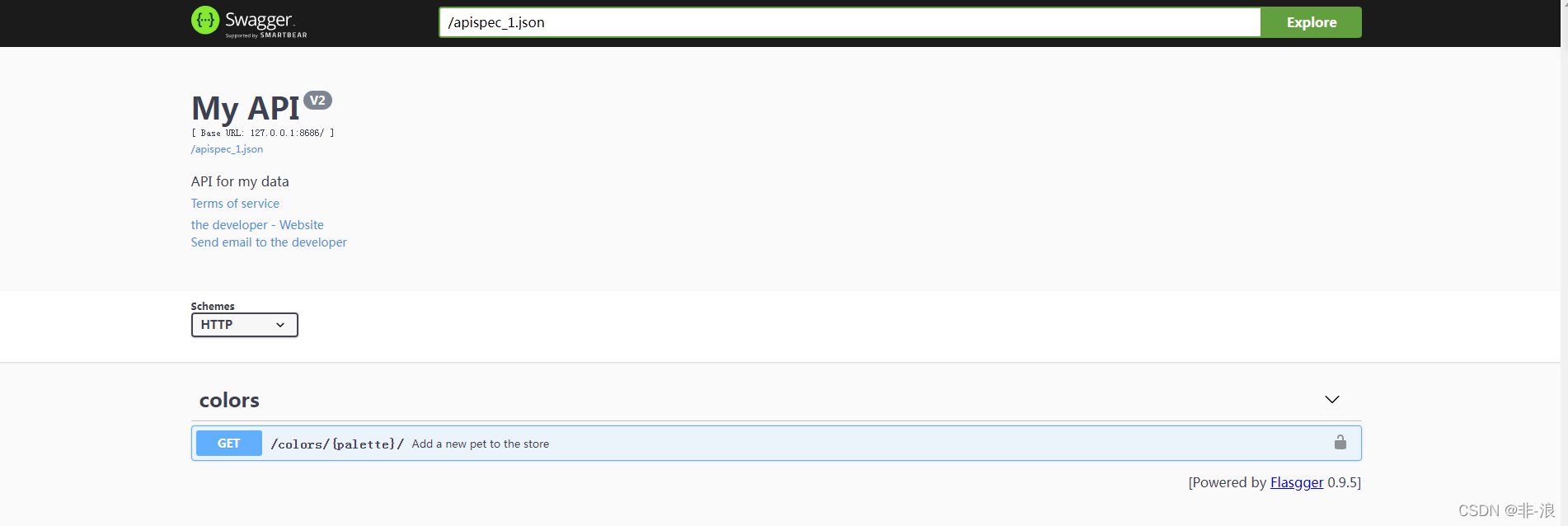

• 运行后访问: http://127.0.0.1:5000/apidocs
• 截图


flask-restplus

• 官方文档
• 完整示例

  from flask import Flask
  from flask_restplus import Api, Resource, fields
  from werkzeug.contrib.fixers import ProxyFix

  app = Flask(__name__)
  app.wsgi_app = ProxyFix(app.wsgi_app)
  api = Api(app, version='1.0', title='TodoMVC API',
      description='A simple TodoMVC API',
  )

  ns = api.namespace('todosssss', description='TODO operations')

  todo = api.model('Todo', {
      'id': fields.Integer(readonly=True, description='The task unique identifier'),
      'task': fields.String(required=True, description='The task details')
  })


  class TodoDAO(object):
      def __init__(self):
          self.counter = 0
          self.todos = []

      def get(self, id):
          for todo in self.todos:
              if todo['id'] == id:
                  return todo
          api.abort(404, "Todo {} doesn't exist".format(id))

      def create(self, data):
          todo = data
          todo['id'] = self.counter = self.counter + 1
          self.todos.append(todo)
          return todo

      def update(self, id, data):
          todo = self.get(id)
          todo.update(data)
          return todo

      def delete(self, id):
          todo = self.get(id)
          self.todos.remove(todo)


  DAO = TodoDAO()
  DAO.create({'task': 'Build an API'})
  DAO.create({'task': '?????'})
  DAO.create({'task': 'profit!'})


  @ns.route('/')
  class TodoList(Resource):
      '''Shows a list of all todos, and lets you POST to add new tasks'''
      @ns.doc('list_todos')
      @ns.marshal_list_with(todo)
      def get(self):
          '''List all tasks'''
          return DAO.todos

      @ns.doc('create_todo')
      @ns.expect(todo)
      @ns.marshal_with(todo, code=201)
      def post(self):
          '''Create a new task'''
          return DAO.create(api.payload), 201


  @ns.route('/<int:id>')
  @ns.response(404, 'Todo not found')
  @ns.param('id', 'The task identifier')
  class Todo(Resource):
      '''Show a single todo item and lets you delete them'''
      @ns.doc('get_todo')
      @ns.marshal_with(todo)
      def get(self, id):
          '''Fetch a given resource'''
          return DAO.get(id)

      @ns.doc('delete_todo')
      @ns.response(204, 'Todo deleted')
      def delete(self, id):
          '''Delete a task given its identifier'''
          DAO.delete(id)
          return '', 204

      @ns.expect(todo)
      @ns.marshal_with(todo)
      def put(self, id):
          '''Update a task given its identifier'''
          return DAO.update(id, api.payload)


  if __name__ == '__main__':
      app.run(debug=True)

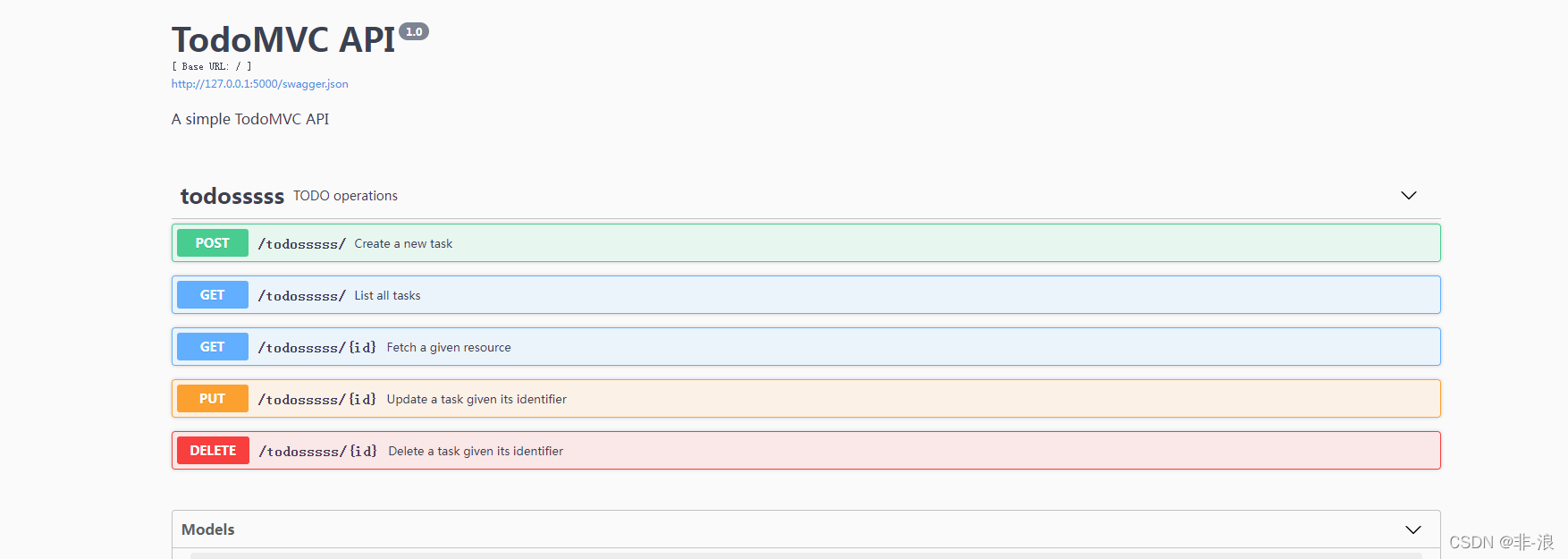

• 运行后访问: http://127.0.0.1:5000/
• 截图


Swagger如何编写配置文件

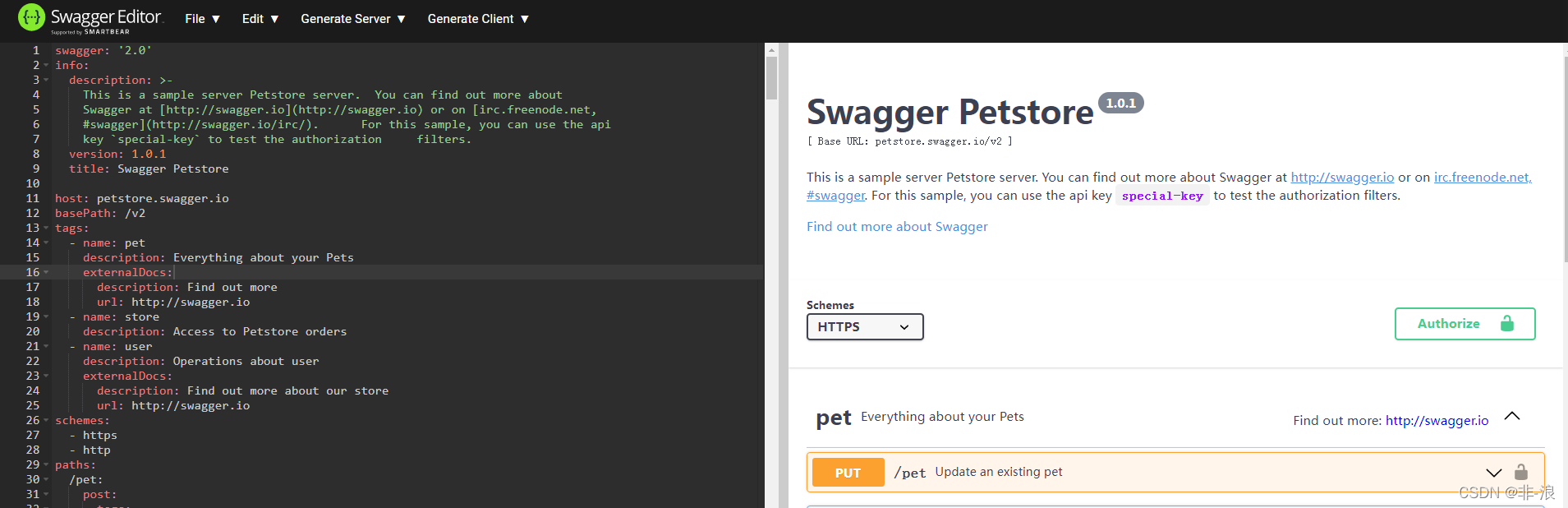

• 可以去官方提供的Editor里去边看官方文档边改出自己项目的配置，地址如下
• Swagger Editor
• 截图
