一、优化
1.1 扩展序列化算法
序列化，反序列化主要用在消息正文的转换上
- 序列化时，需要将 Java 对象变为要传输的数据（可以是 byte[]，或 json 等，最终都需要变成 byte[]）
- 反序列化时，需要将传入的正文数据还原成 Java 对象，便于处理
消息编解码器 MessageCodeSharable 原序列化和反序列化机制
// 反序列化
byte[] body = new byte[bodyLength];
byteByf.readBytes(body);
ObjectInputStream in = new ObjectInputStream(new ByteArrayInputStream(body));
Message message = (Message) in.readObject();
message.setSequenceId(sequenceId);
// 序列化
ByteArrayOutputStream out = new ByteArrayOutputStream();
new ObjectOutputStream(out).writeObject(message);
byte[] bytes = out.toByteArray();
为了支持更多序列化算法，抽象一个 Serializer 接口
public interface Serializer {
//反序列化
<T> T deserializer(Class<T> clazz,byte[] bytes);
//序列化
<T> byte[] serializer(T object);
enum SerializerAlgorithm implements Serializer{
Java{
@Override
public <T> T deserializer(Class<T> clazz, byte[] bytes) {
try {
ObjectInputStream ois=new ObjectInputStream(new ByteArrayInputStream(bytes));
return (T) ois.readObject();
} catch (IOException | ClassNotFoundException e) {
throw new RuntimeException("反序列化失败！",e);
}
}
@Override
public <T> byte[] serializer(T object) {
try {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos=new ObjectOutputStream(baos);
oos.writeObject(object);
return baos.toByteArray();
} catch (IOException e) {
throw new RuntimeException("序列化失败！",e);
}
}
},
Json{
@Override
public <T> T deserializer(Class<T> clazz, byte[] bytes) {
return new Gson().fromJson(new String(bytes, StandardCharsets.UTF_8),clazz);
}
@Override
public <T> byte[] serializer(T object) {
return new Gson().toJson(object).getBytes(StandardCharsets.UTF_8);
}
}
// 需要从协议的字节中得到是哪种序列化算法
public static SerializerAlgorithm getByInt(int type) {
SerializerAlgorithm[] array = SerializerAlgorithm.values();
if (type < 0 || type > array.length - 1) {
throw new IllegalArgumentException("超过 SerializerAlgorithm 范围");
}
return array[type];
}
}
}
增加配置类和配置文件
public abstract class Config {
static Properties properties;
static {
try (InputStream in = Config.class.getResourceAsStream("/application.properties")) {
properties = new Properties();
properties.load(in);
} catch (IOException e) {
throw new ExceptionInInitializerError(e);
}
}
public static int getServerPort() {
String value = properties.getProperty("server.port");
if(value == null) {
return 8080;
} else {
return Integer.parseInt(value);
}
}
//获取配置文件中配置的序列化算法
public static Serializer.SerializerAlgorithm getSerializerAlgorithm() {
String value = properties.getProperty("serializer.algorithm");
if(value == null) {
return Serializer.SerializerAlgorithm.Java;
} else {
return Serializer.SerializerAlgorithm.valueOf(value);
}
}
}
配置文件：application.properties
serializer.algorithm=Json
修改编解码器
/**
* 必须和 LengthFieldBasedFrameDecoder 一起使用，确保接到的 ByteBuf 消息是完整的
*/
@Slf4j
@ChannelHandler.Sharable
public class MessageCodeSharable extends MessageToMessageCodec<ByteBuf, Message> {
@Override
protected void encode(ChannelHandlerContext ctx, Message msg, List<Object> list) throws Exception {
ByteBuf byteBuf = ctx.alloc().buffer();
//1.魔数：4个字节
byteBuf.writeBytes(new byte[]{1,2,3,4});
//2.版本号：1个字节
byteBuf.writeByte(1);
//3.序列化算法：1个字节，0 jdk ，1 json
//获取配置文件中指定序的列化算法在序列化枚举数组中的索引下标
byteBuf.writeByte(Config.getSerializerAlgorithm().ordinal());
//4.消息类型：1个字节，由消息本身决定
byteBuf.writeByte(msg.getMessageType());
//5.请求序号：4个字节，由消息本身自带
byteBuf.writeInt(msg.getSequenceId());
byteBuf.writeByte(-1); //填充：无意义字节
//使用指定的序列化算法转换正文内容
byte[] bytes = Config.getSerializerAlgorithm().serializer(msg);
//6.正文长度：4个字节
byteBuf.writeInt(bytes.length);
//7.消息正文：
byteBuf.writeBytes(bytes);
list.add(byteBuf);
}
@Override
protected void decode(ChannelHandlerContext channelHandlerContext, ByteBuf byteBuf, List<Object> list) throws Exception {
//1.魔数：4个字节
int magicNum = byteBuf.readInt();
//2.版本号：1个字节
byte version=byteBuf.readByte();
//3.序列化算法：0 jdk ，1 json
byte serializerType=byteBuf.readByte();
//4.指令类型：由消息本身决定
byte messageType=byteBuf.readByte();
//5.请求序号：由消息本身自带
int sequenceId=byteBuf.readInt();
byteBuf.readByte();
//6.正文长度
int length=byteBuf.readInt();
//7.消息正文
byte[] bytes=new byte[length];
byteBuf.readBytes(bytes,0,length);
//获取序列化算法
Serializer.SerializerAlgorithm serializerAlgorithm = Config.getSerializerAlgorithm();
//通过获取 Message 实现类对象
Class<? extends Message> messageClass = Message.getMessageClass(messageType);
//通过指定的算法将字节数组转换为 对应的Message实现类 对象
Object message = Config.getSerializerAlgorithm().deserializer(messageClass, bytes);
log.debug("{}, {}, {}, {}, {}, {}", magicNum, version, serializerType, messageType, sequenceId, length);
log.debug("{}", message);
list.add(message);
}
}
消息实现类的获取
@Data
public abstract class Message implements Serializable {
/**
* 根据消息类型字节，获得对应的消息 class
* @param messageType 消息类型字节
* @return 消息 class
*/
public static Class<? extends Message> getMessageClass(int messageType) {
return messageClasses.get(messageType);
}
private int sequenceId;
private int messageType;
public abstract int getMessageType();
public static final int LoginRequestMessage = 0;
public static final int LoginResponseMessage = 1;
public static final int ChatRequestMessage = 2;
public static final int ChatResponseMessage = 3;
public static final int GroupCreateRequestMessage = 4;
public static final int GroupCreateResponseMessage = 5;
public static final int GroupJoinRequestMessage = 6;
public static final int GroupJoinResponseMessage = 7;
public static final int GroupQuitRequestMessage = 8;
public static final int GroupQuitResponseMessage = 9;
public static final int GroupChatRequestMessage = 10;
public static final int GroupChatResponseMessage = 11;
public static final int GroupMembersRequestMessage = 12;
public static final int GroupMembersResponseMessage = 13;
public static final int PingMessage = 14;
public static final int PongMessage = 15;
/**
* 请求类型 byte 值
*/
public static final int RPC_MESSAGE_TYPE_REQUEST = 101;
/**
* 响应类型 byte 值
*/
public static final int RPC_MESSAGE_TYPE_RESPONSE = 102;
private static final Map<Integer, Class<? extends Message>> messageClasses = new HashMap<>();
static {
messageClasses.put(LoginRequestMessage, LoginRequestMessage.class);
messageClasses.put(LoginResponseMessage, LoginResponseMessage.class);
messageClasses.put(ChatRequestMessage, ChatRequestMessage.class);
messageClasses.put(ChatResponseMessage, ChatResponseMessage.class);
messageClasses.put(GroupCreateRequestMessage, GroupCreateRequestMessage.class);
messageClasses.put(GroupCreateResponseMessage, GroupCreateResponseMessage.class);
messageClasses.put(GroupJoinRequestMessage, GroupJoinRequestMessage.class);
messageClasses.put(GroupJoinResponseMessage, GroupJoinResponseMessage.class);
messageClasses.put(GroupQuitRequestMessage, GroupQuitRequestMessage.class);
messageClasses.put(GroupQuitResponseMessage, GroupQuitResponseMessage.class);
messageClasses.put(GroupChatRequestMessage, GroupChatRequestMessage.class);
messageClasses.put(GroupChatResponseMessage, GroupChatResponseMessage.class);
messageClasses.put(GroupMembersRequestMessage, GroupMembersRequestMessage.class);
messageClasses.put(GroupMembersResponseMessage, GroupMembersResponseMessage.class);
messageClasses.put(RPC_MESSAGE_TYPE_REQUEST, RpcRequestMessage.class);
messageClasses.put(RPC_MESSAGE_TYPE_RESPONSE, RpcResponseMessage.class);
}
}
测试
/**
* 出站
*/
@Test
public void test(){
LoggingHandler LOGGING = new LoggingHandler();
MessageCodeSharable CODEC = new MessageCodeSharable();
EmbeddedChannel channel=new EmbeddedChannel(LOGGING,CODEC,LOGGING);
channel.writeOutbound(new ChatRequestMessage("zhangsan","lisi","Hello"));
}
-
Java
10:14:09 [DEBUG] [main] i.n.h.l.LoggingHandler : [id: 0xembedded, L:embedded - R:embedded] WRITE: ChatRequestMessage(super=Message(sequenceId=0, messageType=2), content=Hello, to=lisi, from=zhangsan) 10:14:09 [DEBUG] [main] i.n.h.l.LoggingHandler : [id: 0xembedded, L:embedded - R:embedded] WRITE: 259B +-------------------------------------------------+ | 0 1 2 3 4 5 6 7 8 9 a b c d e f | +--------+-------------------------------------------------+----------------+ |00000000| 01 02 03 04 01 00 02 00 00 00 00 ff 00 00 00 f3 |................| |00000010| ac ed 00 05 73 72 00 34 6f 72 67 2e 65 78 61 6d |....sr.4org.exam| |00000020| 70 6c 65 2e 6a 61 76 61 2e 63 68 61 74 52 6f 6f |ple.java.chatRoo| |00000030| 6d 2e 6d 65 73 73 61 67 65 2e 43 68 61 74 52 65 |m.message.ChatRe| |00000040| 71 75 65 73 74 4d 65 73 73 61 67 65 78 13 15 e1 |questMessagex...| |00000050| fe 0b 6d 55 02 00 03 4c 00 07 63 6f 6e 74 65 6e |..mU...L..conten| |00000060| 74 74 00 12 4c 6a 61 76 61 2f 6c 61 6e 67 2f 53 |tt..Ljava/lang/S| |00000070| 74 72 69 6e 67 3b 4c 00 04 66 72 6f 6d 71 00 7e |tring;L..fromq.~| |00000080| 00 01 4c 00 02 74 6f 71 00 7e 00 01 78 72 00 29 |..L..toq.~..xr.)| |00000090| 6f 72 67 2e 65 78 61 6d 70 6c 65 2e 6a 61 76 61 |org.example.java| |000000a0| 2e 63 68 61 74 52 6f 6f 6d 2e 6d 65 73 73 61 67 |.chatRoom.messag| |000000b0| 65 2e 4d 65 73 73 61 67 65 06 07 90 d6 50 f8 11 |e.Message....P..| |000000c0| fa 02 00 02 49 00 0b 6d 65 73 73 61 67 65 54 79 |....I..messageTy| |000000d0| 70 65 49 00 0a 73 65 71 75 65 6e 63 65 49 64 78 |peI..sequenceIdx| |000000e0| 70 00 00 00 00 00 00 00 00 74 00 05 48 65 6c 6c |p........t..Hell| |000000f0| 6f 74 00 08 7a 68 61 6e 67 73 61 6e 74 00 04 6c |ot..zhangsant..l| |00000100| 69 73 69 |isi | +--------+-------------------------------------------------+----------------+ -
Json
10:15:17 [DEBUG] [main] i.n.h.l.LoggingHandler : [id: 0xembedded, L:embedded - R:embedded] WRITE: ChatRequestMessage(super=Message(sequenceId=0, messageType=2), content=Hello, to=lisi, from=zhangsan) 10:15:18 [DEBUG] [main] i.n.h.l.LoggingHandler : [id: 0xembedded, L:embedded - R:embedded] WRITE: 96B +-------------------------------------------------+ | 0 1 2 3 4 5 6 7 8 9 a b c d e f | +--------+-------------------------------------------------+----------------+ |00000000| 01 02 03 04 01 01 02 00 00 00 00 ff 00 00 00 50 |...............P| |00000010| 7b 22 63 6f 6e 74 65 6e 74 22 3a 22 48 65 6c 6c |{"content":"Hell| |00000020| 6f 22 2c 22 74 6f 22 3a 22 6c 69 73 69 22 2c 22 |o","to":"lisi","| |00000030| 66 72 6f 6d 22 3a 22 7a 68 61 6e 67 73 61 6e 22 |from":"zhangsan"| |00000040| 2c 22 73 65 71 75 65 6e 63 65 49 64 22 3a 30 2c |,"sequenceId":0,| |00000050| 22 6d 65 73 73 61 67 65 54 79 70 65 22 3a 30 7d |"messageType":0}| +--------+-------------------------------------------------+----------------+
1.2 参数调优
1）CONNECT_TIMEOUT_MILLIS
-
属于 SocketChannal 参数
-
用在客户端建立连接时，如果在指定毫秒内无法连接，会抛出 timeout 异常
-
SO_TIMEOUT 主要用在阻塞 IO，阻塞 IO 中 accept，read 等都是无限等待的，如果不希望永远阻塞，使用它调整超时时间
@Slf4j
public class TestConnectionTimeout {
public static void main(String[] args) {
NioEventLoopGroup group = new NioEventLoopGroup();
try {
Bootstrap bootstrap = new Bootstrap()
.group(group)
.option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 300)
.channel(NioSocketChannel.class)
.handler(new LoggingHandler());
ChannelFuture future = bootstrap.connect("127.0.0.1", 8080);
future.sync().channel().closeFuture().sync(); // 断点1
} catch (Exception e) {
e.printStackTrace();
log.debug("timeout");
} finally {
group.shutdownGracefully();
}
}
}
超时异常
io.netty.channel.ConnectTimeoutException: connection timed out: localhost/127.0.0.1:8080
at io.netty.channel.nio.AbstractNioChannel$AbstractNioUnsafe$1.run(AbstractNioChannel.java:263)
at io.netty.util.concurrent.PromiseTask$RunnableAdapter.call(PromiseTask.java:38)
at io.netty.util.concurrent.ScheduledFutureTask.run(ScheduledFutureTask.java:127)
at io.netty.util.concurrent.AbstractEventExecutor.safeExecute(AbstractEventExecutor.java:163)
at io.netty.util.concurrent.SingleThreadEventExecutor.runAllTasks(SingleThreadEventExecutor.java:416)
at io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:515)
at io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:918)
at io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)
at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
at java.lang.Thread.run(Thread.java:750)
另外源码部分
io.netty.channel.nio.AbstractNioChannel.AbstractNioUnsafe#connect
/**
* 1.线程间使用 Promise 进行通信
* 2.根据超时时间设置 定时抛异常任务 。如果定时任务未被取消，则说明连接超时
*/
@Override
public final void connect(
final SocketAddress remoteAddress, final SocketAddress localAddress, final ChannelPromise promise) {
// ...
// Schedule connect timeout.
int connectTimeoutMillis = config().getConnectTimeoutMillis();
if (connectTimeoutMillis > 0) {
connectTimeoutFuture = eventLoop().schedule(new Runnable() {
@Override
public void run() {
ChannelPromise connectPromise = AbstractNioChannel.this.connectPromise;
ConnectTimeoutException cause =
new ConnectTimeoutException("connection timed out: " + remoteAddress); // 断点2
if (connectPromise != null && connectPromise.tryFailure(cause)) {
close(voidPromise());
}
}
}, connectTimeoutMillis, TimeUnit.MILLISECONDS);
}
// ...
}
2）SO_BACKLOG
- 属于 ServerSocketChannal 参数
- 第一次握手，client 发送 SYN 到 server，状态修改为 SYN_SEND，server 收到，状态改变为 SYN_REVD，并将该请求放入 sync queue 队列
- 第二次握手，server 回复 SYN + ACK 给 client，client 收到，状态改变为 ESTABLISHED，并发送 ACK 给 server
- 第三次握手，server 收到 ACK，状态改变为 ESTABLISHED，将该请求从 sync queue 放入 accept queue
其中
-
在 linux 2.2 之前，backlog 大小包括了两个队列的大小，在 2.2 之后，分别用下面两个参数来控制
-
sync queue - 半连接队列
- 大小通过 /proc/sys/net/ipv4/tcp_max_syn_backlog 指定，在
syncookies启用的情况下，逻辑上没有最大值限制，这个设置便被忽略
- 大小通过 /proc/sys/net/ipv4/tcp_max_syn_backlog 指定，在
-
accept queue - 全连接队列
- 其大小通过 /proc/sys/net/core/somaxconn 指定，在使用 listen 函数时，内核会根据传入的 backlog 参数与系统参数，取二者的较小值
- 如果 accpet queue 队列满了，server 将发送一个拒绝连接的错误信息到 client
netty 中控制全连接
可以通过 option(ChannelOption.SO_BACKLOG, 值) 来设置大小
测试
- 调试关键断点为：
io.netty.channel.nio.NioEventLoop#processSelectedKey
/**
* 服务器
*/
public static void main(String[] args) {
NioEventLoopGroup group = new NioEventLoopGroup(2);
try {
Channel channel = new ServerBootstrap()
.channel(NioServerSocketChannel.class)
//设置全连接队列大小：2
.option(ChannelOption.SO_BACKLOG,2)
.group(group)
.childHandler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel channel) throws Exception {
channel.pipeline().addLast(new LoggingHandler());
}
})
.bind().sync().channel();
channel.closeFuture().sync();
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
group.shutdownGracefully();
}
}
/**
* 客户端
*/
public static void main(String[] args) {
NioEventLoopGroup group = new NioEventLoopGroup(2);
try {
Channel channel = new Bootstrap()
.channel(NioSocketChannel.class)
.group(group)
.handler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel channel) throws Exception {
channel.pipeline().addLast(new LoggingHandler());
}
})
.connect(new InetSocketAddress("127.0.0.1", 8080)).sync().channel();
channel.closeFuture().sync();
} catch (InterruptedException e) {
e.printStackTrace();
} finally {
group.shutdownGracefully();
}
}
3）ulimit -n 数字
- 属于操作系统参数
- 属于临时调整，建议放在启动脚本里
- 限制一个进程能够同时打开的文件描述符的数量
4）TCP_NODELAY
- 属于 SocketChannal 参数
- Nagle 算法设置，默认为 true
5）SO_SNDBUF & SO_RCVBUF
- SO_SNDBUF 属于 SocketChannal 参数
- SO_RCVBUF 既可用于 SocketChannal 参数，也可以用于 ServerSocketChannal 参数（建议设置到 ServerSocketChannal 上）
- 现在的操作系统比较智能，会自动调整。不建议设置
6）ALLOCATOR
- 属于 SocketChannal 参数。ByteBuf 分配器
- 用来分配 ByteBuf， ctx.alloc()
7）RCVBUF_ALLOCATOR
- 属于 SocketChannal 参数
- 控制 netty 接收缓冲区大小
- 负责入站数据的分配，决定入站缓冲区的大小（并可动态调整），统一采用 direct 直接内存，具体池化还是非池化由 allocator 决定
1.3 RPC 框架
1）准备工作
这些代码可以认为是现成的，无需从头编写练习
为了简化起见，在原来聊天项目的基础上新增 Rpc 请求和响应消息
增加 Rpc 消息类型：Message 接口中增加
@Data
public abstract class Message implements Serializable {
// 省略旧的代码
public static final int RPC_MESSAGE_TYPE_REQUEST = 101;
public static final int RPC_MESSAGE_TYPE_RESPONSE = 102;
static {
// ...
messageClasses.put(RPC_MESSAGE_TYPE_REQUEST, RpcRequestMessage.class);
messageClasses.put(RPC_MESSAGE_TYPE_RESPONSE, RpcResponseMessage.class);
}
}
Rpc请求消息：RpcRequestMessage
@Getter
@ToString(callSuper = true)
public class RpcRequestMessage extends Message {
/**
* 调用的接口全限定名，服务端根据它找到实现
*/
private String interfaceName;
/**
* 调用接口中的方法名
*/
private String methodName;
/**
* 方法返回类型
*/
private Class<?> returnType;
/**
* 方法参数类型数组
*/
private Class[] parameterTypes;
/**
* 方法参数值数组
*/
private Object[] parameterValue;
public RpcRequestMessage(int sequenceId, String interfaceName, String methodName, Class<?> returnType, Class[] parameterTypes, Object[] parameterValue) {
super.setSequenceId(sequenceId);
this.interfaceName = interfaceName;
this.methodName = methodName;
this.returnType = returnType;
this.parameterTypes = parameterTypes;
this.parameterValue = parameterValue;
}
@Override
public int getMessageType() {
return RPC_MESSAGE_TYPE_REQUEST;
}
}
Rpc响应消息：RpcResponseMessage
@Data
@ToString(callSuper = true)
public class RpcResponseMessage extends Message {
/**
* 返回值
*/
private Object returnValue;
/**
* 异常值
*/
private Exception exceptionValue;
@Override
public int getMessageType() {
return RPC_MESSAGE_TYPE_RESPONSE;
}
}
服务器架子
@Slf4j
public class RpcServer {
public static void main(String[] args) {
NioEventLoopGroup Boss=new NioEventLoopGroup(1);
NioEventLoopGroup Worker=new NioEventLoopGroup(2);
LoggingHandler LOGGING_HANDLER=new LoggingHandler();
MessageCodeSharable MESSAGE_CODEC=new MessageCodeSharable();
//1.RPC消息发送处理器
RpcRequestMessageHandler RPC_REQUEST_HANDLER=new RpcRequestMessageHandler();
try {
ServerBootstrap serverBootstrap=new ServerBootstrap();
serverBootstrap.channel(NioServerSocketChannel.class);
serverBootstrap.group(Boss,Worker);
serverBootstrap.childHandler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel ch) throws Exception {
ch.pipeline().addLast(new ProcotolFrameDecoder()); //处理粘包半包
ch.pipeline().addLast(LOGGING_HANDLER); //记录日志
ch.pipeline().addLast(MESSAGE_CODEC); //消息协议 编码、解码
//1.RPC消息发送处理器
ch.pipeline().addLast(RPC_REQUEST_HANDLER);
}
});
Channel channel = serverBootstrap.bind(8080).sync().channel();
channel.closeFuture().sync();
} catch (InterruptedException e) {
log.debug("Server error,{}",e);
} finally {
Boss.shutdownGracefully();
Worker.shutdownGracefully();
}
}
}
客户端架子
@Slf4j
public class RpcClient {
public static void main(String[] args) {
NioEventLoopGroup group=new NioEventLoopGroup(2);
LoggingHandler LOGGING_HANDLER=new LoggingHandler();
MessageCodeSharable MESSAGE_CODEC=new MessageCodeSharable();
//1.RPC消息响应处理器
RpcResponseMessageHandler RPC_RESPONSE_HANDLER=new RpcResponseMessageHandler();
try {
Bootstrap bootstrap=new Bootstrap();
bootstrap.channel(NioSocketChannel.class);
bootstrap.group(group);
bootstrap.handler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel ch) throws Exception {
ch.pipeline().addLast(new ProcotolFrameDecoder()); //处理粘包半包
ch.pipeline().addLast(LOGGING_HANDLER); //记录日志
ch.pipeline().addLast(MESSAGE_CODEC); //消息协议 编码、解码
//1.RPC消息响应处理器
ch.pipeline().addLast(RPC_RESPONSE_HANDLER);
}
});
Channel channel = bootstrap.connect(new InetSocketAddress("127.0.0.1", 8080)).sync().channel();
channel.closeFuture().sync();
} catch (InterruptedException e) {
log.debug("Client error,{}",e);
} finally {
group.shutdownGracefully();
}
}
}
相关服务
-
HelloService
public interface HelloService { String sayHello(String msg); } -
HelloServiceImpl
//有所修改 public class HelloServiceImpl implements HelloService{ @Override public String sayHello(String msg) { System.out.println("你好!"+msg); return "你好!"+msg; } } -
ServiceFactory：通过 Class对象 获取 该类的实例对象
public abstract class ServiceFactory { static Properties properties; static Map<Class<?>,Object> map =new ConcurrentHashMap<>(); static{ try (InputStream in = Config.class.getResourceAsStream("/application.properties")){ properties =new Properties(); properties.load(in); Set<String> names =properties.stringPropertyNames(); for (String name :names) { if (name.endsWith("Service")) { Class<?> interfaceclass =Class.forName(name); Class<?> instanceclass =Class.forName(properties.getProperty(name)); map.put(interfaceclass, instanceclass.newInstance()); } } }catch (IOException | ClassNotFoundException | InstantiationException | IllegalAccessException e){ throw new ExceptionInInitializerError(e); } } public static <T> T getService(Class<T> interfaceClass){ return (T)map.get(interfaceClass); } } -
application.properties
serializer.algorithm=Json org.example.java.chatRoom.server.service.HelloService=org.example.java.chatRoom.server.service.HelloServiceImpl

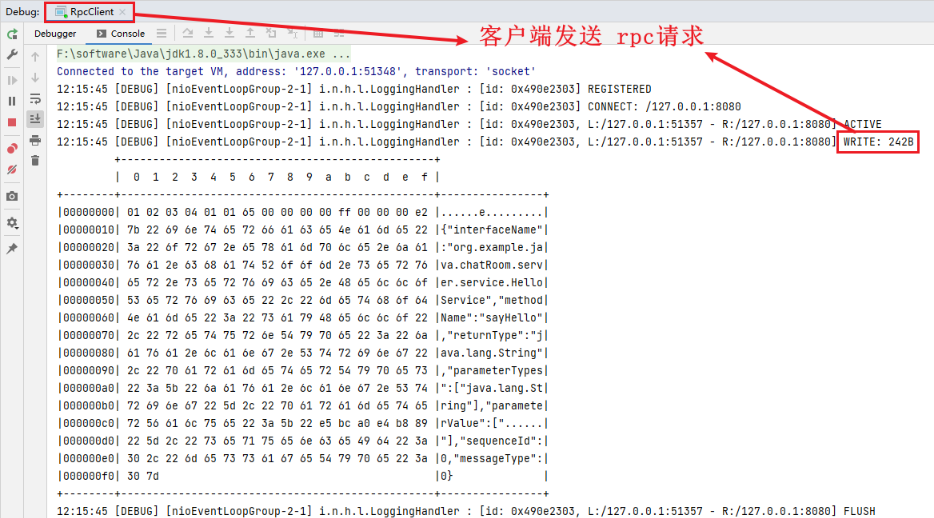

2）客户端发送 rpc请求
@Slf4j
public class RpcClient {
public static void main(String[] args) {
NioEventLoopGroup group=new NioEventLoopGroup(2);
LoggingHandler LOGGING_HANDLER=new LoggingHandler();
MessageCodeSharable MESSAGE_CODEC=new MessageCodeSharable();
//2.RPC消息响应处理器
RpcResponseMessageHandler RPC_RESPONSE_HANDLER=new RpcResponseMessageHandler();
try {
Bootstrap bootstrap=new Bootstrap();
bootstrap.channel(NioSocketChannel.class);
bootstrap.group(group);
bootstrap.handler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel ch) throws Exception {
ch.pipeline().addLast(new ProcotolFrameDecoder()); //处理粘包半包
ch.pipeline().addLast(LOGGING_HANDLER); //记录日志
ch.pipeline().addLast(MESSAGE_CODEC); //消息协议 编码、解码
//2.RPC消息响应处理器
ch.pipeline().addLast(RPC_RESPONSE_HANDLER);
}
});
Channel channel = bootstrap.connect(new InetSocketAddress("127.0.0.1", 8080)).sync().channel();
//1.连接完成后发送 Rpc请求消息
ChannelFuture channelFuture = channel.writeAndFlush(new RpcRequestMessage(
0,
"org.example.java.chatRoom.server.service.HelloService",
"sayHello",
String.class,
new Class[]{String.class},
new Object[]{"张三"}));
channelFuture.addListener(promise->{
if(!promise.isSuccess()){
Throwable cause=promise.cause();
log.debug("error,{}",cause);
}
});
channel.closeFuture().sync();
} catch (InterruptedException e) {
log.debug("Client error,{}",e);
} finally {
group.shutdownGracefully();
}
}
}

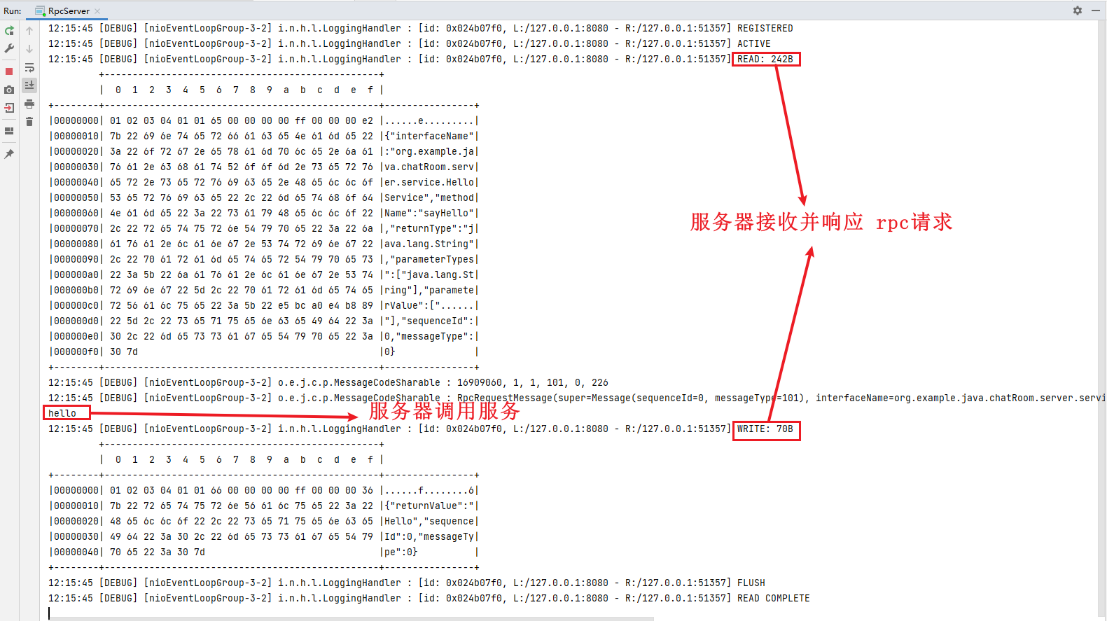

3）服务器接收并响应
@Slf4j
@ChannelHandler.Sharable
public class RpcRequestMessageHandler extends SimpleChannelInboundHandler<RpcRequestMessage> {
@Override
protected void channelRead0(ChannelHandlerContext ctx, RpcRequestMessage message) throws Exception {
RpcResponseMessage response = new RpcResponseMessage();
response.setSequenceId(message.getSequenceId());
try {
//1.获取实现对象
String interfaceName = message.getInterfaceName();
HelloService service = (HelloService) ServiceFactory.getService(Class.forName(interfaceName));
//2.调用方法
String methodName = message.getMethodName();
Class[] parameterTypes = message.getParameterTypes();
Object[] parameterValue = message.getParameterValue();
Method method = service.getClass().getMethod(methodName, parameterTypes);
Object result = method.invoke(service, parameterValue);
//3.设置返回值
response.setReturnValue(result);
} catch (ClassNotFoundException e) {
log.debug("RpcRequestHandler erro,{}",e);
response.setExceptionValue(e);
} finally {
}
ctx.writeAndFlush(response);
}
}

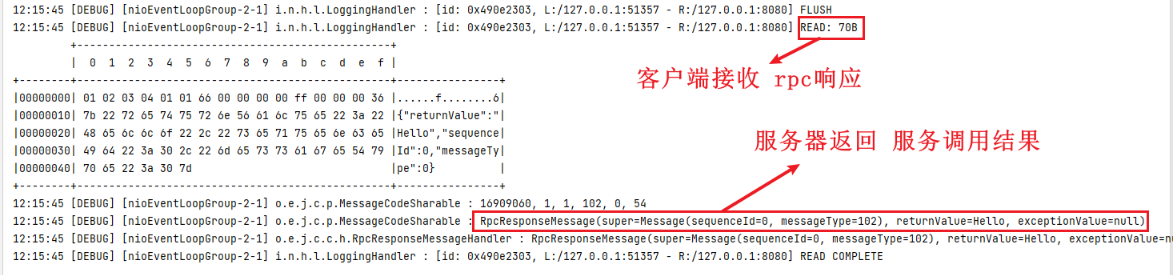

4）客户端简单处理响应
@Slf4j
@ChannelHandler.Sharable
public class RpcResponseMessageHandler extends SimpleChannelInboundHandler<RpcResponseMessage> {
@Override
protected void channelRead0(ChannelHandlerContext ctx, RpcResponseMessage message) throws Exception {
log.debug("{}", message);
}
}
5）客户端2.0：管理Channel
包括 channel 管理，代理，接收结果
@Slf4j
public class RpcClientManager {
public static void main(String[] args) {
HelloService service=getProxyService(HelloService.class);
//方法调用暂时没有考虑返回值
service.sayHello("小红");
}
//创建代理类对象：代理调用服务端的方法
public static <T> T getProxyService(Class<T> serviceClass){
//类加载器
ClassLoader classLoader = serviceClass.getClassLoader();
//代理类的接口数组
Class<?>[] classes = {serviceClass};
//方法处理器
Object o= Proxy.newProxyInstance(classLoader,classes,(proxy, method, args)->{
//1.生成 rpc消息对象
int serquenceId= SequenceIdGenerator.nextId();
RpcRequestMessage message = new RpcRequestMessage(
serquenceId,
serviceClass.getName(),
method.getName(),
method.getReturnType(),
method.getParameterTypes(),
args);
//2.发送消息
getChannel().writeAndFlush(message);
//3.暂时返回null
return null;
});
return (T) o;
}
private static Channel channel=null;
//获取单例channel
public static Channel getChannel(){
if(channel!=null) return channel;
synchronized (RpcClientManager.class){
if (channel!=null) return channel;
initChannel();
return channel;
}
}
//初始化Channel
private static void initChannel() {
NioEventLoopGroup group=new NioEventLoopGroup(2);
LoggingHandler LOGGING_HANDLER=new LoggingHandler();
MessageCodeSharable MESSAGE_CODEC=new MessageCodeSharable();
//RPC消息响应处理器
RpcResponseMessageHandler RPC_RESPONSE_HANDLER=new RpcResponseMessageHandler();
Bootstrap bootstrap=new Bootstrap();
bootstrap.channel(NioSocketChannel.class);
bootstrap.group(group);
bootstrap.handler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel ch) throws Exception {
ch.pipeline().addLast(new ProcotolFrameDecoder()); //处理粘包半包
ch.pipeline().addLast(LOGGING_HANDLER); //记录日志
ch.pipeline().addLast(MESSAGE_CODEC); //消息协议 编码、解码
//RPC消息响应处理器
ch.pipeline().addLast(RPC_RESPONSE_HANDLER);
}
});
try {
channel = bootstrap.connect(new InetSocketAddress("127.0.0.1", 8080)).sync().channel();
channel.closeFuture().addListener(future -> {
group.shutdownGracefully();
});
} catch (InterruptedException e) {
log.debug("Client error,{}",e);
group.shutdownGracefully();
}
}
}
-
SequenceIdGenerator
public class SequenceIdGenerator { private static final AtomicInteger id=new AtomicInteger(); public static int nextId(){ return id.incrementAndGet(); } }

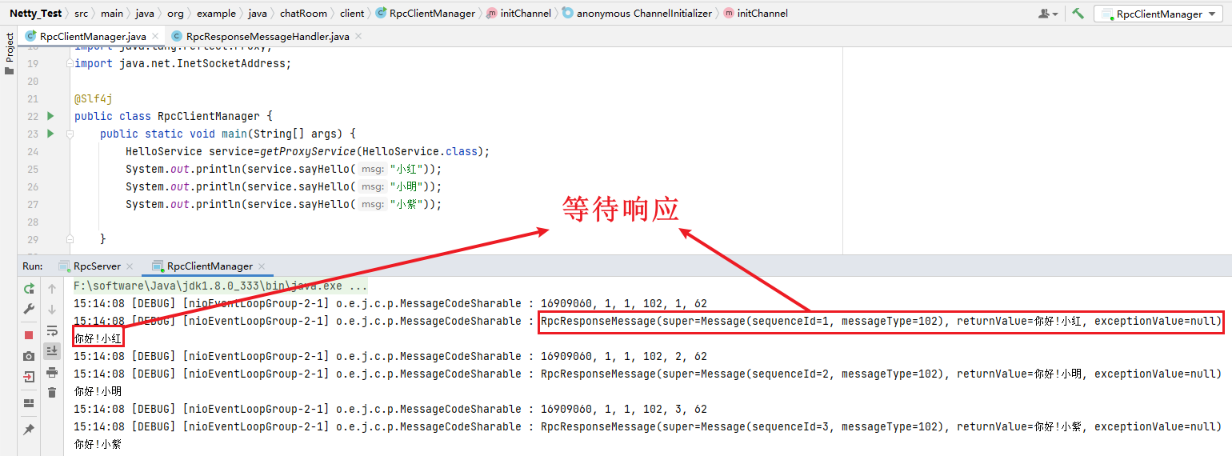

6）客户端3.0：等待响应
发送 rpc请求 的线程等待响应结果
@Slf4j
public class RpcClientManager {
public static void main(String[] args) {
HelloService service=getProxyService(HelloService.class);
System.out.println(service.sayHello("小红"));
System.out.println(service.sayHello("小明"));
System.out.println(service.sayHello("小紫"));
}
//创建代理类对象
public static <T> T getProxyService(Class<T> serviceClass){
//类加载器
ClassLoader classLoader = serviceClass.getClassLoader();
//代理类的接口数组
Class<?>[] classes = {serviceClass};
//方法处理器
Object o= Proxy.newProxyInstance(classLoader,classes,(proxy, method, args)->{
//1.生成 rpc消息对象
int serquenceId= SequenceIdGenerator.nextId();
RpcRequestMessage message = new RpcRequestMessage(
serquenceId,
serviceClass.getName(),
method.getName(),
method.getReturnType(),
method.getParameterTypes(),
args);
//2.发送消息
getChannel().writeAndFlush(message);
//3.创建 promise容器 接收返回消息：并指定 promise对象 异步接收结果线程
DefaultPromise<Object> promise=new DefaultPromise<>(getChannel().eventLoop());
RpcResponseMessageHandler.PROMISES.put(serquenceId,promise);
//4.等待结果返回
promise.await();
//5.返回结果
if (promise.isSuccess()) {
return promise.getNow();
}else {
throw new RuntimeException(promise.cause());
}
});
return (T) o;
}
private static Channel channel=null;
public static Channel getChannel(){
if(channel!=null) return channel;
synchronized (RpcClientManager.class){
if (channel!=null) return channel;
initChannel();
return channel;
}
}
private static void initChannel() {
NioEventLoopGroup group=new NioEventLoopGroup(2);
LoggingHandler LOGGING_HANDLER=new LoggingHandler();
MessageCodeSharable MESSAGE_CODEC=new MessageCodeSharable();
//RPC消息响应处理器
RpcResponseMessageHandler RPC_RESPONSE_HANDLER=new RpcResponseMessageHandler();
Bootstrap bootstrap=new Bootstrap();
bootstrap.channel(NioSocketChannel.class);
bootstrap.group(group);
bootstrap.handler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel ch) throws Exception {
ch.pipeline().addLast(new ProcotolFrameDecoder()); //处理粘包半包
ch.pipeline().addLast(LOGGING_HANDLER); //记录日志
ch.pipeline().addLast(MESSAGE_CODEC); //消息协议 编码、解码
//RPC消息响应处理器
ch.pipeline().addLast(RPC_RESPONSE_HANDLER);
}
});
try {
channel = bootstrap.connect(new InetSocketAddress("127.0.0.1", 8080)).sync().channel();
channel.closeFuture().addListener(future -> {
group.shutdownGracefully();
});
} catch (InterruptedException e) {
log.debug("Client error,{}",e);
group.shutdownGracefully();
}
}
}
处理响应线程设置返回结果
@Slf4j
@ChannelHandler.Sharable
public class RpcResponseMessageHandler extends SimpleChannelInboundHandler<RpcResponseMessage> {
//响应后将返回结果与对应的请求进行设置
public static final Map<Integer, Promise<Object>> PROMISES=new ConcurrentHashMap<>();
@Override
protected void channelRead0(ChannelHandlerContext ctx, RpcResponseMessage message) throws Exception {
//将响应结果返回给调用者
Promise<Object> promise = PROMISES.remove(message.getSequenceId());
Object returnValue = message.getReturnValue();
Exception exceptionValue = message.getExceptionValue();
if(exceptionValue!=null){
promise.setFailure(exceptionValue);
}else{
promise.setSuccess(returnValue);
}
}
}
7）几个问题
-
RpcResponseMessageHandler 中 PROMISES集合中的泛型问题：Promise<Object>，不能为 Promise<?>
- Promise<?> 只能用来接收值，不能设置值。除非设置 null
-
RpcResponseMessageHandler 中将响应结果设置到 promise 的同时，需要从集合中移除
-
RpcResponseMessageHandler 是否可以共享？
- 可以。因为共享变量为 ConcurrentHashMap，不存在线程安全问题。
-
远程方法调用出错解决：比如 sayHello出现除0异常
-
客户断收到的响应数据太长：LengthFieldBasedFrameDecoder 抛出 TooLongFrameException
-
将响应信息中异常的信息缩短
try { ...... response.setReturnValue(result); } catch (Exception e) { log.debug("RpcRequestHandler erro,{}",e); //缩短异常的信息 String msg = e.getCause().getMessage(); response.setExceptionValue(new Exception("远程调用出错："+msg)); } finally { ctx.writeAndFlush(response); }
-
二、源码分析
2.1 启动剖析
Nio流程总览
//1 netty 中使用 NioEventLoopGroup （简称 nio boss 线程）来封装线程和 selector
Selector selector = Selector.open();
//2 创建 NioServerSocketChannel，同时会初始化它关联的 handler，以及为原生 ssc 存储 config
NioServerSocketChannel attachment = new NioServerSocketChannel();
//3 创建 NioServerSocketChannel 时，创建了 java 原生的 ServerSocketChannel
ServerSocketChannel serverSocketChannel = ServerSocketChannel.open();
serverSocketChannel.configureBlocking(false);
//4 启动 nio boss 线程执行接下来的操作
//5 注册（仅关联 selector 和 NioServerSocketChannel），未关注事件
SelectionKey selectionKey = serverSocketChannel.register(selector, 0, attachment);
//6 head -> 初始化器 -> ServerBootstrapAcceptor -> tail，初始化器是一次性的，只为添加 acceptor
//7 绑定端口
serverSocketChannel.bind(new InetSocketAddress(8080));
//8 触发 channel active 事件，在 head 中关注 op_accept 事件
selectionKey.interestOps(SelectionKey.OP_ACCEPT);
启动跟源码
服务器入口 io.netty.bootstrap.ServerBootstrap#bind
关键代码 io.netty.bootstrap.AbstractBootstrap#doBind
private ChannelFuture doBind(final SocketAddress localAddress) {
//1.执行 初始化
//2.异步执行 注册
final ChannelFuture regFuture = initAndRegister();
final Channel channel = regFuture.channel();
if (regFuture.cause() != null) {
return regFuture;
}
//已经完成：
if (regFuture.isDone()) {
ChannelPromise promise = channel.newPromise();
//3.立刻调用 doBind0
doBind0(regFuture, channel, localAddress, promise);
return promise;
}
//没有完成：添加回调函数
else {
final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
regFuture.addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
Throwable cause = future.cause();
if (cause != null) {
promise.setFailure(cause);//处理异常...
} else {
promise.registered();
//3.由注册线程去执行 doBind0：绑定端口号、触发 active 事件、注册accept事件
doBind0(regFuture, channel, localAddress, promise);
}
}
});
return promise;
}
}
关键代码 io.netty.bootstrap.AbstractBootstrap#initAndRegister
//1.执行 初始化
//2.异步执行 注册
final ChannelFuture initAndRegister() {
Channel channel = null;
try {
//1 初始化
//1.1 创建 NioServerSocketChannel
channel = channelFactory.newChannel();
//1.2 给 NioServerSocketChannel 添加一个初始化器 ChannelInitializer
init(channel);
} catch (Throwable t) { // 处理异常...
return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
}
//2 注册：将原生 channel 注册到 selector 上
ChannelFuture regFuture = config().group().register(channel);
if (regFuture.cause() != null) { // 处理异常...
}
return regFuture;
}
关键代码 io.netty.bootstrap.ServerBootstrap#init
//1.2 给 NioServerSocketChannel 添加一个初始化器 ChannelInitializer
void init(Channel channel) throws Exception {
final Map<ChannelOption<?>, Object> options = options0();
synchronized (options) {
setChannelOptions(channel, options, logger);
}
final Map<AttributeKey<?>, Object> attrs = attrs0();
synchronized (attrs) {
for (Entry<AttributeKey<?>, Object> e: attrs.entrySet()) {
@SuppressWarnings("unchecked")
AttributeKey<Object> key = (AttributeKey<Object>) e.getKey();
channel.attr(key).set(e.getValue());
}
}
ChannelPipeline p = channel.pipeline();
final EventLoopGroup currentChildGroup = childGroup;
final ChannelHandler currentChildHandler = childHandler;
final Entry<ChannelOption<?>, Object>[] currentChildOptions;
final Entry<AttributeKey<?>, Object>[] currentChildAttrs;
synchronized (childOptions) {
currentChildOptions = childOptions.entrySet().toArray(newOptionArray(0));
}
synchronized (childAttrs) {
currentChildAttrs = childAttrs.entrySet().toArray(newAttrArray(0));
}
//1.2 为 NioServerSocketChannel 添加初始化器：初始化器什么时候执行？
p.addLast(new ChannelInitializer<Channel>() {
@Override
public void initChannel(final Channel ch) throws Exception {
final ChannelPipeline pipeline = ch.pipeline();
ChannelHandler handler = config.handler();
if (handler != null) {
pipeline.addLast(handler);
}
//1.2.1 初始化器的职责：将 ServerBootstrapAcceptor 加入至 NioServerSocketChannel
ch.eventLoop().execute(new Runnable() {
@Override
public void run() {
pipeline.addLast(new ServerBootstrapAcceptor(
ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
}
});
}
});
}
关键代码 io.netty.channel.AbstractChannel.AbstractUnsafe#register：
- ServerBootStrap—>eventLoopGroup—>eventLoop—>Channel
//2 注册：切换线程，并将原生 channel 注册到 selector 上
public final void register(EventLoop eventLoop, final ChannelPromise promise) {
// 一些检查...
AbstractChannel.this.eventLoop = eventLoop;
if (eventLoop.inEventLoop()) { //是否是EventLoop线程
register0(promise);
} else {
try {
//2.1 切换线程
// 首次执行 execute 方法时：才启动 nio 线程，之后注册等操作在 nio 线程上执行
// 因为只有一个 NioServerSocketChannel 因此，也只会有一个 boss nio 线程
eventLoop.execute(new Runnable() {
@Override
public void run() {
//2.2 将原生 channel 注册到 selector 上
register0(promise);
}
});
} catch (Throwable t) {
// 日志记录...
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
}
io.netty.channel.AbstractChannel.AbstractUnsafe#register0
//2.2 将原生 channel 注册到 selector 上
private void register0(ChannelPromise promise) {
try {
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
boolean firstRegistration = neverRegistered;
// 2.2.1 原生的 nio channel 绑定到 selector 上，注意此时没有注册 selector 关注事件，附件为 NioServerSocketChannel
//this.selectionKey = this.javaChannel().register(this.eventLoop().unwrappedSelector(), 0, this);
doRegister();
neverRegistered = false;
registered = true;
// 2.2.2 执行 NioServerSocketChannel 初始化器的 initChannel，回到 1.2
pipeline.invokeHandlerAddedIfNeeded();
// 2.2.3 设置initAndRegister()执行结果，回到 3.绑定端口号、注册accept事件
safeSetSuccess(promise);
pipeline.fireChannelRegistered();
if (isActive()) {// 对应 server socket channel 还未绑定，isActive 为 false
if (firstRegistration) {
pipeline.fireChannelActive();
} else if (config().isAutoRead()) {
beginRead();
}
}
} catch (Throwable t) {
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
关键代码 io.netty.bootstrap.AbstractBootstrap#doBind0
//3.绑定端口号、触发 active 事件、注册accept事件
private static void doBind0(
final ChannelFuture regFuture, final Channel channel,
final SocketAddress localAddress, final ChannelPromise promise) {
channel.eventLoop().execute(new Runnable() {
@Override
public void run() {
if (regFuture.isSuccess()) {
channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
} else {
promise.setFailure(regFuture.cause());
}
}
});
}
关键代码 io.netty.channel.AbstractChannel.AbstractUnsafe#bind
//3.绑定端口号、触发 active 事件、注册accept事件
public final void bind(final SocketAddress localAddress, final ChannelPromise promise) {
assertEventLoop();
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
if (Boolean.TRUE.equals(config().getOption(ChannelOption.SO_BROADCAST)) &&
localAddress instanceof InetSocketAddress &&
!((InetSocketAddress) localAddress).getAddress().isAnyLocalAddress() &&
!PlatformDependent.isWindows() && !PlatformDependent.maybeSuperUser()) {// 记录日志...
}
boolean wasActive = isActive();
try {
//3.1 ServerSocketChannel 绑定端口
doBind(localAddress);
} catch (Throwable t) {
safeSetFailure(promise, t);
closeIfClosed();
return;
}
if (!wasActive && isActive()) {
invokeLater(new Runnable() {
@Override
public void run() {
//3.2 触发 active 事件、注册accept事件
pipeline.fireChannelActive();
}
});
}
safeSetSuccess(promise);
}
关键代码 io.netty.channel.socket.nio.NioServerSocketChannel#doBind
//3.1 ServerSocketChannel 绑定端口
protected void doBind(SocketAddress localAddress) throws Exception {
if (PlatformDependent.javaVersion() >= 7) {
javaChannel().bind(localAddress, config.getBacklog());
} else {
javaChannel().socket().bind(localAddress, config.getBacklog());
}
}
关键代码 io.netty.channel.DefaultChannelPipeline.HeadContext#channelActive
//3.2 触发 active 事件、注册accept事件
public void channelActive(ChannelHandlerContext ctx) {
//3.2.1 触发 active 事件
ctx.fireChannelActive();
//3.2.2 注册accept事件
readIfIsAutoRead();
}
关键代码 io.netty.channel.nio.AbstractNioChannel#doBeginRead
//3.2.2 注册accept事件
protected void doBeginRead() throws Exception {
// Channel.read() or ChannelHandlerContext.read() was called
final SelectionKey selectionKey = this.selectionKey;
if (!selectionKey.isValid()) {
return;
}
readPending = true;
final int interestOps = selectionKey.interestOps();
// readInterestOp 取值是 16，在 NioServerSocketChannel 创建时初始化好，代表关注 accept 事件
if ((interestOps & readInterestOp) == 0) {
selectionKey.interestOps(interestOps | readInterestOp);
}
}

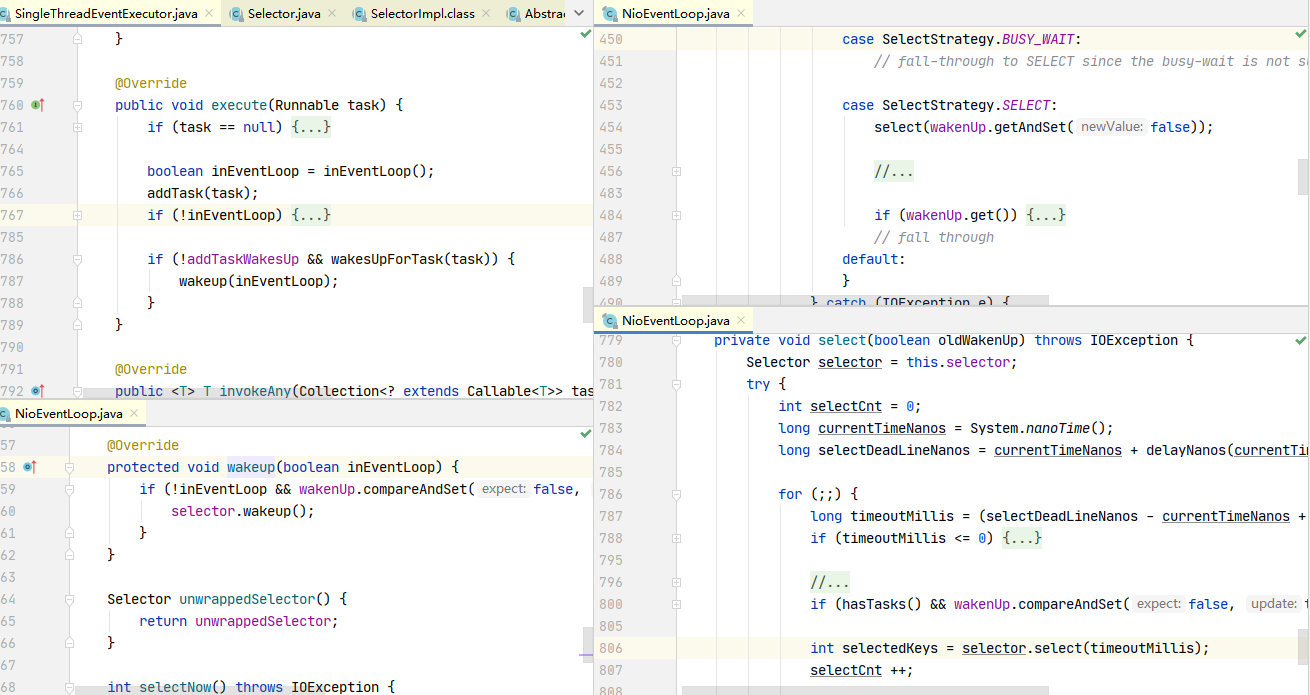

2.2 NioEventLoop 剖析
NioEventLoop 线程不仅要处理 IO 事件，还要处理 Task（包括普通任务和定时任务），
- selector：unwrappedSelector（Selector）、selector（SelectedSelectionKeySetSelector）
- 线程：thread（由executor中唯一的线程赋值）、executor（Executor）
- 任务队列：taskQueue（Queue<Runnable>）、scheduledTaskQueue（PriorityQueue<ScheduledFutureTask<?>>）
1）何时创建selector
- 在构造方法调用时创建
/**
* io.netty.channel.nio.NioEventLoop#NioEventLoop
*/
NioEventLoop(NioEventLoopGroup parent, Executor executor, SelectorProvider selectorProvider, SelectStrategy strategy, RejectedExecutionHandler rejectedExecutionHandler, EventLoopTaskQueueFactory queueFactory) {
super(parent, executor, false, newTaskQueue(queueFactory), newTaskQueue(queueFactory), rejectedExecutionHandler);
if (selectorProvider == null) {
throw new NullPointerException("selectorProvider");
} else if (strategy == null) {
throw new NullPointerException("selectStrategy");
} else {
this.provider = selectorProvider;
//在构造方法调用时创建：赋值给unwrappedSelector
NioEventLoop.SelectorTuple selectorTuple = this.openSelector();
this.selector = selectorTuple.selector;
this.unwrappedSelector = selectorTuple.unwrappedSelector;
this.selectStrategy = strategy;
}
}
2）为什么会有两个selector
- unwrappedSelector：原始的Selector，将 selectedKeys属性 的Set实现改为了数组（SelectedSelectionKeySet ）的实现
- selector：SelectedSelectionKeySetSelector 实例，内部包装了 unwrappedSelector 、SelectedSelectionKeySet 数组
/**
* io.netty.channel.nio.NioEventLoop#NioEventLoop
*/
NioEventLoop(NioEventLoopGroup parent, Executor executor, SelectorProvider selectorProvider, SelectStrategy strategy, RejectedExecutionHandler rejectedExecutionHandler, EventLoopTaskQueueFactory queueFactory) {
//1.获取两个Selector
NioEventLoop.SelectorTuple selectorTuple = this.openSelector();
//2.赋值
this.selector = selectorTuple.selector;
this.unwrappedSelector = selectorTuple.unwrappedSelector;
}
//1.获取两个Selector
private NioEventLoop.SelectorTuple openSelector() {
//引用 unwrappedSelector 中的 selectedKeySet
this.selectedKeys = selectedKeySet;
//...改为了数组实现：数组实现可以提高遍历性能（原本为 HashSet）
return new NioEventLoop.SelectorTuple(
//原始的Selector
unwrappedSelector,
//包装后的Selector
new SelectedSelectionKeySetSelector(unwrappedSelector, selectedKeySet)
);
}
3）thread何时启动
-
首次调用 execute 方法时,将 executor 中唯一的线程赋值给 thread
-
执行该线程任务，任务为死循环，不断查看是否有任务（调用selector.select(timeoutMills)）
/** * io.netty.util.concurrent.SingleThreadEventExecutor#execute */ public void execute(Runnable task) // 添加任务，其中队列使用了 jctools 提供的 mpsc 无锁队列 this.addTask(task); //1.首次调用，启动线程 this.startThread(); //2.添加任务后执行wakeup if (!this.addTaskWakesUp && this.wakesUpForTask(task)) { this.wakeup(inEventLoop); } } //1.首次调用，启动线程 private void startThread() { this.doStartThread(); } private void doStartThread() { this.executor.execute(new Runnable() { //1.将 executor 中唯一的线程赋值给 thread SingleThreadEventExecutor.this.thread = Thread.currentThread(); //2.执行该线程的 run 方法，进入死循环 SingleThreadEventExecutor.this.run(); } } //2.执行thread任务：执行死循环，不断看有没有新任务、IO 事件 。循环+阻塞 protected void run() { while(true) { while(true) { while(true) { try { try { switch() { case -3: case -1: //1.调用select this.select(this.wakenUp.getAndSet(false)); if (this.wakenUp.get()) { this.selector.wakeup(); } break; case -2: continue; } } //...执行任务 } } } } } //1.调用select private void select(boolean oldWakenUp) throws IOException { try { while(true) { //2.阻塞 int selectedKeys = selector.select(timeoutMillis); } } catch (CancelledKeyException var13) {} }
4）普通任务会不会结束 select 阻塞
-
会。非Nio线程每次调用 execute 方法后，会执行一次 wakeup
/** * io.netty.util.concurrent.SingleThreadEventExecutor#execute */ public void execute(Runnable task) this.addTask(task); this.startThread(); //1.添加任务后执行wakeup if (!this.addTaskWakesUp && this.wakesUpForTask(task)) { this.wakeup(inEventLoop); } } protected void wakeup(boolean inEventLoop) { // 如果线程由于 IO select 阻塞了，添加的任务的线程需要负责唤醒 NioEventLoop 线程 if (!inEventLoop && this.wakenUp.compareAndSet(false, true)) { this.selector.wakeup(); } }
5）普通任务 wakeup 理解
/**
* io.netty.channel.nio.NioEventLoop#wakeup
*/
protected void wakeup(boolean inEventLoop) {
//1.提交任务的线程不是Nio线程才会进入if块
//2.保证多个非Nio线程同时提交任务后只唤醒一次
if (!inEventLoop && this.wakenUp.compareAndSet(false, true)) {
this.selector.wakeup();
}
}
6）thread什么时候 select
- 没有任务时：返回-1，进入阻塞逻辑
- 有任务时：调用 selectNow(返回0-…) 顺便拿到io 事件，执行任务
/**
* io.netty.channel.nio.NioEventLoop#run
*/
//执行死循环，不断看有没有新任务、IO 事件 。循环+阻塞
protected void run() {
while(true) {
while(true) {
while(true) {
try {
try {
//1.当返回-1时进入阻塞逻辑
switch(this.selectStrategy.calculateStrategy(this.selectNowSupplier, this.hasTasks())) {
case -3:
case -1:
//进入 select 逻辑
this.select(this.wakenUp.getAndSet(false));
if (this.wakenUp.get()) {
this.selector.wakeup();
}
break;
case -2:
continue;
}
}
//...执行任务
}
}
}
}
}
//1.没有任务时返回-1，进入阻塞逻辑
public int calculateStrategy(IntSupplier selectSupplier, boolean hasTasks) throws Exception {
return hasTasks ? selectSupplier.get() : -1;
}
//2.有任务时调用 selectNow(返回0-...) 顺便拿到io 事件
private final IntSupplier selectNowSupplier = new IntSupplier() {
public int get() throws Exception {
return NioEventLoop.this.selectNow();
}
};
7）select 阻塞多久
- 超时时间：（1s+0.5ms）/1ms = 1000ms
- 退出阻塞：到达截至时间（1s）、存在普通任务、发生io事件、被唤醒、被打断
/**
* io.netty.channel.nio.NioEventLoop#select
*/
//进入 select 逻辑
private void select(boolean oldWakenUp) throws IOException {
//1.获取当前时间
long currentTimeNanos = System.nanoTime();
//2.没有定时任务，截至时间：当前时间 + 1s
//2.存在定时任务，截至时间：下一个定时任务执行时间 - 当前时间
long selectDeadLineNanos = currentTimeNanos + this.delayNanos(currentTimeNanos);
//截至时间不变，当前时间改变
while(true) {
//3.超时时间：（1s+0.0005s）/1ms = 1000ms
long timeoutMillis = (selectDeadLineNanos - currentTimeNanos + 500000L) / 1000000L;
//到达截至时间：退出阻塞
if (timeoutMillis <= 0L) {
if (selectCnt == 0) {
selector.selectNow();
selectCnt = 1;
}
break;
}
//有普通任务：退出阻塞。如果没这个判断，那么任务就会等到下次 select 超时时才能被执行
if (this.hasTasks() && this.wakenUp.compareAndSet(false, true)) {
selector.selectNow();
selectCnt = 1;
break;
}
int selectedKeys = selector.select(timeoutMillis);
//醒来后，有 IO 事件、非 EventLoop 线程唤醒、有任务：退出阻塞
if (selectedKeys != 0 || oldWakenUp || this.wakenUp.get() || this.hasTasks() || this.hasScheduledTasks()) {
break;
}
long time = System.nanoTime();
currentTimeNanos = time;
}
}
//2.获取截至时间
protected long delayNanos(long currentTimeNanos) {
ScheduledFutureTask<?> scheduledTask = this.peekScheduledTask(); //不考虑
return scheduledTask == null ? SCHEDULE_PURGE_INTERVAL : scheduledTask.delayNanos(currentTimeNanos);
}
static {
SCHEDULE_PURGE_INTERVAL = TimeUnit.SECONDS.toNanos(1L);
}
8）BUG解决：select空轮询
- BUG解释：即 select 不阻塞（jdk 在linux中才会出现）
- BUG解决：空轮询超过阈值（默认512），重建、替换旧的 selector，并退出阻塞
/**
* io.netty.channel.nio.NioEventLoop#select
*/
private void select(boolean oldWakenUp) throws IOException {
try {
int selectCnt = 0;
//1.循环+阻塞：如果出现bug没阻塞即空轮询，则 selectCnt++
while(true) {
int selectedKeys = selector.select(timeoutMillis);
++selectCnt;
//2.selectCnt超出阈值：重建并替换旧的 selector，退出阻塞
else if (SELECTOR_AUTO_REBUILD_THRESHOLD > 0 && selectCnt >= SELECTOR_AUTO_REBUILD_THRESHOLD) {
selector = this.selectRebuildSelector(selectCnt);
selectCnt = 1;
break;
}
}
}
}
static {
//3.阈值默认值：512
int selectorAutoRebuildThreshold = SystemPropertyUtil.getInt("io.netty.selectorAutoRebuildThreshold", 512);
if (selectorAutoRebuildThreshold < 3) {
selectorAutoRebuildThreshold = 0;
}
SELECTOR_AUTO_REBUILD_THRESHOLD = selectorAutoRebuildThreshold;
}
9）thread 执行任务
- 有多少任务执行多少任务
- 按时间比例执行任务
- 各占50%：io任务执行多久，普通任务就执行多久
/**
* io.netty.channel.nio.NioEventLoop#run
*/
//设置执行io任务的时间比例50%
private volatile int ioRatio = 50;
//执行死循环，不断看有没有新任务、IO 事件 。循环+阻塞
protected void run() {
while(true) {
while(true) {
while(true) {
try {
int ioRatio = this.ioRatio;
//1.比例设置为 100：则时间分配无效，该次循环存在多少任务执行多少任务
if (ioRatio == 100) {
try {
this.processSelectedKeys();
} finally {
this.runAllTasks();
}
}
//2.按时间比例执行任务
else {
long ioStartTime = System.nanoTime();
boolean var14 = false;
try {
var14 = true;
this.processSelectedKeys();
var14 = false;
} finally {
if (var14) {
long ioTime = System.nanoTime() - ioStartTime;、
this.runAllTasks(ioTime * (long)(100 - ioRatio) / (long)ioRatio);
}
}
//2.1 获取 io任务 执行所用时间
//2.2 执行普通任务：所用时间与 io任务 相同
long ioTime = System.nanoTime() - ioStartTime;
this.runAllTasks(ioTime * (long)(100 - ioRatio) / (long)ioRatio);
}
}
}
}
}
}
10）区分不同事件
/**
* io.netty.channel.nio.NioEventLoop#run
*/
//1.执行io任务
protected void run() {
while(true) {
while(true) {
while(true) {
try {
else {
try {
this.processSelectedKeys();
}
}
}
}
}
}
}
private void processSelectedKeys() {
//2.如果selectedKeySet已替换为数组实现
//数组实现可以提高遍历性能（原本为 HashSet）
if (this.selectedKeys != null) {
this.processSelectedKeysOptimized();
}
}
private void processSelectedKeysOptimized() {
for(int i = 0; i < this.selectedKeys.size; ++i) {
SelectionKey k = this.selectedKeys.keys[i];
this.selectedKeys.keys[i] = null;
//3.获得事件相关的 Channel
Object a = k.attachment();
if (a instanceof AbstractNioChannel) {
this.processSelectedKey(k, (AbstractNioChannel)a);
}
}
}
//4.根据事件类型执行任务
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
NioUnsafe unsafe = ch.unsafe();
if (!k.isValid()) {}
//key有效
else {
try {
int readyOps = k.readyOps();
//连接事件
if ((readyOps & 8) != 0) {
int ops = k.interestOps();
ops &= -9;
k.interestOps(ops);
unsafe.finishConnect();
}
//可写事件
if ((readyOps & 4) != 0) {
ch.unsafe().forceFlush();
}
//可读、可接入事件
if ((readyOps & 17) != 0 || readyOps == 0) {
// 如果是可接入 io.netty.channel.nio.AbstractNioMessageChannel.NioMessageUnsafe#read
// 如果是可读 io.netty.channel.nio.AbstractNioByteChannel.NioByteUnsafe#read
unsafe.read();
}
}
}
}
⚠️ 注意
这里有个费解的地方就是 wakeup，它既可以由提交任务的线程来调用（比较好理解），也可以由 EventLoop 线程来调用（比较费解），这里要知道 wakeup 方法的效果：
- 由非 EventLoop 线程调用，会唤醒当前在执行 select 阻塞的 EventLoop 线程
- 由 EventLoop 自己调用，本次的 wakeup 会取消下一次的 select 操作
2.3 accept 剖析
nio 流程总览
//1 阻塞直到事件发生
selector.select();
Iterator<SelectionKey> iter = selector.selectedKeys().iterator();
while (iter.hasNext()) {
//2 拿到一个事件
SelectionKey key = iter.next();
//3 如果是 accept 事件
if (key.isAcceptable()) {
//4 执行 accept
SocketChannel channel = serverSocketChannel.accept();
channel.configureBlocking(false);
//5 关注 read 事件
channel.register(selector, SelectionKey.OP_READ);
}
// ...
}
启动跟源码
服务器入口io.netty.channel.nio.NioEventLoop#processSelectedKey
/**
* io.netty.channel.nio.AbstractNioMessageChannel.NioMessageUnsafe#read
*/
public void read() {
try {
try {
do {
//1.ServerScoketChannel 执行 accept 创建 SocketChannel
//2.将 SocketChannel 包装为 NioSocketChannel、设置非阻塞，然后将 SocketChannel 作为消息放入 readBuf
int localRead = doReadMessages(readBuf);
if (localRead == 0) {
break;
}
if (localRead < 0) {
closed = true;
break;
}
// localRead 为 1，就一条消息，即接收一个客户端连接
allocHandle.incMessagesRead(localRead);
} while (allocHandle.continueReading());
} catch (Throwable t) {
exception = t;
}
int size = readBuf.size();
for (int i = 0; i < size; i ++) {
readPending = false;
//3.进入 NioServerSocketChannel 的流水线：
// 触发 read 事件，让 pipeline 上的 handler 处理
pipeline.fireChannelRead(readBuf.get(i));
}
readBuf.clear();
allocHandle.readComplete();
pipeline.fireChannelReadComplete();
if (exception != null) {
closed = closeOnReadError(exception);
pipeline.fireExceptionCaught(exception);
}
if (closed) {
inputShutdown = true;
if (isOpen()) {
close(voidPromise());
}
}
} finally {
if (!readPending && !config.isAutoRead()) {
removeReadOp();
}
}
}
//1.
//2.
protected int doReadMessages(List<Object> buf) throws Exception {
//1.ServerScoketChannel 执行 accept 创建 SocketChannel
SocketChannel ch = SocketUtils.accept(this.javaChannel());
try {
if (ch != null) {
//2.将 SocketChannel 包装为 NioSocketChannel、设置非阻塞，然后将 SocketChannel 作为消息放入 readBuf
buf.add(new NioSocketChannel(this, ch));
return 1;
}
}
return 0;
}
//1.ServerScoketChannel 执行 accept 创建 SocketChannel
public static SocketChannel accept(final ServerSocketChannel serverSocketChannel) throws IOException {
try {
return (SocketChannel)AccessController.doPrivileged(new PrivilegedExceptionAction<SocketChannel>() {
public SocketChannel run() throws IOException {
return serverSocketChannel.accept();
}
});
}
}
关键代码 io.netty.bootstrap.ServerBootstrap.ServerBootstrapAcceptor#channelRead
//3.进入 NioServerSocketChannel 的流水线
public void channelRead(ChannelHandlerContext ctx, Object msg) {
final Channel child = (Channel) msg; // 这时的 msg 是 NioSocketChannel
child.pipeline().addLast(childHandler); // NioSocketChannel 添加 childHandler 即初始化器
setChannelOptions(child, childOptions, logger); // 设置选项
for (Entry<AttributeKey<?>, Object> e: childAttrs) {
child.attr((AttributeKey<Object>) e.getKey()).set(e.getValue());
}
try {
//4.将 NioSocketChannel 注册到新的 NioEventLoop 线程中
childGroup.register(child).addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
if (!future.isSuccess()) {
forceClose(child, future.cause());
}
}
});
} catch (Throwable t) {
forceClose(child, t);
}
}
又回到启动剖析中熟悉的 io.netty.channel.AbstractChannel.AbstractUnsafe#register 方法
//4.切换线程：异步将 NioSocketChannel 注册到新的 NioEventLoop 线程中
public final void register(EventLoop eventLoop, final ChannelPromise promise) {
// 一些检查...
AbstractChannel.this.eventLoop = eventLoop;
if (eventLoop.inEventLoop()) { //是否是EventLoop线程
register0(promise);
} else {
try {
//4.1 切换线程：这行代码完成的事实是 nio boss -> nio worker 线程的切换
// 首次执行 execute 方法时：才启动 nio 线程，之后注册等操作在 nio 线程上执行
eventLoop.execute(new Runnable() {
@Override
public void run() {
//4.2 将 NioSocketChannel 注册到新的 NioEventLoop 线程中
register0(promise);
}
});
}
//...
}
}
io.netty.channel.AbstractChannel.AbstractUnsafe#register0
//4.2 将 NioSocketChannel 注册到新的 NioEventLoop 线程中
private void register0(ChannelPromise promise) {
try {
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
boolean firstRegistration = neverRegistered;
// 4.2.1 将 NioSocketChannel 注册到新的 selector 上
// 注意此时没有注册 selector 关注事件，附件为当前的 NioSocketChannel
// this.selectionKey = this.javaChannel().register(this.eventLoop().unwrappedSelector(), 0, this);
doRegister();
neverRegistered = false;
registered = true;
//4.2.2 执行初始化器：我们给NioSocketChannel写的 chileHandler—>initChannel
//执行前 pipeline 中只有 head -> 初始化器 -> tail
pipeline.invokeHandlerAddedIfNeeded();
//执行后就是 head -> logging handler -> tail
safeSetSuccess(promise);
pipeline.fireChannelRegistered();
if (isActive()) {
if (firstRegistration) {
//4.2.3 在新的 selector 上关注 read 事件
// 触发 pipeline 上 active 事件
pipeline.fireChannelActive();
} else if (config().isAutoRead()) {
beginRead();
}
}
} catch (Throwable t) {
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
//4.2.2 执行初始化器：我们给NioSocketChannel写的 chileHandler—>initChannel
public static void main(String[] args) {
NioEventLoopGroup group = new NioEventLoopGroup(2);
try {
Channel channel = new ServerBootstrap()
.childHandler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel channel) throws Exception {
//添加日志处理器
channel.pipeline().addLast(new LoggingHandler());
}
})
//...
}
}
回到了熟悉的代码 io.netty.channel.DefaultChannelPipeline.HeadContext#channelActive
//4.2.3 在新的 selector 上关注 read 事件
public void channelActive(ChannelHandlerContext ctx) {
ctx.fireChannelActive();
//关注 read 事件(NioSocketChannel 这里 read，只是为了触发 channel 的事件注册，还未涉及数据读取)
this.readIfIsAutoRead();
}
io.netty.channel.nio.AbstractNioChannel#doBeginRead
//关注 read 事件
protected void doBeginRead() throws Exception {
SelectionKey selectionKey = this.selectionKey;
if (selectionKey.isValid()) {
this.readPending = true;
int interestOps = selectionKey.interestOps();//这时候 interestOps 是 0
if ((interestOps & this.readInterestOp) == 0) {
//关注 read 事件
selectionKey.interestOps(interestOps | this.readInterestOp);
}
}
}
2.4 read 剖析
再来看可读事件 io.netty.channel.nio.AbstractNioByteChannel.NioByteUnsafe#read，注意发送的数据未必能够一次读完，因此会触发多次 nio read 事件，一次事件内会触发多次 pipeline read，一次事件会触发一次 pipeline read complete
public final void read() {
final ChannelConfig config = config();
if (shouldBreakReadReady(config)) {
clearReadPending();
return;
}
final ChannelPipeline pipeline = pipeline();
//1.获取 byteBuf 分配器：决定是池化还是非池化的
// io.netty.allocator.type 决定 allocator 的实现
final ByteBufAllocator allocator = config.getAllocator();
//2.动态调整 byteBuf 的分配大小，并且强制使用直接内存
final RecvByteBufAllocator.Handle allocHandle = recvBufAllocHandle();
a llocHandle.reset(config);
ByteBuf byteBuf = null;
boolean close = false;
try {
do {
byteBuf = allocHandle.allocate(allocator);
//3.读取到 byteBuf
allocHandle.lastBytesRead(doReadBytes(byteBuf));
if (allocHandle.lastBytesRead() <= 0) {
byteBuf.release();
byteBuf = null;
close = allocHandle.lastBytesRead() < 0;
if (close) {
readPending = false;
}
break;
}
allocHandle.incMessagesRead(1);
readPending = false;
//4.触发 read 事件，把 ByteBuf 依次传给流水线中的handler 处理，这时是处理 NioSocketChannel 上的 handler
pipeline.fireChannelRead(byteBuf);
byteBuf = null;
}
//5.是否要继续循环
while (allocHandle.continueReading());
allocHandle.readComplete();
// 触发 read complete 事件
pipeline.fireChannelReadComplete();
if (close) {
closeOnRead(pipeline);
}
} catch (Throwable t) {
handleReadException(pipeline, byteBuf, t, close, allocHandle);
} finally {
if (!readPending && !config.isAutoRead()) {
removeReadOp();
}
}
}
io.netty.channel.DefaultMaxMessagesRecvByteBufAllocator.MaxMessageHandle#continueReading(io.netty.util.UncheckedBooleanSupplier)
//5.是否要继续循环
public boolean continueReading(UncheckedBooleanSupplier maybeMoreDataSupplier) {
return
// 一般为 true
config.isAutoRead() &&
// respectMaybeMoreData 默认为 true
// maybeMoreDataSupplier 的逻辑是如果预期读取字节与实际读取字节相等，返回 true
(!respectMaybeMoreData || maybeMoreDataSupplier.get()) &&
// 小于最大次数，maxMessagePerRead 默认 16
totalMessages < maxMessagePerRead &&
// 实际读到了数据
totalBytesRead > 0;
}
167
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
