flink算子链

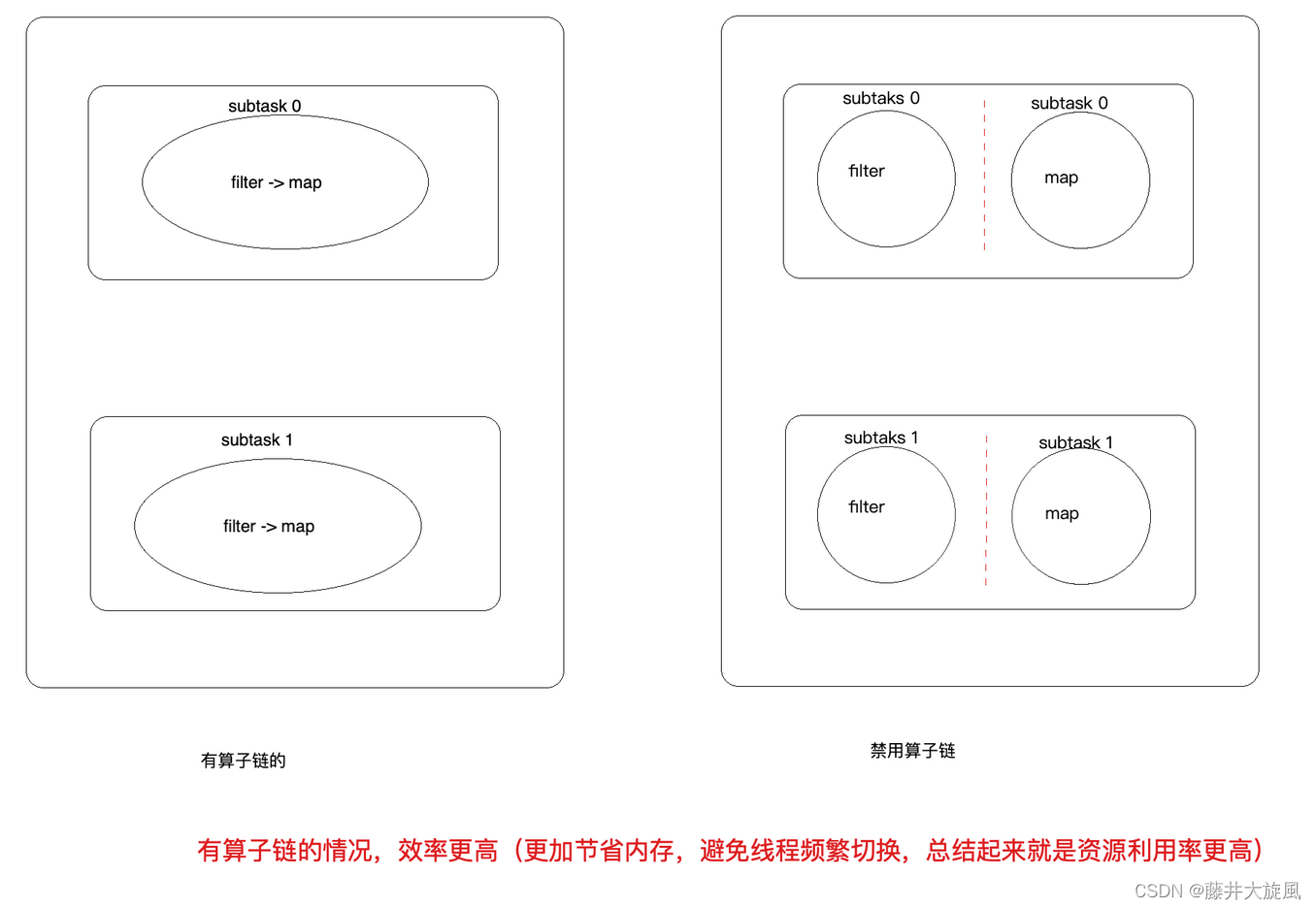

算子之间没有shuffle且并行度一样，则会形成operator chain

env.disableOperatorChaining(); 全局禁用算子链



package cn._51doit.flink.day04;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

/**
 * Flink默认情况就是开启算子链，尽可能的将算子的链连在一起，触发有特殊情况才会将算子链断开
 */
public class OperatorChainDemo {

    public static void main(String[] args) throws Exception{


        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //在env上调用disableOperatorChaining即全局禁用算子链
        env.disableOperatorChaining();


        DataStreamSource<String> lines = env.socketTextStream("localhost", 8888);

        SingleOutputStreamOperator<String> filtered = lines.filter(e -> !"error".startsWith(e));

        SingleOutputStreamOperator<String> words = filtered.flatMap(new FlatMapFunction<String, String>() {
            @Override
            public void flatMap(String line, Collector<String> collector) throws Exception {
                String[] words = line.split(" ");
                for (String word : words) {
                    collector.collect(word);
                }
            }
        });

        SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOne = words.map(new MapFunction<String, Tuple2<String, Integer>>() {
            @Override
            public Tuple2<String, Integer> map(String word) throws Exception {
                return Tuple2.of(word, 1);
            }
        });

        KeyedStream<Tuple2<String, Integer>, String> keyedStream = wordAndOne.keyBy(t -> t.f0);

        SingleOutputStreamOperator<Tuple2<String, Integer>> res = keyedStream.sum(1);

        res.print();

        env.execute();
    }
}



DisableOperatorChain之前的 DataFlow Graph

其中    Keyed Aggregation 指的时sum算子，而keyBy算子分为了两个部分，分别在第二个Task和第三个Task中，图中没有体现。

DisableOperatorChain的 DataFlow Graph

可以看到原本的算子链拆开后，算子之间的关系是forward（直传）

startNewChain算子

package cn._51doit.flink.day04;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

/**
 * Flink默认情况就是开启算子链，尽可能的将算子的链连在一起，触发有特殊情况才会将算子链断开
 *
 * StartNewChain开启一个新的链
 *
 */
public class StartNewChainDemo {

    public static void main(String[] args) throws Exception{


        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        DataStreamSource<String> lines = env.socketTextStream("localhost", 9999);

        SingleOutputStreamOperator<String> filtered = lines.filter(e -> !"error".startsWith(e));

        SingleOutputStreamOperator<String> words = filtered.flatMap(new FlatMapFunction<String, String>() {
            @Override
            public void flatMap(String line, Collector<String> collector) throws Exception {
                String[] words = line.split(" ");
                for (String word : words) {
                    collector.collect(word);
                }
            }
        }).startNewChain(); //从该算子的前面开始，开启一个新链，其余地方的链没有影响

        SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOne = words.map(new MapFunction<String, Tuple2<String, Integer>>() {
            @Override
            public Tuple2<String, Integer> map(String word) throws Exception {
                return Tuple2.of(word, 1);
            }
        });

        KeyedStream<Tuple2<String, Integer>, String> keyedStream = wordAndOne.keyBy(t -> t.f0);

        SingleOutputStreamOperator<Tuple2<String, Integer>> res = keyedStream.sum(1);

        res.print();

        env.execute();
    }
}

原：

现：

注意：startNewChain是在flatMap算子处调用的

disasbleChaining算子

package cn._51doit.flink.day04;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

/**
 * Flink默认情况就是开启算子链，尽可能的将算子的链连在一起，触发有特殊情况才会将算子链断开
 *
 *
 *
 */
public class DisableChainingDemo {

    public static void main(String[] args) throws Exception{


        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        DataStreamSource<String> lines = env.socketTextStream("localhost", 10000);

        SingleOutputStreamOperator<String> filtered = lines.filter(e -> !"error".startsWith(e));

        SingleOutputStreamOperator<String> words = filtered.flatMap(new FlatMapFunction<String, String>() {
            @Override
            public void flatMap(String line, Collector<String> collector) throws Exception {
                String[] words = line.split(" ");
                for (String word : words) {
                    collector.collect(word);
                }
            }
        }).disableChaining(); //将该算子的前后的算子链都断开，其余地方没有影响

        SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOne = words.map(new MapFunction<String, Tuple2<String, Integer>>() {
            @Override
            public Tuple2<String, Integer> map(String word) throws Exception {
                return Tuple2.of(word, 1);
            }
        });

        KeyedStream<Tuple2<String, Integer>, String> keyedStream = wordAndOne.keyBy(t -> t.f0);

        SingleOutputStreamOperator<Tuple2<String, Integer>> res = keyedStream.sum(1);

        res.print();

        env.execute();
    }
}



原：

现：

注意：调用disableChaining的算子前后都会断开

回顾：Flink的资源槽

共享资源槽

package cn._51doit.flink.day04;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

/**
 * 设置程序的共享资源槽组名称
 *
 */
public class SlotSharingGroupDemo {

    public static void main(String[] args) throws Exception{


        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        DataStreamSource<String> lines = env.socketTextStream(args[0], Integer.parseInt(args[1]));

        SingleOutputStreamOperator<String> filtered = lines.filter(e -> !"error".startsWith(e));

        SingleOutputStreamOperator<String> words = filtered.flatMap(new FlatMapFunction<String, String>() {
            @Override
            public void flatMap(String line, Collector<String> collector) throws Exception {
                String[] words = line.split(" ");
                for (String word : words) {
                    collector.collect(word);
                }
            }
        }).disableChaining().slotSharingGroup("doit"); //设置该算子的资源槽名称为doit

        SingleOutputStreamOperator<Tuple2<String, Integer>> wordAndOne = words.map(new MapFunction<String, Tuple2<String, Integer>>() {
            @Override
            public Tuple2<String, Integer> map(String word) throws Exception {
                return Tuple2.of(word, 1);
            }
        }).slotSharingGroup("default");

        KeyedStream<Tuple2<String, Integer>, String> keyedStream = wordAndOne.keyBy(t -> t.f0);

        SingleOutputStreamOperator<Tuple2<String, Integer>> res = keyedStream.sum(1);

        res.print();

        env.execute();
    }
}
