思科无线实验AC+AP

拓扑图

在这里插入图片描述

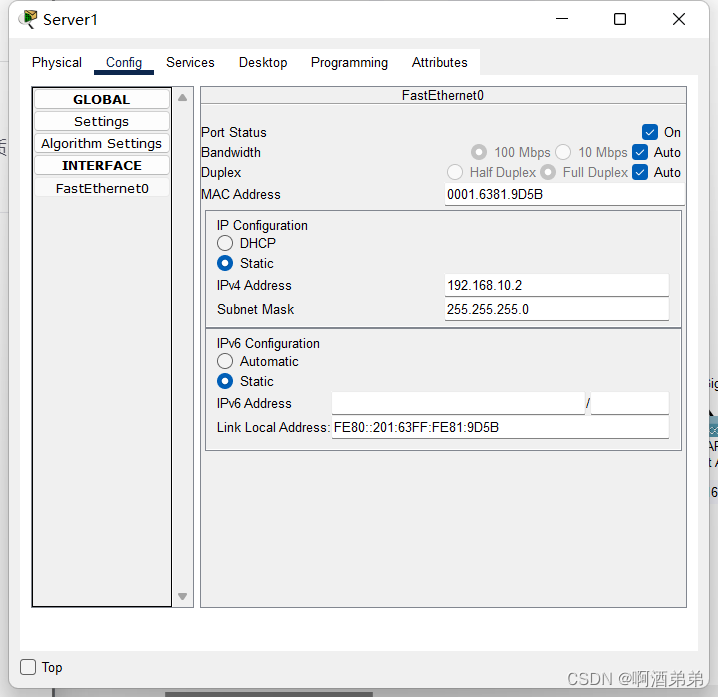

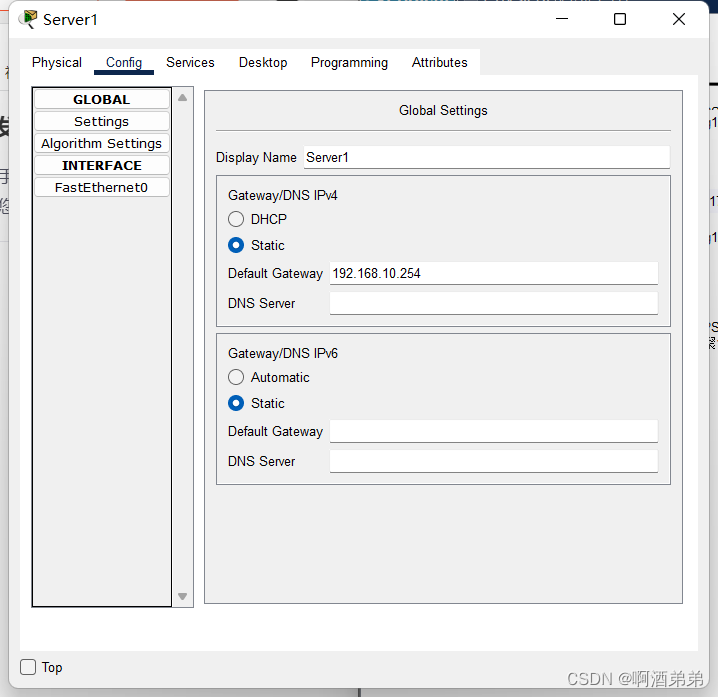

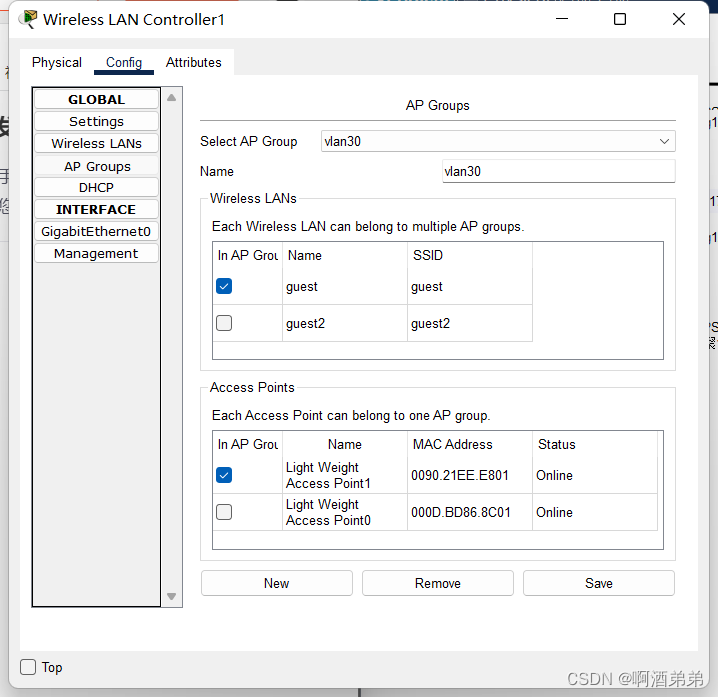

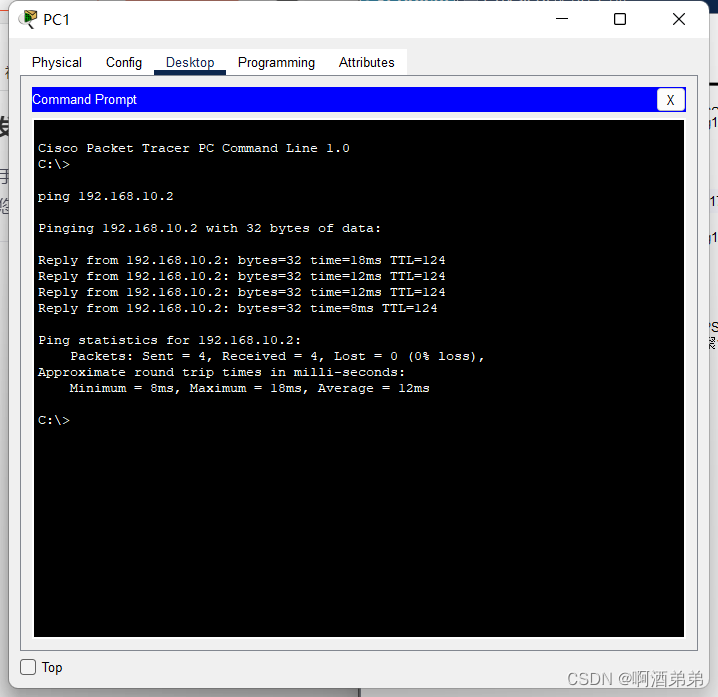

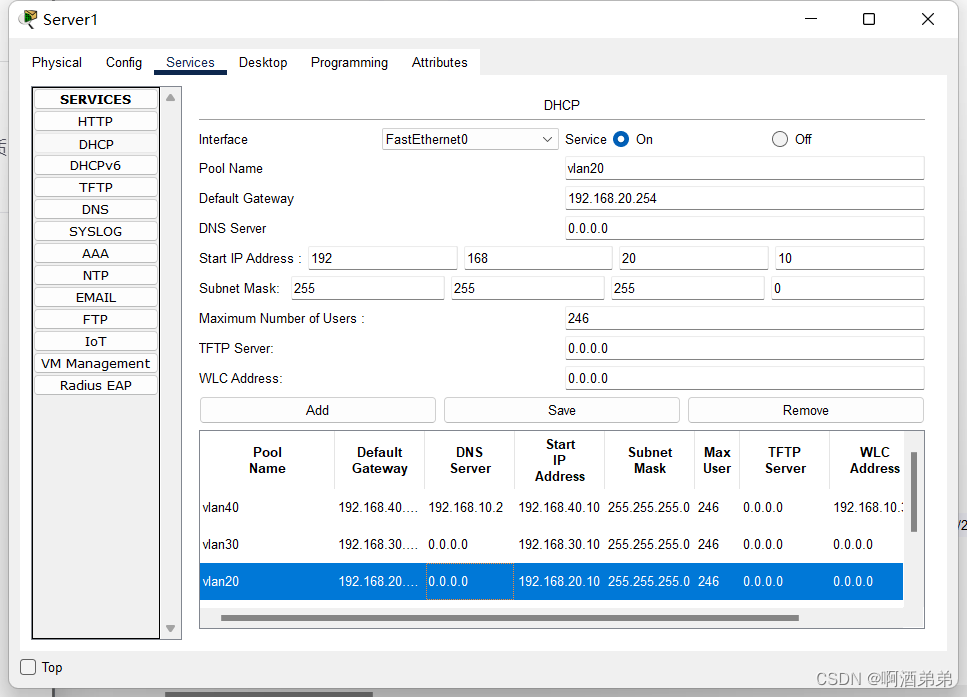

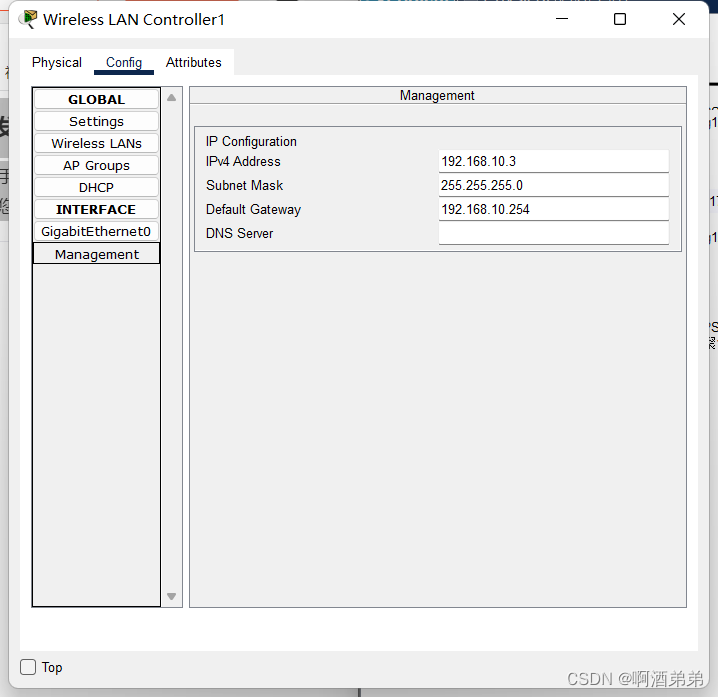

Agg-server

interface Vlan10
 mac-address 00e0.f74b.b301
 ip address 192.168.10.254 255.255.255.0
!
interface GigabitEthernet1/0/1
 no switchport
 ip address 172.21.1.1 255.255.255.252
 duplex auto
 speed auto
!
interface GigabitEthernet1/0/2
 switchport access vlan 10
 switchport mode access
 switchport nonegotiate
!
interface GigabitEthernet1/0/3
 switchport access vlan 10
 switchport mode access
 switchport nonegotiate
!
 router ospf 1
 log-adjacency-changes
 network 172.21.1.0 0.0.0.3 area 0
 network 192.168.10.0 0.0.0.255 area 1

Core-1

interface GigabitEthernet1/0/1
 no switchport
 ip address 172.21.1.2 255.255.255.252
 duplex auto
 speed auto
!
interface GigabitEthernet1/0/2
 no switchport
 ip address 172.21.3.2 255.255.255.252
 duplex auto
 speed auto
!
 router ospf 1
 log-adjacency-changes
 network 172.21.1.0 0.0.0.3 area 0
 network 172.21.3.0 0.0.0.3 area 0
!

Core-2

interface GigabitEthernet1/0/1
 no switchport
 ip address 172.21.3.1 255.255.255.252
 duplex auto
 speed auto
!
interface GigabitEthernet1/0/2
 no switchport
 ip address 172.21.2.2 255.255.255.252
 duplex auto
 speed auto
!
router ospf 1
 log-adjacency-changes
 network 172.21.2.0 0.0.0.3 area 0
 network 172.21.3.0 0.0.0.3 area 0
!

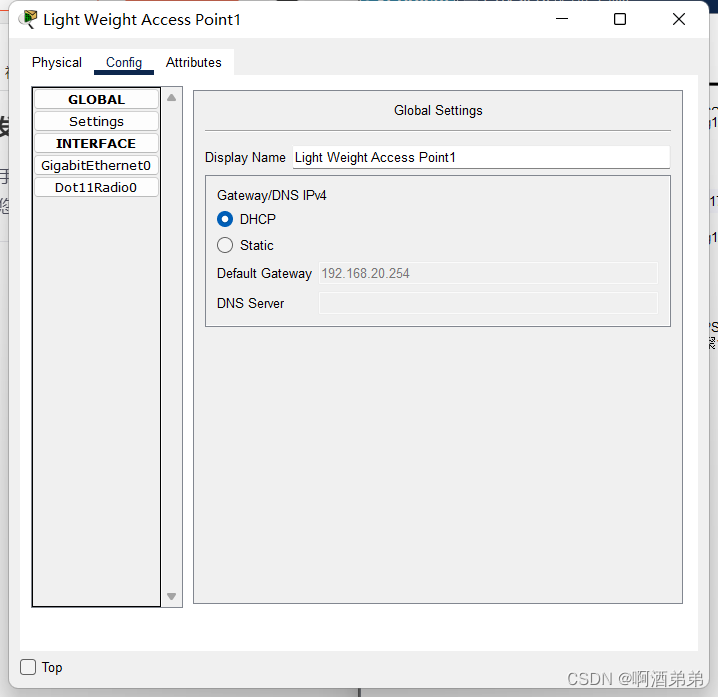

Agg-Teach-1

!

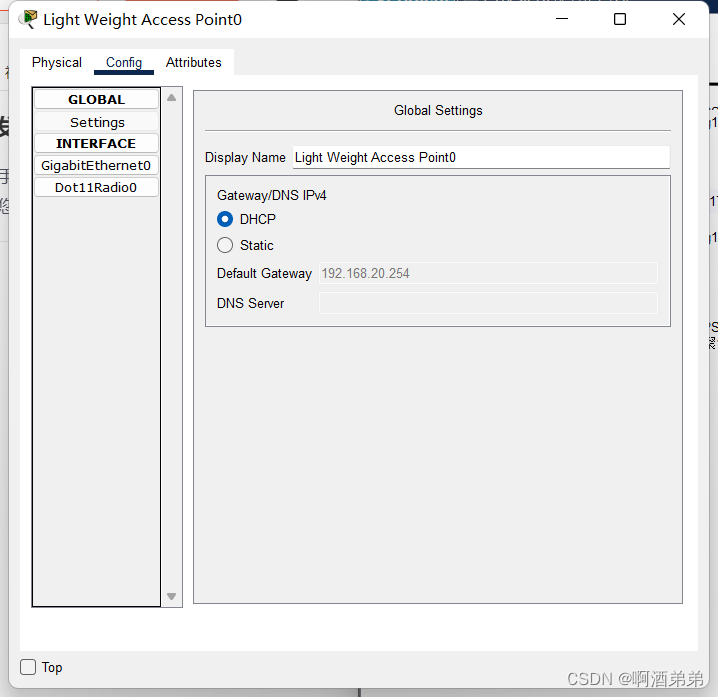

ip dhcp pool AP
 network 192.168.20.0 255.255.255.0
 default-router 192.168.20.254

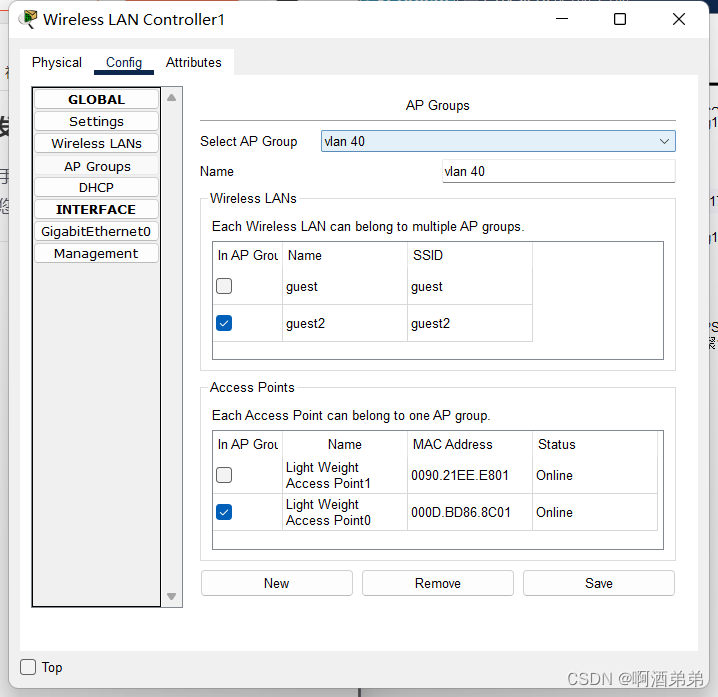

 option 43 ip 192.168.10.3
!
interface GigabitEthernet1/0/1
 no switchport
 ip address 172.21.2.1 255.255.255.252
 duplex auto
 speed auto
!
interface GigabitEthernet1/0/2
 switchport trunk native vlan 20
 switchport mode trunk
 switchport nonegotiate
!
interface GigabitEthernet1/0/3
 switchport mode trunk


interface Vlan10
 mac-address 00d0.5847.ce01
 no ip address
!
interface Vlan20
 mac-address 00d0.5847.ce02
 ip address 192.168.20.254 255.255.255.0
 ip helper-address 192.168.10.2
!

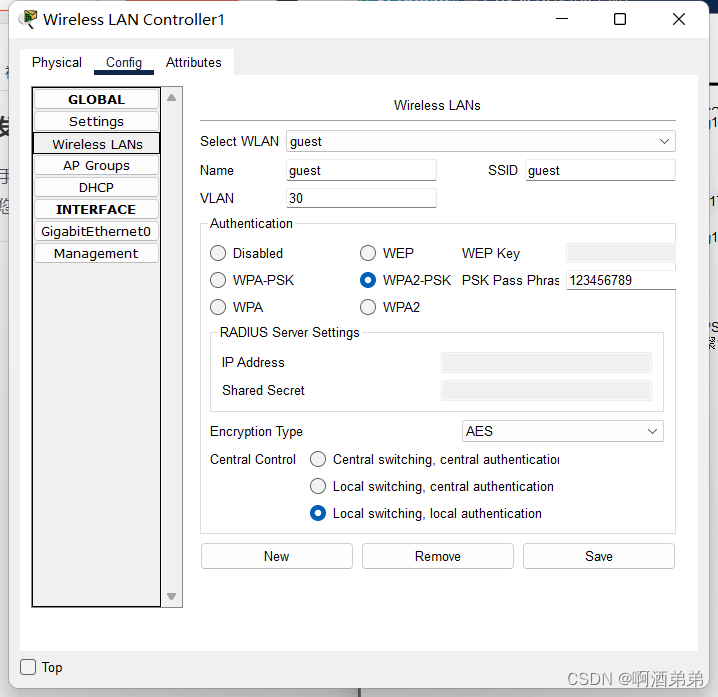

interface Vlan30
 mac-address 00d0.5847.ce03
 ip address 192.168.30.254 255.255.255.0
 ip helper-address 192.168.10.3
!

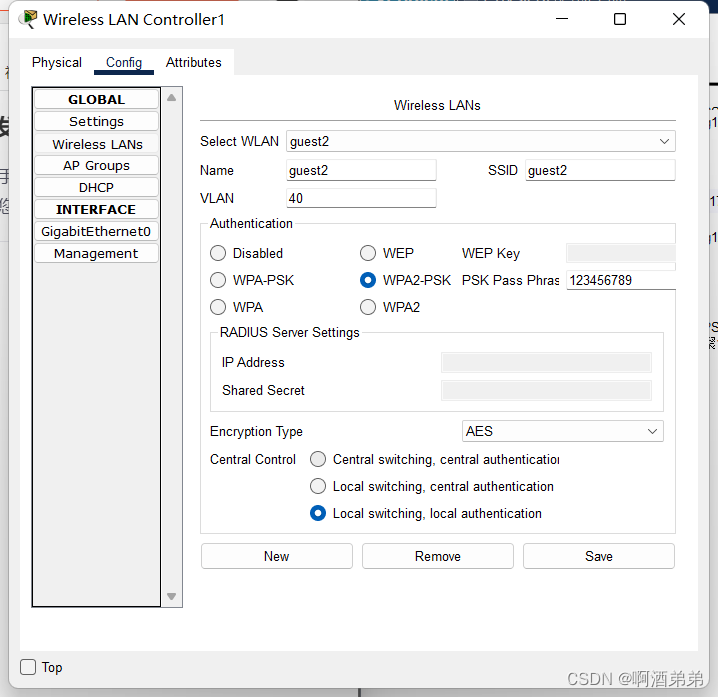

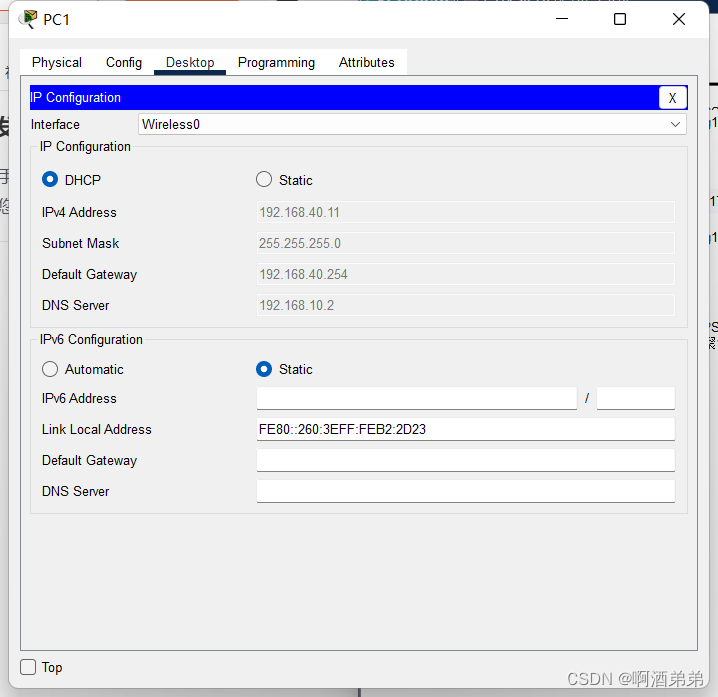

interface Vlan40
 mac-address 00d0.5847.ce04
 ip address 192.168.40.254 255.255.255.0
 ip helper-address 192.168.10.2
!
router ospf 1
 log-adjacency-changes
 network 192.168.20.0 0.0.0.255 area 1
 network 192.168.30.0 0.0.0.255 area 1
 network 192.168.40.0 0.0.0.255 area 1
 network 172.21.2.0 0.0.0.3 area 0

Acc-Teach-1

interface FastEthernet0/1
 switchport mode trunk
!
interface FastEthernet0/2
 switchport trunk native vlan 20
 switchport mode trunk
!
interface Vlan20
 no ip address
!
interface Vlan40

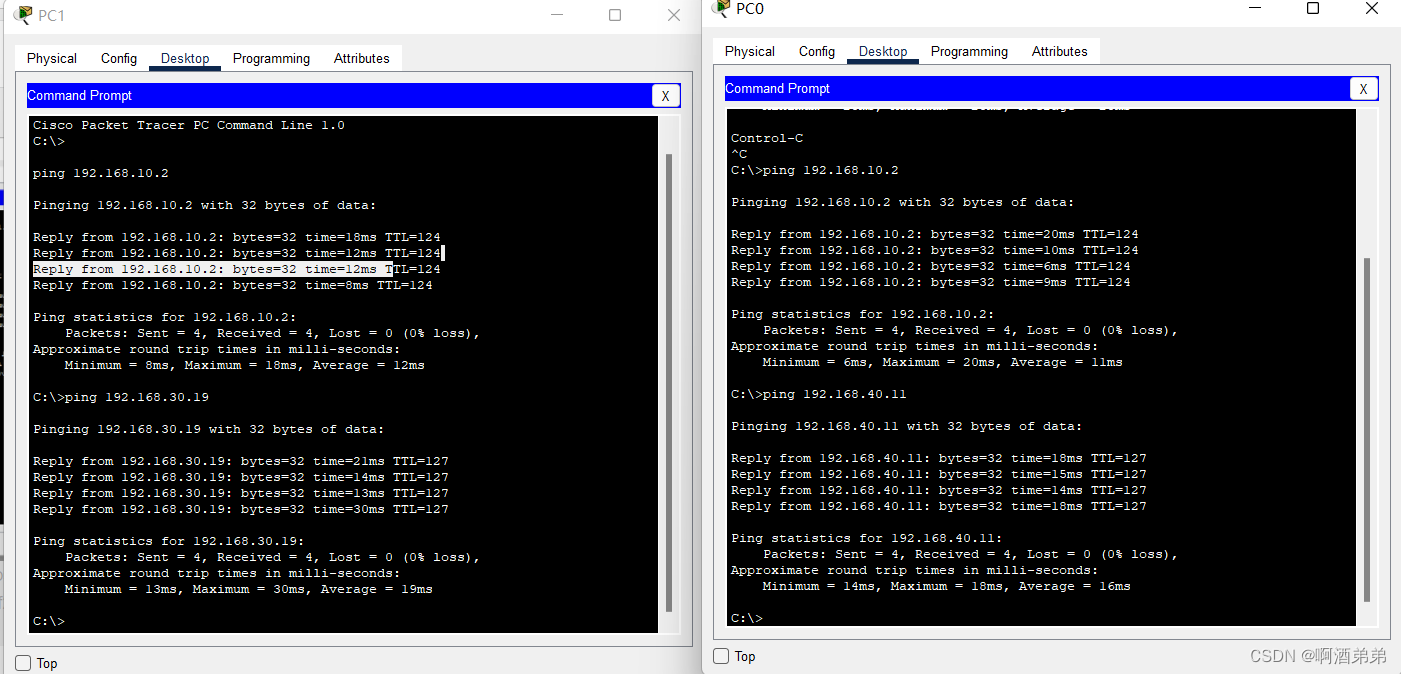

 no ip address
