5.3_ImageResliceExample2.exe : fatal error LNK1120: 2 unresolved externals问题解决方法

最近在学习VTK,在运行《VTk图形图像开发进阶》中的5.3_ImageResliceExample2实例时出现了如下问题：

build error
本人计算环境配置为vs2010 + CMake 3.15.2 + VTK 6.3.0，也参考了CSDN其他博主的文章，向张晓东老师和 mrj4124 等其他帮助到我的网友表示感谢！

现贴出完整代码：

#include <vtkAutoInit.h>
VTK_MODULE_INIT(vtkRenderingOpenGL);
VTK_MODULE_INIT(vtkInteractionStyle);
VTK_MODULE_INIT(vtkRenderingFreeType)

#include <vtkSmartPointer.h>
#include <vtkImageReader2.h>
#include <vtkMatrix4x4.h>
#include <vtkImageReslice.h>
#include <vtkLookupTable.h>
#include <vtkImageMapToColors.h>
#include <vtkImageActor.h>
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkInteractorStyleImage.h>
#include <vtkCommand.h>
#include <vtkImageData.h>
#include <vtkMetaImageReader.h>
#include <vtkImageCast.h>
#include "vtkVolume16Reader.h"

class vtkImageInteractionCallback : public vtkCommand
{
public:
	static vtkImageInteractionCallback *New()
	{
		return new vtkImageInteractionCallback;
	}

	vtkImageInteractionCallback()
	{
		this->Slicing = 0;
		this->ImageReslice = 0;
		this->Interactor = 0;
	}

	void SetImageReslice(vtkImageReslice *reslice)
	{
		this->ImageReslice = reslice;
	}

	void SetImageMapToColors(vtkImageMapToColors *mapToColors)
	{
		this->mapToColors = mapToColors;
	}

	vtkImageReslice *GetImageReslice()
	{
		return this->ImageReslice;
	}

	void SetInteractor(vtkRenderWindowInteractor *interactor)
	{
		this->Interactor = interactor;
	}

	vtkRenderWindowInteractor *GetInteractor()
	{
		return this->Interactor;
	}

	virtual void Execute(vtkObject *, unsigned long event, void *)
	{
		vtkRenderWindowInteractor *interactor = this->GetInteractor();
		int lastPos[2];
		interactor->GetLastEventPosition(lastPos);
		int currPos[2];
		interactor->GetEventPosition(currPos);

		if (event == vtkCommand::LeftButtonPressEvent)
		{
			this->Slicing = 1;
		}
		else if (event == vtkCommand::LeftButtonReleaseEvent)
		{
			this->Slicing = 0;
		}
		else if (event == vtkCommand::MouseMoveEvent)
		{
			if (this->Slicing)
			{
				vtkImageReslice *reslice = this->ImageReslice;
				// Increment slice position by deltaY of mouse
				int deltaY = lastPos[1] - currPos[1];
				reslice->Update();
				double sliceSpacing = reslice->GetOutput()->GetSpacing()[2];
				vtkMatrix4x4 *matrix = reslice->GetResliceAxes();
				// move the center point that we are slicing through
				double point[4];
				double center[4];
				point[0] = 0.0;
				point[1] = 0.0;
				point[2] = sliceSpacing * deltaY;
				point[3] = 1.0;
				matrix->MultiplyPoint(point, center);
				matrix->SetElement(0, 3, center[0]);
				matrix->SetElement(1, 3, center[1]);
				matrix->SetElement(2, 3, center[2]);
				mapToColors->Update();
				interactor->Render();
			}
			else
			{
				vtkInteractorStyle *style = vtkInteractorStyle::SafeDownCast(
					interactor->GetInteractorStyle());
				if (style)
				{
					style->OnMouseMove();
				}
			}
		}
	}


private:
	int Slicing;
	vtkImageReslice *ImageReslice;
	vtkRenderWindowInteractor *Interactor;
	vtkImageMapToColors *mapToColors;
};

int main()
{
	vtkSmartPointer<vtkMetaImageReader> reader =
		vtkSmartPointer<vtkMetaImageReader>::New();
	reader->SetFileName ("D:/VTK/BUILD/example/Chap05/data/brain.mhd" );
	reader->Update();

	int extent[6];
	double spacing[3];
	double origin[3];

	reader->GetOutput()->GetExtent(extent);
	reader->GetOutput()->GetSpacing(spacing);
	reader->GetOutput()->GetOrigin(origin);
	double center[3];
	center[0] = origin[0] + spacing[0] * 0.5 * (extent[0] + extent[1]);
	center[1] = origin[1] + spacing[1] * 0.5 * (extent[2] + extent[3]);
	center[2] = origin[2] + spacing[2] * 0.5 * (extent[4] + extent[5]);

	static double axialElements[16] = {
		1, 0, 0, 0,
		0, 1, 0, 0,
		0, 0, 1, 0,
		0, 0, 0, 1
	};

	vtkSmartPointer<vtkMatrix4x4> resliceAxes =
		vtkSmartPointer<vtkMatrix4x4>::New();
	resliceAxes->DeepCopy(axialElements);

	resliceAxes->SetElement(0, 3, center[0]);
	resliceAxes->SetElement(1, 3, center[1]);
	resliceAxes->SetElement(2, 3, center[2]);

	vtkSmartPointer<vtkImageReslice> reslice =
		vtkSmartPointer<vtkImageReslice>::New();
	reslice->SetInputData(reader->GetOutput());
	reslice->SetOutputDimensionality(2);
	reslice->SetResliceAxes(resliceAxes);
	reslice->SetInterpolationModeToLinear();
	reslice->Update();

	vtkSmartPointer<vtkLookupTable> colorTable =
		vtkSmartPointer<vtkLookupTable>::New();
	colorTable->SetRange(0, 1000);
	colorTable->SetValueRange(0.0, 1.0);
	colorTable->SetSaturationRange(0.0, 0.0);
	colorTable->SetRampToLinear();
	colorTable->Build();

	vtkSmartPointer<vtkImageMapToColors> colorMap =
		vtkSmartPointer<vtkImageMapToColors>::New();
	colorMap->SetLookupTable(colorTable);
	colorMap->SetInputConnection(reslice->GetOutputPort());
	colorMap->Update();

	vtkSmartPointer<vtkImageActor> imgActor =
		vtkSmartPointer<vtkImageActor>::New();
	imgActor->SetInputData(colorMap->GetOutput());

	vtkSmartPointer<vtkRenderer> renderer =
		vtkSmartPointer<vtkRenderer>::New();
	renderer->AddActor(imgActor);
	renderer->SetBackground(1, 1, 1);

	vtkSmartPointer<vtkRenderWindow> renderWindow =
		vtkSmartPointer<vtkRenderWindow>::New();
	renderWindow->SetSize(500, 500);
	renderWindow->AddRenderer(renderer);

	vtkSmartPointer<vtkRenderWindowInteractor> renderWindowInteractor =
		vtkSmartPointer<vtkRenderWindowInteractor>::New();
	vtkSmartPointer<vtkInteractorStyleImage> imagestyle =
		vtkSmartPointer<vtkInteractorStyleImage>::New();

	renderWindowInteractor->SetInteractorStyle(imagestyle);
	renderWindowInteractor->SetRenderWindow(renderWindow);
	renderWindowInteractor->Initialize();

	vtkSmartPointer<vtkImageInteractionCallback> callback =
		vtkSmartPointer<vtkImageInteractionCallback>::New();
	callback->SetImageReslice(reslice);
	callback->SetInteractor(renderWindowInteractor);
	callback->SetImageMapToColors(colorMap);

	imagestyle->AddObserver(vtkCommand::MouseMoveEvent, callback);
	imagestyle->AddObserver(vtkCommand::LeftButtonPressEvent, callback);
	imagestyle->AddObserver(vtkCommand::LeftButtonReleaseEvent, callback);

	renderWindowInteractor->Start();
	return EXIT_SUCCESS;
}

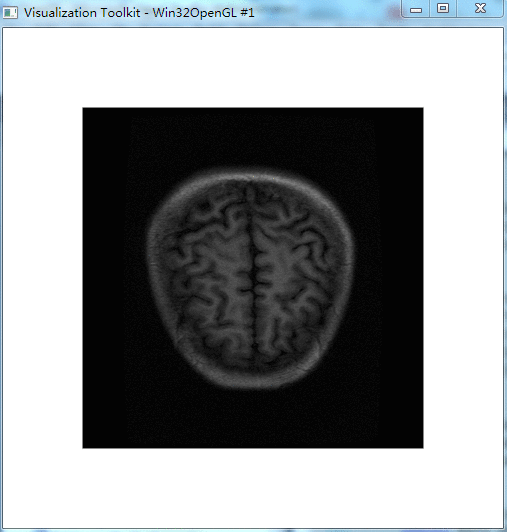

运行结果

滑动鼠标，即可观看不同的切片图像：
运行结果

参考文献

[1]: 张晓东, 罗火灵. VTK图形图像开发进阶[M]. 机械工业出版社, 2015.
[2]: https://blog.csdn.net/mrj4124/article/details/80600817
[3]: https://blog.csdn.net/c2a2o2/article/details/78064226
[4]: https://blog.csdn.net/c2a2o2/article/details/78064226
