mapboxgl 配合高德地图api搜索周围的交通(公交、地铁)及教育医疗等场所信息

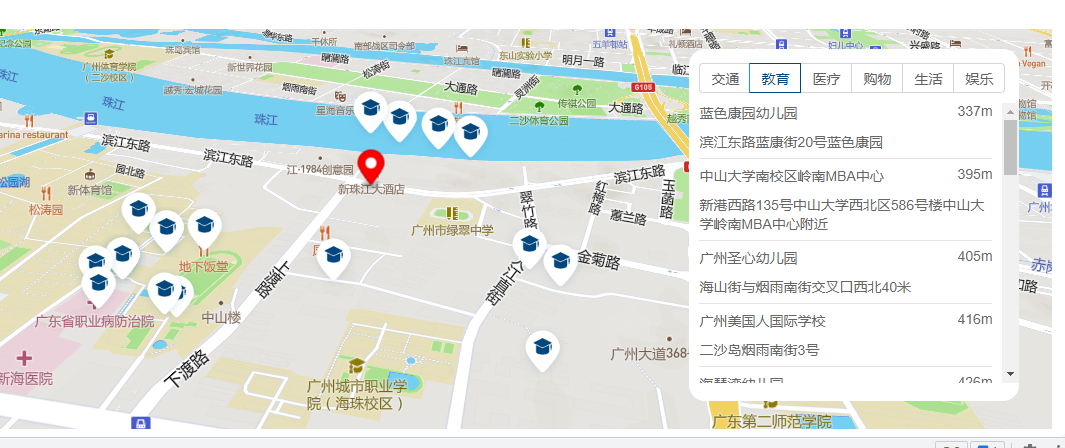

实现效果:
此处还有高德地图坐标偏移问题待解决
步骤:
先npm安装并引入mapboxgl
import mapboxgl from "mapbox-gl"
先找一个容器展示地图,且容器得先写好宽高
<div id="map"></div>
#map {
width: 100%;
height: 400px;
}
在拿到项目(即图中红色标记)坐标数据后,初始化地图
这里需要先去mapbox申请一个token
initmap(){
let that = this
mapboxgl.accessToken = "xxxxxxx这里是你的token"; //这里请换成自己的token
var map = (this.map = new mapboxgl.Map({
container: 'map', // container id 绑定的组件的id
style: 'mapbox://styles/mapbox/streets-v11', //地图样式,可以使用官网预定义的样式,也可以自定义
center: [this.detailsForm.longitude,this.detailsForm.latitude], // 初始坐标系,这个是南京建邺附近
zoom: 15, // starting zoom 地图初始的拉伸比例
pitch: 60, //地图的角度,不写默认是0,取值是0-60度,一般在3D中使用
bearing: -17.6, //地图的初始方向,值是北的逆时针度数,默认是0,即是正北
antialias: true, //抗锯齿,通过false关闭提升性能
}))
// let lnglat = gcj02towgs84(this.detailsForm.longitude,this.detailsForm.latitude)
new mapboxgl.Marker({color:'red'})
.setLngLat([this.detailsForm.longitude,this.detailsForm.latitude])
.addTo(map);
let language = new MapboxLanguage({ defaultLanguage: "zh-Hans" });//设置汉语
map.addControl(language);
map.on('load', function() {
var geojson = {
'type': 'FeatureCollection',
'features': []
};
map.addSource('points', {
type: 'geojson',
data: geojson
});
map.addLayer({
id: 'points',
type: 'circle',
source: 'points',
'paint': {
'circle-color': [
'match',
['get', 'type'],
'起', '#62b500',
'#f54336' // 无匹配值
],
'circle-radius': 13
}
});
map.addLayer({
'id': 'label',
'type': 'symbol',
'source': 'points',
'layout': {
'text-field': ['get', 'type'],
"text-size": 12
},
paint: {
'text-color': '#ffffff'
}
})
})
map.on('click', function(e) {
var lngLat = e.lngLat;
console.log("isdraw",e.lngLat);
});
},
在初始化代码里,是Marker标记项目地址
new mapboxgl.Marker({color:'red'})
.setLngLat([this.detailsForm.longitude,this.detailsForm.latitude])
.addTo(map);
marker({color:'red')可以对标记的样式进行处理
接下来就是重点的了,使用高德地图的搜索周边api

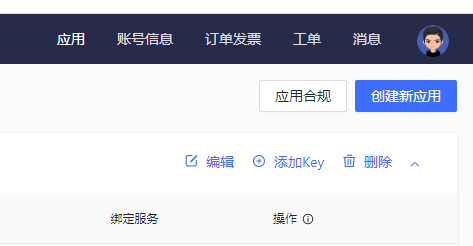

第一步先去高德地图开发平台申请一个web服务key

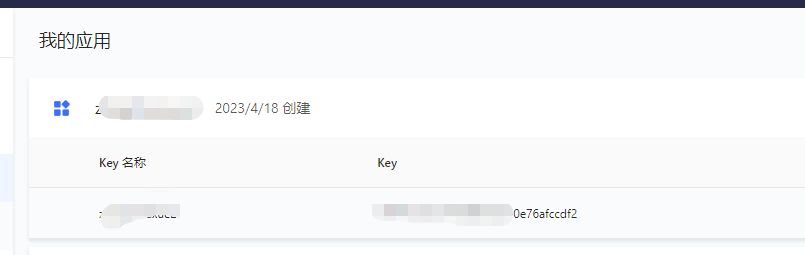

进入开发平台按要求填写创建一个新应用,选择web服务,然后就能得到一个key
第二步就是发请求
getAround() {
let that = this
that.isDraw = false;
let location = [Number(that.detailsForm.longitude).toFixed(6),Number(that.detailsForm.latitude).toFixed(6)].join(',')
const url = 'https://restapi.amap.com/v3/place/around?key=这里换成你申请的key&location='+location+'&keywords=&types='
+that.typeCode+'&radius=1000&offset=20&page=1&extensions=all';
axios.get(url).then(res=>{
that.aroundData = []
for(let index = 0;index<res.data.pois.length;index++){
that.aroundData.push({'name':res.data.pois[index].name,
'address':res.data.pois[index].address,
'distance':res.data.pois[index].distance,
'location':res.data.pois[index].location,
})
}
for(let index = 0 ;index<that.aroundData.length;index++){
let lngData = that.aroundData[index].location.split(',')
let className = ''
if(this.activeBtn == '交通'){
if(this.typeChecked == '地铁'){
className = 'measure-subway'
}else{
className = 'measure-bus'
}
}else if(this.activeBtn == '教育'){
className = 'measure-school'
}else if(this.activeBtn == '医疗'){
className = 'measure-hosipitol'
}else if(this.activeBtn == '购物'){
className = 'measure-shop'
}else if(this.activeBtn == '生活'){
className = 'measure-life'
}else if(this.activeBtn == '娱乐'){
className = 'measure-play'
}
const ele = document.createElement("div")
ele.setAttribute("class", className)
const oneMarker = new mapboxgl.Marker(ele)
.setLngLat([lngData[0],lngData[1]])
.addTo(that.map);
this.markerList.push(oneMarker);
}
})
},

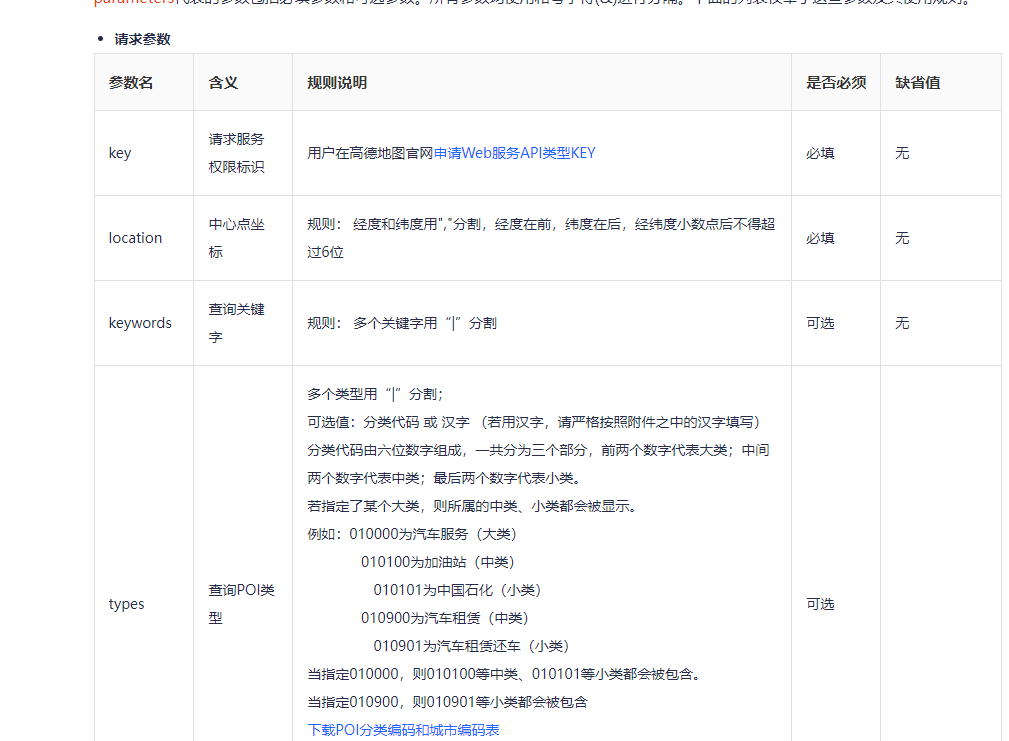

对于请求参数的内容可以去看官网 https://lbs.amap.com/api/webservice/guide/api/search#around
这里边有详细介绍
然后这里附上 types的分类代码合集 分类代码合集点此
在拿到周边信息数据后,就是在地图上标记啦
const ele = document.createElement("div")
ele.setAttribute("class", className)
const oneMarker = new mapboxgl.Marker(ele)
.setLngLat([lngData[0],lngData[1]])
.addTo(that.map);
this.markerList.push(oneMarker);
这里需要用一个数组markerList来存放所有标记,因为等下切换场所的时候需要把所有标记清除,然后根据选的不同场所,用不同的className来用不同的图标展示,这里示例一个学校的
::v-deep .measure-school{
width: 50px;
height: 50px;
background-image:url(~@/assets/images/地图icon-04.png) ;
background-size: contain
}
最后就是切换的时候,把所有场所标记先清除,这部分代码就是放到你切换场所的方法里,然后再调用getaround方法重新获取场所数据再重新标记
typeChange(value){
if (this.markerList!== null) {
for (var i = this.markerList.length - 1; i >= 0; i--) {
this.markerList[i].remove();
}
}
if(value == '交通'){
value = '地铁'
this.typeChecked = '地铁'
}
if(value!='公交'&&value!='地铁' ){
for(const item of this.typesOption){
if(item.name == value){
this.typeCode = item.typesCode
}
}
}else{
for(const item of this.typesOption){
if(item.name == value){
this.typeCode = item.typesCode
}
}
}
this.getAround()
},
差不多就是这样了,然后因为高德的坐标偏移,还需要去解决坐标转换问题
更新:
坐标转换问题已解决-> 坐标系转换

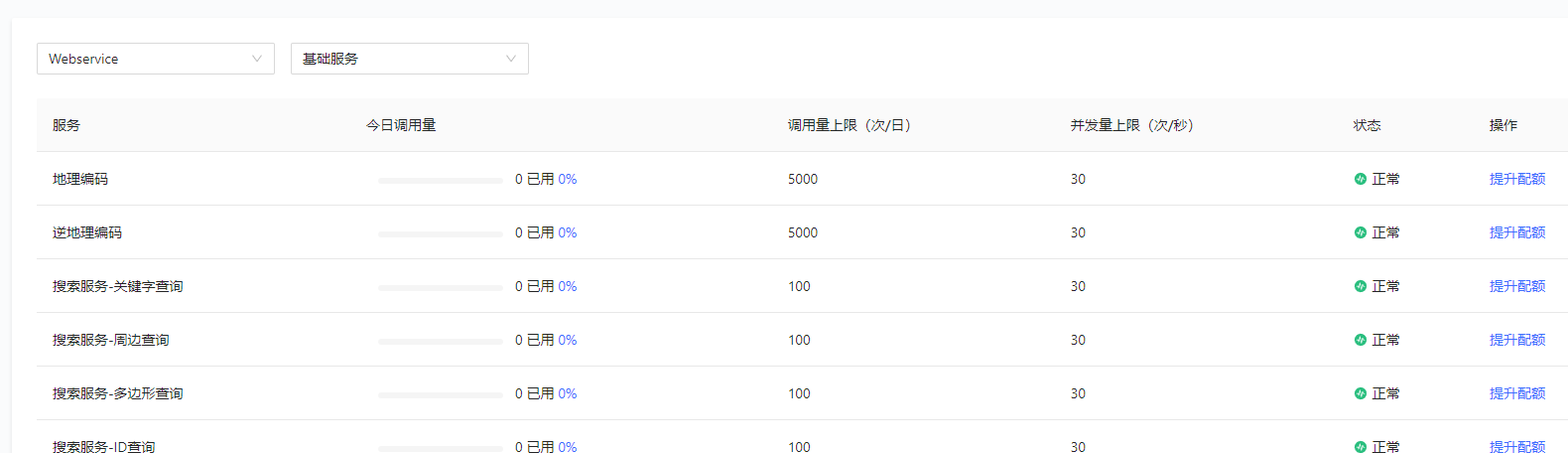

另外高德的查询周边信息接口是有限制免费次数的,目前是每日免费查100次,不够用的话就只能去提升配额了
