S32K144-hello_word点灯

官方提供了很多的参考例程，每个历程分别配置了不同的外设，这里挨个尝试解读一下。

示例效果

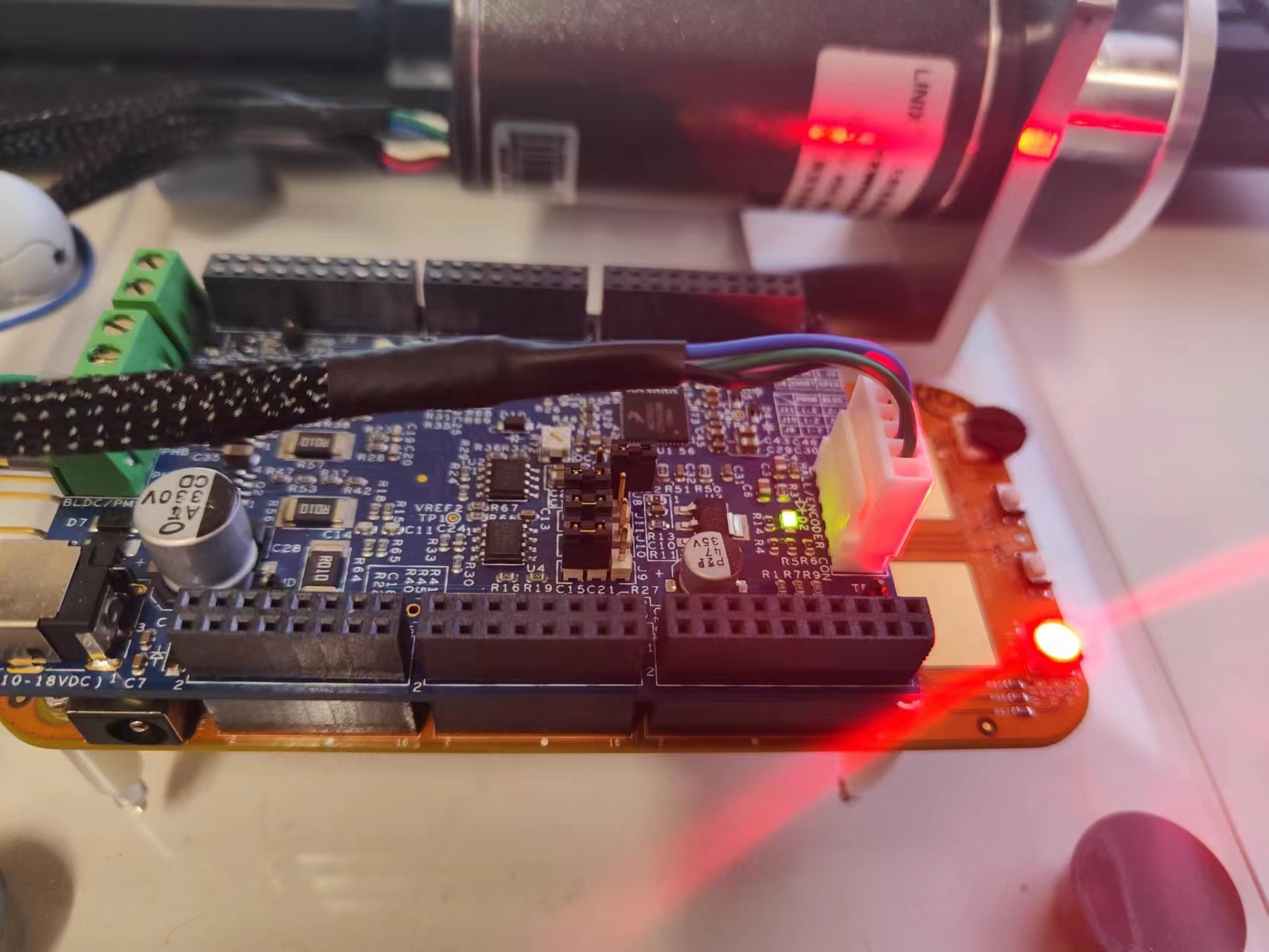

RGB红灯绿灯交替闪烁。

导入示例

示例文件所在目录：

该示例使用PCC和PORT模块交替切换两个LED。

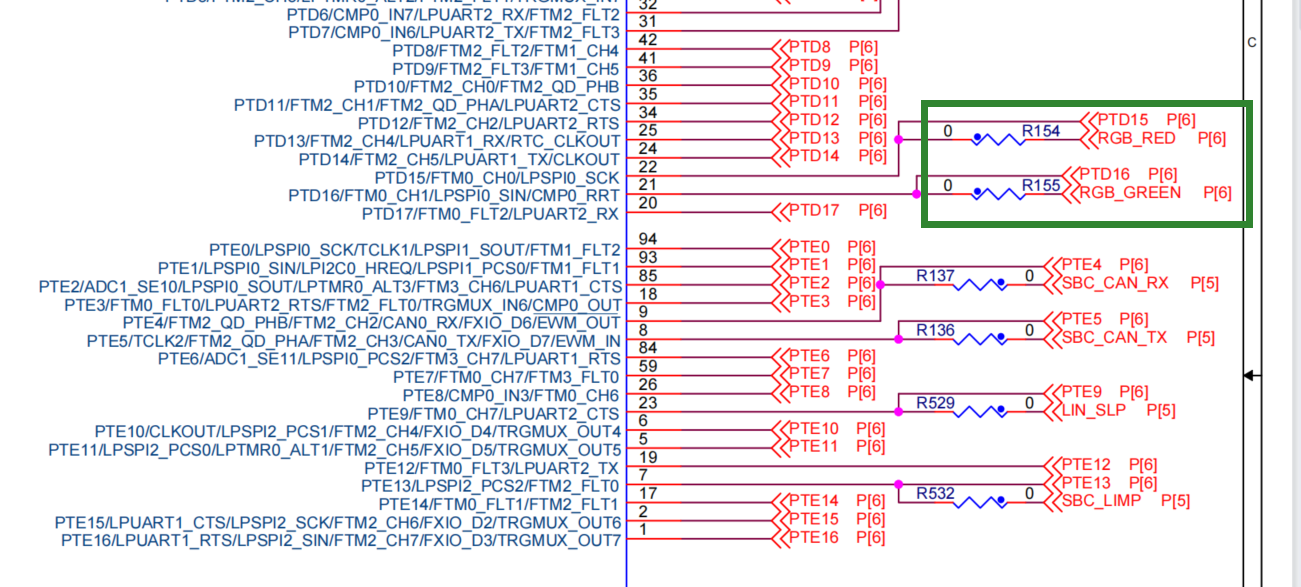

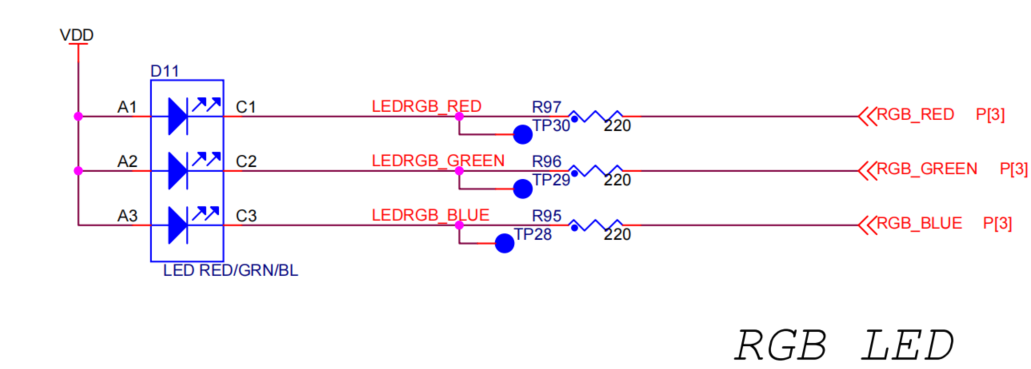

硬件连接

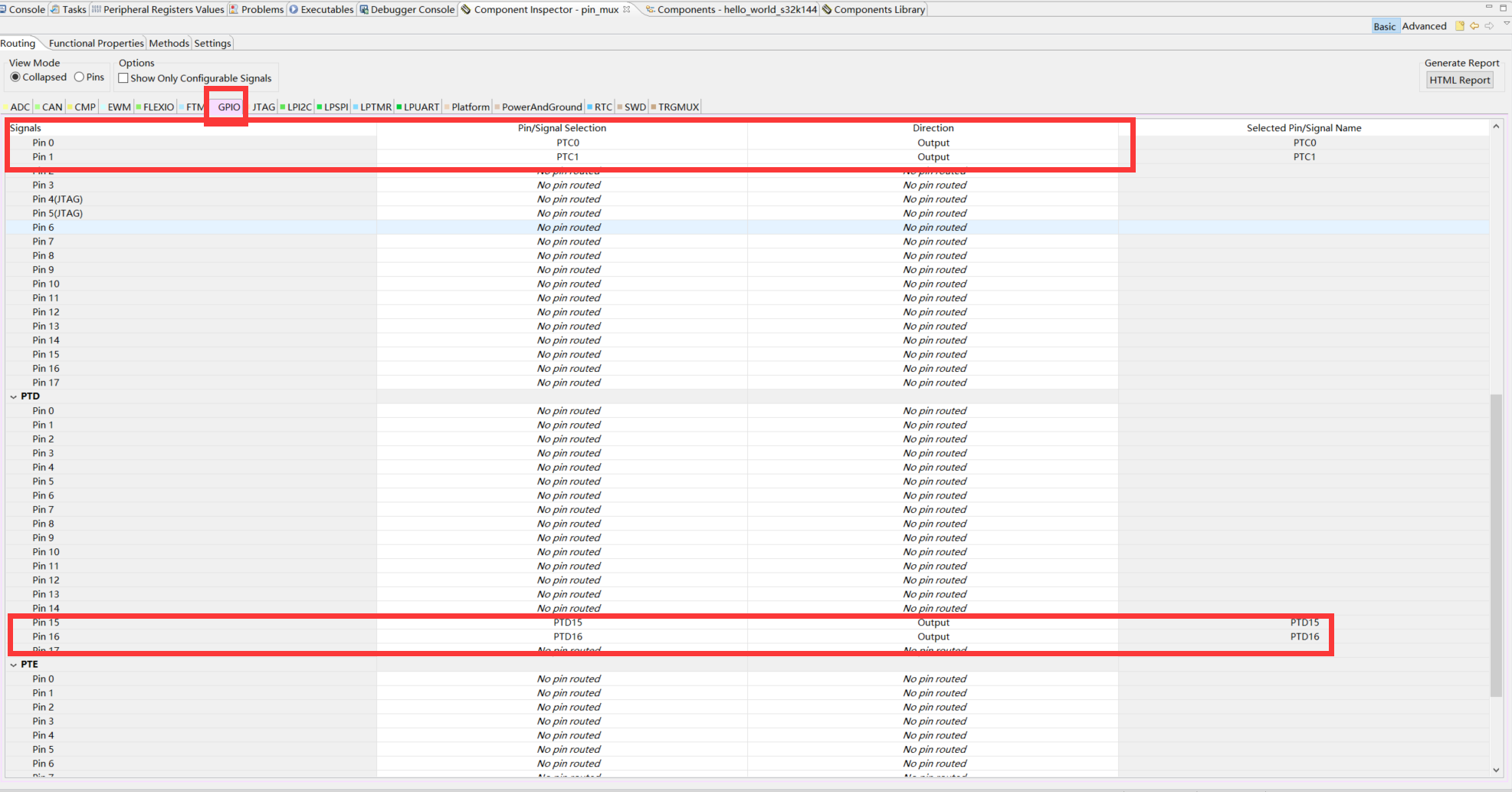

配置引脚功能 生成代码

S32DS自带引脚配置器：pin_mux，就和stm32的cubmux一样，只不过直接集成到这个软件里面了。

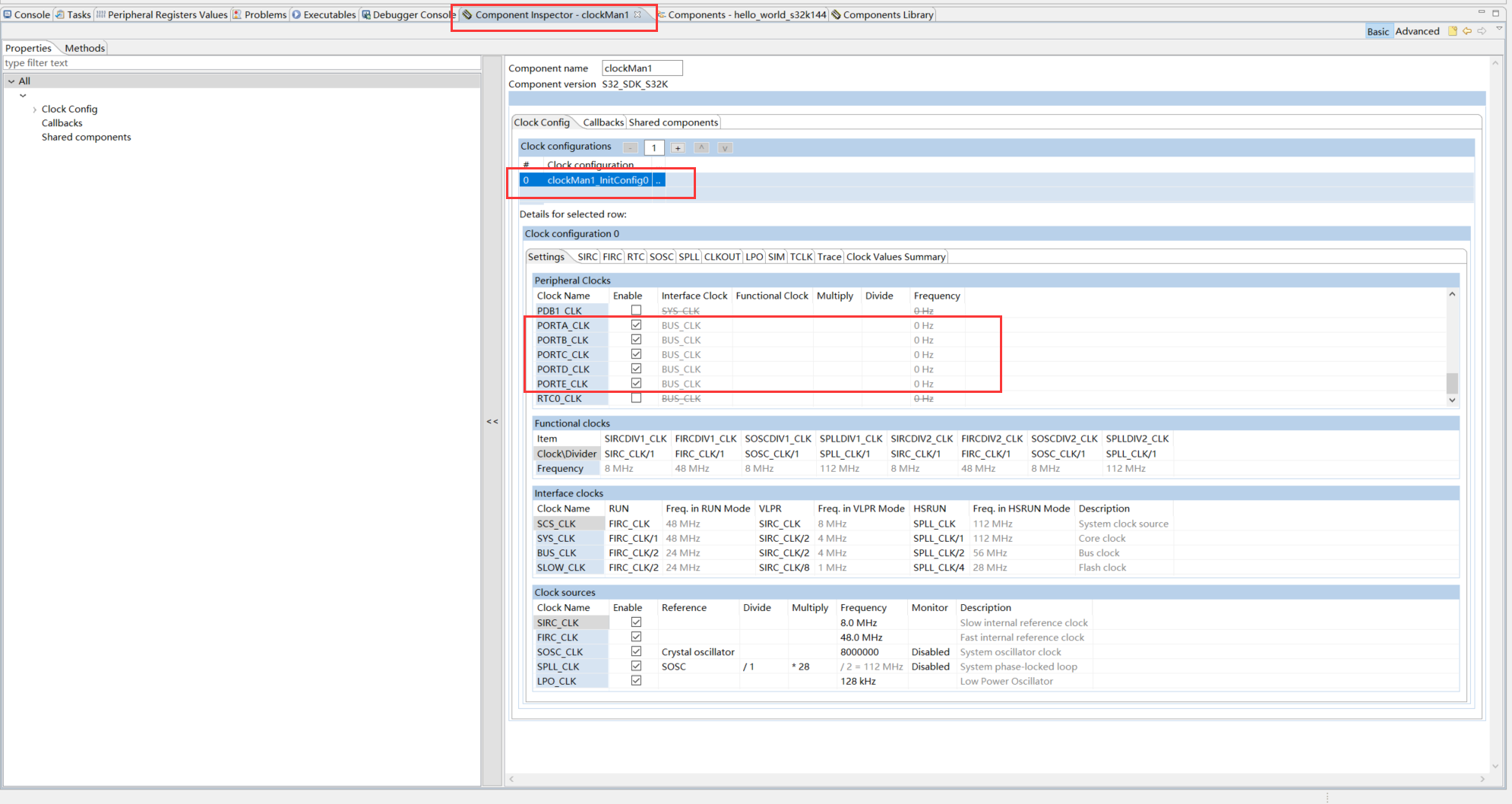

当然也可以在这里直接配置时钟：

等等，这一切配置完之后，点生成代码按钮：

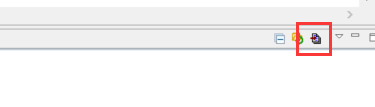

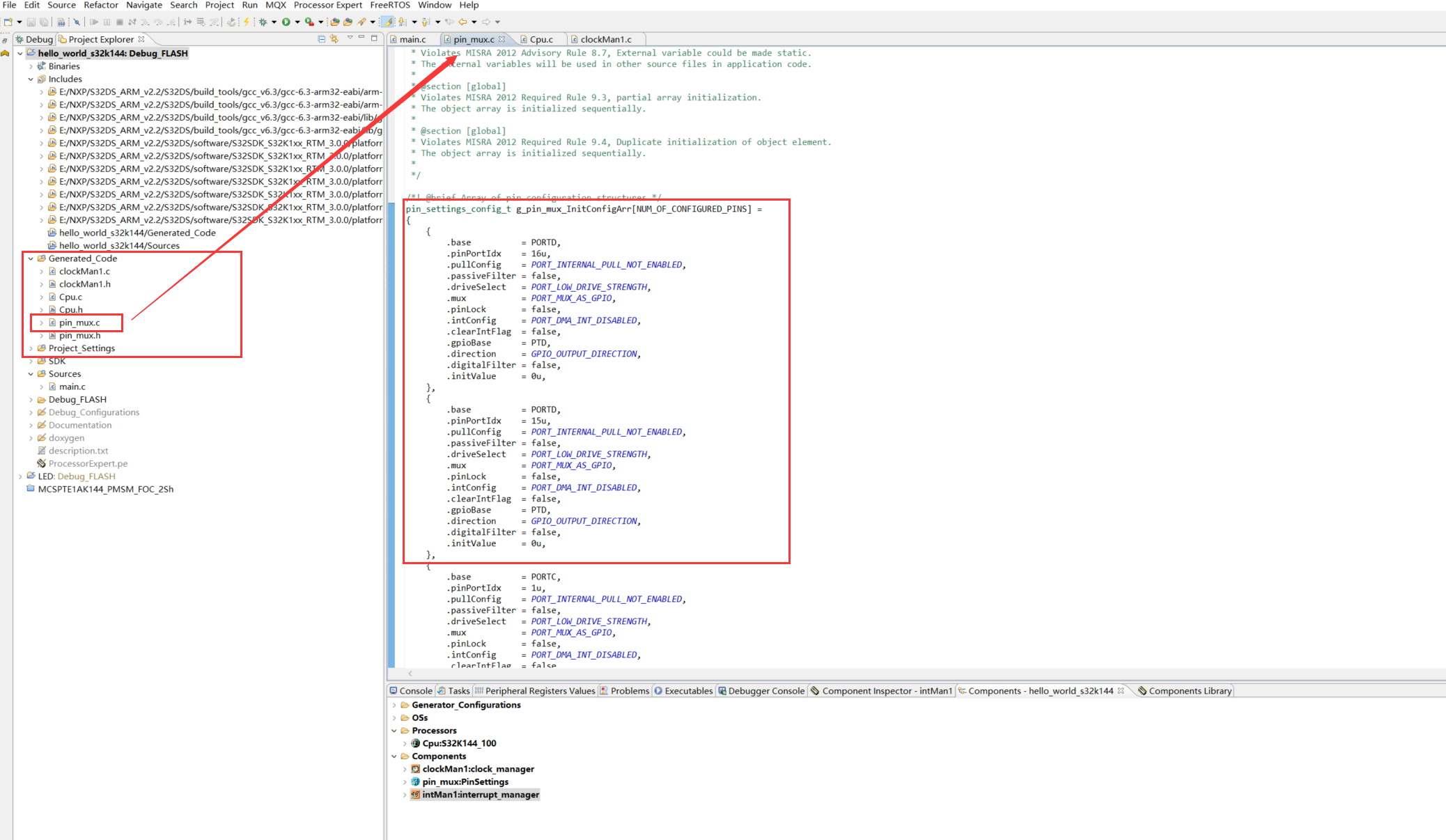

生成之后的代码会在这个文件夹下：

很直观的你也可以看到你配置的东西，已经转化成了代码。

应用层代码解析

很简单：

1、引用生成的代码头文件

/* Including needed modules to compile this module/procedure */
#include "Cpu.h"
#include "clockMan1.h"
#include "pin_mux.h"
#if CPU_INIT_CONFIG
  #include "Init_Config.h"
#endif

volatile int exit_code = 0;
/* User includes (#include below this line is not maintained by Processor Expert) */

#include <stdint.h>
#include <stdbool.h>

2、根据不同的硬件，条件编译一些define

/* This example is setup to work by default with EVB. To use it with other boards
   please comment the following line
*/

#define EVB

#ifdef EVB
	#define LED_PORT 	PORTD
	#define GPIO_PORT	PTD
	#define PCC_CLOCK	PCC_PORTD_CLOCK
	#define LED1		15U
	#define LED2		16U
#else
	#define LED_PORT 	PORTC
	#define GPIO_PORT	PTC
	#define PCC_CLOCK	PCC_PORTC_CLOCK
	#define LED1		0U
	#define LED2		1U
#endif

3、主函数

配置好时钟：

/* Write your code here */
  /* Initialize and configure clocks
   * 	-	see clock manager component for details
   */
  CLOCK_SYS_Init(g_clockManConfigsArr, CLOCK_MANAGER_CONFIG_CNT,
						g_clockManCallbacksArr, CLOCK_MANAGER_CALLBACK_CNT);
  CLOCK_SYS_UpdateConfiguration(0U, CLOCK_MANAGER_POLICY_AGREEMENT);

对引脚进行初始化：

/* Initialize pins
   *	-	See PinSettings component for more info
   */
  PINS_DRV_Init(NUM_OF_CONFIGURED_PINS, g_pin_mux_InitConfigArr);

  /* Output direction for LED0 & LED1 */
  PINS_DRV_SetPinsDirection(GPIO_PORT, ((1 << LED1) | (1 << LED2)));

  /* Set Output value LED0 & LED1 */
  PINS_DRV_SetPins(GPIO_PORT, 1 << LED1);
  PINS_DRV_ClearPins(GPIO_PORT, 1 << LED2);

然后进入无限的for循环（这里是和以前while不一样的地方）。

for (;;)
  {
      /* Insert a small delay to make the blinking visible */
      delay(720000);

      /* Toggle output value LED0 & LED1 */
      PINS_DRV_TogglePins(GPIO_PORT, ((1 << LED1) | (1 << LED2)));
  }
