Django + Channels + Websocket 及时通信练习

Git：https://github.com/HAHA-LIU/websocket_demo.git

一、环境配置

# python3 环境
pip install Django==2.2
pip install channels==2.4.0
pip install channels-redis==2.4.2

• 安装redis：https://zhuanlan.zhihu.com/p/34527270
• 远程连接改redis.conf：protected-mode no
• 测试redis与channels-redis通信

python manage.py shell
>>> import channels.layers
>>> channel_layer = channels.layers.get_channel_layer()
>>> from asgiref.sync import async_to_sync
>>> async_to_sync(channel_layer.send)('test_channel', {'type': 'hello'})
>>> async_to_sync(channel_layer.receive)('test_channel')
{'type': 'hello'}
>>>

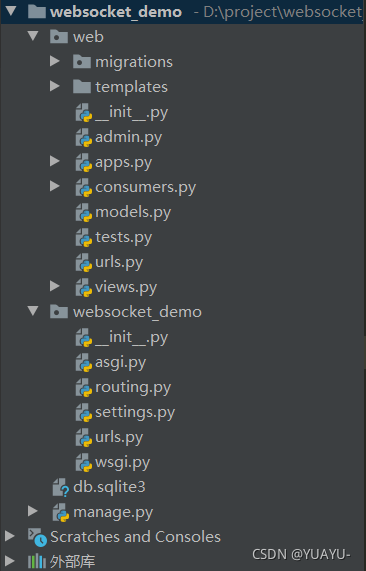

二、代码结构

三、代码解析

1. websocket_demo

settings.py

# 添加对应 app
INSTALLED_APPS = [
    'django.contrib.admin',
    'django.contrib.auth',
    'django.contrib.contenttypes',
    'django.contrib.sessions',
    'django.contrib.messages',
    'django.contrib.staticfiles',
    'corsheaders',
    'channels',
    'web',
]

# 增加项（websocket 需要 asgi 协议）
ASGI_APPLICATION = 'websocket_demo.routing.application'

# 增加项
# WebSocket
CHANNEL_LAYERS = {
    'default': {
        'BACKEND': 'channels_redis.core.RedisChannelLayer',
        'CONFIG': {
            "hosts": [('192.168.103.75', 6379)],
        },
    },
}

urls.py

from django.contrib import admin
from django.urls import path
from django.urls import include

urlpatterns = [
    path('admin/', admin.site.urls),
    path('web/', include('web.urls')),

]

asgi.py

import os
import django
from channels.routing import get_default_application

os.environ.setdefault("DJANGO_SETTINGS_MODULE", "RestaurantOrder.settings")
django.setup()
application = get_default_application()

routing.py

# -*- coding: utf-8 -*-

from channels.routing import ProtocolTypeRouter
from channels.routing import URLRouter
from channels.security.websocket import AllowedHostsOriginValidator

from web.urls import websocket_url

# self.scope['type']获取协议类型
# self.scope['url_route']['kwargs']['username']获取url中关键字参数
# channels routing是scope级别的，一个连接只能由一个consumer接收和处理
application = ProtocolTypeRouter({
    'websocket': AllowedHostsOriginValidator(
        URLRouter(
            websocket_url
        )
    )
})

2. web

views.py

# -*- coding:utf-8 -*-

import json

from django.shortcuts import render
from django.utils.safestring import mark_safe


def index(request):
    return render(request, 'index.html', {})

def room(request, room_name):
    return render(request, 'room.html', {
        'room_name_json': mark_safe(json.dumps(room_name))
    })

urls.py

# -*- coding:utf-8 -*-

from django.urls import re_path
from web.consumers import WebConsumers
from web import views


urlpatterns = [
    re_path(r'^$', views.index, name='index'),
    re_path(r'^(?P<room_name>[^/]+)/$', views.room, name='room'),
]

websocket_url = [
    re_path(r'^ws/chat/(?P<room_name>[^/]+)/$', WebConsumers),
]

consumers.py

# -*- coding: utf-8 -*-
import json

from channels.generic.websocket import AsyncWebsocketConsumer

class WebConsumers(AsyncWebsocketConsumer):
    """处理通知应用的websocket请求"""

    async def connect(self):
        """建立连接"""
        self.room_name = self.scope['url_route']['kwargs']['room_name']
        self.room_group_name = 'chat_%s' % self.room_name

        # Join room group
        await self.channel_layer.group_add(self.room_group_name,
                                           self.channel_name)
        await self.accept()

    async def disconnect(self, code):
        """断开连接"""
        await self.channel_layer.group_discard(
            self.room_group_name,
            self.channel_name
        )

    async def receive(self, text_data=None, bytes_data=None):
        """接收到的消息，返回给前端"""
        text_data_json = json.loads(text_data)
        message = text_data_json['message']

        # Send message to room group
        await self.channel_layer.group_send(
            self.room_group_name,
            {
                'type': 'chat_message',
                'message': message
            }
        )

    async def chat_message(self, event):
        message = event['message']

        # Send message to WebSocket
        await self.send(text_data=json.dumps({'message': message}))

templates/index.html

<!-- chat/templates/chat/index.html -->
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8"/>
    <title>Chat Rooms</title>
</head>
<body>
    What chat room would you like to enter?<br/>
    <input id="room-name-input" type="text" size="100"/><br/>
    <input id="room-name-submit" type="button" value="Enter"/>

    <script>
        document.querySelector('#room-name-input').focus();
        document.querySelector('#room-name-input').onkeyup = function(e) {
            if (e.keyCode === 13) {  // enter, return
                document.querySelector('#room-name-submit').click();
            }
        };

        document.querySelector('#room-name-submit').onclick = function(e) {
            var roomName = document.querySelector('#room-name-input').value;
            window.location.pathname = '/web/' + roomName + '/';
        };
    </script>
</body>
</html>

templates/room.html

<!-- chat/templates/chat/room.html -->
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8"/>
    <title>Chat Room</title>
</head>
<body>
    <textarea id="chat-log" cols="100" rows="20"></textarea><br/>
    <input id="chat-message-input" type="text" size="100"/><br/>
    <input id="chat-message-submit" type="button" value="Send"/>
</body>
<script>
    var roomName = {{ room_name_json }};

    var chatSocket = new WebSocket(
        'ws://' + window.location.host +
        '/ws/chat/' + roomName + '/');

    chatSocket.onmessage = function(e) {
        var data = JSON.parse(e.data);
        var message = data['message'];
        document.querySelector('#chat-log').value += (message + '\n');
    };

    chatSocket.onclose = function(e) {
        console.error('Chat socket closed unexpectedly');
    };

    document.querySelector('#chat-message-input').focus();
    document.querySelector('#chat-message-input').onkeyup = function(e) {
        if (e.keyCode === 13) {  // enter, return
            document.querySelector('#chat-message-submit').click();
        }
    };

    document.querySelector('#chat-message-submit').onclick = function(e) {
        var messageInputDom = document.querySelector('#chat-message-input');
        var message = messageInputDom.value;
        chatSocket.send(JSON.stringify({
            'message': message
        }));

        messageInputDom.value = '';
    };
</script>
</html>


最后启动项目：python manage.py runserver 127.0.0.1:8000
