Netty源码分析（四） NioEventLoop探究，线程创建器，执行器,启动，轮询io事件，处理io事件，优化任务队列，定时队列

上文提到了Netty创建Nio线程的过程，本文将更深入的了解EventLoop

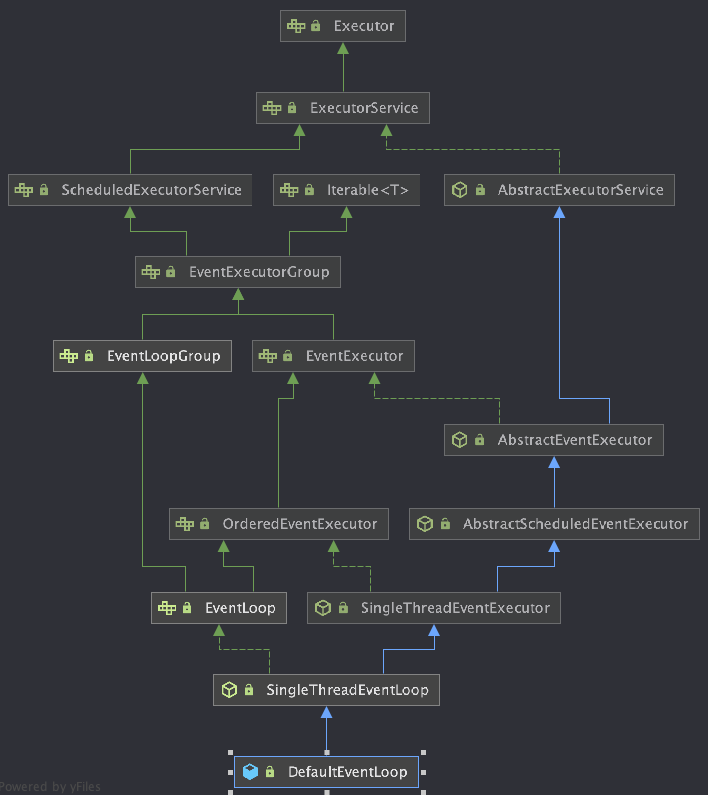

EventLoop

• 事件循环
• 通过不停的轮训事件集合，去处理所有的事件


NioEventLoopGroup里面的线程创建器

传入一个默认线程工厂 //底层实现了自己的ThreadFactory,继承于juc的ThreadFactory 每次执行任务都会新增一个线程实体

• 线程命名为NioEventLoop - 1-xx(第一个NioeventLoop)

class Test {
    public static void main(String[] args) {
        if (executor == null) {
            executor = new ThreadPerTaskExecutor(newDefaultThreadFactory());

        }
    }

    public static String toPoolName(Class<?> poolType) {
        ObjectUtil.checkNotNull(poolType, "poolType");

        String poolName = StringUtil.simpleClassName(poolType);//NioEventLoop
        switch (poolName.length()) {
            case 0:
                return "unknown";
            case 1:
                return poolName.toLowerCase(Locale.US);
            default:
                if (Character.isUpperCase(poolName.charAt(0)) && Character.isLowerCase(poolName.charAt(1))) {
                    return Character.toLowerCase(poolName.charAt(0)) + poolName.substring(1);//nioEventLoop
                } else {
                    return poolName;
                }
        }
    }

    public DefaultThreadFactory(String poolName, boolean daemon, int priority, ThreadGroup threadGroup) {
        ObjectUtil.checkNotNull(poolName, "poolName");

        if (priority < Thread.MIN_PRIORITY || priority > Thread.MAX_PRIORITY) {
            throw new IllegalArgumentException(
                    "priority: " + priority + " (expected: Thread.MIN_PRIORITY <= priority <= Thread.MAX_PRIORITY)");
        }

        prefix = poolName + '-' + poolId.incrementAndGet() + '-';
        this.daemon = daemon;
        this.priority = priority;
        this.threadGroup = threadGroup;
    }
}

ThreadPerTaskExecutor

线程执行器

class ThreadPerTaskExecutor {
    @Override
    public void execute(Runnable command) {
        threadFactory.newThread(command).start();
    }

    @Override
    public Thread newThread(Runnable r) {
        //名字就是nioevent-group
        Thread t = newThread(FastThreadLocalRunnable.wrap(r), prefix + nextId.incrementAndGet());
        try {
            if (t.isDaemon() != daemon) {
                t.setDaemon(daemon);
            }

            if (t.getPriority() != priority) {
                t.setPriority(priority);
            }
        } catch (Exception ignored) {
            // Doesn't matter even if failed to set.
        }
        return t;
    }

    protected Thread newThread(Runnable r, String name) {
        return new FastThreadLocalThread(threadGroup, r, name);
    }

    //netty自己封装的thread
    //把threadLocal包装了一下
    public FastThreadLocalThread(ThreadGroup group, Runnable target, String name) {
        super(group, FastThreadLocalRunnable.wrap(target), name);
        cleanupFastThreadLocals = true;
    }

    private void init(ThreadGroup g, Runnable target, String name,
                      long stackSize, AccessControlContext acc,
                      boolean inheritThreadLocals) {
        if (name == null) {
            throw new NullPointerException("name cannot be null");
        }

        this.name = name;

        Thread parent = currentThread();
        SecurityManager security = System.getSecurityManager();
        if (g == null) {
            /* Determine if it's an applet or not */

            /* If there is a security manager, ask the security manager
               what to do. */
            if (security != null) {
                g = security.getThreadGroup();
            }

            /* If the security doesn't have a strong opinion of the matter
               use the parent thread group. */
            if (g == null) {
                g = parent.getThreadGroup();
            }
        }

        /* checkAccess regardless of whether or not threadgroup is
           explicitly passed in. */
        g.checkAccess();

        /*
         * Do we have the required permissions?
         */
        if (security != null) {
            if (isCCLOverridden(getClass())) {
                security.checkPermission(SUBCLASS_IMPLEMENTATION_PERMISSION);
            }
        }

        g.addUnstarted();

        this.group = g;
        this.daemon = parent.isDaemon();
        this.priority = parent.getPriority();
        if (security == null || isCCLOverridden(parent.getClass()))
            this.contextClassLoader = parent.getContextClassLoader();
        else
            this.contextClassLoader = parent.contextClassLoader;
        this.inheritedAccessControlContext =
                acc != null ? acc : AccessController.getContext();
        this.target = target;
        setPriority(priority);
        if (inheritThreadLocals && parent.inheritableThreadLocals != null)
            this.inheritableThreadLocals =
                    ThreadLocal.createInheritedMap(parent.inheritableThreadLocals);
        /* Stash the specified stack size in case the VM cares */
        this.stackSize = stackSize;

        /* Set thread ID */
        tid = nextThreadID();
    }
}

MpscQueue

创建线程选择器

调用chooser.next方法寻找下一个线程

1. 判断eventLoop数组是否是二的倍数
2. 是的话创建一个二倍数优化的chooser
3. 优化的chooser用与操作

class Test {
    private final EventExecutorChooserFactory.EventExecutorChooser chooser;

    Test() {
        chooser = chooserFactory.newChooser(children);
    }

    //判断executor 是否是二的倍数
    //是的话创建一个两倍的chooser
    @Override
    public EventExecutorChooser newChooser(EventExecutor[] executors) {
        if (isPowerOfTwo(executors.length)) {
            return new PowerOfTwoEventExecutorChooser(executors);
        } else {
            return new GenericEventExecutorChooser(executors);
        }
    }

    @Override
    public EventExecutor next() {
        return chooser.next();
    }

    @Override
    public EventExecutor next() {
        //index++然后异或length-1
        return executors[idx.getAndIncrement() & executors.length - 1];
    }

    @Override
    public EventExecutor next() {
        return executors[(int) Math.abs(idx.getAndIncrement() % executors.length)];
    }
}

NioeventLoop的启动

在bind方法中到dobind0 然后由eventLoop去execute执行 例: SingleThreadEventExecutor的实现

1. 先判断是否是当前线程
2. 是的话提交一个任务
3. 不是的话新建一个线程执行任务

class Bind {
    private static void doBind0(
            final ChannelFuture regFuture, final Channel channel,
            final SocketAddress localAddress, final ChannelPromise promise) {

        channel.eventLoop().execute(() -> {
            if (regFuture.isSuccess()) {
                channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
            } else {
                promise.setFailure(regFuture.cause());
            }
        });
    }

    @Override
    public void execute(Runnable task) {
        if (task == null) {
            throw new NullPointerException("task");
        }
        //判断线程是否是当前线程
        boolean inEventLoop = inEventLoop();
        if (inEventLoop) {
            addTask(task);
        } else {
            //否则新建一个线程
            startThread();
            addTask(task);
            if (isShutdown() && removeTask(task)) {
                reject();
            }
        }

        if (!addTaskWakesUp && wakesUpForTask(task)) {
            wakeup(inEventLoop);
        }
    }
}

如何启动一个线程?

双检cas设置线程状态 先保存当前的线程 然后让NioeventLoop执行

class Test {
    private void startThread() {
        if (state == ST_NOT_STARTED) {
            if (STATE_UPDATER.compareAndSet(this, ST_NOT_STARTED, ST_STARTED)) {
                boolean success = false;
                try {
                    doStartThread();
                    success = true;
                } finally {
                    if (!success) {
                        STATE_UPDATER.compareAndSet(this, ST_STARTED, ST_NOT_STARTED);
                    }
                }
            }
        }
    }

    private void doStartThread() {
        assert thread == null;
        executor.execute(new Runnable() {
            @Override
            public void run() {
                thread = Thread.currentThread();
                if (interrupted) {
                    thread.interrupt();
                }

                boolean success = false;
                updateLastExecutionTime();
                try {
                    SingleThreadEventExecutor.this.run();
                    success = true;
                } catch (Throwable t) {
                    logger.warn("Unexpected exception from an event executor: ", t);
                } finally {
                    for (; ; ) {
                        int oldState = state;
                        if (oldState >= ST_SHUTTING_DOWN || STATE_UPDATER.compareAndSet(
                                SingleThreadEventExecutor.this, oldState, ST_SHUTTING_DOWN)) {
                            break;
                        }
                    }

                    // Check if confirmShutdown() was called at the end of the loop.
                    if (success && gracefulShutdownStartTime == 0) {
                        if (logger.isErrorEnabled()) {
                            logger.error("Buggy " + EventExecutor.class.getSimpleName() + " implementation; " +
                                    SingleThreadEventExecutor.class.getSimpleName() + ".confirmShutdown() must " +
                                    "be called before run() implementation terminates.");
                        }
                    }

                    try {
                        // Run all remaining tasks and shutdown hooks. At this point the event loop
                        // is in ST_SHUTTING_DOWN state still accepting tasks which is needed for
                        // graceful shutdown with quietPeriod.
                        for (; ; ) {
                            if (confirmShutdown()) {
                                break;
                            }
                        }

                        // Now we want to make sure no more tasks can be added from this point. This is
                        // achieved by switching the state. Any new tasks beyond this point will be rejected.
                        for (; ; ) {
                            int oldState = state;
                            if (oldState >= ST_SHUTDOWN || STATE_UPDATER.compareAndSet(
                                    SingleThreadEventExecutor.this, oldState, ST_SHUTDOWN)) {
                                break;
                            }
                        }

                        // We have the final set of tasks in the queue now, no more can be added, run all remaining.
                        // No need to loop here, this is the final pass.
                        confirmShutdown();
                    } finally {
                        try {
                            cleanup();
                        } finally {
                            FastThreadLocal.removeAll();
                            STATE_UPDATER.set(SingleThreadEventExecutor.this, ST_TERMINATED);
                            threadLock.countDown();
                            int numUserTasks = drainTasks();
                            if (numUserTasks > 0 && logger.isWarnEnabled()) {
                                logger.warn("An event executor terminated with " +
                                        "non-empty task queue (" + numUserTasks + ')');
                            }
                            terminationFuture.setSuccess(null);
                        }
                    }
                }
            }
        });
    }
}

NioeventLoop执行

1. 无限循环
2. select轮询检查是否有io事件
3. 处理io事件
4. 处理异步任务队列

Select 方法执行逻辑

1. deadline 以及任务穿插逻辑处理
2. 阻塞式select
3. 避免jdk空轮训

class Test {
    public void test() {
        case SelectStrategy.SELECT:
        // 获得下一个任务完成时间
        long curDeadlineNanos = nextScheduledTaskDeadlineNanos();
        if (curDeadlineNanos == -1L) {
            curDeadlineNanos = NONE; // nothing on the calendar
        }
        //下个线程唤醒时间设置
        nextWakeupNanos.set(curDeadlineNanos);
        try {
            //没有任务的话，轮询selector
            if (!hasTasks()) {
                strategy = select(curDeadlineNanos);
            }
        } finally {
            //延迟启动，避免空轮训
            nextWakeupNanos.lazySet(AWAKE);
        }
    }
}

processSelectedKeys执行逻辑

主要是处理io事件

1. selected keySet优化 成数组，优于hashset （SelectedSelectionKeySet）
2. processSelectedKeysOptimized()处理io时间

class Test {
    private void processSelectedKeysOptimized() {
        for (int i = 0; i < selectedKeys.size; ++i) {
            final SelectionKey k = selectedKeys.keys[i];
            //取出对应的key，在openSelector中赋值
            selectedKeys.keys[i] = null;

            final Object a = k.attachment();

            if (a instanceof AbstractNioChannel) {
                processSelectedKey(k, (AbstractNioChannel) a);
            } else {
                @SuppressWarnings("unchecked")
                NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
                processSelectedKey(k, task);
            }

            if (needsToSelectAgain) {
                // null out entries in the array to allow to have it GC'ed once the Channel close
                // See https://github.com/netty/netty/issues/2363
                selectedKeys.reset(i + 1);

                selectAgain();
                i = -1;
            }
        }
    }
}

runAllTasks()执行逻辑

• task的分类和添加
• 普通任务队列（taskQueue),定时任务队列(schedule)(判断是否是外部线程发起,是的话就新建个线程添加进定时任务队列)(非线程安全Queue)
• 任务的聚合

class 任务的聚合 {
    private boolean fetchFromScheduledTaskQueue() {
        //判断定时任务是否为空
        if (scheduledTaskQueue == null || scheduledTaskQueue.isEmpty()) {
            return true;
        }
        //获取时间
        long nanoTime = AbstractScheduledEventExecutor.nanoTime();
        for (; ; ) {
            //任务比较的是截止时间,截止时间相同就比较id
            Runnable scheduledTask = pollScheduledTask(nanoTime);
            if (scheduledTask == null) {
                return true;
            }
            //添加进普通的任务队列
            if (!taskQueue.offer(scheduledTask)) {
                // 添加失败就塞回定时任务
                scheduledTaskQueue.add((ScheduledFutureTask<?>) scheduledTask);
                return false;
            }
        }
    }

    protected final boolean runAllTasksFrom(Queue<Runnable> taskQueue) {
        Runnable task = pollTaskFrom(taskQueue);
        if (task == null) {
            return false;
        }
        for (; ; ) {
            safeExecute(task);
            task = pollTaskFrom(taskQueue);
            if (task == null) {
                return true;
            }
        }
    }
}
