液晶12864图像取模方法

最新推荐文章于 2025-04-12 21:47:58 发布

牧春

最新推荐文章于 2025-04-12 21:47:58 发布

阅读量1.1w

点赞数 9

分类专栏：备忘录文章标签：液晶12864 图像取模

本文链接：https://blog.csdn.net/weixin_43915898/article/details/96497437

版权

备忘录专栏收录该内容

16 篇文章

订阅专栏

本文介绍了一种将图像转换为适合液晶12864显示器显示的方法，涉及调整图像分辨率、图像格式转换及使用特定软件进行取模的过程。文中详细解释了所需使用的三种软件：调整分辨率的软件（如Photoshop）、图像格式转换软件（如Image2Lcd）和取模软件（如PCtoLCD2002.exe）。通过这些步骤，可以将任意图像转化为适用于128x64分辨率的字模。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

液晶12864图像取模需要三种软件，一种是改变图像分辨率的软件（如PS）、一种是取模软件（如PCtoLCD2002.exe）、一种是把图像格式转换成bmp格式的软件（如Image2Lcd）
第一步：
确定要取模的图像如：
天道酬勤
把这幅图片的分辨率改成128x64。
第二步：
打开软件

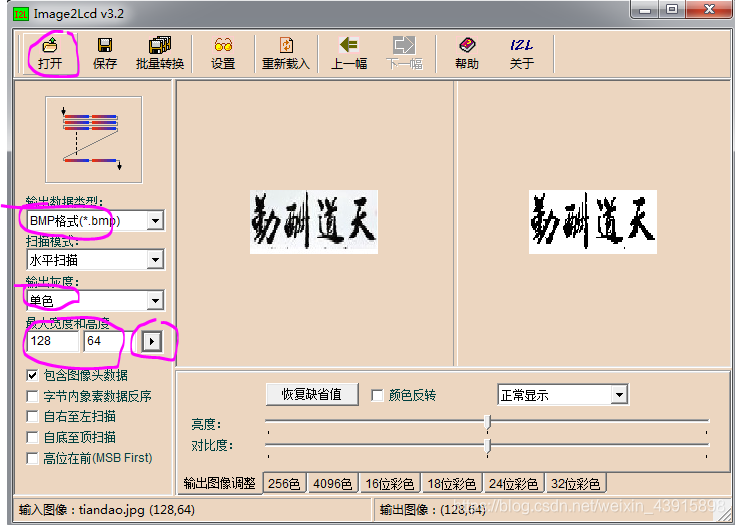

改变图片格式
在这里插入图片描述
打开你事先准备好的那个分辨率128x64的图片，然后按上面的设置配置一下，最后保存。
第三步：
使用软件PCtoLCD2002，

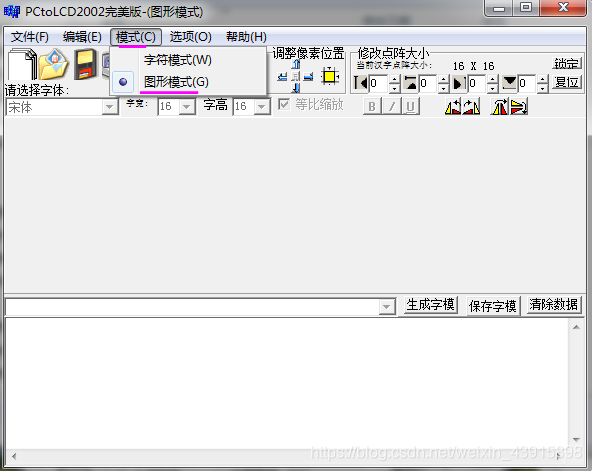

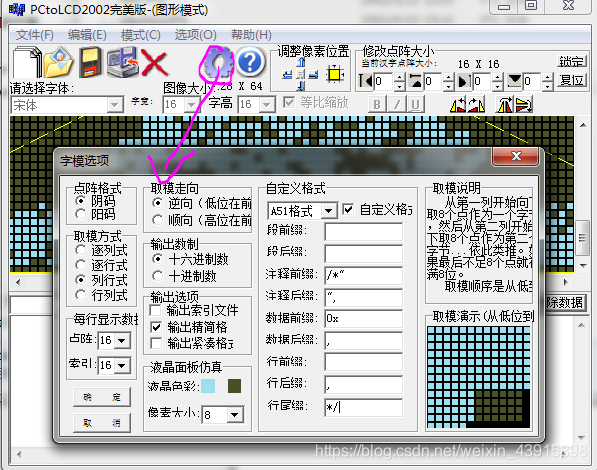

模式选择

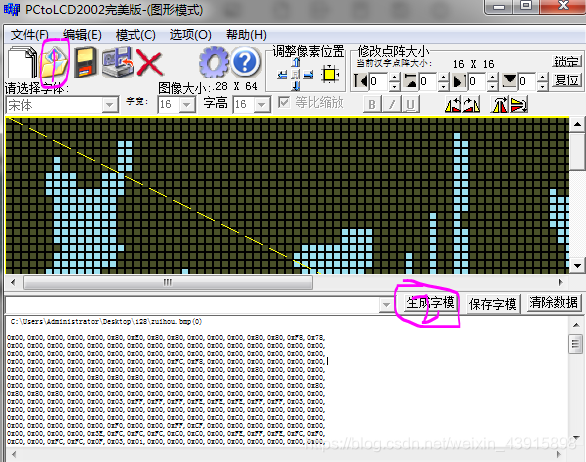

1，打开经过软件Image2Lcd处理后的.bmp文件；2，点击生成字模：
unsigned char code tian[ ] = {
0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x80,0x80,0xF8,0x78,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,
0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFE,0xFE,0xFE,0xFF,0xFF,0x03,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0xC0,0xC0,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x00,0xFF,0xCF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x3E,0xFC,0xFC,0xFC,0xC0,0xC0,0x00,0xFE,0xFF,0xFE,0xFC,0xF0,
0xC0,0x00,0xFC,0xFC,0x0F,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x3C,0x3C,0xFC,0xFC,0xFE,0xFE,0xFF,
0xFF,0xFF,0x3F,0x3E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x20,0x38,0x3E,0x3F,0x3F,0xFF,0xFF,0xFF,0xE7,0xE7,0xE1,0xE0,
0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x06,0x1F,0x1F,0x1F,0xDF,0x1F,0x1F,0xDF,0x1F,0x07,0x00,0x00,
0x00,0xC0,0xFE,0x00,0x00,0xFF,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x1F,0x07,0x00,0x00,0xC1,0xE7,0xFF,0xFF,
0xFF,0xFF,0x3F,0x3E,0x1F,0x1F,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xFE,0x1F,0x1F,0x00,
0xC0,0xC0,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xE0,0xE0,0xF0,0xFC,0x1C,0x8C,0x8F,0xFF,0xFF,0xFF,0xFF,0x03,0x63,0x60,
0xE0,0xE0,0xE0,0xFC,0xFF,0x7F,0x1F,0x1F,0x1C,0x9C,0xFC,0xF0,0xF0,0xE0,0x60,0x00,
0x00,0x00,0x00,0x00,0xE0,0x60,0x90,0xFF,0xFF,0x70,0x9C,0xFF,0x1C,0x0C,0xFC,0xFF,
0xF0,0xFF,0xEF,0x60,0xF0,0xFF,0x1C,0x70,0xFF,0xFF,0x1C,0x1C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xFC,0xFC,0x0C,0x00,0x00,0x0F,0x0F,0x03,0xF3,0xFF,0x9F,
0xFF,0xEF,0x6C,0xEC,0xFC,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0xE0,0xFC,0xFC,0xFF,0xFF,0xFC,0xFF,0x9F,
0x1F,0x0F,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0F,0x3F,0xFF,0xFF,0xFE,0x3F,0xCF,0xFF,0xFF,0xFF,0x31,0x00,0xF8,0xF0,
0xFF,0xFF,0x3F,0x07,0x01,0x00,0x00,0x00,0xF8,0xFF,0xFF,0x3F,0x0F,0x07,0x00,0x00,
0x00,0x00,0xF0,0xF8,0xFF,0xFE,0xFF,0xFF,0xFF,0xFE,0xFF,0xF7,0x30,0xF8,0xFF,0x07,
0x87,0xFF,0x0F,0xF0,0xF9,0xFF,0x08,0xC0,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x06,0xFF,0xFF,0xFF,
0x3F,0x0F,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x06,0x0F,0x07,0xF7,0xFF,0xFF,0xFF,0xFF,0x0F,0x3F,0x3F,
0xFE,0xF8,0xF8,0xF0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x80,0xE7,0xFB,0xFB,0x7F,0x1F,0xFF,0xFF,0xFF,0x7F,0x1F,
0x83,0x00,0x00,0x80,0xF8,0xF8,0xFC,0xFF,0x1F,0x07,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x07,0x1F,0xFF,0xFF,0x7F,0x7F,0x1F,0x1F,0x00,0xFC,0xFF,0x1F,0x07,
0x07,0x00,0x07,0x03,0x00,0x00,0x00,0xE7,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x80,0x80,0x83,0x87,0x87,0xFC,0xF8,0xE0,0xE0,0xE0,0xFF,0xFF,0xE4,
0xE4,0xE7,0xF8,0xFF,0xFF,0xFF,0xFC,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,
0x00,0x00,0x00,0x80,0xE0,0xF8,0xFC,0xFF,0x7F,0x7F,0x7F,0x07,0x07,0x00,0x00,0x00,
0x00,0x03,0x07,0x1F,0x7F,0xFF,0xFF,0xFC,0xF8,0xF8,0xE0,0xE0,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x03,0x03,0x00,0x00,0x30,0x3F,0x3F,0x0F,0x03,0x00,0x00,0x00,
0x00,0x3F,0x3F,0x3F,0x3F,0x3F,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x03,
0x03,0x03,0x0F,0x0F,0x2F,0x3F,0x3F,0x3F,0x3F,0x0F,0x0F,0x0F,0x0F,0x03,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x03,0x03,0x03,0x03,0x03,0x03,0x03,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x07,0x07,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/“C:\Users\Administrator\Desktop\128\tiandao.bmp”,0/
};

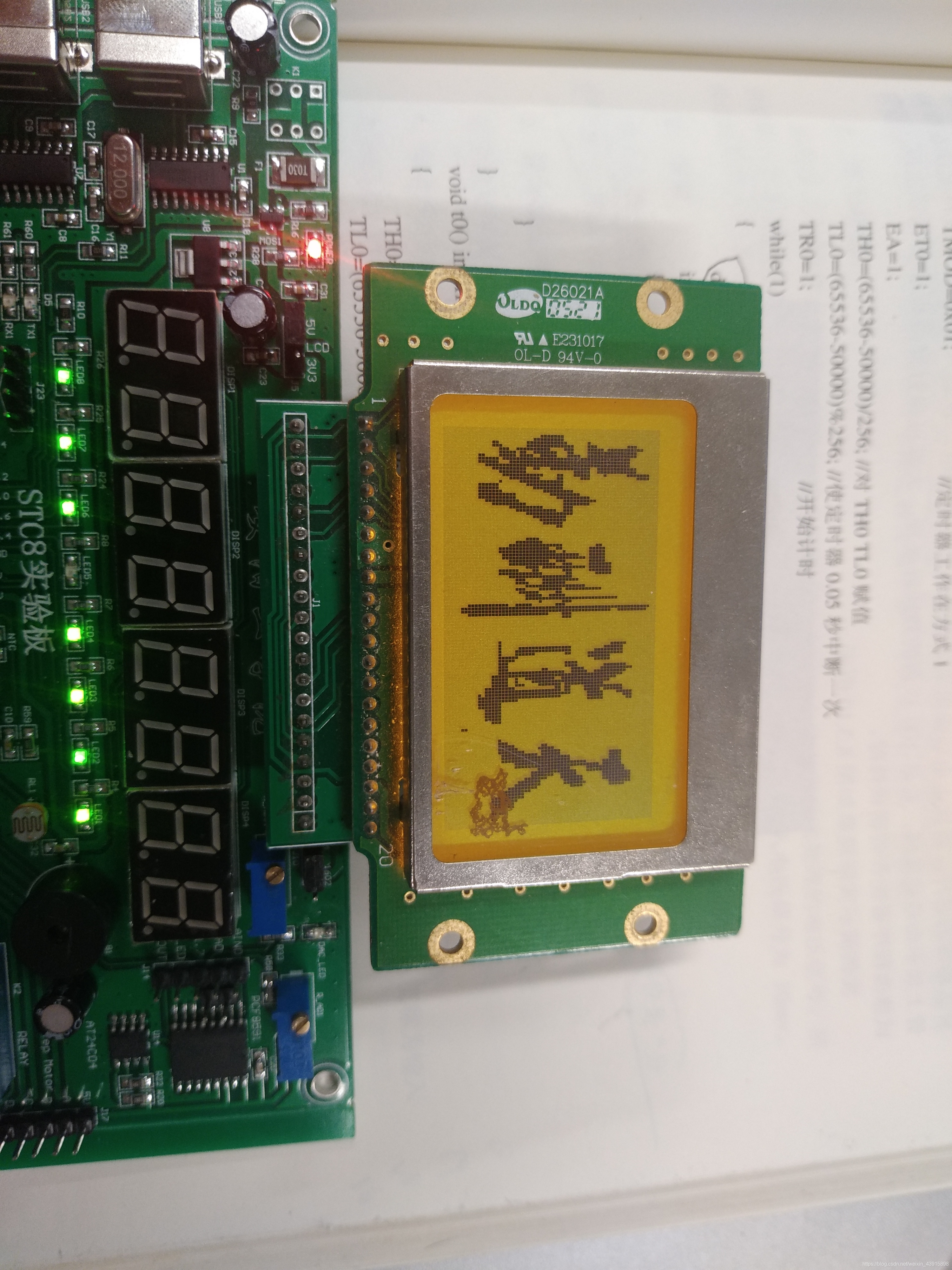

最后在液晶12864上效果图：

到这里已经讲完了。（由于我是用电脑自带的画图改的分辨率，出来的效果不是太理想，那两个软件在网上下载就行了，很好找）
