Cesium出现Unknown crs name: urn:ogc:def:crs:EPSG:xxxx

Cesium出现Unknown crs name: urn:ogc:def:crs:EPSG:xxxx

1. 问题描述

1. 问题描述, Cesium支持的默认坐标系是WGS 84也就是EPSG 4326, 国内一般的CGCS2000也就是EPSG 4490需要转换, 因此就会出现Unknown crs name: urn:ogc:def:crs:EPSG:xxxx的问题

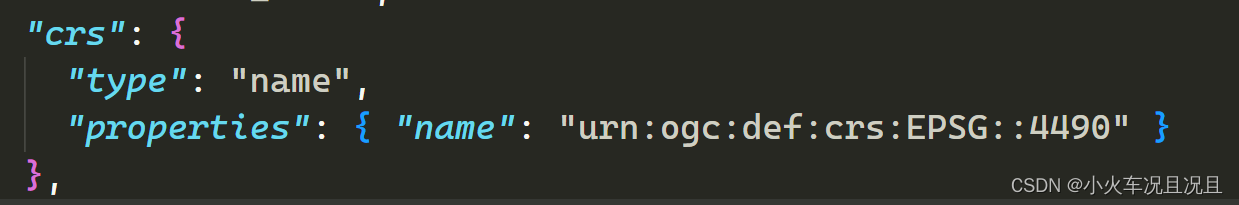

2. 如何确认文件是哪个类型的, 可以打开提供的geojson或者json文件, 查找"name": "urn:ogc:def:crs:EPSG::4490"相似的字段名称


2. 问题解决

2.1 安装proj4依赖模块

yarn add proj4

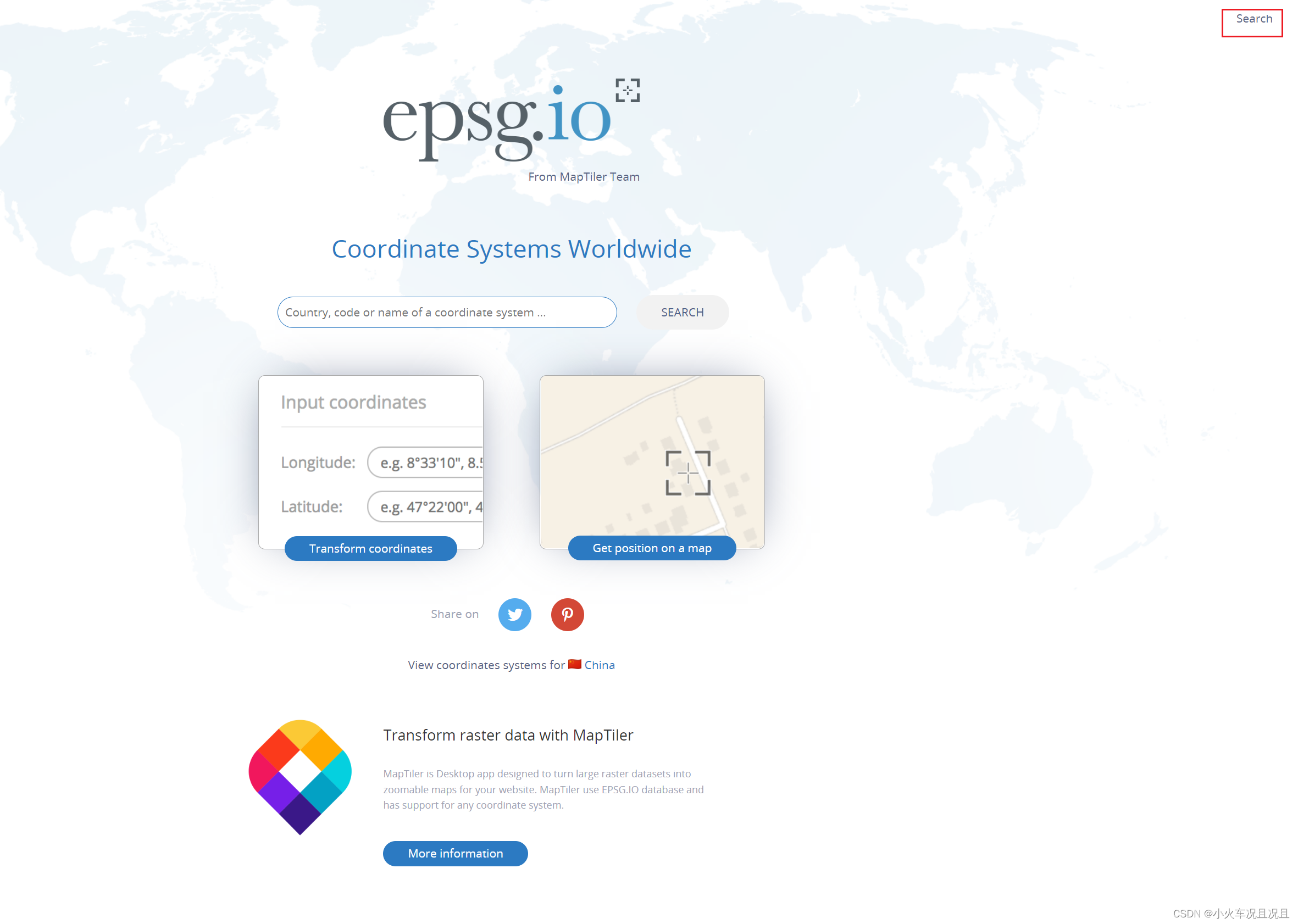

2.2 打开网址epsg(可能需要科学上网)

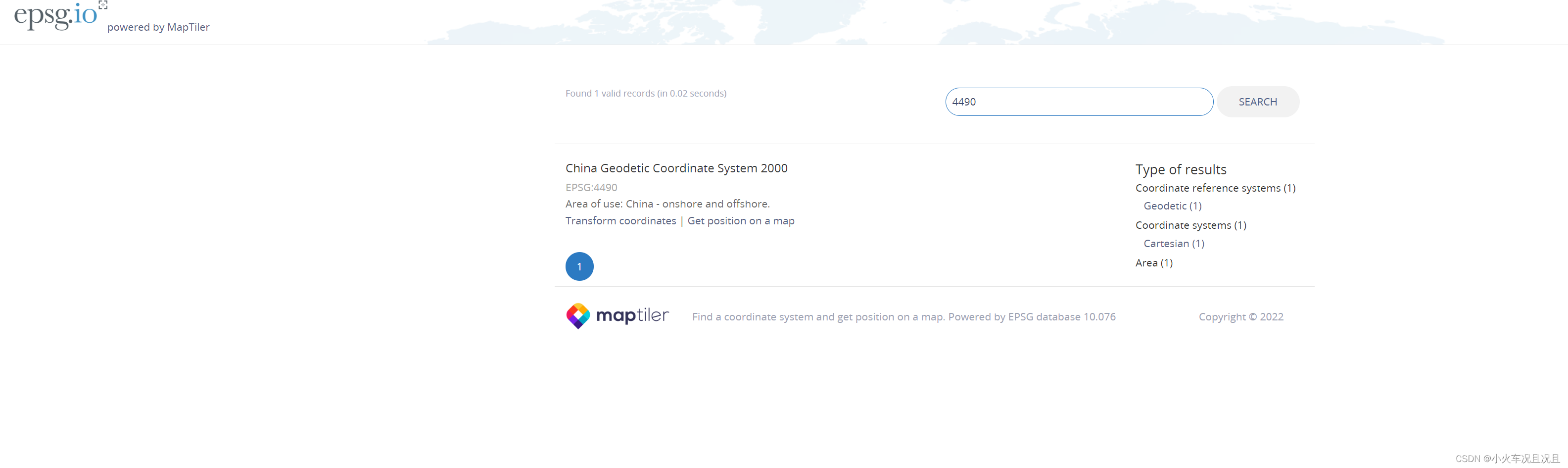

搜索需要转换的EPSG格式,这里以EPSG:4490为例子, 注意直接搜索后面的数字即可, 比如4490

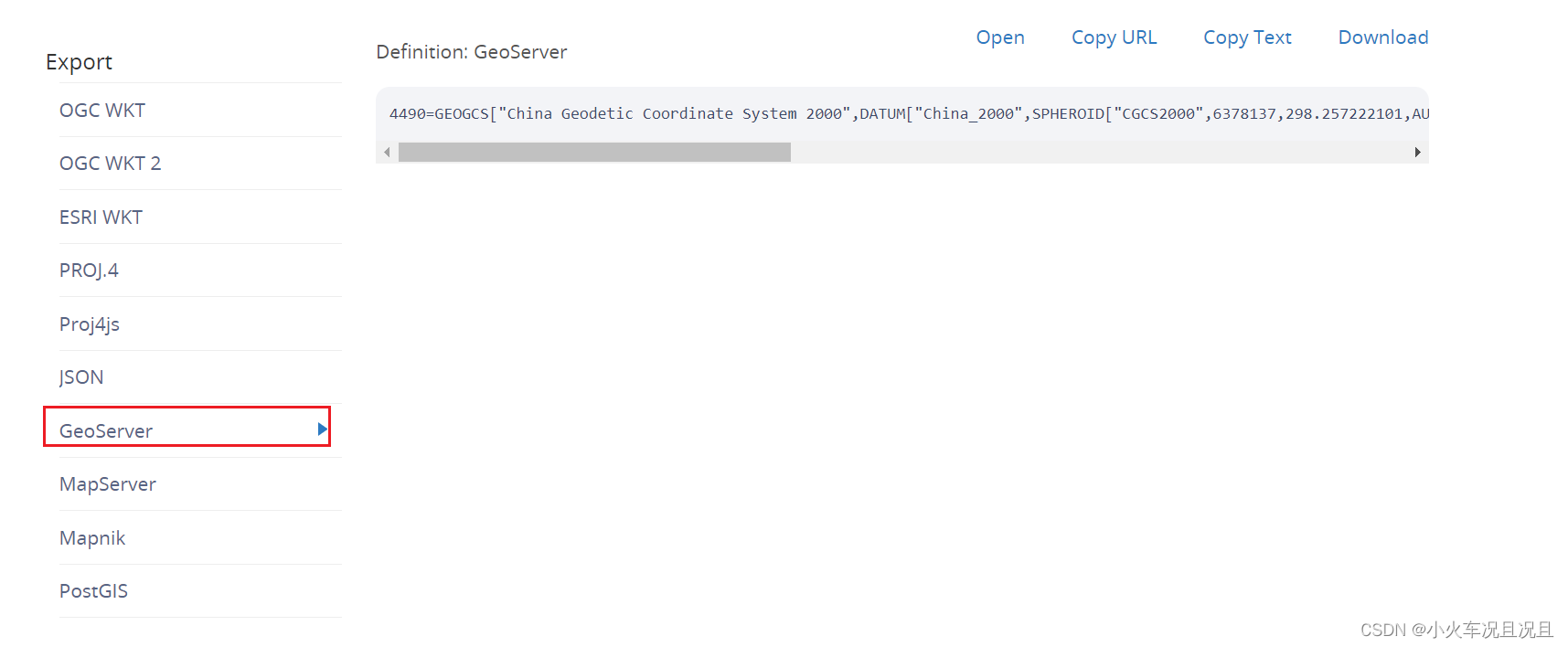

下滑到最底端, 选择GeoServer

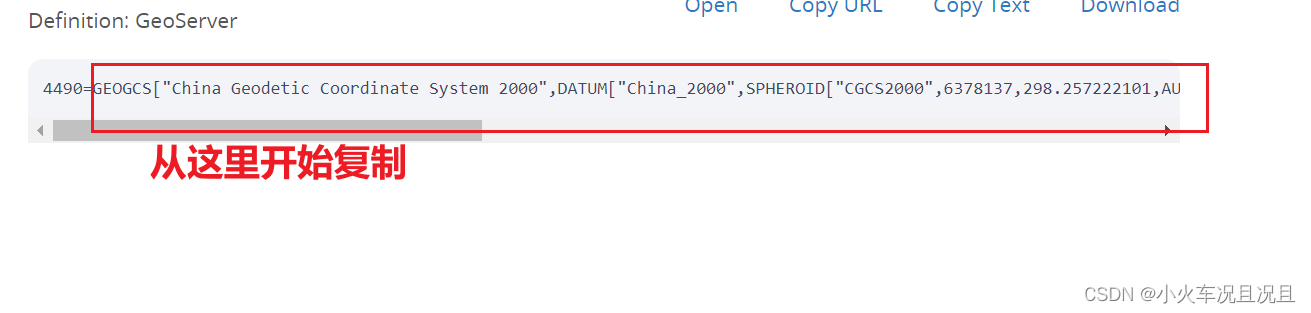

复制后面的文本, 从4490=之后开始复制

GEOGCS["China Geodetic Coordinate System 2000",DATUM["China_2000",SPHEROID["CGCS2000",6378137,298.257222101,AUTHORITY["EPSG","1024"]],AUTHORITY["EPSG","1043"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AUTHORITY["EPSG","4490"]]

到这里EPSG 4490的准备完成, WGS 84的也需要按照上面一样操作, 下面的字符串就是WGS84的GeoServer, 直接复制即可

GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AUTHORITY["EPSG","4326"]]

2.3 代码部分

主要使用了Cesium中Cesium.GeoJsonDataSource.crsNamesAPI
注意: 坐标转换方法必须要放在加载 geoJson 文件之前
JS代码

import { default as proj4 } from 'proj4'
export default class MapClass {
	viewer = null
	Cesium = window.Cesium
	constructor(container) {
	    this.init(container)
	 }
	 init() {
		this.tranformCoordinate()
		// 加载geoJson文件
	}
	...
	...
	// 坐标系转换方法
	tranformCoordinate() {
	  Cesium.GeoJsonDataSource.crsNames['urn:ogc:def:crs:EPSG::4490'] =
	    Cesium.GeoJsonDataSource.crsNames['EPSG:4490'] = coordinates => {
	      const fromProjection = `GEOGCS["China Geodetic Coordinate System 2000",DATUM["China_2000",SPHEROID["CGCS2000",6378137,298.257222101,AUTHORITY["EPSG","1024"]],AUTHORITY["EPSG","1043"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AUTHORITY["EPSG","4490"]]`

	      const toProjection = `GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AUTHORITY["EPSG","4326"]]`

	      const x = coordinates[0]
	      const y = coordinates[1]

	      const newCoordinates = proj4(fromProjection, toProjection, [x, y])
	      return Cesium.Cartesian3.fromDegrees(
	        newCoordinates[0],
	        newCoordinates[1],
	        0
	      )
	    }
	}
}
