入门第四步——uart串口通信

通用同步异步收发器（UART）能够灵活地与外部设备进行全双工数据交换，它支持同步单向通信、单线半双工通信以及多处理器通信。常用于短距离、低速的串行通信中。UART 通过可编程波特率发生器提供了多种波特率。UART 支持多种工作模式。

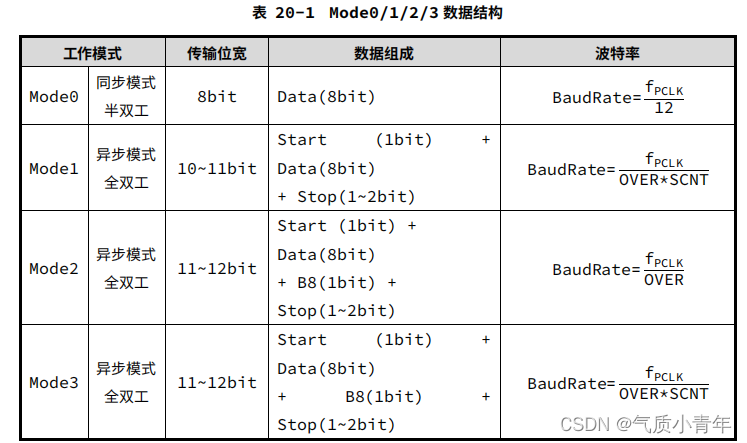

在这里插入图片描述模式比较多，但是我们常用的是模式3，异步全双工。异步不需要时钟线，全双工保证了数据的高速通信，所以推荐使用模式3。

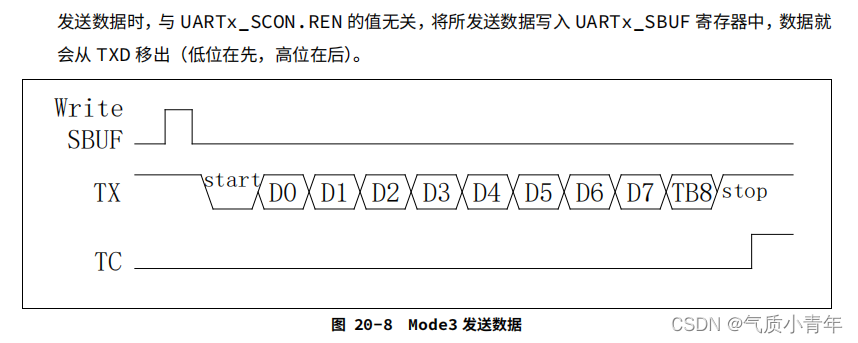

发送数据时，与 UARTx_SCON.REN 的值无关，将所发送数据写入 UARTx_SBUF 寄存器中，数据就会从 TXD 移出（低位在先，高位在后）
在这里插入图片描述

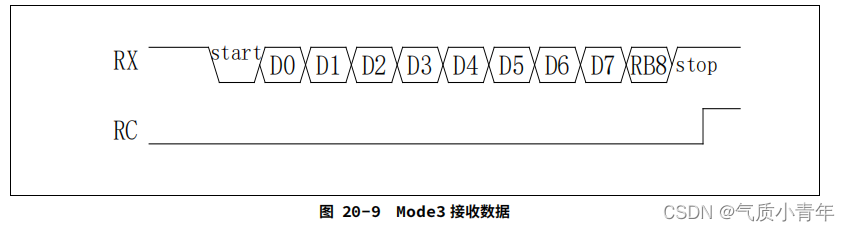

接收数据时，将 UARTx_SCON.REN 位置 1，并将 UARTx_ISR.RC 位清 0。开始接收 RXD 上数据（低位在先，高位在后），当接收完毕，可以从 UARTx_SBUF 寄存器读出。
在这里插入图片描述
从上面的两个图可以看出，在初始状态TX和RX都是高电平，这个是UART协议规定的，当总线处于空闲状态时信号线的状态为1即高电平。也就是说明了，发送数据的时候是将高电平拉低作为起始位的。

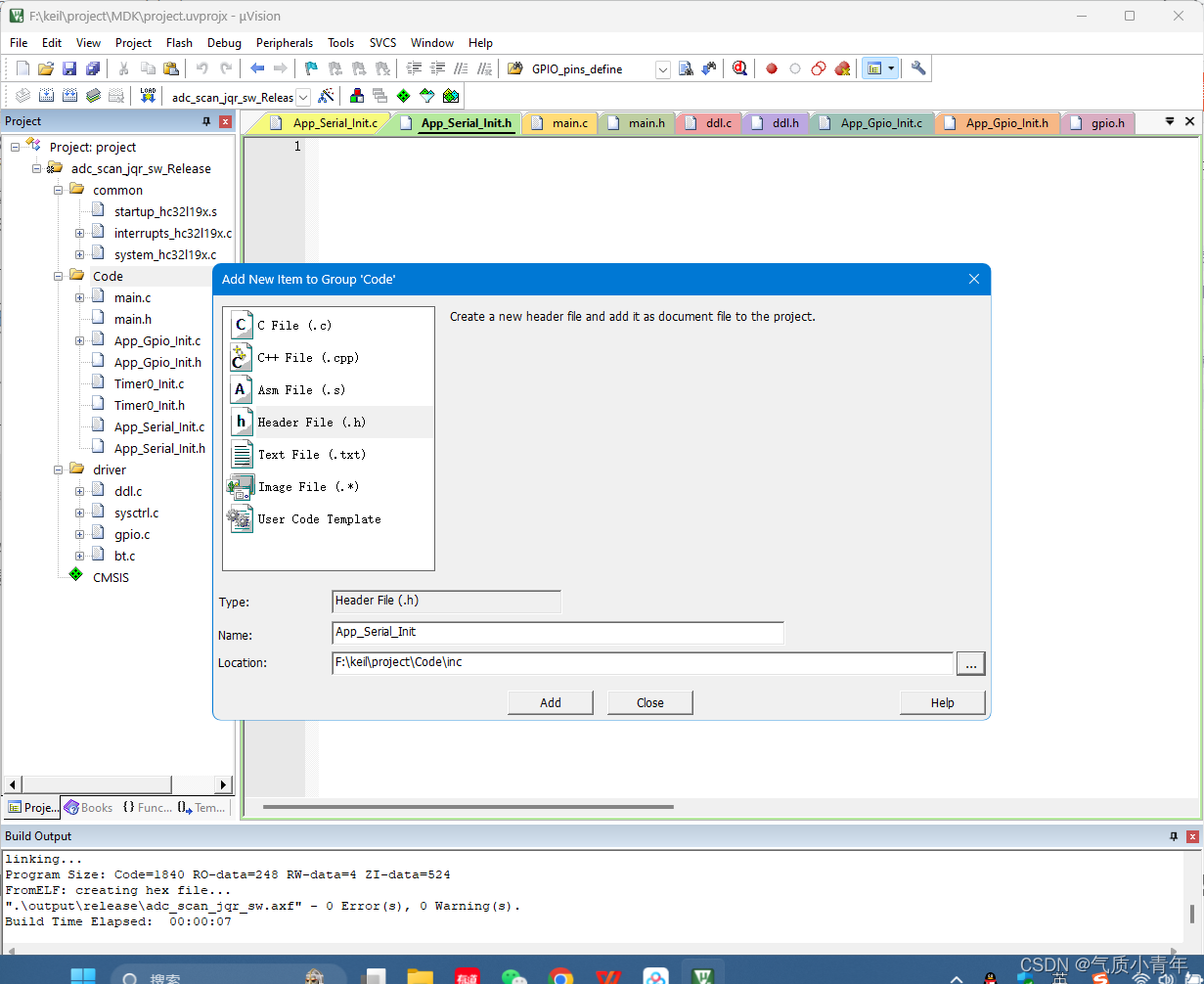

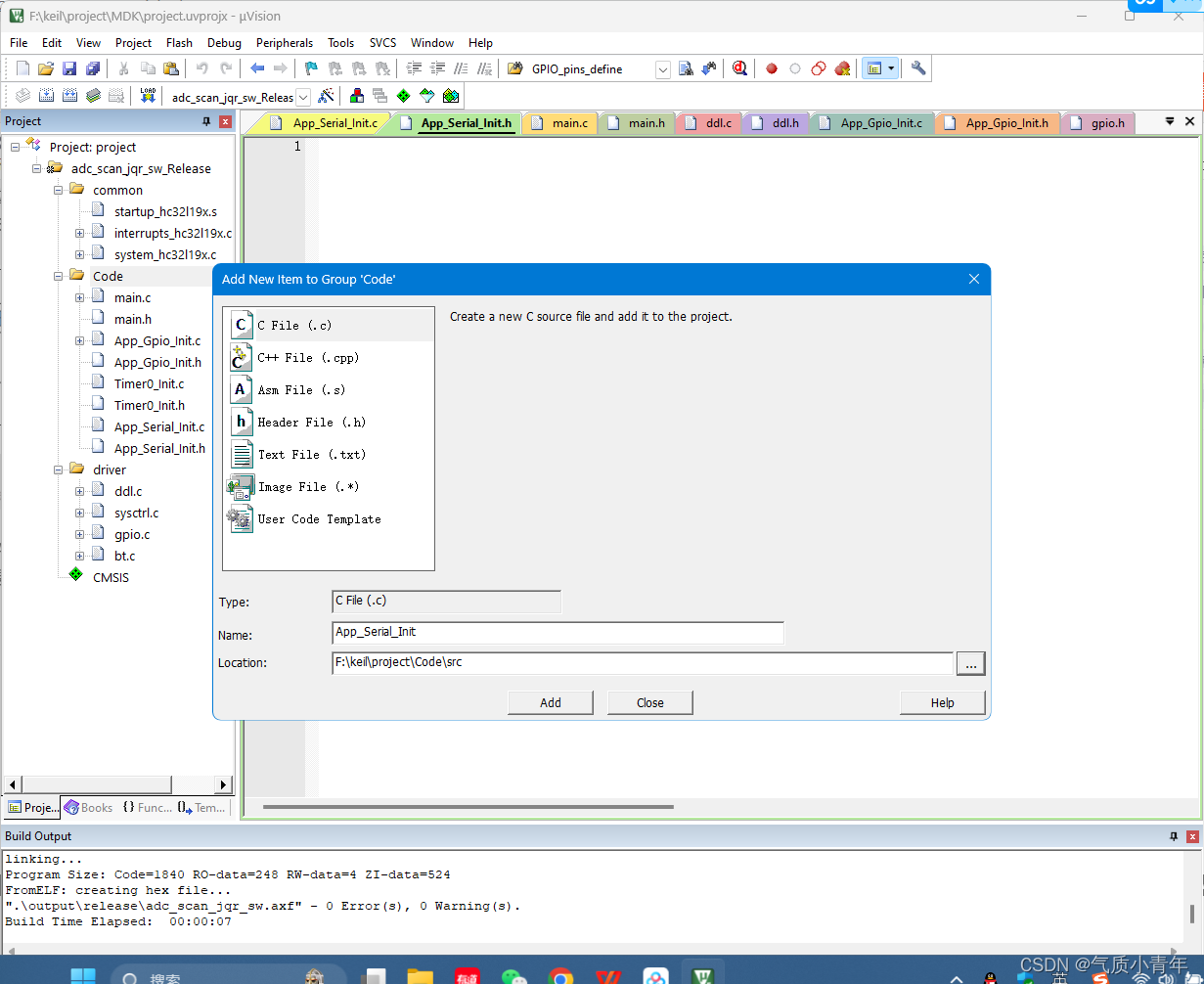

老样子，咱们先新建一个App_Serial_Init.c和 App_Serial_Init.h。
在这里插入图片描述

在这里插入图片描述

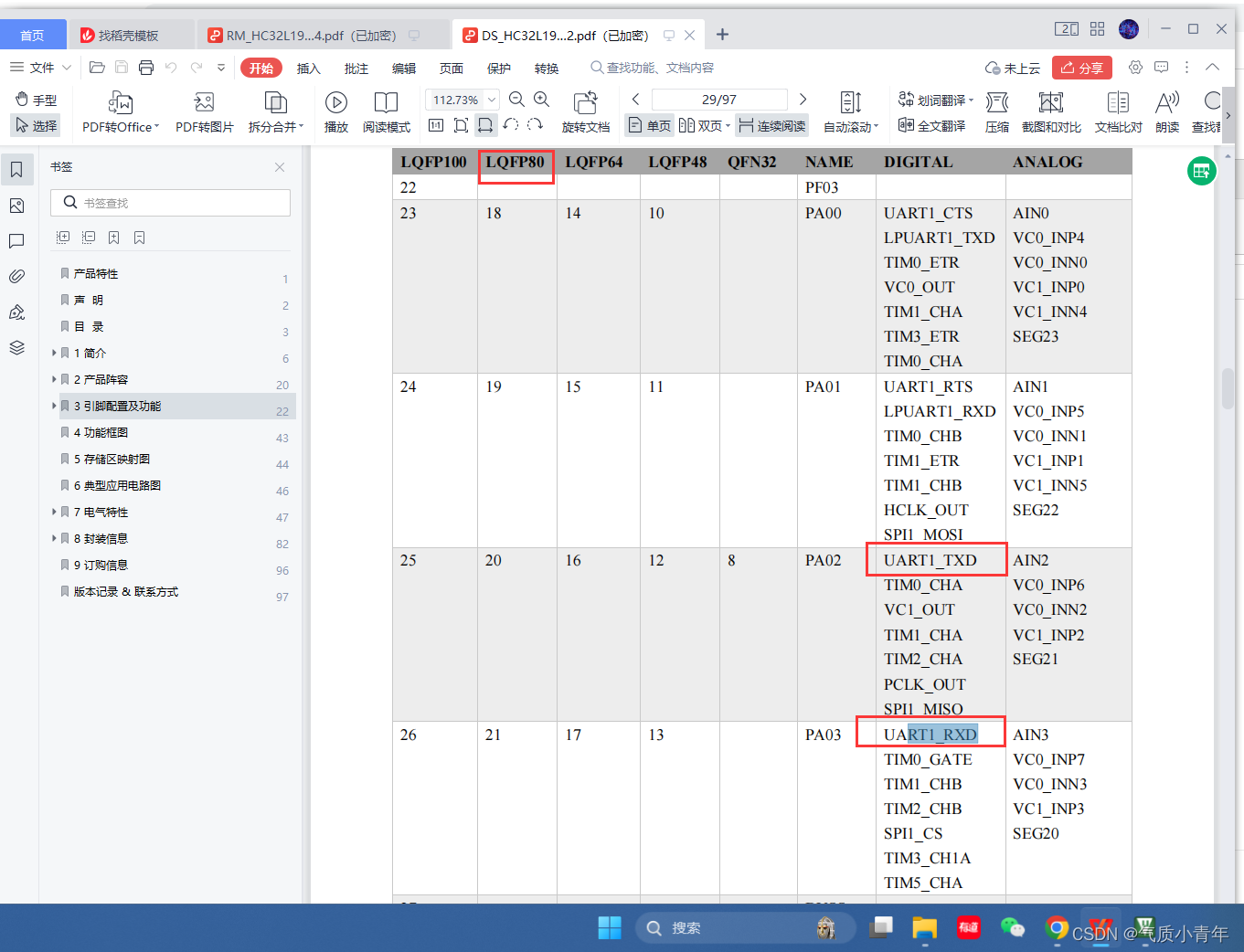

根据数据手册，我们可以发现PA02和PA03引脚可以作为UART1串口的TX和RX。
在这里插入图片描述

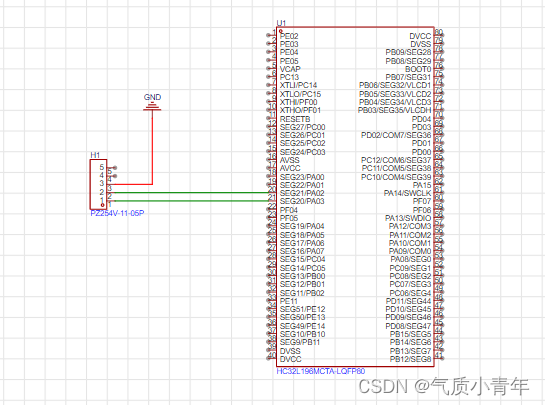

我们都知道串口通信属于最简单的通信方式了，在模式3（异步全双工）下只需要三根线即可，TX、RX和GND。连接如图所示
在这里插入图片描述
下面看代码部分：
main.c


```c
#include "main.h"

static boolean_t Flag=0;
SystemStatus_t SystemStatus;

int main()
{
	App_LedInit();
	Timer0_Init();
	App_PortInit();
	App_Serial_Init();

	while(1)
	{
		switch(SystemStatus)
		{
			case RxCompleteState:
			{
				Gpio_WriteOutputIO(GpioPortA, GpioPin0, Flag);
				Flag ^= 1;
				SystemStatus=DummyState;
				break;
			}
			default:
				break;
		}

	}
}

main.h

#ifndef __MAIN_H__
#define __MAIN_H__

#include "App_Gpio_Init.h"
#include "Timer0_Init.h"

typedef enum SystemStatus
{
	DummyState = 0u,
	RxCompleteState = 1u,
}SystemStatus_t;

extern SystemStatus_t SystemStatus;

#endif

App_Gpio_Init.c

#include "App_Gpio_Init.h"

void App_LedInit(void)
{
    stc_gpio_cfg_t stcGpioCfg;	///定义结构体变量

    Sysctrl_SetPeripheralGate(SysctrlPeripheralGpio, TRUE); ///< 打开GPIO外设时钟门控

    stcGpioCfg.enDir = GpioDirOut;				///< 端口方向配置->输出(其它参数与以上（输入）配置参数一致)
    stcGpioCfg.enPu = GpioPuDisable;			///< 端口上拉配置->不使能
    stcGpioCfg.enPd = GpioPdDisable;			///< 端口下拉配置->不使能
	stcGpioCfg.bOutputVal=TRUE;				 	///< 端口低电平驱动，初始化为高电平，使LED处于熄灭状态
    Gpio_Init(GpioPortA, GpioPin0, &stcGpioCfg); ///< GPIO IO LED端口初始化
}

//串口引脚配置
void App_PortInit(void)
{
    stc_gpio_cfg_t stcGpioCfg;

    DDL_ZERO_STRUCT(stcGpioCfg);

    Sysctrl_SetPeripheralGate(SysctrlPeripheralGpio,TRUE); //使能GPIO模块时钟
    ///<TX
    stcGpioCfg.enDir = GpioDirOut;
    Gpio_Init(GpioPortA, GpioPin2, &stcGpioCfg);
    Gpio_SetAfMode(GpioPortA, GpioPin2, GpioAf1);          //配置PA02 端口为URART1_TX
    ///<RX
    stcGpioCfg.enDir = GpioDirIn;
    Gpio_Init(GpioPortA, GpioPin3, &stcGpioCfg);
    Gpio_SetAfMode(GpioPortA, GpioPin3, GpioAf1);          //配置PA03 端口为URART1_RX
}

App_Gpio_Init.h

#ifndef __APP_GPIO_INIT_H__
#define __APP_GPIO_INIT_H__

#include "gpio.h"

void App_LedInit(void);
void App_PortInit(void);

#endif

Timer0_Init.c

#include "Timer0_Init.h"

void Timer0_Init(void)
{
	stc_bt_mode0_cfg_t stcBtConfig;
	DDL_ZERO_STRUCT(stcBtConfig);
	Sysctrl_SetPeripheralGate(SysctrlPeripheralBaseTim, TRUE);

	stcBtConfig.enWorkMode = BtWorkMode0;	///< 定时器模式
	stcBtConfig.bEnGate = FALSE;			///< 门控极性控制->关闭
	stcBtConfig.enPRS = BtPCLKDiv32;		///< 预除频配置
	stcBtConfig.bEnTog = FALSE;				///< 翻转输出使能
	stcBtConfig.enCT = BtTimer;				///< 定时功能
	stcBtConfig.enCntMode = Bt16bitArrMode;	///< 自动重载16位定时器
	Bt_Mode0_Init(TIM0, &stcBtConfig);
	Bt_M0_ARRSet(TIM0,3036);				//重载值，1s/(4M/32)=1*10^6 / (4*1*10^6/32) =8us  500ms/8us = 62500  65536-62500=3036
	Bt_ClearIntFlag(TIM0,BtUevIrq);			//中断清除
	Bt_Mode0_EnableIrq(TIM0);				//中断使能
	EnableNvic(TIM0_IRQn,IrqLevel3,TRUE);			//NVIC使能
}

Timer0_Init.h

#ifndef __TIMER0_INIT_H__
#define __TIMER0_INIT_H__

#include "bt.h"

void Timer0_Init(void);

#endif

App_Serial_Init.c

#include "App_Serial_Init.h"


//串口配置
void App_UartCfg(void)
{
    stc_uart_cfg_t    stcCfg;

    DDL_ZERO_STRUCT(stcCfg);

    ///< 开启外设时钟
    Sysctrl_SetPeripheralGate(SysctrlPeripheralUart1,TRUE);///<使能uart1模块时钟

    ///<UART Init
    stcCfg.enRunMode        = UartMskMode3;          ///<模式3
    stcCfg.enStopBit        = UartMsk1bit;           ///<1bit停止位
    stcCfg.enMmdorCk        = UartMskEven;           ///<偶检验
    stcCfg.stcBaud.u32Baud  = 9600;                  ///<波特率9600
    stcCfg.stcBaud.enClkDiv = UartMsk8Or16Div;       ///<通道采样分频配置
    stcCfg.stcBaud.u32Pclk  = Sysctrl_GetPClkFreq(); ///<获得外设时钟（PCLK）频率值
    Uart_Init(M0P_UART1, &stcCfg);                   ///<串口初始化

    ///<UART中断使能
    Uart_ClrStatus(M0P_UART1,UartRC);                ///<清接收请求
    Uart_ClrStatus(M0P_UART1,UartTC);                ///<清接收请求
    Uart_EnableIrq(M0P_UART1,UartRxIrq);             ///<使能串口接收中断
    Uart_EnableIrq(M0P_UART1,UartTxIrq);             ///<使能串口接收中断
    EnableNvic(UART1_3_IRQn, IrqLevel3, TRUE);       ///<系统中断使能
}

App_Serial_Init.h

#ifndef __APP_SERIAL_INIT_H__
#define __APP_SERIAL_INIT_H__

#include "uart.h"
#include "sysctrl.h"

#endif

App_interrupts.c

/**
 ******************************************************************************
 ** \brief  中断函数的集合（低功耗串口，定时器Timer0中断）
 **
 ** \return 无返回值
 **
 ******************************************************************************/

#include "App_interrupts.h"

RxBuf Rxbuff;								//定义结构体类型变量


/**
 ******************************************************************************
 ** \brief  LPUART1 中断服务函数
 **
 ** \return 无返回值
 **
 ******************************************************************************/

///<LPUART1 中断服务函数
void LpUart1_IRQHandler(void)
{
    if(Uart_GetStatus(M0P_UART1, UartTC))		///发送数据
    {
		Uart_ClrStatus(M0P_UART1, UartTC);   	///<清发送中断请求
    }
    if(Uart_GetStatus(M0P_UART1, UartRC))    ///接收数据
    {
		Uart_ClrStatus(M0P_UART1, UartRC);   ///<清接收中断请求
		Rxbuff.u8[Rxbuff.idx] = Uart_ReceiveData(M0P_UART1);///读取数据
		Rxbuff.idx = (Rxbuff.idx > sizeof(Rxbuff.u8)? Rxbuff.idx:(Rxbuff.idx+1));
		Bt_M0_Cnt16Set(TIM0,60736);					//初值
		Bt_M0_Run(TIM0);
	}
}

/**
 ******************************************************************************
 ** \brief  Tim0中断服务函数
 **
 ** \return 无返回值
 **
 ******************************************************************************/

//Tim0中断服务函数
void Tim0_IRQHandler(void)
{
	Bt_ClearIntFlag(TIM0,BtUevIrq);			//中断清除
	Bt_M0_Stop(TIM0);						//停止timer0
	Rxbuff.len=Rxbuff.idx;					//存储接收数组长度
	Rxbuff.idx=0;							//清除接收数组长度缓存，方便下次使用
	SystemStatus = RxCompleteState;			//更新系统状态，RX接收完成
}

App_interrupts.h


```c
#ifndef __APP_INTERRUPTS_H__
#define __APP_INTERRUPTS_H__

#include "main.h"
#include "uart.h"
#include "bt.h"

typedef struct
{
	uint8_t u8[32];		//串口接收数据缓存
	uint8_t I2[32];		//I2C接收数据缓存
	uint8_t idx;		//串口接收数据索引
	uint8_t len;
}RxBuf;

extern volatile uint8_t State;
extern RxBuf Rxbuff;

#endif

通过代码，我们可以发现，这个GPIO初始化，似乎有些是一样的，有些是不一样的，那么我们可不可以优化一下呢，另外我们发现在主函数里面调用的函数比较多，又都是一些初始化的函数，我们能不能处理一下呢？
话不多时我们在看代码：
新建Sys_Init.c和Sys_Init.h，将初始化函数放在这，在主函数直接调用Sys_Init()函数，可读性更强。
新建App_Gpio_Init.c和App_Gpio_Init.h，将GPIO引脚初始化都写在这，去掉App_LedInit();
和App_PortInit();函数，优化了代码，可读性更强。优化代码如下：

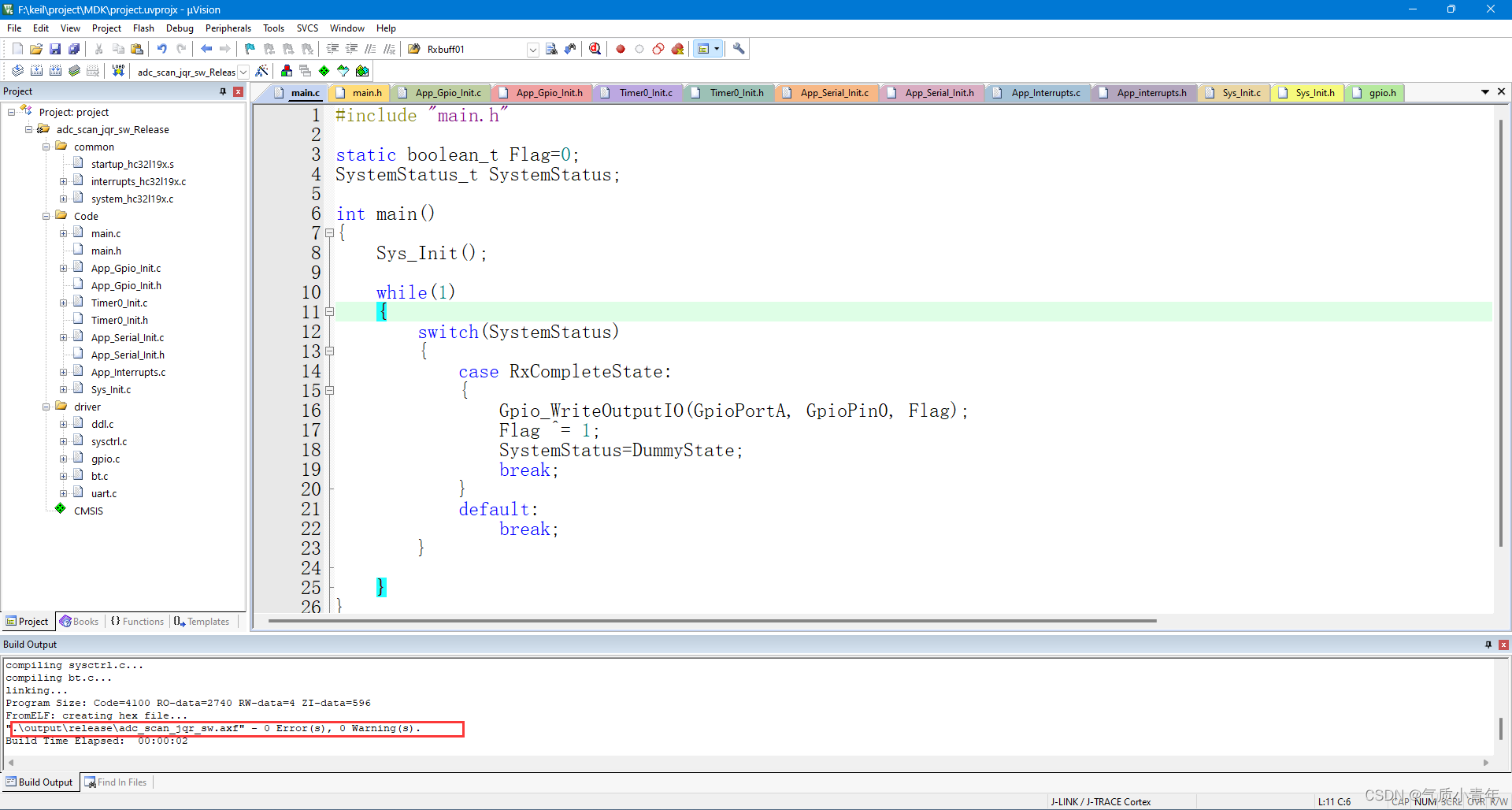

main.c

#include "main.h"

static boolean_t Flag=0;
SystemStatus_t SystemStatus;

int main()
{
	Sys_Init();

	while(1)
	{
		switch(SystemStatus)
		{
			case RxCompleteState:
			{
				Gpio_WriteOutputIO(GpioPortA, GpioPin0, Flag);
				Flag ^= 1;
				SystemStatus=DummyState;
				break;
			}
			default:
				break;
		}
	}
}

Sys_Init.c

/**
 ******************************************************************************
 ** \brief  系统初始化函数
 **
 ** \return 无返回值
 **
 **	时钟初始化，设定为外部低速时钟32768Hz
 ** GPIO初始化
 ** 串口Serial初始化
 ** Timer0初始化 4M
 ** I2C1初始化
 ******************************************************************************/

#include "Sys_Init.h"

/**
 ******************************************************************************
 ** \brief  初始化函数
 **
 ** \return 无返回值
 **
 **	各个函数初始化
 **
 ******************************************************************************/

void Sys_Init(void)
{
	App_Gpio_Init();		//GPIO初始化
	App_Serial_Init();		//Serial初始化
	Timer0_Init();		//Timer0初始化 4M
}

Sys_Init.h

#ifndef __SYS_INIT_H__
#define __SYS_INIT_H__

#include "App_Gpio_Init.h"
#include "App_Serial_Init.h"
#include "Timer0_Init.h"
#include "App_interrupts.h"
#include "ddl.h"

extern void Sys_Init(void);
extern uint8_t XoRCheck(uint8_t *array,uint8_t length);

#endif

App_Gpio_Init.c

#include "App_Gpio_Init.h"

/**
 ******************************************************************************
 ** \brief  GPIO初始化函数
 **
 ** \return 无返回值
 **	晶振引脚初始化
 **	I2C引脚初始化，配置复用功能
 ** LPUART1引脚初始化，配置复用功能
 ******************************************************************************/

volatile uint8_t Flag;

void App_Gpio_Init()
{
	const MCU_IO_TypeDef McuIoInitTbl[]  =
	{
		{.port  =  GpioPortE, .pin = GpioPin2, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PE02
		{.port  =  GpioPortE, .pin = GpioPin3, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PE03
		{.port  =  GpioPortE, .pin = GpioPin4, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PE04
		{.port  =  GpioPortE, .pin = GpioPin5, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PE05

		{.port  =  GpioPortC, .pin = GpioPin13, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC13
		{.port  =  GpioPortC, .pin = GpioPin14, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirIn, .io_cfg.enDrv  =  GpioDrvH,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC14
		{.port  =  GpioPortC, .pin = GpioPin15, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirIn, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC15

		{.port  =  GpioPortF, .pin = GpioPin0, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PF00
		{.port  =  GpioPortF, .pin = GpioPin1, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirIn, .io_cfg.enDrv  =  GpioDrvH,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PF01->Key

		{.port  =  GpioPortC, .pin = GpioPin0, .io_cfg.bOutputVal  =  TRUE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC00->LED1
		{.port  =  GpioPortC, .pin = GpioPin1, .io_cfg.bOutputVal  =  TRUE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC01->LED2
		{.port  =  GpioPortC, .pin = GpioPin2, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC02
		{.port  =  GpioPortC, .pin = GpioPin3, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirIn, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC03

		{.port  =  GpioPortA, .pin = GpioPin0, .io_cfg.bOutputVal  =  TRUE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA00
		{.port  =  GpioPortA, .pin = GpioPin1, .io_cfg.bOutputVal  =  TRUE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA01
		{.port  =  GpioPortA, .pin = GpioPin2, .io_cfg.bOutputVal  =  TRUE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA02->UART1_TXD
		{.port  =  GpioPortA, .pin = GpioPin3, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA03->UART1_RXD

		{.port  =  GpioPortF, .pin = GpioPin4, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PF04
		{.port  =  GpioPortF, .pin = GpioPin5, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PF05

		{.port  =  GpioPortA, .pin = GpioPin4, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA04
		{.port  =  GpioPortA, .pin = GpioPin5, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA05
		{.port  =  GpioPortA, .pin = GpioPin6, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA06
		{.port  =  GpioPortA, .pin = GpioPin7, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA07

		{.port  =  GpioPortC, .pin = GpioPin4, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC04
		{.port  =  GpioPortC, .pin = GpioPin5, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC05

		{.port  =  GpioPortB, .pin = GpioPin0, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB00
		{.port  =  GpioPortB, .pin = GpioPin1, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB01
		{.port  =  GpioPortB, .pin = GpioPin2, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB02

		{.port  =  GpioPortE, .pin = GpioPin11, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PE11
		{.port  =  GpioPortE, .pin = GpioPin12, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PE12
		{.port  =  GpioPortE, .pin = GpioPin13, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PE13
		{.port  =  GpioPortE, .pin = GpioPin14, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PE14

		{.port  =  GpioPortB, .pin = GpioPin10, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB10
		{.port  =  GpioPortB, .pin = GpioPin11, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB11
		{.port  =  GpioPortB, .pin = GpioPin12, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB12
		{.port  =  GpioPortB, .pin = GpioPin13, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB13
		{.port  =  GpioPortB, .pin = GpioPin14, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB14
		{.port  =  GpioPortB, .pin = GpioPin15, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PB15

		{.port  =  GpioPortD, .pin = GpioPin8, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD08
		{.port  =  GpioPortD, .pin = GpioPin9, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD09

		{.port  =  GpioPortD, .pin = GpioPin10, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD10
		{.port  =  GpioPortD, .pin = GpioPin11, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD11

		{.port  =  GpioPortC, .pin = GpioPin6, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC06
		{.port  =  GpioPortC, .pin = GpioPin7, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC07
		{.port  =  GpioPortC, .pin = GpioPin8, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC08
		{.port  =  GpioPortC, .pin = GpioPin9, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC09

		{.port  =  GpioPortA, .pin = GpioPin8, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA08
		{.port  =  GpioPortA, .pin = GpioPin9, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA09
		{.port  =  GpioPortA, .pin = GpioPin10, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA10
		{.port  =  GpioPortA, .pin = GpioPin11, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA11
		{.port  =  GpioPortA, .pin = GpioPin12, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA12
		//{.port  =  GpioPortA, .pin = GpioPin13, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		//.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA13->SWDIO

		{.port  =  GpioPortF, .pin = GpioPin6, .io_cfg.bOutputVal  =  TRUE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuEnable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdEnable, .io_cfg.enCtrlMode  =  GpioAHB},	//PF06->SCL
		{.port  =  GpioPortF, .pin = GpioPin7, .io_cfg.bOutputVal  =  TRUE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuEnable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdEnable, .io_cfg.enCtrlMode  =  GpioAHB},	//PF07->SCL

		//{.port  =  GpioPortA, .pin = GpioPin14, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		//.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA14->SWCLK
		{.port  =  GpioPortA, .pin = GpioPin15, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PA15->WP

		{.port  =  GpioPortC, .pin = GpioPin10, .io_cfg.bOutputVal  =  TRUE , .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuEnable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC10
		{.port  =  GpioPortC, .pin = GpioPin11, .io_cfg.bOutputVal  =  TRUE, .io_cfg.enDir  =  GpioDirIn, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuEnable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC11
		{.port  =  GpioPortC, .pin = GpioPin12, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PC12


		{.port  =  GpioPortD, .pin = GpioPin0, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD00->SPI1_CS
		{.port  =  GpioPortD, .pin = GpioPin1, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD01->SPI1_SCK
		{.port  =  GpioPortD, .pin = GpioPin2, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD02
		{.port  =  GpioPortD, .pin = GpioPin3, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD03->SPI1_MISO
		{.port  =  GpioPortD, .pin = GpioPin4, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir  =  GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB},	//PD04->SPI1_MOSI

		{.port  =  GpioPortB, .pin = GpioPin3, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir = GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB },	//PB03
		{.port  =  GpioPortB, .pin = GpioPin4, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir = GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB },	//PB04
		{.port  =  GpioPortB, .pin  =  GpioPin5, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir = GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB },	//PB05
		{.port  =  GpioPortB, .pin = GpioPin6, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir = GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB },	//PB06
		{.port  =  GpioPortB, .pin = GpioPin7, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir = GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB },	//PB07
		{.port  =  GpioPortB, .pin = GpioPin8, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir = GpioDirOut, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB },	//PB08->UART0_TXD
		{.port  =  GpioPortB, .pin = GpioPin9, .io_cfg.bOutputVal  =  FALSE, .io_cfg.enDir = GpioDirIn, .io_cfg.enDrv  =  GpioDrvL,
		.io_cfg.enPu  =  GpioPuDisable, .io_cfg.enPd  =  GpioPdDisable, .io_cfg.enOD  =  GpioOdDisable, .io_cfg.enCtrlMode  =  GpioAHB }	//PB09->UART0_RXD
	};

	Sysctrl_SetPeripheralGate(SysctrlPeripheralGpio, TRUE);

	for(uint16_t i = 0; i<ARRAY_SZ(McuIoInitTbl); i++)
	{
		Gpio_Init(McuIoInitTbl[i].port, McuIoInitTbl[i].pin, (stc_gpio_cfg_t  *)&McuIoInitTbl[i].io_cfg);
	}
    Gpio_SetAfMode(GpioPortA,GpioPin2,GpioAf1); 			//配置PA02为UART1_TX
    Gpio_SetAfMode(GpioPortA,GpioPin3,GpioAf1); 			//配置PA03为UART1_RX
}

App_Gpio_Init.h

#ifndef __APP_GPIO_INIT_H__
#define __APP_GPIO_INIT_H__

#include "gpio.h"
#include "ddl.h"
#include "sysctrl.h"

 /********************************************************************************
 ** \brief GPIO外设初始化结构体
 ******************************************************************************/
typedef struct{
	en_gpio_port_t port;		// GPIO端口号
	en_gpio_pin_t  pin; 		// GPIO引脚号
	stc_gpio_cfg_t io_cfg; 		// GPIO配置信息
}MCU_IO_TypeDef;

void App_Gpio_Init(void);

#endif

写到这里，我们测试一下没啥问题。
在这里插入图片描述
但是单片机好像执行不起来，这是什么问题呢？复盘一下，我们就加了2个.c文件，为何运行不起来了？调试一下，发现我们在GPIO初始化的时候执行不下去了，我们给所有的引脚都初始化了，占据较大篇幅，根据Program Size: Code=4100 RO-data=2740 RW-data=4 ZI-data=596 ,计算出RAM在使用中的大小为4+596=600，转化为十六进制为258，再查看启动文件发现堆栈空间设置较小，不足以支持GPIO初始化操作。
在这里插入图片描述

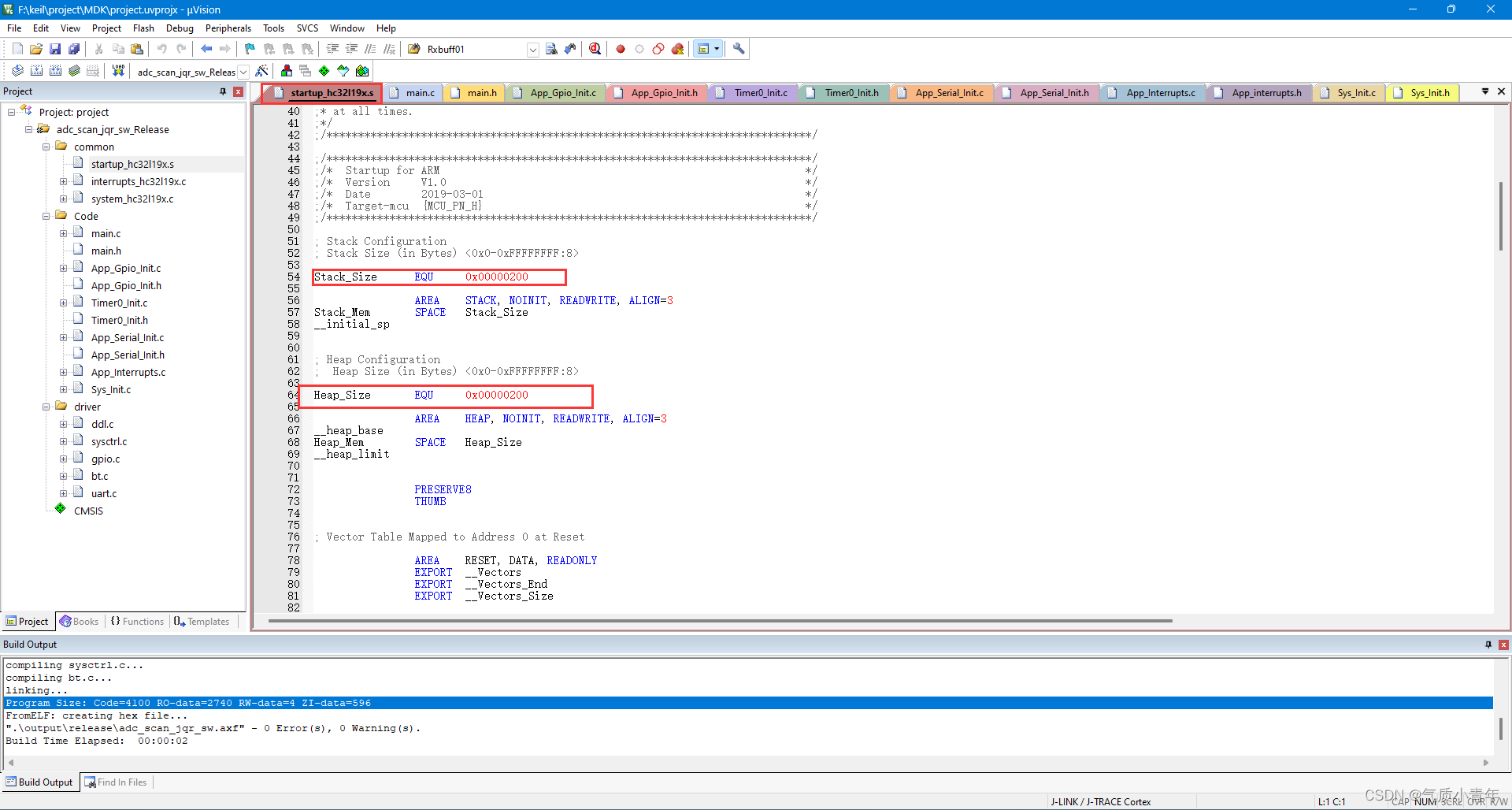

更改堆栈空间的大小，查看数据手册发现，整个片内RAM区域的任何位置都可以作为堆栈区使用，因此我们可以将堆栈的空间调大一些，设置为0x00002000，也就是8192,8个字节。
在这里插入图片描述
重新烧录程序，进行测试，发现问题解决！

华大DMA串口发送遇到的坑
ic2121的博客
03-14 2401
最近调试华大F460KETA芯片，遇到了DMA串口发送的坑，来和大家分享一下。 华大的DMA和STM32的DMA不一样，STM32系列的DMA发送只需要使能DMA通道，就可以触发一次DMA发送，而华大的需要用用软件触发只能触发一次DMA一个字节的发送，感觉好坑，后来改用串口发送完成中断来触发DMA发送。 /*DMA 初始化结构体: */ typedef struct stc_dma_config { uint16_t u16BlockSize...
华大单片机体验笔记
狂奔的兔子
04-24 4467
华大单片机
华大单片机-串口通讯多字节
明哥的博客
08-12 6818
目录华大单片机---串口通信1.串口通信基本原理（1）串口通信原理：（2）华大的串口通信：（3）简单介绍下：（4）多字符发送：2.初始化代码3.发送代码：4.接收中断代码 华大单片机—串口通信 1.串口通信基本原理 （1）串口通信原理： 这部分可以百度，或者去看下野火的stm32教程，串口通信原理基本一样。这里不再详细讲解！ （2）华大的串口通信： 这部分可以直接看用户手册的UART章节。我保证肯定讲的比我详细。里面也有各种寄存器，学会看数据手册是非常重要的，我也是工作后才明白的。之前学习stm32都是看别
华大单片机/华大MCU原理图库
09-03
本资料中包含了华大单片机HC32L110 HC32L003 HC32L005 HC32F030 HC32F072 HC32F170 HC32F176 HC32F190 HC32F196 HC32L130 HC32L136 HC32L170 HC32L176 HC32L190 HC32L196 HC32L072 HC32L073的原理图，欢迎大家下载使用
基础知识之EEPROM
weixin_43981289的博客
05-24 1370
HC32L196 I2C加UART通信 MB85RC04铁电存储器
手把手教程1: 华大单片机HC32F460如何新建工程(ddl库版本)
childboy的博客
03-02 6801
华大单片机HC32F460如何新建工程(ddl库版本) 准备工作 在开发文件夹中找个位置建立F460_Project_test文件夹，此文件夹用来存储项目中调用及生成的所有非内核的文件(内核文件位置与keil安装位置有关)。 在mdk_test文件夹内分别建立App、CMSIS、Driver、Lib和MDK、DOC文件夹 把HC32F460_芯片资料包中\HC32F460_SDK\驱动库及样例\hc32f460_ddl_Rev2.1.0.zip进行解压。 把\HC32F460_DDL_Rev2.
华大单片机-JLINK下载.zip
02-27
本资料包"华大单片机-JLINK下载.zip"显然是针对华大单片机用户提供的JLINK相关软件或驱动，帮助用户进行程序的下载和调试工作。 华大单片机是中国知名的单片机制造商之一，其产品线广泛，涵盖了8位、16位和32位的...
华大HC32F005单片机官方例程
最新发布
11-28
华大的HC32F005（HC32F003通用）官方例程，包含示例如下： 1 adc_norm_polling ADC单次采样模式 2 adc_scan_mul_irq ADC顺序扫描多路采样模式 3 adc_scan_sqr_acc ADC顺序扫描累加模式 4 adc_sgl_sw ADC单次采样模式...
国产超低功耗华大单片机开发板仿真器驱动
12-04
此文件为国产超低功耗华大单片机开发板及仿真器的驱动文件。适用于开发板或仿真器与电脑连接后不能工作的问题。
单片机串口通信
04-03
串口通信对于单片机小白比较有用 纯属自己鼓捣的玩，如果有不好的地方请见谅
国产超低功耗华大单片机AD封装库
11-28
本资源包含了HC32L110 HC32F003 HC32F005 HC32L136 HC32F030 等常用型号的的.SchLib和.PcbLib库。
5-HC32F460(华大单片机)-串口(基本使用) - 杨奉武 - 博客园1
08-04
1.打开数据手册 3. 用ESP8266+android,制作 4. ESP8266刷AT固件与node 5. 有人WIFI模块使用详解(390 6. (一)基
华大单片机HC32L136库手册.CHM
09-11
本文件是华大hc32l13x_ddl_Rev1.9.1 Lite版本库的说明，包括数据类型，函数，宏等说明。欢迎大家下载使用。
华大单片机创建最小工程
weixin_42499230的博客
06-26 966
华大单片机的使用经验分享。
freertos_demo-multiTasktest_freertos_华大单片机+freertosdemo_华大_DEMO_
09-30
标题中的"freertos_demo-multiTasktest_freertos_华大单片机+freertosdemo_华大_DEMO_"表明这是一个基于FreeRTOS操作系统，并针对华大单片机（Huada Microcontroller）设计的多任务测试示例项目。FreeRTOS是一个轻量...
用华大单片机设计一个流水灯
weixin_42499230的博客
07-03 637
华大单片机的应用分享
F4A0手把手教程1: 华大单片机HC32F4A0如何新建工程(ddl库版本)
childboy的博客
07-27 1986
5. 把\hc32f4a0_ddl_Rev1.4.0\mcu\common文件夹中所有文件复制到\F4A0_Project_test\CMSIS文件夹中，.h文件放进Include文件夹，.c文件直接放在CMSIS文件夹下。6. \hc32f4a0_template_Rev1.3.0\hc32f4a0pitb_template\example\MDK下的启动文件也复制到\F4A0_Project_test\CMSIS文件夹中。Lib：存放各种库文件，CMSIS，芯片固件库，文件系统库，网络库等。
华大单片机hc32f030教程
09-15
华大单片机HC32F030是一款32位ARM Cortex-M0+内核的单片机，具有丰富的外设和功能，适用于各种嵌入式应用。以下是一些学习和使用HC32F030单片机的教程资源： 1. 官方文档：你可以从华大官方网站下载HC32F030的技术手册、应用指南和参考设计等文档，这些资料详细介绍了单片机的特性、寄存器配置和应用示例等。 2. 开发工具：华大为HC32F030提供了免费的开发工具，包括Keil MDK、IAR Embedded Workbench和华大自家的Halcon IDE等。你可以选择合适的开发工具，并根据官方提供的教程进行安装和配置。 3. 例程和示例代码：官方提供了丰富的例程和示例代码，涵盖了各种常见的应用场景，如GPIO控制、定时器、串口通信、中断处理等。你可以通过参考这些代码来快速上手和理解HC32F030的编程方法。 4. 在线教程：一些嵌入式社区和开发者论坛上可能有HC32F030的在线教程和学习资源，你可以搜索相关内容并参考学习。 5. 视频教程：有些开发者会制作HC32F030的视频教程，你可以在视频分享网站上搜索相关内容，通过观看视频来学习HC32F030的使用方法和技巧。 总之，学习HC32F030单片机可以通过官方文档、开发工具、示例代码、在线教程和视频教程等多种途径进行。根据你的学习习惯和需求，选择最适合的方式来系统地学习和掌握HC32F030的使用。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
