pyecharts象形柱状图处理

包导入和数据处理

import pandas as pd
import numpy as np
from pyecharts.charts import *
import  pyecharts.options as opts
from pyecharts.charts import PictorialBar

picture_data=pd.read_excel('./excel  /picture_data.xlsx',sheet_name='url')
picture_data.columns=['序号','机构名称','图片url']
all_data=pd.read_excel('./excel  /picture_data.xlsx',sheet_name='data')
all_data=pd.merge(all_data,picture_data,on='机构名称')

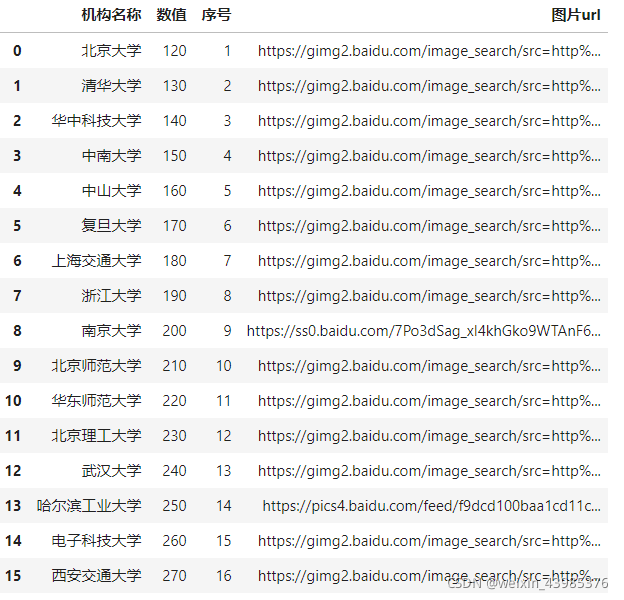

all_data

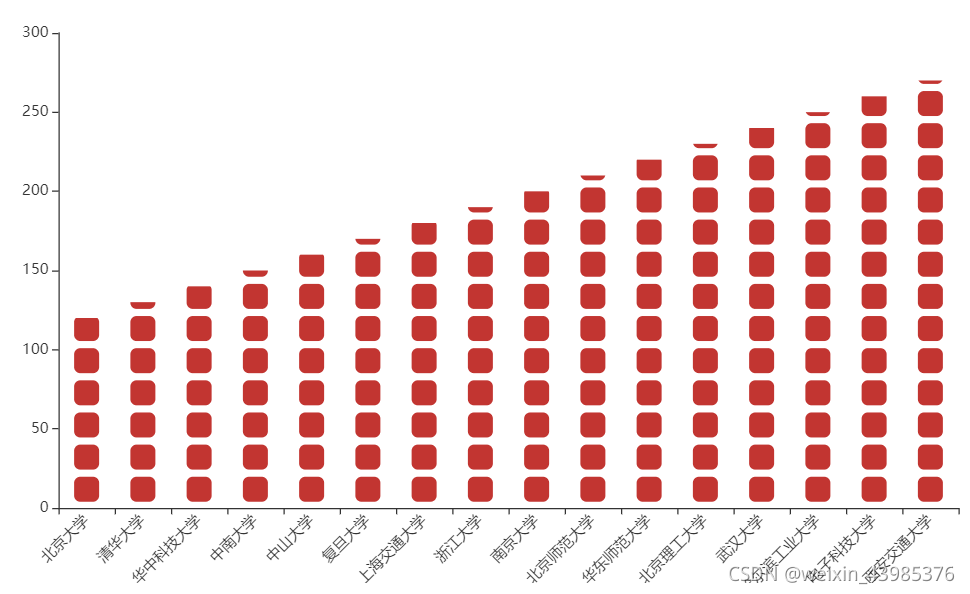

象形柱形图

url=list(all_data['图片url'])
school_name=list(all_data['机构名称'])
school_data=list(all_data['数值'])
bar=(PictorialBar()
.add_xaxis(school_name)
.add_yaxis('',school_data
               ,label_opts=opts.LabelOpts(is_show=False)
               ,symbol=SymbolType.ROUND_RECT
               ,symbol_size=20
               ,symbol_repeat="fixed"
               , symbol_offset=[0, -5]
               , is_symbol_clip=True)
.set_global_opts(xaxis_opts=opts.AxisOpts(name_rotate=60,name="123456",axislabel_opts={"rotate":45}))
    )
bar.render(f'./学校.html')

批量制作象形柱形图

for i in range(4):
    url=list(all_data['图片url'])[i*4:(i+1)*4]
    school_name=list(all_data['机构名称'])[i*4:(i+1)*4]
    school_data=list(all_data['数值'])[i*4:(i+1)*4]
    print(school_name)
    bar=(PictorialBar()
    .add_xaxis(school_name)
    .add_yaxis(''
               ,[{"value": school_data[0],"symbol":f'image://{url[0]}'}
                  ,{"value": school_data[1],"symbol": f'image://{url[1]}'}
                  ,{"value": school_data[2],"symbol": f'image://{url[2]}'}
                  ,{"value": school_data[3],"symbol":f'image://{url[3]}'}]
               ,label_opts=opts.LabelOpts(is_show=False)
               ,symbol_size=40
               ,symbol_repeat="fixed"
               , symbol_offset=[0, -5]
               , is_symbol_clip=True)
    )
    bar.render(f'./{i}四校.html')

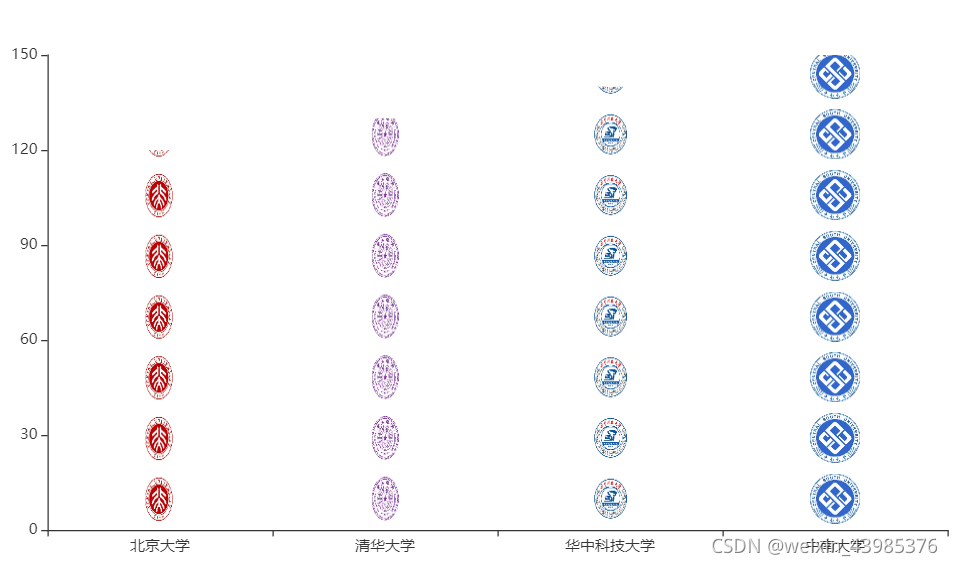

第一张图

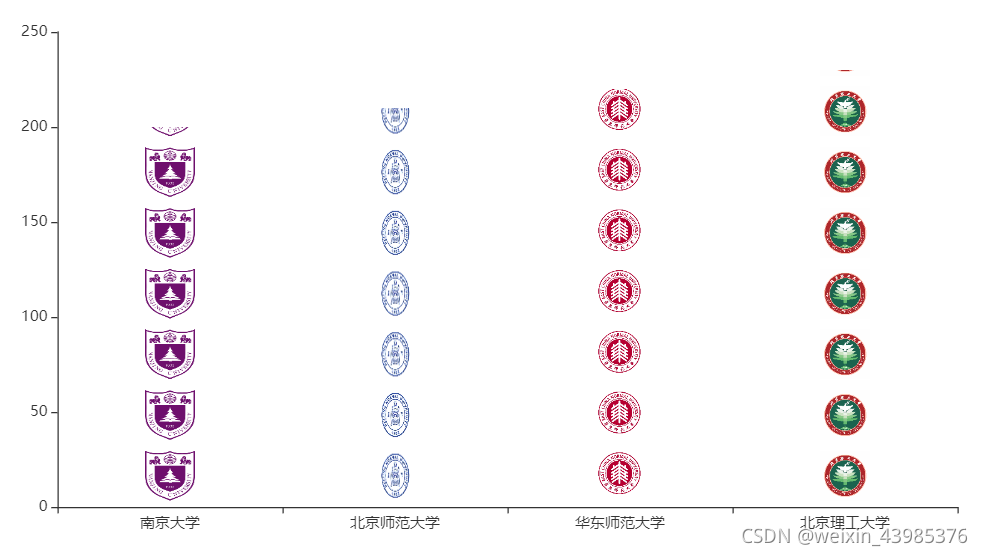

第二张图

第三张图

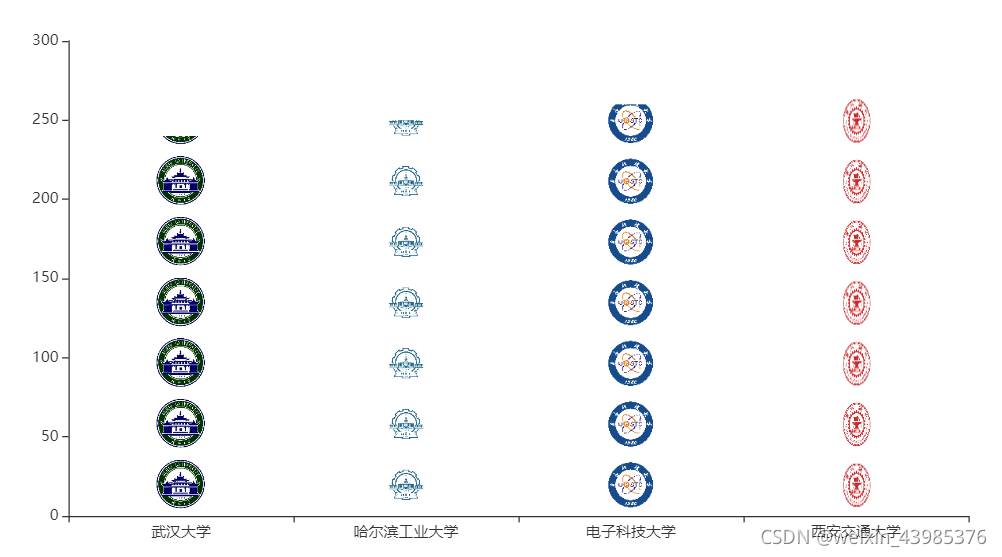

第四张图

关于象形柱状图其他美化可以参看echart官网或pyecharts官网
官网链接（在文章底部）
