一、引言
- 在当今快速发展的工业生产领域,自动化和智能化已成为提高生产效率和产品质量的关键因素。缺陷检测作为智能制造的重要组成部分,对于确保产品质量和降低生产成本具有重要意义。
- 随着计算机视觉技术的不断进步,基于深度学习的对象检测算法,尤其是YOLO(You Only Look Once)系列算法,因其速度快、精度高而在工业缺陷检测中得到了广泛应用。YOLOv8作为该系列的最新版本之一,以其更高效的网络结构和更准确的检测性能,为缺陷检测任务带来了新的突破。
- 本文将深入探讨基于YOLOv8的缺陷检测任务训练过程,从数据准备、模型训练到性能评估,全面解析如何利用这一先进技术提升工业缺陷检测的自动化水平。通过实际案例分析,本文旨在为相关领域的研究者和工程师提供实用的技术参考和指导。
注意:学习本文的训练过程需要相关的前置知识,如有需要可参考文章:Python基础(千锋篇)专栏介绍、 Jupyter Notebook
二、环境说明
- 本文介绍的训练过程,使用ModelScope提供的Notebook的线上环境。分为CPU环境/GPU环境,均可使用。
2. 本文的YOLOv8的训练过程,使用了ultralytics的训练技术方案。相关文档可参考:https://docs.ultralytics.com/modes/train/
三、缺陷检测任务模型训练详解
完整代码资源:https://download.csdn.net/download/weixin_44063529/89645813
3.1 PCB数据集
3.1.1 数据集简介
PCB缺陷检测数据集:印刷电路板(PCB)瑕疵数据集由北京大学发布,其中包含1386张图像以及6种缺陷(缺失孔,鼠标咬伤,开路,短路,杂散,伪铜),用于检测,分类和配准任务。我们选取了其中适用与检测任务的693张图像,下载内容包括JSON和VOC格式版。
3.1.2 数据集下载
!git lfs install
!git clone https://www.modelscope.cn/datasets/ModelBulider/PCB_DATASET_JSON.git
!tar -xvf ./PCB_DATASET_JSON/PCB_DATASET_JSON.tar
3.1.3 构建yolo格式的数据集
- 创建训练集与测试集的标签文件
import json
import os
def refactor_data_format(json_path, yolo_paths):
with open(json_path) as f:
data = json.load(f)
imgs = {}
for img in data['images']:
imgs[img['id']] = {
'h': img['height'],
'w': img['width'],
'file_name': img['file_name'],
}
tmp = ''
for anno in data['annotations']:
print(imgs[anno['image_id']]['file_name'])
txt_path = os.path.join(yolo_paths, imgs[anno['image_id']]['file_name'].split('.')[0] + '.txt')
with open(txt_path, 'w') as txt_file:
if imgs[anno['image_id']] != tmp:
# xywh --> xywh(归一化)
bbox = [anno['bbox'][0] / imgs[anno['image_id']]['w'],
anno['bbox'][1] / imgs[anno['image_id']]['h'],
anno['bbox'][2] / imgs[anno['image_id']]['w'],
anno['bbox'][3] / imgs[anno['image_id']]['h']]
cls_id = anno['category_id'] - 1
# 保存
txt_file.write(str(cls_id) + ' ' +" ".join([str(a) for a in bbox])+"\n") # 生成格式0 cx,cy,w,h
tmp = imgs[anno['image_id']]
else:
# xywh --> xywh(归一化)
bbox = [anno['bbox'][0] / imgs[anno['image_id']]['w'],
anno['bbox'][1] / imgs[anno['image_id']]['h'],
anno['bbox'][2] / imgs[anno['image_id']]['w'],
anno['bbox'][3] / imgs[anno['image_id']]['h']]
cls_id = anno['category_id'] - 1
# 保存
txt_file.write(str(cls_id) + ' ' +" ".join([str(a) for a in bbox])+"\n") # 生成格式0 cx,cy,w,h
# 生成训练与测试的label文件(.txt)
train_json_path = "./PCB_DATASET/Annotations/train.json"
train_yolo_paths = "./datasets/PCB_DATASET/labels/train2024"
val_json_path = "./PCB_DATASET/Annotations/val.json"
val_yolo_paths = "./datasets/PCB_DATASET/labels/val2024"
if not os.path.exists(train_yolo_paths):
os.makedirs(train_yolo_paths)
if not os.path.exists(val_yolo_paths):
os.makedirs(val_yolo_paths)
refactor_data_format(train_json_path, train_yolo_paths)
refactor_data_format(val_json_path, val_yolo_paths)
- 创建训练集与测试集的数据集
import os
import shutil
Images_path = r'./PCB_DATASET/images' # 源图路径
train_labels = r'./datasets/PCB_DATASET/labels/train2024' # train标签路径
val_labels = r'./datasets/PCB_DATASET/labels/val2024' # val标签路径
train_images = r'./datasets/PCB_DATASET/images/train2024' # 保存train图像路径
val_images = r'./datasets/PCB_DATASET/images/val2024' # 保存val图像路径
if not os.path.exists(train_images):
os.makedirs(train_images)
if not os.path.exists(val_images):
os.makedirs(val_images)
# 判断文件夹是否存在,不存在即创建
if not os.path.exists(train_images):
os.mkdir(train_images)
if not os.path.exists(val_images):
os.mkdir(val_images)
# 按照标签名移动对应图像
for label_name in os.listdir(train_labels):
img_name = label_name[:-3] + 'jpg'
shutil.move(os.path.join(Images_path, img_name), os.path.join(train_images, img_name))
for label_name in os.listdir(val_labels):
img_name = label_name[:-3] + 'jpg'
shutil.move(os.path.join(Images_path, img_name), os.path.join(val_images, img_name))
3.2 基于ultralytics训练YOLOv8
3.2.1 安装依赖包
!pip install ultralytics
3.2.2 ultralytics的训练规范说明
- YOLO训练标签示例如下(转换目标):
类别id 归一化后框中心点x坐标 归一化后框中心点y坐标 归一化后框的宽度 归一化后框的高度
- 训练YOLOv8时,需要存放数据集的目录结构如下(图像与标签路径必须对应):
├─datasets
│ ├─images
│ │ ├─train2024 # jpg/png 训练集图片
│ │ └─val2024 # jpg/png 验证集图片
│ ├─labels
│ │ ├─train2024 # txt 训练集标签
│ │ └─val2024 # txt 验证集标签
3.2.3 创建训练配置文件
content = """path: ./PCB_DATASET # 数据集的根目录
train: images/train2024 # train images
val: images/val2024 # val images
# 分类类别
names:
0: missing_hole
1: mouse_bite
2: open_circuit
3: short
4: spur
5: spurious_copper
"""
with open(r"dataset.yaml", mode='w', encoding='UTF-8') as f:
f.write(content)
3.2.4 下载预训练模型
# 下载预训练的yolo8模型
import os
from modelscope.hub.api import HubApi
api = HubApi()
api.login('Your Modelscope SDK 令牌') # 通过访问:https://www.modelscope.cn/my/myaccesstoken 进行获取,需要提交下载申请
# 不同大小YOLO8模型下载
from modelscope import snapshot_download
model_dir = snapshot_download('ModelBulider/yolo8', local_dir="./modelscope_downloads")
yolo_version = 'yolov8l' # 选择训练使用yolo8的版本,可以在modelscope_downloads中查看所有的YOLO8版本
yolov8_model_path = os.path.abspath(os.path.join(model_dir, f'{yolo_version}.pt'))
print(yolov8_model_path)
- YOLO8包含了各种大小版本的模型,各模型大小、性能等参数比较如下:
- 如需要下载,可CSDN私信联系博主,佛系回复敬请谅解~
- 可在
yolo_version
处选择特定版本的YOLOv8预训练模型进行加载
3.2.5 训练模型
import os
from ultralytics import YOLO
def download_train_file():
"""
下载训练所需的文件
"""
os.system("cp ./modelscope_downloads/Arial.ttf /root/.config/Ultralytics/")
if __name__ == '__main__':
download_train_file()
# Load a model
# model = YOLO("yolov8n.yaml") # build a new model from scratch
model = YOLO(f'{yolo_version}.yaml').load(yolov8_model_path) # load a pretrained model (recommended for training)
# Use the model
model.train(data="dataset.yaml", imgsz=640, batch=16, workers=8, cache=True, epochs=100) # train the model
metrics = model.val() # evaluate model performance on the validation set
# results = model("ultralytics\\assets\\bus.jpg") # predict on an image
path = model.export(format="onnx", opset=13) # export the model to ONNX format
- 训练日志:
- 更多训练参数配置,可参考:https://docs.ultralytics.com/modes/train/
3.2.6 训练结果
- 训练产生的数据会生成在
runs/detect/train
路径下。其中,weight种存储了,训练过程中表现最好的模型参数(best.pt
)以及最后一次训练得到的模型参数(last.pt
)
- 训练结果验证
from ultralytics import YOLO
# Load a model
model = YOLO(r'runs/detect/train/weights/best.pt') # pretrained YOLOv8n model
# Run batched inference on a list of images
results = model([r"datasets/PCB_DATASET/images/train2024/01_missing_hole_01.jpg",
r"datasets/PCB_DATASET/images/train2024/01_missing_hole_17.jpg"]) # return a list of Results objects
# Process results list
for idex, result in enumerate(results):
boxes = result.boxes # Boxes object for bounding box outputs
masks = result.masks # Masks object for segmentation masks outputs
keypoints = result.keypoints # Keypoints object for pose outputs
probs = result.probs # Probs object for classification outputs
obb = result.obb # Oriented boxes object for OBB outputs
result.show() # display to screen

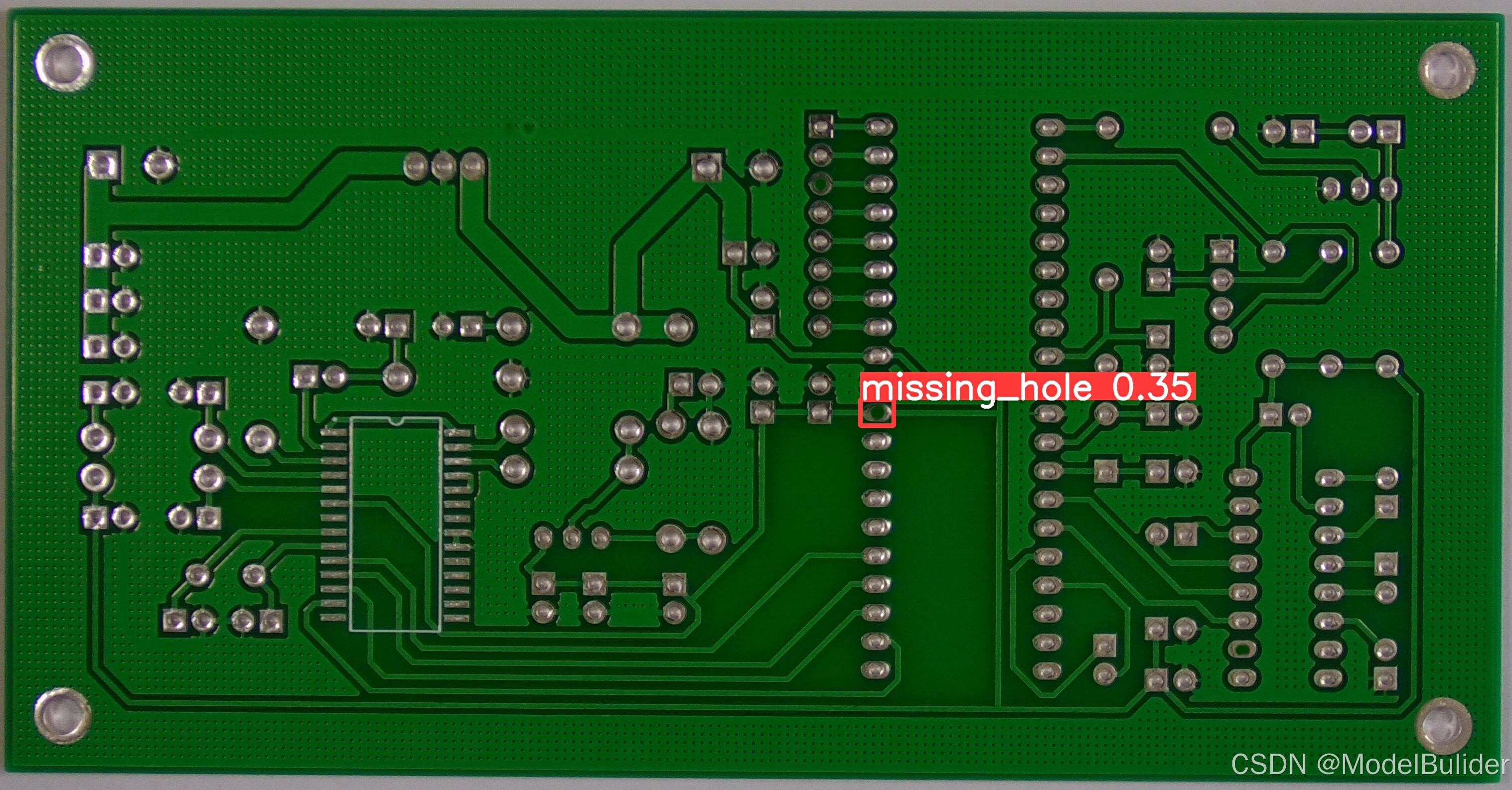

result.save(filename=f"result_{idex}.jpg") # save to disk

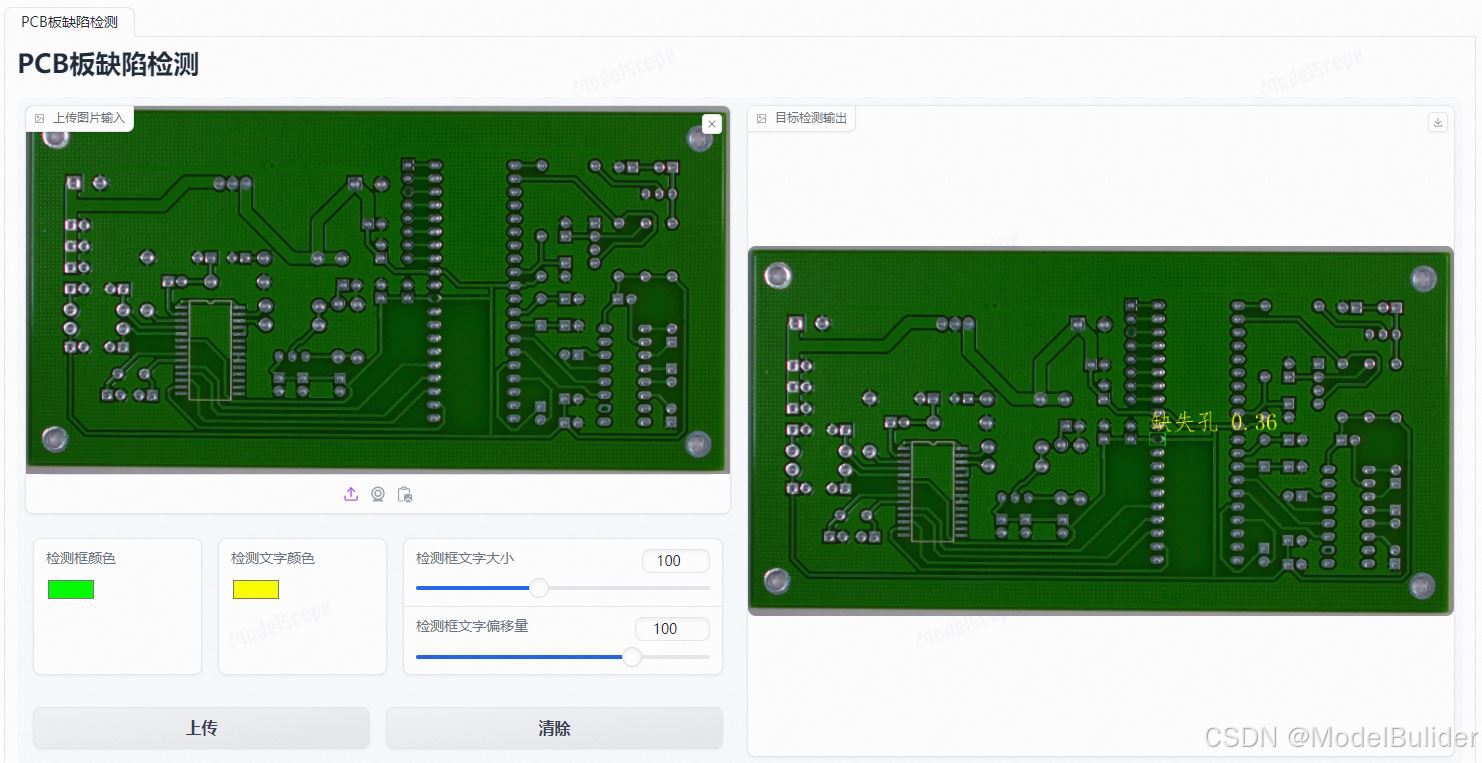

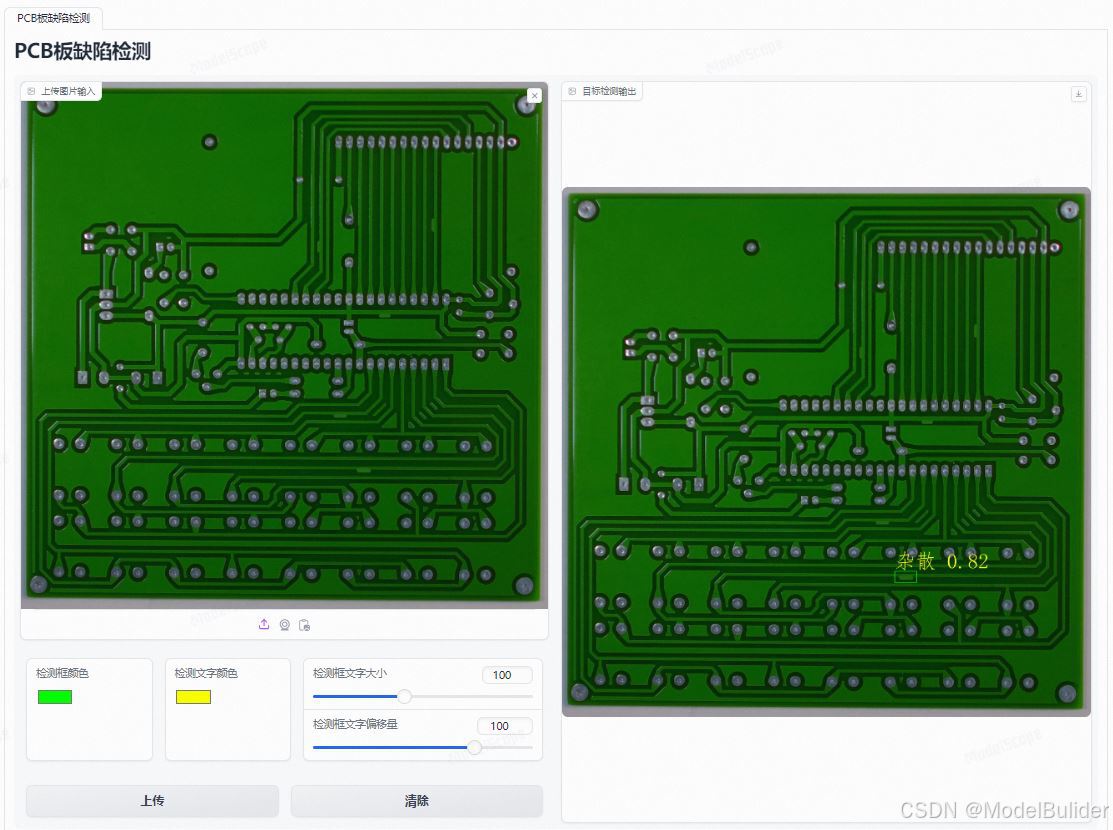

四、基于YOLO8的PCB缺陷检测系统
- 使用训练得到模型,开发缺陷检测系统
在线体验:https://www.modelscope.cn/studios/ModelBulider/yolo_pcb_dec
