3. IOC概念和Spring中的IOC
文章目录
3.1 IOC的概念
控制反转(Inversion of Control , 英文缩写为IOC) 包创建对象的权力交给框架,是框架的重要特征,并非面向对象编程的专用术语; 它包括依赖注入(Dependency Injection, 简称DI)和依赖查找(Dependency Lookup)
3.2 IOC的作用
IOC的作用: 削减计算机程序的耦合(降低代码中的依赖关系)
3.3 Spring中基于XML的IOC环境搭建
-
创建day01_eesy_03spring项目
-
在pox.xml文件中完成与Spring有关配置 , 导入Spring框架所需要的jar包
pom.xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.itheima</groupId> <artifactId>day01_eesy_03spring</artifactId> <version>1.0-SNAPSHOT</version> <packaging>jar</packaging> <dependencies> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context</artifactId> <version>5.2.4.RELEASE</version> </dependency> </dependencies> </project>
-
将day01_eesy_02factory项目下的src/main目录下的文件都复制到day01_eesy_03spring项目的src/main目录下
-
创建配置文件bean.xml, 并完成spring相关配置,把创建对象的任务交给Spring管理
bean.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!--把对象的创建交给Spring来管理--> <bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"></bean> <bean id="accountDao" class="com.itheima.dao.impl.AccountDaoImpl"></bean> </beans>
-
在模拟表现层Cilent.java中进行配置
Client.java
//模拟一个表现层,用于调用业务层 public class Client { /** * 获取spring的IOC核心容器,并根据id获取对象 * @param args */ public static void main(String[] args) { //1.获取核心容器对象 ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml"); //2.根据id获取bean对象 IAccountService accountService = (IAccountService) applicationContext.getBean("accountService"); IAccountDao accountDao = applicationContext.getBean("accountDao",IAccountDao.class); System.out.println(accountService); System.out.println(accountDao); } }
-
运行结果
-

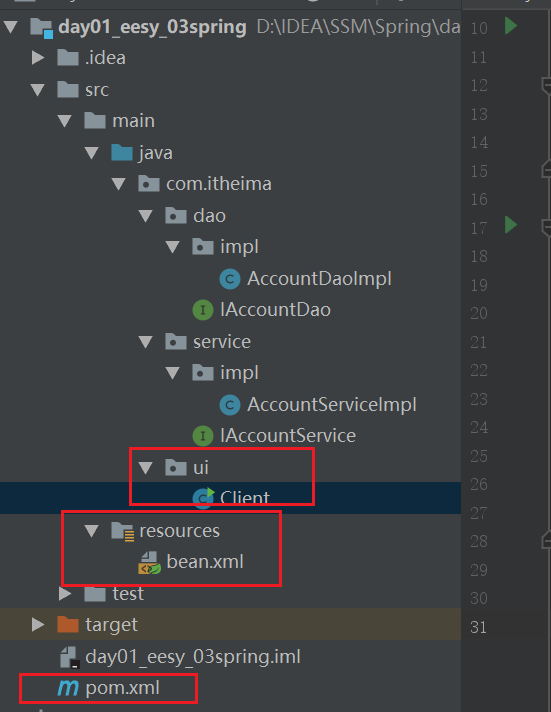

目录结构
3.4 ApplicationContext的三个实现类
-
ClassPathXmlApplicationContext
他可以加载类路径下的配置文件,要求配置文件必须在类路径下, 不在的话,加载不了
-
FileSystemXmlApplicationContext
他可以加载磁盘任意路径下的配置文件(必须有访问权限)
-
应用:
Client.java
//模拟一个表现层,用于调用业务层 public class Client { /** * 获取spring的IOC核心容器,并根据id获取对象 * * ApplicationContext的三个常用实现类: * ClassPathXmlApplicationContext: 他可以加载类路径下的配置文件,要求配置文件必须在类路径下, 不在的话,加载不了 * FileSystemXmlApplicationContext: 他可以加载磁盘任意路径下的配置文件(必须有访问权限) * AnnotationConfigApplicationContext: 它适用于读取注解创建容器的(是明天的内容) * @param args */ public static void main(String[] args) { //1.获取核心容器对象 //ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml"); ApplicationContext applicationContext= new FileSystemXmlApplicationContext("D:\\IDEA\\SSM\\Spring\\day01_eesy_03spring\\src\\main\\resources\\bean.xml"); //2.根据id获取bean对象 IAccountService accountService = (IAccountService) applicationContext.getBean("accountService"); IAccountDao accountDao = applicationContext.getBean("accountDao",IAccountDao.class); System.out.println(accountService); System.out.println(accountDao); } }
-
-
AnnotationConfigApplicationContext
它适用于读取注解创建容器的(是明天的内容)
3.5 BeanFactory和ApplicationContext的区别
3.5.1 核心容器的两个接口引发的问题
ApplicationContext:
他在构建核心容器时, 创建对象采取的策略是采用立即加载的方式,也就额是说,只要一读取配置文件法伤就创建配置文件中配置的对象
BeanFactory:
他在构建核心容器时,创建对象采取的策略是采用延迟加载的方式,也就是说,什么时候根据id获取对象了,什么时候才真正的创建对象
3.5.2 结论
单例对象多使用ApplicationContext, 多例对象多使用BeanFactory, 现在多使用ApplicationContext, ApplicationContext能够自动判断是创建单例对象还是多例对象
3.5.3 案例
-
在模拟表现层中Client.java进行ApplicationContext接口的演练
//模拟一个表现层,用于调用业务层 public class Client { /** * 获取spring的IOC核心容器,并根据id获取对象 * * ApplicationContext的三个常用实现类: * ClassPathXmlApplicationContext: 他可以加载类路径下的配置文件,要求配置文件必须在类路径下, 不在的话,加载不了 * FileSystemXmlApplicationContext: 他可以加载磁盘任意路径下的配置文件(必须有访问权限) * AnnotationConfigApplicationContext: 它适用于读取注解创建容器的(是明天的内容) * * 核心容器的两个接口引发的问题: * ApplicationContext: 单例对象适用 更多采用此接口 * 他在构建核心容器时, 创建对象采取的策略是采用立即加载的方式,也就额是说,只要一读取配置文件法伤就创建配置文件中配置的对象 * BeanFactory: 多例对象适用 * 他在构建核心容器时,创建对象采取的策略是采用延迟加载的方式,也就是说,什么时候根据id获取对象了,什么时候才真正的创建对象 * @param args */ public static void main(String[] args) { //1.获取核心容器对象 //ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml"); ApplicationContext applicationContext= new FileSystemXmlApplicationContext("D:\\IDEA\\SSM\\Spring\\day01_eesy_03spring\\src\\main\\resources\\bean.xml"); //2.根据id获取bean对象 IAccountService accountService = (IAccountService) applicationContext.getBean("accountService"); IAccountDao accountDao = applicationContext.getBean("accountDao",IAccountDao.class); System.out.println(accountService); System.out.println(accountDao); } }
-
在模拟表现层中Client.java进行ApplicationContext接口的演练
//模拟一个表现层,用于调用业务层 public class Client { /** * 获取spring的IOC核心容器,并根据id获取对象 * * ApplicationContext的三个常用实现类: * ClassPathXmlApplicationContext: 他可以加载类路径下的配置文件,要求配置文件必须在类路径下, 不在的话,加载不了 * FileSystemXmlApplicationContext: 他可以加载磁盘任意路径下的配置文件(必须有访问权限) * AnnotationConfigApplicationContext: 它适用于读取注解创建容器的(是明天的内容) * * 核心容器的两个接口引发的问题: * ApplicationContext: 单例对象适用 更多采用此接口 * 他在构建核心容器时, 创建对象采取的策略是采用立即加载的方式,也就额是说,只要一读取配置文件法伤就创建配置文件中配置的对象 * BeanFactory: 多例对象适用 * 他在构建核心容器时,创建对象采取的策略是采用延迟加载的方式,也就是说,什么时候根据id获取对象了,什么时候才真正的创建对象 * @param args */ public static void main(String[] args) { //1.获取核心容器对象 //ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml"); // ApplicationContext applicationContext= new FileSystemXmlApplicationContext("D:\\IDEA\\SSM\\Spring\\day01_eesy_03spring\\src\\main\\resources\\bean.xml"); // // //2.根据id获取bean对象 // IAccountService accountService = (IAccountService) applicationContext.getBean("accountService"); // IAccountDao accountDao = applicationContext.getBean("accountDao",IAccountDao.class); // // System.out.println(accountService); // System.out.println(accountDao); //BeanFactory演练: Resource resource = new ClassPathResource("bean.xml"); BeanFactory factory = new XmlBeanFactory(resource); IAccountService accountService = factory.getBean("accountService",IAccountService.class); System.out.println(accountService); } }
说明:运行时可以采用断点调试
3.6 Spring中bean的细节
3.6.1 创建bean的三种方法
-
创建项目 day01_eesy_04bean
-
将项目 day01_eesy_03spring 下的src/main目录下的文件都复制到 项目day01_eesy_04bean目录下
-
分析创建bean的三种方法
-
使用默认构造函数创建
在spring的配置文件中使用bean标签,配以id和class属性以后,且没有其他属性和标签时,采用的就是默认构造函数创建bean对象,此时如果类中没有默认构造函数,则对象无法创建。
-
使用普通工厂中的方法创建对象(使用某个类中的方法创建对象,并存入Spring容器)
-
使用某个类中的静态方法创建对象,并存入Spring容器
-
-
第一种方法案例:
在bean.xml中进行配置
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!--把对象的创建交给Spring来管理--> <!--Spring对bean的管理细节 1.创建bean的三种方式 2.bean对象的作用范围 3.bean对象的生命周期 --> <!--创建Bean的三种方式--> <!-- 第一种方式:使用默认构造函数创建, 在spring的配置文件中使用bean标签,配以id和class属性以后,且没有其他属性和标签时, 采用的就是默认构造函数创建bean对象,此时如果类中没有默认构造函数,则对象无法创建 --> <bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"</bean> </beans>
-
第二种方法案例
-
创建工厂类InstanceFactory.java
package com.itheima.factory; import com.itheima.service.IAccountService; import com.itheima.service.impl.AccountServiceImpl; //模拟一个工厂类(该类可能是存在于jar包中的,不能通过修改源码增加默认构造函数) public class InstanceFactory { public IAccountService getAccountService(){ return new AccountServiceImpl(); } }
-
在bean.xml中完成配置
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!--把对象的创建交给Spring来管理--> <!--Spring对bean的管理细节 1.创建bean的三种方式 2.bean对象的作用范围 3.bean对象的生命周期 --> <!--创建Bean的三种方式--> <!-- 第一种方式:使用默认构造函数创建, 在spring的配置文件中使用bean标签,配以id和class属性以后,且没有其他属性和标签时, 采用的就是默认构造函数创建bean对象,此时如果类中没有默认构造函数,则对象无法创建 --> <!--<bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"></bean>--> <!--第二种方式:使用普通工厂中的方法创建对象(使用某个类中的方法创建对象,并存入Spring容器)--> <bean id="instanceFactory" class="com.itheima.factory.InstanceFactory"></bean> <bean id="accountService" factory-bean="instanceFactory" factory-method="getAccountService"></bean> </beans>
-
-
第三种方法案例
-
创建工厂类StaticFactory.java
//模拟一个工厂类(该类可能是存在于jar包中的,不能通过修改源码增加默认构造函数) public class StaticFactory { public static IAccountService getAccountService(){ return new AccountServiceImpl(); }
-
在bean.xml中完成配置
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!--把对象的创建交给Spring来管理--> <!--Spring对bean的管理细节 1.创建bean的三种方式 2.bean对象的作用范围 3.bean对象的生命周期 --> <!--创建Bean的三种方式--> <!-- 第一种方式:使用默认构造函数创建, 在spring的配置文件中使用bean标签,配以id和class属性以后,且没有其他属性和标签时, 采用的就是默认构造函数创建bean对象,此时如果类中没有默认构造函数,则对象无法创建 --> <!--<bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"></bean>--> <!--第二种方式:使用普通工厂中的方法创建对象(使用某个类中的方法创建对象,并存入Spring容器)--> <!--<bean id="instanceFactory" class="com.itheima.factory.InstanceFactory"></bean>--> <!--<bean id="accountService" factory-bean="instanceFactory" factory-method="getAccountService"></bean>--> <!--第三种方法:使用某个类中的静态方法创建对象,并存入Spring容器--> <bean id="accountService" class="com.itheima.factory.StaticFactory" factory-method="getAccountService"></bean> </beans>
-
3.6.2 bean对象的作用范围
<!--bean的作用范围调整
bean标签的scope属性:
作用: 用于指定bean的作用范围
取值: 常用的是 singleton 和 prototype
singleton: 单例(默认值)
prototype: 多例的
request: 作用于web应用的请求范围
session: 作用于web应用的会话范围
global-session: 作用于集群环境的会话范围(全局会话范围),当不是集群环境时,他就是session
-->
多例案例:在bean.xml文件中进行配置
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
<!--把对象的创建交给Spring来管理-->
<!--Spring对bean的管理细节
1.创建bean的三种方式
2.bean对象的作用范围
3.bean对象的生命周期
-->
<!--创建Bean的三种方式-->
<!-- 第一种方式:使用默认构造函数创建,
在spring的配置文件中使用bean标签,配以id和class属性以后,且没有其他属性和标签时,
采用的就是默认构造函数创建bean对象,此时如果类中没有默认构造函数,则对象无法创建
-->
<!--<bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"></bean>-->
<!--第二种方式:使用普通工厂中的方法创建对象(使用某个类中的方法创建对象,并存入Spring容器)-->
<!--<bean id="instanceFactory" class="com.itheima.factory.InstanceFactory"></bean>-->
<!--<bean id="accountService" factory-bean="instanceFactory" factory-method="getAccountService"></bean>-->
<!--第三种方法:使用某个类中的静态方法创建对象,并存入Spring容器-->
<!--<bean id="accountService" class="com.itheima.factory.StaticFactory" factory-method="getAccountService"></bean>-->
<!--bean的作用范围调整
bean标签的scope属性:
作用: 用于指定bean的作用范围
取值: 常用的是 singleton 和 prototype
singleton: 单例(默认值)
prototype: 多例的
request: 作用于web应用的请求范围
session: 作用于web应用的会话范围
global-session: 作用于集群环境的会话范围(全局会话范围),当不是集群环境时,他就是session
-->
<bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl" scope="prototype"></bean>
</beans>
Client.java类
//模拟一个表现层,用于调用业务层
public class Client {
public static void main(String[] args) {
//1.获取核心容器对象
ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml");
//ApplicationContext applicationContext= new FileSystemXmlApplicationContext("D:\\IDEA\\SSM\\Spring\\day01_eesy_03spring\\src\\main\\resources\\bean.xml");
//2.根据id获取bean对象
IAccountService accountService = (IAccountService) applicationContext.getBean("accountService");
IAccountService accountService2 = (IAccountService) applicationContext.getBean("accountService");
System.out.println(accountService == accountService2);
// accountService.saveAccount();
}
}

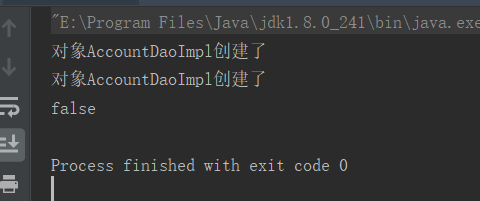

运行结果:
3.6.3 bean对象的生命周期
单例对象:
出生: 容器创建时对象出生
活着: 只要容器还在, 对象就一直活着
死亡: 容器销毁, 对象消亡
总结:单例对象的生命周期和容器相同
多例对象:
出生: 当我们使用对象时spring框架为我们创建
活着: 对象只要在使用过程中就一直活着
死亡: 当对象长时间不用,且没有别的对象引用时, 由Java的垃圾回收器回收
案例:
-
在AccountServiceImpl.java文件中添加初始化方法
//账户的业务层实现类 public class AccountServiceImpl implements IAccountService { public AccountServiceImpl(){ System.out.println("对象AccountDaoImpl创建了"); } public void saveAccount() { System.out.println("saveAccount方法执行了"); } public void init() { System.out.println("对象初始化了"); } public void destroy() { System.out.println("对象销毁了"); } }
-
在bean.xml文件中完成配置配置
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!--把对象的创建交给Spring来管理--> <!--Spring对bean的管理细节 1.创建bean的三种方式 2.bean对象的作用范围 3.bean对象的生命周期 --> <!--创建Bean的三种方式--> <!-- 第一种方式:使用默认构造函数创建, 在spring的配置文件中使用bean标签,配以id和class属性以后,且没有其他属性和标签时, 采用的就是默认构造函数创建bean对象,此时如果类中没有默认构造函数,则对象无法创建 --> <!--<bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"></bean>--> <!--第二种方式:使用普通工厂中的方法创建对象(使用某个类中的方法创建对象,并存入Spring容器)--> <!--<bean id="instanceFactory" class="com.itheima.factory.InstanceFactory"></bean>--> <!--<bean id="accountService" factory-bean="instanceFactory" factory-method="getAccountService"></bean>--> <!--第三种方法:使用某个类中的静态方法创建对象,并存入Spring容器--> <!--<bean id="accountService" class="com.itheima.factory.StaticFactory" factory-method="getAccountService"></bean>--> <!--bean的作用范围调整 bean标签的scope属性: 作用: 用于指定bean的作用范围 取值: 常用的是 singleton 和 prototype singleton: 单例(默认值) prototype: 多例的 request: 作用于web应用的请求范围 session: 作用于web应用的会话范围 global-session: 作用于集群环境的会话范围(全局会话范围),当不是集群环境时,他就是session --> <!--<bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl" scope="prototype"></bean>--> <!--bean对象的生命周期 单例对象: 出生: 容器创建时对象出生 活着: 只要容器还在, 对象就一直活着 死亡: 容器销毁, 对象消亡 总结:单例对象的生命周期和容器相同 多例对象: 出生: 当我们使用对象时spring框架为我们创建 活着: 对象只要在使用过程中就一直活着 死亡: 当对象长时间不用,且没有别的对象引用时, 由Java的垃圾回收器回收 --> <!--<bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl" scope="singleton"--> <!--init-method="init" destroy-method="destroy"></bean>--> <bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl" scope="prototype" init-method="init" destroy-method="destroy"></bean> </beans>
-
在表现层Client.java类中运行
//模拟一个表现层,用于调用业务层 public class Client { public static void main(String[] args) { //1.获取核心容器对象 ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml"); //ApplicationContext applicationContext= new FileSystemXmlApplicationContext("D:\\IDEA\\SSM\\Spring\\day01_eesy_03spring\\src\\main\\resources\\bean.xml"); //2.根据id获取bean对象 IAccountService accountService = (IAccountService) applicationContext.getBean("accountService"); accountService.saveAccount(); //手动关闭容器 ((ClassPathXmlApplicationContext) applicationContext).close(); } }
-

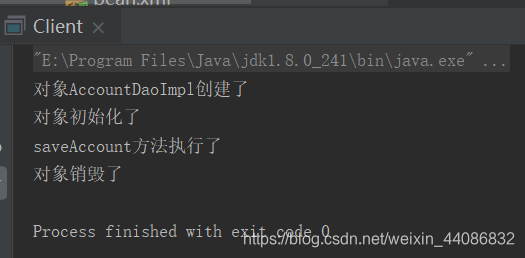

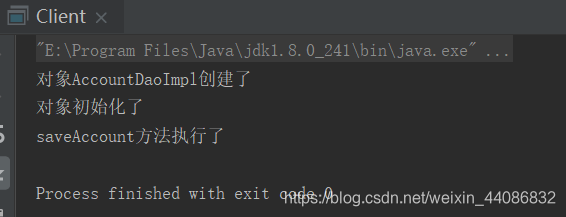

运行结果
- 单例模式:
- 多例模式:
3.7 Spring的依赖注入
Spring中的依赖注入:
- 依赖注入:
Dependency Injection - IOC的作用:
降低程序间的依赖耦合(依赖关系) - 依赖关系的管理:
以后都交给Spring来维护 - 在当前类需要用到其它类的对象的时候, 由Spring为我们提供, 我们只需要在配置文件中说明
- 依赖关系的维护, 就称之为依赖注入
- 依赖注入:
能注入的数据 有三类:
基本类型和String
其他bean类型(在配置文件中或者注解配置过的bean)
复杂类型/集合类型
注入的方式 有三种:
第一种: 使用构造函数提供
第二种: 使用set方法提供
第三种: 使用注解提供(明天的内容)
- 依赖注入:
准备工作:
1. 创建项目 day01_eesy_05DI
-
进行 pom.xml的相关配置, 导入Spring框架所需要的jar包
-
将项目 day01_eesy_04bean 中 src/main 目录下的文件复制到 day01_eesy_05DI 的 src/main目录下
-
将 factory相关文件及 AccountServiceImpl.java 的 init 和 destroy 方法删除
-
目录结构
3.7.1 构造函数注入
-
构造函数注入介绍
构造函数注入
使用的标签: constructor-arg
标签出现的位置: bean标签的内部
标签的属性:
type: 用于指定要注入的数据的数据类型, 该数据类型也是构造函数中某个或某些参数的类型
index: 用于指定要注入的数据 给构造函数中指定索引位置的参数赋值,索引的位置是从0开始
name: 用于指定给构造函数中指定名称的参数赋值 常用
==以上三个用于指定给构造函数中哪个参数赋值=
value: 用于提供基本类型和String类型的数据
ref: 用于指定其他的bean类型数据; 他只得就是在Spring的IOC核心容器中出现过的bean对象
优势: 在获取bean对象是,注入数据是必须的操作,否则对象无法创建成功
弊端:
改变了bean对象的实例化方式,使我们在创建对象时,如果用不到这些数据,也必须提供 -
案例
-
修改业务层 AccountServiceImpl.java 的构造函数, 以及saveAccount 方法,添加成员变量
//账户的业务层实现类 public class AccountServiceImpl implements IAccountService { //说明: 如果是经常变化的数据, 并不适用于注入的方式 private String name; private Integer age; private Date birthday; public AccountServiceImpl(String name, Integer age, Date birthday){ this.name = name; this.age = age; this.birthday = birthday; } public void saveAccount() { System.out.println("saveAccount方法执行了"+ name +age +birthday); } }
-
在bean.xml中完成相关配置,进行构造函数注入
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!-- Spring中的依赖注入: 依赖注入: Dependency Injection IOC的作用: 降低程序间的依赖耦合(依赖关系) 依赖关系的管理: 以后都交给Spring来维护 在当前类需要用到其它类的对象的时候, 由Spring为我们提供, 我们只需要在配置文件中说明 依赖关系的维护, 就称之为依赖注入 依赖注入: 能注入的数据 有三类: 基本类型和String 其他bean类型(在配置文件中或者注解配置过的bean) 复杂类型/集合类型 注入的方式 有三种: 第一种: 使用构造函数提供 第二种: 使用set方法提供 第三种: 使用注解提供(明天的内容) --> <!-- 构造函数注入 使用的标签: constructor-arg 标签出现的位置: bean标签的内部 标签的属性: type: 用于指定要注入的数据的数据类型, 该数据类型也是构造函数中某个或某些参数的类型 index: 用于指定要注入的数据 给构造函数中指定索引位置的参数赋值,索引的位置是从0开始 name: 用于指定给构造函数中指定名称的参数赋值 常用 ================以上三个用于指定给构造函数中哪个参数赋值=========================== value: 用于提供基本类型和String类型的数据 ref: 用于指定其他的bean类型数据; 他只得就是在Spring的IOC核心容器中出现过的bean对象 优势: 在获取bean对象是,注入数据是必须的操作,否则对象无法创建成功 弊端: 改变了bean对象的实例化方式,使我们在创建对象时,如果用不到这些数据,也必须提供 --> <bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"> <constructor-arg name="name" value="text"></constructor-arg> <constructor-arg name="age" value="18"></constructor-arg> <constructor-arg name="birthday" ref="now"></constructor-arg> </bean> <bean id="now" class="java.util.Date"></bean> </beans>
-
在模拟表现层中进行运行
//模拟一个表现层,用于调用业务层 public class Client { public static void main(String[] args) { //1.获取核心容器对象 ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml"); //2.根据id获取bean对象 IAccountService accountService = (IAccountService) applicationContext.getBean("accountService"); accountService.saveAccount(); } }
-

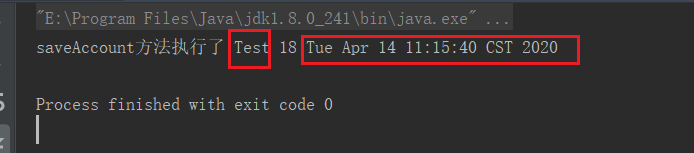

运行结果
-
3.7.2 set方法注入
-
set方法注入介绍
set方法注入:
涉及的标签: property
出现的位置: bean标签的内部
标签的属性:
name: 用于指定注入时所调用的set方法名称
value: 用于提供基本类型和String类型的数据
ref: 用于指定其他的bean类型数据; 他指的就是在Spring的IOC核心容器中出现过的bean对象 -
案例
-
创建业务层 AccountServiceImpl2.java
//账户的业务层实现类 public class AccountServiceImpl2 implements IAccountService { //说明: 如果是经常变化的数据, 并不适用于注入的方式 private String name; private Integer age; private Date birthday; public void setName(String name) { this.name = name; } public void setAge(Integer age) { this.age = age; } public void setBirthday(Date birthday) { this.birthday = birthday; } public void saveAccount() { System.out.println("saveAccount方法执行了 "+ name+" " +age+" " +birthday); } }
-
在配置文件 bean.xml中完成配置
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!-- Spring中的依赖注入: 依赖注入: Dependency Injection IOC的作用: 降低程序间的依赖耦合(依赖关系) 依赖关系的管理: 以后都交给Spring来维护 在当前类需要用到其它类的对象的时候, 由Spring为我们提供, 我们只需要在配置文件中说明 依赖关系的维护, 就称之为依赖注入 依赖注入: 能注入的数据 有三类: 基本类型和String 其他bean类型(在配置文件中或者注解配置过的bean) 复杂类型/集合类型 注入的方式 有三种: 第一种: 使用构造函数提供 第二种: 使用set方法提供 第三种: 使用注解提供(明天的内容) --> <!-- 构造函数注入 使用的标签: constructor-arg 标签出现的位置: bean标签的内部 标签的属性: type: 用于指定要注入的数据的数据类型, 该数据类型也是构造函数中某个或某些参数的类型 index: 用于指定要注入的数据 给构造函数中指定索引位置的参数赋值,索引的位置是从0开始 name: 用于指定给构造函数中指定名称的参数赋值 常用 ================以上三个用于指定给构造函数中哪个参数赋值=========================== value: 用于提供基本类型和String类型的数据 ref: 用于指定其他的bean类型数据; 他只得就是在Spring的IOC核心容器中出现过的bean对象 优势: 在获取bean对象是,注入数据是必须的操作,否则对象无法创建成功 弊端: 改变了bean对象的实例化方式,使我们在创建对象时,如果用不到这些数据,也必须提供 --> <bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"> <constructor-arg name="name" value="text"></constructor-arg> <constructor-arg name="age" value="18"></constructor-arg> <constructor-arg name="birthday" ref="now"></constructor-arg> </bean> <!--配置一个日期对象--> <bean id="now" class="java.util.Date"></bean> <!-- set方法注入: 涉及的标签: property 出现的位置: bean标签的内部 标签的属性: name: 用于指定注入时所调用的set方法名称 value: 用于提供基本类型和String类型的数据 ref: 用于指定其他的bean类型数据; 他指的就是在Spring的IOC核心容器中出现过的bean对象 --> <bean id="accountService2" class="com.itheima.service.impl.AccountServiceImpl2"> <property name="name" value="Test"></property> <property name="age" value="18"></property> <property name="birthday" ref="now"></property> </bean>
-
在模拟表现Client.java中运行
//模拟一个表现层,用于调用业务层 public class Client { public static void main(String[] args) { //1.获取核心容器对象 ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml"); //2.根据id获取bean对象 // IAccountService accountService = (IAccountService) applicationContext.getBean("accountService"); // accountService.saveAccount(); IAccountService accountService = (IAccountService) applicationContext.getBean("accountService2"); accountService.saveAccount(); } }
-
运行结果
-
3.7.3 注入集合数据
-
集合数据注入介绍
复杂类型的注入/集合类型的注入
- 用于给List结构集合注入的标签有:
list array set - 用于给Map结构集合注入的标签有:
map props
结构相同, 标签可以互换
- 用于给List结构集合注入的标签有:
-
案例
-
创建业务实现类AccountServiceImpl3.java
//账户的业务层实现类 public class AccountServiceImpl3 implements IAccountService { private String[] myStrs; private List<String> myList; private Set<String> mySet; private Map<String,String> myMap; private Properties myProps; public void setMyStrs(String[] myStrs) { this.myStrs = myStrs; } public void setMyList(List<String> myList) { this.myList = myList; } public void setMySet(Set<String> mySet) { this.mySet = mySet; } public void setMyMap(Map<String, String> myMap) { this.myMap = myMap; } public void setMyProps(Properties myProps) { this.myProps = myProps; } public void saveAccount() { System.out.println(Arrays.toString(myStrs)); System.out.println(myList); System.out.println(mySet); System.out.println(myMap); System.out.println(myProps); } }
-
在配置文件bean.xml中完成配置
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd"> <!-- Spring中的依赖注入: 依赖注入: Dependency Injection IOC的作用: 降低程序间的依赖耦合(依赖关系) 依赖关系的管理: 以后都交给Spring来维护 在当前类需要用到其它类的对象的时候, 由Spring为我们提供, 我们只需要在配置文件中说明 依赖关系的维护, 就称之为依赖注入 依赖注入: 能注入的数据 有三类: 基本类型和String 其他bean类型(在配置文件中或者注解配置过的bean) 复杂类型/集合类型 注入的方式 有三种: 第一种: 使用构造函数提供 第二种: 使用set方法提供 第三种: 使用注解提供(明天的内容) --> <!-- 构造函数注入 使用的标签: constructor-arg 标签出现的位置: bean标签的内部 标签的属性: type: 用于指定要注入的数据的数据类型, 该数据类型也是构造函数中某个或某些参数的类型 index: 用于指定要注入的数据 给构造函数中指定索引位置的参数赋值,索引的位置是从0开始 name: 用于指定给构造函数中指定名称的参数赋值 常用 ================以上三个用于指定给构造函数中哪个参数赋值=========================== value: 用于提供基本类型和String类型的数据 ref: 用于指定其他的bean类型数据; 他只得就是在Spring的IOC核心容器中出现过的bean对象 优势: 在获取bean对象是,注入数据是必须的操作,否则对象无法创建成功 弊端: 改变了bean对象的实例化方式,使我们在创建对象时,如果用不到这些数据,也必须提供 --> <bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl"> <constructor-arg name="name" value="text"></constructor-arg> <constructor-arg name="age" value="18"></constructor-arg> <constructor-arg name="birthday" ref="now"></constructor-arg> </bean> <!--配置一个日期对象--> <bean id="now" class="java.util.Date"></bean> <!-- set方法注入: 更常用的方式 涉及的标签: property 出现的位置: bean标签的内部 标签的属性: name: 用于指定注入时所调用的set方法名称 value: 用于提供基本类型和String类型的数据 ref: 用于指定其他的bean类型数据; 他指的就是在Spring的IOC核心容器中出现过的bean对象 优势: 创建对象时没有明确的限制,可以直接使用默认构造函数 弊端: 如果有某个成员必须有值, 则获取对象时有可能set方法没有执行 --> <bean id="accountService2" class="com.itheima.service.impl.AccountServiceImpl2"> <property name="name" value="Test"></property> <property name="age" value="18"></property> <property name="birthday" ref="now"></property> </bean> <!-- 复杂类型的注入/集合类型的注入 用于给List结构集合注入的标签有: list array set 用于给Map结构集合注入的标签有: map props 结构相同, 标签可以互换 --> <bean id="accountService3" class="com.itheima.service.impl.AccountServiceImpl3"> <property name="myStrs"> <array> <value>aaa</value> <value>bbb</value> <value>ccc</value> </array> </property> <property name="myList"> <list> <value>aaa</value> <value>bbb</value> <value>ccc</value> </list> </property> <property name="mySet"> <set> <value>aaa</value> <value>bbb</value> <value>ccc</value> </set> </property> <property name="myMap"> <map> <entry key="testA" value="aaa"></entry> <entry key="testB"> <value>bbb</value> </entry> </map> </property> <property name="myProps"> <props> <prop key="teatA">aaa</prop> <prop key="testB">bbb</prop> </props> </property> </bean> </beans>
-
在模拟表现层Client.java中运行
//模拟一个表现层,用于调用业务层 public class Client { public static void main(String[] args) { //1.获取核心容器对象 ApplicationContext applicationContext = new ClassPathXmlApplicationContext("bean.xml"); //2.根据id获取bean对象 // IAccountService accountService = (IAccountService) applicationContext.getBean("accountService"); // accountService.saveAccount(); // IAccountService accountService = (IAccountService) applicationContext.getBean("accountService2"); // accountService.saveAccount(); IAccountService accountService = (IAccountService) applicationContext.getBean("accountService3"); accountService.saveAccount(); } }
-

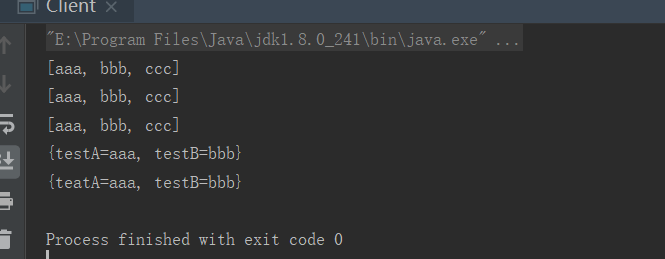

运行结果

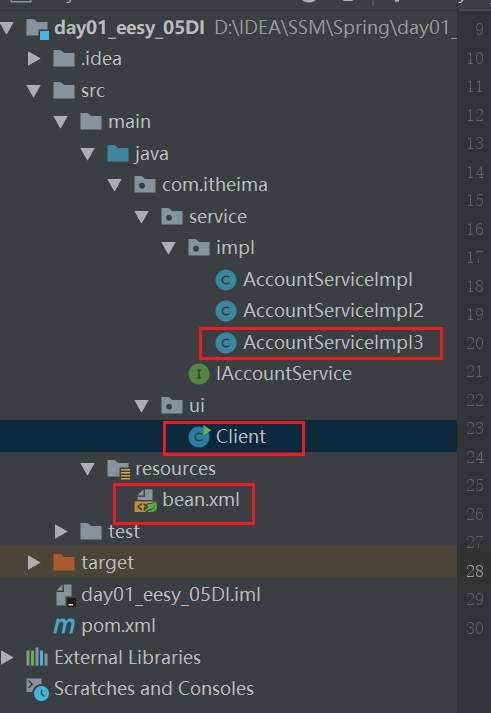

- 目录结构
-
-
