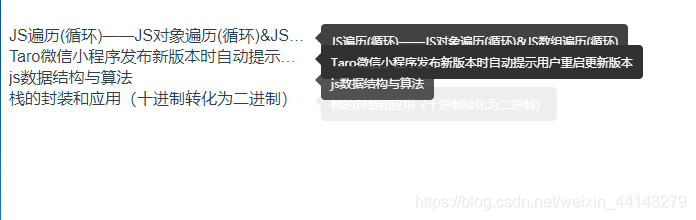

对于字数过长,我们可能使用超出省略,移上去tooltip显示全部文本这种视觉交互,例如以下效果
实现代码如下
<template>
<div>
<div v-for="(item, index) in list" :key="index">
<el-tooltip class="item" effect="dark" :content="item" placement="right-start">
<div class="text">{{item}}</div>
</el-tooltip>
</div>
</div>
</template>
<script>
export default {
name: 'HelloWorld',
data () {
return {
list: [
'JS遍历(循环)——JS对象遍历(循环)&JS数组遍历(循环)',
'Taro微信小程序发布新版本时自动提示用户重启更新版本',
'js数据结构与算法',
'栈的封装和应用(十进制转化为二进制)'
]
}
}
}
</script>
<style scoped>
.text{
width: 300px;
overflow: hidden;
white-space: nowrap;
text-overflow:ellipsis;
}
</style>

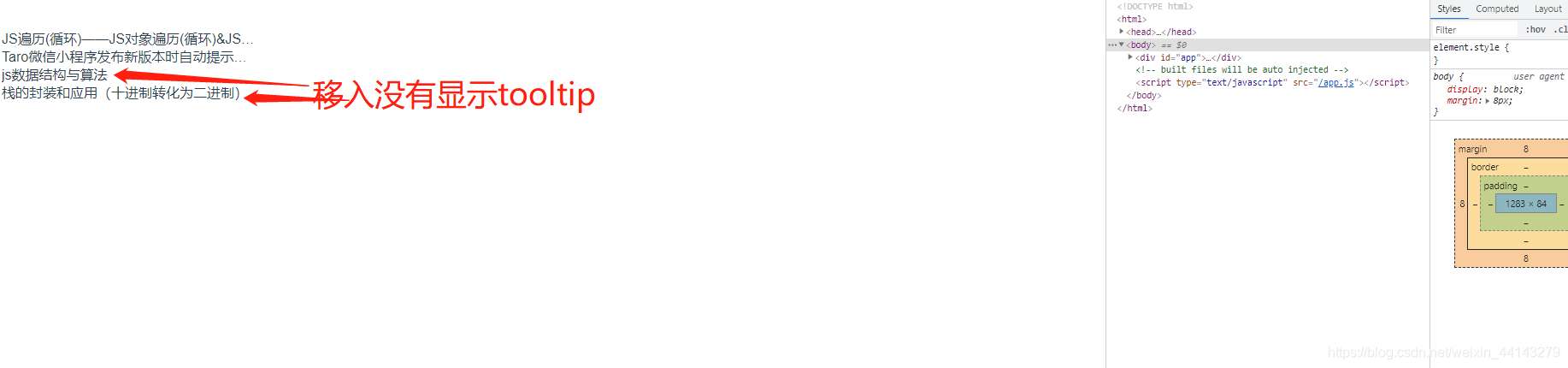

但这样也就导致了及时文字放得下也会有tooltip出现,也在body下面多创建了很多tooltip元素,浪费了性能;下面是优化的方法:

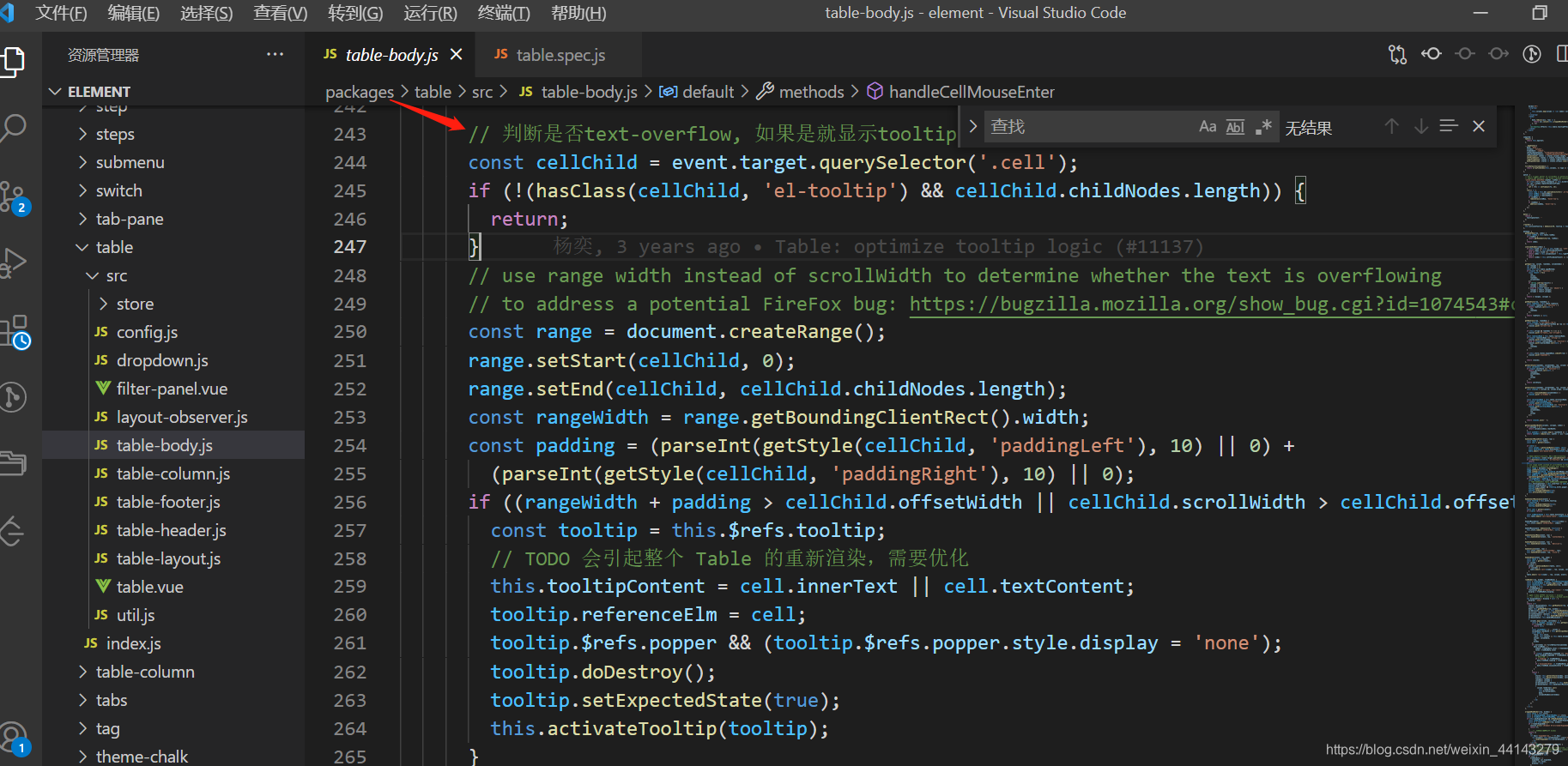

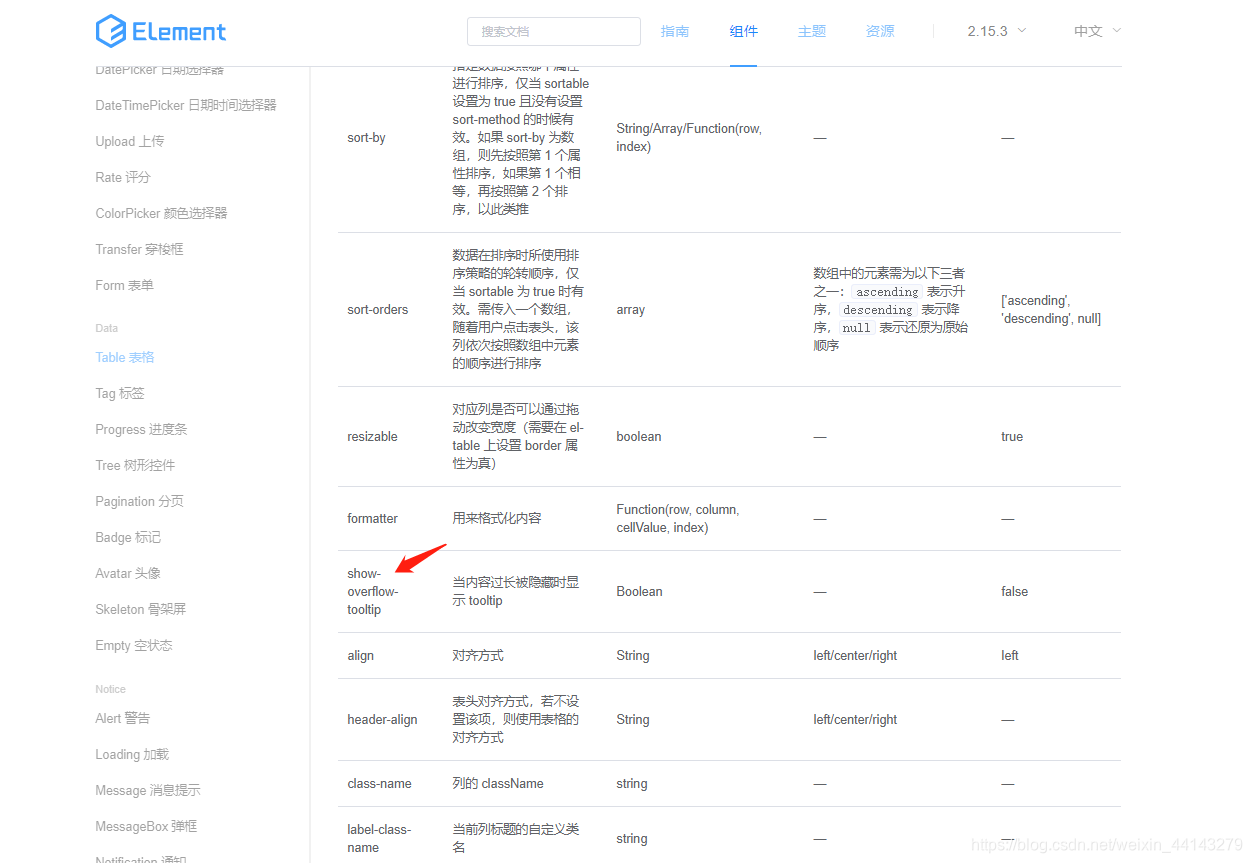

该方法是借鉴element源码(在使用el-table的时候在文档看到有个api支持这种),所以就去翻了一下element-ui的源码
抽取里面判断文字所占像素宽度是否超出dom元素像素宽度的逻辑,写了一个工具类函数
// el dom元素
function textRange (el) {
const textContent = el
const targetW = textContent.getBoundingClientRect().width
const range = document.createRange()
range.setStart(textContent, 0)
range.setEnd(textContent, textContent.childNodes.length)
const rangeWidth = range.getBoundingClientRect().width
return rangeWidth > targetW
}

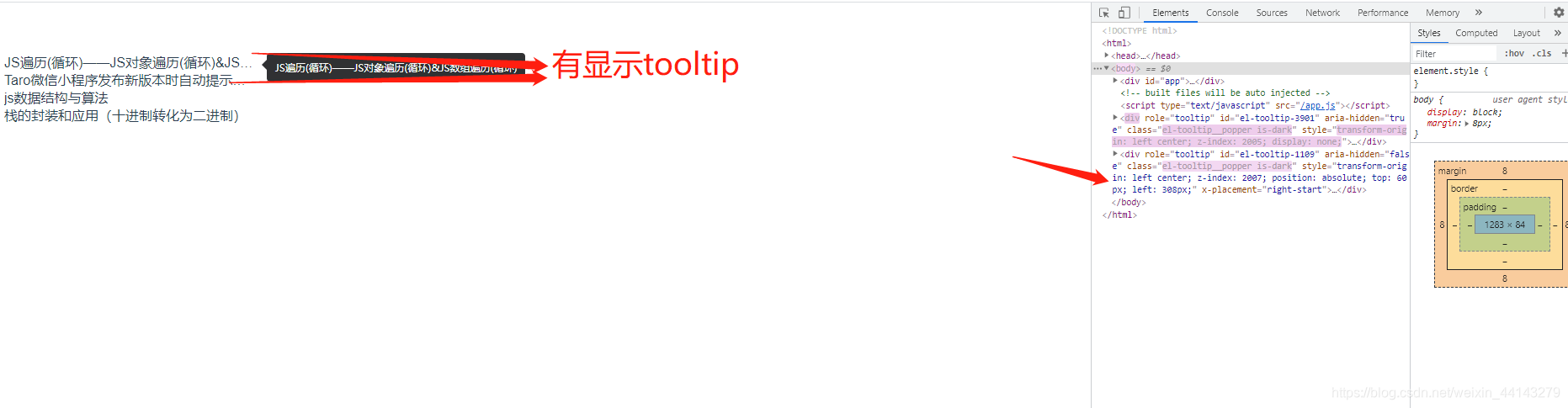

对以上交互进行改进
<template>
<div>
<div v-for="(item, index) in list" :key="index">
<div @mouseenter="(e) => isShowToltip(e, index)" @mouseout="hideTip(index)" v-if="!item.isShow" class="text">{{item.text}}</div>
<el-tooltip v-if="item.isShow" class="item" effect="dark" :content="item.text" placement="right-start">
<div class="text">{{item.text}}</div>
</el-tooltip>
</div>
</div>
</template>
<script>
import {textRange} from '../utils'
export default {
name: 'HelloWorld',
data () {
return {
list: [
{text: 'JS遍历(循环)——JS对象遍历(循环)&JS数组遍历(循环)', isShow: false},
{text: 'Taro微信小程序发布新版本时自动提示用户重启更新版本', isShow: false},
{text: 'js数据结构与算法', isShow: false},
{text: '栈的封装和应用(十进制转化为二进制)', isShow: false}
]
}
},
methods: {
isShowToltip (e, index) {
const bool = textRange(e.target)
this.list[index].isShow = bool
},
hideTip (index) {
this.list[index].isShow = false
}
}
}
</script>
<style scoped>
.text{
width: 300px;
overflow: hidden;
white-space: nowrap;
text-overflow:ellipsis;
}
</style>
