原有例子很繁琐，虽然前一篇我改成了cylinder模拟probe，能使CTplane上实时模拟出screws的方位。但还是在原有例子的枷锁之下完成的。原例子有以下几大“罪状”：1.CTplane是固定的，不符合实际手术场景需求，要求改成随视野动且垂直 2.无聊弄蒙人的旋转太多，根物体Bone1一开始就旋转了90度，仅仅是为了CT的比较长的一侧（这里为CT的个体Z坐标方向）在一开始横在观察者面前，因Dicom数据是x,y,z的方向依次列出的，作者无法旋转CT即Dicom数据，因此为了实现上面的目的，把它的父物体给转了90度，然后造成一些列的麻烦，如CTplane又旋转了-90度转回去了（因父物体Bone1），就为了能在一开始垂直视野，导致我们想改CTplane为随动的时候，它不是正对视野的而是始终侧面对着视野，你始终追看不到CTplane上的内容，哈哈，气人吧，j为啥呢？经测试物体的正对视野随动只管自身的local坐标系，这里的CTplane虽然全局跟世界坐标系相同，但是自身转了-90度实现的，即随动的时候，CTplane是转了-90度呈现在你面前的。3.两个层级的不同比例的scale放大，让人从全局推算局部移动的时候晕头转向的，把我整晕了三次，每次2天呢！要不是拿出来try and errors的绝招，还过不了这一关呢！4.无用的物体太多，如screws的操控按钮和代码，还有一个什么dummyholder的鬼东西，设为了我的CT边缘小球的parent，害的我到现在都没弄明白为何没有这鬼东西我的CT边缘小球就显示不出来，为何换个其它物体作为parent或不指定parent也显示不出来。 我要改改改。。。这些东西太多余了。
首先 CTplane从Bone1中独立出来，自成一家，角度转回去，直接拖出来就行，比例自动调节的不用管，其实是保持不变的。其次Bone1改名Bone，旋转角度归零。全部坐标跟世界坐标一样了，哈哈，当然我那不争气的OBJ的不是，因它跟CT不是一套，我懵懂的时候全手工调出来的重合方位呢，这辈子是不可能更改了，下次的CT跟OBJ一定要一起产生，没那么多麻烦事啦。最后不相关的组件和代码全部删掉，一切从简，让人好理解好学习好借鉴点不好么，太气人了。
改造成功了，运行效果很好，很精确。上图。

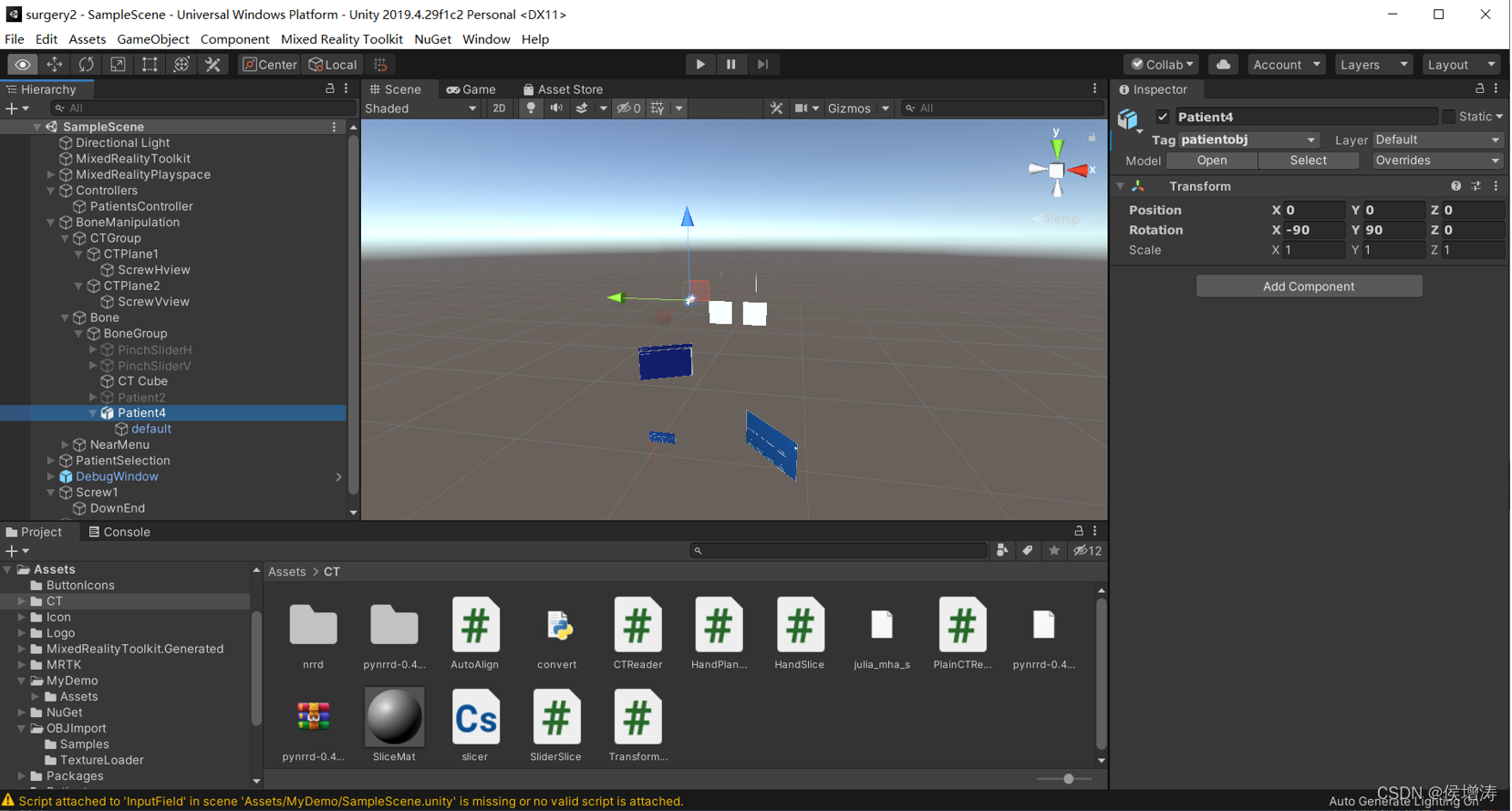

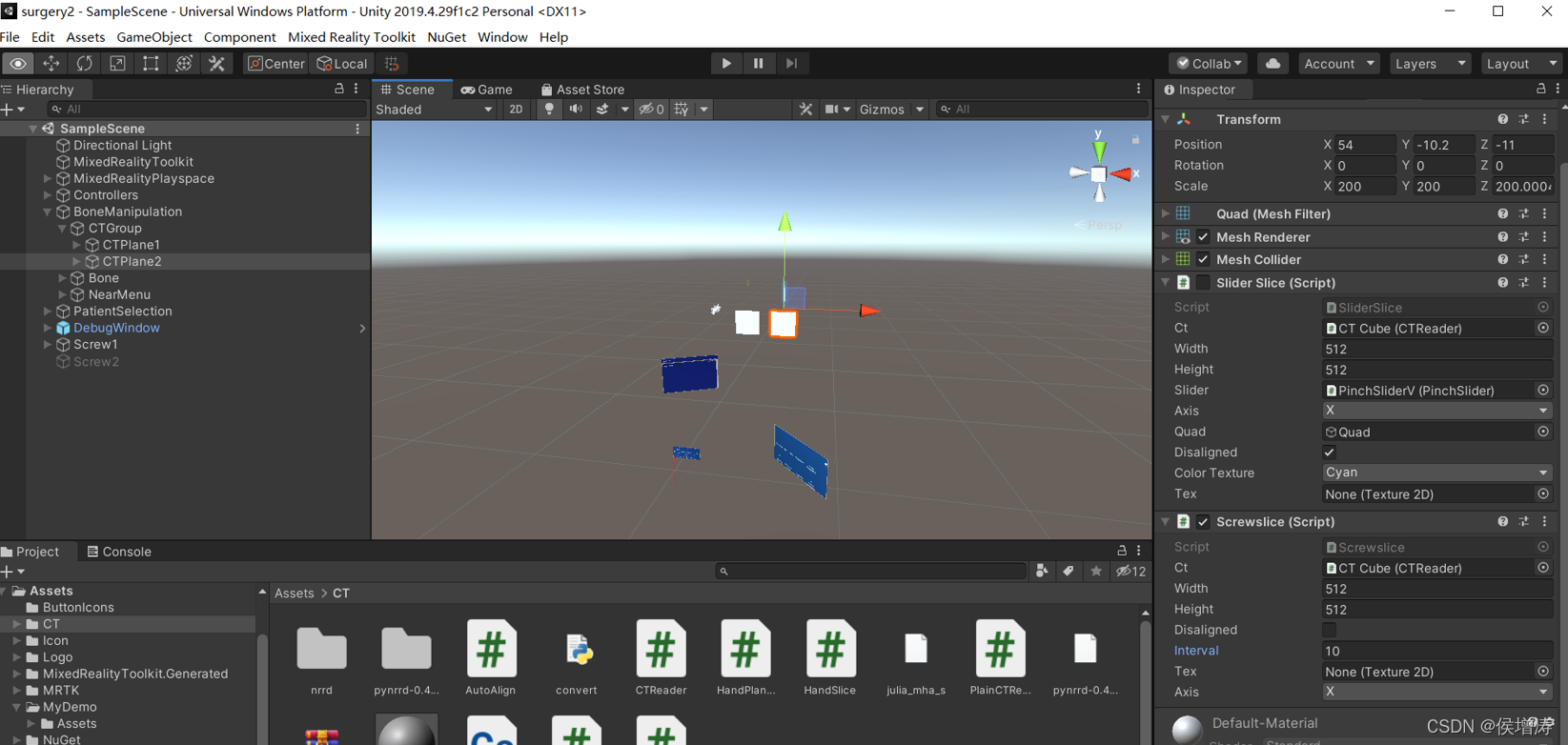

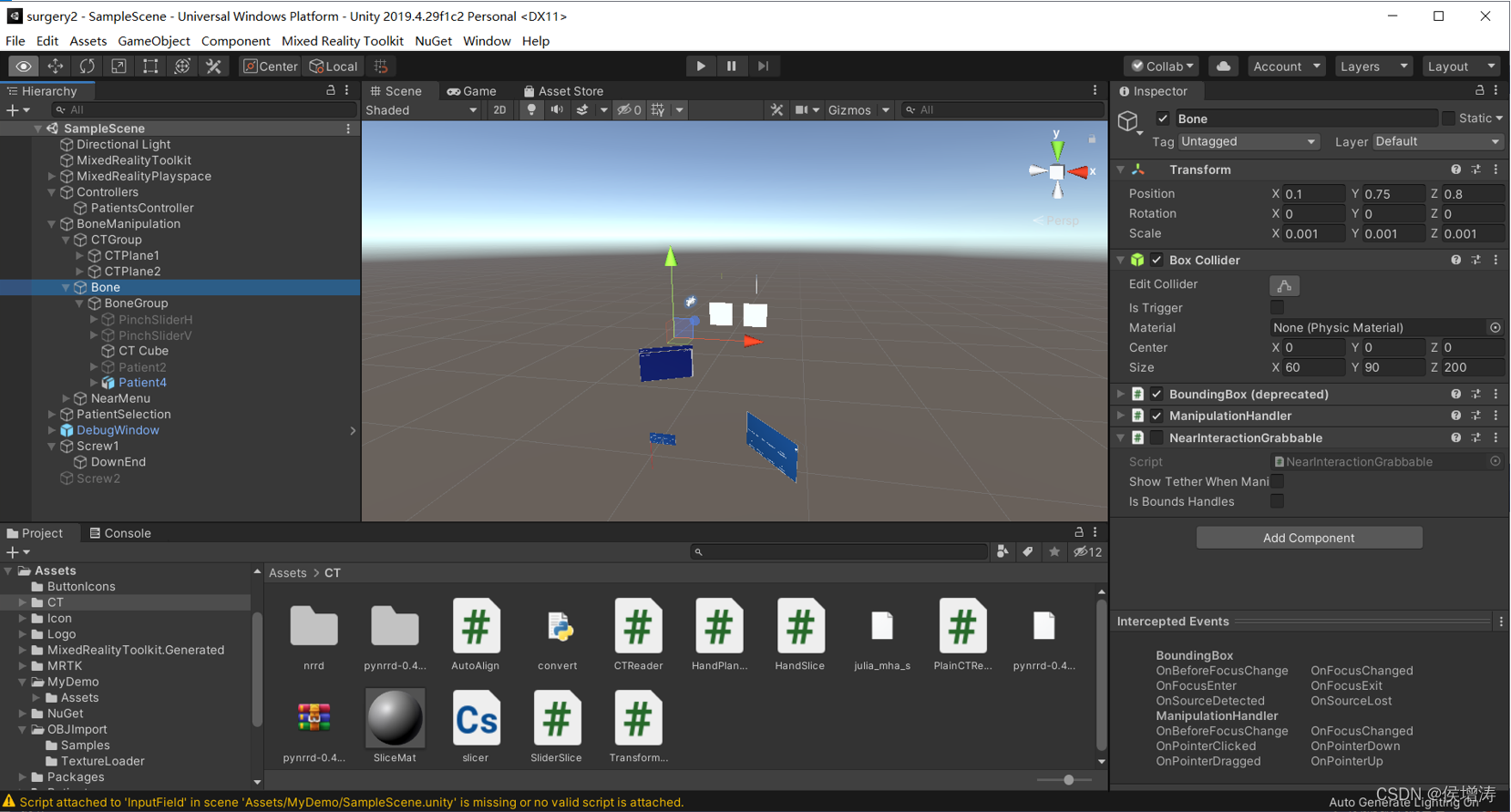

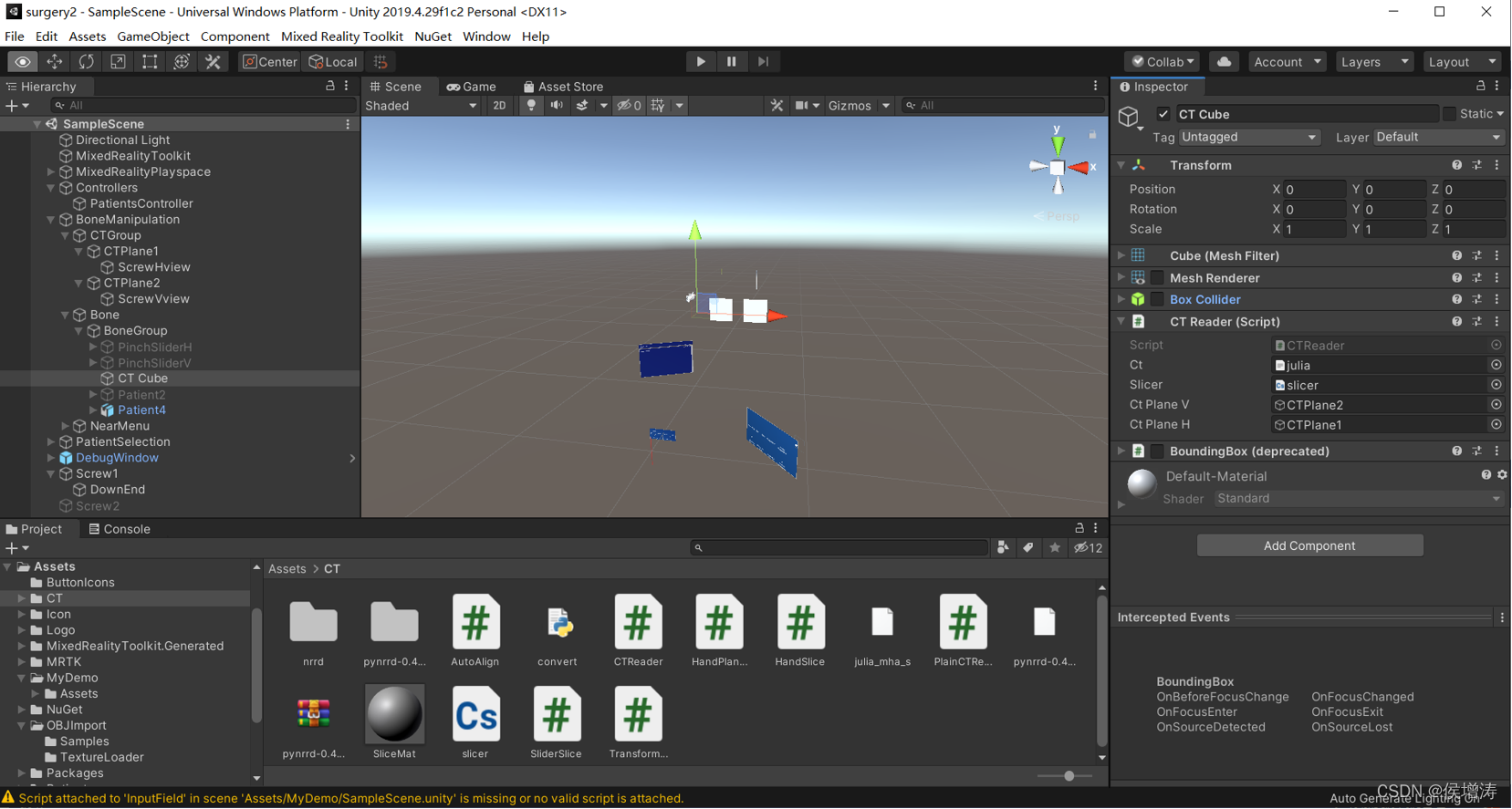

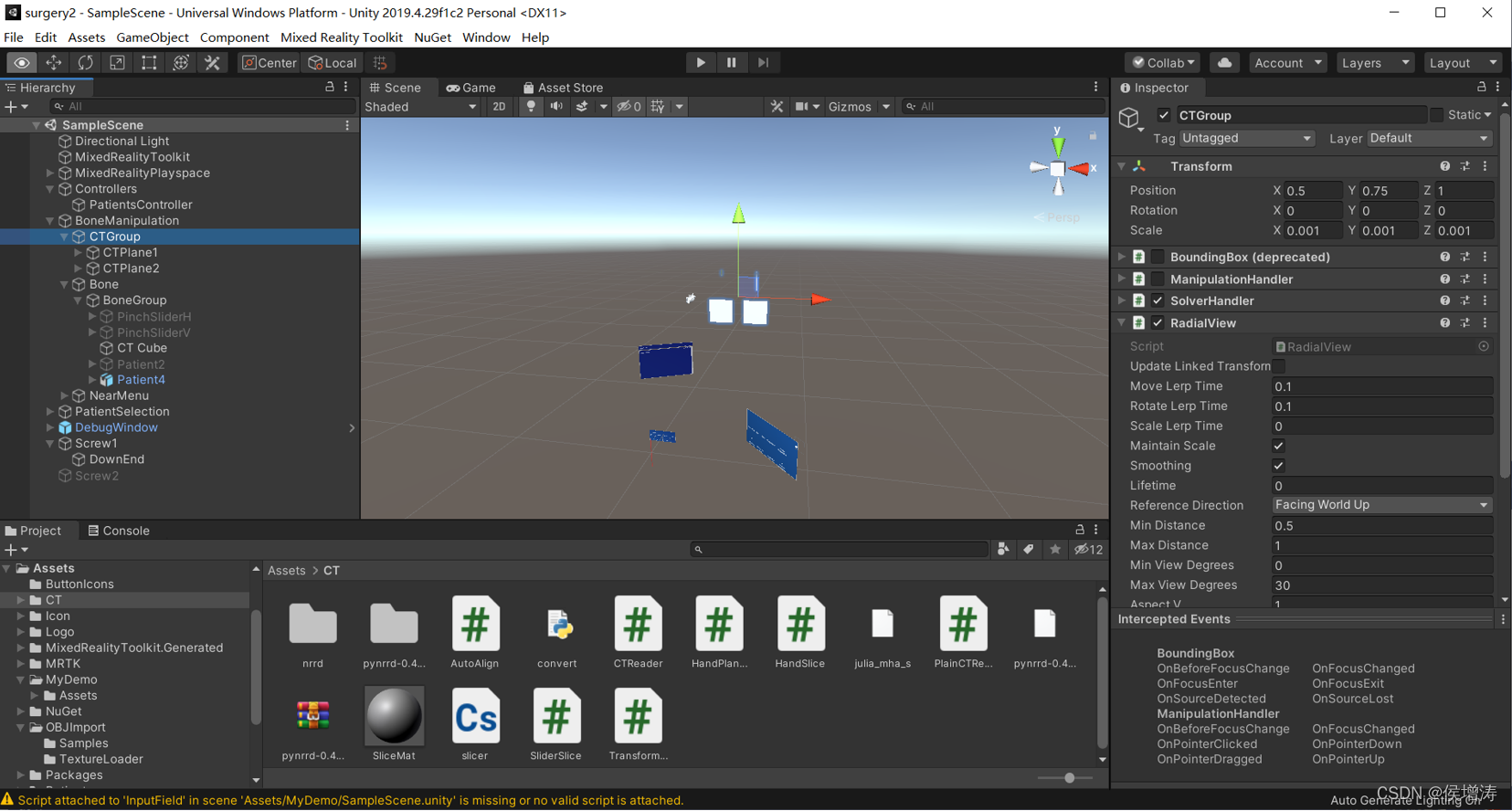

程序主界面

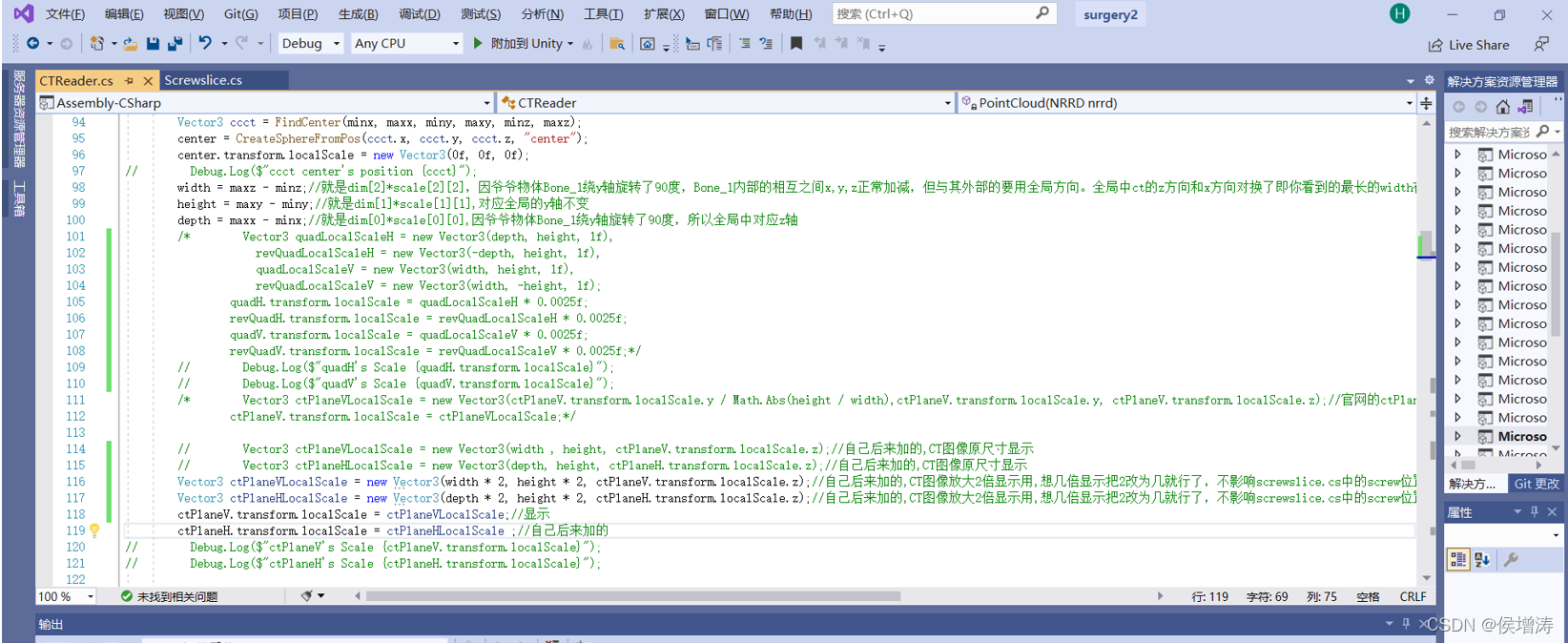

CTReader.cs代码：
using Microsoft.MixedReality.Toolkit.UI;
using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.IO.Compression;
using System.Linq;
using System.Text;
using UnityEngine;
public class CTReader : MonoBehaviour
{
public TextAsset ct;
public ComputeShader slicer;
// public GameObject sliderH, sliderV;
// public GameObject quadH, revQuadH, quadV, revQuadV, ctPlaneV, ctPlaneH;
public GameObject ctPlaneV, ctPlaneH;
int kernel;
[HideInInspector]
public GameObject bottomBackLeft, bottomBackRight, topBackLeft,
topBackRight, bottomFrontLeft, bottomFrontRight, topFrontLeft,
topFrontRight, center;
[HideInInspector]
public float ctLength, ctDepth;
[HideInInspector]
public Vector3 ctCenter;
[HideInInspector]
public byte[] ct_bytes;
[HideInInspector]
public float minx, maxx, miny, maxy, minz, maxz, width, height, depth;
private NRRD nrrd;
public void Init()
{
ct_bytes = ct.bytes;
nrrd = new NRRD(ct_bytes);
kernel = slicer.FindKernel("CSMain");
var buf = new ComputeBuffer(nrrd.data.Length, sizeof(float));
buf.SetData(nrrd.data);
slicer.SetBuffer(kernel, "data", buf);
slicer.SetInts("dims", nrrd.dims);
PointCloud(nrrd);
/*
// Vector3 refCenter = CTConstants.REFERENCE_CENTER;
Vector3 refCenter = new Vector3(-3.244141f, -226.2559f, -67.4f);
Vector3 newCenter = GetCenterOfCt();
//OBJ对齐
float xTranslation = refCenter.x - newCenter.x,
yTranslation = refCenter.y - newCenter.y,
zTranslation = refCenter.z - newCenter.z;
GameObject.Find("Patient4").transform.localPosition = new Vector3(xTranslation, yTranslation, zTranslation);
foreach (GameObject go in GetPoints())//以下CT对齐
{
Vector3 goPos = go.transform.localPosition;
go.transform.localPosition = new Vector3(
goPos.x + xTranslation, goPos.y + yTranslation, goPos.z + zTranslation);
}
CenterToCCCT();
*/
}
private void PointCloud(NRRD nrrd)
{
// Debug.Log("PointCloud******************");
// AutoAlign autoAlign = oo.GetComponent<AutoAlign>();
// autoAlign.SetGo(false);
// DummyTransformHandler dummyHandler = oo.GetComponent<DummyTransformHandler>();
// dummyHandler.GoToZero();
float lengthDirection = nrrd.lengthDirection, lengthSize = nrrd.dims[2];
ctLength = Math.Abs(lengthDirection * lengthSize);
float depthDirection = nrrd.depthDirection, depthSize = nrrd.dims[1];
ctDepth = Math.Abs(depthDirection * depthSize);
ctCenter = new Vector3(
-1 * (nrrd.origin.x + ((int)Math.Ceiling((double)(nrrd.dims[0] / 2) - 1) * nrrd.scale.x)),
nrrd.origin.y + ((int)Math.Ceiling((double)(nrrd.dims[1] / 2) - 1) * nrrd.scale.y),
nrrd.origin.z + ((int)Math.Ceiling((double)(nrrd.dims[2] / 2) - 1) * nrrd.scale.z)
);
ComputeMinMaxFloats(nrrd);//CT的界限坐标转换成了mm单位了（nrrd中的dim*scale）
bottomBackLeft = CreateSphereFromPos(minx, miny, minz, "bottomBackLeft");
bottomBackRight = CreateSphereFromPos(minx, miny, maxz, "bottomBackRight");
topBackLeft = CreateSphereFromPos(minx, maxy, minz, "topBackLeft");
topBackRight = CreateSphereFromPos(minx, maxy, maxz, "topBackRight");
bottomFrontLeft = CreateSphereFromPos(maxx, miny, minz, "bottomFrontLeft");
bottomFrontRight = CreateSphereFromPos(maxx, miny, maxz, "bottomFrontRight");
topFrontLeft = CreateSphereFromPos(maxx, maxy, minz, "topFrontLeft");
topFrontRight = CreateSphereFromPos(maxx, maxy, maxz, "topFrontRight");
Vector3 ccct = FindCenter(minx, maxx, miny, maxy, minz, maxz);
center = CreateSphereFromPos(ccct.x, ccct.y, ccct.z, "center");
center.transform.localScale = new Vector3(0f, 0f, 0f);
// Debug.Log($"ccct center's position {ccct}");
width = maxz - minz;//就是dim[2]*scale[2][2]，因爷爷物体Bone_1绕y轴旋转了90度，Bone_1内部的相互之间x,y,z正常加减，但与其外部的要用全局方向。全局中ct的z方向和x方向对换了即你看到的最长的width在全局中是x轴上的
height = maxy - miny;//就是dim[1]*scale[1][1],对应全局的y轴不变
depth = maxx - minx;//就是dim[0]*scale[0][0],因爷爷物体Bone_1绕y轴旋转了90度，所以全局中对应z轴
/* Vector3 quadLocalScaleH = new Vector3(depth, height, 1f),
revQuadLocalScaleH = new Vector3(-depth, height, 1f),
quadLocalScaleV = new Vector3(width, height, 1f),
revQuadLocalScaleV = new Vector3(width, -height, 1f);
quadH.transform.localScale = quadLocalScaleH * 0.0025f;
revQuadH.transform.localScale = revQuadLocalScaleH * 0.0025f;
quadV.transform.localScale = quadLocalScaleV * 0.0025f;
revQuadV.transform.localScale = revQuadLocalScaleV * 0.0025f;*/
// Debug.Log($"quadH's Scale {quadH.transform.localScale}");
// Debug.Log($"quadV's Scale {quadV.transform.localScale}");
/* Vector3 ctPlaneVLocalScale = new Vector3(ctPlaneV.transform.localScale.y / Math.Abs(height / width),ctPlaneV.transform.localScale.y, ctPlaneV.transform.localScale.z);//官网的ctPlaneV的设置，以原有的ctPlaneV的y值为基础，x值放大width/height倍
ctPlaneV.transform.localScale = ctPlaneVLocalScale;*/
// Vector3 ctPlaneVLocalScale = new Vector3(width , height, ctPlaneV.transform.localScale.z);//自己后来加的,CT图像原尺寸显示
// Vector3 ctPlaneHLocalScale = new Vector3(depth, height, ctPlaneH.transform.localScale.z);//自己后来加的,CT图像原尺寸显示
Vector3 ctPlaneVLocalScale = new Vector3(width * 2, height * 2, ctPlaneV.transform.localScale.z);//自己后来加的,CT图像放大2倍显示用,想几倍显示把2改为几就行了，不影响screwslice.cs中的screw位置显示，因screw是ctplane的子物体会自动跟随放大
Vector3 ctPlaneHLocalScale = new Vector3(depth * 2, height * 2, ctPlaneH.transform.localScale.z);//自己后来加的,CT图像放大2倍显示用,想几倍显示把2改为几就行了，不影响screwslice.cs中的screw位置显示，因screw是ctplane的子物体会自动跟随放大
ctPlaneV.transform.localScale = ctPlaneVLocalScale;//显示
ctPlaneH.transform.localScale = ctPlaneHLocalScale ;//自己后来加的
// Debug.Log($"ctPlaneV's Scale {ctPlaneV.transform.localScale}");
// Debug.Log($"ctPlaneH's Scale {ctPlaneH.transform.localScale}");
transform.localPosition = center.transform.localPosition;
transform.localScale = new Vector3(height, depth, width);
// Debug.Log($"CT's new Position {transform.localPosition}");
// Debug.Log($"CT's new Scale {transform.localScale}");
// autoAlign.SetGo(true);
}
public void CenterToCCCT()
{
if (transform.localPosition != center.transform.localPosition)
{
transform.localPosition = center.transform.localPosition;
Debug.Log($"adjusted cc local position {transform.localPosition}");
}
}
/*
public void ComputeOffsets()
{
foreach (var pt in GetPoints())
{
pt.GetComponent<AutoAlign>().ComputeOffset();
}
}
*/
private void ComputeMinMaxFloats(NRRD nrrd)
{
int rounds = 2;
minx = float.MaxValue;
maxx = float.MinValue;
miny = float.MaxValue;
maxy = float.MinValue;
minz = float.MaxValue;
maxz = float.MinValue;
for (int i = 0; i < rounds; i++)
{
// i : 10 == x : dim --> x = dim*i/10
int dx = (int)(nrrd.dims[0] * i / (rounds - 1));
for (int j = 0; j < rounds; j++)
{
int dy = (int)(nrrd.dims[1] * j / (rounds - 1));
for (int k = 0; k < rounds; k++)
{
int dz = (int)(nrrd.dims[2] * k / (rounds - 1));
float x = -1 * (nrrd.origin.x + dx * nrrd.scale.x);
float y = nrrd.origin.y + dy * nrrd.scale.y;
float z = nrrd.origin.z + dz * nrrd.scale.z;
minx = Math.Min(minx, x);
maxx = Math.Max(maxx, x);
miny = Math.Min(miny, y);
maxy = Math.Max(maxy, y);
minz = Math.Min(minz, z);
maxz = Math.Max(maxz, z);
}
}
}
}
private GameObject CreateSphereFromPos(float x, float y, float z, String n)
{
GameObject sphere = GameObject.CreatePrimitive(PrimitiveType.Sphere);
sphere.transform.position = new Vector3(x, y, z);
sphere.transform.localScale = new Vector3(1.0f,1.0f,1.0f);
sphere.name = n;
// sphere.transform.parent = oo.transform;
return sphere;
}
private Vector3 FindCenter(float minx, float maxx, float miny, float maxy, float minz, float maxz)
{
float middlex = (maxx + minx) / 2,
middley = (maxy + miny) / 2,
middlez = (maxz + minz) / 2;
return new Vector3(middlex, middley, middlez);
}
public Vector3 GetCenterOfCt()
{
/* AutoAlign autoAlign = oo.GetComponent<AutoAlign>();
autoAlign.SetGo(false);
DummyTransformHandler dummyHandler = oo.GetComponent<DummyTransformHandler>();
dummyHandler.GoToZero();*/
float lengthDirection = nrrd.lengthDirection, lengthSize = nrrd.dims[2];
ctLength = Math.Abs(lengthDirection * lengthSize);
float depthDirection = nrrd.depthDirection, depthSize = nrrd.dims[1];
ctDepth = Math.Abs(depthDirection * depthSize);
ctCenter = new Vector3(
-1 * (nrrd.origin.x + ((int)Math.Ceiling((double)(nrrd.dims[0] / 2) - 1) * nrrd.scale.x)),
nrrd.origin.y + ((int)Math.Ceiling((double)(nrrd.dims[1] / 2) - 1) * nrrd.scale.y),
nrrd.origin.z + ((int)Math.Ceiling((double)(nrrd.dims[2] / 2) - 1) * nrrd.scale.z)
);//不知为何x要加负号
ComputeMinMaxFloats(nrrd);
Vector3 ccct = FindCenter(minx, maxx, miny, maxy, minz, maxz);
// dummyHandler.RestoreBackup();
// autoAlign.SetGo(true);
return ccct;
}
public GameObject[] GetPoints()
{
GameObject[] arr = new GameObject[] { bottomBackLeft, bottomBackRight, topBackLeft, topBackRight, bottomFrontLeft, bottomFrontRight, topFrontLeft, topFrontRight, center };
return arr;
}
public void Slice(Vector3 orig, Vector3 dx, Vector3 dy, Texture2D result, bool disaligned, Vector4 bCol) {
var rtex = new RenderTexture(result.width, result.height, 1);
rtex.enableRandomWrite = true;
rtex.Create();
slicer.SetTexture(kernel, "slice", rtex);
slicer.SetInts("outDims", new int[] { rtex.width, rtex.height });
dx = dx * RtexConstants.SCALE;
dy = dy * RtexConstants.SCALE;
slicer.SetFloats("orig", new float[] { orig.x, orig.y, orig.z });
slicer.SetFloats("dx", new float[] { dx.x, dx.y, dx.z });
slicer.SetFloats("dy", new float[] { dy.x, dy.y, dy.z });
slicer.SetFloats("borderColor", new float[] { bCol.x, bCol.y, bCol.z, bCol.w });
slicer.Dispatch(kernel, (rtex.width + 7) / 8, (rtex.height + 7) / 8, 1);
var oldRtex = RenderTexture.active;
RenderTexture.active = rtex;
result.ReadPixels(new Rect(0, 0, rtex.width, rtex.height), 0, 0);
result.Apply();
RenderTexture.active = oldRtex;
rtex.Release();
}
public Vector3 TransformWorldCoords(Vector3 p) {//此函数仅是给官网例子中的HandSlice.cs用的
return GetComponent<Transform>().InverseTransformPoint(p);
}
public Vector3 GetPositionFromSlider(float v, SliderSlice.Axis ax) {
// (v+0.5) : 1 == x : delta
Vector3 pos = new Vector3(center.transform.localPosition.x,
center.transform.localPosition.y,
center.transform.localPosition.z);
switch (ax)
{
case SliderSlice.Axis.X:
// depth
pos.x = bottomFrontLeft.transform.localPosition.x +
((bottomBackLeft.transform.localPosition.x -
bottomFrontLeft.transform.localPosition.x) * (v + 0.5f));
break;
case SliderSlice.Axis.Y:
// height
pos.y = bottomFrontLeft.transform.localPosition.y +
((topFrontLeft.transform.localPosition.y -
bottomFrontLeft.transform.localPosition.y) * (v + 0.5f));
break;
case SliderSlice.Axis.Z:
// length
pos.z = bottomFrontLeft.transform.localPosition.z +
((bottomFrontRight.transform.localPosition.z -
bottomFrontLeft.transform.localPosition.z ) * (v + 0.5f));
break;
}
return pos;
}
}
public class NRRD {
readonly public Dictionary<String, String> headers = new Dictionary<String, String>();
readonly public float[] data;
readonly public int[] dims;
readonly public float lengthDirection;
readonly public float depthDirection;
readonly public Vector3 origin = new Vector3(0, 0, 0);
readonly public Vector3 scale = new Vector3(1, 1, 1);
public NRRD(byte[] bytes) {
using (var reader = new BinaryReader(new MemoryStream(bytes))) {
for (string line = reader.ReadLine(); line.Length > 0; line = reader.ReadLine()) {
if (line.StartsWith("#") || !line.Contains(":")) continue;
var tokens = line.Split(':');
var key = tokens[0].Trim();
var value = tokens[1].Trim();
headers.Add(key, value);
}
if (headers["dimension"] != "3") throw new ArgumentException("NRRD is not 3D");
if (headers["type"] != "float") throw new ArgumentException("NRRD is not of type float");
if (headers["endian"] != "little") throw new ArgumentException("NRRD is not little endian");
if (headers["encoding"] != "gzip") throw new ArgumentException("NRRD is not gzip encoded");
dims = Array.ConvertAll(headers["sizes"].Split(), s => int.Parse(s));
if (headers.ContainsKey("space origin")) {
var origin = Array.ConvertAll(headers["space origin"].Substring(1, headers["space origin"].Length - 2).Split(','), v => float.Parse(v, CultureInfo.InvariantCulture));
this.origin = new Vector3(origin[0], origin[1], origin[2]);
}
if (headers.ContainsKey("space directions")) {
var scale = Array.ConvertAll(headers["space directions"].Split(), s => Array.ConvertAll(s.Substring(1, s.Length - 2).Split(','), v => float.Parse(v, CultureInfo.InvariantCulture)));
if (scale[0][0] == 0 || scale[1][1] == 0 || scale[2][2] == 0) throw new ArgumentException("NRRD has 0 scale value");
if (scale[0][1] != 0 || scale[1][0] != 0 || scale[2][0] != 0 ||
scale[0][2] != 0 || scale[1][2] != 0 || scale[2][1] != 0) throw new ArgumentException("NRRD is not axis-aligned");
this.scale = new Vector3(scale[0][0], scale[1][1], scale[2][2]);
depthDirection = scale[1][1];
lengthDirection = scale[2][2];
}
// Debug.Log($"NRRD scale is {this.scale}");
var mem = new MemoryStream();
using (var stream = new GZipStream(reader.BaseStream, CompressionMode.Decompress)) stream.CopyTo(mem);
data = new float[dims[0] * dims[1] * dims[2]];
// Debug.Log($"data size dims[0] is {dims[0]};dims[1] is {dims[1]};dims[2] is {dims[2]}");
Buffer.BlockCopy(mem.ToArray(), 0, data, 0, data.Length * sizeof(float));
// Debug.Log($"data length is {data.Length}");
mem.Dispose();
reader.Dispose();
}
}
}
public static class BinaryReaderExtension {
public static string ReadLine(this BinaryReader reader) {
var line = new StringBuilder();
for (bool done = false; !done;) {
var ch = reader.ReadChar();
switch (ch) {
case '\r':
if (reader.PeekChar() == '\n') reader.ReadChar();
done = true;
break;
case '\n':
done = true;
break;
default:
line.Append(ch);
break;
}
}
return line.ToString();
}
}
/*static class CTConstants
{
// public static readonly Vector3 REFERENCE_CENTER = new Vector3(-3.244141f, -226.2559f, -248.5f);
public static readonly Vector3 REFERENCE_CENTER = new Vector3(-3.244141f, -226.2559f, -67.4f);
}*/
public static class BorderColors
{
public static readonly Vector4 YELLOW = new Vector4(1, 1, 0, 1);
public static readonly Vector4 RED = new Vector4(1, 0, 0, 1);
public static readonly Vector4 CYAN = new Vector4(0, 1, 1, 1);
}
static class RtexConstants
{
public static readonly float SCALE = 0.001961119675f;
}Screwslice.cs代码：
using Microsoft.MixedReality.Toolkit.UI;
using Microsoft.MixedReality.Toolkit.Utilities;
using System;
using System.Linq;
using UnityEngine;
public class Screwslice : MonoBehaviour
{
public CTReader ct;
public int width, height;
public bool disaligned=false;
public int interval;
int curInterval = 0;
public Texture2D tex;
Vector4 bCol;
Vector3 Oldtip = Vector3.zero;
Vector3 tip = Vector3.zero;
public enum Axis { X, Y, Z };
public Axis axis;
void Start()
{
Init();
}
public void Init()
{
tex = NewTexture(width, height, Color.black);
/* 以下两句是以前打算挂在到screw上的，后来遇到点儿问题放弃了，现在改挂在CTplane上*/
// GameObject.Find("CTPlane1").GetComponent<Renderer>().material.mainTexture = tex;
// GameObject.Find("CTPlane2").GetComponent<Renderer>().material.mainTexture = tex;
GetComponent<Renderer>().material.mainTexture = tex;
Oldtip = GameObject.Find("Screw1/DownEnd").transform.position;//顶端初始化
tip = GameObject.Find("Screw1/DownEnd").transform.position;//顶端初始化
}
private Texture2D NewTexture(int width, int height, Color color)
{
var texture = new Texture2D(width, height);
Color[] pixels = Enumerable.Repeat(color, width * height).ToArray();
texture.SetPixels(pixels);
texture.Apply();
return texture;
}
public void UpdateHelper()
{
var orig = Vector3.zero;
var dx = Vector3.zero;
var dy = Vector3.zero;//以上给H面用
var val = 0.5f;// (tip[0] - ct.transform.position.x) / (ct.width / 1000);//前面的是m为单位的，所以width要除以1000转成m
orig = new Vector3(0, 0, val);
var distance = tip - ct.transform.position;//ct.transform.position就是CT的中心的坐标,相减后产生一个从CT中心到tip点的向量distance
bCol = BorderColors.CYAN;
switch (axis)
{

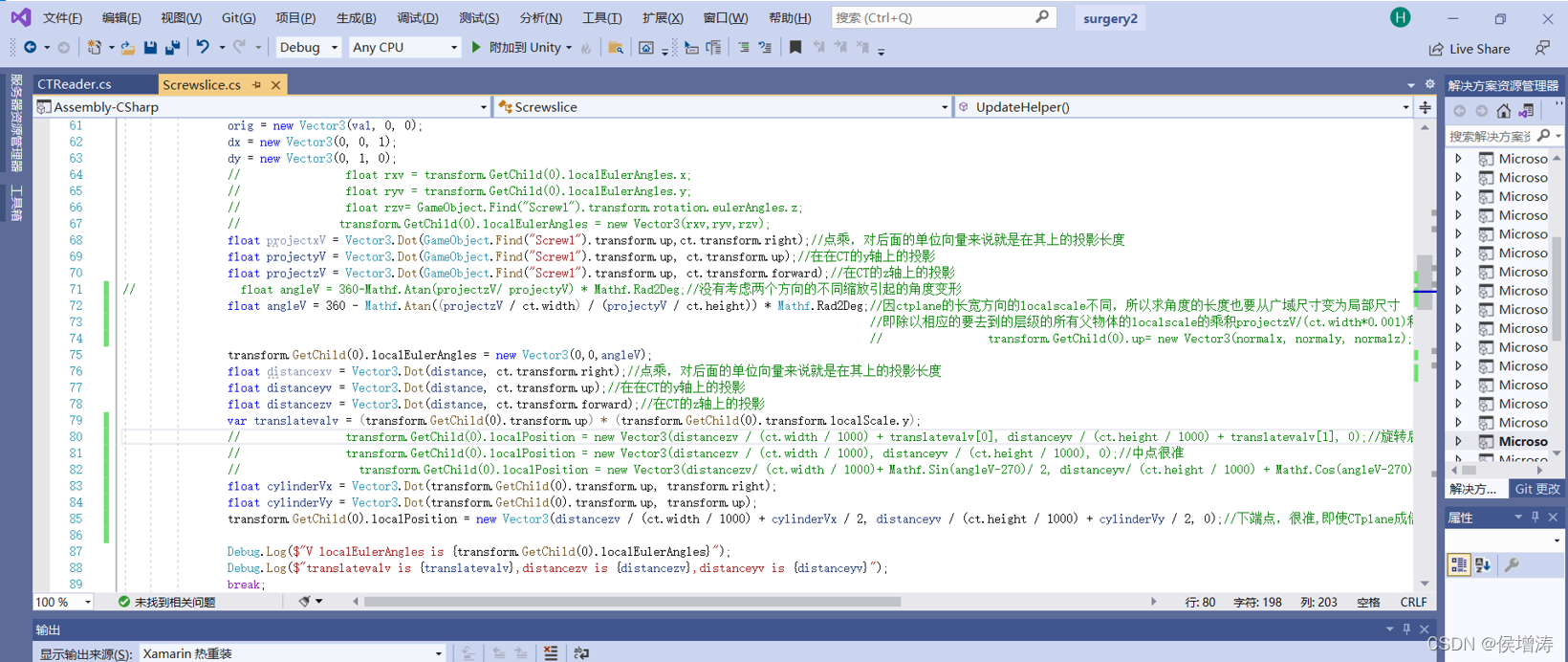

case Axis.X://V面即CTplane2选这个
// val = (tip[2] - ct.transform.position.z) / (ct.depth / 1000);//前面的是m为单位的，所以width要除以1000转成m
//上面那句不严谨，当CT的x,y,z轴跟全局坐标不重合即发生旋转时，上面的话就不对了
val = Vector3.Dot(distance, ct.transform.right) / (ct.depth / 1000);//前面的是m为单位的，所以width要除以1000转成m
orig = new Vector3(val, 0, 0);
dx = new Vector3(0, 0, 1);
dy = new Vector3(0, 1, 0);
// float rxv = transform.GetChild(0).localEulerAngles.x;
// float ryv = transform.GetChild(0).localEulerAngles.y;
// float rzv= GameObject.Find("Screw1").transform.rotation.eulerAngles.z;
// transform.GetChild(0).localEulerAngles = new Vector3(rxv,ryv,rzv);
float projectxV = Vector3.Dot(GameObject.Find("Screw1").transform.up,ct.transform.right);//点乘，对后面的单位向量来说就是在其上的投影长度
float projectyV = Vector3.Dot(GameObject.Find("Screw1").transform.up, ct.transform.up);//在在CT的y轴上的投影
float projectzV = Vector3.Dot(GameObject.Find("Screw1").transform.up, ct.transform.forward);//在CT的z轴上的投影
// float angleV = 360-Mathf.Atan(projectzV/ projectyV) * Mathf.Rad2Deg;//没有考虑两个方向的不同缩放引起的角度变形
float angleV = 360 - Mathf.Atan((projectzV / ct.width) / (projectyV / ct.height)) * Mathf.Rad2Deg;//因ctplane的长宽方向的localscale不同，所以求角度的长度也要从广域尺寸变为局部尺寸
//即除以相应的要去到的层级的所有父物体的localscale的乘积projectzV/(ct.width*0.001)和projectyV/(ct.height*0.001)
// transform.GetChild(0).up= new Vector3(normalx, normaly, normalz);
transform.GetChild(0).localEulerAngles = new Vector3(0,0,angleV);
float distancexv = Vector3.Dot(distance, ct.transform.right);//点乘，对后面的单位向量来说就是在其上的投影长度
float distanceyv = Vector3.Dot(distance, ct.transform.up);//在在CT的y轴上的投影
float distancezv = Vector3.Dot(distance, ct.transform.forward);//在CT的z轴上的投影
var translatevalv = (transform.GetChild(0).transform.up) * (transform.GetChild(0).transform.localScale.y);
// transform.GetChild(0).localPosition = new Vector3(distancezv / (ct.width / 1000) + translatevalv[0], distanceyv / (ct.height / 1000) + translatevalv[1], 0);//旋转后不准
// transform.GetChild(0).localPosition = new Vector3(distancezv / (ct.width / 1000), distanceyv / (ct.height / 1000), 0);//中点很准
// transform.GetChild(0).localPosition = new Vector3(distancezv/ (ct.width / 1000)+ Mathf.Sin(angleV-270)/ 2, distanceyv/ (ct.height / 1000) + Mathf.Cos(angleV-270) / 2, 0);//角度不行，不知为何
float cylinderVx = Vector3.Dot(transform.GetChild(0).transform.up, transform.right);
float cylinderVy = Vector3.Dot(transform.GetChild(0).transform.up, transform.up);
transform.GetChild(0).localPosition = new Vector3(distancezv / (ct.width / 1000) + cylinderVx / 2, distanceyv / (ct.height / 1000) + cylinderVy / 2, 0);//下端点，很准,即使CTplane成倍放大也不用改此句，因screw是ctplane的子物体会自动跟随放大
Debug.Log($"V localEulerAngles is {transform.GetChild(0).localEulerAngles}");
Debug.Log($"translatevalv is {translatevalv},distancezv is {distancezv},distanceyv is {distanceyv}");
break;
case Axis.Y://官方例程的设置，不知为何
//val = (tip[1] - ct.transform.position.y) / (ct.height / 1000);//前面的是m为单位的，所以width要除以1000转成m
val = Vector3.Dot(distance, ct.transform.up) / (ct.height / 1000);//前面的是m为单位的，所以width要除以1000转成m
orig = new Vector3(val, 0, 0);
dx = new Vector3(0, 0, 1);
dy = new Vector3(-1, 0, 0);
break;
case Axis.Z://H面即CTplane1选这个
//val = (tip[0] - ct.transform.position.x) / (ct.width / 1000);//前面的是m为单位的，所以width要除以1000转成m
val = Vector3.Dot(distance, ct.transform.forward) / (ct.width / 1000);//前面的是m为单位的，所以width要除以1000转成m,本来是ct.transform.right对应着width的，因CT cube的z对应着全局的x轴，所以这里用forward看UNITY内容
orig = new Vector3(0, 0, val);
dx = new Vector3(1, 0, 0);
dy = new Vector3(0, 1, 0);
// float rxh = transform.GetChild(0).localEulerAngles.x;
// float ryh = transform.GetChild(0).localEulerAngles.y;
// float rzh = GameObject.Find("Screw1").transform.rotation.eulerAngles.x;
// transform.GetChild(0).localEulerAngles = new Vector3(rxh, ryh, rzh);
float projectxH = Vector3.Dot(GameObject.Find("Screw1").transform.up, ct.transform.right);//点乘，对后面的单位向量来说就是在其上的投影长度
float projectyH = Vector3.Dot(GameObject.Find("Screw1").transform.up, ct.transform.up);//在在CT的y轴上的投影
float projectzH = Vector3.Dot(GameObject.Find("Screw1").transform.up, ct.transform.forward);//在CT的z轴上的投影
// float angleH = 360-Mathf.Atan(projectxH / projectyH)* Mathf.Rad2Deg;//没有考虑两个方向的不同缩放引起的角度变形
float angleH = 360 - Mathf.Atan((projectxH / ct.depth) / (projectyH / ct.height)) * Mathf.Rad2Deg;//因ctplane的长宽方向的localscale不同，所以求角度的长度也要从广域尺寸变为局部尺寸
//即除以相应的要去到的层级的所有父物体的localscale的乘积projectxH/(ct.depth*0.001)和projectyH/(ct.height*0.001)
transform.GetChild(0).localEulerAngles = new Vector3(0, 0, angleH);
float distancexH = Vector3.Dot(distance, ct.transform.right);//点乘，对后面的单位向量来说就是在其上的投影长度
float distanceyH = Vector3.Dot(distance, ct.transform.up);//在在CT的y轴上的投影
float distancezH = Vector3.Dot(distance, ct.transform.forward);//在CT的z轴上的投影
var translatevalH= (transform.GetChild(0).transform.up) * (transform.GetChild(0).transform.localScale.y);
// transform.GetChild(0).localPosition = new Vector3(distancexH / (ct.depth / 1000), distanceyH / (ct.height/1000), 0);//中点很准
// transform.GetChild(0).localPosition = new Vector3(distancexH/(ct.depth / 1000)+ Mathf.Sin(angleH-270) /2, distanceyH/ (ct.height/1000) + Mathf.Cos(angleH-270) / 2, 0);//角度不行，不知为何
float cylinderHx = Vector3.Dot(transform.GetChild(0).transform.up, -transform.forward);
float cylinderHy = Vector3.Dot(transform.GetChild(0).transform.up, transform.up);
transform.GetChild(0).localPosition = new Vector3(distancexH / (ct.depth / 1000) + cylinderHx / 2, distanceyH / (ct.height / 1000) + cylinderHy / 2, 0);//很准,即使CTplane成倍放大也不用改此句，因screw是ctplane的子物体会自动跟随放大
// transform.GetChild(0).localPosition = new Vector3(distancexH / (ct.depth / 1000) + translatevalH[0], distanceyH / (ct.height/1000) + translatevalH[1], 0);//旋转后不准
Debug.Log($"H localEulerAngles is {transform.GetChild(0).localEulerAngles}");
Debug.Log($"translatevalH is {translatevalH},distancexH is {distancexH},distanceyH is {distanceyH}");
break;
}
// Debug.Log($"CT's width:{ct.width},depth:{ct.depth},height:{ct.height}");//长宽高都是以mm为单位的，所以下面的计算中除了1000
// Debug.Log($"orig is {orig}");
ct.Slice(orig, dx, dy, tex, disaligned, bCol);
/* var orig2 = Vector3.zero;//以下给V面用
var dx2 = Vector3.zero;
var dy2 = Vector3.zero;
var val2 = (tip[2] - ct.transform.position.z)/ct.depth;前面的是m为单位的，所以depth要除以1000转成m，val2在-0.5--0.5之间
orig2 = new Vector3(val2, 0, 0);
dx2 = new Vector3(0, 0, 1);
dy2 = new Vector3(0, 1, 0);
bCol = BorderColors.YELLOW;
Debug.Log($"CT's center location:{ct.transform.position}");
Debug.Log($"orig2 is {orig2}");
ct.Slice(orig2, dx2, dy2, tex, disaligned, bCol);//给V面即CTPlane2*/
}
void Update()
{
if (++curInterval < interval)
{
return;
}
curInterval = 0;
// Debug.Log($"tip eulerAngles are {GameObject.Find("Screw1").transform.rotation.eulerAngles}");
// Debug.Log($"tip rotation is {GameObject.Find("Screw1").transform.rotation}");
// Debug.Log($"tip localRotation is {GameObject.Find("Screw1").transform.localRotation}");
tip = GameObject.Find("Screw1/DownEnd").transform.position; ;//时时更新顶端当前值
if (Oldtip != tip)//如果当前值发生变化即移动了此screw
{
// Debug.Log($"cyclinder eulerAngles are {GameObject.Find("Screw1").transform.rotation.eulerAngles}");
// Debug.Log($"cyclinder rotation is {GameObject.Find("Screw1").transform.rotation}");
// Debug.Log($"cyclinder localRotation is {GameObject.Find("Screw1").transform.localRotation}");
// Debug.Log($"CTplane eulerAngles are {GameObject.Find("BoneManipulation/Bone_1/CTGroup/CTPlane1").transform.eulerAngles}");
// Debug.Log($"CTplane eulerAngles are {GameObject.Find("BoneManipulation/Bone_1/CTGroup/CTPlane1").transform.rotation.eulerAngles}");
Debug.Log($"CTplane up Angles is {Vector3.Angle(transform.up, Vector3.up)}");
// Debug.Log($"CTplane&RIGHT Angles is {Vector3.Angle(transform.up, Vector3.right)}");
// Debug.Log($"ScrewHview up Angles is {Vector3.Angle(GameObject.Find("BoneManipulation/Bone_1/CTGroup/CTPlane1/ScrewHview").transform.up, Vector3.up)}");
// Debug.Log($"cyclinder NORMALized is {GameObject.Find("Screw1").transform.up.normalized}");
// Debug.Log($"cyclinder&RIGHT Angles is {Vector3.Angle(GameObject.Find("Screw1").transform.up, Vector3.right)}");
// Debug.Log($"cyclinder vector is {GameObject.Find("Screw1").transform.up}");
var bottompoint = GameObject.Find("Screw1").transform.position - (GameObject.Find("Screw1").transform.up) * (GameObject.Find("Screw1").transform.localScale.y);//圆柱的底端点
// Debug.Log($"bottompoint position is {bottompoint}");
// Debug.Log($"tip position is {tip}");
// Debug.Log($"CT right vector is {ct.transform.right},forward vector is {ct.transform.forward},up vector is {ct.transform.up}");
// Debug.Log($"CT right vector normalized is {ct.transform.right.normalized},forward normalized is {ct.transform.forward.normalized},up normalized is {ct.transform.up.normalized}");
// Vector3.Angle(GameObject.Find("BoneManipulation/Bone_1/CTGroup/CTPlane1/ScrewHview").transform.up, Vector3.up);
var distance = tip - ct.transform.position;//ct.transform.position就是CT的中心的坐标,相减后产生一个从CT中心到tip点的向量distance
Debug.Log($"ct.transform.position is {ct.transform.position}");
Debug.Log($"bone.transform.position is {GameObject.Find("Bone").transform.position}");
Debug.Log($"obj.transform.position is {GameObject.FindGameObjectWithTag("patientobj").transform.position}");
Debug.Log($"ct.ctcenter position is {ct.ctCenter}");
Debug.Log($"ct.GetCenterOfCt is {ct.GetCenterOfCt()}");
// Debug.Log($"tip position is {tip}");
// Debug.Log($"distance is {distance}");
// if ((Math.Abs(distance[0]) <= ct.width/2000)&& (Math.Abs(distance[1]) <= ct.height/2000)&& (Math.Abs(distance[2]) <= ct.depth/2000))//如果screw已经在在ct内部,长宽高要另外除以1000转成m为单位
if ((Math.Abs(Vector3.Dot(distance, ct.transform.forward)) <= ct.width / 2000) && (Math.Abs(Vector3.Dot(distance, ct.transform.up)) <= ct.height / 2000) && (Math.Abs(Vector3.Dot(distance, ct.transform.right)) <= ct.depth / 2000))//上面的那个不严谨，应该是投影到CT上再比对距离而不似乎简单的xyz比较，因CT有可能有转角呀！
UpdateHelper();
Oldtip = tip;//更新顶端的记忆值
}
}
}
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
