休眠流程

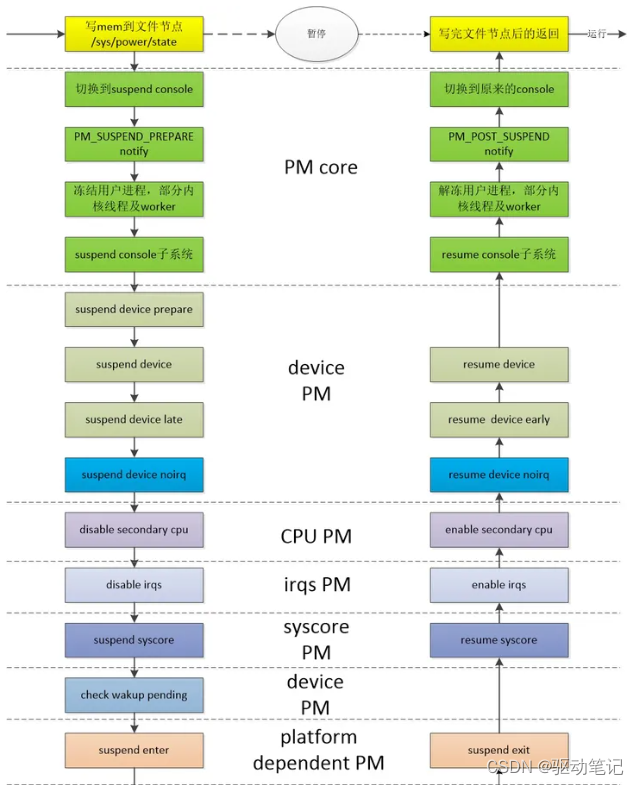

应用层通过echo mem > /sys/power/state写入休眠状态，给一张大概流程图
这个操作对应在kernel/power/main.c的state这个attr的store操作
static ssize_t state_store(struct kobject *kobj, struct kobj_attribute *attr,
const char *buf, size_t n)
{
suspend_state_t state;
int error;
error = pm_autosleep_lock();
if (error)
return error;
if (pm_autosleep_state() > PM_SUSPEND_ON) {
error = -EBUSY;
goto out;
}
state = decode_state(buf, n);
if (state < PM_SUSPEND_MAX) {
if (state == PM_SUSPEND_MEM)
state = mem_sleep_current;
error = pm_suspend(state);
} else if (state == PM_SUSPEND_MAX) {
error = hibernate();
} else {
error = -EINVAL;
}
out:
pm_autosleep_unlock();
return error ? error : n;
}应用层通过/sys/power/state写入休眠状态；或者使能autosleep都会调用这个
int pm_suspend(suspend_state_t state)
{
int error;
if (state <= PM_SUSPEND_ON || state >= PM_SUSPEND_MAX)
return -EINVAL;
pr_info("suspend entry (%s)\n", mem_sleep_labels[state]);
error = enter_state(state);
if (error) {
suspend_stats.fail++;
dpm_save_failed_errno(error);
} else {
suspend_stats.success++;
}
pr_info("suspend exit\n");
return error;
}不同state，进入不同休眠状态
static int enter_state(suspend_state_t state)
{
int error;
trace_suspend_resume(TPS("suspend_enter"), state, true);
if (state == PM_SUSPEND_TO_IDLE) {
#ifdef CONFIG_PM_DEBUG
if (pm_test_level != TEST_NONE && pm_test_level <= TEST_CPUS) {
pr_warn("Unsupported test mode for suspend to idle, please choose none/freezer/devices/platform.\n");
return -EAGAIN;
}
#endif
} else if (!valid_state(state)) {
return -EINVAL;
}
if (!mutex_trylock(&system_transition_mutex))
return -EBUSY;
if (state == PM_SUSPEND_TO_IDLE)
s2idle_begin();
if (sync_on_suspend_enabled) {
trace_suspend_resume(TPS("sync_filesystems"), 0, true);
ksys_sync_helper();
trace_suspend_resume(TPS("sync_filesystems"), 0, false);
}
pm_pr_dbg("Preparing system for sleep (%s)\n", mem_sleep_labels[state]);
pm_suspend_clear_flags();
error = suspend_prepare(state);
if (error)
goto Unlock;
if (suspend_test(TEST_FREEZER))
goto Finish;
trace_suspend_resume(TPS("suspend_enter"), state, false);
pm_pr_dbg("Suspending system (%s)\n", mem_sleep_labels[state]);
pm_restrict_gfp_mask();
error = suspend_devices_and_enter(state);
pm_restore_gfp_mask();
Finish:
events_check_enabled = false;
pm_pr_dbg("Finishing wakeup.\n");
suspend_finish();
Unlock:
mutex_unlock(&system_transition_mutex);
return error;
}设备进入休眠，被唤醒或者休眠失败，就会走对应的唤醒流程；
挂起console,比如串口，终端等；
挂起devfreq，cpufreq；执行device_suspend
int suspend_devices_and_enter(suspend_state_t state)
{
int error;
bool wakeup = false;
if (!sleep_state_supported(state))
return -ENOSYS;
pm_suspend_target_state = state;
if (state == PM_SUSPEND_TO_IDLE)
pm_set_suspend_no_platform();
error = platform_suspend_begin(state);
if (error)
goto Close;
suspend_console();//挂起console,比如串口，终端等
suspend_test_start();
error = dpm_suspend_start(PMSG_SUSPEND);//挂起devfreq，cpufreq；执行device_suspend
if (error) {
pr_err("Some devices failed to suspend, or early wake event detected\n");
goto Recover_platform;
}
suspend_test_finish("suspend devices");
if (suspend_test(TEST_DEVICES))
goto Recover_platform;
do {
error = suspend_enter(state, &wakeup);//平台休眠
} while (!error && !wakeup && platform_suspend_again(state));
Resume_devices:
suspend_test_start();
dpm_resume_end(PMSG_RESUME);
suspend_test_finish("resume devices");
trace_suspend_resume(TPS("resume_console"), state, true);
resume_console();
trace_suspend_resume(TPS("resume_console"), state, false);
Close:
platform_resume_end(state);
pm_suspend_target_state = PM_SUSPEND_ON;
return error;
Recover_platform:
platform_recover(state);
goto Resume_devices;
}平台进入休眠；被唤醒或者休眠失败，就会走对应的唤醒流程；
检查pendind标记，检查休眠锁标记，来进入平台实现的enter函数；
平台休眠的最后，会开启中断，用与响应外部中断，来唤醒系统并继续执行接下来的代码唤醒系统
static int suspend_enter(suspend_state_t state, bool *wakeup)
{
int error;
error = platform_suspend_prepare(state);
if (error)
goto Platform_finish;
error = dpm_suspend_late(PMSG_SUSPEND);
if (error) {
pr_err("late suspend of devices failed\n");
goto Platform_finish;
}
error = platform_suspend_prepare_late(state);
if (error)
goto Devices_early_resume;
error = dpm_suspend_noirq(PMSG_SUSPEND);
if (error) {
pr_err("noirq suspend of devices failed\n");
goto Platform_early_resume;
}
error = platform_suspend_prepare_noirq(state);
if (error)
goto Platform_wake;
if (suspend_test(TEST_PLATFORM))
goto Platform_wake;
if (state == PM_SUSPEND_TO_IDLE) {
s2idle_loop();
goto Platform_wake;
}
error = pm_sleep_disable_secondary_cpus();
if (error || suspend_test(TEST_CPUS))
goto Enable_cpus;
arch_suspend_disable_irqs();
BUG_ON(!irqs_disabled());
system_state = SYSTEM_SUSPEND;
error = syscore_suspend();
if (!error) {
*wakeup = pm_wakeup_pending();//检查能否进休眠
if (!(suspend_test(TEST_CORE) || *wakeup)) {
trace_suspend_resume(TPS("machine_suspend"),
state, true);
error = suspend_ops->enter(state);
trace_suspend_resume(TPS("machine_suspend"),
state, false);
} else if (*wakeup) {
error = -EBUSY;
}
syscore_resume();
}
system_state = SYSTEM_RUNNING;
arch_suspend_enable_irqs();//平台休眠，但是开启中断，用与响应中断，唤醒系统并继续执行接下来的代码唤醒系统
BUG_ON(irqs_disabled());
Enable_cpus:
pm_sleep_enable_secondary_cpus();
Platform_wake:
platform_resume_noirq(state);
dpm_resume_noirq(PMSG_RESUME);
Platform_early_resume:
platform_resume_early(state);
Devices_early_resume:
dpm_resume_early(PMSG_RESUME);
Platform_finish:
platform_resume_finish(state);
return error;
}两种阻止进入休眠
最终都是通过__pm_stay_awake
应用层
echo abc > /sys/power/wake_lock 来申请一个休眠锁；

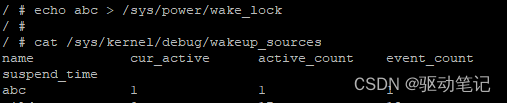

使用cat /sys/kernel/debug/wakeup_sources看什么在持有休眠锁；
echo abc > /sys/power/wake_unlock来接触休眠锁
内核层
应用请求休眠，系统进入休眠流程，此时如果设备触发了中断，中断处理程序中首先关闭中断，然后调度内核线程去处理work，但假如这个时候此work还未被调度到，系统就进入休眠了，那么这个设备就被永久关闭中断了，再也不能唤醒系统。pm_stay_awake()和pm_relax()的设计就是用来解决这个问题。
pm_stay_awake
pm_wake_lock
__pm_stay_awake
恢复
pm_wake_unlock
__pm_relax
休眠检查
pm_wakeup_pending示例：休眠后，无法唤醒？
开启打印信息
休眠后系统卡住，组织串口来休眠，并开启相关打印；在Linux内核睡眠过程中，会先调用suspend_console()函数使串口进入睡眠状态，这样会导致后续设备驱动的睡眠过程不可见。可以在boot启动参数中增加no_console_suspend参数，显示设备驱动睡眠日志
remove_cmdline_param(cmdline, "no_console_suspend");
sprintf(cmdline + strlen(cmdline), " no_console_suspend=%d", 1);修改串口日志打印等级，显示更多调试信息
echo 8 > /proc/sys/kernel/printk设置pm_print_times参数，可以显示设备驱动睡眠唤醒时间，方便调试时查看哪个函数处理占用时间过长
echo 1 > /sys/power/pm_print_times设置pm_debug_messages，打印来自系统的调试消息的暂停/休眠内核日志的基础结构
echo 1 > /sys/power/pm_debug_messages打印信息
PM: pm_system_irq_wakeup: 20 triggered PMIC
pxa2xx-i2c pxa2xx-i2c.2: calling i2c_pxa_suspend_noirq+0x1/0x24 @ 6223, parent: d4000000.apb
i2c: <pxa_i2c-i2c> ICR is modified!
pxa2xx-i2c pxa2xx-i2c.2: i2c_pxa_suspend_noirq+0x1/0x24 returned 0 after 0 usecs
i2c: reset controller!
Workqueue: events chargeic_update_state_work_func
pcie-falcon d4220000.pcie: calling pcie_resume_noirq+0x1/0x1c @ 6223, parent: d4200000.axi
PCIe Host: No link negotiated
pcie-falcon d4220000.pcie: pcie_resume_noirq+0x1/0x1c returned 0 after 114202 usecs
pci 0001:00:00.0: calling pci_pm_resume_noirq+0x1/0xd4 @ 6165, parent: pci0001:00
pxa2xx-i2c pxa2xx-i2c.0: calling i2c_pxa_resume_noirq+0x1/0x38 @ 6223, parent: d4000000.apb
解决办法
i2c还在工作----而且打印了正在工作的函数；确认是充电ic休眠函数没去暂停工作队列；实现PM函数即可修复
#ifdef CONFIG_PM
static int charger_suspend(struct device *dev)
{
cancel_delayed_work_sync(g_info->chg_state_update_work);
return 0;
}
static int charger_resume(struct device *dev)
{
mod_delayed_work(system_wq, g_info->chg_state_update_work,msecs_to_jiffies(1000));
return 0;
}
static const struct dev_pm_ops pm_ops = {
.suspend = charger_suspend,
.resume = charger_resume,
};
#endif找不到pcie设备----确认供电；如无异常，确认cpu和ddr频率是否恢复；如无异常，确认现象是否跟复位脚异常有关
--- a/drivers/pci/controller/pcie-host.c
+++ b/drivers/pci/controller/pcie-host.c
@@ -646,6 +646,7 @@ static int __maybe_unused pcie_suspend_noirq(struct device *dev)
phy_exit(port->phy);
pm_qos_update_request(&pcie->qos_idle,
PM_QOS_CPUIDLE_BLOCK_DEFAULT_VALUE);
+ gpio_set_value(port->gpio_reset,0);
return 0;
}
@@ -653,10 +654,10 @@ static int __maybe_unused pcie_resume_noirq(struct device *dev)
{
struct pcie *pcie = dev_get_drvdata(dev);
struct pcie_port *port = pcie->port;
-
+ gpio_set_value(port->gpio_reset,1);
+ mdelay(200);
pm_qos_update_request(&pcie->qos_idle, port->lpm_qos);
pcie_enable_port(port);
return 0;
}修改后系统可被正常唤醒
