【数据分析】常见统计图-条形图对比

# coding=utf-8
from matplotlib import pyplot as plt
from matplotlib import font_manager
my_font = font_manager.FontProperties(fname="/System/Library/Fonts/Hiragino Sans GB.ttc")


a = ["猩球崛起3：终极之战","敦刻尔克","蜘蛛侠：英雄归来","战狼2"]
b_16 = [15746,312,4497,319]
b_15 = [12357,156,2045,168]
b_14 = [2358,399,2358,362]

bar_width = 0.2

x_14 = list(range(len(a)))
x_15 =  [i+bar_width for i in x_14]
x_16 = [i+bar_width*2 for i in x_14]

#设置图形大小
plt.figure(figsize=(20,8),dpi=80)

plt.bar(range(len(a)),b_14,width=bar_width,label="9月14日")
plt.bar(x_15,b_15,width=bar_width,label="9月15日")
plt.bar(x_16,b_16,width=bar_width,label="9月16日")

#设置图例
plt.legend(prop=my_font)

#设置x轴的刻度
plt.xticks(x_15,a,fontproperties=my_font)

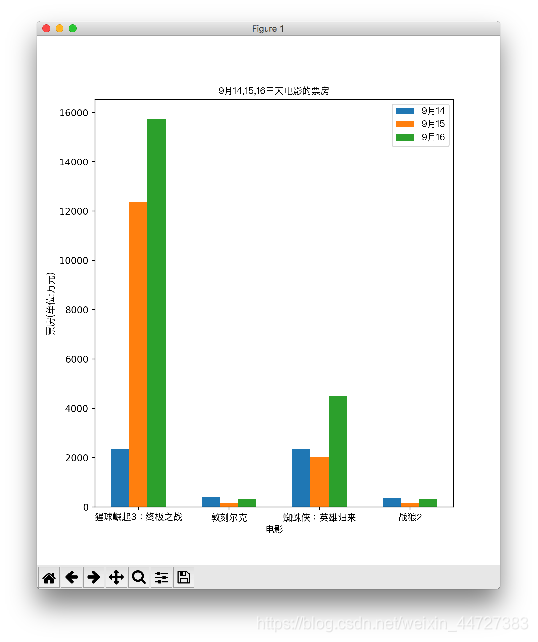

plt.show()
