前言

基于ESP32 IDF框架移植的LVGL，IDF版本为4.3.1，LVGL版本为8.1.1。屏幕为中景园的1.47寸172x320分辨率的圆角IPS，驱动芯片为st7789v3。

B站视频效果：

https://www.bilibili.com/video/BV1VP4y137K1?spm_id_from=333.999.0.0https://www.bilibili.com/video/BV1VP4y137K1?spm_id_from=333.999.0.0

在lvgl_esp32_drivers文件夹下，有个lvgl_tft文件夹，其中找到st7789.c、st7789.h驱动文件。修改屏幕起始像素偏移量offsety1、offsety2，即加上34。

void st7789_flush(lv_disp_drv_t * drv, const lv_area_t * area, lv_color_t * color_map)
{
    uint8_t data[4] = {0};

    uint16_t offsetx1 = area->x1;
    uint16_t offsetx2 = area->x2;
    uint16_t offsety1 = area->y1;
    uint16_t offsety2 = area->y2;

    offsety1 += 34;
    offsety2 += 34;

#if (CONFIG_LV_TFT_DISPLAY_OFFSETS)
    offsetx1 += CONFIG_LV_TFT_DISPLAY_X_OFFSET;
    offsetx2 += CONFIG_LV_TFT_DISPLAY_X_OFFSET;
    offsety1 += CONFIG_LV_TFT_DISPLAY_Y_OFFSET;
    offsety2 += CONFIG_LV_TFT_DISPLAY_Y_OFFSET;

#elif (LV_HOR_RES_MAX == 240) && (LV_VER_RES_MAX == 240)
#if (CONFIG_LV_DISPLAY_ORIENTATION_PORTRAIT)
    offsetx1 += 80;
    offsetx2 += 80;
#elif (CONFIG_LV_DISPLAY_ORIENTATION_LANDSCAPE_INVERTED)
    offsety1 += 80;
    offsety2 += 80;
#endif
#endif

    /*Column addresses*/
    st7789_send_cmd(ST7789_CASET);
    data[0] = (offsetx1 >> 8) & 0xFF;
    data[1] = offsetx1 & 0xFF;
    data[2] = (offsetx2 >> 8) & 0xFF;
    data[3] = offsetx2 & 0xFF;
    st7789_send_data(data, 4);

    /*Page addresses*/
    st7789_send_cmd(ST7789_RASET);
    data[0] = (offsety1 >> 8) & 0xFF;
    data[1] = offsety1 & 0xFF;
    data[2] = (offsety2 >> 8) & 0xFF;
    data[3] = offsety2 & 0xFF;
    st7789_send_data(data, 4);

    /*Memory write*/
    st7789_send_cmd(ST7789_RAMWR);

    size_t size = (size_t)lv_area_get_width(area) * (size_t)lv_area_get_height(area);

    st7789_send_color((void*)color_map, size * 2);
}

同样在lvgl_esp32_drivers文件夹下找到lvgl_helpers.h文件，增加两个屏幕横向和纵向最大值宏定义。

#define LV_HOR_RES_MAX  320
#define LV_VER_RES_MAX  172

同时在下面的条件编译选项中修改一下DISP_BUF_SIZE。

#if defined (CONFIG_CUSTOM_DISPLAY_BUFFER_SIZE)
#define DISP_BUF_SIZE   CONFIG_CUSTOM_DISPLAY_BUFFER_BYTES
#else
#if defined (CONFIG_LV_TFT_DISPLAY_CONTROLLER_ST7789)
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * LV_VER_RES_MAX)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_ST7735S
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_ST7796S
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_HX8357
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_SH1107
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * LV_VER_RES_MAX)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_ILI9481
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_ILI9486
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_ILI9488
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_ILI9341
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_SSD1306
#if defined (CONFIG_LV_THEME_MONO)
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * (LV_VER_RES_MAX / 8))
#else
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * LV_VER_RES_MAX)
#endif
#elif defined (CONFIG_LV_TFT_DISPLAY_CONTROLLER_FT81X)
#define DISP_BUF_LINES  40
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * DISP_BUF_LINES)
#elif defined (CONFIG_LV_TFT_DISPLAY_CONTROLLER_IL3820)
#define DISP_BUF_SIZE (LV_VER_RES_MAX * IL3820_COLUMNS)
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_RA8875
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined (CONFIG_LV_TFT_DISPLAY_CONTROLLER_GC9A01)
#define DISP_BUF_SIZE  (LV_HOR_RES_MAX * 40)
#elif defined (CONFIG_LV_TFT_DISPLAY_CONTROLLER_JD79653A)
#define DISP_BUF_SIZE ((LV_VER_RES_MAX * LV_VER_RES_MAX) / 8) // 5KB
#elif defined (CONFIG_LV_TFT_DISPLAY_CONTROLLER_UC8151D)
#define DISP_BUF_SIZE ((LV_VER_RES_MAX * LV_VER_RES_MAX) / 8) // 2888 bytes
#elif defined CONFIG_LV_TFT_DISPLAY_CONTROLLER_ILI9163C
#define DISP_BUF_SIZE (LV_HOR_RES_MAX * 40)
#else
#error "No display controller selected"
#endif
#endif

同样在lvgl_esp32_drivers文件夹下找到lvgl_spi_conf.h文件，修改一下SPI模式。

#if defined (CONFIG_LV_TFT_DISPLAY_CONTROLLER_ST7789)
#define SPI_TFT_SPI_MODE    (3)
#else
#define SPI_TFT_SPI_MODE    (0)
#endif

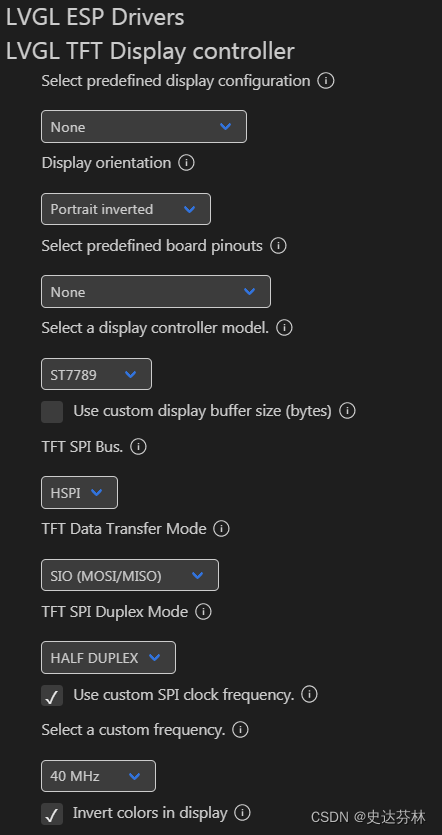

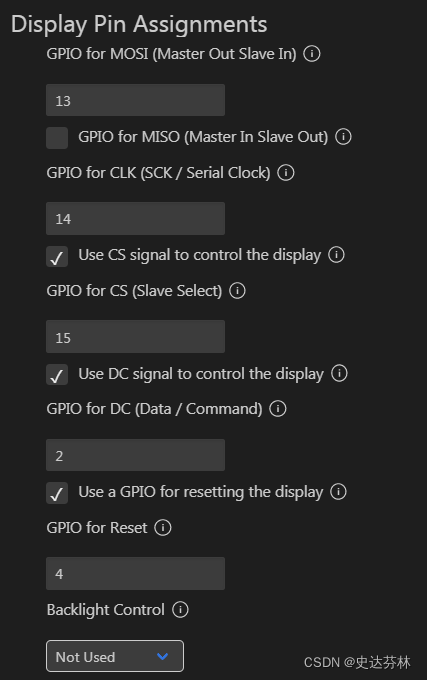

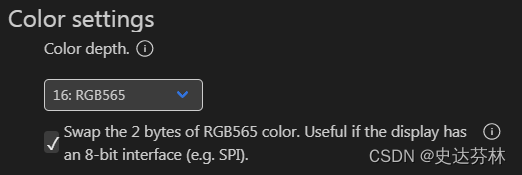

接下来配置LVGL。

在主函数中添加lv_demo_music()例程。

#include <stdio.h>

#include "freertos/FreeRTOS.h"
#include "freertos/event_groups.h"
#include "freertos/semphr.h"
#include "esp_system.h"
#include "esp_freertos_hooks.h"
#include "lvgl.h"
#include "lvgl_helpers.h"

#include "arc.h"
#include "bar.h"
#include "lv_examples/src/lv_demo_music/lv_demo_music.h"

void lv_tick_task(void *arg);
static void guiTask(void *pvParameter);

SemaphoreHandle_t xGuiSemaphore;

static void guiTask(void *pvParameter)
{
    (void) pvParameter;
    xGuiSemaphore = xSemaphoreCreateMutex();

    lv_init();
    lvgl_driver_init();

    lv_color_t* buf1 = heap_caps_malloc(DISP_BUF_SIZE * sizeof(lv_color_t), MALLOC_CAP_DMA);
    assert(buf1 != NULL);
    lv_color_t *buf2 = heap_caps_malloc(DISP_BUF_SIZE * sizeof(lv_color_t), MALLOC_CAP_DMA);
    assert(buf2 != NULL);

    static lv_disp_draw_buf_t disp_buf;
    uint32_t size_in_px = DISP_BUF_SIZE;

    lv_disp_draw_buf_init(&disp_buf, buf1, buf2, size_in_px);

    static lv_disp_drv_t disp_drv;
    lv_disp_drv_init(&disp_drv);
    disp_drv.flush_cb = disp_driver_flush;
    disp_drv.hor_res = 320;
    disp_drv.ver_res = 172;

    disp_drv.draw_buf = &disp_buf;
    lv_disp_drv_register(&disp_drv);

    esp_register_freertos_tick_hook((void *)lv_tick_task);

    /* Create the demo application */
    //arc_demo_test();
    //bar_demo_test();
     lv_demo_music();

    while (1)
    {
        /* Delay 1 tick (assumes FreeRTOS tick is 10ms */
        vTaskDelay(pdMS_TO_TICKS(10));

        /* Try to take the semaphore, call lvgl related function on success */
        if (pdTRUE == xSemaphoreTake(xGuiSemaphore, portMAX_DELAY))
        {
            lv_task_handler();
            xSemaphoreGive(xGuiSemaphore);
        }
    }

    /* A task should NEVER return */
    free(buf1);
    free(buf2);
    vTaskDelete(NULL);
}

void app_main(void)
{
    xTaskCreatePinnedToCore(guiTask, "gui", 4096 * 4, NULL, 0, NULL, 1);
}

void lv_tick_task(void *arg)
{
    (void)arg;
    lv_tick_inc(portTICK_PERIOD_MS);
}

详细的移植教程请移步B站专栏！
