一、GuavaCache并发操作
1、并发设置
GuavaCache通过设置 concurrencyLevel 使得缓存支持并发的写入和读取
LoadingCache<String,Object> cache = CacheBuilder.newBuilder()
// 最大3个 同时支持CPU核数线程写缓存
.maximumSize(3).concurrencyLevel(Runtime.getRuntime().availableProcessors()).build();
concurrencyLevel=Segment数组的长度
同ConcurrentHashMap类似Guava cache的并发也是通过分离锁实现
V get(K key, CacheLoader<? super K, V> loader) throws ExecutionException {
int hash = this.hash(Preconditions.checkNotNull(key));
//通过hash值确定该key位于哪一个segment上,并获取该segment
return this.segmentFor(hash).get(key, hash, loader);
}
LoadingCache采用了类似ConcurrentHashMap的方式,将映射表分为多个segment。segment之间可以并发访问,这样可以大大提高并发的效率,使得并发冲突的可能性降低了。
2、更新锁定
GuavaCache提供了一个refreshAfterWrite定时刷新数据的配置项
如果经过一定时间没有更新或覆盖,则会在下一次获取该值的时候,会在后台异步去刷新缓存
刷新时只有一个请求回源取数据,其他请求会阻塞(block)在一个固定时间段,如果在该时间段内没有获得新值则返回旧值。
LoadingCache<String,Object> cache = CacheBuilder.newBuilder()
// 最大3个 同时支持CPU核数线程写缓存
.maximumSize(3).concurrencyLevel(Runtime.getRuntime().availableProcessors()).
//3秒内阻塞会返回旧数据
refreshAfterWrite(3,TimeUnit.SECONDS).build();
3、案例分享
public class JobBean {
private int id;
private String name;
private int pid;
private String type;
private String url;
private int isHot;
}
二、GuavaCache动态加载
动态加载行为发生在获取不到数据或者是数据已经过期的时间点,Guava动态加载使用回调模式
用户自定义加载方式,然后Guava cache在需要加载新数据时会回调用户的自定义加载方式
segmentFor(hash).get(key, hash, loader)
loader即为用户自定义的数据加载方式,当某一线程get不到数据会去回调该自定义加载方式去加载数据
三、GuavaCache自定义LRU算法
public class LinkedHashLRUcache<k, v> {
/**
* LinkedHashMap(自身实现了LRU算法)
* 有序
* 每次访问一个元素,都会加到尾部
*/
int limit;
LRUcache<k, v> internalLRUcache;
public LinkedHashLRUcache(int limit) {
this.limit = limit;
this.internalLRUcache = new LRUcache(limit);
}
public void put(k key, v value) {
this.internalLRUcache.put(key, value);
}
public v get(k key) {
return this.internalLRUcache.get(key);
}
public static void main(String[] args) {
LinkedHashLRUcache lru=new LinkedHashLRUcache(3);
lru.put(1,"zhangfei1");
lru.put(2,"zhangfei2");
lru.put(3,"zhangfei3");
lru.get(1);
lru.put(4,"zhangfei4");
for(Object o:lru.internalLRUcache.values()){
System.out.println(o.toString());
}
}
}
public class LRUcache<k, v> extends LinkedHashMap<k, v> {
private final int limit;
public LRUcache(int limit) {
//初始化 accessOrder : true 改变尾结点
super(16, 0.75f, true);
this.limit = limit;
}
//是否删除最老的数据
@Override
protected boolean removeEldestEntry(Map.Entry<k, v> eldest) {
return size() > limit;
}
}
四、GuavaCache问题
1、GuavaCache会oom(内存溢出)吗?
会,当我们设置缓存永不过期(或者很长),缓存的对象不限个数(或者很大)时,比如:
Cache<String, String> cache = CacheBuilder.newBuilder()
.expireAfterWrite(100000, TimeUnit.SECONDS)
.build();
不断向GuavaCache加入大字符串,最终将会oom
解决方案:缓存时间设置相对小些,使用弱引用方式存储对象
Cache<String, String> cache = CacheBuilder.newBuilder()
.expireAfterWrite(1, TimeUnit.SECONDS)
.weakValues().build();
2、GuavaCache缓存到期就会立即清除?
不是的,GuavaCache是在每次进行缓存操作的时候,如get()或者put()的时候,判断缓存是否过期
void evictEntries(ReferenceEntry<K, V> e) {
drainRecencyQueue();
while ((e = writeQueue.peek()) != null && map.isExpired(e, now)) {
if (!removeEntry(e, e.getHash(), RemovalCause.EXPIRED)) {
throw new AssertionError();
}
}
while ((e = accessQueue.peek()) != null && map.isExpired(e, now)) {
if (!removeEntry(e, e.getHash(), RemovalCause.EXPIRED)) {
throw new AssertionError();
}
}
}
如果一个对象放入缓存以后,不在有任何缓存操作(包括对缓存其他key的操作),那么该缓存不会主动过期的。
3、GuavaCache如何找出最久未使用的数据
用accessQueue,这个队列是按照LRU的顺序存放的缓存对象(ReferenceEntry)的。会把访问过的对象放到队列的最后。
并且可以很方便的更新和删除链表中的节点,因为每次访问的时候都可能需要更新该链表,放入到链表的尾部。
这样,每次从access中拿出的头节点就是最久未使用的。
对应的writeQueue用来保存最久未更新的缓存队列,实现方式和accessQueue一样
五、Guava Cache源码剖析

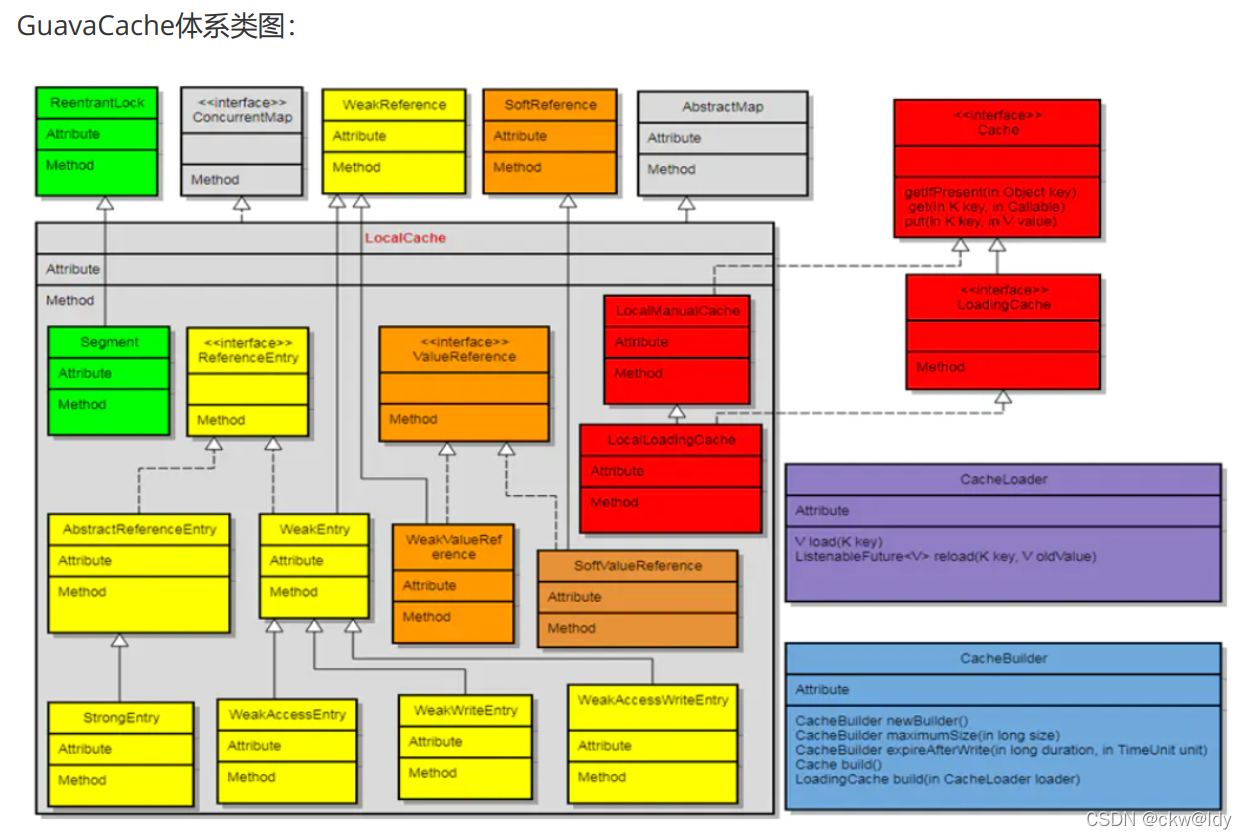

1、GuavaCache实现框架
- CacheBuilder:类,缓存构建器。构建缓存的入口,指定缓存配置参数并初始化本地缓存。
- CacheBuilder在build方法中,会把前面设置的参数,全部传递给LocalCache,它自己实际不参与任何计算
- CacheLoader:抽象类。用于从数据源加载数据,定义load、reload、loadAll等操作
- Cache:接口,定义get、put、invalidate等操作,这里只有缓存增删改的操作,没有数据加载的操作
- LoadingCache:接口,继承自Cache。定义get、getUnchecked、getAll等操作,这些操作都会从数据源load数据
- LocalCache:类。整个guava cache的核心类,包含了guava cache的数据结构以及基本的缓存的操作方法
- LocalManualCache:LocalCache内部静态类,实现Cache接口。其内部的增删改缓存操作全部调用成员变量localCache(LocalCache类型)的相应方法
- LocalLoadingCache:LocalCache内部静态类,继承自LocalManualCache类,实现LoadingCache接口。其所有操作也是调用成员变量localCache(LocalCache类型)的相应方法
- LocalCache
LoadingCache这些类表示获取Cache的方式,可以有多种方式,但是它们的方法最终调用到LocalCache的方法,LocalCache是Guava Cache的核心类。
class LocalCache<K, V> extends AbstractMap<K, V> implements ConcurrentMap<K, V>
LocalCache为Guava Cache的核心类 LocalCache的数据结构与ConcurrentHashMap很相似,都由多个segment组成,且各segment相对独立,互不影响,所以能支持并行操作。
//Map的数组
final Segment<K, V>[] segments;
//并发量,即segments数组的大小
final int concurrencyLevel;
...
//访问后的过期时间,设置了expireAfterAccess就有
final long expireAfterAccessNanos;
//写入后的过期时间,设置了expireAfterWrite就有
final long expireAfterWriteNa就有nos;
//刷新时间,设置了refreshAfterWrite就有
final long refreshNanos;
//removal的事件队列,缓存过期后先放到该队列
final Queue<RemovalNotification<K, V>> removalNotificationQueue;
//设置的removalListener
final RemovalListener<K, V> removalListener;
...
每个segment由一个table和若干队列组成。缓存数据存储在table中,其类型为AtomicReferenceArray。
static class Segment<K, V> extends ReentrantLock{
/**
* segments 维护一个entry列表的table,确保一致性状态。所以可以不加锁去读。节点的
next field是不可修改的final,因为所有list的增加操作
*/
final LocalCache<K, V> map;
/**
* 该segment区域内所有存活的元素个数
*/
volatile int count;
/**
* 改变table大小size的更新次数。这个在批量读取方法期间保证它们可以看到一致性的快照:
* 如果modCount在我们遍历段加载大小或者核对containsValue期间被改变了,然后我们会看
到一个不一致的状态视图,以至于必须去重试。
* count+modCount 保证内存一致性
* *
感觉这里有点像是版本控制,比如数据库里的version字段来控制数据一致性
*/
int modCount;
/**
* 每个段表,使用乐观锁的Array来保存entry The per-segment table.
*/
volatile AtomicReferenceArray<ReferenceEntry<K, V>> table; // 这里和
concurrentHashMap不一致,原因是这边元素是引用,直接使用不会线程安全
/**
* A queue of elements currently in the map, ordered by write time.
Elements are added to the tail of the queue
* on write.
*/
@GuardedBy("Segment.this")
final Queue<ReferenceEntry<K, V>> writeQueue;
...
2、GuavaCache的CacheBuilder
缓存构建器。构建缓存的入口,指定缓存配置参数并初始化本地缓存。
主要采用builder的模式,CacheBuilder的每一个方法都返回这个CacheBuilder知道build方法的调用。注意build方法有重载,带有参数的为构建一个具有数据加载功能的缓存,不带参数的构建一个没有数
据加载功能的缓存。
LocalLoadingCache(CacheBuilder<? super K, ? super V> builder, CacheLoader<? super K, V> loader) {
super(new LocalCache<K, V>(builder,
checkNotNull(loader)));//LocalLoadingCache构造函数需要一个 LocalCache作为参数
}
//构造LocalCache
LocalCache(CacheBuilder<? super K, ? super V> builder,@Nullable CacheLoader<? super K, V> loader) {
concurrencyLevel = Math.min(builder.getConcurrencyLevel(), MAX_SEGMENTS);//默认并发水平是4
keyStrength = builder.getKeyStrength();//key的强引用
valueStrength = builder.getValueStrength();
keyEquivalence = builder.getKeyEquivalence();//key比较器
valueEquivalence = builder.getValueEquivalence();
maxWeight = builder.getMaximumWeight();
weigher = builder.getWeigher();
expireAfterAccessNanos = builder.getExpireAfterAccessNanos();//读写后有效期,超时重载
expireAfterWriteNanos = builder.getExpireAfterWriteNanos();//写后有效期,超时重载
refreshNanos = builder.getRefreshNanos();
removalListener = builder.getRemovalListener();//缓存触发失效 或者 GC回收软/弱引用,触发监听器
removalNotificationQueue =//移除通知队列
(removalListener == NullListener.INSTANCE) ? LocalCache.<RemovalNotification<K, V>>discardingQueue() : new ConcurrentLinkedQueue<RemovalNotification<K, V>>();
ticker = builder.getTicker(recordsTime());
entryFactory = EntryFactory.getFactory(keyStrength, usesAccessEntries(),
usesWriteEntries());
globalStatsCounter = builder.getStatsCounterSupplier().get();
defaultLoader = loader;//缓存加载器
int initialCapacity = Math.min(builder.getInitialCapacity(), MAXIMUM_CAPACITY);
if (evictsBySize() && !customWeigher()) {
initialCapacity = Math.min(initialCapacity, (int) maxWeight);
}
3、GuavaCachePut流程
- 上锁
- 清除队列元素
清理的是keyReferenceQueue和valueReferenceQueue这两个队列,这两个队列是引用队列如果发现key或者value被GC了,那么会在put的时候触发清理 - setvalue方法了,它做的是将value写入Entry
V put(K key, int hash, V value, boolean onlyIfAbsent) {
//保证线程安全,加锁
lock();
try {
//获取当前的时间
long now = map.ticker.read();
//清除队列中的元素
preWriteCleanup(now);
...
//获取当前Entry中的HashTable的Entry数组
AtomicReferenceArray<ReferenceEntry<K, V>> table = this.table;
//定位
int index = hash & (table.length() - 1);
//获取第一个元素
ReferenceEntry<K, V> first = table.get(index);
//遍历整个Entry链表
// Look for an existing entry.
for (ReferenceEntry<K, V> e = first; e != null; e = e.getNext()) {
K entryKey = e.getKey();
if (e.getHash() == hash
&& entryKey != null
&& map.keyEquivalence.equivalent(key, entryKey)) {
// We found an existing entry.
//如果找到相应的元素
ValueReference<K, V> valueReference = e.getValueReference();
//获取value
V entryValue = valueReference.get();
//如果entry的value为null,可能被GC掉了
if (entryValue == null) {
++modCount;
if (valueReference.isActive()) {
enqueueNotification( //减小锁时间的开销
key, hash, entryValue, valueReference.getWeight(),
RemovalCause.COLLECTED);
//利用原来的key并且刷新value
//存储数据,并且将新增加的元素写入两个队列中,一个Write队列、一个Access
队列
setValue(e, key, value, now);
newCount = this.count; // count remains unchanged
} else {
setValue(e, key, value, now);//存储数据,并且将新增加的元素写入两个队列
中
newCount = this.count + 1;
} t
his.count = newCount; // write-volatile,保证内存可见性
//淘汰缓存
evictEntries(e);
return null;
} else if (onlyIfAbsent) {//原来的Entry中包含指定key的元素,所以读取一次,
读取操作需要更新Access队列
.......
setValue(e, key, value, now);//存储数据,并且将新增加的元素写入两个队列中
//数据的淘汰
evictEntries(e);
return entryValue;
}
}
}
//如果目标的entry不存在,那么新建entry
// Create a new entry.
++modCount;
ReferenceEntry<K, V> newEntry = newEntry(key, hash, first);
setValue(newEntry, key, value, now);
......
} finally {
//解锁
unlock();
//处理刚刚的remove Cause
postWriteCleanup();
}
}
4、GuavaCache Get流程
- 获取对象引用(引用可能是非alive的,比如是需要失效的、比如是loading的);
- 判断对象引用是否是alive的(如果entry是非法的、部分回收的、loading状态、需要失效的,则
认为不是alive)。 - 如果对象是alive的,如果设置refresh,则异步刷新查询value,然后等待返回最新value。
- 针对不是alive的,但却是在loading的,等待loading完成(阻塞等待)。
- 这里如果value还没有拿到,则查询loader方法获取对应的值(阻塞获取)。
// LoadingCache methods
//local cache的代理
V get(K key, CacheLoader<? super K, V> loader) throws ExecutionException {
int hash = hash(checkNotNull(key));//hash——>rehash
return segmentFor(hash).get(key, hash, loader);
} /
/ loading
//进行指定key对应的value的获取,读取不加锁
V get(K key, int hash, CacheLoader<? super K, V> loader) throws
ExecutionException {
....
try {
if (count != 0) { // read-volatile volatile读会刷新缓存,尽量保证可见性,如果为0那么直接load
// don't call getLiveEntry, which would ignore loading values
ReferenceEntry<K, V> e = getEntry(key, hash);
//如果对应的Entry不为Null,证明值还在
if (e != null) {
long now = map.ticker.read();//获取当前的时间,根据当前的时间进行Live的数据
的读取
V value = getLiveValue(e, now); // 判断是否为alive(此处是懒失效,在每
次get时才检查是否达到失效时机)
......
}
}
//如果取不到值,那么进行统一的加锁get
// at this point e is either null or expired; 此处或者为null,或者已经被失效。
return lockedGetOrLoad(key, hash, loader);
} catch (ExecutionException ee) {
Throwable cause = ee.getCause();
if (cause instanceof Error) {
throw new ExecutionError((Error) cause);
} else if (cause instanceof RuntimeException) {
throw new UncheckedExecutionException(cause);
}
throw ee;
} finally {
postReadCleanup();//每次Put和get之后都要进行一次Clean
}
}
5、GuavaCache过期重载
数据过期不会自动重载,而是通过get操作时执行过期重载。具体就是CacheBuilder构造的LocalLoadingCache
static class LocalLoadingCache<K, V> extends LocalManualCache<K, V>
implements LoadingCache<K, V> {
LocalLoadingCache(
CacheBuilder<? super K, ? super V> builder, CacheLoader<? super K, V>
loader) {
super(new LocalCache<K, V>(builder, checkNotNull(loader)));
}
// LoadingCache methods
@Override
public V get(K key) throws ExecutionException {
return localCache.getOrLoad(key);
}
@Override
public V getUnchecked(K key) {
try {
return get(key);
} catch (ExecutionException e) {
throw new UncheckedExecutionException(e.getCause());
}
}
@Override
public ImmutableMap<K, V> getAll(Iterable<? extends K> keys) throws
ExecutionException {
return localCache.getAll(keys);
}
@Override
public void refresh(K key) {
localCache.refresh(key);
}
@Override
public final V apply(K key) {
return getUnchecked(key);
}
// Serialization Support
private static final long serialVersionUID = 1;
@Override
Object writeReplace() {
return new LoadingSerializationProxy<K, V>(localCache);
}
}
