注：此文章仅为记录学习过程，原文链接

1.数据简介

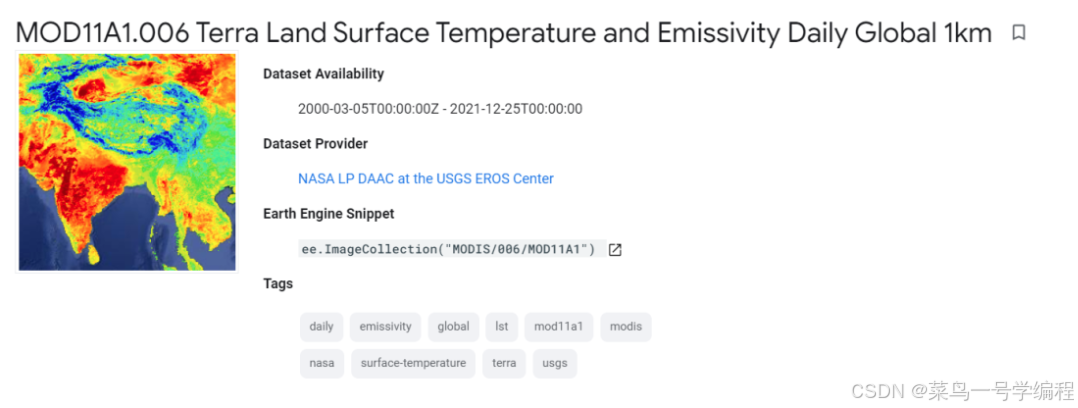

MOD11A1 V6数据集是由Terra星搭载的中分辨率成像光谱仪获取的地表温度/发射率(LST/E)产品，以分片方式组织，时间分辨率为每天，空间分辨率为1公里，格网大小为1200 x 1200千米。温度值由MOD11_L2条带产品处理后得到。在纬度30度以上，某些像素可能在符合晴空的标准的情况下进行了多次观测，像素值为所有合格观测值的平均值。产品包含热红外波段31和32、六个观测波段、白天和夜晚地表温度波段及其相关的质量评估波段。[此数据截止到2022年末]
在这里插入图片描述

2.数据下载

2.1逐日数据获取

// 加载研究区域矢量数据，并将该区域设置为地图中心，以6的大小显示。
var geometry = ee.FeatureCollection(table);
Map.centerObject(geometry,6);
// 数据筛选
var dataset = ee.ImageCollection('MODIS/006/MOD11A1')
.filterDate('2018-01-01', '2023-12-31')
.filterBounds(geometry)
.select('LST_Day_1km');

//换算单位
var subtract= function(image){
  var date = image.get('system:time_start');
  return image.multiply(0.02).subtract(273.15).set('system:time_start', date);
};

// 使用map循环对每张影像进行单位换算
dataset = dataset.map(subtract);

// 进行图表显示
print(ui.Chart.image.series(dataset, geometry, ee.Reducer.mean(), 1000));
// 显示数据集的属性信息
print(dataset)

// 定义数据导出函数
function exportImageCollection(imgCol) {
  // 获取数据日期的列表
  var indexList = imgCol.reduceColumns(ee.Reducer.toList(), ["system:index"]).get("list");
  // 将变量从服务端返回客户端
  indexList.evaluate(function(indexs) {
    for (var i=0; i<indexs.length; i++) {
      var image = imgCol.filter(ee.Filter.eq("system:index", indexs[i])).first();
      print(image)
      // 数据裁剪
      image = image.clip(geometry);
      //tif数据下载
      Export.image.toDrive({
        image: image,
        description: 'mean_LST_Day_temperature_'+indexs[i],
        fileNamePrefix: 'mean_LST_Day_temperature_'+indexs[i],
        folder: 'mean_LST_Day_temperature',
        region: geometry,
        scale: 30,
        crs: "EPSG:4326",
        maxPixels: 1e13
      });
    }
  });
}
exportImageCollection(dataset);

2.2 逐月数据下载

var geometry = ee.FeatureCollection('users/www1573979951/luyixian');
Map.centerObject(geometry,6);
var modisLST =ee.ImageCollection("MODIS/006/MOD11A1");
for(var i=2018;i<=2020;i++){
  for(var j=1;j<=12;j++){
    var data_collection = null;
    switch(j){
      case 1:
      case 3:
      case 5:
      case 7:
      case 8:
      case 10:
      case 12:
        data_collection = modisLST.filterDate(i+'-'+j+'-01',i+'-'+j+'-31').select('LST_Day_1km');
        break;
      case 4:
      case 6:
      case 9:
      case 11:
        data_collection = modisLST.filterDate(i+'-'+j+'-01',i+'-'+j+'-30').select('LST_Day_1km');
        break;
      case 2:
        data_collection = modisLST.filterDate(i+'-'+j+'-01',i+'-'+j+'-28').select('LST_Day_1km');
        break;
    }
    data_collection = data_collection.map(function(img){
      var date = img.get('system:time_start');
      return img.multiply(0.02).subtract(273.15).set('system:time_start', date);
    });
    var YR_collection = data_collection.mean().clip(geometry);
    Export.image.toDrive({
      image: YR_collection,
      description: i+'-'+j,
      fileNamePrefix: i+'-'+j,
      scale: 1000,
      region: geometry,
      maxPixels: 1e13,
      folder: 'Modis'
    })
  }
}

2.3 逐年数据下载

var geometry = ee.FeatureCollection('users/www1573979951/luyixian');
Map.centerObject(geometry,6);
var modisLST =ee.ImageCollection("MODIS/006/MOD11A1");
for(var i=2018;i<=2020;i++){
  var data_collection = modisLST.filterDate(i+'-01-01',i+'-12-31').select('LST_Day_1km');
  data_collection = data_collection.map(function(img){
      var date = img.get('system:time_start');
      return img.multiply(0.02).subtract(273.15).set('system:time_start', date);
  });
  var YR_collection = data_collection.mean().clip(geometry);
  Export.image.toDrive({
    image: YR_collection,
    description: i,
    fileNamePrefix: i,
    scale: 1000,
    region: geometry,
    maxPixels: 1e13,
    folder: 'Modis'
  });
}

指定天数的平均气温下载

var geometry = ee.FeatureCollection(table);
Map.centerObject(geometry,6);
var dataset = ee.ImageCollection('MODIS/006/MOD11A1')
.filterDate('2018-01-01', '2023-12-31')
.filterBounds(geometry)
.select('LST_Day_1km');

//换算单位1
var subtract= function(image){
  var date = image.get('system:time_start');
  return image.multiply(0.02).subtract(273.15).set('system:time_start', date);
};
dataset = dataset.map(subtract);
print(ui.Chart.image.series(dataset, geometry, ee.Reducer.mean(), 1000));
print('dataset',dataset)
var datelist = ee.List(['20180117','20180210','20180306','20180330','20180423','20180517','20180610',
'20180704','20180728','20180821','20180914','20181008','20181101','20181125','20181219','20190112'])

// 定义一个函数，用于将日期字符串转换为日期对象
var convertToDate = function(dateStr) {
  // 将日期字符串转换为 'yyyy-MM-dd' 格式
  var year = ee.String(dateStr).slice(0, 4);
  var month = ee.String(dateStr).slice(4, 6);
  var day = ee.String(dateStr).slice(6, 8);
  var formattedDateStr = year.cat('-').cat(month).cat('-').cat(day);

  // 返回日期对象
  return formattedDateStr;
};

// 定义一个函数，用于计算前7天的日期并输出所需格式
var formatStartDate = function(dateStr) {
  // 将日期字符串转换为ee.Date对象
  var targetDate = ee.Date(convertToDate(dateStr));

  // 计算前7天的日期
  var startDate = targetDate.advance(-7, 'day');
  var endDate = targetDate.advance(7, 'day');
  // 将日期转换为字符串格式
  var targetDateString = targetDate.format('yyyy-MM-dd');
  var startDateString = startDate.format('yyyy-MM-dd');
  var endDateString = endDate.format('yyyy-MM-dd');

  // 返回所需格式的字符串
  return startDateString.cat(',').cat(endDateString).cat(',').cat(targetDateString);
};

// 对日期列表中的每个日期应用函数
var formattedStartDateList = datelist.map(formatStartDate);
print('formattedStartDateList', formattedStartDateList)

//将逐日数据生成7day数据
var weekly_mean =  ee.ImageCollection.fromImages(
  formattedStartDateList.map(function (y) {
    return dataset.filterDate(ee.String(y).split(",").get(0), ee.String(y).split(",").get(1))
      .mean().set('system:time_start', ee.String(y).split(",").get(2));
  }).flatten());
print('weekly_mean', weekly_mean)

var splitLine = function(line) {
  return ee.String(line).split(',').get(2);
};
// 对每一行应用分割函数
var datePairsList = formattedStartDateList.map(splitLine);
print('datePairsList', datePairsList)

function exportImageCollection(imgCol) {
  // var indexList = imgCol.reduceColumns(ee.Reducer.toList(), ["system:index"]).get("list");
  datePairsList.evaluate(function(indexs) {
    for (var i=0; i<indexs.length; i++) {
      var image = imgCol.filter(ee.Filter.eq("system:time_start", indexs[i])).first();
      print(image)
      image = image.clip(geometry);
      //tif数据下载
      Export.image.toDrive({
        image: image,
        description: 'mean_LST_Day_temperature_'+indexs[i],
        fileNamePrefix: 'mean_LST_Day_temperature_'+indexs[i],
        folder: 'mean_modis_temperature_ave7day',
        region: geometry,
        scale: 30,
        crs: "EPSG:4326",
        maxPixels: 1e13
      });
    }
  });
}
exportImageCollection(weekly_mean);

3.参考

【1】https://blog.csdn.net/qq_32306361/article/details/126221654
