ESP32基于SPI外挂W5500模块

基于官方案例ESP-IDF v4.4.2/example/ethernet/basic修改。
使用静态IP地址上网，设置静态地址时需要先调用下面接口来disable客服端dhcp。然后设置静态IP地址，设置静态IP的位置要对，在此感谢嘉友创信息科技开源小步。

esp_err_t esp_netif_dhcpc_stop(esp_netif_t *esp_netif);

注意这两者的区别，我刚开始没注意写错了。

esp_err_t esp_netif_dhcps_stop(esp_netif_t *esp_netif);

完整代码如下
头文件定义如下，根据实际选用的SPI设置。

#define CONFIG_ETH_SPI_HOST 2
#define CONFIG_ETH_SPI_CLOCK_MHZ 12
#define CONFIG_ETH_SPI_SCLK_GPIO 18
#define CONFIG_ETH_SPI_MOSI_GPIO 23
#define CONFIG_ETH_SPI_MISO_GPIO 19

#define CONFIG_ETH_SPI_CS0_GPIO 5
#define CONFIG_ETH_SPI_INT0_GPIO 21
#define CONFIG_ETH_SPI_PHY_RST0_GPIO -1
#define CONFIG_ETH_SPI_PHY_ADDR0 1

#define IF_KEY_STR "ETH_SPI"
#define IF_DESC_STR "eth"

void bsp_ethernet_init(void)
{
    ESP_LOGI(TAG, "%s", __func__);

    // Initialize TCP/IP network interface (should be called only once in application)
    ESP_ERROR_CHECK(esp_netif_init());

    // Create instance(s) of esp-netif for SPI Ethernet(s)
    esp_netif_inherent_config_t esp_netif_config = ESP_NETIF_INHERENT_DEFAULT_ETH();
    esp_netif_config_t cfg_spi = {
        .base = &esp_netif_config,
        .stack = ESP_NETIF_NETSTACK_DEFAULT_ETH};

    esp_netif_config.if_key = IF_KEY_STR;
    esp_netif_config.if_desc = IF_DESC_STR;
    esp_netif_config.route_prio = 30;

    esp_netif_t *eth_netif_spi = NULL;
    eth_netif_spi = esp_netif_new(&cfg_spi);

    // Init MAC and PHY configs to default
    eth_mac_config_t mac_config_spi = ETH_MAC_DEFAULT_CONFIG();
    eth_phy_config_t phy_config_spi = ETH_PHY_DEFAULT_CONFIG();

    // Install GPIO ISR handler to be able to service SPI Eth modlues interrupts
    gpio_install_isr_service(0);

    // Init SPI bus
    spi_device_handle_t spi_handle = NULL;

    spi_bus_config_t buscfg = {
        .miso_io_num = CONFIG_ETH_SPI_MISO_GPIO,
        .mosi_io_num = CONFIG_ETH_SPI_MOSI_GPIO,
        .sclk_io_num = CONFIG_ETH_SPI_SCLK_GPIO,
        .quadwp_io_num = -1,
        .quadhd_io_num = -1,
    };

    ESP_ERROR_CHECK(spi_bus_initialize(CONFIG_ETH_SPI_HOST, &buscfg, SPI_DMA_CH_AUTO));

    // Init specific SPI Ethernet module configuration from Kconfig (CS GPIO, Interrupt GPIO, etc.)
    spi_eth_module_config_t spi_eth_module_config;
    INIT_SPI_ETH_MODULE_CONFIG(spi_eth_module_config, 0);

    // Configure SPI interface and Ethernet driver for specific SPI module
    esp_eth_mac_t *mac_spi;
    esp_eth_phy_t *phy_spi;
    esp_eth_handle_t eth_handle_spi = NULL;

    spi_device_interface_config_t devcfg = {
        .command_bits = 16, // Actually it's the address phase in W5500 SPI frame
        .address_bits = 8,  // Actually it's the control phase in W5500 SPI frame
        .mode = 0,
        .clock_speed_hz = CONFIG_ETH_SPI_CLOCK_MHZ * 1000 * 1000,
        .queue_size = 20};

    // Set SPI module Chip Select GPIO
    devcfg.spics_io_num = spi_eth_module_config.spi_cs_gpio;

    ESP_ERROR_CHECK(spi_bus_add_device(CONFIG_ETH_SPI_HOST, &devcfg, &spi_handle));

    // w5500 ethernet driver is based on spi driver
    eth_w5500_config_t w5500_config = ETH_W5500_DEFAULT_CONFIG(spi_handle);

    // Set remaining GPIO numbers and configuration used by the SPI module
    w5500_config.int_gpio_num = spi_eth_module_config.int_gpio;
    phy_config_spi.phy_addr = spi_eth_module_config.phy_addr;
    phy_config_spi.reset_gpio_num = spi_eth_module_config.phy_reset_gpio;

    mac_spi = esp_eth_mac_new_w5500(&w5500_config, &mac_config_spi);
    phy_spi = esp_eth_phy_new_w5500(&phy_config_spi);

    esp_eth_config_t eth_config_spi = ETH_DEFAULT_CONFIG(mac_spi, phy_spi);
    ESP_ERROR_CHECK(esp_eth_driver_install(&eth_config_spi, &eth_handle_spi));

    /* The SPI Ethernet module might not have a burned factory MAC address, we cat to set it manually.
   02:00:00 is a Locally Administered OUI range so should not be used except when testing on a LAN under your control.*/
    ESP_ERROR_CHECK(esp_eth_ioctl(eth_handle_spi, ETH_CMD_S_MAC_ADDR, (uint8_t[]){0xB0, 0x8E, 0x1A, 0x37, 0x00, 0x01}));

    //  attach Ethernet driver to TCP/IP stack
    ESP_ERROR_CHECK(esp_netif_attach(eth_netif_spi, esp_eth_new_netif_glue(eth_handle_spi)));
#if 1	 // 设置静态IP地址
    esp_netif_dhcpc_stop(eth_netif_spi); //注意接口不能用错
    char *ip = "192.168.1.168";
    char *gateway = "192.168.1.1";
    char *netmask = "255.255.0.0";
    esp_netif_ip_info_t ip_info;

    memset(&ip_info, 0, sizeof(esp_netif_ip_info_t));
    ip_info.ip.addr = esp_ip4addr_aton((const char *)ip);
    ip_info.netmask.addr = esp_ip4addr_aton((const char *)netmask);
    ip_info.gw.addr = esp_ip4addr_aton((const char *)gateway);

    esp_err_t err = 0;
    err = esp_netif_set_ip_info(eth_netif_spi, &ip_info);

    if (ESP_OK == err)
        ESP_LOGI(TAG, "Set static IP OK");
    else
        ESP_LOGI(TAG, "Set static IP error: %d", err);

#endif

    // Register user defined event handers
    ESP_ERROR_CHECK(esp_event_handler_register(ETH_EVENT, ESP_EVENT_ANY_ID, &eth_event_handler, NULL));
    ESP_ERROR_CHECK(esp_event_handler_register(IP_EVENT, IP_EVENT_ETH_GOT_IP, &got_ip_event_handler, NULL));

    /* start Ethernet driver state machine */
    ESP_ERROR_CHECK(esp_eth_start(eth_handle_spi));

   // web_server = start_webserver();//使用web访问，配置参数
}
/** Event handler for Ethernet events */
static void eth_event_handler(void *arg, esp_event_base_t event_base,
                              int32_t event_id, void *event_data)
{
    uint8_t mac_addr[6] = {0};
    /* we can get the ethernet driver handle from event data */
    esp_eth_handle_t eth_handle = *(esp_eth_handle_t *)event_data;

    switch (event_id)
    {
    case ETHERNET_EVENT_CONNECTED:
        esp_eth_ioctl(eth_handle, ETH_CMD_G_MAC_ADDR, mac_addr);
        ESP_LOGI(TAG, "Ethernet Link Up");
        ESP_LOGI(TAG, "Ethernet HW Addr %02x:%02x:%02x:%02x:%02x:%02x",
                 mac_addr[0], mac_addr[1], mac_addr[2], mac_addr[3], mac_addr[4], mac_addr[5]);
        break;
    case ETHERNET_EVENT_DISCONNECTED:
        ESP_LOGI(TAG, "Ethernet Link Down");
        break;
    case ETHERNET_EVENT_START:
        ESP_LOGI(TAG, "Ethernet Started");
        break;
    case ETHERNET_EVENT_STOP:
        ESP_LOGI(TAG, "Ethernet Stopped");
        break;
    default:
        break;
    }
}

/** Event handler for IP_EVENT_ETH_GOT_IP */
static void got_ip_event_handler(void *arg, esp_event_base_t event_base,
                                 int32_t event_id, void *event_data)
{
    ip_event_got_ip_t *event = (ip_event_got_ip_t *)event_data;
    const esp_netif_ip_info_t *ip_info = &event->ip_info;

    ESP_LOGI(TAG, "Ethernet Got IP Address");
    ESP_LOGI(TAG, "ETHIP:" IPSTR, IP2STR(&ip_info->ip));
    ip_tmp = ip_info->ip;
    ESP_LOGI(TAG, "ETHMASK:" IPSTR, IP2STR(&ip_info->netmask));
    ESP_LOGI(TAG, "ETHGW:" IPSTR, IP2STR(&ip_info->gw));
    //  http_init();//成功获取到IP地址后，执行http上报
}

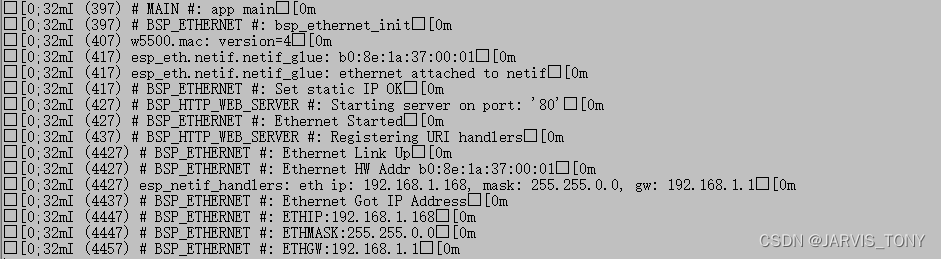

输出如下，成功获取到IP地址

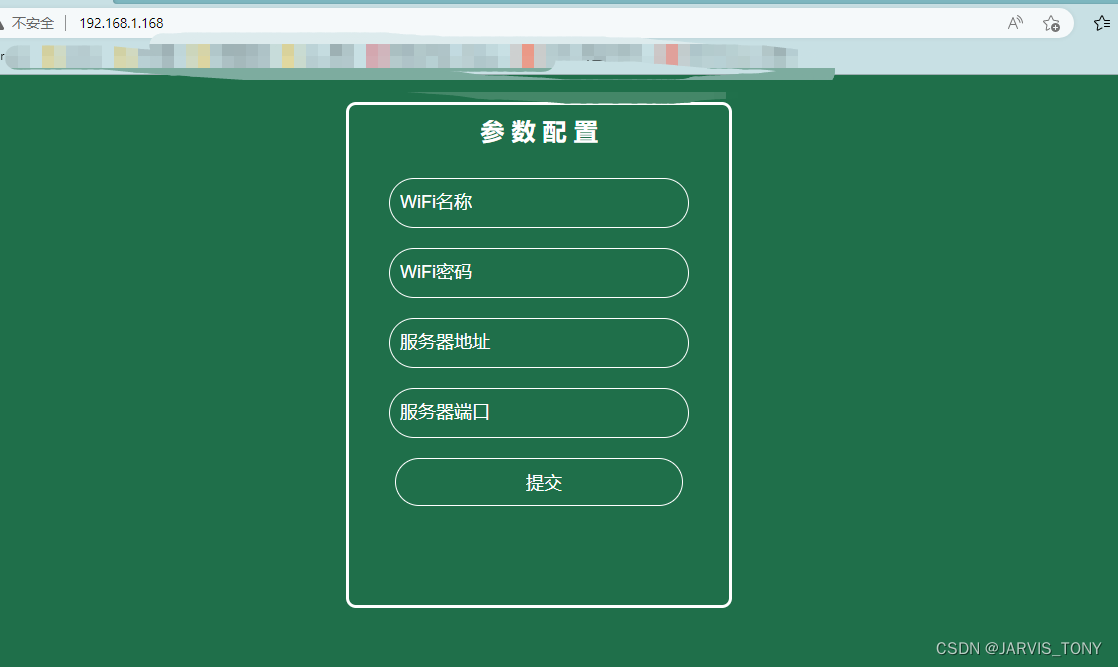

网页配置如下
