K210机器听觉— 音频播放

使用设备

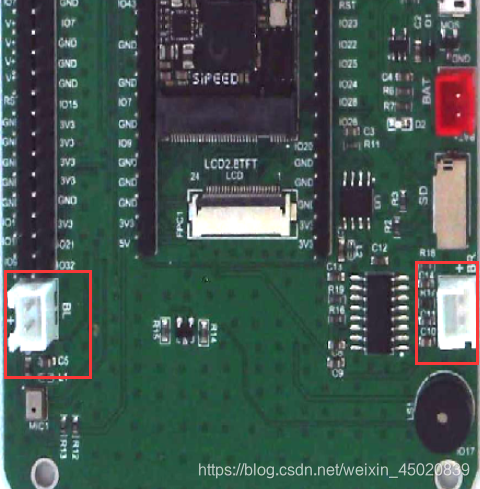

ZTFR开发板

喇叭接口，注意喇叭正负极

音频播放

使用方法

import audio

player = audio.Audio(path = "/sd/6.wav")

构造函数

创建 I2S 对象（用于处理音频对象）

from Maix import I2S

# init i2s(i2s0)
wav_dev = I2S(I2S.DEVICE_0)
# config i2s according to audio info
wav_dev.channel_config(wav_dev.CHANNEL_1, I2S.TRANSMITTER,resolution = I2S.RESOLUTION_16_BIT ,cycles = I2S.SCLK_CYCLES_32, align_mode = I2S.RIGHT_JUSTIFYING_MODE)

获取 audio 对象信息并关联 I2S 对象

# read audio info
wav_info = player.play_process(wav_dev)
print("wav file head information: ", wav_info)

据 audio 信息配置 I2S 对象

sample_rate = wav_info[1]
wav_dev.set_sample_rate(sample_rate)

使用已关联的 I2S 对象播放音频

# loop to play audio
while True:
    ret = player.play()
    if ret == None:
        print("format error")
        break
    elif ret==0:
        print("end")
        break

结束播放

player.finish()

示例程序

播放wav格式音频：wav格式的音频频率不能超过16KHZ

from fpioa_manager import *
from Maix import I2S, GPIO
import audio

# disable wifi
fm.register(8, fm.fpioa.GPIO0)
wifi_en=GPIO(GPIO.GPIO0,GPIO.OUT)
wifi_en.value(0)

# register i2s(i2s0) pin
fm.register(34,fm.fpioa.I2S0_OUT_D1)
fm.register(35,fm.fpioa.I2S0_SCLK)
fm.register(33,fm.fpioa.I2S0_WS)

# init i2s(i2s0)
wav_dev = I2S(I2S.DEVICE_0)

# init audio
player = audio.Audio(path = "/sd/tishi16K.wav")
player.volume(40)

# read audio info
wav_info = player.play_process(wav_dev)
print("wav file head information: ", wav_info)

# config i2s according to audio info
wav_dev.channel_config(wav_dev.CHANNEL_1, I2S.TRANSMITTER,resolution = I2S.RESOLUTION_16_BIT ,cycles = I2S.SCLK_CYCLES_32, align_mode = I2S.RIGHT_JUSTIFYING_MODE)
wav_dev.set_sample_rate(wav_info[1])

# loop to play audio
while True:
    ret = player.play()
    if ret == None:
        print("format error")
        break
    elif ret==0:
        print("end")
        break
player.finish()
